Crestron DM-NVX-352 User manual

DM-NVX-352(C)
DigitalMedia™ 4K60 4:4:4 HDR Network AV
Encoder/Decoderwith Dante® Audio
Web InterfaceGuide
CrestronElectronics,Inc.

Original Instructions
The U.S. English version of this document is the original instructions.
All otherlanguages are a translationof the original instructions.
Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a
limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating
system software is licensed to Crestrondealers, CSPs, and end-usersunder a separate End-UserLicense Agreement.
Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_
agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource.
Crestron, the Crestronlogo, .AV Framework, 3-Series, 3-Series Control System, Adagio, AirMedia, Auto-Locking, Cameo,
Core 3, Core 3 UI, CresFiber, Cresnet, Crestron Avia, Crestron, the Crestronlogo, Crestron Toolbox, and DigitalMedia are
eithertrademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries.
Dolby and Dolby Atmos are either trademarks or registered trademarks of Dolby Laboratories inthe United States
and/or other countries. DTS HD and DTS:X are either trademarks orregistered trademarks of DTS, Inc. in the United
States and/orother countries. HDMI is eithera trademark orregistered trademark of HDMI Licensing LLC in the United
States and/orothercountries. Othertrademarks, registered trademarks, and trade names may be used in this
document to refer toeitherthe entities claiming the marks and names ortheir products. Crestron disclaimsany
proprietary interest in the marks and names of others. Crestronis not responsible for errors in typography or
photography.
©2020 CrestronElectronics, Inc.

Contents
Introduction 1
Web-basedConfigurationInterface 1
AccessingtheWeb-basedConfigurationInterface 1
Access Web-basedConfigurationwithaWebBrowser 1
Access Web-basedConfigurationWithCrestronToolbox™ Software 2
EasyConfiguration Guide 5
Howto ConfigureDM-NVX-352(C)as aTransmitter 5
Howto ConfigureDM-NVX-352(C)as aReceiver 6
HowtoConfigureSubscription-basedRoutingontheReceiver 7
HowtoLogintoDM-NVX-352(C)UsingActiveDirectoryCredentials 8
ToLogInas ActiveDirectory User: 8
ToLogInas ActiveDirectory GroupUser 10
Status 13
Stream 16
Stream 17
+AdvancedStreamOptions 18
Statistics 20
Audio/Video 20
DMNAX(AES67)Audio 21
Encoder 21
Decoder 23
Routing 25
InputRouting: 25
Subscriptions (Applicable OnlyWhen DM-NVX-352(C) is in Receiver
Mode) 27
AvailableStreams 27
SubscribedStreams 29
Inputs 30
Global EDID 31
Applying/SendingGlobalEDID 31
GlobalInputs 32
HDMI Input1 and HDMI Input 2 34
GeneralSettings 34
EDID 35
Web Interface Guide — Doc. Contents • i

UploadaCustom EDID FileBy FollowingtheSteps Below: 36
ToDeleteaCustom EDID FileFrom theSelect Drop-down List,Do thefollowing: 36
InputSignal 37
Output 39
Receiver Mode 39
HDMI OutputSettings 41
ConnectedDisplay 43
OutputSignal 44
AnalogSettings 45
AutomaticPower Settings 45
Transmitter Mode 45
HDMI OutputSetting 46
Connecteddisplay 47
OutputSignal 47
AnalogSettings 48
On-Screen Display 49
ToAdjusttheTextOverlaySettings: 49
USB 51
Network 54
NetworkSettings 54
ToConfiguretheNetwork Settings ofDM-NVX-352(C),Modify Oneor Moreof the
Following: 54
802.1 x Configuration 55
ToConfigureDM-NVX-352(C)for 802.1XAuthentication: 56
NetworkInterface 57
PortSelection 57
Device 59
DeviceManagement 60
ToUpgradetheFirmwareoftheDM-NVX-352(C): 61
RestoringFactoryDefaultSettings 61
RebootingtheDM-NVX-352(C) 62
CloudSettings 62
AutoUpdate 63
ControlSystem 63
ConfigureDate/Time 64
AuthenticationManagement 66
Groups 67
Users 70
CurrentUser 74
RS232Settings 75
ii • Contents Web Interface Guide — Doc.

IRSettings 76
Web Interface Guide — Doc. Contents • iii

iv • Contents Web Interface Guide — Doc.

Web Interface Guide — Doc. DM-NVX-352(C) • 1
Introduction
TheDM-NVX-352(C)is acompactvideoencoder/decoder designedtofunctionas either
transmitter or receiver with theabilityto switch betweenthetwomodes programmaticallyvia
commands from aCrestron controlsystem or theWeb-basedInterface.Featuringsimpleweb-
basedcontrolandmanagement,USBandKVMintegration,built-inscalingandvideowall
processing,nativeDante®or AES67transmit andreceivecapability,supportfor HDR10+,Dolby
Vision,andHDCP 2.2,andoptionalfiber connectivity,theDM-NVX-352(C)is one-stopsolutionfor
any-sizednetworkAVinstallation.
Web-basedConfiguration Interface
Theweb-basedconfiguration interfaceof theDM-NVX-352(C)allows youto viewstatus
informationfor theDM-NVX-352(C)andconfigureits networkanddevicesettings.
Accessing the Web-based Configuration Interface
Theweb-basedconfiguration interfaceis accessedfrom awebbrowser.Thefollowingtablelists
various operatingsystems andthecorrespondingsupportedwebbrowsers.
OPERATING SYSTEM SUPPORTED WEB BROWSERS
Windows® operating system Chrome™ web browser, version 31 andlater
Firefox® webbrowser, version31 andlater
InternetExplorer web browser, version 11 andlater
MicrosoftEdge webbrowser
OSX® operatingsystem Safari® webbrowser, version6 andlater
Chrome™ web browser, version 31 andlater
Firefox® webbrowser, version31 andlater
OperatingSystemandSupportedWebBrowsers
Toaccess theuser interface,doeither of thefollowing:
lOpenitdirectlyinawebbrowser
lOpenawebbrowser from withintheCrestron Toolbox™ application.
Access Web-based Configuration with aWebBrowser
1. Enter theIP address of theDM-NVX-352(C)intoawebbrowser.
NOTE:ToobtaintheIP address,press theSetupbuttonon theDM-NVX-352(C)todisplay
theIP address on theHDMI outputor usethefront panelof theDMF-CI-8chassis for
DM-NVX-352(C).

2 • DM-NVX-352(C) Web Interface Guide — Doc.
2. Enter your credentials intheDeviceAdministrationdialog(Notethattheuser nameand
passwordarecasesensitive).Thedefault user nameis admin ,andthedefaultpasswordis
admin .
NOTE:For enhancedsecurity,it is recommendedthatthedefaultpasswordis changed.
3. ClickSignIn.
Access Web-based Configuration With Crestron Toolbox™
Software
Toaccess theuser interfacebyopeningawebbrowser within theCrestron Toolbox™ application,
dothefollowing:

Web Interface Guide — Doc. DM-NVX-352(C) • 3
1. OpentheCrestron Toolbox™ application.
2. From theTools menu,select DeviceDiscoveryTool.You can also access theDevice
Discovery ToolbyclickingtheDeviceDiscovery Toolbutton inthetoolbar ofCrestron
Toolbox.TheDM-NVX-352(C)is discoveredandis listedinthedevicelist ontheleft-hand
sideofthescreen.Theassociatedhostname,IP address,andfirmwareversionarealso
displayed.
NOTE:If thereis security softwarerunningonthecomputer,you mightreceiveasecurity
alertwhentheCrestron Toolbox applicationattempts toconnect to thenetwork.Make
suretoallowtheconnection,sothattheDeviceDiscoveryToolcanbeused.
3. IntheDeviceDiscovery Toollist,double-clickonyour DM-NVX-352(C)device.

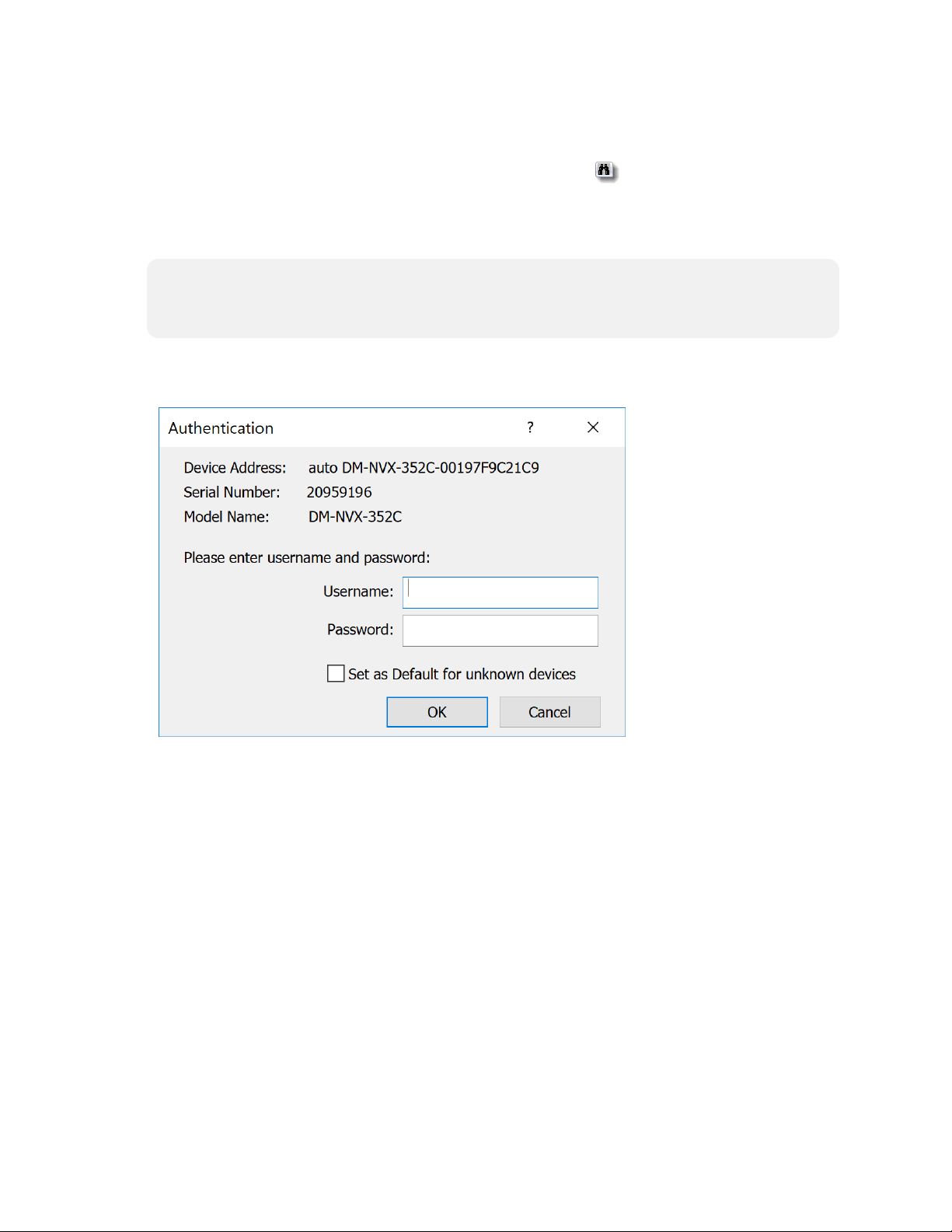

4. Enter your credentials in theAuthenticationdialogthat opens andclick LogIn.

4 • DM-NVX-352(C) Web Interface Guide — Doc.
5. ClicktheWebConfigurationbuttonintheConfigurationpagedisplayedonthelefthand
sideoftheDeviceDiscoveryTool.

Web Interface Guide — Doc. DM-NVX-352(C) • 5
Easy ConfigurationGuide
ADM-NVX-352(C)devicecanbeconfiguredtofunctionas anetwork AVtransmitter (encoder)or
receiver (decoder):
lAs atransmitter,aDM-NVX-352(C)deviceallows alaptopcomputer,camera,or other
mediasourceto beconnectedviaanHDMIcableandthentransmittedover thenetwork.
lAs areceiver,aDM-NVXdevicereceives thesignalfrom aDM-NVXencoder andfeeds the
signaltoadisplaydeviceviatheHDMIoutput.ADM-NVXdecoder canswitchamong
multipleDM-NVXencoders on thenetworkalongsidelocallyconnectedHDMI sources.
ToconfigureaDM-NVXdeviceas antransmitter or receiver,followtheinstructions below.
Howto Configure DM-NVX-352(C) as aTransmitter
1. NavigatetotheSTREAMpageandselectTransmitter fromtheModedrop-downlist.
2. SelectYes whenpromptedto rebootthedeviceso thedevicecanbeproperly configuredas a
transmitter.
NOTE:You willberequiredtologinafter thedevicereboots.

6 • DM-NVX-352(C) Web Interface Guide — Doc.
3. After thedevicehas rebootedandyouhaveloggedin,navigatetotheStreampageandenter
avalidmulticast address in theMulticast Address field.
Oncethestreamhas started,theStatus read-onlyfieldwillupdateaccordinglytoreportthe
status of thedevice.
4. Copythestream locationdisplayedintheStream Locationfieldsoitcanbeenteredinthe
DM-NVX-352(C)Receiver.
Howto Configure DM-NVX-352(C) as aReceiver
1. NavigatetotheStreampageandselectReceiver from theModedrop-downlist.
2. SelectYes whenpromptedto rebootthedeviceso thedevicecanproperlybeconfiguredas a
receiver.
Notethatyou willberequiredtologinafter thedevicereboots.

Web Interface Guide — Doc. DM-NVX-352(C) • 7
3. After thedevicehas rebootedandyouhaveloggedin,navigatetotheStreampageandenter
thestreamlocationof thetransmitter intheStreamLocationfield.
Oncethestreamhas started,theStatus fieldwillupdatewiththestatus ofthedevice.
Howto ConfigureSubscription-basedRoutingonthe
Receiver
1. NavigatetotheSubscriptions page.
Theavailabletransmitters on thenetworkwillbedisplayedintheAvailableStreams section.
2. ClicktheSubscribebuttontosubscribetoastream,or subscribetomultiplestreams by
selectingthecorrespondingcheckboxes andclickingthe+SubscribeCheckedbutton.

8 • DM-NVX-352(C) Web Interface Guide — Doc.
3. Thestream(s)youhavesubscribedtowillbedisplayedintheSubscribedStreams section.
4. Toswitchbetweenthesubscribedstreams,navigatetotheXio-Routingsectionof the
Routingpageandclicktheradiobuttonfor thedesiredstream.
Howto Login to DM-NVX-352(C) UsingActiveDirectory
Credentials
Therearetwoways tologinusingActiveDirectory credentials:byusingActiveDirectoryuser
credentials,or byusingActiveDirectoryGroupuser credentials.
To Log In as Active Directory User:
NOTE:Users mustbealreadycreatedon theActiveDirectoryserver.
1. Loginto theDM-NVX-352(C).
2. NavigatetotheDevicepage,clickonAuthenticationManagementandselecttheUsers tab.

Web Interface Guide — Doc. DM-NVX-352(C) • 9
3. ClickonCreateUser button.
4. InCreateUser dialog,settheActiveDirectoryUser slider for ActiveDirectory toON.

10 • DM-NVX-352(C) Web Interface Guide — Doc.
5. Enter thenameof theuser intheNametextfieldusingthefollowingformat“Domain
name\username”,for example“crestronlab.com\admin_1”.
6. Select Administrators intheGroups drop-downlist,ifyouwouldliketheActiveDirectory
user tohaveadministrator privileges.
7. Login to theDM-NVX-352(C)usingtheActiveDirectoryuser credentials.
To Log In as Active Directory Group User
Prerequisites:
lActiveDirectory Users &ActiveDirectoryGroups mustalreadybecreatedontheActive
Directory server.
lActiveDirectory users must beassignedtospecificActiveDirectory Groups,for example:
ActiveDirectory Group:Engineering_Group,ActiveDirectory User :user1.

Web Interface Guide — Doc. DM-NVX-352(C) • 11
1. Loginto theDM-NVX-352(C).
2. NavigatetotheDevicepage,clickonAuthenticationManagementandselecttheGroups
tab.
3. ClickontheCreateGroupbutton.
4. IntheCreateGroupdialog,settheActiveDirectoryGroupslider toON.
5. Enter thename(casesensitive)of theActiveDirectory groupintheNametextfield.

12 • DM-NVX-352(C) Web Interface Guide — Doc.
6. Select“Administrators” from theAccess Leveldrop-downlistifyouwanttheActive
Directory grouptohaveadministrator privileges.
7. Login usingtheActiveDirectory GroupUser credentials.

Web Interface Guide — Doc. DM-NVX-352(C) • 13
Status
TheStatus Informationpageis thefirst pagethatis visiblewhenstartingthewebinterfaceof
DM-NVX-352(C).Itdisplays generalinformationabout theDM-NVX-352(C)(such as modelname,
serialnumber,andfirmwareversion),current networksettings (suchas host nameandIP
address,etc.),as wellas information about theconnectiontothecontrolsystem.
TheStatus pagecanbeaccessedatanytimebysimplyclickingtheSTATUStabinthenavigation
bar of theweb-baseduser interfaceof theDM-NVX-352(C).
Information displayedontheStatus pageis organizedintodifferent sections:
General:Displays theModel,FirmwareVersion,andSerialNumber of theDM-NVX-352(C).
Clickon +ShowMoretoseeadditionalinformationaboutDM-NVX-352(C).
Network:Displays theHostName,DomainName,andDNS Servers of theDM-NVX-352(C).
NOTE:Bydefaultthehost nameof DM-NVX-352(C)consists of themodelnamefollowedbythe
MACaddress of thedevice.For example,DM-NVX-352(C)- 00107F7C6544.

14 • DM-NVX-352(C) Web Interface Guide — Doc.
Adapter 1:Displays DHCPEnabled,IPAddress,SubnetMask,DefaultGateway,LinkActive,and
MacAddress of theDM-NVX-352(C).
ControlSystem Connections:Displays thefollowingconnectioninformation.
lIP ID:IP ID of DM-NVX-352(C).
lRoomID:Room ID of thecontrolsystem.
lIP Address/Hostname:Address of thecontrolsystem.
lType:Always setto Peer.
lServer Port:Displays theserver port.Thedefaultport is setto 41794.
lConnectionType:Always setto Gway.
lStatus:Thestatus willbeeither OFFLINEor ONLINE.
