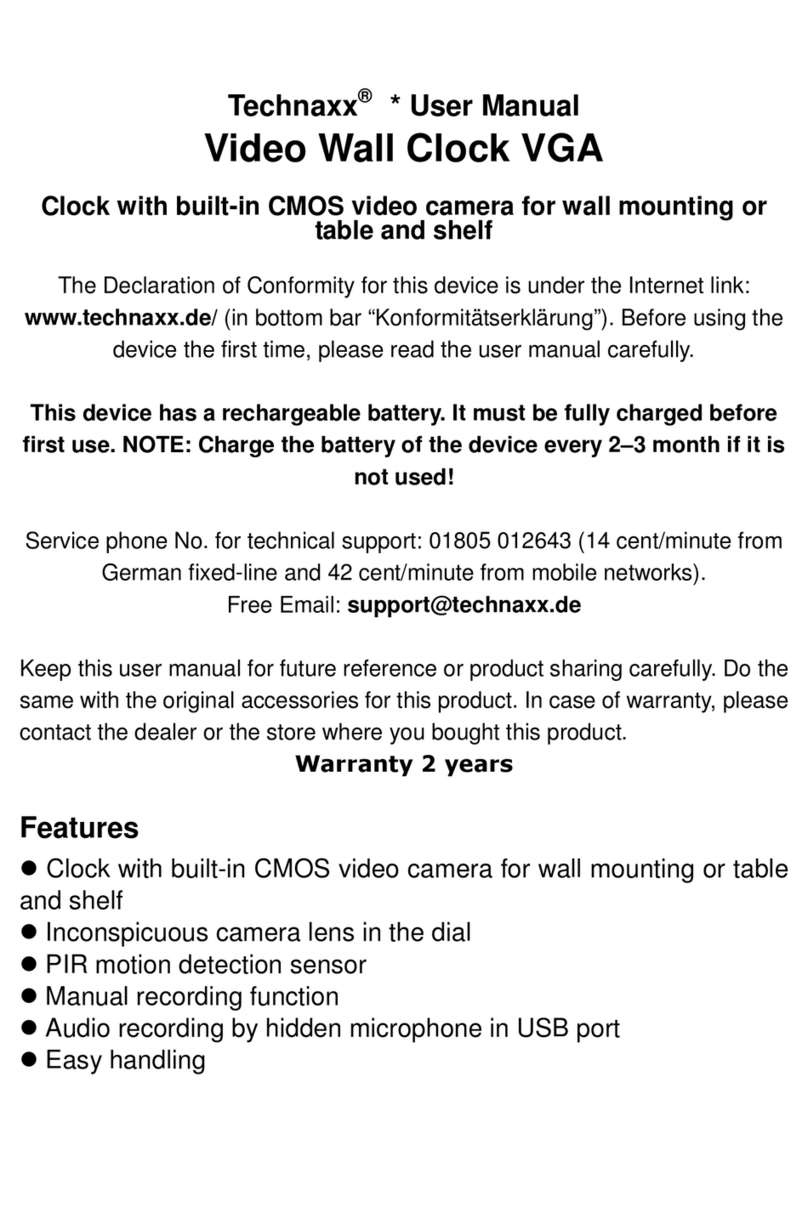

Technaxx 4219 User manual

Technaxx®Video Wall Clock VGA
User Manual
The Declaration of Conformity for this device is under: www.technaxx.de/ (in bottom bar “Konformitätserklärung”)
Before using the watch the first time, read the instructions carefully.
Features

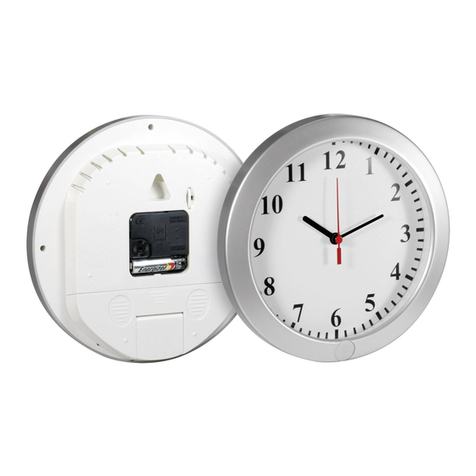

 Stylish clock for wall mounting or table and shelf with built-in video camera
 Small CMOS camera lens hidden in the dial
 Automatic PIR sensor detection recording and manual recording function (~ 5 hours)
 Snapshot function
 Audio recording by hidden microphone in USB port
 Video resolution 720 x 480 with 30fps
 Save videos on MicroSD memory card (up to 32GB)
 Built-in rechargable 1000mAH Lithium Polymer battery
 LED battery status indicator
 Classic design with metal look, Ø 18cm / 450g and easy handling
Product Overview
Time adjustment
LED indicator
Power on/off
USB port for PC and charge
with hidden microphone
reset
MicroSD card
DC charge

Make sure the battery is fully charged!
USB Charging
Connect the clock to a computer with the included USB cable the RED light turns on. It
takes approx. 5 hours until the 1000mA battery is fully charged.
DC 5V Charging
Connect the clock to a socket with the included DC cable the RED light turns on. It takes
approx. 5 hours until the 1000mA battery is fully charged. The clock can be charged via the
DC port while the camera is recording at the same time.
Make sure an MicroSD card is plugged in the slot before starting recording!
PIR sensor detection recording
Press power button shortly the GREEN light flashes 6 times the camera enters into
PIR recording.
The GREEN light will intermittent flash, until people come to PIR area the camera
starts recording automatically.
Once people left the PIR area the camera stops recording and goes back to the
standby status after 1 minute.
Press power button shortly light flashes 3 times and the camera powers off.
Manual recording
To start manual recording press power button about 3 seconds the camera starts
recording directly (it is regular recording, not PIR recording!).
To stop manual recording press power button shortly light flashes 3 times and the
camera powers off.
Connection to PC
Connect the camera to a PC with the USB cable after connection a disk named
“Movable Disk” is shown on the PC screen
In case you cannot open the “Movable Disk”, check if the SD card is plugged inside.
In case the PC cannot detect the clock’s camera, check if USB port on PC maybe is too
loose and/or try another USB port.
Time and date change
Make a text file named "TAG.txt"
go to Explorer, click on right mouse button, click on “NEW”, create a
“TEXTDOCUMENT” and name it “TAG.txt”

Open the file “TAG.txt” and write down date and time in the following way (example)
[date]
2013/06/25
12:00:00
Save the file to the clock camera in the root-directory which shows “Movable disk”, when
connect to computer
Then withdraw the clock safely from the PC
If recording a new video file you can see that the date/time changed for the next video,
date/time will adjust automatically.
Technical Specifications
Lens CMOS lens
Video resolution 720 x 480 with 30fps
Video format AVI (Recommended players: storm player, KMPlayer, Mplayer
and others which support multi format video)
Storage MicroSD memory card (up to 32GB)
PIR sensor Area of 3–8m and 70° sector
Battery for video
recording Built-in rechargable 1000mAH Lithium Polymer battery, Standby time ~25 days (~600 hours)
Charging time ~ 5 hours at least
Recording time ~ 5 hours continuous recording (when fully charged)
Circle recording When memory card is full with data, it starts overwriting the earliest recorded video(s). If you want to keep some videos,
you have to change the video’s name, then it is not overwritten
Charging voltage DC–5V or 1A power adaptor* (*not included in delivery)
Separate AA batterie* for clock operation (* not included in delivery)
Supported systems Windows ME/Vista/XP/2003/2000/98, Mac OS, Linux
Working temperature Best use in room temperature
Working humidity NOT waterproof, do not use in humid environment
Shooting illumination Use it in well lighted environment, but do NOT face it to
powerful light directly (this may damage the lens)
Protection hints It is an electronic product. Avoid heavy hit and vibration and do
NOT use it n high voltage fields.
Material Plastic in metal optic
Dimensions / Weight Ø 18cm, thickness 4cm / 450g
Package Contents Video Wall Clock VGA, USB + DC cable, Stand, User Manual
Security and Disposal Hints for Batteries: Hold children off batteries. When a child swallowed a battery go to a doctors place or bring
the child into a hospital promptly! Look for the right polarity (+) and (--) of batteries! Always change all batteries, never use old and new
batteries or batteries of different types together. Never short batteries. Do NOT open, deform or load up batteries! There is a risk of
injury by battery leakage fluid! NEVER throw batteries into fire! There is a risk of explosion!
Hints for Environment Protection: Packages materials are raw materials and can be recycled. Do not disposal old devices or
batteries into the domestic waste. Cleaning: Protect the device from contamination and pollution. Only clean the device with
soft cloth or drapery, avoid using rough or coarse-grained materials. Do NOT use solvents or other aggressive cleaner. Wipe
the device after cleaning accurately. Important Notice: Should battery fluid leak from a battery, wipe the battery-case with a
soft cloth dry.
Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany
