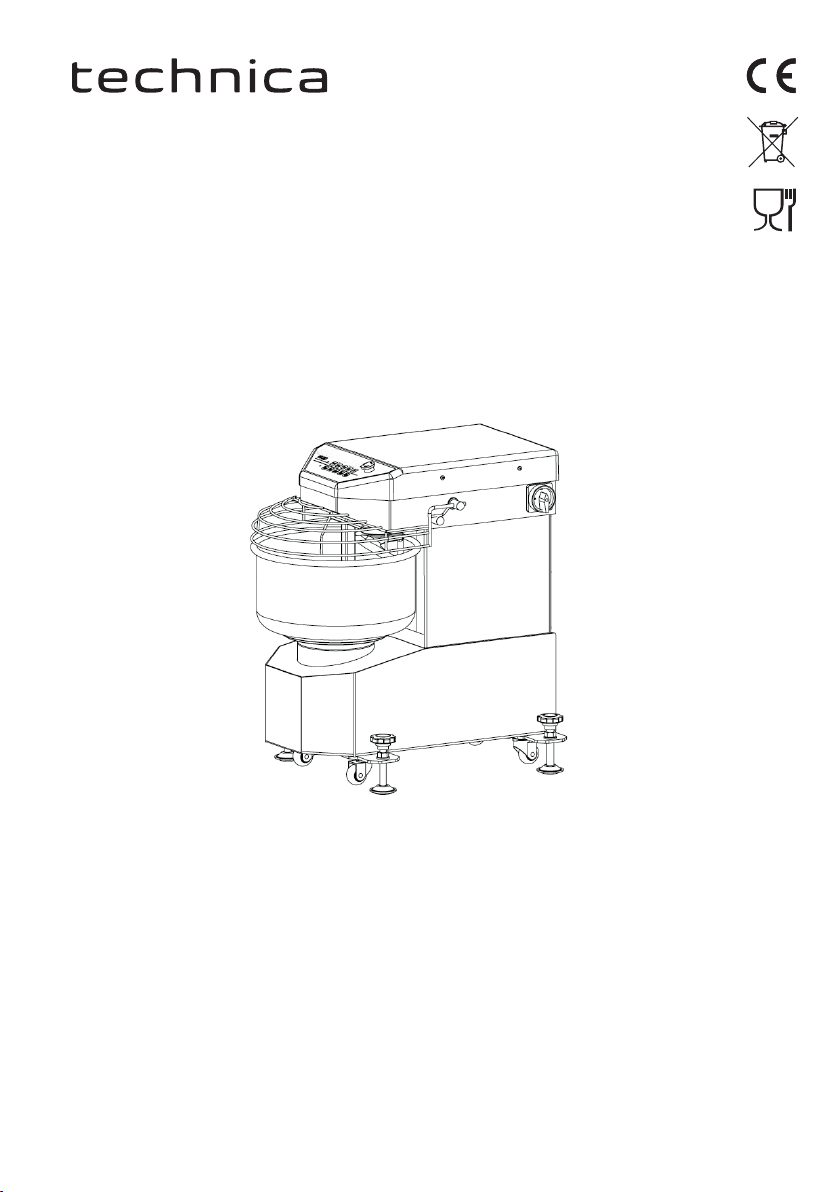

Technica 245110 User manual
1
User manual
Spiral Mixer
Models:
245110, 245120, 245130
1.00
Translation of the original instructions
2
3
Index
Exterior gure
Internal decomposition diagram
Technical parameter
Attention
Electric diagram
EC Declaration of Conformity
4
Exterior gure 245110
No. Names of spare parts Quantity
1 Top cover 1
2 Safety switch 1
3 Control panel 1
4 Emergency Switch 1
5 Frequency changer 1
6 Baseboard 1
7 Foot pad 4
5
Exterior gure 245120 and 245130
No. Names of spare parts Quantity
1 Emergency switch 1
2 Safety switch 1
3 Power switch 1
4 Frequency changer 1
5 Adjustable support foot 4
6 Trundle 4
6
Internal decomposition diagram 245110
7
No. Names of spare parts Qty
1 Belt 375*15 1
2 Belt wheel z19*20 3
3 Short sleeve 1
4 Belt 800*15 1
5 Belt wheel z108 2
6 Spiral axle’s sleeve 2
7 Bearing 6004 5
8 Spiral axle 1
9 Ring 1
10 Dividing paste pole 1
11 Screw 6
12 Bowl 1
13 Gasket 4
14 Spring gasket 4
15 Screw 4
16 Bowl alxe 1
17 Belt 740*15 1
18 Spiral hook 1
19 Screw 3
20 Screw 9
21 Spring gasket 23
22 Gasket 3
23 Belt wheel z34*20 1
24 Middle axle sleeve 1
25 Locknut M6 4
26 Gasket 1
27 Bearing 2
28 Bearing board 2
29 Key 3
30 Motor’s board 1
31 Motor 1
32 Fan 1
33 Middle axle 1
34 Stop ring 1
35 Tension wheel 2
8

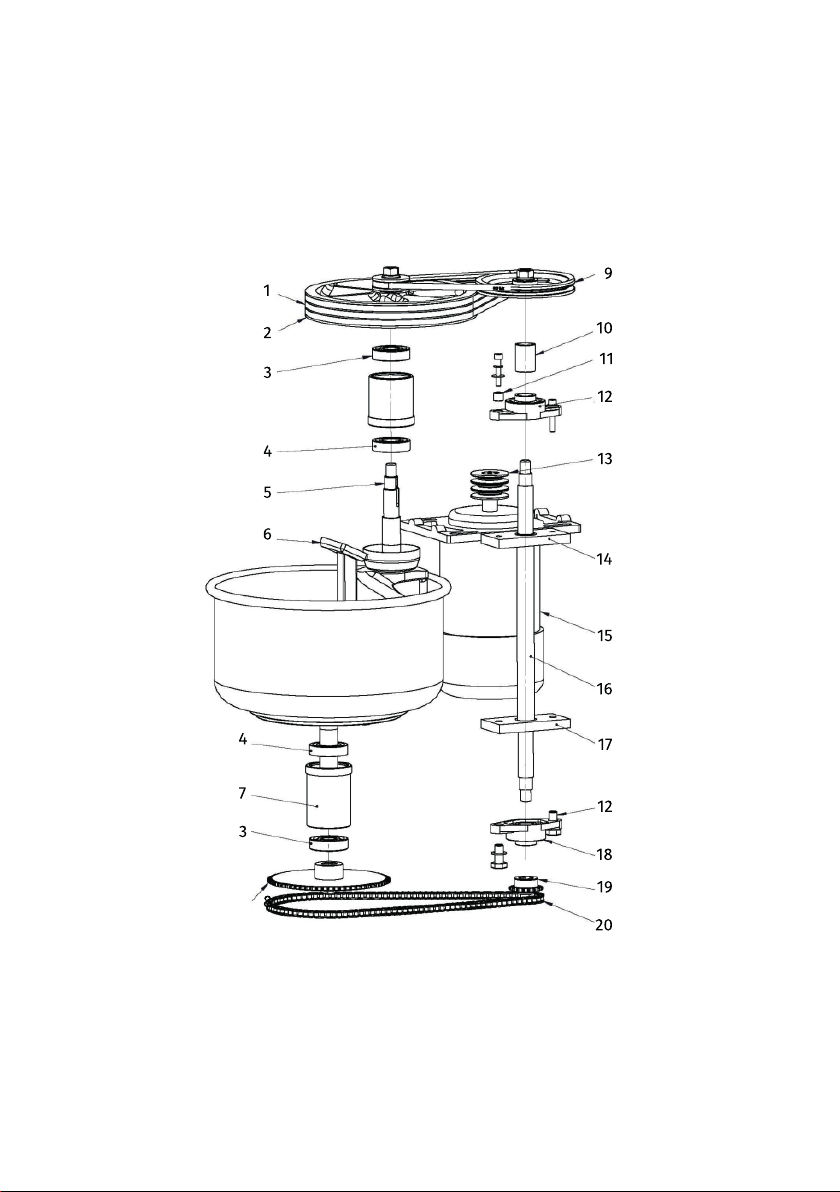

Internal decomposition diagram 245120 and 245130
9
No. Names of spare parts Qty
1Belt xz 3
2Big belt wheel 1
3Bearing 2
4Bearing 2
5Spiral axle 1
6Dividing paste pole 1
7Bowl’s bearing seat 1
8Bowl’s big chain wheel 1
9Intermediate shaft’s belt wheel 1
10 Sleeve 1
11 Spacer bush 1
12 Bearing 2
13 Motor’s small belt wheel 1
14 The above board 1
15 Motor 1
16 Intermediate shaft 1
17 The following board 1
18 Screw 2
19 Small chain wheel 1
20 Chain 1
10
Suggestion:
1. The paste occupies the capacity of barrel material 30% – 60% suitably.
2. Flour water quantity is 50% – 57%.
3. When the material is full, the machine cannot work over 20 minutes
continually.
Technical parameter
Model 245110 245120 245130
Rated current (A) 10 10 15
Rated volt (V) 230~ 230~ 230~
Input power (W) 750 1300 1800
Allowed quantity (kg) 0.25–3.5 0.25–8 0.25–12.5
Spiral speed (r/min) 108–272 130–320 130–320
Bowl speed (r/min) 11–27 13–32 13–32
1mm
16 awg 1.5mm
14 awg 2.5mm
14 awg
11
Attention
1. Before use, the machine must be placed on a level ground, and then the four
supporting feet of the machine should be adjusted to make the machine
run smoothly.
drum, dough hook, dividing rod and other parts in contact with food with
warm water and dishcloth and dry.
3. A socket corresponding to the machine plug must be used. The plug must be
grounded, that is, a 3-pin plug with a ground wire must be used, otherwise
households in the use of machine power will have the risk of electric shock.
4. In case of any emergency during the operation of the machine, please press
the emergency stop button immediately.
5. To take out the dough, please open the safety net and press the „INCHING”
button to easily take out the dough. Please note that when you press the
„INCHING” button, the machine can still reverse rotate the dough hook at
the lowest speed so that the user can take out the dough, but keep your
hand away from the hook to prevent crushing.
6. Please note that the inverter still has a discharge process of about 10 se-
conds after the power is disconnected, which is a normal phenomenon.
machine all display lights are off, before starting to repair, otherwise there
will be the risk of electric shock.
7. The ground wire of the machine must be connected well, otherwise there
will be a feeling of electric hemp, there will be the risk of electric shock.
Equipotential flag instructions: Identify the parts of a device
or system that are connected to each other so that they are in
phase terminals of the same potential, which are not necessarily
ground potential, such as local interconnections.
12

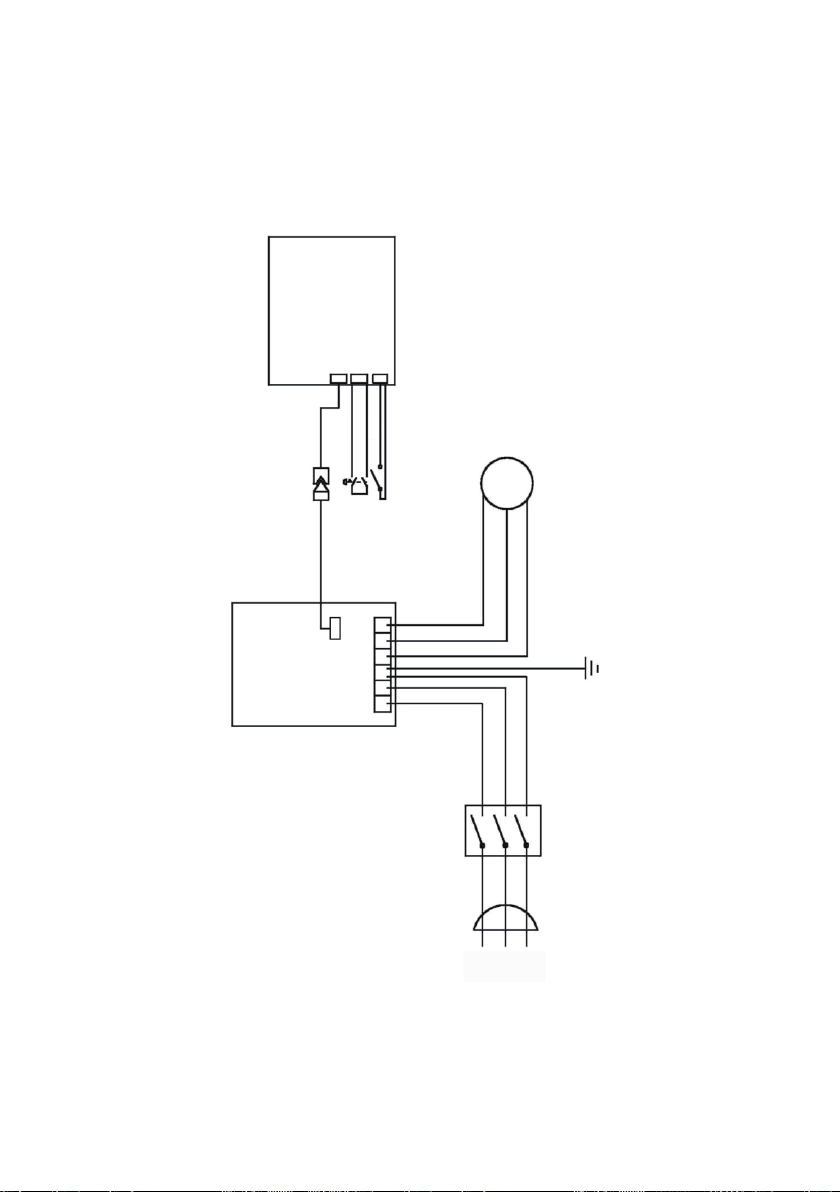

Electric diagram 245110
L NGU VW
Frequency
charger Data cable
Plug Power switch Motor
Controller
M
E-4
E-1
13

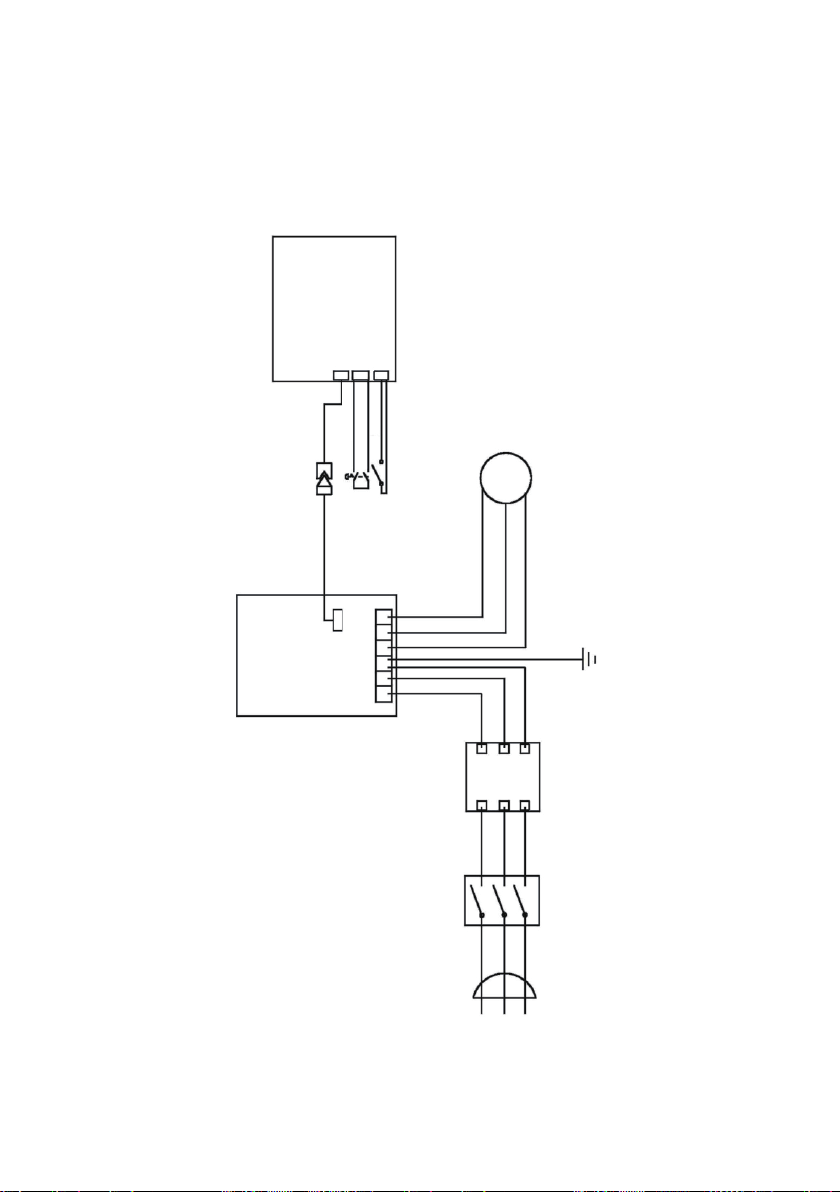

Electric diagram 245120 and 245130
L NG U VW
Frequency
charger Data cable
Plug Power switch Filter Motor
Controller
M
E-4
E-1
14
EC Declaration of Conformity
In accordance with the Machinery Directive 2006/42/EC, annex II, no. 1 A
Machinery name: Spiral mixer
Type: 245110, 245120, 245130
Complies with all the following European Directives:
Directive 2006/42/EC of the European Parliament and of the Council of 17 May
2006 on machinery, and amending Directive 95/16/EC,(OJ L 157, 9.6.2006, p. 24–86)
Complies with the following other European Directives and/or relevant
provisions:
Directive 2014/30/EU of the European Parliament and of the Council of 26
February 2014 on the harmonisation of the laws of the Member States relating
to electromagnetic compatibility, (OJ L 96, 29.3.2014, p. 79–106)
Directive 2011/65/EU of the European Parliament and of the Council of 8
June 2011 on the restriction of the use of certain hazardous substances in
electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110)
Regulation (EC) No 1935/2004 of the European Parliament and of the Council
of 27 October 2004 on materials and articles intended to come into contact
with food and repealing Directives 80/590/EEC and 89/109/EEC, (OJ L 338,
13.11.2004, p. 4–17)
Commission Regulation (EC) No 2023/2006 of 22 December 2006 on good
manufacturing practice for materials and articles intended to come into
contact with food, (OJ L 384, 29.12.2006, p. 75–78)
For the evaluation of the compliance with this Directive, the following har-
monized standards:
EN 55014-1:2017+A11:2020
Meets the requirements of the other technical standards and specications:
EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A2:2019 + A14:2019
EN 60335-2-64:2000 + A1:2002
EN 62233:2008
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
EN 55014-2:2015
15
Name and address of the person authorized to compile the technical le,
who must be established in the Community:
Ruben Bujok
16 TECHNICA GROUP spółka z ograniczoną odpowiedzialnością sp. k.
ul. Miłosna 2, 43-430 Ochaby Małe, tel.: +48 333 00 11 00, www.sklep.technica.pl
