Robot Coupe R 5 Plus User manual

R5 Plus•R5 V. V. •R6 •R6 V. V.

3
SUMMARY
WARRAN TY
IM PORTAN T WARN IN G
IN TRODUCTION TO YOUR
N EW TABLE-TOP CUTTER MIXER
R5 Plus - R5 V.V. - R6 - R6 V.V.
SW ITCHIN G O N THE MACHIN E
ADVICE O N ELECTRICAL CON N ECTION S
CO N TRO L PAN EL
ASSEMBLY
TECHN ICAL SPECIFICATIO N S
DESCRIPTION S A N D ADVAN TAGES
PA CKAGIN G
W EIGHT
DIMEN SIO N S
W O RKIN G HEIGHT
N O ISE LEVEL
EXAMPLES
OPTION
CLEAN IN G
MO TO R BASE
CUTTER
BLADE
MAIN TEN AN CE
BLADE
MO TO R SEAL
SAFETY
STAN DARDS
ELECTRICAL DATA
TECHN ICAL DATA

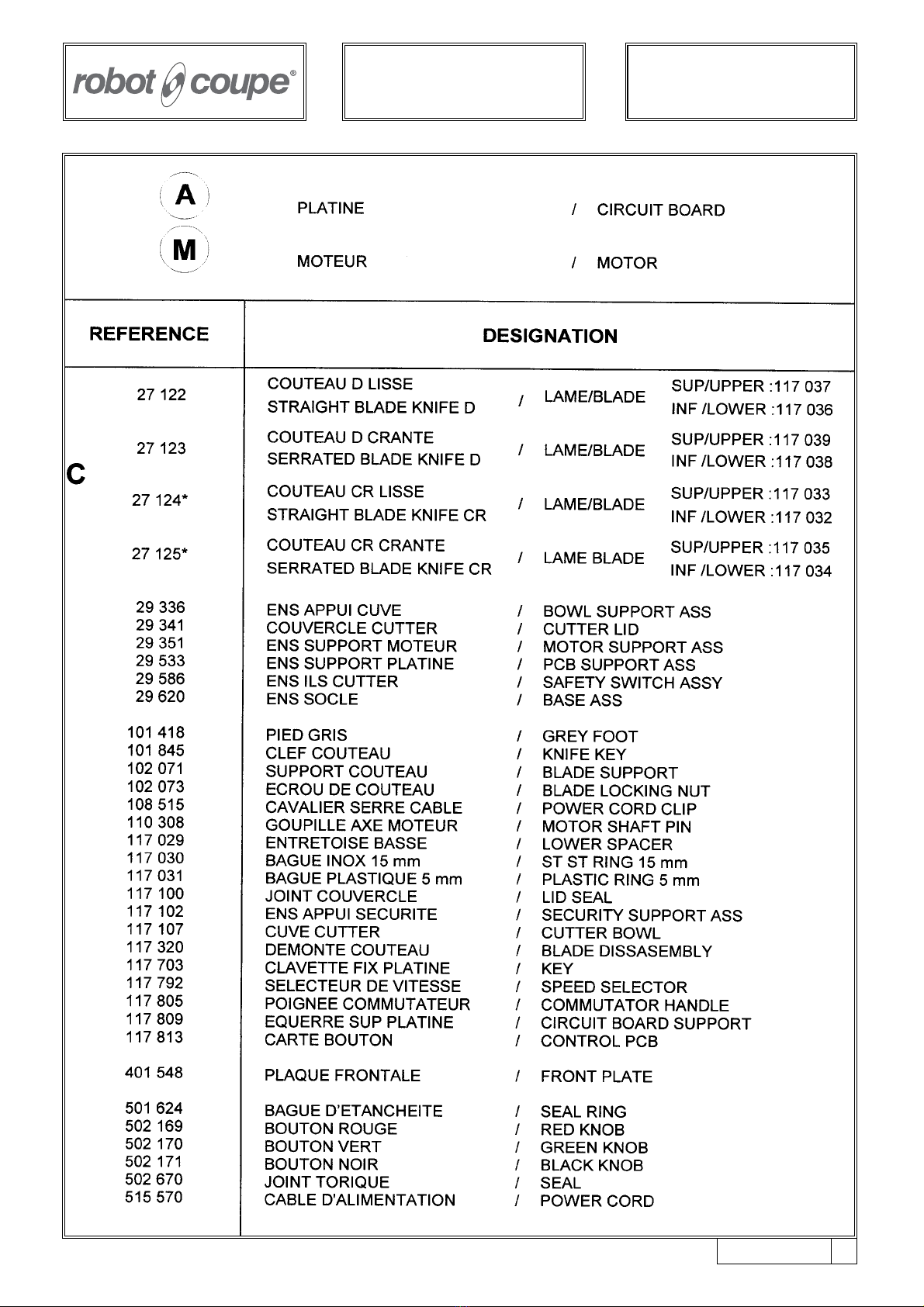

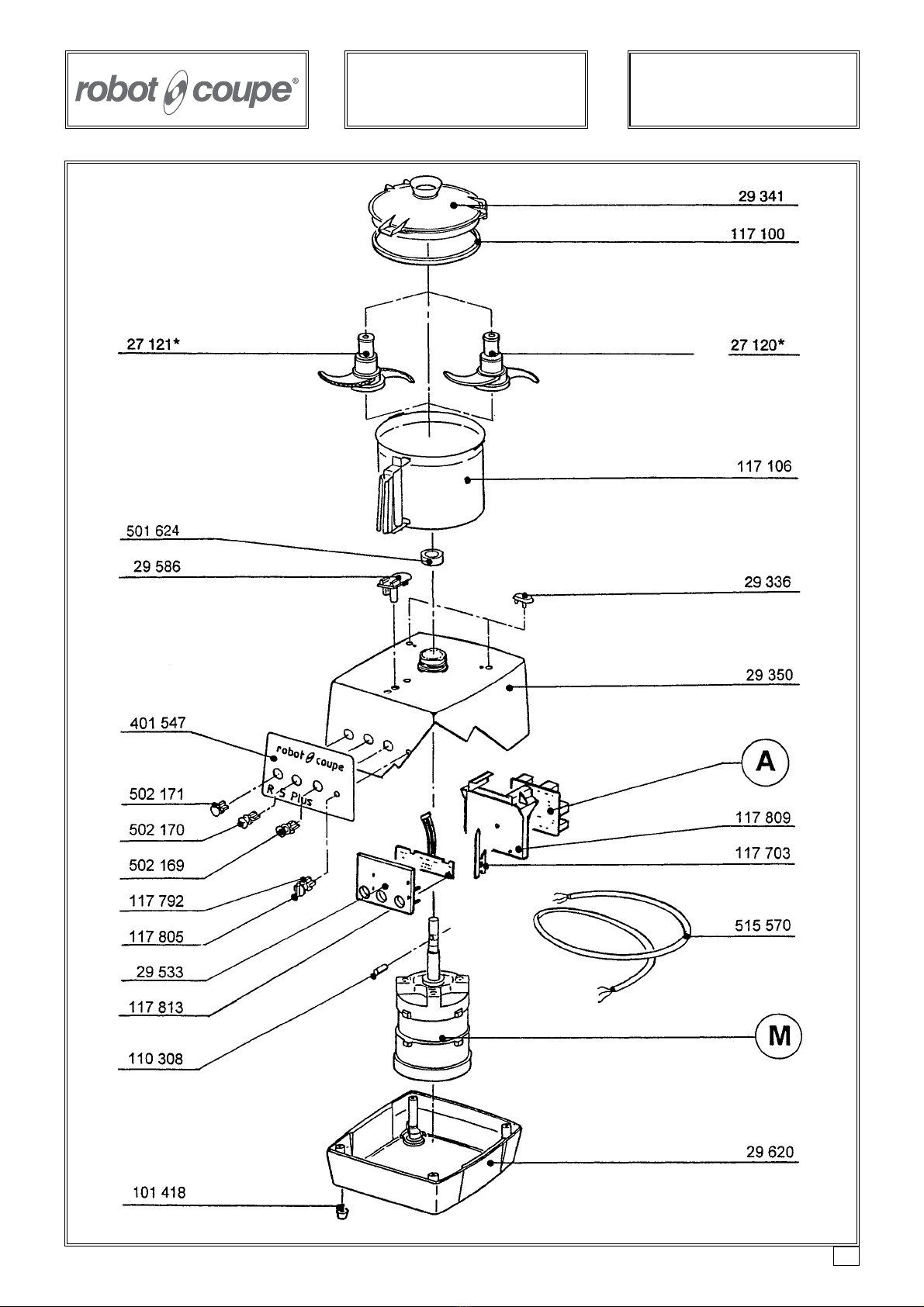

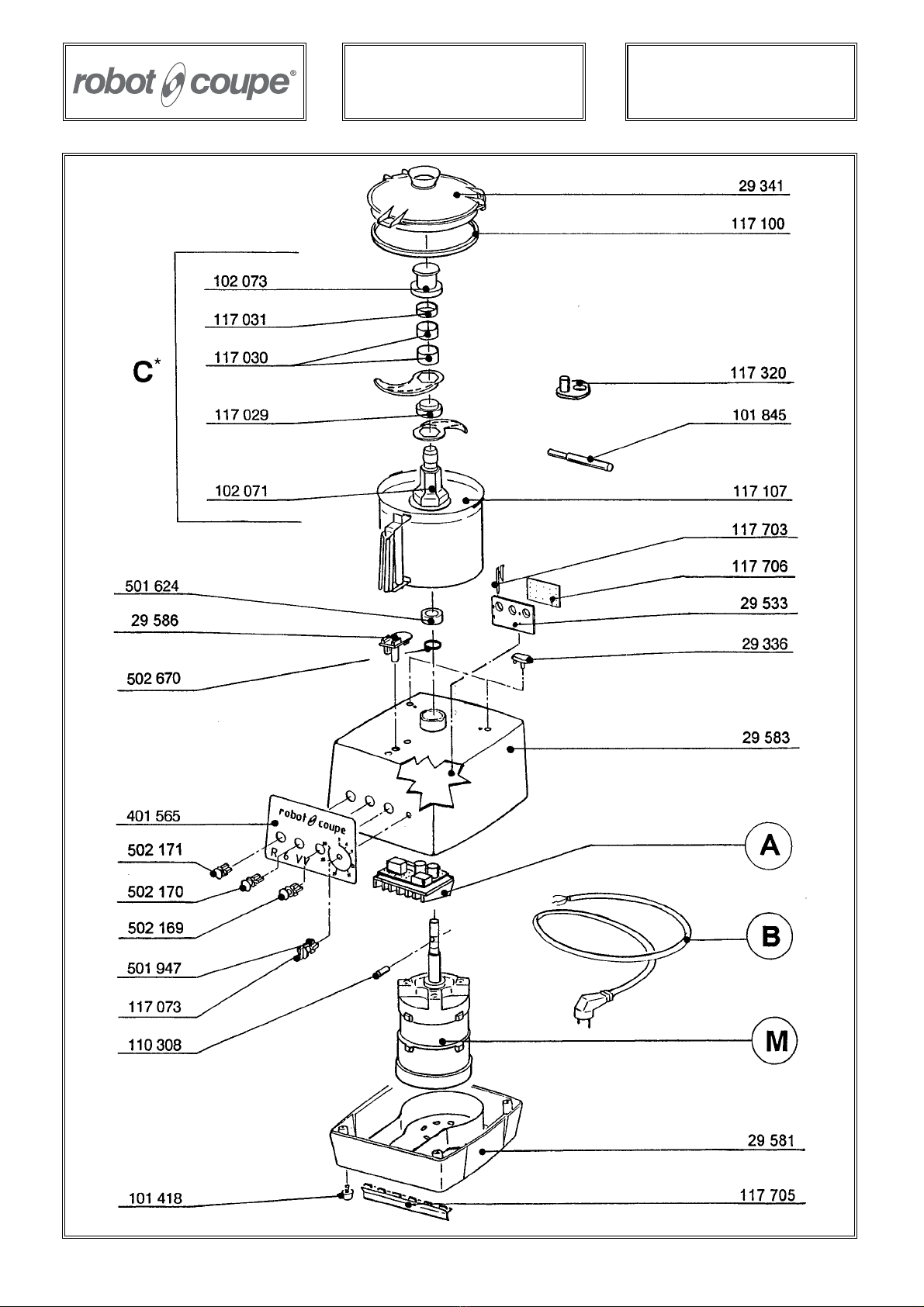

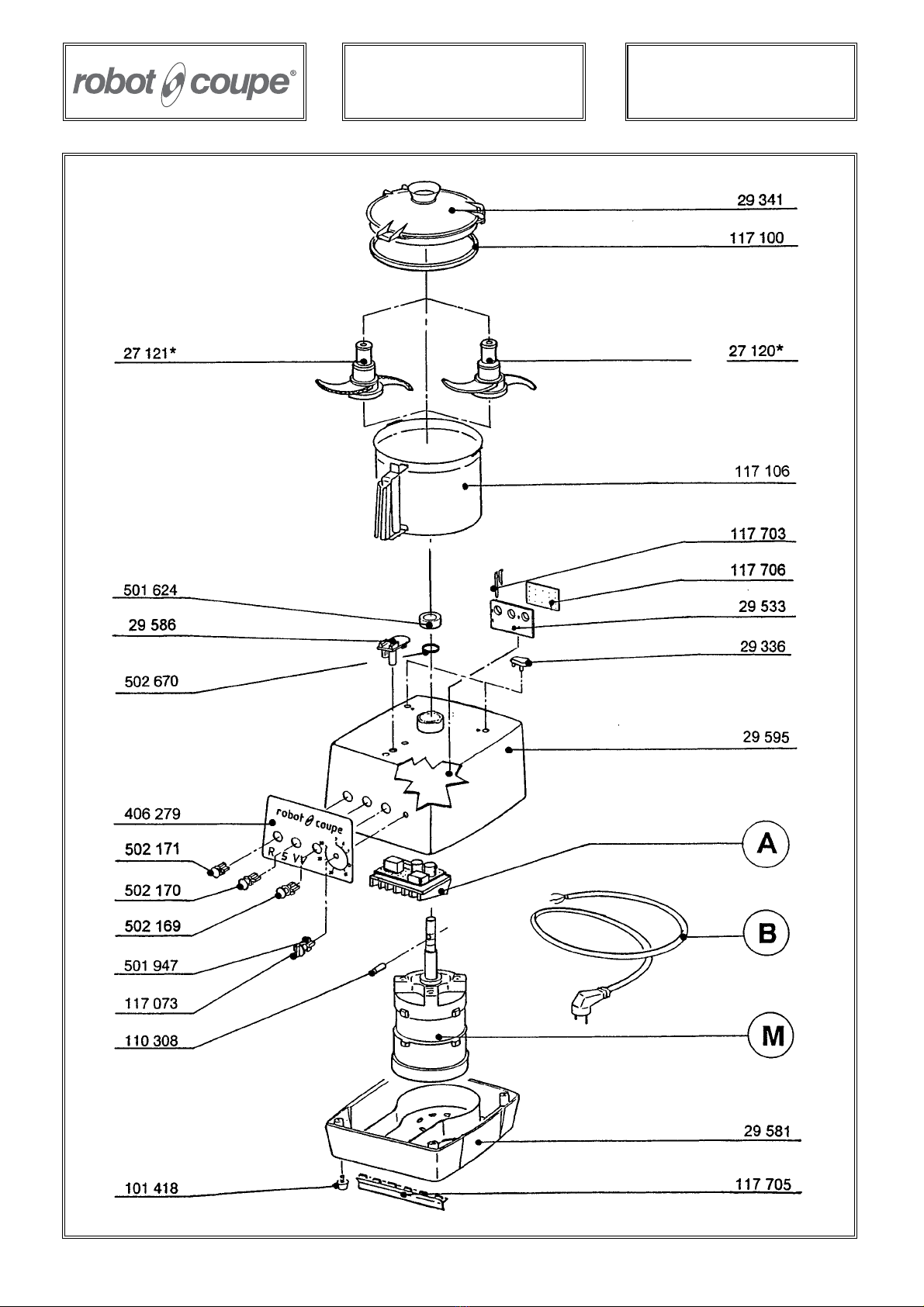

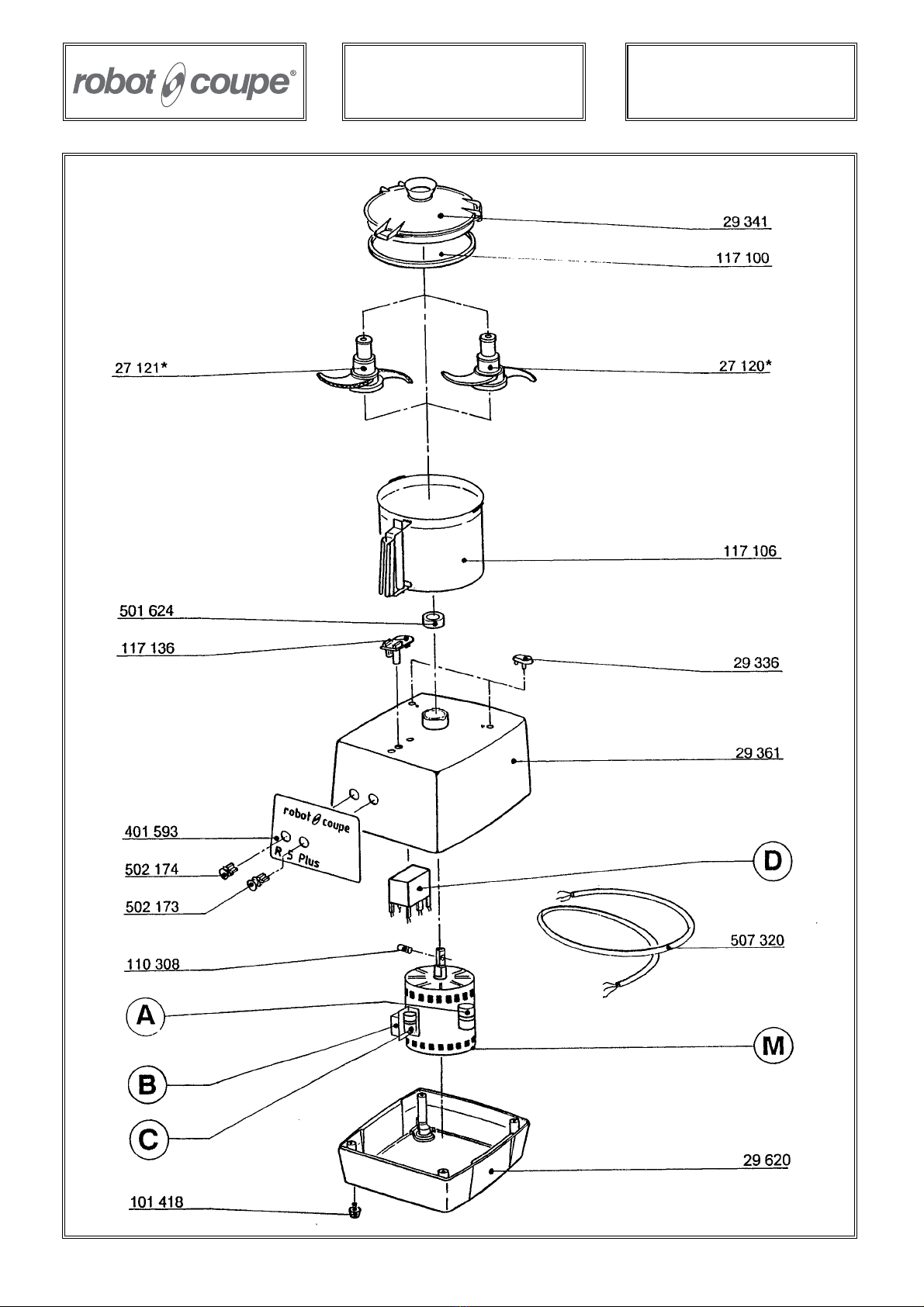

EXPLODED VIEW S
ELECTRICAL A N D W IRIN G DIAGRAM S

4
ROBOT-COUPE S.N.C., LIMITED WARRAN TY
Your new ROBO T-COUPE appliance is war-
ranted to the original buyer for a period of
one year from the date of sale if you
bought it from ROBO T-CO UPE S.N.C.
If you bought your RO BOT-COUPE product
from a distributor your product is covered
by your distributor’s warranty (Please check
with your distributor terms and conditions
of the warranty).
The ROBOT-COUPE S.N.C. limited warranty
is against defects in material and/ or work-
manship.
The ROBOT-COUPE S.N.C. warranty is gi-
ven expressly and in lieu of all other war-
ranties, expressed or implied, for mer-
chantability and for fitness toward a parti-
cular purpose and constitutes the only
warranty made by ROBOT-CO UPE S.N.C.
France.
THE FOLLOW IN G ARE N O T CO VERED
BY THE RO BOT-CO UPE S . N . C .
WARRAN TY:
1 - Damage caused by abuse, misuse, drop-
ping, or other similar damage caused by or
resulting from failure to follow assembly, opera-
ting, cleaning, user maintenance or storage ins-
tructions.
2 - Labour to sharpen and/ or replacements for
blades which have become blunt, chipped or
worn after a normal or excessive period of use.
3 - Materials or labour to replace or repair
scratched, stained, chipped, pitted, dented or
discoloured surfaces, blades, knives, attachments
or accessories.
4 - Any alteration, addition or repair that has
not been carried out by the company or an
approved service agency.
5 - Transportation of the appliance to or from an
approved service agency.
6 - Labour charges to install or test new attach-
ments or accessories (i.e., bowls, discs, blades, at-
tachments) which have been arbitrarity replaced.
7 - The cost of changing direction-of-rotation of
three-phase electric motors (Installer is responsible).
8 - SHIPPIN G DAM AGES. Visible and latent
defects are the responsibility of the freight carrier.
The consignee must inform the carrier and consi-
gnor immediately, or upon discovery in the case
of latent defects.
KEEP A LL O RIGIN AL CON TAIN ERS AN D
PACKIN G MATERIALS FO R CARRIER IN SPEC-
TIO N .
N either RO BOT-CO UPE S.N.C. nor its affiliated
companies or any of its distributors, directors,
agents, employees, or insurers will be liable for
indirect damage, losses, or expenses linked to the
appliance or the inability to use it.

5
WARN IN G: In order to limit accidents such as electric shocks, personal injury or fire, and in order to limit material damage due to misuse
of the appliance, please read these instructions carefully and follow them strictly. Reading the operating instructions will help you get to
know your appliance and enable you to use the equipment correctly. Please read these instructions in their entirely and make sure that
anyone else who may use the mixer also reads them beforehand.
IMPORTAN T WARN IN G
UN PACKIN G
• Carefully remove the equipment from the packa-
ging and take out all the boxes or packets containing
attachments or specific items.
• WARN ING - some of the tools are very sharp e.g.
blade, discs... etc.
IN STALLATION
• We recommend you install your machine on a per-
fectly stable solid base.
CON N ECTION
• Always check that your mains supply corresponds
to that indicated on the rating plate on the motor unit
and that it can take the amperage.
• The machine must be earthed.
• W ith the three-phased version, always check that
the blade rotates in an anti-clockwise direction.
HAN DLIN G
• Always take care when handling the blades or
discs - they are very sharp.
ASSEMBLY PROCEDURES
• Follow the various assembly procedures carefully
(see page 6) and make sure that all the attachments
are correctly positioned.
USE
• N ever try to override the locking and safety sys-
tems.
• N ever introduce any object into the container
where the food is being processed.
• N ever push the ingredients down with your hand.
• Do not overload the appliance.
• N ever switch the appliance on while it is empty.
CLEAN IN G
• As a precaution, always unplung your appliance
before cleaning it.
• Always clean the appliance and its attachments at
the end of each cycle.
• N ever place the motor unit in water.
• For parts made of aluminum alloys, use cleaning
fluids suitable for aluminum.
• For plastic parts , do not use detergents that are too
alkaline (i.e., containing too much caustic soda or
ammonia...)
• Robot-Coupe can in no way be held responsible
for the user’s failure to follow the basic rules of clea-
ning and hygiene.
MAIN TEN AN CE
• Before opening the motor housing, it is absolutely
vital unplung the appliance.
• Check the seals and washers regularly and ensure
that the safety devices are in good working order.
• It is particularly important to maintain and check
the attachments since certain ingredients contain cor-
rosive agents e.g. citric acid.
• N ever operate the appliance if the power cord
or plug has been damaged in any way or if the ap-
pliance fails to work properly or has been damaged
in any way.
• Do not hesitate to contact your local Maintenance
Department if something appears to be wrong.
KEEP THESE IN STRUCTION S
IN A SAFE PLACE
W ARN IN G

6
IN TRO DUCTIO N TO YOUR
N EW TABLE-TOP CUTTER
MIXER R5 Plus - R5 V.V
R6 - R6 V. V.
The R5 Plus, R5 V.V., R6 or R6 V.V. is perfectly geared
to professional needs. It can perform any number of
tasks, which you will gradually discover as you use it.
This machine can be used to process meat, vege-
tables, fine stuffing, mousse, grinding, kneading,... in
less than 5 minutes for even the longest tasks.
Its numerous functions will open the door to a whole
new culinary world.
Thanks to its simple design, all components requiring
frequent handling for maintenance or cleaning can
be fitted and removed in a trice.
To make things easier for you, this manual gives a
breakdown of all the various fitting operations.
This manual contains important information designed
to help the user get the most out of his or her bowl
cutter/ vegetable preparation device.
We therefore recommend that you read it carefully
before using your machine. We have also included
a few examples to help you get the feel of your new
machine and appreciate its numerous advantages.
SW ITCHIN G ON
THE M ACHIN E
• ADVICE ON ELECTRICAL CON N N ECTION S
Before plugging in, check that your power supply cor-
responds to that indicated on the machine’s
identification plate.
THREE PHASE R5 Plus - R6
The R5 Plus/ R6 come with different types of
motor : 230 x 400 V / 50 Hz / 3
400 V / 50 Hz / 3
220 V / 60 Hz / 3
380 V / 60 Hz / 3
This machine is supplied with a cable to which you
simply attach the appropriate electrical plug or isola-
tor for your system. The cable has four wires, one
earth wire, plus three phases wires.
If you have a 4-pin plug:
1) Connect the green and yellow earth wire to the
earth pin.
2) Connect the three other wires to the remaining
pins.
If you have more than 4 pins in the plug, please
note the ROBOT-COUPE does not require a neutral
wire.
Switch on the empty machine, making sure that
the blade is rotating properly in an anti-clockwise
direction.
On the motor unit and on the lid a arrow marks the
blade rotation directions.
If the blade turns in a clockwise direction, swap over
two wires.
GREEN YELLOW is the earth,
DO N OT DISCON N ECT
Swap either : the and the
the and the
or the and the
3
2
3
1
2
1
• SIN GLE PHASE R5 Plus
The R5 Plus is available with motor ratings:
230 V / 50 Hz / 1
220 V / 60 Hz / 1
The machine comes with a single phase plug connec-
ted to a power cord.
• SIN GLE PHASE R5 V.V./ R6 V.V.
The R6 V.V. is available with motor ratings +
variabe speed : 230 V / 50-60 Hz / 1
The standardized plug must be calibrated to a mini-
mum of 13 amps and preferably 20 amps, if the
appliance is used intensively.
• CON TRO LPAN EL
Red switch = O ff switch
Green switch = O n switch
Black switch = Pulse control
R5 Plus - R6: Speed selector = 1.500 or 3.000 rpm.
R5 V.V. - R6 V.V.: Speed variation from
300 to 3.000 rpm.

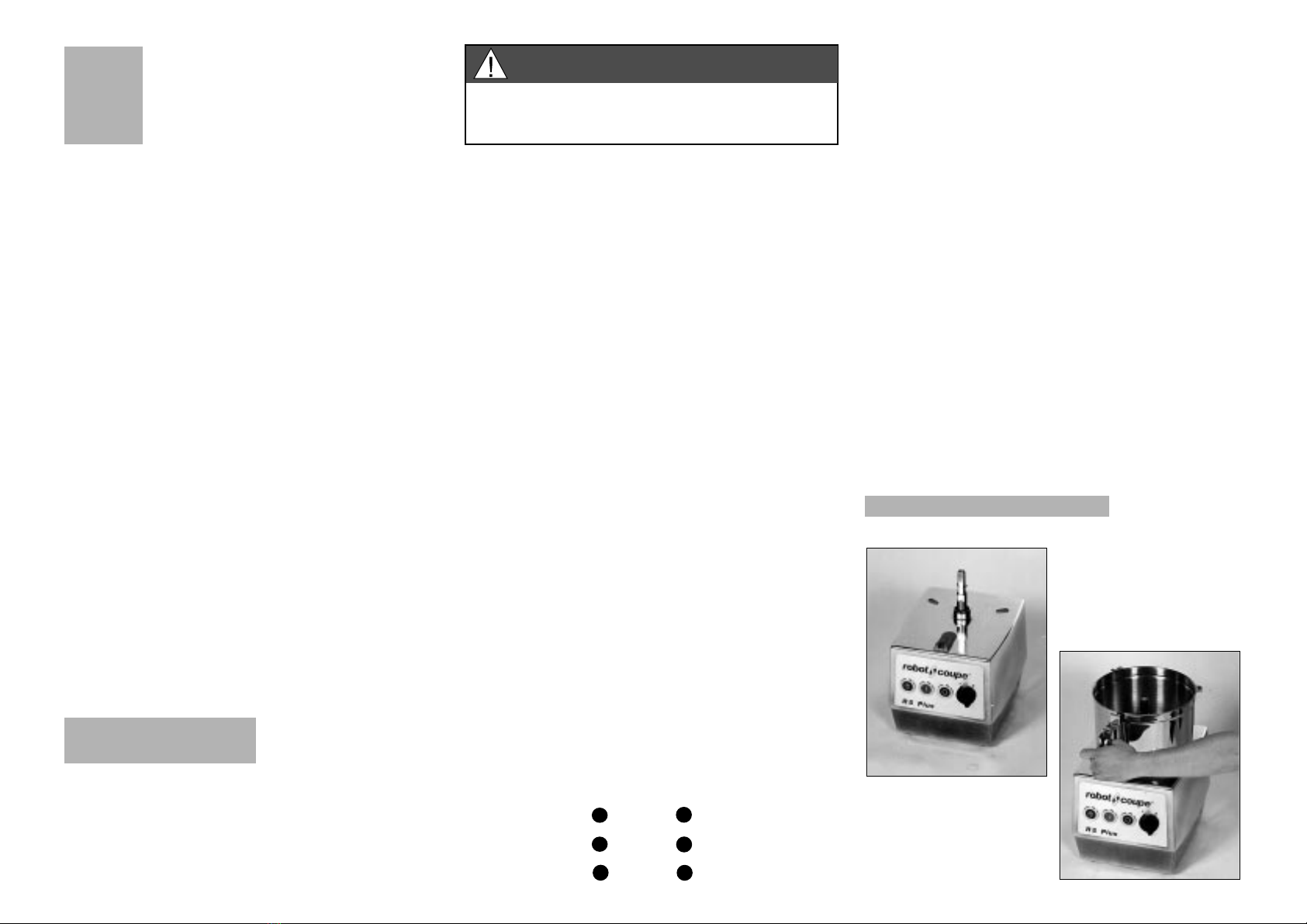

ASSEMBLY
1) W ith the motor base
facing you, position the
cutter bowl on the motor
base.
2) Turn the bowl to the
right until it locks.
This appliance must be plugged into an
earthed socket (risk of electrocution).
WARN IN G

7
• W O RKIN G HEIGHT
We recommend that you position the food processor on
a stable worktop so that the upper edge of the large feed
hopper is at a height of between 1.20 m and 1.30 m.
• N O ISE LEVEL
The equivalent continuous sound level when the food
processor is operating on no-load is less than
70 db (A).
EXAMPLES
The cutter will enable your to perform all your cutting
tasks in minimum time; we recommend therefore, that
you keep a close eye on the mixture in order to ob-
tain the desired results.
- Automatic bowl locking.
- Extremely simple unlocking of bowl by means of a
trigger fitted in the handle.
- Lid designed to allow the addition of liquid or ingre-
dients during processing.
- Models R5 Plus and R5 V.V. are equipped with a
straight blade knife supplied as standard equip-
ment and can be provided with an optional serra-
ted blade for grinding and kneading tasks.
- Models R6 and R6 V.V. are supplied with an all-
stainless steel straight blade knife that is fully
removable and can be fitted with serrated blades.
- Flat motor base for easier fitting and cleaning of at-
tachments.
- Models R5 Plus and R6 (three-phase) are provided
with two speeds 1500 and 3000 Rpm.
- Model R5 Plus (single-phase) is provided with one
speed of 1.500 Rpm.
- Models R5 V.V. and R6 V.V. are equipped with a
speed variation which varies between 300 and
3.000 Rpm to ensure more flexible use and give a
wide range of tasks.
- Machines in compliance with strictest hygiene and
safety standards.
• PACKAGIN G
The packaging for these models has been specially
designed to prevent damage occurring in transit.
Details of the contents are clearly marked on the
packaging:
- type of device;
- voltage;
- attachments (if any);
- serial number;
Dimensions (in mm):
Heigh 580 Lenght 500 W idth 400.
3) Engage the blade on
the motor shaft and lo-
wer it right to the bottom
of the bowl.
Make sure that it is cor-
rectly positioned, by rota-
ting it in the bowl.
4) Place the lid on the
bowl and rotate to the
right until it clicks.
The device is now ready
for use. The green light
should therefore be
illuminated.
TECHN ICAL
SPECIFICATION S
• DESCRIPTION AN D ADVAN TAGES
- 5.5-litre stainless steel bowl for models R5 Plus
and R5 V.V.
- 6.5-litre stainless steel bowl for models R6 and
R6 V. V.
- A patented blade, an exclusive ROBOT-COUPE
feature, gives perfect result for small or large
quantities.
- N ew blade profile for optimum cutting quality.
- Pulse control for better cutting precision.
• W EIGHT net weight gross weight
R5 Plus 24 kg 26 kg
R5 V.V. 25 kg 27 kg
R6 25 kg 27 kg
R6 V.V. 26 kg 28 kg
• DIMEN SION S (in mm)
R5 Plus R5 V.V. R6 R6 V.V.
A480 480 520 520
B350 350 350 350
C280 280 280 280
D265 265 265 265

8
R5 Plus R6/
R5 V.V. R6 V.V.
Max. Max.
USES
processing processing Suggested Processing
quantity quantity speed time
(in kg) (in kg) (in Rpm) (in mn)
CHOP
• M EAT
Hamburger/ steak tartare 1,5 2 1200/ 3
1500
Sausagemeat/ tomatoes 2 2,5 1200/ 3
1500
Terrine / pâté 2,5 2,5 1200/ 4
1500
• FISH
Brandade 2,5 3 3000 5
Terrines 2,5 3 3000 5
• VEGETABLES
Garlic/ parsley / onion / shallots 0,5 / 1,0 0,5 / 1,5 1500/ 3
2000
Soup / purées 2 3 2500/ 4
3000
• FRUIT
Compotes / purées 2 3 2500/ 4
3000
EM ULSIFY
Mayonnaise / ailloli / 33,5
600/ 3
rémoulade sauce 1500
Hollandaise / béarnaise 2 3 600/ 5
1500
Snail or salmon butter 2 2,5 600/ 4
1500
KN EAD
Shortcrust pasty / Shortbread 2 2,5 900/ 4
1500
Flaky pastry 2 2,5 900/ 4
1500
Pizza dough 2 2,5 900/ 4
1500
The pulse control allows you to stop and start the ma-
chine for high-precision control when working with
certain types of ingredients.
The cutter version has numerous other applications.
The above quantities and times are approximate and
may vary according to the quality of the ingredients
and recipes.
OPTION
For the R5 Plus and R5 V.V.
models, a serrated blade knife
is available as an option.
For the R6 and R6 V.V. models,
serrated blades are available
as an option.
The serrated blades are recommended for grinding
and kneading tasks.
CLEAN IN G
• CUTTER
After removing the lid, remove the bowl from the motor
base by pushing the trigger fitted in the handle. Pull up
to disengage, leaving the blade in the bowl
in order to prevent any spillage when working with
liquids.
If the food has a solid consistency, remove the blade
and empty the bowl.
Replace the bowl, place the blade back on the shaft
and switch on the machine in order to remove any
mixture which may have stuck to the blade.
If you wish, you can rinse the bowl by filling it with
hot water and switching on for a few minutes.
• BLADE
The stainless steel blade of R6 - R6 V.V. is easy to
dismantle and to clean.
GRIN D
Dried fruit 1 1,5 900/ 4
1500
Ice 1 1,5 900/ 4
1500
Breadcrumbs 1 1,5 900/ 4
1500
• M O TO R BASE
N ever immerse the motor base in water. Clean
using a damp cloth or sponge.
Ensure power supply to machine is disconnected.
1 - Place blade dismantling tool over shaft onto
motor base.
2 - Fit blade onto shaft ensuring it is correctly
positioned.
3 - Insert bar into blade cap and turn anti-clock-
wise to dismantle .
W hen re-assembling do not over tighten.
A- Upper blade.
B- Lower blade.
After cleaning the blade, always dry the blades well
to prevent rusting.
As a precaution, always unplug your appliance
before cleaning it (risk of electrocution).
WARN IN G

9
ENGLISH
STANDARDS
MACHINES IN CO MPLIANCE W ITH:
• The fo llo wing Euro pea n direc tives and related
natio nal leg islatio n:
- Mo dified " mac hinery" directive 9 8 / 3 7 / EEC,
- " Lo w vo ltage" directive 7 3 / 2 3 / EEC,
- " EMC" directive 8 9 / 3 3 6 / EEC,
- " Ma terials a nd pa rts in fo o d co ntac t" directive
8 9 / 1 0 9 / EEC,
- " Plastic materials and pa rts in fo o d c o ntac t" di-
rective 9 0 / 1 2 8 / EEC.
• The fo llo wing Euro pean harmo nized sta ndards
and standards setting out health and safety
rules:
- EN 2 9 2 - 1 and - 2 ,
- EN 6 0 2 0 4 -1 (1 9 9 2 ),
- Fo r Fo o d Pro cesso rs and b lenders : EN 1 2 8 5 2 .
IN DEXES O F PRO TECTIO N :
- IP 5 5 fo r the switches.
- IP 3 4 fo r the machines.
MAIN TEN ANCE
• BLADE
We strongly recommend tha t the bla des (smooth
ones) a re sha rpened da ily using sha rpening stone
supplied with ma chine.
The qua lity of the cut depends ma inly on the sha rp-
ness of your bla des a nd the degree of wea r. The
bla des a re a ctua lly wea ring pa rts, which should be
repla ced occa siona lly to ensure consistent qua lity in
the fina l product.
• MOTOR SEAL
The motor sea l on the sha ft should be lubrica ted re-
gula rly using a food sa fe lubrica nt.
In order to keep the motor completely wa tertight, it is
a dvisa ble to check the motor sea l regula rly for wea r
a nd tea r a nd repla ce if necessa ry.
The motor sea l ca n be ea sily repla ced without ha ving
to remove the motor, so we strongly a dvise you to en-
sure tha t is in good condition.
SAFETY
The se mo de ls a re fitte d w ith a ma g ne tic sa fe ty
de vice a nd mo to r bra king syste m.
As soon a s you open the lid of the cutter bowl or the
vegeta ble a tta chment, the motor stops.
To resta rt the ma chine, simply close the lid a nd press
the green switch.
In order to a void spla shing when processing liquid
prepa ra tion, we recommend you stop the ma chine
before opening the lid.
All the models a re fitted with a the rma l cut-out which
a utoma tica lly stops the motor if the ma chine is left on
for too long or overloa ded.
If this ha ppens, a llow the ma chine to cool completely
before resta rting.
Check tha t your detergent is suita ble for clea ning
pla stic pa rts. Some wa shing a gents a re too a lka -
line (e.g. high levels of ca ustic soda or a mmonia )
a nd tota lly incompa tible with certa in types of pla s-
tic, ca using them to deteriora te ra pidly.
IMPORTAN T ELECTRICAL
DATA
R 5 Plus single-pha se ma chine
Speed Power Intensity
Motor (rpm) (watts) (amp.)
230 V / 50Hz 1500 900 16.0
220 V / 60 Hz 1500 900 16.0
Speed Speed Power Intensity
Motor 1 2
(watts) (amp.)
(rpm) (rpm)
230 x 400 V / 1500 750
3000 1200
400 V / 50 Hz 1500 750 2.7
3000 1200 3.4
220 V / 60 Hz 1800 750 4.7
3600 1200 6.5
50 Hz
230 V= 4.4
400 V= 2.5
230 V= 7.0
400 V= 4.0
Speed Power Intensity
Motor (rpm) (watts) (amp.)
230 V / 50-60 Hz 300 to 3000 1300 12
R 5 Plus three-pha se ma chines
R 5 V.V. single-pha se ma chines
N eve r try to o verride the locking a nd sa fe ty
systems.
N eve r intro duce a ny o bje ct into the co nta ine r
w here the food is being proce ssed.
Neve r push the ingredie nts dow n w ith your
ha nd.
Do no t o verloa d the a pplia nce .
N eve r sw itch the a pplia nce o n w hile it is
empty.
REMENBER
The bla de s a re e x treme ly sha rp. Ha ndle w ith
ca re .
WARN ING

10
Speed Speed Power Intensity
Motor 1 2
(watts) (amp.)
(rpm) (rpm)
230 x 400 V / 1500 800
3000 1300
400 V / 50 Hz 1500 800 2.7
3000 1300 3.4
220 V / 60 Hz 1800 800 4.7
3600 1300 6.5
50 Hz
230 V= 4.4
400 V= 2.5
230 V= 7.0
400 V= 4.0
Speed Power Intensity
Motor (rpm) (watts) (amp.)
230 V / 50-60 Hz 300 to 3000 1500 13
R 6 three-phase machines
R 6 V.V. single-phase machines

10
R 5 A Plus TRI 02/ 1998
a
* voir tarif machines / See export price list

11
R 5 A Plus TRI 02/ 2000
* voir tarif machines / See export price list A
MAJ : 02/2000

12
03/ 1999
R 5 A Plus MON O
* voir tarif machines / See export price list

13
02/ 2000
R 5 A Plus MON O
* voir tarif machines / See export price list A
MAJ : 02/2000

14
03/ 1999
R 5 V.V. A
* voir tarif machines / See export price list

15
03/ 1999
R 5 V.V. A
* voir tarif machines / See export price list

16
02/ 2000
R 5 V.V. A
A
MAJ : 02/2000

17
03/ 1999
R 6 A
* voir tarif machines / See export price list

18
02/ 2000
R 6 A
* voir tarif machines / See export price list A
MAJ : 02/2000

19
03/ 1999
R 6A

20
02/ 1998
R 6 V.V. A
* voir tarif machines / See export price list
