1
About this Setup and User Guide
DMS3-CTC-25-154 v1.0
About this Setup and User Guide
In this Setup and User Guide
The goal of this Setup and User Guide is to show you how to:
Set up your TG389ac and local network
Configure and use the features of your TG389ac.
Used Symbols
Typographical Conventions
Following typographical convention is used throughout this manual:
This sample text indicates a hyperlink to a website.
Example: For more information, visit us at www.technicolor.com.
This sample text indicates an internal link.
Example: If you want to know more about this Setup and User Guide, see “About this Setup and User Guide” on page 1.
This sample text indicates an important content-related word.
Example: To enter the network, you must authenticate yourself.
This sample text indicates a GUI element (commands on menus and buttons, dialog box elements, file names, paths and
folders).
Example: On the File menu, click Open to open a file.
The danger symbol indicates that there may be a possibility of physical injury.
The warning symbol indicates that there may be a possibility of equipment damage.
The caution symbol indicates that there may be a possibility of service interruption.
The note symbol indicates that the text provides additional information about a topic.

2
1 Getting started
DMS3-CTC-25-154 v1.0
1 Getting started
Introduction
This chapter gives you a brief overview of the main features and components of your TG389ac. After this chapter we will
start with the installation.
Before you start
Carefully read the Safety Instructions and Regulatory Notices document included in your package before continuing with
the installation of your TG389ac.
To p i c s
This chapter describes the following topics:
Do not connect any cables to or power on your TG389ac until instructed to do so in this Setup and User Guide.
To p i c Page
1.1 Features at a glance 3
1.2 Product overview 4

3
1 Getting started
DMS3-CTC-25-154 v1.0
1.1 Features at a glance
Introduction
This section provides a brief overview of the main features of your TG389ac.
Internet connection features
Broadband Internet access via the Gigabit WAN port.
(Fallback) mobile Internet access via the optional mobile Internet dongle.
For more information, see “2.6 Set up a mobile fallback connection” on page 19.
Internet security for your entire network.
For more information, see “6 Internet security” on page 58.
Local networking features
Wireless access for your local network devices via the integrated IEEE 802.11ac 5 GHz and IEEE 802.11n 2.4 GHz
wireless access points.
For more information, see “3 Wireless networking” on page 22
Wired access via Ethernet cable for your local network devices via the Ethernet interface.
For more information, see “2.3 Connecting your wired devices” on page 16.
Telephony features
Your TG389ac offers Voice over IP (VoIP) connectivity for corded phones and IP phones.
For more information see “7 Telephony” on page 61
ECO
Technicolor is proud to offer you high-standard products with a variety of eco-friendly attributes. Next to carefully selected
plastics and packaging to minimize our ecological footprint, our products benefit from a unique combination of hardware
and software features that reduce energy consumption substantially.
The accompanying product documentation not only provides useful information on all the features of your product, but also
on its energy consumption. We strongly encourage you to carefully read the product documentation before putting your
equipment in service in order to get the best service it can offer you.
You can check www.technicolor.com/ch_regulatory for information available on power consumption data, energy efficiency
measurements, and means available to the user to further optimise the power consumption of your network equipment.
Technicolor’s ECO features guarantee you that your TG389ac is able to reduce its power consumption to an absolute
minimum.
The TG389ac web interface
The TG389ac web interface allows you to configure your TG389ac via your web browser.
For more information, see “4 TG389ac web interface” on page 31.

4
1 Getting started
DMS3-CTC-25-154 v1.0
1.2 Product overview
Overview
This section provides an overview of the different components of your TG389ac:
To p i c Page
1.2.1 Power 5
1.2.2 Local network connections 6
1.2.3 Broadband connection 7
1.2.5 Buttons 9
1.2.6 Status LEDs 10

5
1 Getting started
DMS3-CTC-25-154 v1.0

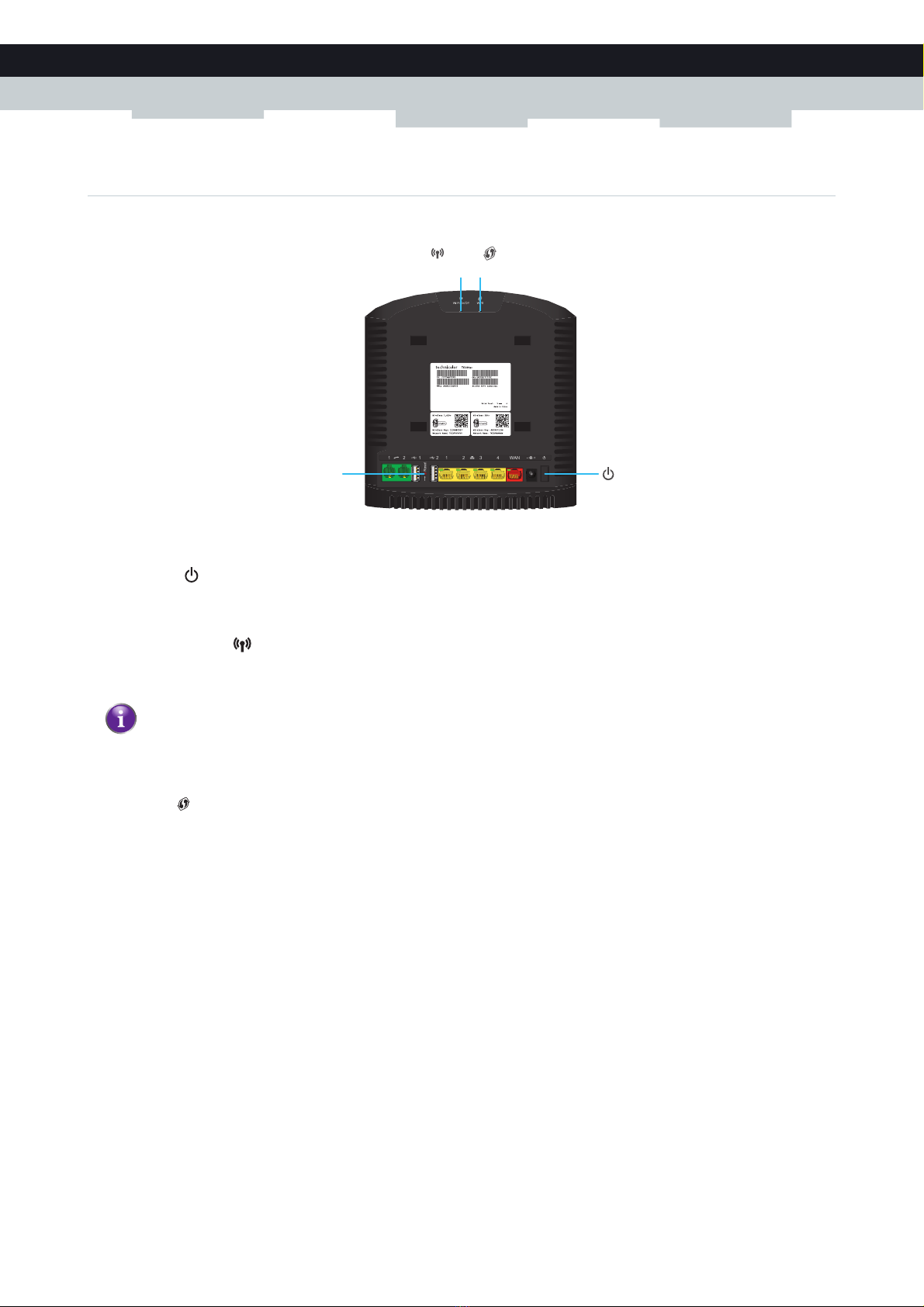

1.2.1 Power
Overview
Power inlet
The power inlet ()allows you to connect the power supply unit.
Power switch
The power switch ()allows you to power on/off your TG389ac.
Only use the power supply unit delivered with your TG389ac.

6
1 Getting started
DMS3-CTC-25-154 v1.0
1.2.2 Local network connections
Overview
Wireless access point
The built-in 2.4 GHz IEEE802.11n and 5 GHz IEEE802.11ac wireless access points provide wireless access to your wireless
clients.
For more information, see “3 Wireless networking” on page 22.
Ethernet switch
The Ethernet switch ( ) allows you to connect Ethernet devices (a computer, a smart TV, a NAS drive, a set-top box, etc.)
to your local network. For more information, see “2.3 Connecting your wired devices” on page 16.
All Ethernet ports on your TG389ac are Gigabit Ethernet ports. Each Ethernet port has a maximum speed of 1 Gbps
(Gigabit per second).
Each of the Ethernet port has a LED to indicate link integrity (or activity).
USB Port
The USB port ( ) can be used to:
Connect a USB mass storage device to share your content (for example, music, movies,…).
Connect a mobile Internet dongle to set up a mobile Internet connection that can work as a backup for your main Internet
connection.
For more information, see “5 Sharing content” on page 53.
LED Status Description
Solid on Device connected.
Blinking Device connected and sending/receiving data.
Off No device connected.

7
1 Getting started
DMS3-CTC-25-154 v1.0
1.2.3 Broadband connection
Overview
WAN port
The Gigabit Ethernet WAN port allows you to use your TG389ac as a local router.
For more information, see “2.1 Connecting your TG389ac to your service provider’s network” on page 14.
Mobile Internet dongle (optional)
If you purchased the optional mobile Internet dongle, you can set-up a mobile data connection that can serve as a fallback
Internet connection.
For more information, see “2.6 Set up a mobile fallback connection” on page 19.
WAN

8
1 Getting started
DMS3-CTC-25-154 v1.0
1.2.4 Voice connection
Overview
Phone Port
The Phone ( ) port allows you to connect a traditional phone, DECT base station or fax to your TG389ac.
For more information, see “2.4 Setting up your telephone network” on page 17.
Phone

9
1 Getting started
DMS3-CTC-25-154 v1.0
1.2.5 Buttons
Overview
Power button
The Power ( ) button allows you turn your TG389ac on or off.
Wi-Fi On/Off button
The Wi-Fi On/Off ( ) button allows you to manually disable the wireless interface of your TG389ac. You can do this
when nobody is using the wireless network.
To turn the wireless interface on or off, briefly press the Wi-Fi On/Off button.
WPS button
The WPS ( ) button allows you to add new wireless clients to your network in a swift and easy yet secure way without the
need to enter any of your wireless settings manually.
For more information, see “3.1 Connecting your wireless client via WPS” on page 23.
Reset pinhole button
The Reset pinhole button allows you to reset your TG389ac to factory defaults.
For more information, see “8.4 Reset to factory defaults” on page 69.
WPSWi-Fi On/Off
Reset
To know whether the access point is enabled or not, check the Wireless LEDs.
For more information see “Wireless LED” on page 11.

10
1 Getting started
DMS3-CTC-25-154 v1.0

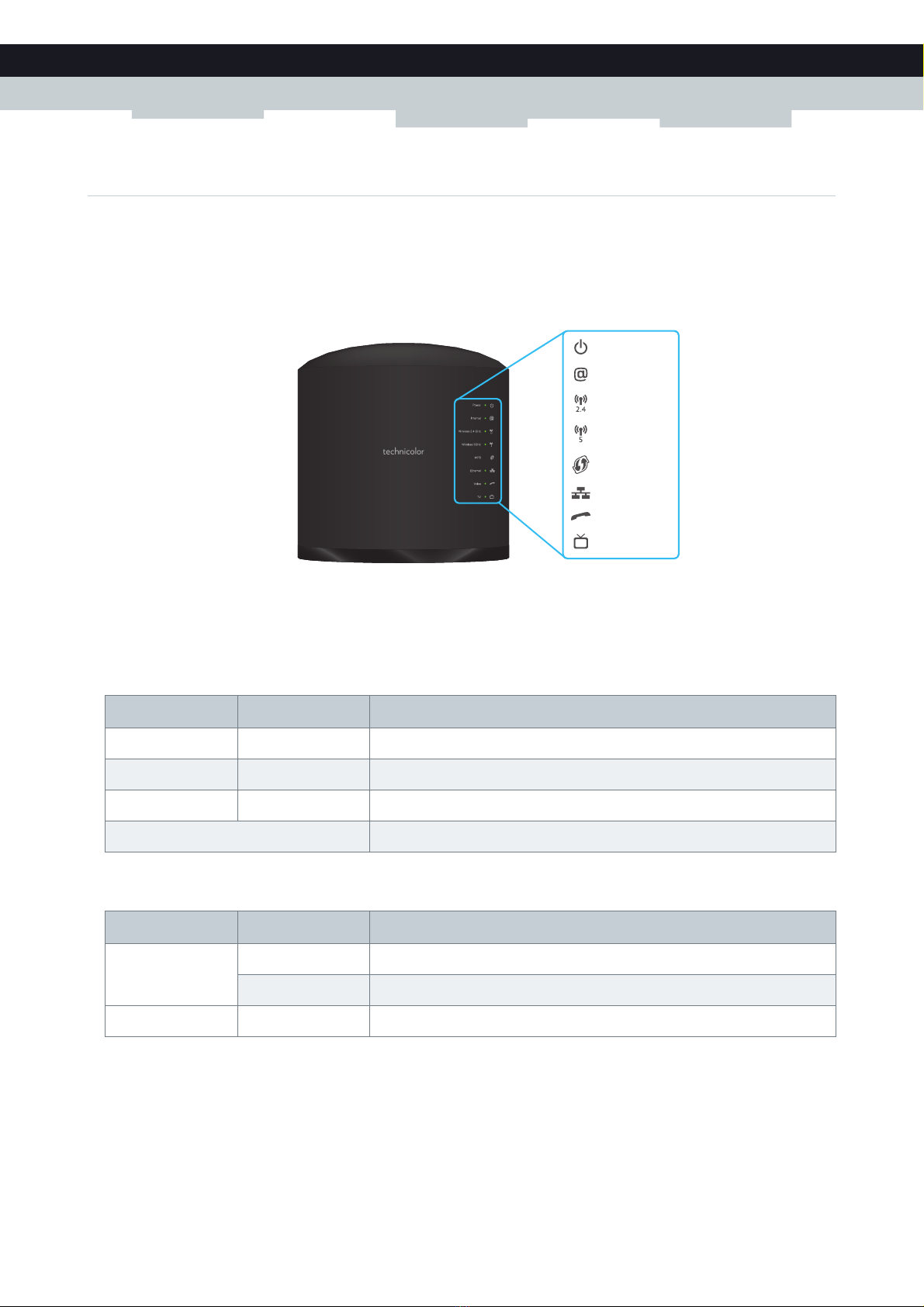

1.2.6 Status LEDs
Introduction
On your TG389ac you can find a number of status LEDs that indicates the state of your TG389ac.
Power LED
Internet LED
Power
Ethernet
Voice
Wireless 2.4 GHz
Wireless 5 GHz
Internet
WPS
TV
Colour State Description
Green Solid on Power on, normal operation.
Red Solid on Power on, self-test failed, indicating device malfunction.
Orange Solid on Your TG389ac is starting up.
Off Your TG389ac is powered off.
Colour State Description
Green Solid on Connected to the Internet, no activity.
Blinking Connected to the Internet, sending/receiving data.
Red Solid on No Internet connection.

11
1 Getting started
DMS3-CTC-25-154 v1.0
Wireless LED
WPS LED
For more information about WPS, see “3.1 Connecting your wireless client via WPS” on page 23.
Ethernet LED
TV LED
Voice LED
Colour State Description
Green Solid on The wireless interface is enabled, no wireless activity.
Blinking The wireless interface is enabled, wireless activity.
Off The wireless interface is disabled.
Both the 2.4 GHz and 5 GHz access point have a dedicated Wireless LED.
Colour State Description
Green Solid On Client successfully registered via WPS.
Orange Blinking WPS registration ongoing.
Red Blinking Error occurred.
Colour State Description
Green Solid on At least one active network device is connected to the Ethernet switch.
Blinking At least one Network device is connected to the Ethernet switch and
sending/receiving data.
Off No active Ethernet devices connected to the Ethernet switch.
Colour State Description
Green Solid on Your Digital TV service is up.
Blinking Your Digital TV service is up and there is activity.
Off Your Digital TV service is down.
Colour State Description
Green Solid on Your VoIP telephony service is up.
Blinking Your VoIP telephony service is up and there is activity.
Off Your VoIP telephony service is down or no VoIP telephony service is
included in your subscription.

12
1 Getting started
DMS3-CTC-25-154 v1.0

13
2 Setting up your TG389ac
DMS3-CTC-25-154 v1.0
2 Setting up your TG389ac
Setting up your main services
Proceed as follows:
1Connect your TG389ac to your service provider’s network.
For more information, see “2.1 Connecting your TG389ac to your service provider’s network” on page 14.
2Power on your TG389ac.
For more information, see “2.2 Powering on your TG389ac” on page 15.
3Connect your network devices. To do this using:
A wireless connection, see “3 Wireless networking” on page 22.
A wired connection, see “2.3 Connecting your wired devices” on page 16.
4Configure your TG389ac using the built-in web interface.
For more information, see “2.5 Configure your TG389ac services” on page 18.
Setting up additional services
When you subscribed you may have purchased additional services or items. For more information on how to:
Connect your phones, see “2.4 Setting up your telephone network” on page 17.
Set up a mobile data fallback connection using a mobile Internet dongle, see “2.6 Set up a mobile fallback connection” on
page 19 for more information.
We recommended you to first connect one computer/tablet (if possible via a wired connection), then complete
the rest of the procedure and as a final step connect the other (wired and/or wireless) devices.

14
2 Setting up your TG389ac
DMS3-CTC-25-154 v1.0
2.1 Connecting your TG389ac to your service provider’s
network
Introduction
This section helps you to connect your TG389ac to your service provider’s network.
Procedure
Proceed as follows:
1Take an Ethernet cable. If your package contains an Ethernet cable with red connectors, you must use that cable.
2Plug one end of the cable in the red WAN port on the back of your TG389ac.
3Plug the other end of the cable into the Ethernet port of your Internet access device (for example, an optical network
terminal for Fiber).
If you use another Ethernet cable than the one included in you package, make sure that the Ethernet cable is a
fully wired CAT5E or CAT6 Ethernet cable.
The WAN port can only be used to connect your TG389ac to an Internet access device. You cannot use it to
connect other devices (for example, a computer) to the TG389ac.
WAN

15
2 Setting up your TG389ac
DMS3-CTC-25-154 v1.0
2.2 Powering on your TG389ac
Procedure
Proceed as follows:
1Plug the connector of the power supply unit into your TG389ac power inlet port ( ).
2Plug the power supply unit into a nearby power outlet.
3Press the power button to turn on your TG389ac.
4The LED turns on. Wait at least two minutes to allow your TG389ac to complete the startup phase.
Only use the power supply unit that is supplied with your TG389ac. If your current power supply unit is broken,
contact your service provider or reseller.

16
2 Setting up your TG389ac
DMS3-CTC-25-154 v1.0
2.3 Connecting your wired devices
Requirements
Both your network device (for example, a computer, a gaming console,…) and your TG389ac must have a free Ethernet
port.
Your network device must be configured to obtain an IP address automatically. This should be the default setting.
Ethernet cable
In your package, you may find one or more cables with yellow connectors. These are Ethernet cables that you can use to
connect a local network device (a computer, an Ethernet printer, etc.).
Procedure
Proceed as follows:
1Connect one end of the Ethernet cable to one of the yellow Ethernet ports of your TG389ac:
2Connect the other end of the Ethernet cable to your network device.
3Your device is now connected to your network.
To connect wireless clients, see “3 Wireless networking” on page 22.
To connect a set-top box for digital TV, first look for instructions in the documentation included in your package.
In some cases the set-top box will have to be connected to a dedicated Ethernet port (typically Ethernet port 4).
Your TG389ac does not support Power over Ethernet (PoE). All network devices that are connected to the
TG389ac must be powered by their own power source.
