Technics SC-HDV600 User manual

RQT5941-B
Note:
“EB” on the outer packaging indicates the United
Kingdom.
Before connecting, operating or adjusting this
product, please read these instructions completely.
Please keep this manual for future reference.
EEB
DVD Stereo System
Operating Instructions
Model No. SC-HDV600
DIGITAL VIDEO
The model for the United Kingdom does not include center and
surround speakers.

System
Amplifier
Tuner
DVD player
Cassette deck
Front speakers
SC-HDV600
SE-HDV600
ST-HDV600
SL-HDV600
RS-HDA800
SB-HDV600
Surround speakers
Center speaker
SB-PS96
SB-PC96
2
RQT5941
Before use

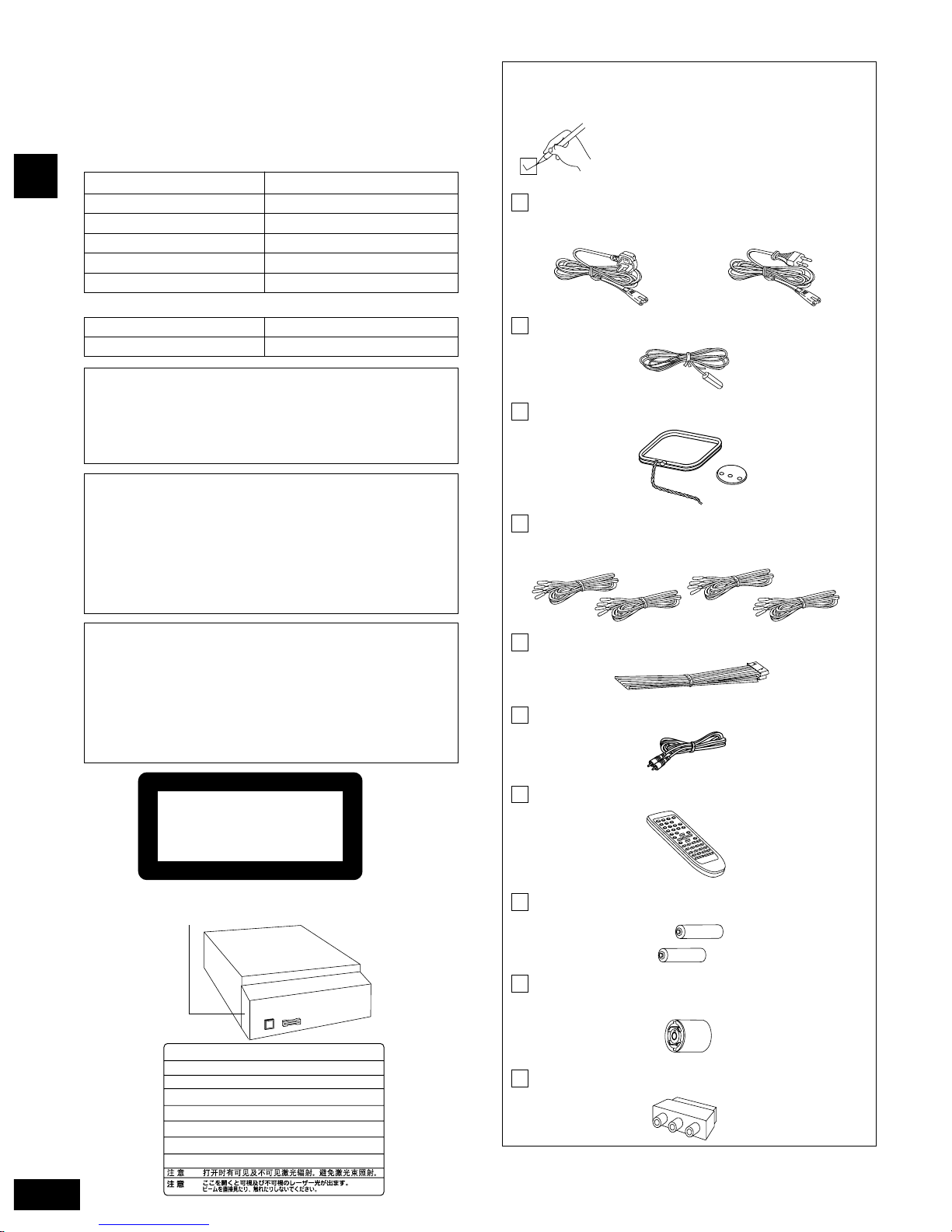

Please check and identify the supplied
accessories.
AC mains lead ............................................................1 pc.
Remote control (EUR7702080)..................................1 pc.
Remote control batteries.........................................2 pcs.
FM indoor antenna (RSA0007)..................................1 pc.
AM loop antenna set (RSA0035)...............................1 pc.
Speaker cords
¡Red and black (REE1057)......................................2 pcs.
¡Blue and gray (REE0853).......................................2 pcs.
Use numbers indicated in parentheses when asking for replacement
parts.
Antenna plug adapter (SJP9009)..............................1 pc.
(United Kingdom only)
Dear Customer
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
These operating instructions are applicable to the following system.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION!
DO NOT INSTALL, OR PLACE THIS UNIT, IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY
OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
CLASS 1
LASER PRODUCT
(Side of product)
(DVD player)
Supplied accessories
For United Kingdom
(RJA0053-2X) For others (RJA0019-1X)
(Inside of product)
RQLS0233
-
-
-
-
-
-
-
-
-
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURETO BEAM.
DANGER
(FDA 21 CFR)
(IEC60825-1)
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURETO BEAM.
CAUTION
RAYONNEMENT LASERVISIBLE ET INVISIBLE EN CAS D’OUVERTURE.
EXPOSITION DANGEREUSE AU FAISCEAU.
ATTENTION
SYNLIG OG USYNLIG LASERSTRÅLINGVED ÅBNING.
UNDGÅUDSÆTTELSE FOR STRÅLING.
ADVARSEL
AVATTAESSA OLET ALTTIINA NÄKYVÄÄ JA NÄKYMÄTÖN
LASERSÄTEILYLLE. ÄLÄKATSO SÄTEESEEN.
VARO!
SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD.BETRAKTA EJ STRÅLEN.
VARNING
SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES.
UNNGÅEKSPONERING FOR STRÅLEN.
ADVARSEL
SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG,WENN ABDECKUNG
GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.
VORSICHT
-
WARNING:
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPLIANCE TO RAIN, SPLASHING,
DRIPPING OR MOISTURE.
Surround cable (REX0941)........................................1 pc.
Video connection cable (RJL1P019B15)..................1 pc.
(Except for United Kingdom)
SKART plug adapter (VFA0151-2) ............................1 pc.
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT

3
RQT5941
Before use
Table of contents
Before use
Region numbers.........................................................................3
Caution for AC Mains Lead.....................................................4
Safety precautions.....................................................................4
Disc selection and care............................................................5
DVD jacket symbols ..................................................................5
The remote control ....................................................................6
Type of disc for the type of connected TV..........................6
Installation and connections ..................................................7
Front panel controls................................................................12
Setting the time ........................................................................14
Television settings ..................................................................15
Disc operations
Playing DVDs and CDs
Normal play .................................................................................16
Resume function..........................................................................17
Other modes of play
Skipping tracks and chapters ......................................................18
Starting play from a selected track or title ...................................18
Fast forward and rewind - Search ...............................................19
Slow motion.................................................................................19
Frame-by-frame viewing..............................................................19
Switching time displays - Time mode..........................................19
Repeat play .................................................................................20
A-B repeat ...................................................................................21
Using menus to play....................................................................21
Changing soundtracks.................................................................22
Changing subtitle language.........................................................23
Switching angles..........................................................................23
Virtual Surround Sound (V.S.S)...................................................23
Cinema mode..............................................................................23
Random play ...............................................................................24
Time search...........................................................................24, 27
Marker ...................................................................................24, 28
Dialogue Enhancer................................................................24, 28
Playing tracks in a selected order - Program play.......................25
Graphic User Interface - GUI
Basic GUI operation ....................................................................26
Icons for disc information.............................................................27
Icons for unit information.............................................................28
Shuttle screen..............................................................................28
Radio operations
The radio: manual tuning ......................................................29
The radio: preset tuning ........................................................30
Cassette deck operations
Cassette tapes..........................................................................31
Timer operations
Using the timers
The play timer..............................................................................38
The record timer..........................................................................39
The play and record timers..........................................................40
The sleep timer............................................................................40
Using the timers together ............................................................40
Region numbers
Region numbers are allocated to DVD players and software
according to where they are sold.
DVDs can be played on this unit if their region number is the same
or includes the same number, or if the DVD is marked “ALL”.
Confirm the region number for this unit before choosing discs. The
number for this unit is indicated on the rear panel.
Rear panel
Discs that can be played by the unit shown in this example
2
2ALL 26
1
(DVD player)
Recording operations
Before recording
Preparatory steps........................................................................33
Recording the radio.................................................................34
Recording discs
Normal recording.........................................................................35
CD editing....................................................................................35
Other operations
Changing the sound quality
The VGCA circuit.........................................................................36
To adjust the tone quality ............................................................36
Maximizing the bass - CINEMA BASS........................................36
Convenient functions
To adjust left-right balance..........................................................37
Muting the volume.......................................................................37
Using headphones (not included)................................................37
Reference
Settings
Changing the settings..................................................................41
Summary of settings....................................................................42
Speaker settings..........................................................................44
Ratings ........................................................................................45
Using other equipment...........................................................46
How different kinds of software appear on your
television....................................................................................48
Language code list..................................................................48
Glossary .....................................................................................49
Troubleshooting guide...........................................................50
Maintenance..............................................................................51
Technical specifications.......................................Back cover
Example

4
RQT5941
Before use
Caution for AC Mains Lead
(For United Kingdom)
(“EB”area code model only)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for
your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is approved
by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it
is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE
FUSE SHOULD BE REMOVED AND THE PLUG CUT
OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED INTO
ANY 13-AMPERE SOCKET.

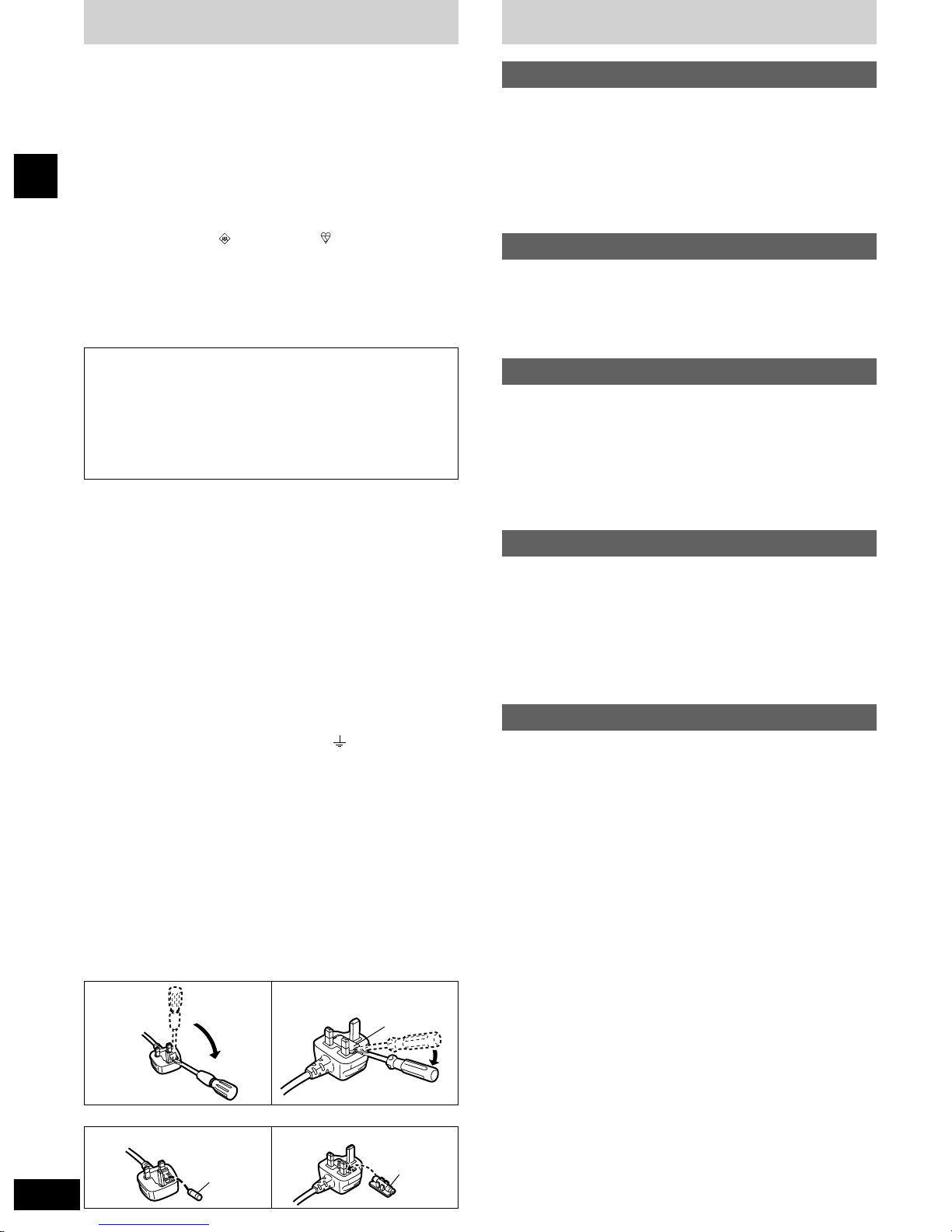

If a new plug is to be fitted please observe the wiring code as stated
below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the
following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the
terminal which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E, BY THE EARTH SYMBOL OR
COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF–KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains
plug (figures A and B). Confirm the AC mains plug fitted and follow
the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
2. Replace the fuse and close or attach the fuse cover.
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These
conditions can damage the cabinet and other components, thereby
shortening the unit’s service life.
Place it at least 15 cm away from wall surfaces to avoid distortion
and unwanted acoustical effects.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the
unit and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other place where DC is used.

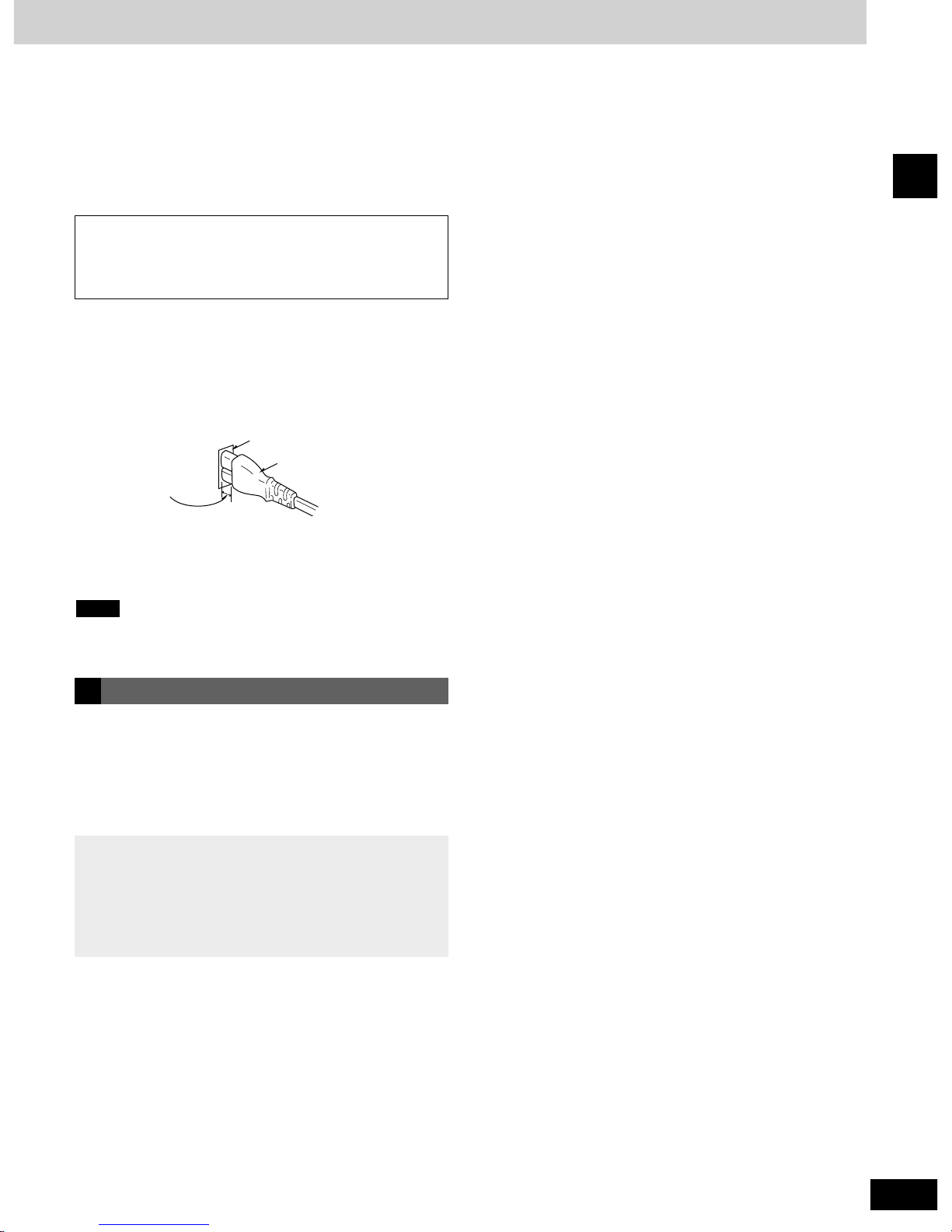

AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or
electric shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric
shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause
electric shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock
or malfunction. If this occurs, immediately disconnect the unit from
the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these operating instructions occurs,
disconnect the AC mains lead and contact your dealer or an
authorized service center. Electric shock or damage to the unit can
occur if the unit is repaired, disassembled or reconstructed by
unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
Fuse cover
Figure A Figure B
Fuse
(5 ampere)
Fuse
(5 ampere)
Figure A Figure B

5
RQT5941
Before use

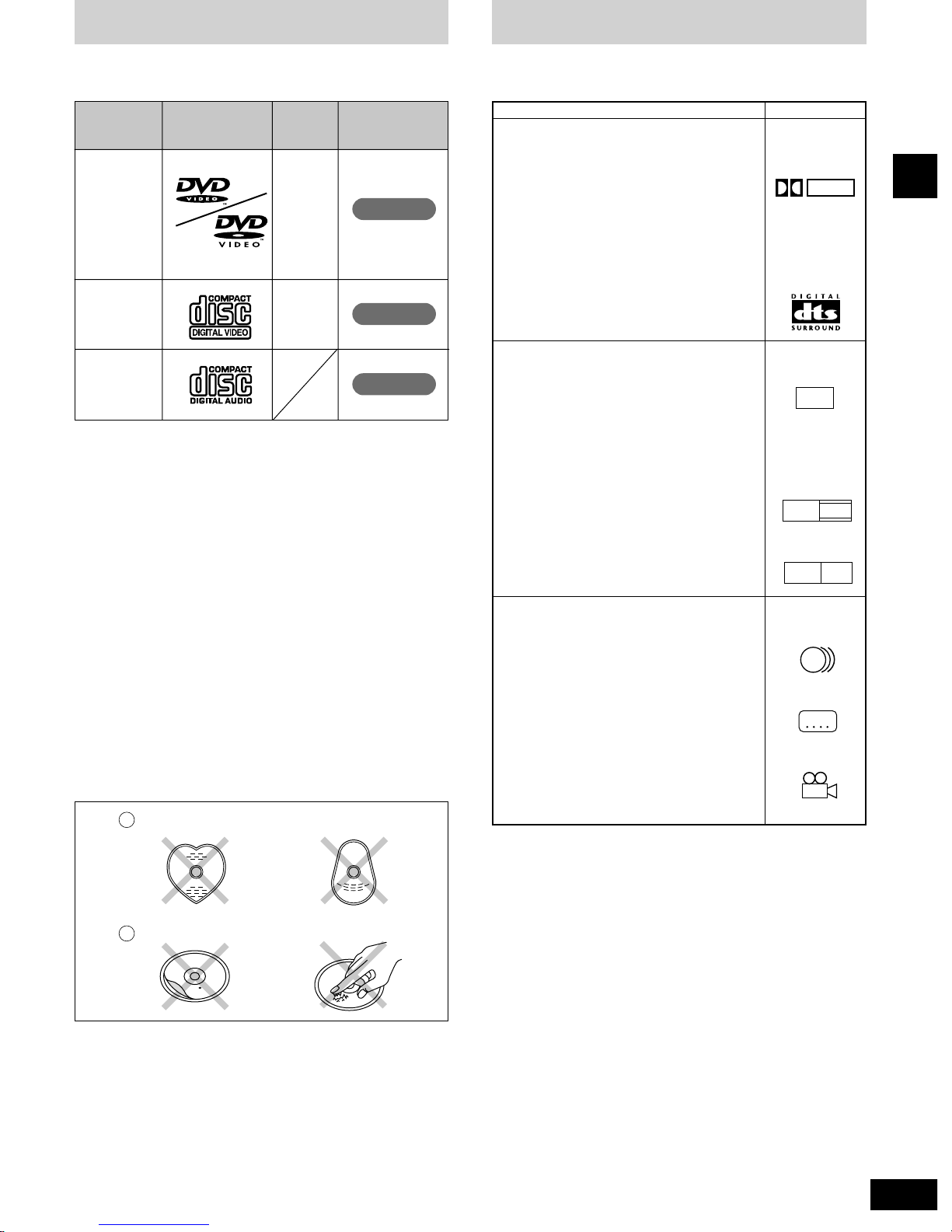

Use this chart when selecting discs. You can use both 8-cm and
12-cm discs. Do not use a disc adapter for 8-cm discs.
Disc type Logo Video
system
DVD-
Video
NTSC
+
PAL
Video CD
CD
NTSC
+
PAL
Indication used
in instructions
Discs that cannot be played
¡DVDs with an unsuitable region number.
¡DVD-Audio, DVD-ROM, DVD-R/DVD-RAM, CD-ROM, VSD,
CDV, CD-G, +RW, CVD, SVCD, Divx Video Discs and Photo CD.
Playing CD-R and CD-RW
This unit can play CD-DA (digital audio) and video CD format audio
CD-R and CD-RW that have been finalized∗upon completion of
recording.
It may not be able to play some CD-R or CD-RW due to the
condition of the recording.
∗Finalizing is a process that enables CD-R/CD-RW players to play
audio CD-R and CD-RW.
Do not;
¡use irregularly shaped discs (a).
¡attach extra labels and stickers.
¡use discs with labels and stickers that are coming off or with
adhesive exuding from under labels and stickers (b).
¡attach scratch-proof covers or any other kind of accessory.
¡write anything on the disc.
¡clean discs with liquids (Wipe with a soft, dry cloth.).
Disc selection and care
DVD
VCD
CD
a
b
DVD jacket symbols
The following table shows examples and explanations of symbols
found on DVD jackets. Refer to the table before play.
Audio signals
Dolby Digital
This unit has a Dolby Digital decoder so you
can play discs with this symbol.
United Kingdom only
Dolby Digital signals will be down-mixed to
2 channels if you do not connect surround and
center speakers.
DTS
You can enjoy discs with this symbol by
connecting this unit to equipment with a DTS
decoder with an optical fiber cable.
Screen size
4:3
The video is recorded using the 4:3 aspect
ratio for regular televisions.
16:9
The video is recorded using the 16:9 aspect
ratio for widescreen televisions.
LB (letterbox)
The video is shown on a regular television with
black bands at the top and bottom of the
screen.
PS (Pan & Scan)
The video is shown on a regular television with
the sides cut off.
Other symbols
Soundtracks
The example symbol shows that the disc
contains two soundtracks.
Subtitle languages
The example symbol shows that the disc
contains two subtitle languages.
Angles
The example symbol shows that the disc
contains scenes recorded from three different
angles.
DOLBY
DIGITAL
Explanation Example symbols
DVD audio formats
DVDs may be recorded monaurally or stereophonically instead of
with multiple channels. So, for example, audio recorded with Dolby
Surround, a stereo format found on DVDs and other media, will be
played only through the front speakers.
4 : 3
16 : 9
LB
16 : 9
PS
2
2
3

6
RQT5941
Before use

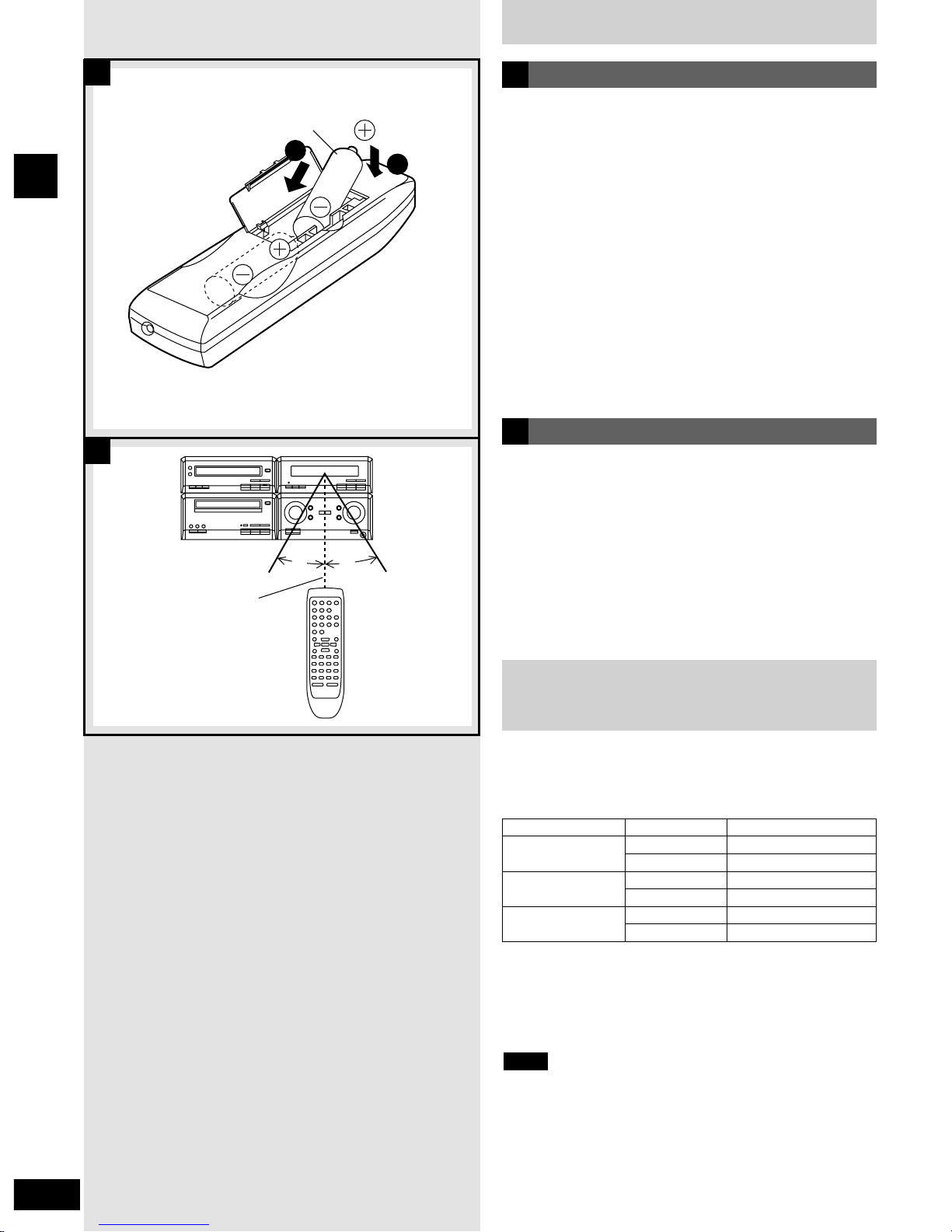

The remote control
Batteries
Insert so the poles (+ and –) match those in the remote control.
Do not use rechargeable type batteries.
Do not;
¡mix old and new batteries.
¡use different types at the same time.
¡heat or expose to flame.
¡take apart.
¡short circuit.
¡attempt to recharge alkaline or manganese batteries.
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
If electrolyte leaks from the batteries, consult your dealer.
Wash thoroughly with water if electrolyte comes in contact with any
part of your body.
Remove if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
Replace if the unit does not respond to the remote control even
when held close to the front panel.
A
Use
Aim at the sensor, avoiding obstacles, at a maximum range of
7 meters directly in front of the unit.
¡Keep the transmission window and the unit’s sensor free from
dust.
¡Operation can be affected by strong light sources, such as direct
sunlight, and the glass doors on cabinets.
Do not;
¡put heavy objects on the remote control.
¡take the remote control apart.
¡spill liquids onto the remote control.
B
R6 (AA, UM-3)
2
1
A
B
30˚30˚
7 m
Type of disc for the type of
connected TV
DVDs and Video CDs are recorded using either PAL or NTSC.
Refer to this table when selecting discs.
aClear images are shown on the screen.
bNo clear images shown on the screen.
1) If you select “NTSC”in Video –NTSC Disc Output (apage 42),
the picture may be clearer.
2) The factory setting for NTSC disc output is PAL 60, so no changes
to the initial settings are necessary. If your television is not
equipped to handle PAL 525/60 signals the picture will not be
shown correctly.
The bottom part of the picture may be cut off if the Video CD played
does not comply with standards.
Note
TV type Disc TV monitor
Multi-
system TV PAL a✓
a✓ 1)
NTSC
PAL b×
NTSC TV NTSC
PAL a✓
PAL TV NTSC
b×
a✓ 2)

7
RQT5941
Before use

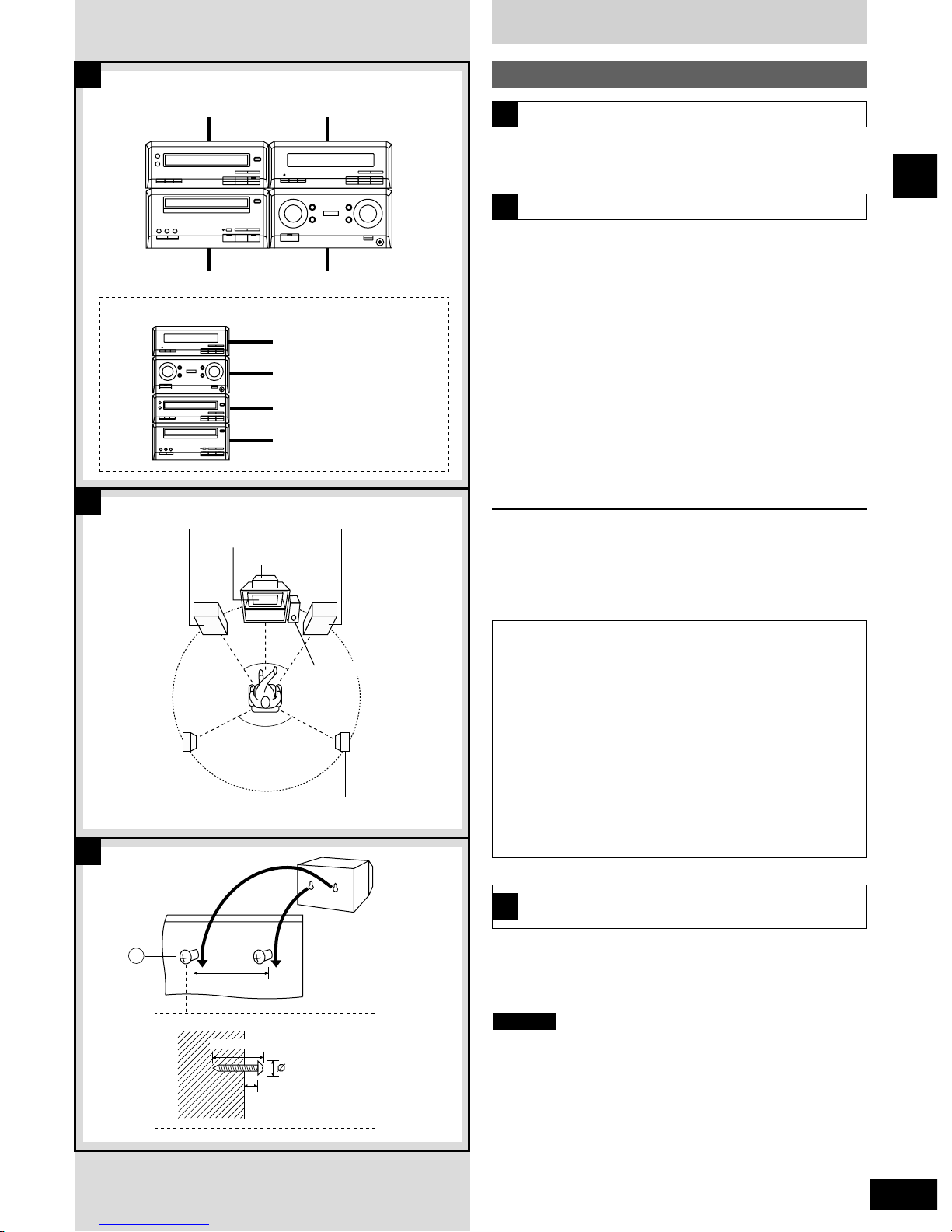

Installation and connections
A
30˚30˚
120˚
B
Side-by-side setup
DVD player (SL-HDV600) Tuner (ST-HDV600)
Cassette deck (RS-HDA800) Amplifier (SE-HDV600)
Stacking
TV (not included)
DVD player (SL-HDV600)
Tuner (ST-HDV600)
Cassette deck (RS-HDA800)
Amplifier (SE-HDV600)
Front speaker (L)
Center speaker
Surround speaker (L)
Subwoofer (not included)
You can set up the components side-by-side or stacked. The
explanations show the side-by-side setup.
The figure shows an example of when you have connected all the
speakers it is possible to connect to this system. Obtain any extra
speakers to suit your needs.
¡Center and surround speakers are necessary to enjoy the
surround sound on DVDs.
¡A subwoofer increases the power of the bass.
For the United Kingdom
Center, surround and subwoofer speakers are not included.
Optional speakers: Center/surround speaker system SB-PT96
If you purchase different speaker system, ensure the speakers have
an impedance of 8 Ω.
Be sure to change the speaker settings to suit the speakers you
connect (\page 44).
For other areas
The subwoofer is not included.
Positioning your speakers
The optimum is to place all your speakers, except for the
subwoofer, an equal distance from the seating area. The angles in
the figure are approximate.
¡Position the center speaker directly above or below the television.
¡Put the subwoofer somewhere near the television.
Installation
A
Speaker magnetic shielding
The following applies to the included speakers and to the
recommended optional center and surround speaker system
(SB-PT96).
If irregular coloring occurs on your television
These speakers are designed to be used close to a television,
but the picture may be affected with some televisions and set-
up combinations.
If this occur, turn the television off for about 30 minutes.
The television’s demagnetizing function should correct the
problem.
If it persists, move the speakers further away from the
television.
Front speaker (R)
Surround speaker (R)
Audio components
BSpeakers and TV (not included)
70 mm
7–9 mm
7.5–9.5 mm
30–35 mm
a
C
Screw the wood screw (a) (not included) into a thick and hard part
of the wall.
The surface you attach the speakers to must be able to support
over 10 kg.
Do not attempt to attach these speakers to walls methods other
than those described in this manual.
Caution
Attaching the surround speakers to the wall
(Except for United Kingdom)
C

Installation and connections
8
RQT5941
Before use
1
LF
HF
2
a
AB1 B2
L
R
LF
HF
R
SURROUND
CENTER
Gray
Blue
SURROUND
L
3
b
SUBWOOFER
White line
Press both ends and pull
out.
To unplug cable
Speaker Amplifier
Gray
Gray
Red
Red
Blue
Black Blue Black
Surround speaker (R)
Surround speaker (L)
Center speaker
Subwoofer
For the United Kingdom
Center, surround and subwoofer speakers are not included.
For other areas
The subwoofer is not included.

9
RQT5941
Before use

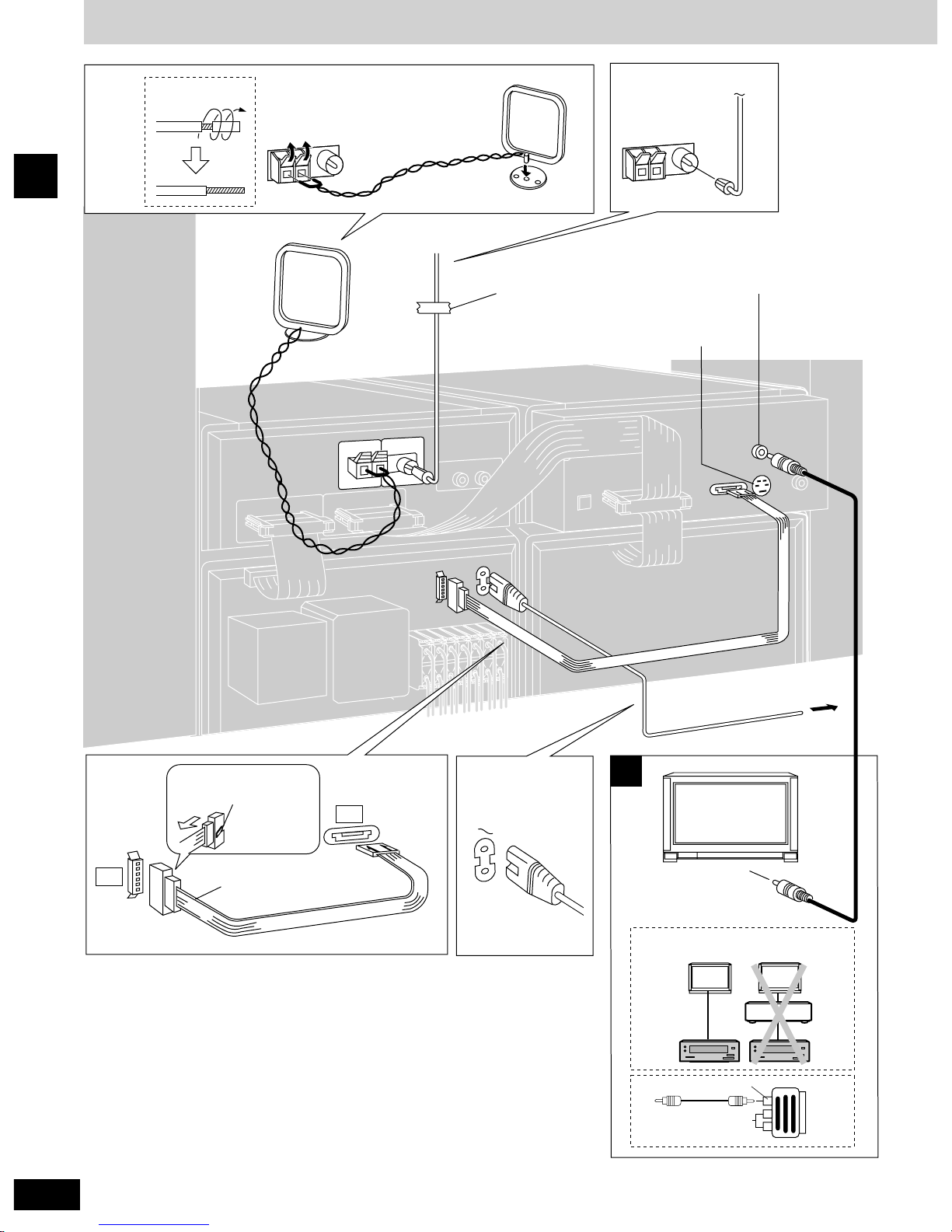

Connections
Note
Do not connect the AC mains lead until all other connections are
complete.
1Flat cables.
Keep the cables as flat as possible against the back of the
unit.
2Front speakers.
To prepare the speaker cables, twist the vinyl tip and pull off
(a).
Connect the cables to the terminals of the same color.
HF: High Frequency
LF: Low Frequency
¡To prevent damage to circuitry, never short-circuit positive
(+) and negative (–) speaker wires.
¡Be sure to connect only positive (red or gray) wires to
positive (+) terminals and negative (black or blue) wires to
negative (–) terminals.
3Center/surround speakers and
subwoofer.
If center and surround speakers are included
The connection procedure is the same as for the front
speakers.
If you connect speakers purchased
separately
Refer to the speaker’s operating instructions. You will need a
monaural connection cable to connect a subwoofer (b).
Note
Caution
¡¡Incorrect connection can damage the unit.
¡¡Use the speakers only with the recommended system.
Failure to do so can damage the amplifier and speakers,
and can cause fire. Consult a qualified service person if
damage occurs or if a sudden change in performance is
apparent.
¡¡Place the speakers on a stable surface such as the floor or
a sturdy shelf.
(Continued on next page)
Do not play distorted sounds over extended periods.
You can damage your speakers by playing sounds that include high
levels of noise. Reduce the volume in the following cases.
¡When turning the amplifier off.
¡When playing noise from FM broadcasts over extended periods.
Notes on speaker use

10
RQT5941
Before use
Installation and connections
FM ANT
75Ω
5
AM ANT
EXT LOOP
6
D1
D2 AC IN
7A
a
4
VIDEO IN
S-VIDEO
OUT
VIDEO OUT
[AUDIO]
[VIDEO]
b
c
To unplug cable
Hold down the lever and
pull.
Adhesive tape
YES
To household
mains socket
White line

11
RQT5941
Before use
Connector
Approx. 6 mm
Appliance inlet
4AM loop antenna.
To prepare antenna, twist the vinyl tip and pull off (a).
Keep loose antenna cord away from other wires and cords.
5FM antenna.
Fix the other end of the antenna where reception is best.
6Surround cable.
(United Kingdom only)
BE SURE TO READ THE CAUTION FOR THE AC
MAINS LEAD ON PAGE 4 BEFORE PROCEEDING TO
STEP 7.
7Connect the AC mains lead.
Insertion of connector
Even when the connector is perfectly inserted, depending on
the type of inlet used, the front part of the connector may jut
out as shown in the drawing.
However there is no problem using the unit.
For your reference
Information you enter into the unit’s memory, except for time,
remains intact for up to two weeks after the mains lead is
disconnected.
The included AC mains lead is for use with this unit only. Do not use
it with other equipment.
Note
Television (not included) connection
A
Connect to a television that has a video-input terminal.
S-VIDEO OUT terminal
If your television has an S-video input terminal, use an S-video
cable (not included) to connect to this unit. You can achieve better
quality video with this connection. Connecting the included video
cord is not necessary if you do so.
Connect your DVD player directly to your TV set
(b).
If the DVD player is connected to the TV through a video
cassette recorder, the picture may not be played back normally
with some DVDs. So we strongly recommend you not to connect
the DVD player to your video cassette recorder when setting up
your home entertainment system.
Use the RCAJ adaptor (included) if your TV has 21-pin SCART
terminal (c).
You do not have to connect anything to the AUDIO terminals.

12
RQT5941
Before use

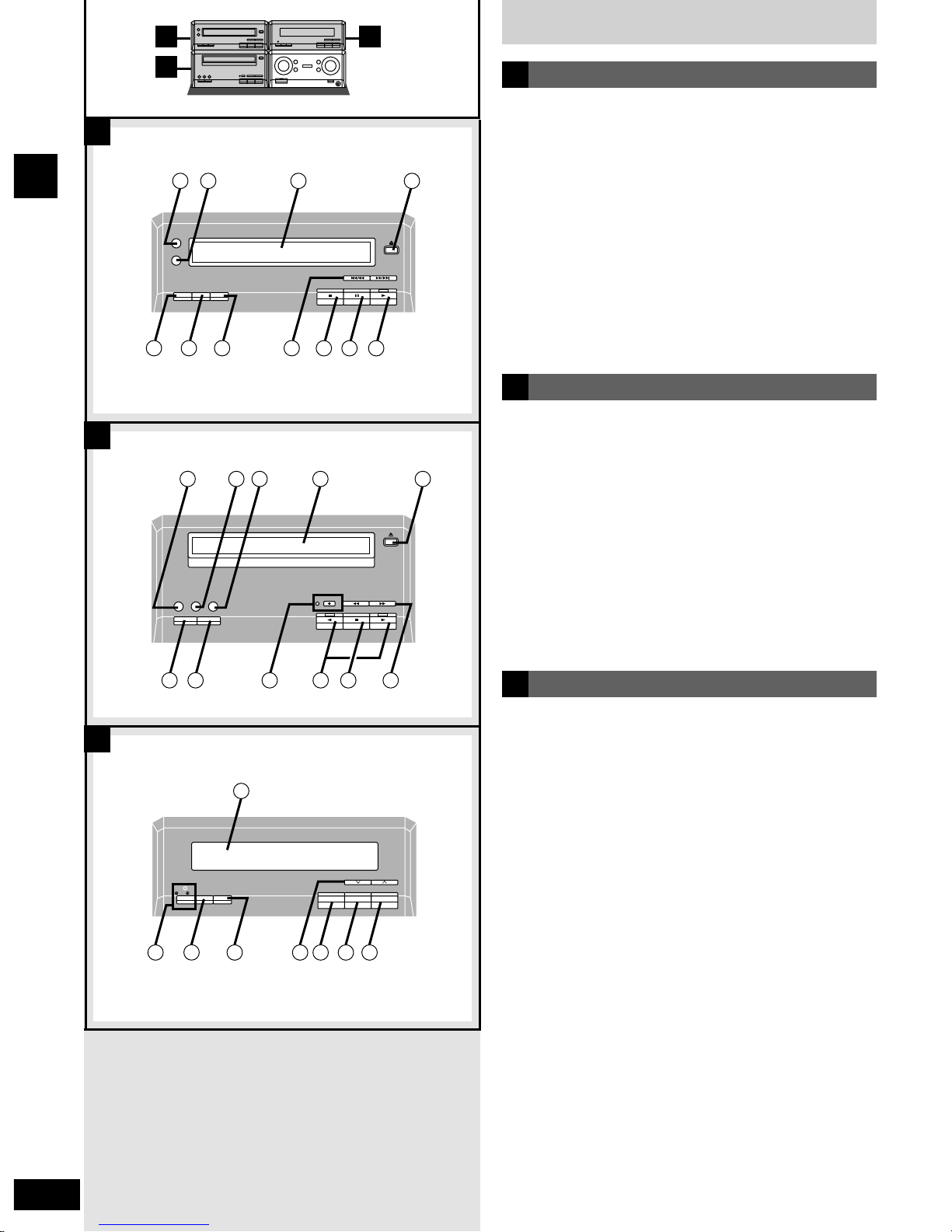

Front panel controls
DVD player
qqV.S.S. (Virtual Surround Sound) button/indicator
(V.S.S.) .....................................................................................23
wwCinema mode button/indicator (CINEMA) ............................23
eeDisc tray
rrDisc tray open/close button (;OPEN/CLOSE)....................16
ttTime mode button (TIME MODE)...........................................19
yyRepeat button (REPEAT)........................................................20
uuCD edit button (EDIT) .............................................................35
iiSkip/search buttons (u/t, y/i) .........................18, 19
ooStop button (g) .......................................................................16
!!00Pause button (h).....................................................................16
!!11Play button and indicator (q) ................................................16
The color of the indicator depends on the operation taking place.
If stopped: orange
If playing: green
When paused or the resume function is on: flashes
A
Tuner
@@33Display panel
The display also shows information for the cassette deck, DVD
player, and amplifier.
@@44Play timer/record timer button and indicator
(zPLAY/zREC) ...............................................................38, 39
@@55Clock/timer button (CLOCK/TIMER)................................14, 38
@@66Set button (SET)................................................................14, 38
@@77Tuning/time adjust buttons
(TUNE/TIME ADJUST 2, 1)........................................14, 29, 38
@@88Tuning mode button (TUNE MODE)......................................29
@@99RDS button (RDS)...................................................................29
##00Band select button (FM/AM) ..................................................29
C
AC
B
REPEATTIME MODE EDIT
OPEN/CLOSE
V.S.S.
CINEMA
34
5 6 7 8 9 10 11
1 2
COUNTER RESET
REC PAUSE (TPS)
DOLBY NR REV MODE TPS SKIP
OPEN/CLOSE
12 13 14 15 16
2120 221917 18
CLOCK/TIMER SET
PLAY/ REC
TUNE/TIME ADJUST
FM/AMRDSTUNE MODE
23
24 25 26 27 28 29 30
A
B
C
Cassette deck
!!22Dolby noise reduction button (DOLBY NR)..........................31
!!33Reverse mode select button (REV MODE) ...........................31
!!44Tape Program Sensor button (TPS SKIP) ............................32
!!55Cassette holder
!!66Cassette tray open/close button (;OPEN/CLOSE) ............31
!!77Counter button (COUNTER)...................................................33
!!88Counter reset button (RESET)...............................................31
!!99Record pause button and indicator (*REC PAUSE)..........34
@@00Playback buttons and indicators (w, q)..............................31
The color of the indicator depends on the operation taking place.
If stopped, fast forwarding or rewinding: orange
If playing or recording: green
While carrying out TPS or recording is on standby: flashes
@@11Stop button (g) .......................................................................31
@@22Fast forward/rewind buttons [t(TPS) y].......................32
B

13
RQT5941
Before use
Front panel controls
D
INPUT
SELECTOR VOLUME
BASS TREBLE
-VGCA
–CINEMA BASS
PHONES
DOWN UP
/ I
31 32
34 35 36 38 39
33
37
SLEEP
CLOCK/
TIMER
PLAY MODE
A-B REPEAT
REPEAT
AUTO/MONO
DVD/CD TAPE EXT
TUNER
MUTING
BALANCE L – VOLUME + BALANCE R
CANCEL
123
456
≥10/-/--
7890
SUBTITLE
AUDIO
ANGLE
MENU
TOP MENU
SETUP
DISPLAY
RETURN
ENTER
SKIP
SLOW/SEARCH
SHIFT
41
35
25
40
42
43
44
45
46
47
48
49
50
52
53
54
55
56
57
58
51
D
E
Amplifier
##11Input selector (INPUT SELECTOR) .......................................46
##22VGCA indicator (VGCA) .........................................................36
##33Volume control (VOLUME).....................................................16
##44Standby indicator
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the unit
is turned on.
##55Standby/on switch (8) ..........................................................14
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
##66Bass buttons (BASS e, r).....................................................36
##77Treble buttons (TREBLE e, r)..............................................36
##88VGCA/Cinema bass button (-VGCA, –CINEMA BASS)........36
##99Headphone jack (PHONES)....................................................37
D
Remote control
Buttons @5 and #5 function the same as the controls on the
main unit.
$$00Sleep timer button (SLEEP)...................................................40
$$11 Numbered buttons............................................................17, 18
$$22 Subtitle button (SUBTITLE) ...................................................23
$$33 Top menu button (TOP MENU)..............................................21
$$44 Cursor/Enter buttons (wreqENTER)........................15, 17
$$55 Display/Setup button (DISPLAY, SETUP).......................15, 26
$$66 Input select buttons
(DVD/CD, TAPE, EXT, TUNER).............................16, 29, 32, 46
$$77 Basic operating buttons
Function changes according to the source.
$$88 Shift button (SHIFT)................................................................15
$$99 Muting button (MUTING)........................................................37
%%00 Cancel button (CANCEL) .......................................................25
%%11 Audio/Angle button (AUDIO, ANGLE).............................22, 23
%%22 Menu button (MENU)..............................................................21
%%33 Return button (RETURN)........................................................15
%%44 FM mode select button (AUTO/MONO).................................29
%%55 Slow/Search buttons (tSLOW/SEARCH y)..................19
%%66 Play mode select button (PLAY MODE)................................24
%%77 Repeat/A-B repeat button (REPEAT, A-B REPEAT) ......20, 21
%%88 Volume/Balance buttons
(–VOLUME +, BALANCE L, BALANCE R)......................16, 37
E

14
RQT5941
Before use
Setting the time
This is a 24-hour clock.
The example shows how to set the clock for 16:25 (4:25 pm).
1Press [8] to turn the unit on.
2qqPress [CLOCK/TIMER] to display
“CLOCK”.
Each time you press the button:
CLOCK /zPLAY /zREC /Original display
wwWithin 7 seconds
Press [SET].
3qqPress [TUNE/TIME ADJUST
(2or 1)] to set the time.
wwPress [SET].
The time is set and the original display is restored.
Displaying the clock
Press [CLOCK/TIMER].
The clock is shown for about 5 seconds.
Reset the clock regularly.
,
1
23
1
/ I
2
CLOCK/TIMER
SET
1
2
3
TUNE/TIME ADJUST
SET
1
2
Conserving power
The unit consumes 0.9 W even when it is turned off with [8].
To save power when the unit is not to be used for a long time,
unplug it from the household mains socket.
Remember to reset the radio stations and any other memory
items before using the unit again.

15
RQT5941
Before use

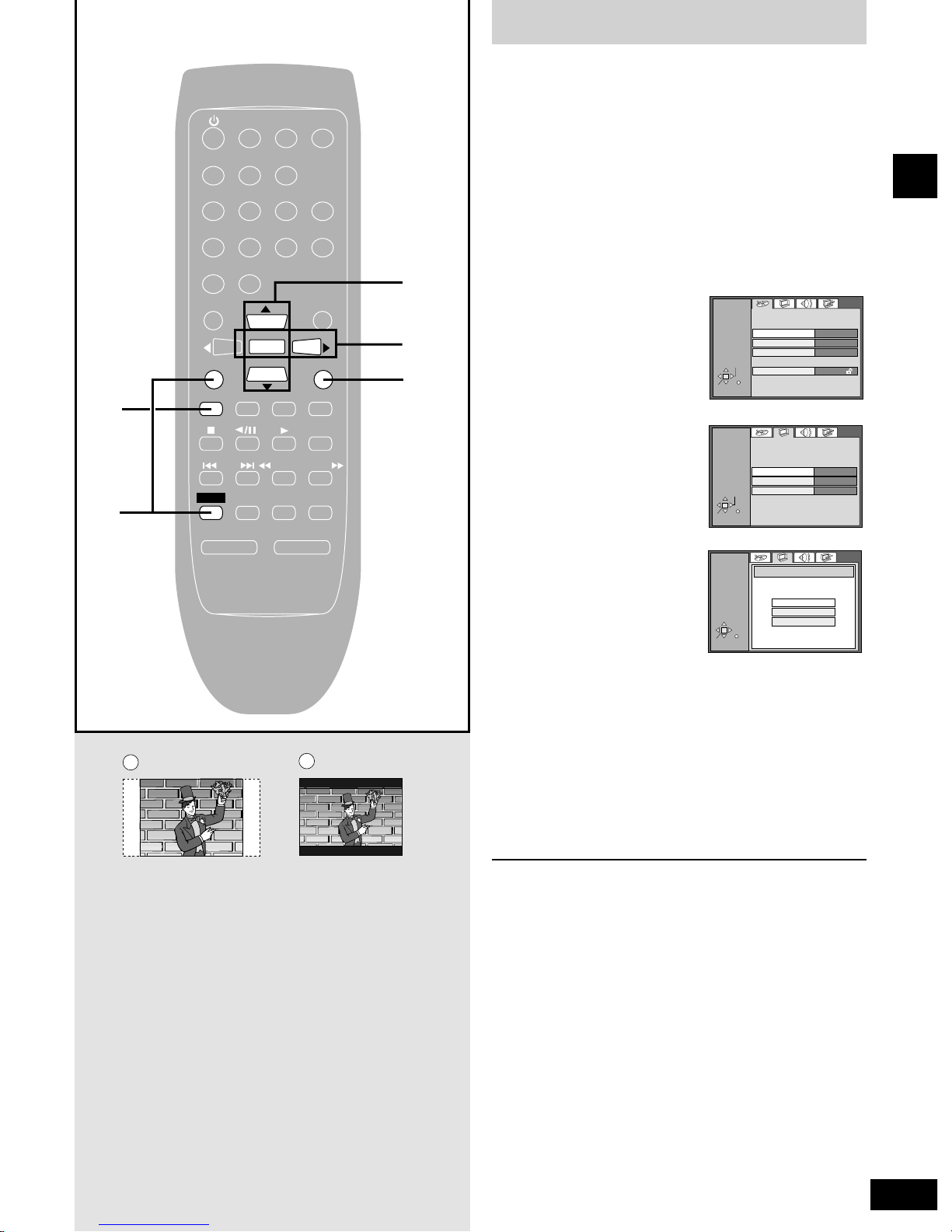

Television settings
SLEEP
CLOCK/
TIMER
PLAY MODE
A-B REPEAT
REPEAT
AUTO/MONO
DVD/CD TAPE EXT
TUNER
MUTING
BALANCE L – VOLUME + BALANCE R
CANCEL
123
456
≥10/-/--
7890
SUBTITLE
AUDIO
ANGLE
MENU
TOP MENU
SETUP
DISPLAY
RETURN
ENTER
SKIP
SLOW/SEARCH
SHIFT
1
2
4
5
3
The menu language has been factory preset to English. You can
change the language by going to Display–Menu Language
(apages 41–42).
Set the screen size to suit your television. The initial setting is for a
regular television with an aspect ratio of 4:3.
Preparation
¡Turn the television on.
¡Switch the video input mode on the television to suit the type of
connection you have made (e.g., VIDEO 1).
1Press [DVD/CD] to select “DVD”as
the source.
2Press [SHIFT] +
[SET UP] to
display the
settings screen on
the television.
3Press the cursor
button (q) to
select the Video
tab, and press
[ENTER].
4Press the cursor
buttons (ror e) to
highlight the
required size, and
press [ENTER].
4:3: regular television
If you select Pan & Scan, the video for widescreen televisions
is cut to fit a regular 4:3 screen (a).
If you choose Letterbox, the video for widescreen televisions
is shown in full on a regular 4:3 television. This causes black
bands to appear at the top and bottom of the screen (b).
16:9: widescreen television
5Press [RETURN] to complete the
settings.
For your reference
The picture size on some DVDs cannot be adjusted with this
setting.
SELECT
ENTER RETURN
SETUP Disc
Audio
Subtitle
Menus
Ratings
English
Automatic
English
Level 8
ENTER RETURN
SETUP Video
TV Aspect
4:3 Pan&Scan
Still Mode Automatic
SELECT
NTSC Disc Output
PAL 60
ENTER RETURN
SETUP TV Aspect
4:3 Pan&Scan
4:3 Letterbox
16:9
SELECT
ab

16
RQT5941
Disc operations

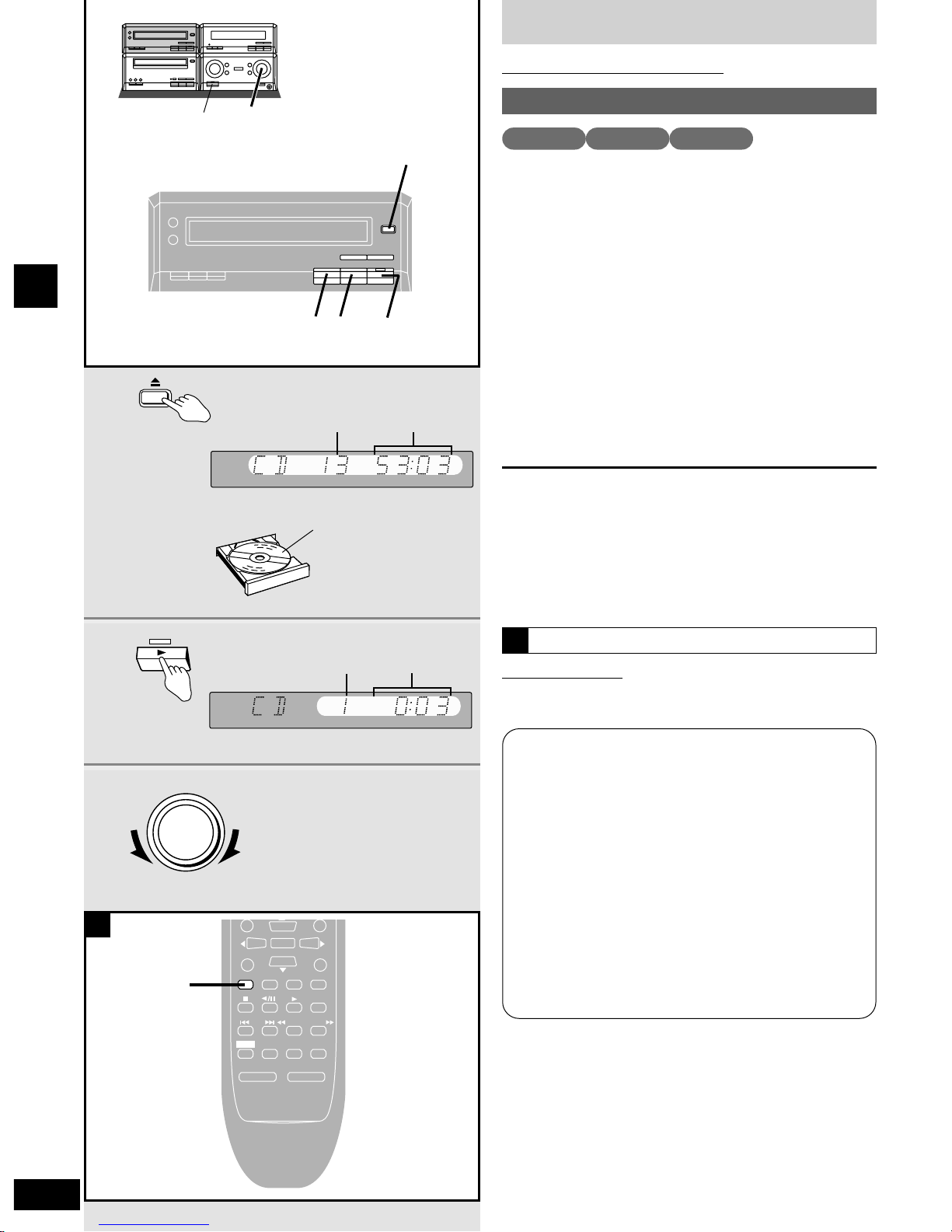

Playing DVDs and CDs
Normal play
Preparation
¡Turn the unit on.
¡When playing DVDs or video CDs, turn the television on and
switch its video input mode to suit the connections you have
made (e.g., VIDEO 1).
1Press [;OPEN/CLOSE] to open the
tray.
Set the disc label up on the tray.
Press [;OPEN/CLOSE] to close the tray.
Most DVDs start automatically when you close the disc tray.
2Press [q] to start play.
A menu will be shown with some discs (apage 17).
3Adjust the volume.
To stop the disc
Press [g] (apage 17).
To pause play
Press [h] during play. Press [q] to resume play.
“NO DISC”is displayed
When the unit is in DVD mode but a disc isn’t in the player.
3
8
1
2
gh
1
OPEN/CLOSE
2
3
VOLUME
DOWN
UP
Label must
face upward.
Playing DVD and Video CDs
The producer of the material can control how these discs are
played. This means that you may not be able to control play with
some of the operations described in these operating instructions.
Read the disc’s instructions carefully.
The symbol “5”appears on the television when you perform an
operation to indicate it is not allowed at that time.
Playing karaoke discs
After playing a track, you will normally be shown a menu. Some
discs allow you to play all the tracks in succession. Others will
play all the tracks in succession automatically.
DVD volume
Volume may be lower when playing DVDs than when playing
other discs.
If you turn the volume up, ensure you reduce the volume again
before playing other sources so that a sudden increase in output
does not occur.
Screens illustrated are examples.
DVD VCD CD
One touch play
Remote control only
When a disc is loaded and the unit is off, press [DVD/CD].
The unit comes on and starts play with the volume fading in.
A
Total number
of tracks Total playing
time
Track number Elapsed play
time
PLAY MODE
A-B REPEAT
REPEAT
AUTO/MONO
DVD/CD TAPE EXT
TUNER
MUTING
BALANCE L – VOLUME + BALANCE R
SETUP
DISPLAY
RETURN
ENTER
SKIP
SLOW/SEARCH
SHIFT
DVD/CD
A

Playing DVDs and CDs
17
RQT5941
Disc operations
q
g
SLEEP
CLOCK/
TIMER
PLAY MODE
A-B REPEAT
REPEAT
AUTO/MONO
DVD/CD TAPE EXT
TUNER
MUTING
BALANCE L – VOLUME + BALANCE R
CANCEL
123
456
≥10/-/--
7890
SUBTITLE
AUDIO
ANGLE
MENU
TOP MENU
SETUP
DISPLAY
RETURN
ENTER
SKIP
SLOW/SEARCH
SHIFT
1–0, ≥10/-/--
TOP MENU
MENU
RETURN
q
w
e
r
ENTER
q
g
uSKIP i
If a menu screen is shown
A menu screen is shown on your
television shortly after starting some
DVDs and Video CDs. To continue
play you must make a selection.
(menu example)
Press the cursor buttons (werq) to
highlight an item.
Press [ENTER] to confirm your selection.
OR
Press the numbered button
corresponding to the menu item.
For items numbered 10 and over, press [≥10/-/--] then the two
digits.
e.g. 10: [≥10/-/--] /[1] /[0]
e.g. 25: [≥10/-/--] /[2] /[5]
Video CD menu items can only be selected with the numbered
buttons.
Other buttons used to operate menus
The operation of these buttons differs with the disc so read the
instructions that came with the disc for further details.
[uSKIP i]: Shows the next menu.
[RETURN]: Shows the previous menu.
[MENU]: Shows the menu screen (DVD).
[TOP MENU]: Shows the first menu screen (DVD).
When [g] is pressed.
The play indicator flashes to indicate that the resume function is
active.
Using the resume function to restart play
While the play indicator is flashing, press [q].
Play starts from where it was stopped.
If you are playing DVD, you can activate the CHAPTER REVIEW
function while the message, “Press PLAY to Chapter Review”is
shown on your television. This message appears for a few seconds
before play is resumed.
Press [q] while this message is shown on your television and the
beginning portions of each chapter up to the current one are played.
Full play resumes from the point play was stopped at.
CHAPTER REVIEW is not possible with some DVD.
¡Resume is canceled if you open the disc tray or change the play
mode (RANDOM apage 24 and PROGRAM apage 25).
¡Resume does not work if the disc’s play time is not displayed.
¡The position is saved even if the unit is turned off.
Note
Resume function
1
Main Menu
Chapter
2Options
3Staff
4Start
DVD VCD CD
DVD VCD

Other modes of play
18
RQT5941
Disc operations
u/ty/i
h
TIME MODE
SLEEP
CLOCK/
TIMER
PLAY MODE
A-B REPEAT
REPEAT
AUTO/MONO
DVD/CD TAPE EXT
TUNER
MUTING
BALANCE L – VOLUME + BALANCE R
CANCEL
123
456
≥10/-/--
7890
SUBTITLE
AUDIO
ANGLE
MENU
TOP MENU
SETUP
DISPLAY
RETURN
ENTER
SKIP
SLOW/SEARCH
SHIFT
1–0, ≥10/-/--
MENU
g
uSKIP i
wq
w/h
t
SLOW/SEARCH y
q

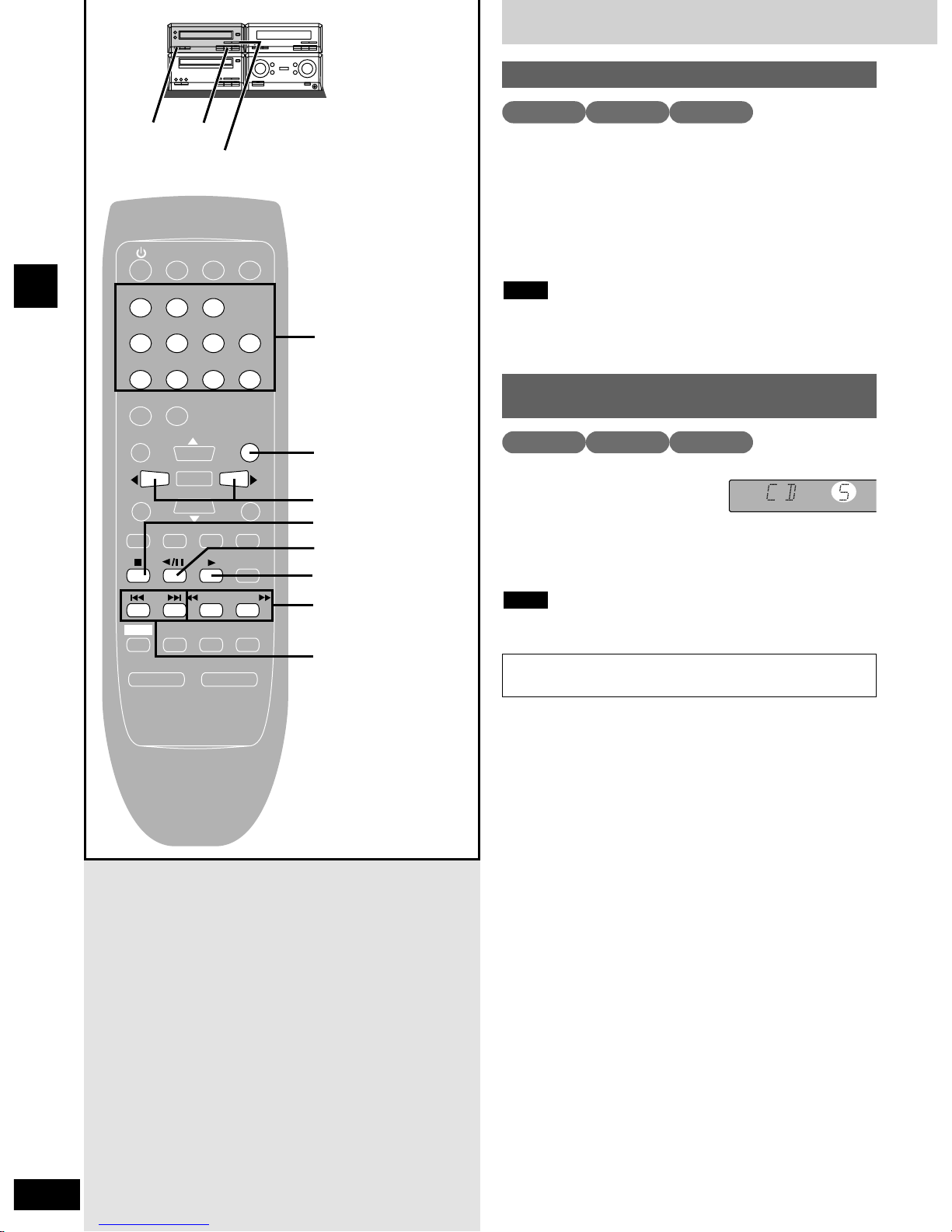

Press [u] (backward) or [i] (forward)
on the remote control.
OR
[u/t] or [y/i] on the main unit.
Each press increases the number of skips.
The first skip backwards takes you to the beginning of the current
track or chapter.
¡If pressed while a DVD or Video CD menu is on the screen, you
may return to the previous menu.
¡Skip will not work with some discs.
Note
While stopped or playing
Press the numbered
buttons.
To select a track or title numbered 10 and over, press [≥10/-/--] then
the two digits.
e.g. 10: [≥10/-/--] /[1] /[0]
e.g. 25: [≥10/-/--] /[2] /[5]
Cancel playback control on video CDs with this feature first.
Note
Canceling playback control allows you to play the disc all the way
through from the beginning.
1. Press [g].
“PBC”on the unit’s display goes out.
2. Press the numbered buttons to select the track where you want
to start play.
There are some video CDs with PBC where this will not work.
To restore playback control
1. Press [g] to stop play.
2. Press [MENU] on the remote control.
“PBC”appears on the unit’s display.
Skipping tracks and chapters
Starting play from a selected track or
title
Canceling the playback control feature on Video
CDs
DVD VCD CD
DVD VCD CD

19
RQT5941
Disc operations
During play
Press [t] (backward) or [y] (forward)
on the remote control.
Each press increases the speed of the search. There are five
speeds.
OR
Press and hold [u/t] or [y/i] on
the main unit.
The search speed increases in five steps if the button is held down.
Audio may be heard during fast-forward and rewind.
You can turn this audio off if you want to (DVD and Video CDs only,
apages 41–42).
To resume play
Press [q].
If pressed while a DVD or Video CD menu is on the screen, you
may return to the previous menu.
Note
While paused
Press [t] (backward) or [y] (forward)
on the remote control.
Each press increases the speed of the slow motion. There are five
speeds.
OR
Press and hold [u/t] or [y/i] on
the main unit.
The slow motion speed increases in five steps if the button is held
down.
To resume play
Press [q].
You cannot move backwards with video CD.
Note
Fast forward and rewind - Search
Slow motion
DVD VCD CD
DVD VCD
While paused
Press the cursor buttons (wor q).
w: Backward
q: Forward
¡The frame changes each time you press a button.
¡The frames change in succession if you press and hold the
button.
¡The frames also advance if you press [h] on the main unit or
[w/h] on the remote control.
To resume play
Press [q].
You cannot move backwards with video CD.
Note
Frame-by-frame viewing
DVD VCD
Press [TIME MODE] on the main unit.
The display change each time the button is pressed.
The displays shown depend on the condition of the player.∗
(example - During play)
Track elapsed time /track remaining time /disc remaining time
∗The disc remaining time, for example, is not shown during random
play, program play, and CD editing.
You can use this feature with Video CD if you cancel playback
control (apage 18).
Note
,
Switching time displays - Time mode
VCD CD

Other modes of play
20
RQT5941
Disc operations
REPEAT
SLEEP
CLOCK/
TIMER
PLAY MODE
A-B REPEAT
REPEAT
AUTO/MONO
DVD/CD TAPE EXT
TUNER
MUTING
BALANCE L – VOLUME + BALANCE R
CANCEL
123
456
≥10/-/--
7890
SUBTITLE
AUDIO
ANGLE
MENU
TOP MENU
SETUP
DISPLAY
RETURN
ENTER
SKIP
SLOW/SEARCH
SHIFT
A-B REPEAT
REPEAT
SHIFT
q
w
e
r
ENTER
TOP MENU
MENU
C
T
OFF
T
A
OFF
This feature allows you to repeat titles, tracks and chapters.
Press [REPEAT] during play to select the
required repeat play mode.
The mode changes each time you press the button.
The modes depend on the type of disc you are playing.
¡Chapter
¡Title
¡Off
¡Track
¡ All (all tracks or
programmed tracks)
¡Off
Repeat play
DVD VCD CD
¡There is no feature to repeat the whole disc for DVD that contain
more than one title.
¡Repeat play does not work with some DVDs. It also doesn’t work
with interactive DVDs and video CDs with playback control.
Note
VCD CDDVD
// //
