Technika TDX8SS-6 User manual

USER GUIDE
60CM BUILT-IN DISHWASHER
TDX8SS-6
TECHNIKA.COM.AU

PG 3
PG 3
CONTENTS TABLE
Note
• If you cannot solve the problems by yourself, please ask for help from a professional technician.
• The manufacturer, following a policy of constant development and updating of the product,
may make modifications without giving prior notice.
• If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible
vendor.
1. Safety Information__________________________ 4
2. Product Overview__________________________ 7
3. Installation Instructions______________________ 8
About Power Connection_______________________ 8
Water Supplier and Drain_______________________ 9
Connection of Drain Hoses_____________________ 10
Position the Appliance_________________________ 11
Freestanding Installation_______________________ 11
Built-in Installation (for integrated model)___________ 12
4. Using the Dishwasher_______________________ 15
Control Panel________________________________ 16
Function of the Rinse Aid and Detergent____________18
Filling the Rinse Aid Dispenser___________________ 19
Filling the Detergent Dispenser__________________ 20
Basket Use Tips______________________________21
Preparing and Loading Dishes___________________ 22
Loading the Baskets According to AS/NZS 2007.1_____25
5. Programming the Dishwasher_________________27
Wash Cycle Table_____________________________27
Starting A Cycle Wash_________________________ 28
Changing The Program Mid-cycle________________ 28
Forgot to Add a Dish__________________________ 29
6. Maintenance & Cleaning_____________________ 30
External Care________________________________ 30
Internal Care________________________________ 30
Caring for the Dishwasher______________________ 33
7. Troubleshooting Tips________________________ 34
Error Codes_________________________________ 38
8. Technical Information_______________________ 39
Product Fiche_______________________________ 40

PG 4
SAFETY INFORMATION
When using your dishwasher , follow the precautions listed below:
• Installation and repair can only be carried out by a qualified technician
• This appliance is intended to be used in household and similar applications such as:
- sta kitchen areas in shops, oces and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be done
by children without supervision.
• This appliance is not intended for use by persons (including children ) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. (For IEC60335-1 )
• Packaging material could be dangerous for children!
• This appliance is for indoor household use only. To protect against the risk of electrical
shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and performing maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it again.
Warnings

PG 5
SAFETY INFORMATION
• This appliance must be earthed. In the event of a malfunction or breakdown, earthing
will reduce the risk of an electric shock by providing a path of least resistance of electric
current. This appliance is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in
accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an
electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly grounded.
• Do not modify the plug provided with the appliance; If it does not fit the outlet.
• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting
out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance
could tip forward.
• When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket
with their points facing down or placed in a horizontal position.
• Some dishwasher detergents are strongly alkaline.
• They can be extremely dangerous if swallowed.
• Avoid contact with the skin and eyes and keep children away from the dishwasher when
the door is open.
• Check that the detergent powder is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.
• For unmarked plastic items not so marked, check the manufacturer’s recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.
• During installation, the power supply must not be excessively or dangerously bent or
flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water valve using new hose sets. Old
sets should not be reused.
• To save energy, in stand by mode , the appliance will switch o automatically while there is
no any operation in 30 minutes.
• The maximum number of place settings to be washed is 14.
Earthing Instructions

PG 6
SAFETY INFORMATION
Disposal
• For disposing of package and the appliance please go to a recycling center. Therefore cut
o the power supply cable and make the door closing device unusable.
• Cardboard packaging is manufactured from recycled paper and should be disposed in the
waste paper collection for recycling.
• By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
• For more detailed information about recycling of this product, please contact your local city
oce and your household waste disposal service.
• DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.

PG 7
PRODUCT OVERVIEW
IMPORTANT:
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
NOTE:
Pictures are only for reference, dierent models may be dierent. Please prevail in kind.

PG 8
INSTALLATION INSTRUCTIONS
Attention
The installation of the pipes and electrical equipments should be done by professionals.
Electrical Requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to the
appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker
recommended and provide separate circuit serving only this appliance.
Electrical Shock Hazard
Disconnect electrical power before installing
dishwasher. Failure to do so could result in
death or electrical shock.
For personal safety:
Do not use an extension cord or an adapter plug with this
appliance. Do not, under any circumstances, cut or remove the
earthing connection from the power cord.
About Power Connection
Electrical Connection
Ensure the voltage and frequency of the power being corresponds to those on the rating plate.
Only insert the plug into an electrical socket which is earthed properly. If the electrical socket
to which the appliance must be connected is not appropriate for the plug, replace the socket,
rather than using a adaptors or the like as they could cause overheating and burns.

PG 9
INSTALLATION INSTRUCTIONS
Water Supply and Drain
Cold water connection
Connect the cold water supply hose to a threaded 3/4 inch
connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure that
the water is clear. This precaution is needed to avoid the risk
of the water inlet to be blocked and damage the appliance.
Warning
The appliance is to be connected to the water mains using new hose sets and that old hose-
sets should not be reused.
About the safety supply
The safety supply hose consists of the double walls. The hose’s system guarantees its
intervention by blocking the flow of water in case of the supply hose breaking and when the air
space between the supply hose itself and the outer corrugated hose is full of water.
Warning
A hose that attaches to a sink spray can burst if it is installed on the same water line as the
dishwasher. If your sink has one, it is recommended that the hose be disconnected and the
hole plugged.
How to connect the safety supply hose
1. Pull The safety supply hoses completely out from storage compartment located at rear of
dishwasher.
2. Tighten the connection of the safety supply hose to the faucet with thread 3/4 inch.
3. Turn water on and test for leaks before fully installing the dishwasher.
How to disconnect the safety supply hose
1. Turn o the water.
2. Unscrew the safety supply hose from the faucet.

PG 10
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink,
making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm.
The free end of the hose must not be immersed in water to avoid the back flow of it.
Please securely fix the drain hose in either position A or position B
When connecting to a spigot (A), insure the spigot is drilled out fully to avoid blockages.
How to drain excess water from hoses
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into
the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container
that is held outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water drain hose is not kinked or squashed.
Extension hose
If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer
than 4 meters; otherwise the cleaning eect of the dishwasher could be reduced.
Syphon connection
The waste connection must be at a height less than 100 cm (maximum) from the bottom of the
dish. The water drain hose should be fixed.
Connection of Drain Hoses
INSTALLATION INSTRUCTIONS

PG 11
Underneath existing work top
(When fitting beneath a work top)
In most modern fitted kitchens there is only one single work
top under which cabinets and electrical appliances are
fitted. In this case remove the work top of the dishwasher by
unscrewing the screws under the rear edge of the top (a).
Attention
After removing the work top, the screws must be screwed
again under the rear edge of the top (b).
The height will then be reduced to 815 mm, as scheduled by the
International Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top.
Position the appliance in the desired location. The back should rest against the wall behind it, and
the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply
and drain hoses that can be positioned either to the right or the left sides to facilitate proper
installation.

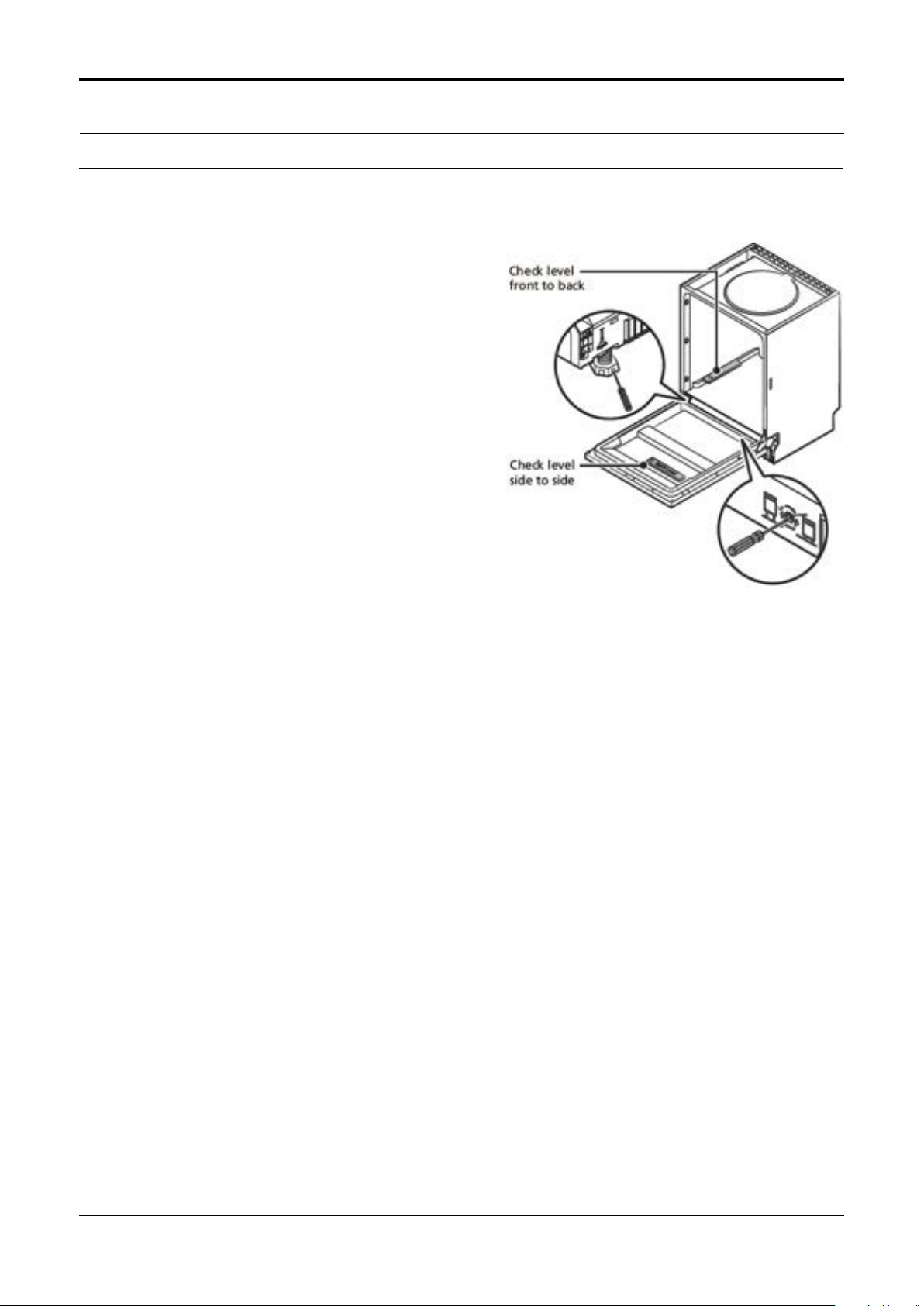

Levelling the appliance
Once the appliance is positioned for levelling, the height
of the dishwasher may be altered via
adjustment of the screwing level of the feet. In any case,
the appliance should not be inclined
more than 2°.
NOTE: Only apply to the free standing dishwasher.
Position The Appliance
Free Standing Installation
Fitting between existing carbinets
The height of the dishwasher, 845 mm, has been
designed in order to allow the machine to be fitted
between existing cabinets of the same height in
modern fitted kitchens. The feet can be adjusted so
that correct height is reached.
The laminated top of the machine does not require any
particular care since it is heatproof, scratchproof and
stainproof.
INSTALLATION INSTRUCTIONS

PG 12
Built-in Installation (for the integrated model)
Step 1. Selecting the best location for
the dishwasher
The installation position of dishwasher
should be near the existing inlet
and drain hoses and power cord.
Illustrations of cabinet dimensions and
installation position of the dishwasher.
1. Less than 5 mm between the top of
dishwasher and cabinet and the outer
door aligned to cabinet.
2. If dishwasher is in stalled at the corner of the cabinet,
there should be some space when the door is opened.
NOTE:
Depending on where your electrical outlet is, you may need
to cut a hole in the opposite cabinet side
Step 2. Aesthetic panel's dimensions and installation
The aesthetic wooden panel could be processed according to the installation drawings.
Full integrated model
Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door
of dishwasher (see figure A). After positioning of the panel, fix the panel onto the outer door by
screws and bolts (See figure B).
INSTALLATION INSTRUCTIONS

PG 13
Step 3. Tension adjustment of the door spring
1. The door springs are set at the factory to the proper tension for the
outer door. If aesthetic wooden panel are installed, you will have to
adjust the door spring tension. Rotate the adjusting screw to drive the
adjustor to strain or relax the steel cable.
2. Door spring tension is correct when the door remains horizontal
in the fully opened position, yet rises to a close with the slight lift of a
finger.
Step 4. Dishwasher installation steps
Please refer to the specified installation steps in the installation drawings.
1. Ax the condensation strip under the work surface of cabinet. Please ensure the
condensation strip is flush with edge of work surface. (Step 2)
2. Connect the inlet hose to the cold water supply.
3. Connect the drain hose.
4. Connect the power cord.
5. Place the dishwasher into position. (Step 4)
6. Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by
turning the Philips screw in the middle of the base of dishwasher using a screw driver. To adjust
the front feet, use a flat screw driver and turn the front feet until the dishwasher is level. (Step 5
to Step 6)
7. Install the furniture door to the outer door of the dishwasher. (Step 7 to Step 10)
8. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion
to tighten the left and right door springs. Failure to do this could cause damage to your
dishwasher. (Step 11)
9. The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to
the work surface with the wood screws.
B. Marble or granite work top: Fix the side with Screw.
INSTALLATION INSTRUCTIONS

PG 14
Step 5. Levelling the dishwasher
Dishwasher must be level for proper dish rack
operation and wash performance.
1. Place a spirit level on door and rack track inside the
tub as shown to check that the dishwasher is level.
2. Level the dishwasher by adjusting the three
levelling legs individually.
3. When level the dishwasher, please pay attention
not to let the dishwasher tip over.
Note:
The maximum adjustment height of the feet is 50mm
INSTALLATION INSTRUCTIONS

PG 15
Please read the corresponding content in the instruction manual for detailed operating method.
USING THE DISHWASHER
5
2Removing the larger residue on the
cutlery
3
4Filling the dispenser
Inside
Loading the baskets
Selecting a program and running
the dishwasher
Outside
1Install the dishwasher

PG 16
USING THE DISHWASHER
Control Panel
Power
Delay
Program
Press this button to turn on your dishwasher.
Press the Delay button to increase the delay start time. Delay a
cycle for up to 24 hours in one-hour increments. After setting the
delay time, press the Start/Pause button to start.
1
3
4
2Press this button to select the appropriate washing program,
the selected program indicator will be lit.
Display
If the “
on dishwasher rinse aid and requires a refill.
” indicator is lit, it means the dishwasher is low
Warning
indicator
5
Rinse Aid
Extra Drying
Operation (Button)
To dry dishes more completely. (It can only be used with Intensive,
Heavy, ECO, Glass, 90mins.)
When pressing this button, corresponding indicator will be lit.

PG 17
Program end
When the program has ended, the indicator will be lit.
7
8
6
To show which program you have chose;
Auto sensing wash, lightly, or heavily soiled crockery,
with or with out dried-on food
For heaviest soiled crockery, such as pots, pans, casserole
dishes and dishes that have been sitting with dried food
on them for a while.
For heavily soiled loads, such as pots, plates, glasses
and lightly soiled pans.
For normally soiled loads, such as pots, plates, glasses
and lightly soiled pans, standard daily cycle.
For lightly soiled crockery and glass.
For lightly soiled plates and pans that need quick wash.
A shorter wash for lightly soiled loads that do not
need drying.
To rinse dishes that you plan to wash later that day.
Display
Intensive
Auto
To show the remaining time and delay time, error codes
etc.
Program
indicator
Progress
indicator
Display
screen
Heavy
ECO
Glass
90 Min
Rapid
Soak
USING THE DISHWASHER

PG 18
Function Of The Rinse Aid And Detergent
The rinse aid is released during the final rinse to prevent water from forming droplets on your
dishes, which can leave spots and streaks. It also improves drying by allowing water to roll o the
dishes. Your dishwasher is designed to use liquid rinse aids.
Warning
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispense with any other
substances (e.g Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
When to refill the rinse aid dispenser
Unless the rinse-aid warning light ( ) on the control panel is on, you can always estimate the
amount from the colour of the optical level indicator located next to the cap. When the rinse-aid
container is full, the indicator will be fully dark. The size of the dark dot decreases as the rinse-aid
diminishes. You should never let the rinse aid level be less than 1/4 full.
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as
illustrated below.
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for
this purpose.
WARNING
• Property Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent fresh and
dry.
Don’t put powdered detergent into the dispenser until you are ready to wash dishes.
• Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach
of children.
USING THE DISHWASHER

PG 19
USING THE DISHWASHER
Filling The Rinse Aid Dispenser
1 2
Remove the rinse aid dispenser
cap by rotating it counterclockwise.
3Close the rinse aid dispenser cap
by rotating it clockwise.
Pour the rinse aid into the dispenser,
Rinse-Aid indicator
Adjusting the rinse aid dispenser
The rinse aid reservoir has six settings. Both the
recommended setting and the factory setting is “3”.
If the dishes are not drying properly or are spotted,
adjust the dial to the next higher number until your
dishes are spotfree.
Reduce it if there are sticky whitish stains on your
dishes or a bluish film on glassware or knife blades.
NOTE:
Clean up any spilled rinse aid with an
absorbent cloth to avoid excessive foaming
during the next wash.

PG 20
Note:
• Be aware that depending on the soiling of water, setting may be dierent.
• Please observe the manufacturer’s recommendations on the detergent packaging.
USING THE DISHWASHER
2
1
by pushing the detergent dispenser
release catch.
3
Add detergent into the larger cavity
(A)f or the main wash cycle .
For better cleaning result, especially if
you have very dirt items, pour a small
amount of detergent onto the door.
The additional detergent will activate
during the pre-wash phase.
AA
BB
and then pressing it down.
Filling The Detergent Dispenser
