Technika 22E21B-FHD User manual

LED TV with Freeview & USB Media Player
User Guide
Model No
22E21B-FHD
22E21B-FHD/DVD
22E21W-FHD/DVD
22E21P-FHD/DVD
22E21S-FHD/DVD
24E21B-FHD
24E21B-HDR
24E21B-FHD/DVD
24E21B-HDR/DVD
24E21W-FHD/DVD
24E21W-HDR/DVD

4
Important safety instruction
Please read these instructions. All
the safety and operating instructions
should be read before the appliance
is operated.
To prevent spread of fire, keep
candles or other open flames away
from this product at all times
Warnings
• Television sets which weigh 20kg or more must be
lifted and carried by at least 2 people.
• This television does not contain any parts that
are serviceable by the user. In case of a fault, contact
the manufacturer or authorised service department.
Exposing the internal parts inside the TV may
endanger your life. The manufacturers guarantee does
not extend to faults caused by repairs carried out by
unauthorised third parties.
• To reduce the risk of fire, electric shock or damage
to the TV, do not expose it to dust, rain or moisture.
Never expose the TV to dripping or splashing and do
not place objects filled with liquids on or near the TV.
• Do not connect any external devices (DVD player,
games console etc) when the TV is switched on.
Disconnect both the TV and device from the mains
before connecting. Only switch appliances on when
the connection process is complete.
• Do not place the television in a confined space and
do not obstruct the ventilation openings at the rear of
the television.
• When installing on a wall, ensure the TV is at
least 5cm from the wall for ventilation.
• Always ensure that the TV’s ventilation openings
are not covered with items such as newspapers, table-
cloths, curtains, etc.
• Dispose of this television and any components
including batteries in an environmentally friendly
manner. If in doubt, please contact your local authority
for details of recycling.
• Ensure this TV is used in moderate climates only.
Safety
• For your safety, this appliance is fitted with a fused
3 pin mains plug. Should the fuse need to be replaced,
ensure that any replacement is of the same amperage
and approved with the BSI mark.
• Never try and replace the mains plug unless
you have adequate qualifications and are legally
authorised to do so. In the event that a replacement
mains cable is required, contact the manufacturer for a
suitable replacement.
• Never use the television if it is damaged in any way.
• Always place the television on a flat level surface
avoiding anywhere which may be subject to
strong vibration.
• The ideal distance to watch the television is
approximately five times the length of the diagonal
measurements of the TV screen.
• Ensure the television is not placed on top of the
power cable as the weight of the television may
damage the cable and cause a safety hazard.
• Never place mobile phones, speakers or any
other device which may cause magnetic or radio
interference, near the television. If interference is
apparent, move the device causing the interference
away from the television.
• To disconnect the apparatus from the mains, please
use the mains plug located on the underside/rear of
the TV.
• Ensure that the mains plug is always easily
accessible.
WARNING: Excessive noise when using
earphones and headphones can cause loss of
hearing.
Maintenance
• To clean your TV, wipe with a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth dipped
in a soap and water solution or a weak detergent
solution.
• Never use alcohol, paint thinner or benzene to clean
this unit.
• Before using a chemically treated cloth, read the
instructions that came with the cloth carefully.
CAUTION: If water or other liquid enters the
television through the display panel surface,
a malfunction may occur.
Packaging
• The safest way to transport your item is in the
original box/packaging - please save your packaging
for this.
• You will need the original box/packaging in the
event of warranty/service repair or support. We are
unable to carry out warranty/service if you are unable
to package the item correctly.
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:4User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:4 25/09/2015 11:31:2025/09/2015 11:31:20

5
5
CAUTION:
THIS UNIT IS A CLASS 1 LASER PRODUCT. THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE PLAYER CORRECTLY AS INSTRUCTED.
WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK
INTO THE INSIDE OF THIS UNIT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
CLASS 1
LASER PRODUCT
This caution label is located on the rear panel of the unit
TV Models with built in DVD players
Important information regarding use of video
games, computers, captions or other xed image
displays
The extended use of xed image program material can cause
a permanent“shadow image”on the LCD/LED panel, also
known as “screen burn”.
This“shadow image”can appear in the background during
normal viewing. This type of irreversible LCD/LED panel
deterioration can be limited by observing the following steps:
1. Reduce the brightness/contrast setting to a minimum
suitable viewing level.
2. Do not display the xed image for extended periods
of time.
3. Turn the power o when not in use.
Examples of images that are more likely to cause“screen burn”
are as follows (this is not an exhaustive list):
• TV channel logos: e.g. shopping channel logos
and pricing displays - especially if they are bright and
stationary. Moving or low-contrast graphics are less
likely to cause ageing of the screen.
• Time displays.
• Teletext: Do not view a stationary page for a long
period of time
• TV/DVD menus: e.g. listings of DVD disc content.
• Pause mode: Do not leave the TV in pause mode
for long periods of time, e.g. when watching DVDs or
videos.
Important: Once‘shadow image/screen burn’
occurs, it will never disappear and is not
repairable under warranty.
How do I dispose of this product?
UK: Waste electrical products should not be
disposed of with household waste. Please
dispose of the product at a designated
collection point for recycling of WEEE.
For your nearest facilities, please see
www.recycle-more.co.uk or in store
for details.
ROI: Waste electrical products should not be
disposed of with household waste. Separate
disposal facilities exist. Check with your local
authority or retailer for recycling advice.
Batteries
• Do not expose batteries to high temperatures,
excessive heat, prolonged sunshine or fire as this may
cause leakage, explosion or ignition.
Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or
mix old and new batteries.
• Dispose of batteries in an environmentally
friendly way.
• Certain regions may regulate the disposal of
batteries. Please consult your local authority.
Trademarks
HDMI
The terms HDMI and HDMI High-Denition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing, LLC in the United States and
other countries.
HD READY
The“HD Ready” Logo is a trademark of DIGITALEUROPE.
HD READY 1080p
The“HD Ready 1080p”Logo is a trademark of DIGITALEUROPE.
DVB
The DVB logo is the registered trademark of the Digital Video
Broadcasting (DVB) project.
FREEVIEW
The FREEVIEW words and logos are trade marks of DTV
Services LTD. © DTV Services Ltd.
SAORVIEW
SAORVIEW is a registered trademark owned by RTÉ.
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:5User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:5 25/09/2015 11:31:2025/09/2015 11:31:20

7
7
CONTENTS
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited.
DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a
trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
Manufacturers Guarantee Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
What is included in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Attaching/Detaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Securing the TV to a Wall/ Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
TV Buttons and Input Source Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-15
TV Menu Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-24
Channel Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Picture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Sound Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Time Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
System/Hotel Lock Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
DVD Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Day TV Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
USB Record - Digital / Freeview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
USB Mode / Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-35
Using your TV with a Sky digital set top box . . . . . . . . . . . . . . . . . . . . . . . . 29
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-31
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-35
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:7User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:7 25/09/2015 11:31:2025/09/2015 11:31:20

8
What is included in the Box
Please save your box/packaging as you will need this in the event of warranty/service repair or support.
We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to
package your item in the event of warranty/service repair is in it’s original box/packaging.

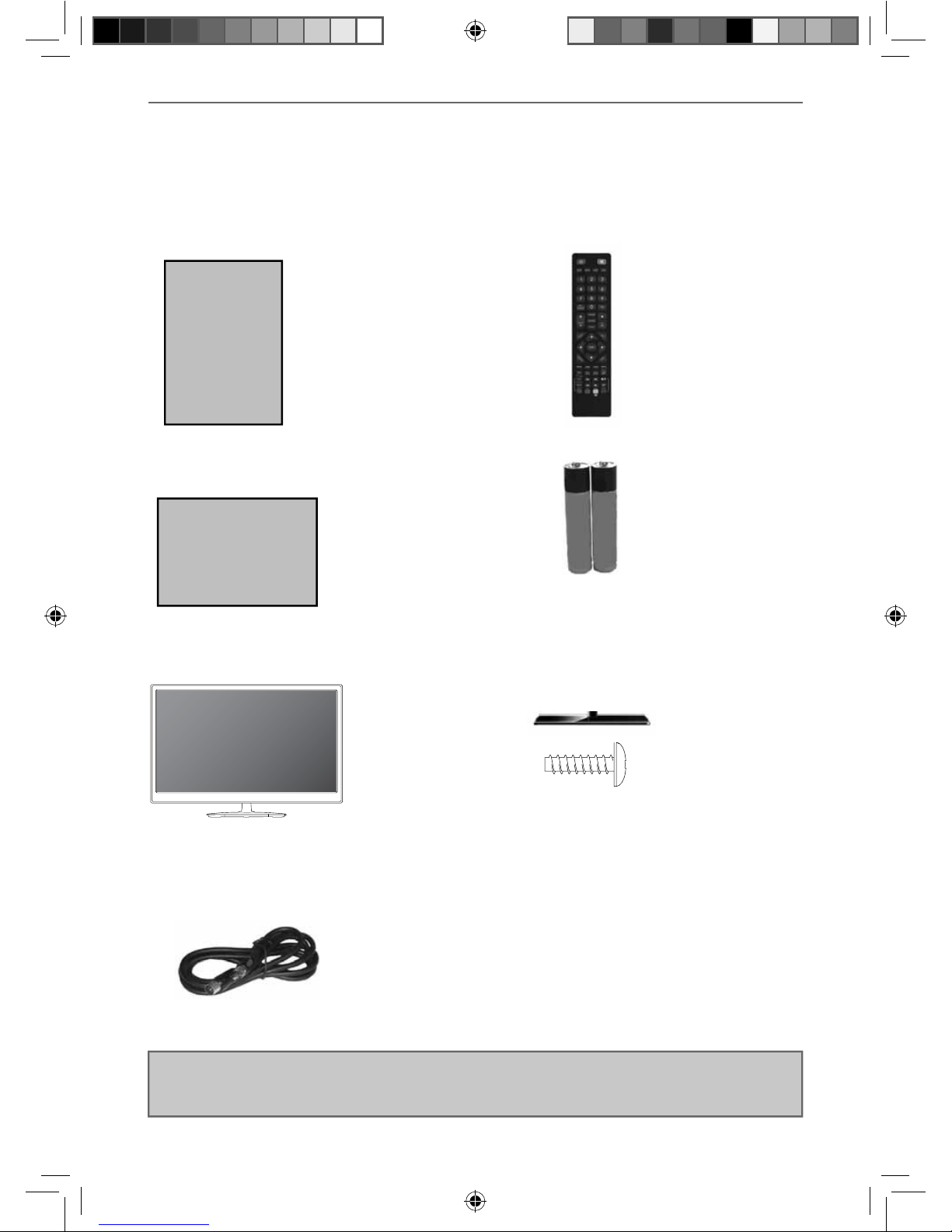

WHAT IS INCLUDED IN THE BOX
1 x User Guide
1 x Quick Start Guide
2 x AAA Batteries
1 x TV
1 x Remote Control
User Guide
Quick Start
Guide
1 x RF Cable
Accessories
Included with this TV are the following accessories
1 x Stand plus screws
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:8User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:8 25/09/2015 11:31:2025/09/2015 11:31:20

9
9
3 x ST (4x12)
3 x M (4x12)
There are two types of screws provided as shown below.
Attaching the stand
To complete the stand installation you will require a cross head screw driver
3 x ST (4x12)
3 x
M (4x12)
11/2
12
3
Used for attaching the stand neck
to the TV (g.1)
Used for attaching the stand base
to the stand neck (g.3)
(fig.1) Attach the stand neck to the
rear of the TV set using the 3 x M(4x12)
screws provided.
(fig.2) Peel off the protective plastic cover
then attach the stand base to the stand neck.
(fig.3) Secure the base to the neck by
using the 3 x ST(4x12) screws provided.
Detaching the stand
Remove the screws highlighted then remove the stand base and neck from the rear of the TV set.
HELPFUL ADVICE FOR FIRST TIME STAND INSTALLATION
When securing the self-tapping screw/s into the base of the TV (on fi rst
installation) the screw/s may be naturally tight as they create a thread in the
plastic.
a) Ensure the cross head screw driver tip fits correctly into the head of the
screw and that it is not too big or small.
b) Screw in all screws individually and partially before tightening all of the
screws fully.
c) If the screws become very tight try loosening and re-tightening, this will
continue the process of creating the thread.
Attaching/Detaching the Stand
ATTACHING/DETACHING THE STAND
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:9User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:9 25/09/2015 11:31:2425/09/2015 11:31:24

10
Wall Mounting
IMPORTANT - Before drilling any holes in the wall ensure you are not drilling
where there could be any electrical wires, water or gas pipes.
1) Remove the four screws highlighted that are supplied in the wall
mounting holes.
2) The wall mount can now be easily attached to the mounting holes on
the rear of the TV.
For VESA wall mounting information please refer to the Technical
Specification page.
For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards
so that the TV’s screen is ‘face on’. See fig 1 and 2.
Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes.
Using other screws which are longer could cause irreparable damage to internal parts.

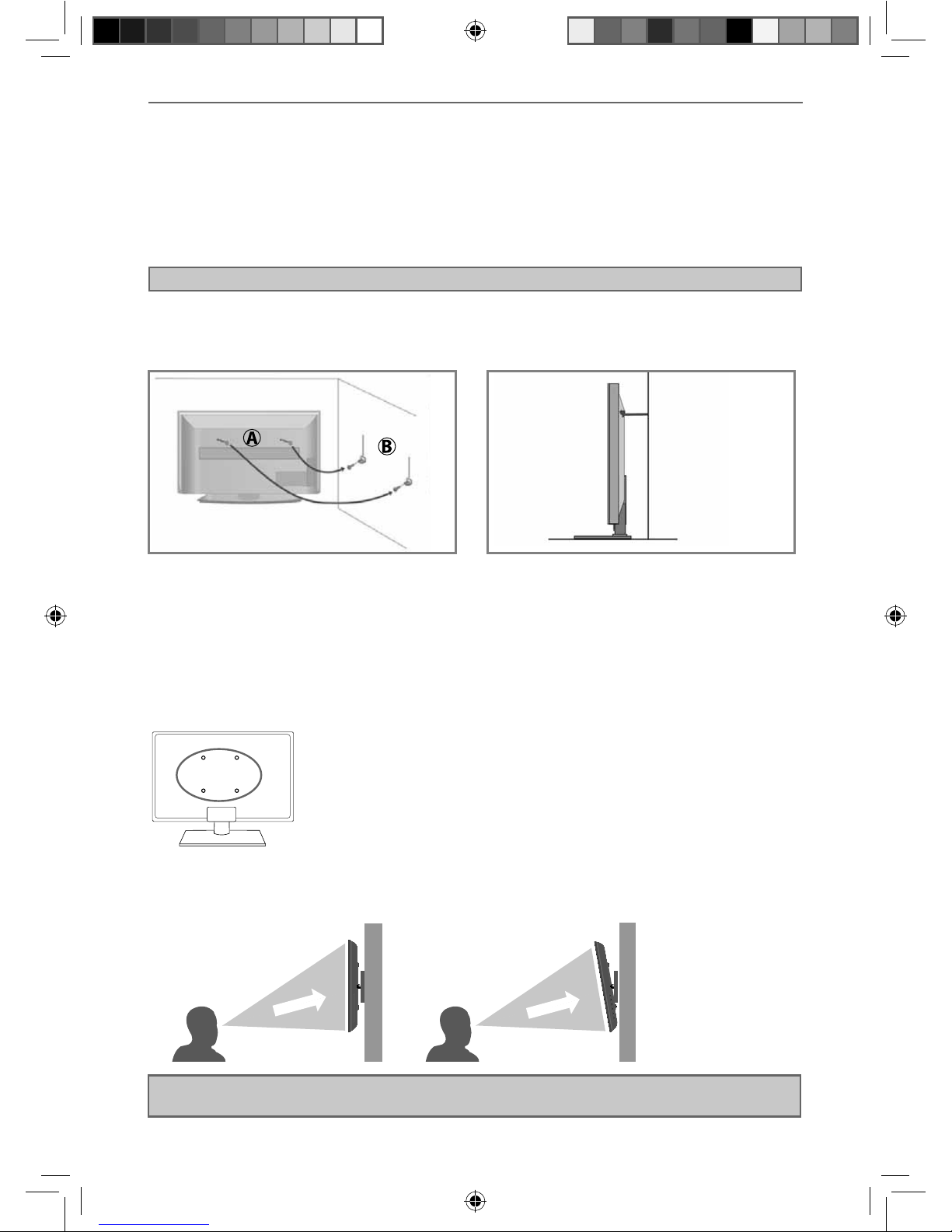

Securing the TV to a Wall/Wall Mounting
SECURING THE TV TO A WALL
Note - Please ensure that children do not climb on the TV set.
Securing the TV to a Wall
For maximum security in the home when using a TV with its stand anti-tip straps should be fitted. These
are available from supermarket websites and other websites and are an easy, inexpensive and effective
way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and
then tethered to the wall or the furniture the TV is stood on.
The Royal Society for the Prevention of Accidents is urging people to take care with flat-screen televisions.
RoSPA stated in 2010 that “Toddlers are particularly at risk of pulling flat-screen televisions on to
themselves. They are unsteady on their feet and are attracted by colourful television images.”
The risk is increased as televisions become lighter.
A) Using one or both of the top wall-mounting
holes and screws (the screws are already supplied
in the wall mounting holes) fasten one end of the
fastening cord/s to the TV.
B) Secure the other end of the fastening cord/s to
your wall. (you will need screws/fixings suitable
for your wall type - available separately from most
DIY stores).
fi
g 1 fig 2
TV
TV
Viewing angle
Viewing angle
INCORRECT CORRECT
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:10User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:10 25/09/2015 11:31:2525/09/2015 11:31:25

11
11

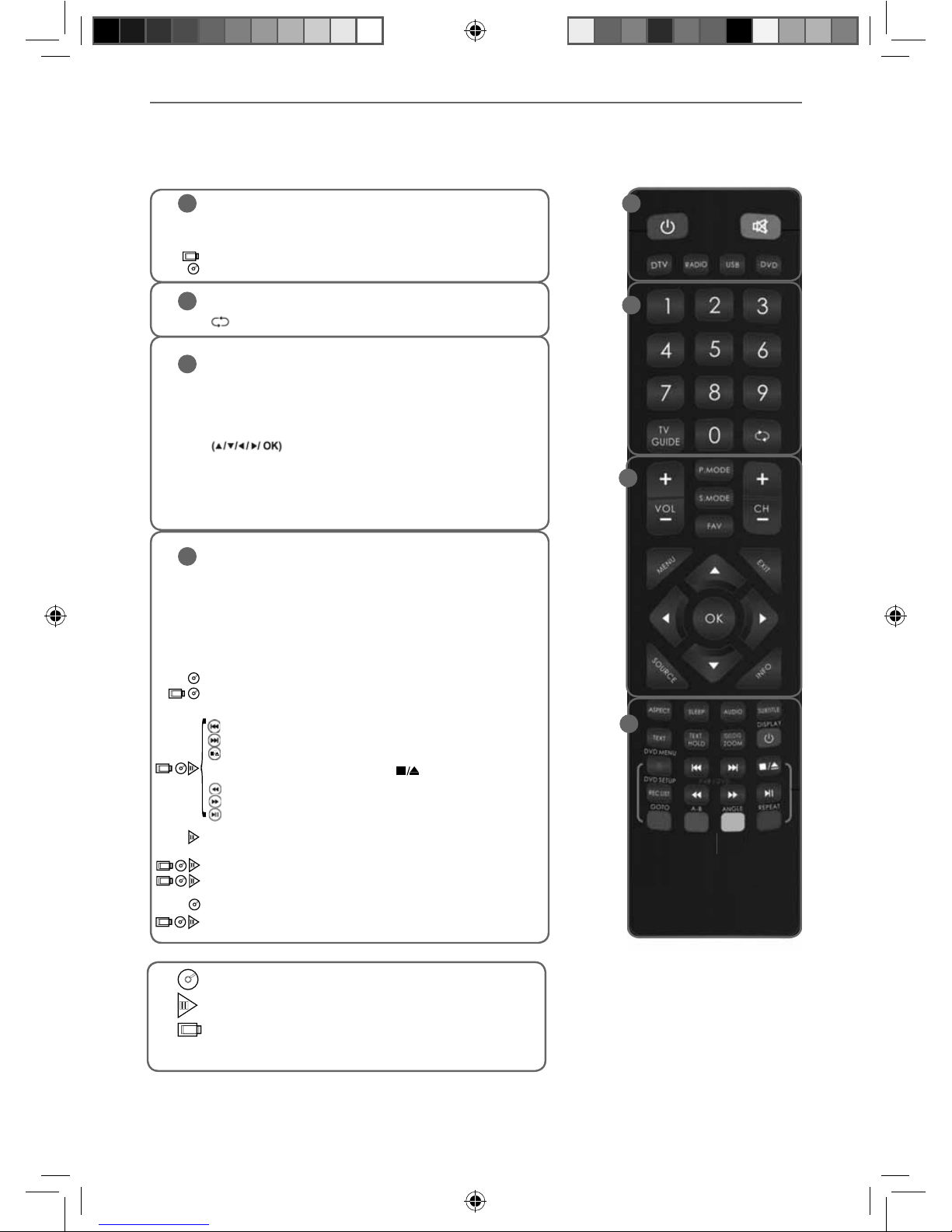

Remote Control
REMOTE CONTROL
STANDBY - Switch on TV when in standby or vice versa
MUTE - Mute the sound or vice versa
DTV - Switch to Freeview source
RADIO - Switch to radio whilst in Freeview source
USB - Switch to USB source
DVD - Switch to DVD source
NUMBER BUTTONS - 0 – 9 to select a TV channel directly.
TV GUIDE - Opens the 7 Day TV Guide (Freeview mode)
- To return to the previous channel viewed
VOL (+/-) - To increase / decrease the sound level
P.MODE - Scrolls through picture mode options
S.MODE - Scrolls through sound mode options
FAV - To display favourites menu
CH (+/-) - To increase or decrease the channel being watched
MENU - To display OSD menu
EXIT - To exit all menus
- Allows you to navigate the on-screen menus
and adjust the system settings to your preference
SOURCE - To display the input/source menu
INFO - Press once for now/next channel information
Press twice for programme information about current
programme
ASPECT - To switch the screen between the different picture
formats
SLEEP - Press repeatedly to cycle through the sleep options
AUDIO - To change the audio language (if available)
SUBTITLE - To switch the dialogue at the bottom of the screen
(on/off)
TEXT - To enter/exit Text
TEXT HOLD - Teletext mode - Hold current page which is
displayed (Analogue TV)
DISPLAY - To switch off the screen when listening to radio
TEXT/DVD ZOOM - Zoom function for Teletext and DVD
DVD MENU/RECORD - Access the DVD root menu and USB
record function
- To restart the current chapter
- To advance forward to the next chapter
- To stop the playback/Eject Disc
(To EJECT the disc press/hold the button for 4 seconds)
- To play in fast rewind mode
- To play in fast forward mode
- To play/pause
DVD SETUP/REC LIST - Opens up DVD Menu or Opens the list
of what has been previously recorded
GOTO - To go to a specific chapter
A-B - Press once to set point, press a second time to return
to point
ANGLE - Select different angle of DVD
REPEAT - To repeat playback
For Models with Integrated DVD players
For Models with PVR Function
For Models with USB Playback
1
1
2
3
4
4
2
3
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:11User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:11 25/09/2015 11:31:2525/09/2015 11:31:25

Volume up and menu right
Volume down and menu left
Programme/Channel up and menu up
Programme/Channel down and menu down
Displays Menu/OSD
Displays the input source menu
Standby Power On/Off
Stop/Eject Disc
Play/Pause Disc
Volume up and menu right
Volume down and menu left
Programme/Channel up and menu up
Programme/Channel down and menu down
Displays Menu/OSD
Displays the input source menu
Standby Power On/Off
11
22
33
44
55
66
77
8
9
12
Choosing Mode Input/Source
To switch between the different input/
connections.
A) Using the buttons on the remote control:
1) Press [SOURCE] - The source menu will appear.
2) Press [\/] or [/\] to select the input you require.
3) Press [OK].
B) Using the buttons on the Television:
1) Press [SOURCE].
2) Scroll up / down using CH+/ CH- buttons to
the input/source you require.
3) Press Vol+ to change input/source to the
one selected.
For further information on input/connections
please view ‘Connections’ pages.
1
2
3
4
5
6
7
1
2
3
4
5
6
7
This information is for models
without built in DVD players
This information is for models
with built in DVD players
8
9
Example of Source menu
depending on the TV model
TV BUTTONS AND INPUT SOURCE MENU
TV Buttons and Input Source Menu
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:12User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:12 25/09/2015 11:31:2525/09/2015 11:31:25

13
13
CONNECTIONS
ABCDEFGH I
L
JK
Connections
Earphones Earphone Input
Video Video Input
YPbPr/Component HD input (Ypbpr)
HDMI 1 HDMI input
HDMI 2 (ARC) HDMI input
VGA PC VGA-PC input
VGA PC Audio In 3.5mm PC audio input
RF IN RF / TV Aerial Input
COAX Audio Out Digital Coax output
USB USB port
CI CARD IN Common Interface Card Input
A
B
C
D
E
F
G
J
H
K
L
I
I
VG A /PC(Audio in)
VGA/PC IN
VIDE O R LYPb Pr
EARPHONE
COAX USB CI CARD IN
R/L Input for Composite/Video and
Audio for Composite / Video
and Component / Y Pb Pr
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:13User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:13 25/09/2015 11:31:3225/09/2015 11:31:32

14
(SCART to AV/RCA cable not included)
Scart
L (white)
R (red)
Video
(yellow)
Connecting to a device with Composite AV/Video output
TV Source should be set to Composite/AV
L (white)
R (red)
Video
(yellow)
L (white)
R (red)
Video
(yellow)
Connections
Connecting to a device with HDMI output
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio
with minimal loss of quality.
TV Source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)
Note: To use this model TV as a PC/laptop monitor it will need to be connected via the VGA input, it
can not be used as a PC/laptop monitor via the HDMI input. The HDMI Input is provided to view digital
content with compatible external devices
CONNECTIONS
Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is
Included In The Box’ page.
Connecting to a device with SCART output (using SCART to AV cable)
TV Source should be set to Composite/AV
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:14User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:14 25/09/2015 11:31:3225/09/2015 11:31:32

15
15
Connections
CONNECTIONS
Connecting to an external audio device (Amplifiers, Surround Sound,
Sound Bars etc*)
When connecting via the TV’s 3.5mm Earphone output, this will disable the TV speakers.
There are two options to connect a device via the 3.5mm Earphone Output.
*Connecting cables not included .
3.5mm
EARPHONE
3.5mm
EARPHONE
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for 3.5mm EARPHONE Output
COAXIAL
OUT
COAXIAL
IN
3.5mm
AUDIO
IN
L
R
Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component/YPbPr
Connecting to a device with VGA/PC output (Laptop or Desktop Computer)
TV Source should be set to VGA/PC
VGA/PC
IN VGA/PC
OUT
VGA/PC
(AUDIO
IN)
AUDIO
OUT
Y (green)
PB (blue)
PR (red)
R (red)
L (white)
Y (green)
PB (blue)
PR (red)
R (red)
L (white)
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:15User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:15 25/09/2015 11:31:3225/09/2015 11:31:32

17
17
TV Menu Operation
CHANNEL MENU
To access this menu, press [MENU] button on the remote control.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons.
To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change
the length of time before the menu exits automatically - see ‘OSD Timer’ in the Time Menu
Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and
analogue channels
Analogue Manual Tuning - Allows you to manually tune your analogue signal
Freeview Manual Tuning - Allows you to manually tune your digital signal*
Channel Edit - Allows you to delete, move, skip and add favourite channels
Schedule List - Lists your programme reminders
Signal Information - Allows you to view signal frequency, signal quality and signal strength
CI Information - Pay per view services require a “smartcard” to be inserted into the TV. If you subscribe to
a pay per view service the provider will issue you with a ‘CAM’ and a “smartcard”. The CAM can then be
inserted into the COMMON INTERFACE PORT (CI Card In)
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:17User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:17 25/09/2015 11:31:3225/09/2015 11:31:32

18
TV Menu Operation

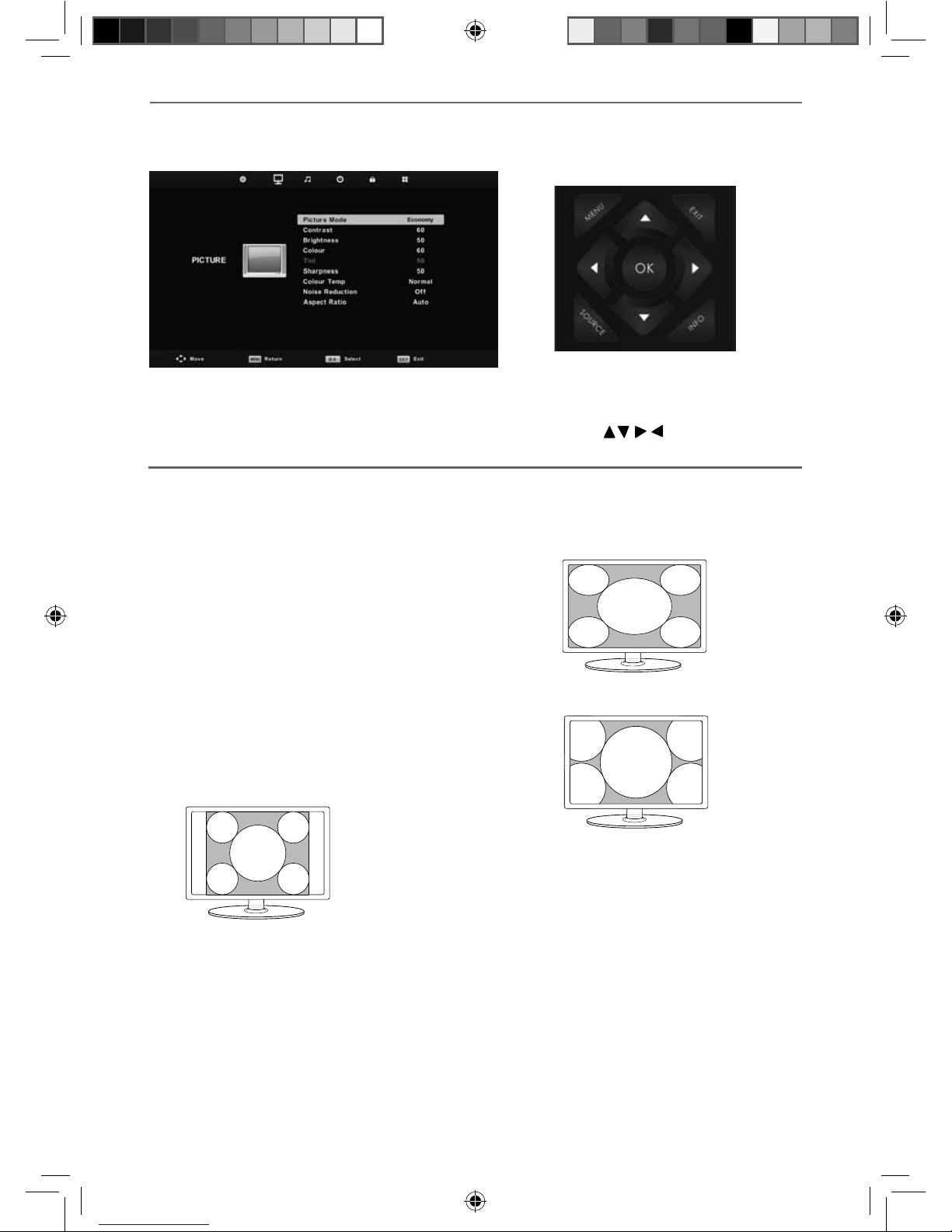

PICTURE MENU
Picture Mode - Choose from the following presets:
Dynamic Recommended settings for fast moving pictures
Standard Standard settings
Mild Set to be lighter in colour and less bright
Personal Lets you manually alter all the settings
Economy Power saving mode which reduces the energy used by up to
25% (by reducing the power to the LED/LCD panel).
In Economy mode, the TV will switch itself to Standby mode
after 3-5 hours in the event that the TV buttons or remote
control buttons are not pressed (change the picture mode
to another setting to de-activate this function)
You can make the following adjustments in Personal mode:
Contrast - Switch the balance between black and white.
Brightness - Increase or decrease the brightness of the picture.
Colour - Increases the colour from black and white.
Tint - Lets you increase or decrease the level of tint within the picture
(only available in VGA/PC source mode).
Sharpness - Increase or decrease the sharpness of the picture.
Noise Reduction - Choose from the following presets:
Off Turns noise reduction off
Low Minor system adjustment
Middle Minor system adjustment
High Maximum system adjustments
Default Default system settings
Colour Temperature Choose from the following presets:
Normal Default settings
Warm Increases red within the picture
Cold Increases blue within the picture
To access this menu, press [MENU] button on the remote control and scroll right.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons.
To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:18User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:18 25/09/2015 11:31:3325/09/2015 11:31:33

19
19
TV Menu Operation
PICTURE MENU
To access this menu, press [MENU] button on the remote control and scroll right.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons.
To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
Auto
Automatically displays the best picture format. So the
picture is in the correct position. May have black lines
at the top/bottom and/or sides.
Zoom1 and
Zoom2
Full screen
16:9
The picture
is the correct
proportion
but zoomed
in to fill the
screen
Will display the picture from the broadcaster
without any change
4:3 Displays the 4:3
picture in its
original size.
Side bars are
shown to fill the
16:9 screen
Fills the screen
with a regular
16:9 signal and
4:3 picture
format will be
stretched to fill
the screen
Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a
number of different options to best meet your needs
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:19User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:19 25/09/2015 11:31:3325/09/2015 11:31:33

20
TV Menu Operation
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and
DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
SOUND MENU
Treble - To adjust the amount of high frequency within the sound
Bass - To adjust the amount of low frequency within the sound
Balance - To switch the sound between the left and right speakers
Auto Volume Level (AVL) - When ‘on’ is selected, the volume will attempt to stay at a constant level
regardless of TV programme and advertisements
Sound Mode - Choose from the following presets
Standard Default settings
Music Emphasises music over voices
Movie Provides live and full sound for movies
Sports Emphasises sound for sports
Personal Selects your personal sound settings
Tip: Treble and bass levels can only be
adjusted when the sound mode ‘Personal’
is selected.
Off To turn off Digital Output
Auto Selects the best settings automatically
PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code
modulation (PCM) is a digital representation of an analogue signal)
Off Off
DTS TruSurround TruSurroundTM creates an immersive, feature-rich surround sound experience from
two speakers, complete with rich bass, high frequency detail and clear dialog
Audio Description - This allows the user to increase and decrease the AD (Audio Description) volume level.
(Audio Description is a service available on certain programmes. It provides a description of what is
happening during the selected programme for a person who is visually impaired)
Audio Delay - Enables the user to adjust setting to sync picture and audio
Digital Output - This is the digital COAX audio output. Choose from the following options:
Surround Sound - Choose from the following options:
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:20User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:20 25/09/2015 11:31:3325/09/2015 11:31:33

21
21
TV Menu Operation
TIME MENU
Clock - Shows the date and time
Off Time - Allows you to set a specific time for your TV to turn off
On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the
source it will be on and also the volume. This function can then be toggled to repeat every day or a
certain day (the TV must be in standby mode for this to be effective)
Time Zone - Change your current time zone
Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of
time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min
Auto standby - Set Auto standby between 3 hours, 4 hours and 5 hours ( to turn off this function you must
exit Home Mode in the Picture Menu)
OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before
disappearing
To access this menu, press [MENU] button on the remote control and scroll right.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons.
To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:21User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:21 25/09/2015 11:31:3425/09/2015 11:31:34

22
TV Menu Operation
SYSTEM/HOTEL LOCK MENU
System/Hotel Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password
Use the ◄button to quit the password input or use the ►button to clear. Default password is 0000.
TV Button Lock - Allows you to lock the buttons on the side of the TV set
Parental Guidance - Allows you to set the rating to block certain content based on age information
Default Source - Allows the user to set the default source. The default source is the source the TV starts on
when first switched on
Default Channel - Allows the user to set a channel as the default channel on the Digital source. The
default channel is the channel the TV starts on when first switched on
Source Lock - Allows you to lock the source menu
Channel Lock - Allows you to lock certain channels manually
Max Volume - Allows you to adjust and set the maximum volume
Change Password - Allows you to change the password
To access this menu, press [MENU] button on the remote control and scroll right.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons.
To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:22User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:22 25/09/2015 11:31:3425/09/2015 11:31:34

23
23
TV Menu Operation

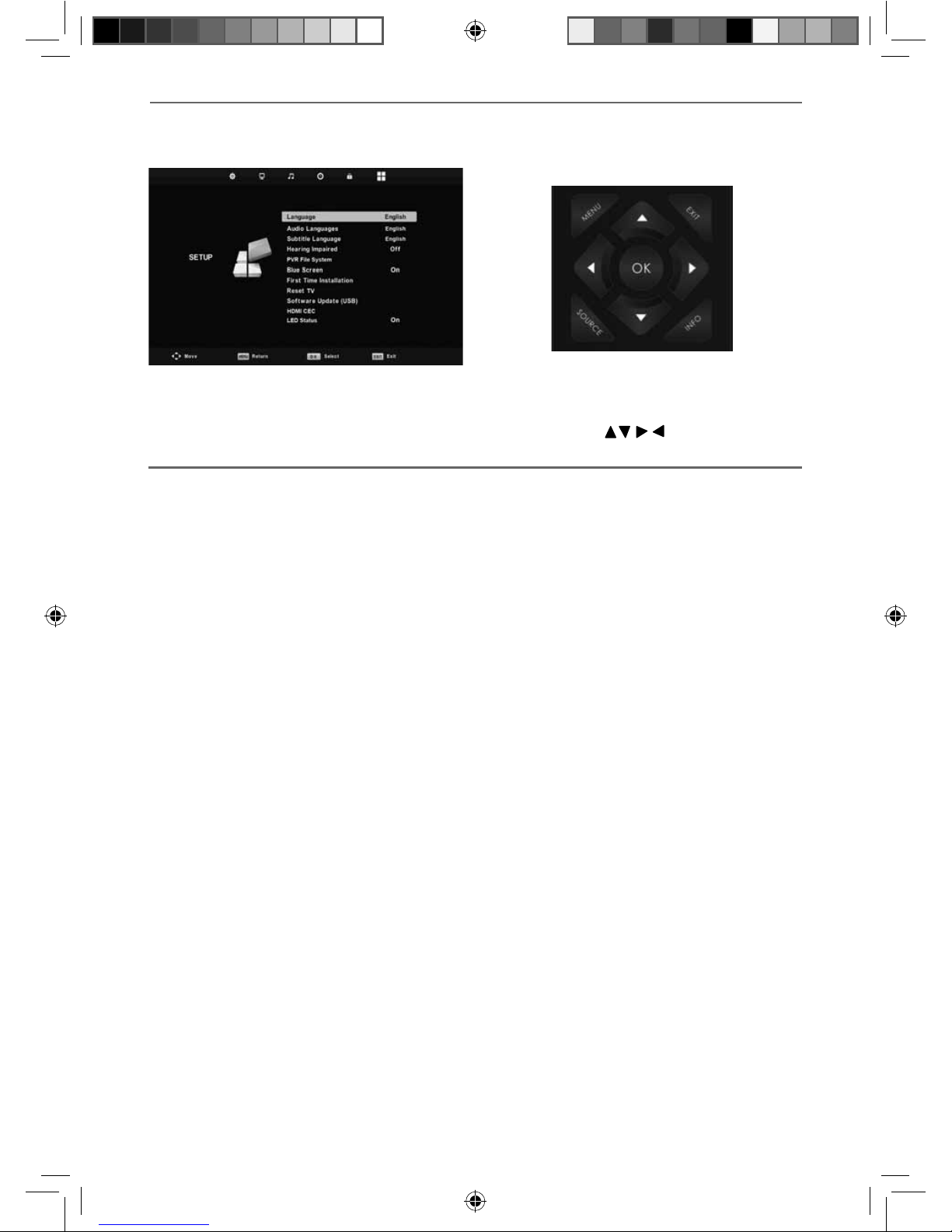

SETUP MENU
Language - Allows you to change the language of the menu
TT Language - Shows the current Teletext language
Audio Language - Shows the current audio language
Subtitle Language - Shows the current subtitle language
Hearing Impaired - This allows the user to turn on the Hearing Impaired function, this produces subtitles
on the screen which provide a description of what is happening during the selected program.
PVR File System - Allows you to view the format and performance of a USB key
Blue Screen - Changes the background when there is no input between clear and a blue background (Only
available on some sources)
First Time Installation - Allows you to access the First Time Installation menu and retune the TV set
Reset TV - This resets the menus to factory settings and clears all the TV channels from the television.
Software Update (USB) - From time to time we may release new firmware to improve the operation of
the television (available to download). This menu lets you install the new software/firmware onto the
television. Further details of how to do this will be issued with the firmware. Contact the helpline or refer
to the ‘product support’ section of the website
HDMI CEC (Consumer Electronic Control) - Allows HDMI devices to control each other and allows the user
to operate multiple devices with one remote control. (only available with compatible devices)
LED Status - Allows the user to switch the LED Power indicator light ON or OFF, when the TV is being
operated. (When this option is set to OFF the LED Power indicator light will flash when the remote
control is used)
To access this menu, press [MENU] button on the remote control and scroll right.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons.
To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:23User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:23 25/09/2015 11:31:3425/09/2015 11:31:34

25
25
DVD Menu Operation
DVD SETUP
(Applies to models with built in DVD player)
TV Display - Choose from the following options
4:3 Pan scan PS Traditional picture format, often used on old film
4:3 Letter box LB Traditional picture which has been adapted for widescreen
Wide 16:9 Widescreen picture format
TV Type - Choose from the following options
PAL For discs from UK/Europe, Asia, Australia etc
Multi For both NTSC and PAL
NTSC For discs from North America, Japan etc
Speaker Setup - Choose from the following options
LT/RT Converts from multi-channel sound to mono
Stereo Converts from multi-channel sound to stereo
Default - Choose from the following options
Reset Resets all options in the ‘DVD setup’ menu back to the default settings
Dynamic Range - This is the difference between the quietest and loudest sounds. This setting works only
with DVD discs recorded in Dolby digital.
Full Set this to listen with the range recorded on the disc
3/4 Set this to listen with a range equivalent to a normal television
1/2 Set this to listen with a smaller difference between the maximum and minimum volume
1/4 Set this to listen with a smaller difference between the maximum and minimum volume
Off Set dynamic range to off
Dual Mono - Choose from the following options
Stereo Outputs 2 channels of sound both left and right
Mono L Outputs left side sound
Mono R Outputs right side sound
Mix Mono Outputs a single channel of sound but mix between right and left
Tip: This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in
another country that uses different region discs, please visit www.umc-uk.co.uk. Select ‘Product Support’,
‘Changing Region’.
To enter this menu please ensure the TV is in DVD source & press [DVD SETUP]
If you wish to make changes to any of the default settings, use the scroll buttons.
To confirm any settings press [OK] button. To exit this menu at anytime, press [DVD SETUP] button.
User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:25User Guide -Technika - 22E21B-FHD, 236-224B, 22E21B-FHDDVD, 236-224BDVD TEC-MAN-0091.indd Sec1:25 25/09/2015 11:31:3525/09/2015 11:31:35
