TECHWOOD TFV-188 User manual

1
STEAM IRON
INSTRUCTION MANUAL
Dear consumer, Please read these instructions carefully before use in order
to avoid damage due to incorrect use and to better understand the functions
of this product. Please pay particular attention to the safety guide. If you
pass the device on to a third party, these Operating Instructions must also
be handed over.
Please keep them for future references.
TFV-188

2
IMPORTANT SAFEGUARDS
❑Please read these instructions carefully before use.
❑Keep present instructions for future references.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Only use the appliance for domestic purposes and household
or similar applications such as:
-staff kitchen areas, in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
❑Only use the appliance in the way indicated in these
instructions.
❑Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
❑Never use this apparatus near water projections.
❑Never use this apparatus with the wet hands.
❑If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
❑Inform potential users of these instructions.
❑Never leave the appliance unsupervised when in use.
❑The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
❑Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
❑This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if

3
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
❑Cleaning and maintenance must not be made by children
without supervision.
❑Keep the iron and its cord out of reach of children less than 8
years of age when it is energized or cooling down.
❑This device is not a toy, do not leave children or people with
disabilities to play with.
❑In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
❑Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
❑From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever.
❑Never place it into the dishwasher.
❑Never use the appliance near hot surfaces.
❑If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly Competent
qualified person(*) in order to avoid a hazard.
❑Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
❑The iron must not be left unattended while it is connected to
the supply mains.
❑The plug must be removed from the socket-outlet before the
water reservoir is filled with water.
❑The iron is not to be used if it has been dropped, if there are
visible signs of damage or if it is leaking.
❑The filling aperture must not be opened during use.

4
❑When placing the iron on its stand, ensure that the surface on
which the stand is placed is stable.
❑The iron must be used and rested on a flat and stable
surface.
❑When the iron is put back on its stand, make sure that the
surface that supports the iron-rest is stable.
❑Never use the appliance outside and always place it in a dry
environment.
❑Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and
risk to damage the appliance.
❑Never use any other connector than the one provided.
❑Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
❑Never wind the cord around the appliance and do not bend it
❑Ensure that the power cord does not come into contact with
hot parts of this unit.
❑Make sure the appliance has cooled down before cleaning
and storing it.
❑The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
❑Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
❑Before cleaning, always unplug the appliance from the power
supply and let it cool down.
❑This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
❑Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.

5
❑Always remove the plug from the wall socket when the
appliance is not in use.
❑When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.
❑Incorrect operation and improper use can damage the
appliance and cause injury to the user.
❑This device, designed for home use, complies with standards
relating to this type of product.
(*) Competent qualified person: after sales department of the
producer or importer or any person who is qualified, approved
and competent to perform this kind of repairs
SPECIFIC WARNING FOR IRONS
• Before placing the iron on its stand, always place the iron
stand on a flat, stable surface.
• Always unplug the iron before filling
• After use, unplug the iron and place it on its stand on a flat
surface.
• The iron must not be left unattended when it is connected to
the main power.
WARNING: BURN HAZARD.
• During operation, the temperature of the
appliance surface may be hot.
• The heating parts remain hot, long time after
stopping the machine.

6
• The symbol "Hot Surface" warns the user
that the apparatus walls may become hot, and
to take precautions.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "STEAM" warns the user that steam can
escape from the unit and to take all necessary
precautions. (Risk of burns)
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.
The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE,
the peak concentration is equal to or less than 0.1% of

7
the weight of homogeneous material, and 0.01% for the
6th • cadmium.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
For more information : http://www.quefairedemesdechets.fr
CLEANING AND MAINTENANCE
•Always unplug the unit and allow it to cool before cleaning.
•All deposits, starch residues or dimensions left on the plate
can be removed with a damp cloth or a non-abrasive liquid
detergent.
•Clean the outside of the appliance with a sponge or slightly
damp cloth.
•Never immerse the appliance in water or any other liquid!
•Never use abrasive products, wire brush or other sharp
objects.
•Do not lay the iron on rough or metal surfaces to avoid
scratches.
•Store the iron vertically in a dry and ventilated place.
•The sole of the iron will have a long life if you take care of it.
Do not scratch or damage it with metal objects.

8

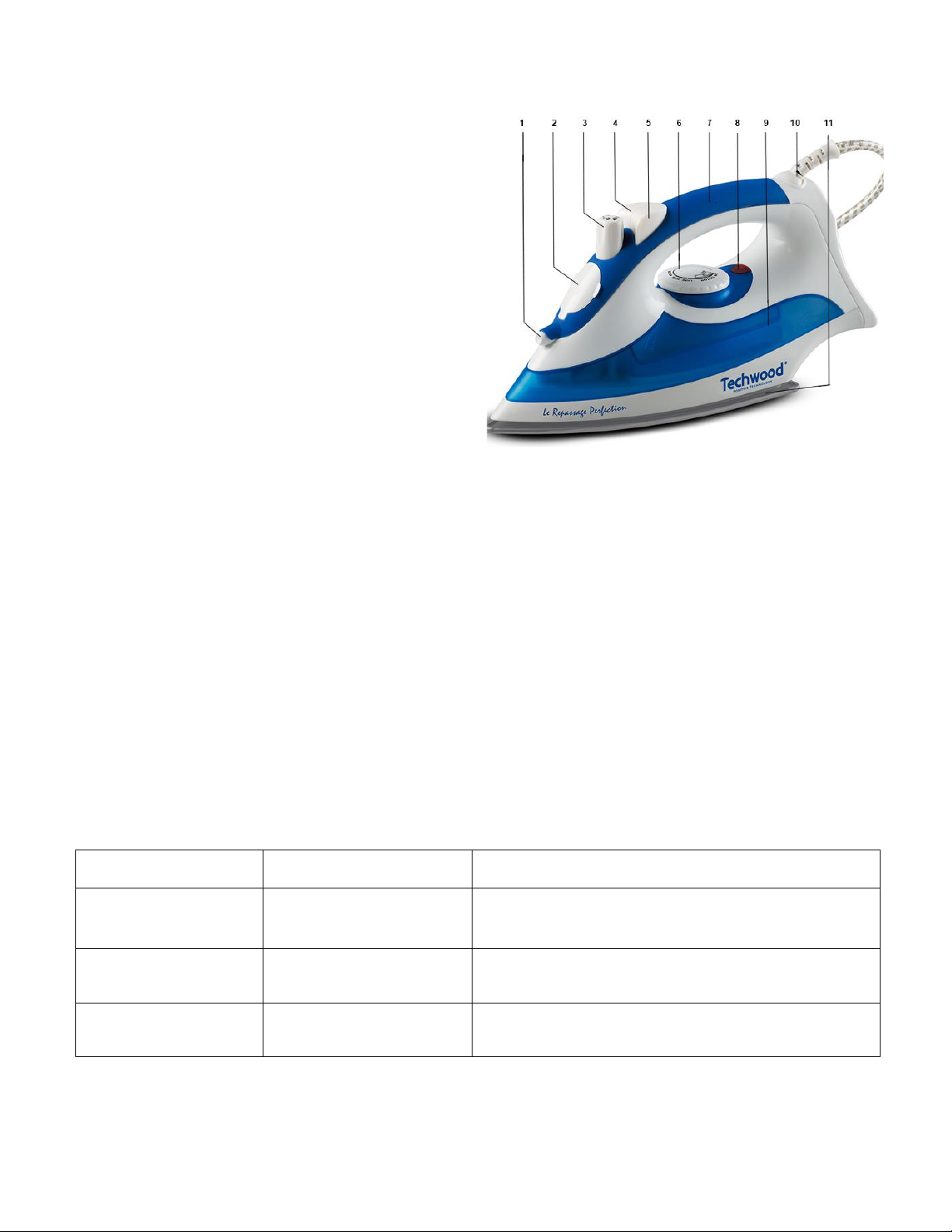

DESCRIPTION
1. Spray nozzle
2. Tank cover
3. Steam power setting
4. Express steam
5. Spray
6. Temperature setting
7. Comfort handle
8. Heating indicator light
9. Water tank
10. Orientable electrical connector
11. Stainless steel soleplate
General description
1.Textile which has been applied (gloss, crinkle, relief etc.) is best ironed at lower
temperature.
2. Sort the laundry according to ironing temperature: put wool with wool, cotton
with cotton, etc. The iron heats up more quickly than it cool down. Therefore, start
ironing articles that need to be ironed at lowest temperature, such as those made
of synthetic fibre.
3. Temperature guide
Follow the ironing instructions on the garment label. If these is no instructions
but you do know the kind of fabric, please consult the table.
Warning: If the fabric consists of various kinds of fabrics, always select the
temperature required by the most delicate fibre.
Fabric
Temperature
control
Ironing methods
Synthetic fibres
nylon
·
Iron the reverse side. Do not use the
spray function, as spraying could cause
stains.
Silk
wool
··
Iron the reverse side to prevent shiny
spots.
Cotton
linen
···
You’d better set the iron to a steam
position.

9
FILLING THE WATER TANK
1. Set the steam control to the closed position.
2. Hold the iron vertically by the handle and tilt it 10º to fill it. Run the water
through the filling inlet.
Notes : Never exceed the "Max" level indicated on the tank.
Never use scented substances.
3. If water has leaked out of the tank, Clean the outside of the tank.
4. After ironing, always empty the water tank.
5. The tap water is usable. However, if the water in your area is very hard, it is
advisable to use distilled water.
BEFORE FIRST USE
Fill the tank with water before connecting it. (without exceeding the maximum
level).
Plug the iron into an outlet in good condition.
Selecting the temperature • • The indicator light comes on, indicating that the iron
is starting to heat up.
When the desired temperature is reached, the indicator goes off and the iron is
ready for use.
For this first use, test clean cloth or used cloth.
First, let the steam come out for at least 1 minute and press the express steam
button and the spray button several times, to clean the tank of any manufacturing
impurities.
Notes: During this operation a slight smoke may be released from the hearth or
iron for a few moments; This is normal.
During ironing, it is normal for the indicator light (Means the thermostat) to
turn on and off automatically to maintain a constant temperature.
It is always easier to iron fabrics or slightly damp clothes.
USE
•Unroll the power cord completely.
•Check that the tension in force in the country where you are, corresponds to
that indicated on the apparatus.
•Connect the apparatus in a correct socket-outlet, (and connected to the
ground if the unit is Class I), to avoid any danger.
•Disconnect the power source cable before any operation of cleaning of
maintenance and accessories assembly.

10
•Stand the appliance on a table or flat & stable surface.
•The item must not be left unattended when it is connected to main supply.
•The item is not to be used, if it has been dropped or if there are visible signs
of damage or if it is leaking.
•Never modify the appliance in anyway.
•To avoid a circuit overload, do not operate another high wattage appliance
on the same circuit.
•When the iron is returned to its iron rest, make sure that the surface that
supports the iron rest is stable.
•The iron must be used and rested on a stable surface.
TEMPERATURE ADJUSTMENT
• Low temperature for fabrics - Acrylic- Nylon - Polyester - Rayon - Synthetic
• • Average Temperature for Wool - Silk
• • • High temperature for Cotton - Linen
Spraying
Regardless of the temperature used, by pressing the spray button several times,
the laundry can be softened and wet for easy ironing. Always make sure there is
enough water in the tank.
Shot of steam
By press powerful steam button, an intense shot of steam is emitted from the
soleplate. This can be very useful e.g. when removing stubborn creases.
Notes : The shot of steam facility can be used only while ironing with middle or
high ironing temperature.
By pressing the shot of steam, Powerful steam can also be applied when
holding the iron in a vertical position. This is useful for removing creases
from hanging clothes, curtains, etc.
Steam-ironing
Steam-ironing is only possible at higher ironing temperatures ;
·· for moderate steam, ··· for maximum steam.
Set the steam controller when the thermostat is specifically set to Steam mode.
Steam is produced as soon as the iron is in a horizontal position.
The production of steam is interrupted as soon as the iron is kept in a vertical
position.

11
NOTE : When using in steam mode, if drops of water bead the soleplate,
increase the temperature by turning the thermostat knob clockwise.
DRY IRONING
Set the steam flow controller to 0.
As for the steam mode, select the temperature according to the nature of the fabric.
When the desired temperature is reached, the indicator goes off and the iron is
ready for use.
ADVICE FOR GOOD IRONING
We recommend using the lowest temperatures with fabrics that have unusual
finishes (sequins, embroidery, flush, etc.).
If the fabric is mixed (e.g. 40% cotton 60% synthetics), set the thermostat to the
temperature of the fibre requiring the lower temperature.
If you don’t know the composition of the fabric, determine the suitable temperature
by testing on a hidden corner of the garment. Start with a low temperature and
increase it gradually until it reaches the ideal temperature.
Never iron areas with traces of perspiration or other marks: the heat of the plate
fixes the stains on the fabric, making them irremovable.
To avoid marking silk, woollen or synthetic garments shiny, iron them inside out.
To avoid marking velvet garments shiny, iron in one direction (following the fibre)
and do not press down on the iron.
The heavier the washing machine is loaded, the more garments come out creased.
This also happens when the spin drying revolutions are very high.
Many fabrics are easier to iron if they are not completely dry.
For example, silk should always be ironed damp.
STORAGE
- Ensure the unit is completely cool and dry.
- Empty the reservoir by turning the iron upside down and gently shaking it.
- Do not wrap the cord around the appliance, as this will cause damage.
- Always put the iron away in a vertical position.
- Keep the appliance in a cool, dry place out of reach of children.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase by the
consumer.

12
The documents in proof of guarantee are:
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free repair,
can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee!
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts are
not guaranteed and are thus to pay!
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment, by a
specialized trade or a repair service.
SPECIFICATIONS
Power supply 220-240V~ 50/60Hz
Power 1600-2000W
Norm Class I
Made In P.R.C
The characteristics can change without prior notice.
This unit is equipped with an electrical outlet with earth and must be
earthed in an according plug.
Note: In the event of question concerning the earth or electric
connection, please consult qualified personnel.
In the event of short-circuit, earthing reduces the risk of electric
shock while making possible the current to be evacuated by the wire
of ground.

13
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician
for repairs.
This apparatus satisfied EC directives, it was controlled according to all the
European current directives, like: electromagnetic compatibility (EMC) and low
tension (LVD).
This apparatus was designed and manufactured in respect of the last safety
regulations and technical specifications.
Imported by Sotech International
" LE PERIPOLE " N°A-107
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous-bois - France
