TECHWOOD TAB-2021 User manual

1
WIRELESS VACUUM CLEANER
INSTRUCTION MANUAL
Dear consumer, Please read these instructions carefully before use in
order to avoid damage due to incorrect use and to better understand the
functions of this product. Please pay particular attention to the safety
guide.
If you pass the device on to a third party, these Operating Instructions
must also be handed over.
Please keep them for future references.
TAB-2021
TAB-2025
TAB-2026
TAB-2021
TAB-2026
TAB-2025

2

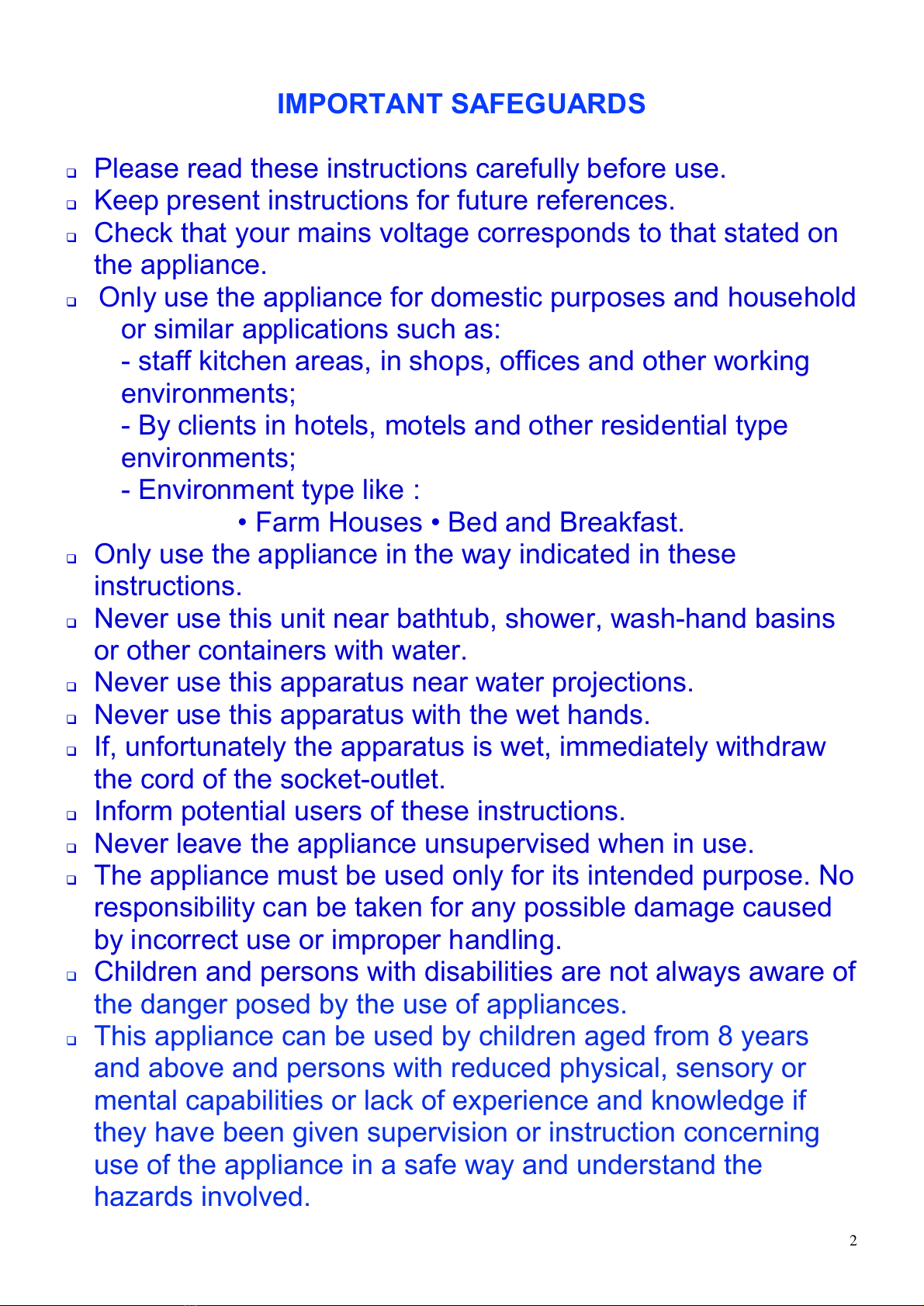

IMPORTANT SAFEGUARDS
Please read these instructions carefully before use.
Keep present instructions for future references.
Check that your mains voltage corresponds to that stated on
the appliance.
Only use the appliance for domestic purposes and household
or similar applications such as:
- staff kitchen areas, in shops, offices and other working
environments;
- By clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
Only use the appliance in the way indicated in these
instructions.
Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
Never use this apparatus near water projections.
Never use this apparatus with the wet hands.
If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
Inform potential users of these instructions.
Never leave the appliance unsupervised when in use.
The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.

3
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
Never immerse the appliance in water or any other liquid for
any reason whatsoever.
Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Do not operate the appliance with a damaged cord or plug, or
after the appliance has been damaged in any manner.
Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
Never use the appliance outside and always place it in a dry
environment.
Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and
risk to damage the appliance.
The appliance is only to be used with the power supply unit
provided with the appliance.
Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
Never wind the cord around the appliance and do not bend it
Ensure that the power cord does not come into contact with
hot parts of this unit.
Make sure the appliance has cooled down before cleaning
and storing it.
The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.

4

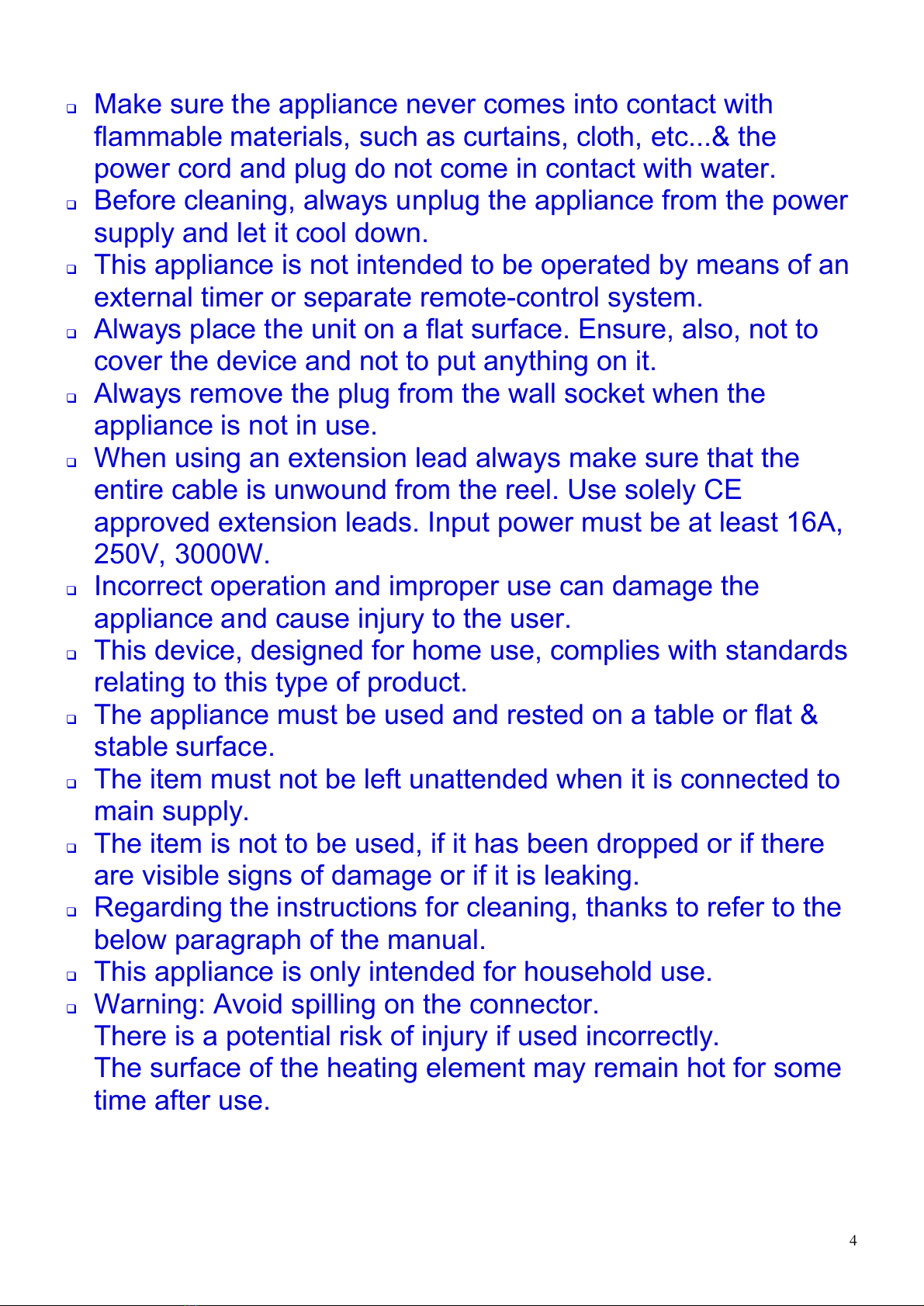

Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
Before cleaning, always unplug the appliance from the power
supply and let it cool down.
This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
Always remove the plug from the wall socket when the
appliance is not in use.
When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.
Incorrect operation and improper use can damage the
appliance and cause injury to the user.
This device, designed for home use, complies with standards
relating to this type of product.
The appliance must be used and rested on a table or flat &
stable surface.
The item must not be left unattended when it is connected to
main supply.
The item is not to be used, if it has been dropped or if there
are visible signs of damage or if it is leaking.
Regarding the instructions for cleaning, thanks to refer to the
below paragraph of the manual.
This appliance is only intended for household use.
Warning: Avoid spilling on the connector.
There is a potential risk of injury if used incorrectly.
The surface of the heating element may remain hot for some
time after use.

5
(*) Competent qualified person : after sales department of the
producer or importer or any person who is qualified, approved
and competent to perform this kind of repairs.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.
The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE,
the peak concentration is equal to or less than 0.1% of
the weight of homogeneous material, and 0.01% for the
6th • cadmium.

6
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
For more information : http://www.quefairedemesdechets.fr

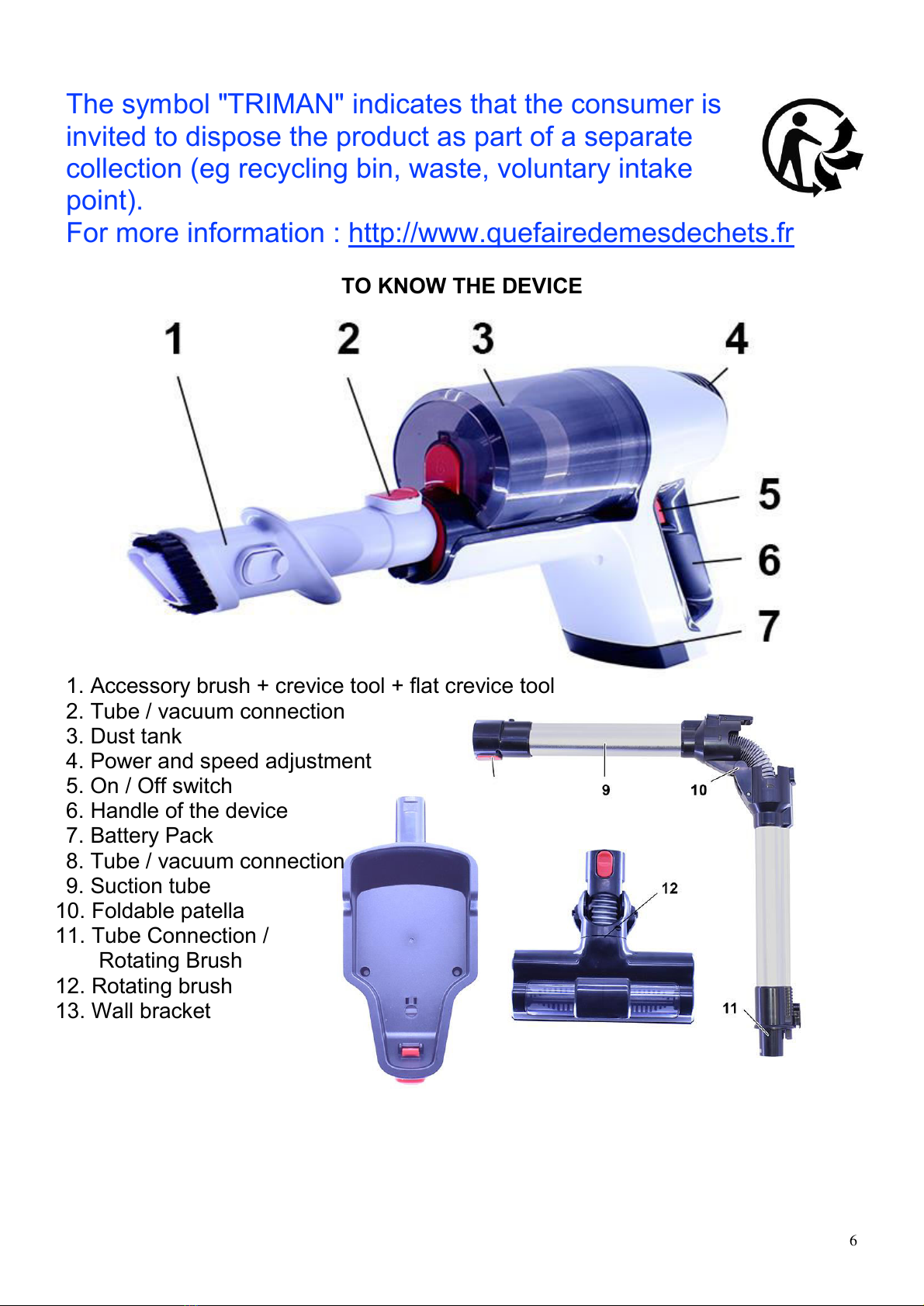

TO KNOW THE DEVICE
1. Accessory brush + crevice tool + flat crevice tool
2. Tube / vacuum connection
3. Dust tank
4. Power and speed adjustment
5. On / Off switch
6. Handle of the device
7. Battery Pack
8. Tube / vacuum connection
9. Suction tube
10. Foldable patella
11. Tube Connection /
Rotating Brush
12. Rotating brush
13. Wall bracket

7
WALL MOUNTING and CHARGING
Fig. 1
Back of the support (1)
Insert the tip of the adapter (2)
in the hole of the loading base.
Fig. 2
Flip the support (1)
to present it Front face (2)
Secure the base to the wall with two screws (supplied) (3).
• Unwind the mains lead of the adapter completely.
• Check that the voltage in the country where you are,
corresponds to the voltage indicated on the device.
Plug the adapter into a wall outlet.
Place the vacuum cleaner in the charging base (Fig. 3).
Note: The blue light begins flashing to indicate that the unit is
charging.
After 4-5 hours, all lights will be on.
Notes: This means that the battery is fully charged.
Charge the device at least 5 hours both first time to preserve
the longevity of the battery.
If the vacuum cleaner is not used for a long time, it is still
advisable to charge the battery at less once every 6 months.
Press the button above the charging base (1)
to release the unit and start using it.

8

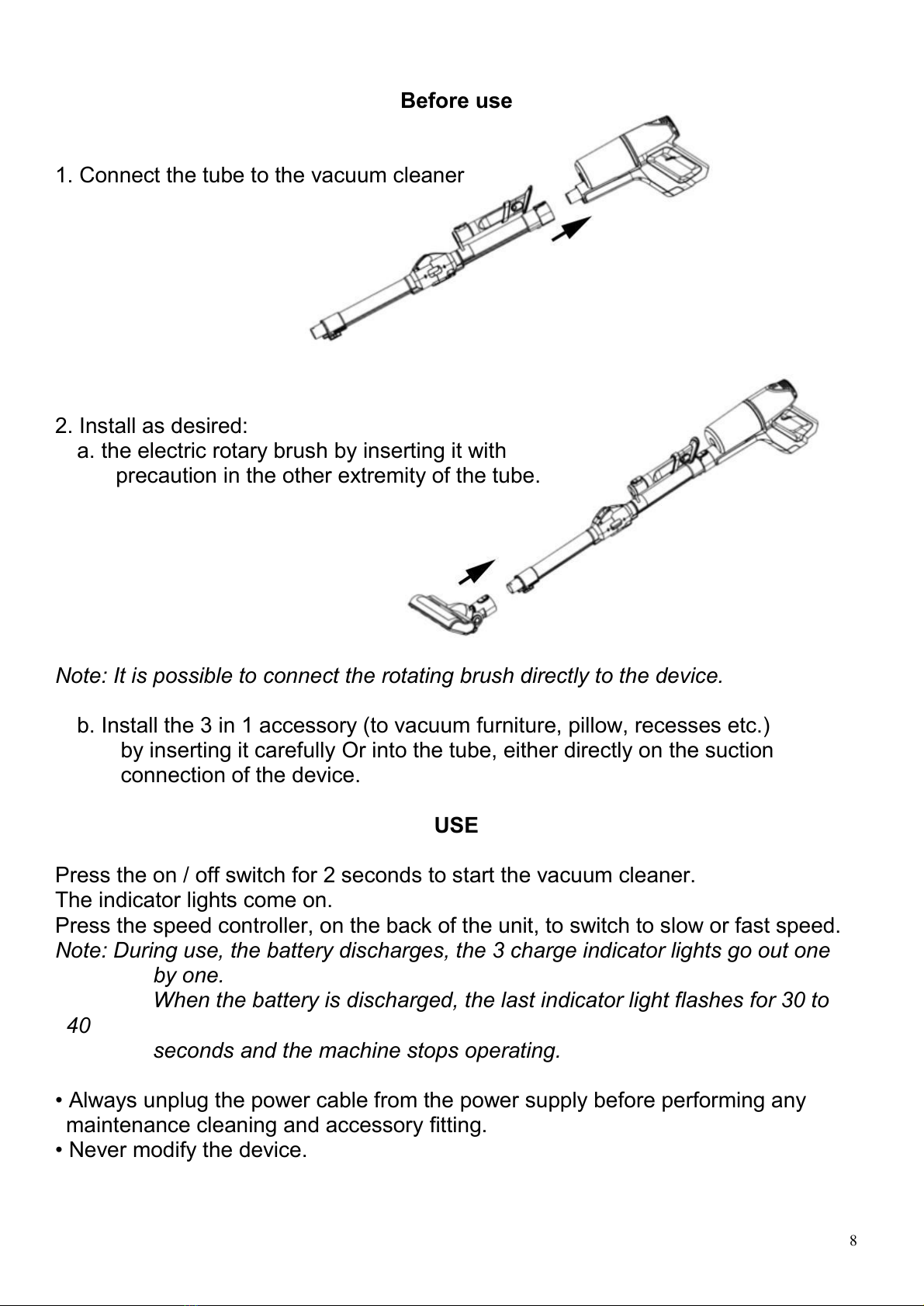

Before use
1. Connect the tube to the vacuum cleaner
2. Install as desired:
a. the electric rotary brush by inserting it with
precaution in the other extremity of the tube.
Note: It is possible to connect the rotating brush directly to the device.
b. Install the 3 in 1 accessory (to vacuum furniture, pillow, recesses etc.)
by inserting it carefully Or into the tube, either directly on the suction
connection of the device.
USE
Press the on / off switch for 2 seconds to start the vacuum cleaner.
The indicator lights come on.
Press the speed controller, on the back of the unit, to switch to slow or fast speed.
Note: During use, the battery discharges, the 3 charge indicator lights go out one
by one.
When the battery is discharged, the last indicator light flashes for 30 to
40
seconds and the machine stops operating.
• Always unplug the power cable from the power supply before performing any
maintenance cleaning and accessory fitting.
• Never modify the device.

9
CLEANING AND MAINTENANCE
Before cleaning, always: switch off the appliance, disconnect
the apparatus and let it cool.
Clean the outside of the apparatus with a sponge or slightly wet
linen.
Never plunge the apparatus in water or all other liquid!
Do not use abrasive cleaners, gritting, or metal brush or another
cutting object.
Remove the tube or accessory from the body of the appliance
by pressing the release button.
Detach the tank by pressing the
Lock / Unlock button.
Remove the dust cover (1)
Pull on the filter with the small handle (2)
Remove the filter from the tank (3) and clean it
Empty the dust contained in the tank (4) in a bin.
Clean the tank and refit the assembly by working upside down.

10

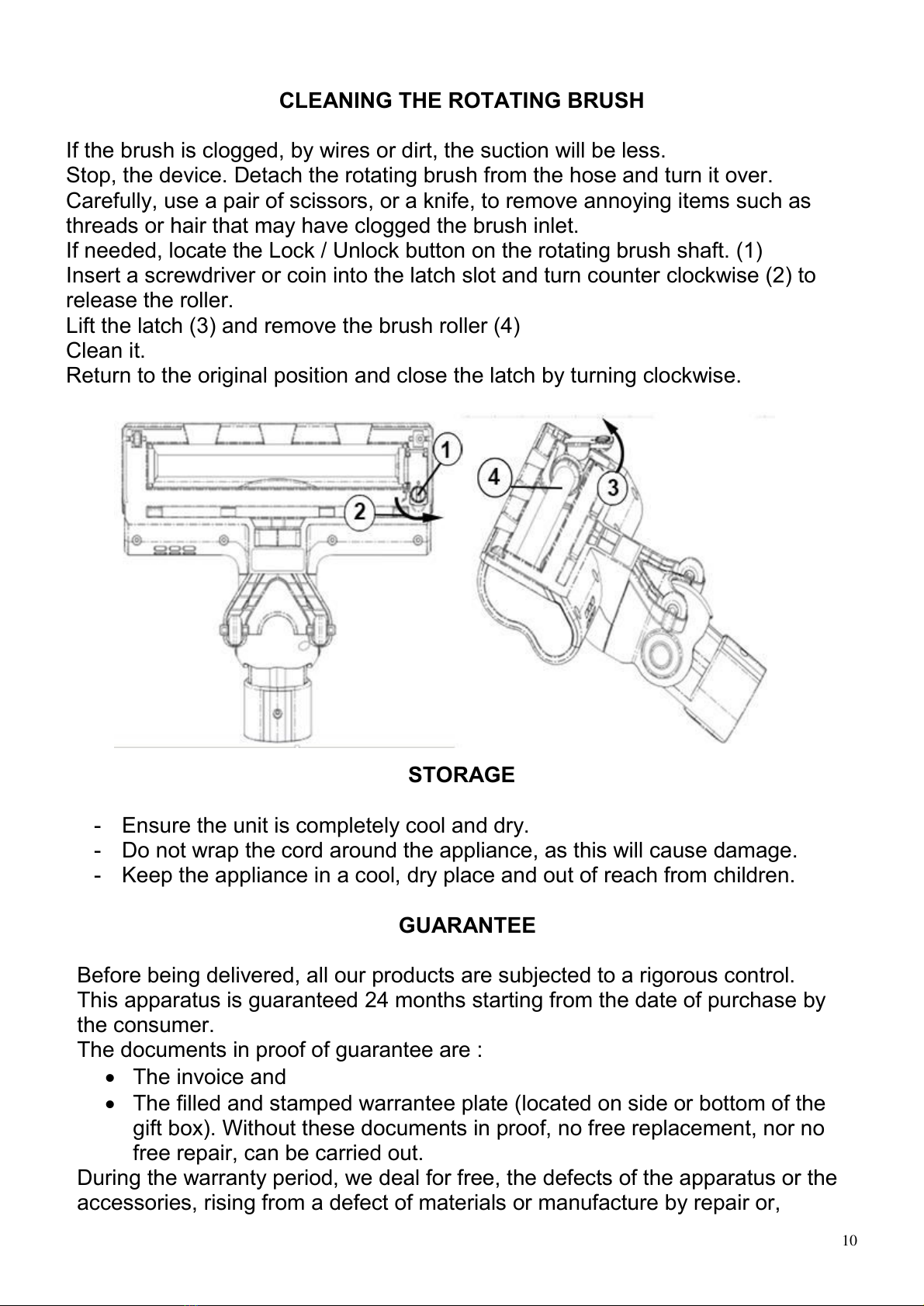

CLEANING THE ROTATING BRUSH
If the brush is clogged, by wires or dirt, the suction will be less.
Stop, the device. Detach the rotating brush from the hose and turn it over.
Carefully, use a pair of scissors, or a knife, to remove annoying items such as
threads or hair that may have clogged the brush inlet.
If needed, locate the Lock / Unlock button on the rotating brush shaft. (1)
Insert a screwdriver or coin into the latch slot and turn counter clockwise (2) to
release the roller.
Lift the latch (3) and remove the brush roller (4)
Clean it.
Return to the original position and close the latch by turning clockwise.
STORAGE
- Ensure the unit is completely cool and dry.
- Do not wrap the cord around the appliance, as this will cause damage.
- Keep the appliance in a cool, dry place and out of reach from children.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase by
the consumer.
The documents in proof of guarantee are :
The invoice and
The filled and stamped warrantee plate (located on side or bottom of the
gift box). Without these documents in proof, no free replacement, nor no
free repair, can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,

11

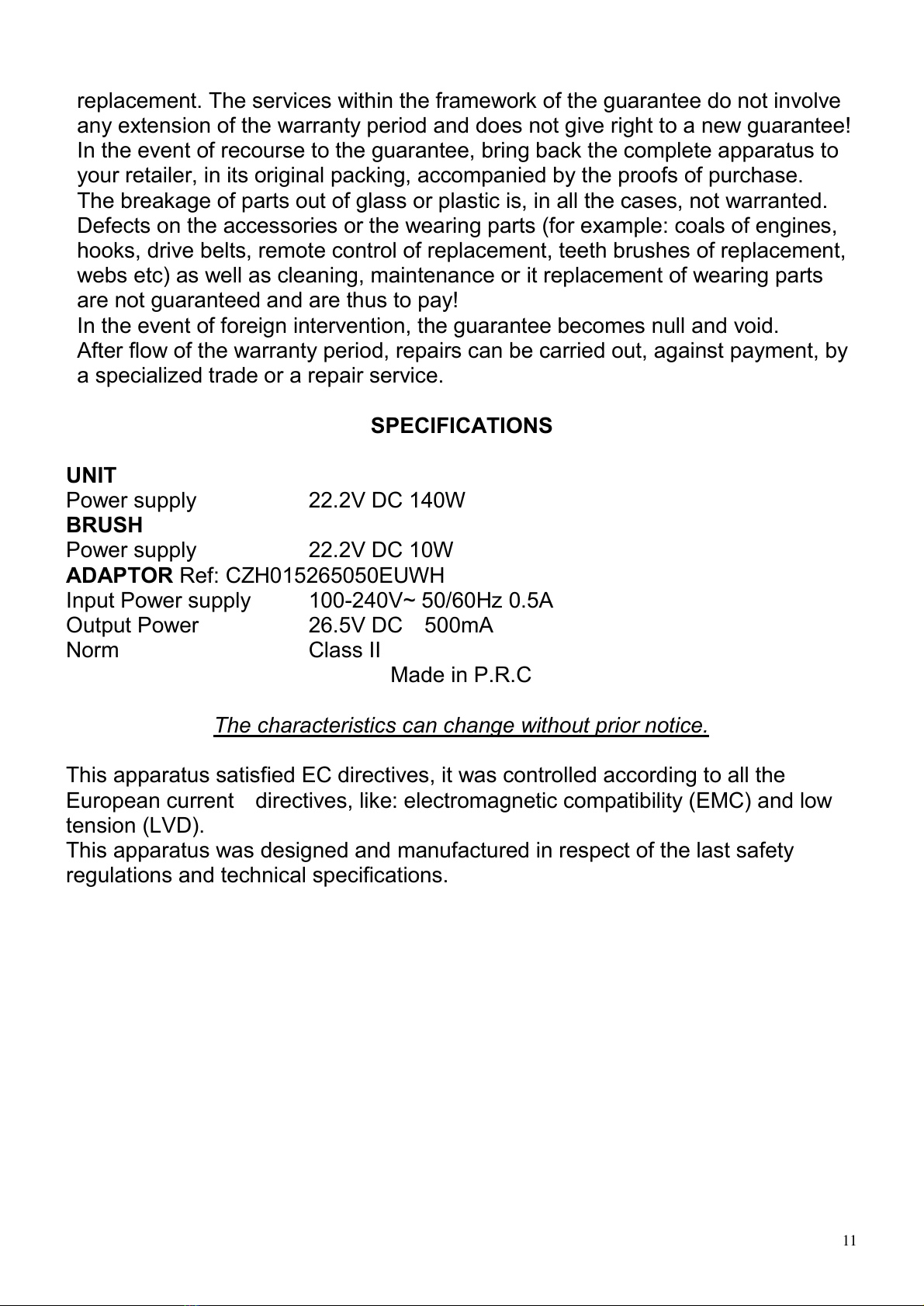

replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee!
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts
are not guaranteed and are thus to pay!
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment, by
a specialized trade or a repair service.
SPECIFICATIONS
UNIT
Power supply 22.2V DC 140W
BRUSH
Power supply 22.2V DC 10W
ADAPTOR Ref: CZH015265050EUWH
Input Power supply 100-240V~ 50/60Hz 0.5A
Output Power 26.5V DC 500mA
Norm Class II
Made in P.R.C
The characteristics can change without prior notice.
This apparatus satisfied EC directives, it was controlled according to all the
European current directives, like: electromagnetic compatibility (EMC) and low
tension (LVD).
This apparatus was designed and manufactured in respect of the last safety
regulations and technical specifications.

12

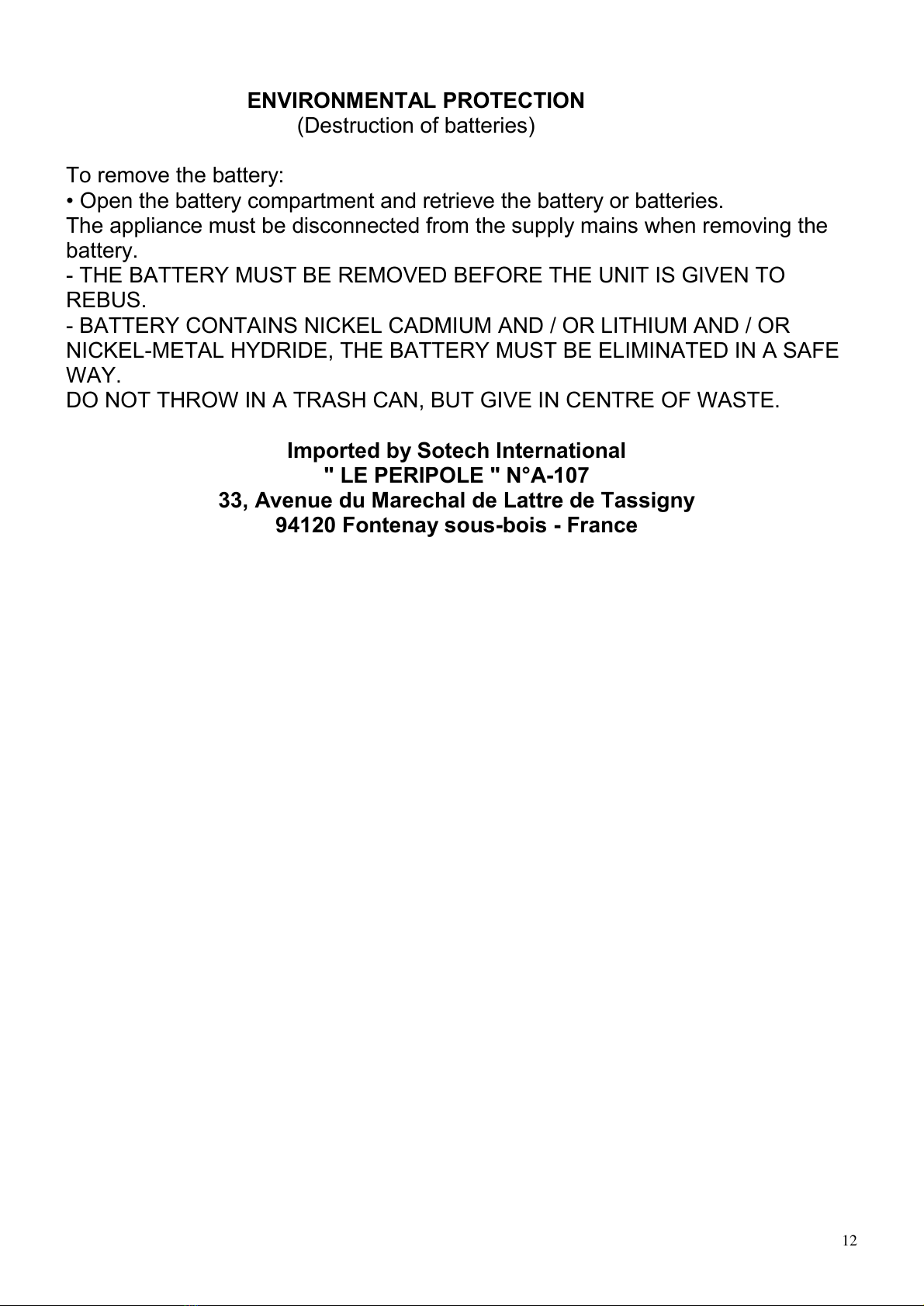

ENVIRONMENTAL PROTECTION
(Destruction of batteries)
To remove the battery:
• Open the battery compartment and retrieve the battery or batteries.
The appliance must be disconnected from the supply mains when removing the
battery.
- THE BATTERY MUST BE REMOVED BEFORE THE UNIT IS GIVEN TO
REBUS.
- BATTERY CONTAINS NICKEL CADMIUM AND / OR LITHIUM AND / OR
NICKEL-METAL HYDRIDE, THE BATTERY MUST BE ELIMINATED IN A SAFE
WAY.
DO NOT THROW IN A TRASH CAN, BUT GIVE IN CENTRE OF WASTE.
Imported by Sotech International
" LE PERIPOLE " N°A-107
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous-bois - France
