Tecno TH300 User manual
2
Package List
After opening the package, please check whether the camera host is in good condition
and whether the accessories are complete.
Indicator ligh
t
Lens
Microphone
MicroSD card slo
t
Speaker
Reset button
Type-C port
3
Installation
TECNO smart cameras can be placed on flat surfaces such as writing desks, dining
tables, coffee tables, etc., or fixed and mounted on walls.

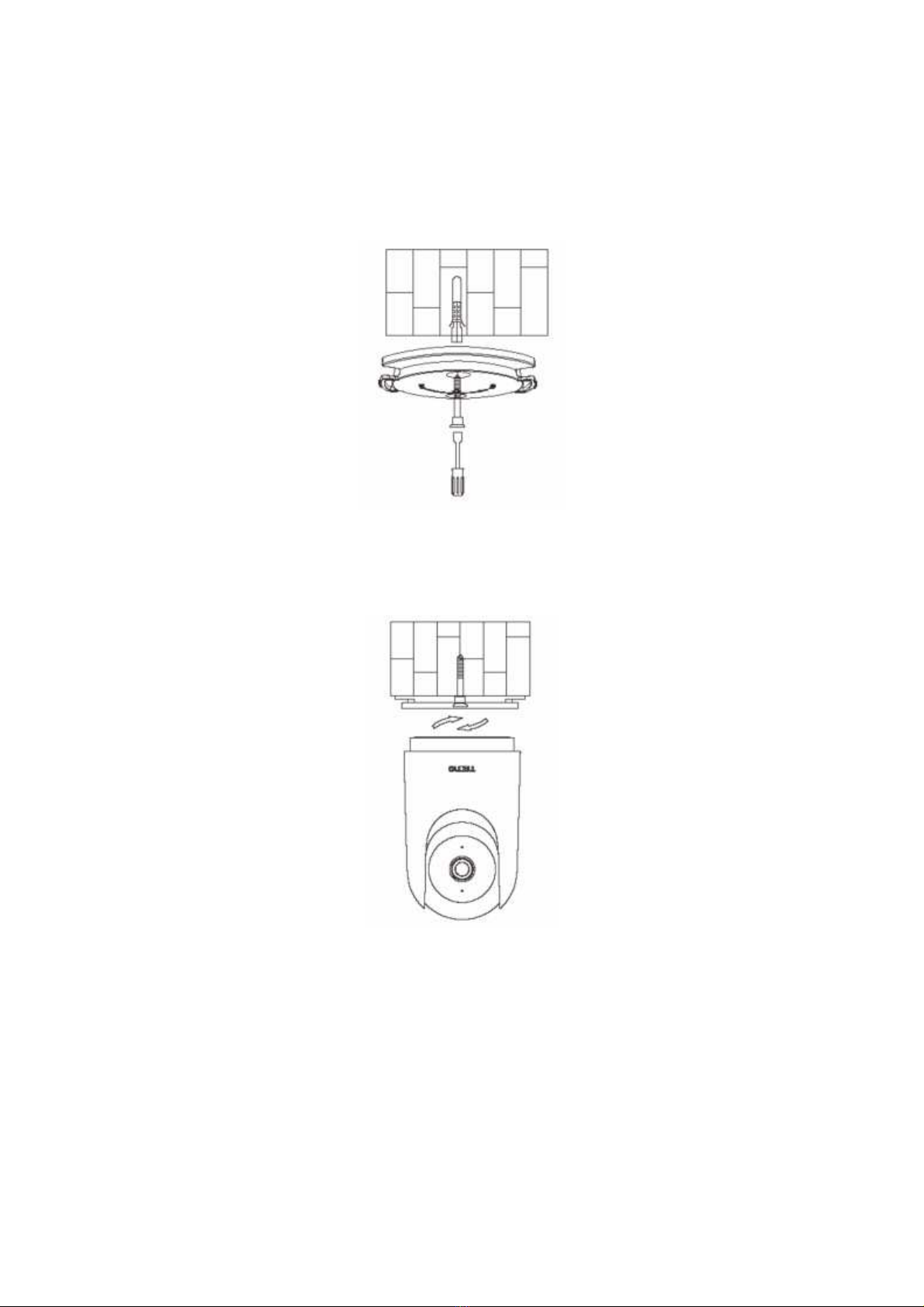

Hanging wall installation:
1. First use a pencil to mark the wall according to the base hole, and then use a drilling
tool to punch two holes at the mark. The drilling diameter is about 6mm, and the hole
depth is about 30mm.
2. Screw the two plastic expansion nuts into the holes.
4
3. Turn the side of the base marked with an arrow upward, align the hole of the base
with the hole of the wall, put the screw through the hole of the base, and screw it into the
expansion nut on the wall with a cross screwdriver.
4. Align the notch on the bottom of the camera with the raised portion of the base and
install the snap-fit, and then rotate the lock clockwise until it locks into place.
5
Usage

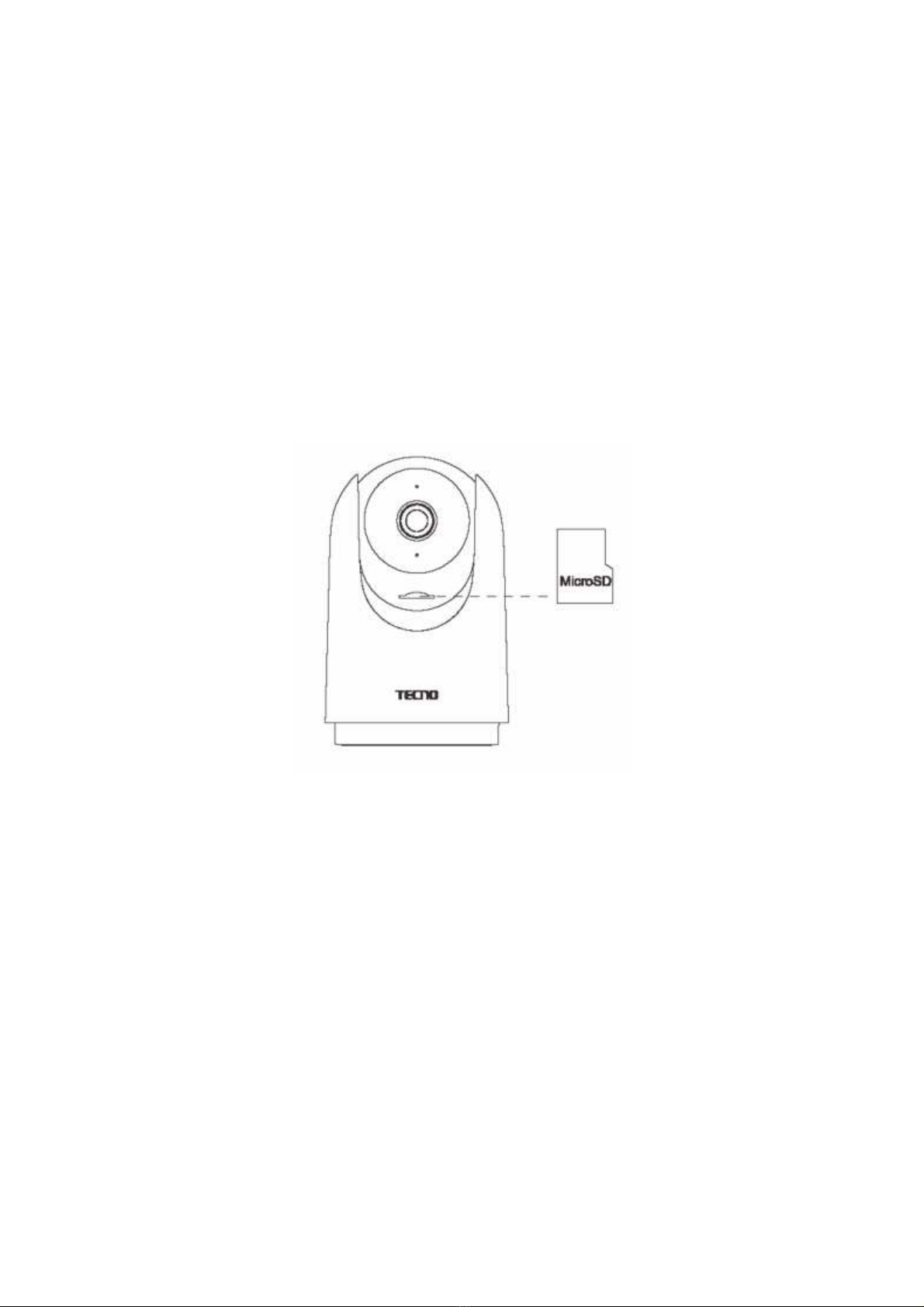

•Installing a MicroSD card
Make sure the camera is powered off and toggle the lens up to expose the MicroSD card
slot. Insert the MicroSD card into the slot with the contact side facing down.
Note: To install or remove the MicroSD card, the camera needs to be powered off
before operation. Please use the MicroSD card (maximum supported capacity is 128GB)
produced by the regular manufacturer, it is recommended that the MicroSD card
read/write speed is not less than U1/ClasslO level.
6

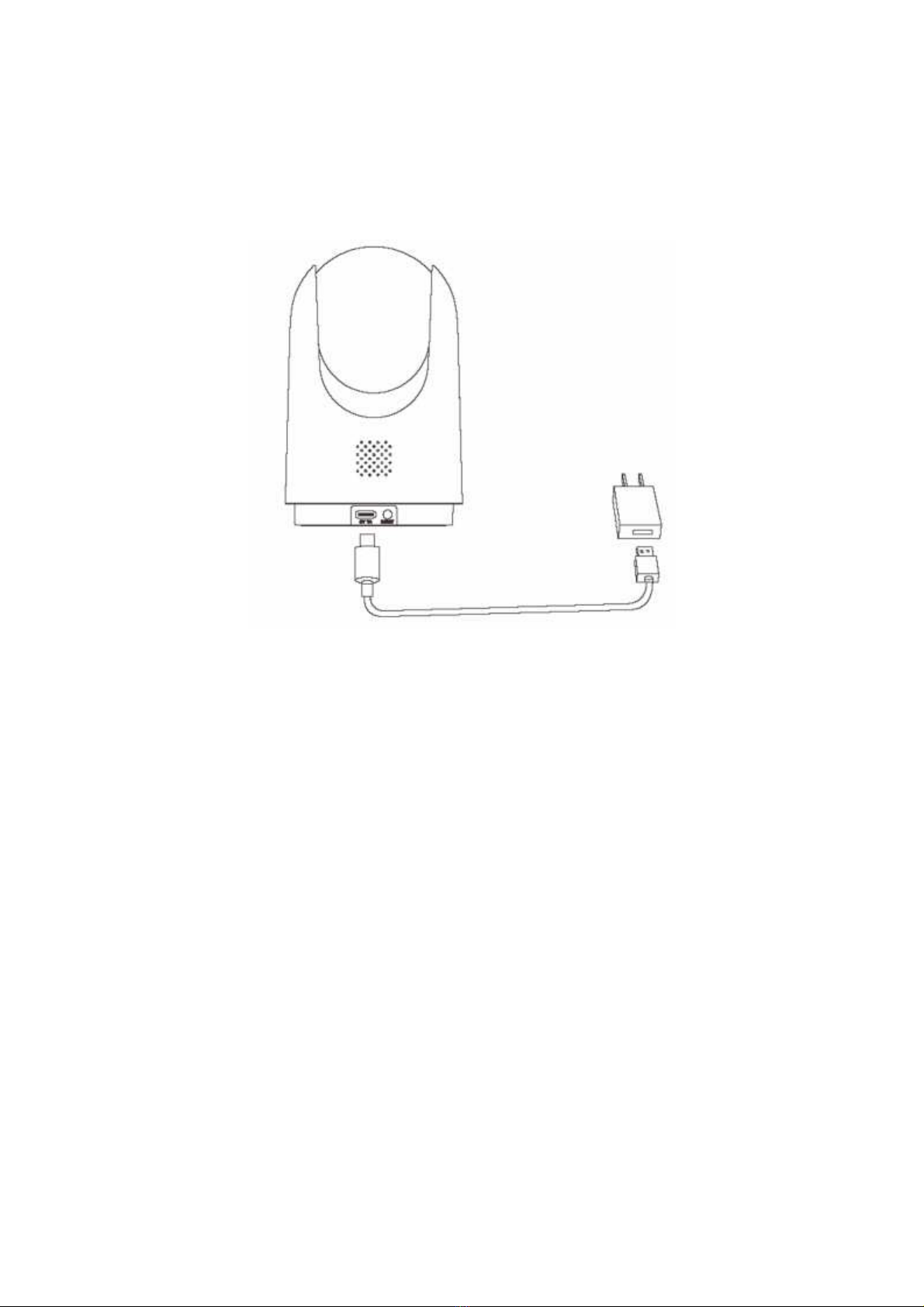

Power on
Plug the power cable into the Type-C power port on the back of the camera, and the
camera will automatically turn on with a flashing green light.
Tip: After turning on the camera, please do not twist the lens of the camera to force it to
rotate. If the lens is not positioned accurately, it can be calibrated through the APP.
• Indicator light
Green light is always on: successful
connection/normal status
Green light slow flashing: upgrading
Green light flashing: waiting for
connection
Red light flashing: network abnormal
7
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.This equipment should be installed and operated with
minimum distance 20cm between the radiator& your body.
Connect to "TECN0 Smart Home" APP
This product is connected to "TECN0 Smart Home" and can be controlled by the
"TECNO Smart Home" APP and interconnected with other products.
Scan the QR code to download and install the "TECN0 Smart Home" APP, which will
take you directly to the device connection page for those who have already installed the
"TECNO Smart Home" APP. Or search for "TECN0 Smart Home" in the app store and
download and install the "TECN0 Smart Home" APP.
Open the home page of the "TECN0 Smart Home" APP and click "+" at the top right
corner of the page to add devices according to the APP tips.
8
Register and log in to APP
(1) Please register APP account and login
(2) If you have already registered, please login directly
9
Basic Parameters
Product Name INTELLIGENT
SECURITY WIFI
CAMERA
Product Size 121.8X77X77mm
Product Model TH300 Product Net
Weight
219g
Power Input 5V⎓1A PTZ Rotation Vertical 170°
Resolution 2K Aperture F2.0
Operating
Temperature
-10°C~50°C Video
Encoding
H.265
Wireless
Connection
Wi-Fi IEEE 802.11b/b/n
2.4GHz
Storage
Function
MicroSD card (Maximum
capacity supports 128GB)
Support system: Android 4.4 or iOS 9.0 and above
Attentions
• This product is suitable for working temperatures from -10°C to 50°C, please do
not use this product in an environment where the temperature is too high or too low.
• This product is a precision electronic product, please do not use this product in an
environment that is excessively humid or may cause the product to enter the water,
so as not to affect the normal use.
• To use the product better, avoid the front and side of the lens near the glass, white
walls, and other reflective objects to avoid the phenomenon of bright near and dark
far or white.
• Please make sure the product is installed within the Wi-Fi signal coverage area and
placed as far as possible in a location with a better Wi-Fi signal, and try to install it
away from metal and microwave ovens and other locations that may affect the
signal.
10
CUSTOMER SERVICE
Carlcare provides service
WARRANTY CERTIFICATE
Name：
Address：
Telephone number：
Date of purchase：
(dd/mm/yy )
Store name：
S/N：
11
WARRANTY TERMS&CONDITIONS
A limited 1 -year warranty applies to TECNO TH300 purchased from the
Tecno-Mobile- Official store. Please feel free to contact us if you run into any problems.
This warranty covers only original TECNO products. It does not apply to normal wear
and tear, or any effects or damage caused by misuse of the product. The warranty is for
primary products only. Additional or free of cost products are not covered under
warranty
TECNO MOBILE LIMITED
TM and ©2022 TECNO Corporation. All rights reserved. Other product and company
names mentioned herein may be trademarks or trade names of their respective owners.
Specifications are subject to change without notice. Model names and the availability
of particular products may vary by region.
www.tecno-mobile.com
MADE IN CHINA
