TECNOPLUS SISTEM-AIR T-SOFT User manual

F0920524
www.sistemair.com
27020 Gravellona Lomellina (PV) ITALIA - Via Cilavegna, 53 - GPS: N: 45° 19’28” ; E: 8° 45’ 32”
Tel. + 39 0381 650082 - Fax [phone] - [e-mail]
USER MANUAL
V 1.0.0
Sistem Air
Group

English 1
• Type: vacuum cleaner civil sector
• Model: T-SOFT
• Revision 1.0.0
Line
T-SOFT
User manual
20/12/16 Rev:1.0.0
1 TECNICAL FEATURES 2
2 AUTHORIZED USE OF THE VACUUM CLEANER 3
3 UNAUTHORIZED USE OF THE VACUUM CLEANER 3
4 SAFETY FEATURES 4
4.1 Warnings 4
4.2 IP protection degree 5
4.3 Electrical insulation degree 5
4.4 Declaration of absence of dangerous substances 5
4.5 Fixed closure guards safety 5
4.6 Movable closure guards safety 6
4.7 Identification plate 6
5 SWITCH FROM DX (RIGHT) TO SX (LEFT) MODEL 6
6 INSTALLATION 8
6.1 Preliminary operations 8
6.2 Place of installation 8

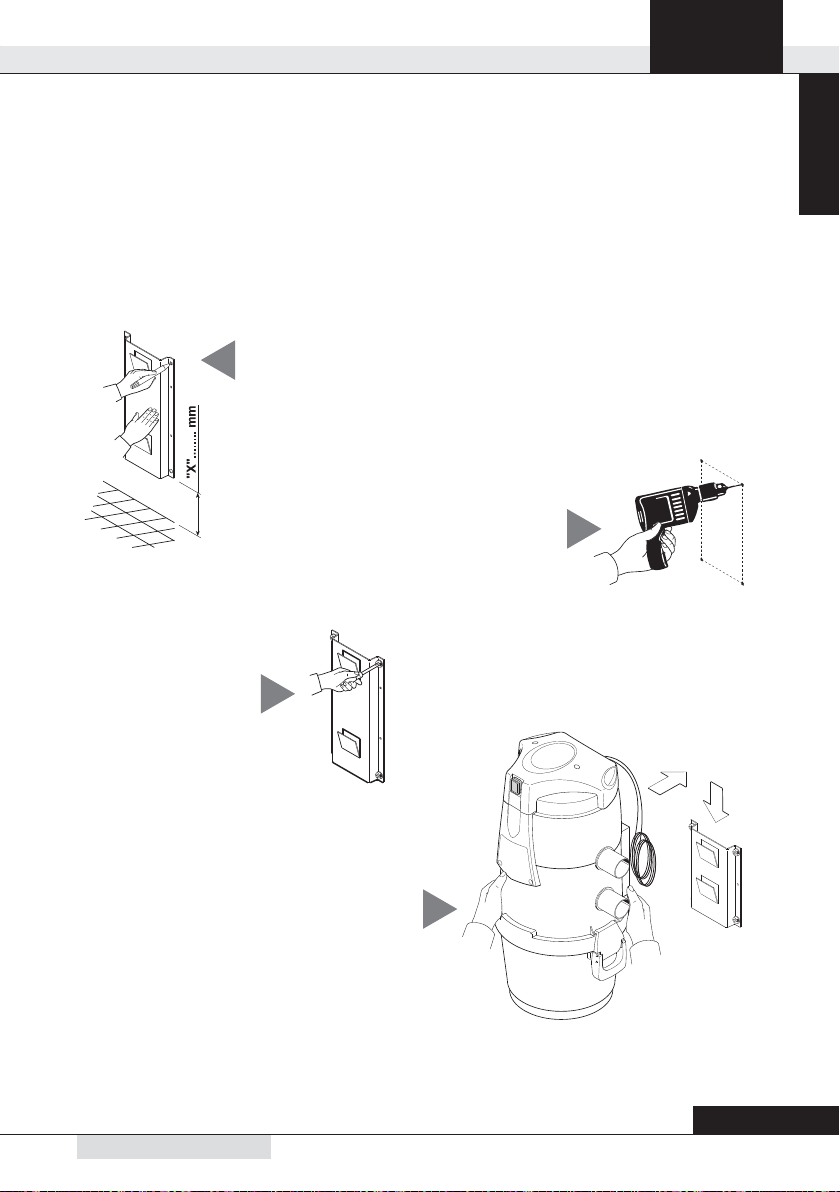

6.3 Fixing the system to the wall 9
6.4 How to connect to the pipe network 10

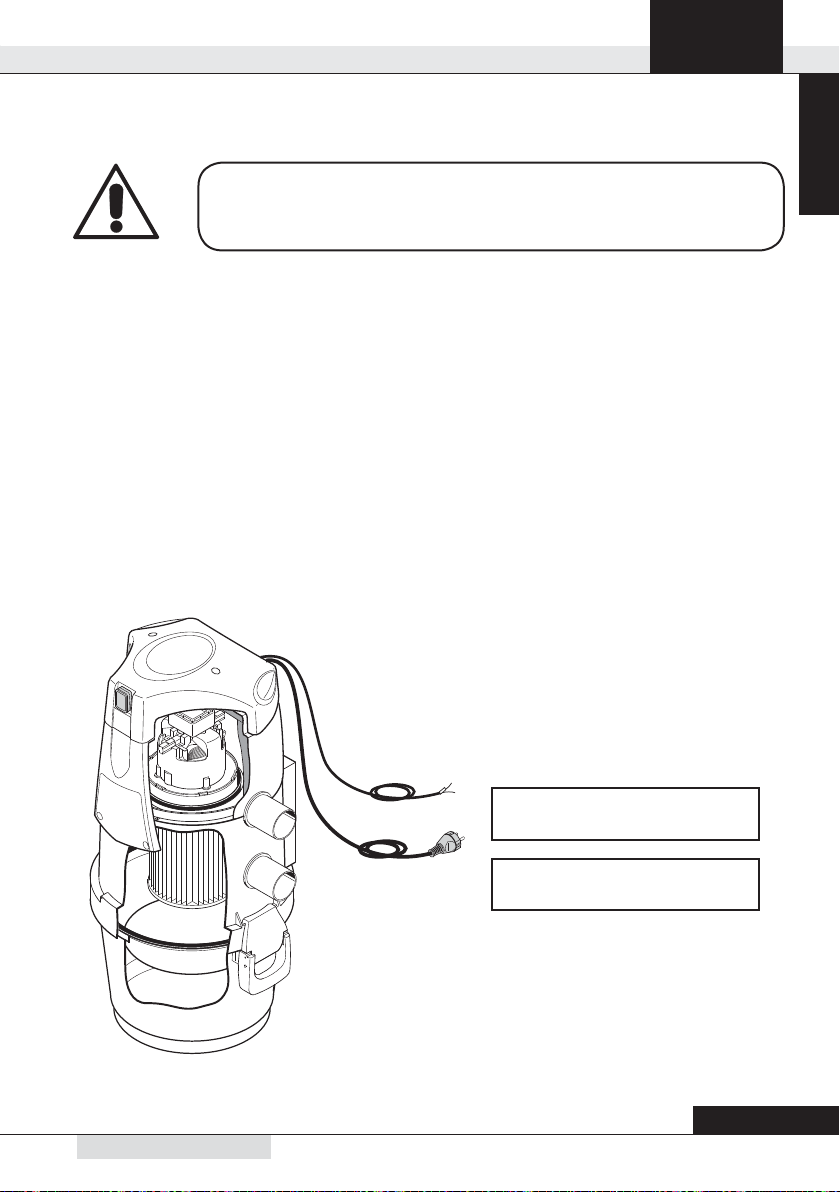

6.5 Electrical connection 11
7 MAINTENANCE 12
7.1 Programmed maintenance 12
7.2 Extraordinary maintenance 12
7.3 Cleaning suction Chamber (cylinder) 13
7.4 Unloading the dust container 13
7.5 Reconditioning of the filter cartridge 14
8 REPAIRS AND SPARE PARTS 15
8.1 Servicing criteria 15
8.2 Recommended spare parts 15
9 TROUBLESHOOTING 16
INDEX

User manual T-SOFT
220/12/16 Rev:1.0.0English
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
Model
Article
T-SOFT
250
8004.SF
Air inlet/outlet Ø mm 50
Protection degree IP 20
Power supply V ac
220/240
Frequency Hz 50
Motor power kW 1,35
Absorption A 5,8
Inlet power supply V dc 12
Max air volume m3/h 234
Depressione mbar 274
Filtering surface cm26700
Dust container capacity l 15
Carried air exhaust YES
Air exhaust silencer (Ø 50 mm) YES
Weight kg 10,5
Size A mm 220
Size B mm 360
Size C mm 330
Size D mm 168
Size E mm 108
Size F mm 520
Size G mm 855
Size X (min.) mm 400
Size L mm 280
Size M (0) mm 500
Noise level below than dB(A) < 70
1 - TECNICAL FEATURES
N. B: Levels of nominal noise.The levels can vary according to the
environment where the central unit has been installed and the kind
of installation.

1
20/12/16 Rev:1.0.0 English
2 -AUTHORIZED USE OF THE VACUUM CLEANER
The T-Soft vacuum cleaner has been designed exclusively to vacuum clean dust, very small-size solids
and dry materials. The use of the central vacuum cleaner is authorized for household and civil uses,
connected to a PVC wall-traced piping network and to a standard home electrical wiring.
The vacuum cleaner can be installed in domestic dwellings with the following characteristics:
• the surface to be cleaned between 30 and 250 m²
• Piping network featuring 50-mm diameter pipe
• 220/240 V ac power supply
• Air exhaust conveyed to the outside
• Suitable for a single-operator use
• Suitable for installation in domestic spaces such as store rooms, boiler rooms, garages and balco-
nies (protected from the elements).
3 - UNAUTHORIZED USE OF THE VACUUM CLEANER
It is extremely important NOT to use the system in the following circumstances which are consid-
ered to be inappropriate and dangerous:
• Do not use the machine for other purposes
• The system must not be used to vacuum clean liquids.
• The system must not be used to vacuum clean fabrics, heavy or hot/burning materials.
• Do not suction cement, flour or similar materials, which may cause the reduction of the vacuumed air
with a consequent damage of the motor. and at the electric componenets, having materials that create
static charges in step of PVC pipes.
The system has not been designed to be used in environments with risk of explosion, and
therefore:
• It is forbidden to vacuum clean materials with high exploshion risk (gunpowder) or materials which are
individually inert but that, once collected and mixed in the dust bin, could provoke dangerous chemical
reactions.
C
D
EF
G
H
M (Ø)
M (Ø)
B
A
L
English
3

User manual T-SOFT
420/12/16 Rev:1.0.0English
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
• It is absolutely forbidden to use the vacuum cleaner in explosive atmosphere or outside the standard
temperature, pressure and humidity levels.
• It is absolutely forbiddem to vacuum clean materials that may cause electrostatic charges inside the
pipe unless previously communicated to the constructor.
ANY DIFFERENT USE IS STRICTLY FORBIDDEN
The manufacturer, by means of written autorization, must approve any alteration or modification of the
suction unit to remove a specific material. Any use different from the described is to beconsidered im-
proper and health risk for the user. Demage to the suction unit cannot be exluded.
4 - SAFETY FEATURES
WARNING: TECNOPLUS S.R.L. declines any form of responsibility or guarantee if the pur-
chaser, or anyone in his stead, makes even the slightest modification or adjustment to the
purchased product.The unit has been designed to satisfy at best the present needs of the
domestic central vacuum cleaners market, both in terms of quality and operating capacity.
All materials and components used to manufacture this product comply with CE safety regu-
lations. All relevant certifications are held at the offices of TECNOPLUS S.R.L.
In compliance with safety regulations detailed in the Machinery Directive 2006/42/CE (transposed into
the Italian Legislation by Decree Law 17/10), in the Low Voltage Directive 2014/35/UE, and in the Elec-
tromagnetic Compatibility Directive 2014/30/UE, the T-Smart complies with the standard established for
electrical appliances for household and similar purposes EN 60335-1 (2008) and with the Regulation C
EN 60335-2-2 (2011), specially conceived for vacuum cleaners for household and similar purposes with
rated voltage not exceeding 250 V.
It is recommended to read carefully all the installation, use and maintenance instructions
detailed in this manual. .
4.1 WARNINGS
• Do not allow the children get near the suction unit when it’s working and never let the children play with
the suction inlets.
• This tool should not be used by persons (children included) with reduced psychical, sensorial or mental
skills, or by persons without experience or knowledge, unless they are controlled or trained for the use
of the tool by people responsible of their safety.
• Children have to be supervised in order to assure they don’t play with the tool.
• Unplug the central suction unit when:
-The power supply cable is worn out or damaged.
-The suction unit has been exposed to the inclemency of the weather or to excessive moisture.
-The suction unit has been damaged by an impact or the external container has been damaged.
-The suction unit requires repairing or overhauling
• Always wear protection gloves and mask when carrying out any maintenance operation, and when
unloading the dust container or replacing/cleaning the filter.
• Use ONLY original spare parts.
• Do not use the system without a filter cartridge.
• Do not block the exhaust air pipes or the motor cooling intakes.

1
20/12/16 Rev:1.0.0 English
•No part of the body should come into contact with the suction accessories.
• Use only one suction socket at a time.
• Do not leave the system switched on when not using it and disconnect it from power supply when the
system is not to be used for a long period of time.
Finally, remind that pictograms or danger and warning signals can be found on those parts of the
equipment where, if not strictly followed, potential risky situations may occur.
4.2 IP protection degree
IP 44:Appliance with protection against solid objects greater than 1 mm and protected against
splashing water (water splashed on the enclosure from any direction shall have no harmful
effects).
The appliance features a protection against solid objects having a size exceeding 12 mm. The
appliance is not protected against water penetration.
4.3 Electrical insulation degree
CLASS II:Double insulated electrical appliances. Do not require connection to the plant’s Earth
circuit General Electric.
4.4 Declaration of absence of dangerous substances
TECNOPLUS S.r.l. declares that its products and appliances have been manufactured with materials
which comply with the restrictions established by the health and environment protection regulations in
force and do not contain SVHC-classified substances (Substance of Very High Concern) in compliance
with CE regulation 1907/2006 (REACH: i.e. Registration, Evaluation, Authorization and Restriction of
Chemical Substances).Although these substances have not been used during the processing cycles of
raw materials and during the manufacturing cycles of our products, their presence in p.p.m. (parts per
million) cannot be completely excluded due to micro-pollution of raw materials.
4.5 Fixed closure guards safety
The vacuum cleaner is delivered to the Customer with its main body completely assembled. Moving
parts are protected by a protection grid. This protection grid cannot be accessed by the operator.
The operator also does not have access to the electrically-operated parts of the appliance which are
protected by a cover which can only be removed by unscrewing the Torsen screws used to fix the
soundproofing dome of the housing where the suction motors are assembled. Every intervention on
the control board and on the motors must be carried out by qualified personnel only after disconnect-
ing the electrical power supply and by removing the electric plug from the electric socket.
4.6 Movable closure guards safety
There are no movable closure guards assembled on the appliance. Every guard assembled is consid-
ered a fixed guard and is fastened with special screws. TECNOPLUS s.r.l. reminds you that it is abso-
lutely forbidden to replace the screws used for the design and manufacture the appliances with screws
with feature different characteristics.
IP20
English
5

User manual T-SOFT
620/12/16 Rev:1.0.0English
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
....................................
.........................................................................
IP
Model:
P/N: S/N:
l
0
Central type Name of the manufacturer
CE compliance data
Electrical insulation
degree
Electric motor data
Serial number IP protection degree
5 - Switch from DX (right) to SX (left) model
The suction units are usually delivered with suction and exhaust pipes connections assembled on the
right side of the unit (DX model). When necessary, it is possible to switch the suction unit from DX
(right) to SX (left) model.
Follow the instructions detailed below to
switch from DX (right) to SX (left):
Unscrew the screws and remove
the wall fixing plate 1

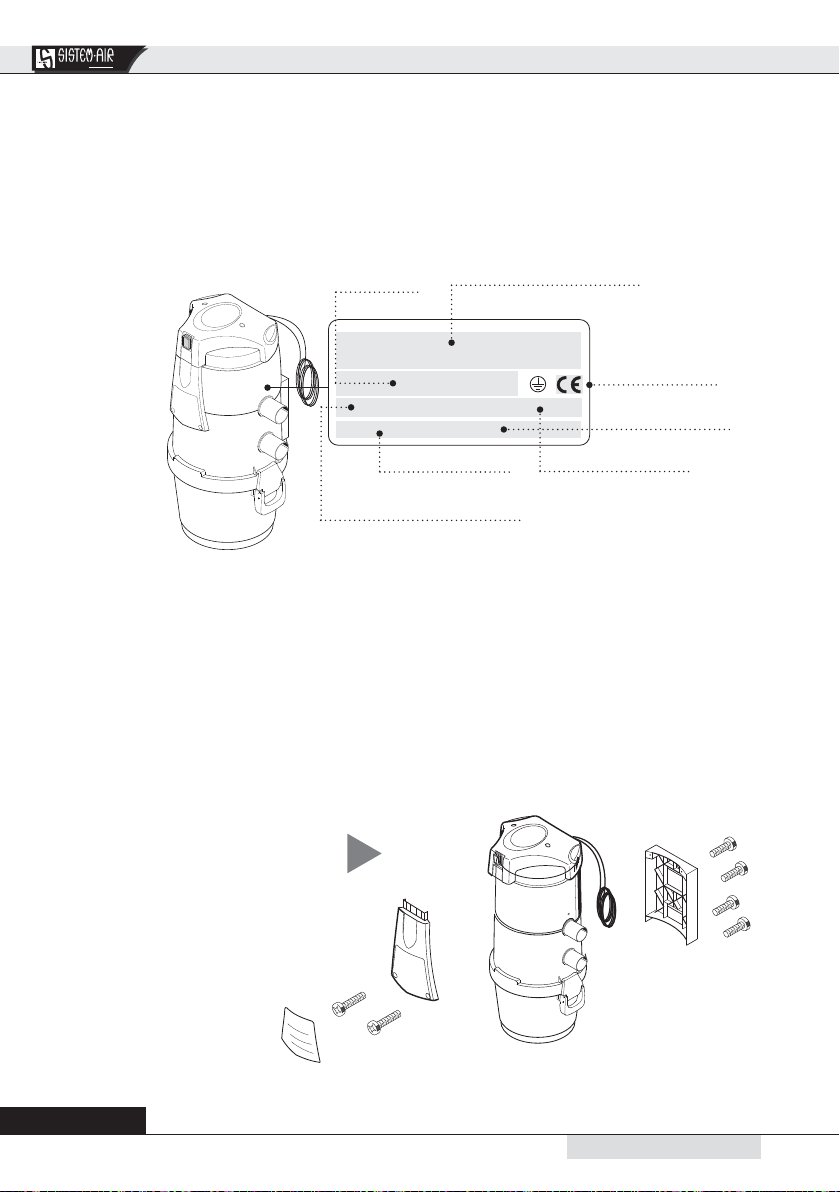

4.7 Identification plate
It is present on the side of the tube plate CE network attack. Do not remove or damage the label.
l

1
20/12/16 Rev:1.0.0 English
l
0
l
0

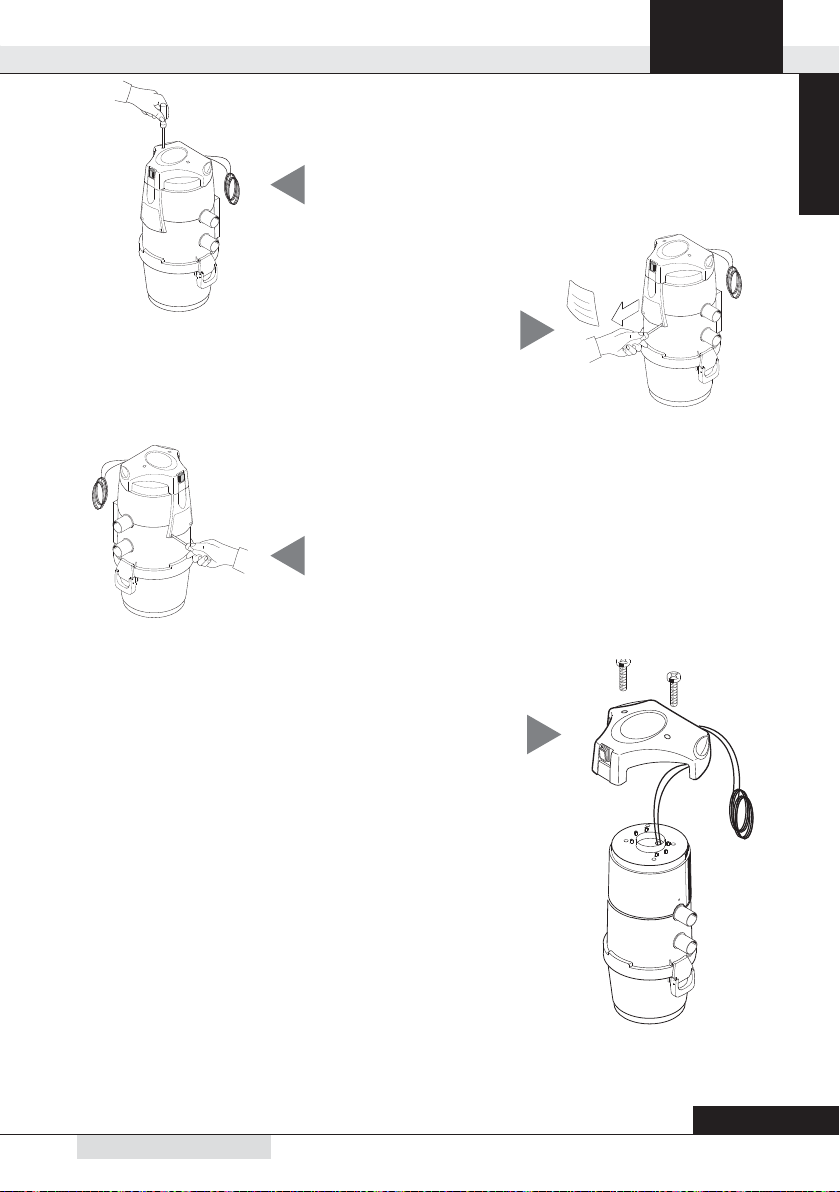

Unscrewing the screw and re-
move the top cover
2
Remove the plate; unscrew
the screw under the sticker; re-
move the front panel 3
Reassemble, by changing the
position of the front panel
Reassemble the top cover, place the power ca-
ble of the card by inserting it into the guides and
replace the disk spongy dustproof so close the
cable exit hole.
5
Reasemble the fixing plate and fix the adhesive
plate. Tighten screws.
l
0
l
0
English
7

User manual T-SOFT
820/12/16 Rev:1.0.0English
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
6 - INSTALLATION
- ATTENTION -
THE UNDERMENTIONED
OPERATION MUST BE CARRIED OUT BY
QUALIFIED STAFF
6.1 Preliminary operations
The suction system is shipped to the customer completely assembled and packed.
Before switching the machine on, the following checks are advisable:
• Check that the packaging is intact.
• Check that the appliance has not been damaged in any way and in particular check that all the
protruding parts are intact.
• Verify the correct tightening of the filter cartridge.
• Using the equipment list and the kit and accessories list, check that the equipment and the kit have
been exactly and completely delivered.
• Check that the Guarantee Certificate has been provided.
If any damage or irregularity is found or if any accessory is missing, do not install the appliance and
contact your Retailer.
6.2 Place of installation
Before installing the central suction unit, a suction pipes network must be installed by qualified staff.
The qualified operators must also spot the best location to install the suction unit.
Suggestions for a correct installation are detailed here in after:
• If the suction unit has to be installed in a multistorey building, the suction unit must be located at the
lowest level of the building.
• The suction unit can be installed in a service room (for example in a garage or in a storage room),
sheltered from atmospheric agents and protected from moisture and temperature changes.
• Chose a space far from heat sources (burners or radiators).
• Leave free and well it space around the suction unit to allow trouble-free maintenance and repair
operations.
When the vacuum cleaner, for specific installation needs, is installed on the highest floors of the
building with regard to the level where the pipe network is housed (attic, garret etc.), we suggest
you to install a vacuum cleaner featuring a power category higher than the one needed to clean the
desired surface.
For any question and doubt do not hesitate to contact your provider

1
20/12/16 Rev:1.0.0 English
Trace the drilling position using the
template provided (drilling template); if
this has already been done, proceed to
the next step.
6.3 Installation of the suction unit
The vacuum cleaner must be securely and permanently fixed to a solid wall using the bracket provided
and the suitable wall anchors or plugs taking into account that the total weight to be supported can be
seven/eight times that of the system itself.
The system should be positioned high enough off the ground to allow the dust collection bin to be
emptied and the filter to be replaced in a simple way.
Position the system so as to keep a minimum distance of 60 cm around the appliance for extraordinary
maintenance.
To do this follow the instructions detailed below:
2
1
Drill the holes
Tighten the screws in
the wall plugs and check
that the bracket is well
anchored to the wall.
3
4
Hook the vacuum cleaner to the an-
choring bracket by lifting it, leaning it
against the wall and allowing it to
slide down until it fits into the fixing
plate.
l
0
English
9

User manual T-SOFT
10 20/12/16 Rev:1.0.0English
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
6.4 How to connect to the pipe network
1. Using the sleeve, connect the dust inlet coupling of the vacuum cleaner, identified with (A) in the
picture, to the suction pipe from the piping network.
2. Using the sleeve, connect the venting air coupling of the vacuum cleaner, identified with (B),
to the air exhaust pipe of the house.
3. Glue the silencer (C) on the exhaust pipe near the exhaust air grid.
N.B.: do not glue the pipe end of the piping network to the dust inlet coupling or to the air exhaust cou-
pling:
l
0
C
A
B
Should it be necessary to convey the air discharge to the outside, please follow the following
instructions:
Maximum length of the discharge pipe:
Diameter of the outlet pipe for a length up to 4 m: 50 mm
Diameter of the outlet pipe for lengths from 4 to 6 m: 63 mm
Diameter of the outlet pipe for lengths from 6 to 8 m: 80 mm
Diameter of the outlet pipe for lengths from 8 to 10 m: 100 mm
It is not advisable to use an outlet pipe which is longer than 10 m, because this could damage
the central vacuum unit.

1
20/12/16 Rev:1.0.0 English
6.5 Electric connection
Before plugging in the suction unit, make sure that the main power supply corresponds to the suctuin
unit power supply (please refer to data indicated on the identification plate).
The constructor declines all responsibility for damages to persons or objects due to an electric system
not in compliance with the regulations in force.
Follow the instructions to carry out this operation correctly (see picture)
• Connect the starting signal imput cable (low voltage) to the MICRO LINE cable
coming from the inlets
• Insert the electrical plug into the appropriate power inlet
• Check that the electrical wiring of the house has been set up in compliance with the electrical
regulations in force.
• Do not power the system with supply voltage from provisional or temporary switchboards (for example
construction sites switchboards) to avoid possible damage to the electronic parts
ATTENTION! The electric connection must be
carried out by qualified staff ONLY
Micro Line / Suction inlet 12 dc
Power supply 230 V ac
l
0
English
11

User manual T-SOFT
12 20/12/16 Rev:1.0.0English
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
7.2 Extraordinary maintenance
• check filter wear and/or its replacement
• airexhaust obstruction
• check electric motor carbons wear
• replace electric motor carbons
Also in this case the user can decide whether to shut down the plant and maintain, or you can
continue and finish the job.
7.3 Cleaning suction Chamber (cylinder)
Periodically clean the exterior of the plant using a soft cloth dampened with water and mild soap.
Warning: clean the unit with water or mild soap and water. The use of other solvents or alcohol can
cause damage. Wait for complete drying before restarting the plant.
The use of other solvents or alcohol can cause damage. Wait for complete drying before restarting the
plant
7 - MAINTENANCE
7.1 Programmed routine maintenance
Maintenance should be carried out according to the effective running time of the system so to ensure
efficient performance and avoid serious mechanical damages.
ALWAYS UNPLUG THE POWER
SUPPLY CABLE FROM THE POWER SUPPLY SOKET AND
ALWAYS WEAR PROTECTION GLOVES
AND GOGGLES BEFORE CARRYING OUT ANY TECHNICAL
OR MAINTENANCE OPERATION.
Time (hours) Type of intervention Carried out by
4 Clean the lter cartrige User
6 Unload the dust container User
32 Replace the lter cartridge User
54 Control the obstruction level of the
airexhaust Technical service
350 Replace the electric motor carbons Technical service

1
20/12/16 Rev:1.0.0 English
Remove the dust bin
Empty the dust bin
1
3
Remove the conveyor cone
2
7.4 Unloading the dust container
Switch the suction system off by pressing the ON/OFF switch
Put back into place the cone conveyor.
4
Reassemble the dust bin inside its housing under the suction system and lock the closing handles.
Switch the suction system on by pressing the ON/OFF switch.
Remember to take care when leaving the bin: always check that the bin gasket support is still in
place and correctly assembled in its housing inside the bin.
English
13

User manual T-SOFT
14 20/12/16 Rev:1.0.0English
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
7.5 Reconditioning of the filter cartrige
The filter cartridge can be restored as follows:
• blowing its surface with compressed air
• vacuuming its dirty surface with the vacuum unit, with a clean filter previously installed. In this case,
we recommend to shake the dirty filter, before vacuuming, to eliminate most of the dusts that deposit
between the folds.
Check the filter surface is not cut. If this
is the case, the cartridge cannot be used
again and must be definitely replaced.
2
Washing it under flowing water. Also in this case
we recommend to shake the filter before wash-
ing it in order to eliminate most of the dusts that
deposit between its folds.
1
ATTENTION
YOU MUST ALWAYS CHECK THE RIGHT POSITIONING AND
TIGHTENING OF THE FILTER CARTRIDGE. A WRONG POSITIONING
OR A LOOSE FILTER CARTRIDGE MAY CAUSE A SERIOUS
DAMAGE TO THE PRODUCT.
DO NOT USE THE VACUUM CLEANER WITHOUT THE FILTER
CARTRIDGE. ENSURE YOU HAVE REPLACED A SPARE FILTER
CARTRIDGE BEFORE CARRYING OUT THIS OPERATION.
ATTENTION: before replacing the filter cartridge back in the system after washing,
ensure it has completely dried. DO NOT reassemble the filter if the surface is still wet
or damp.

1
20/12/16 Rev:1.0.0 English
8 -REPAIRS AND SPARE PARTS
8.1 Servicing criteria
Any intervention on the vacuum cleaner for repairs and/or maintenance which are not expressly authorized
in this manual is absolutely forbidden.
Any repair for breakage or malfunctioning must be carried out by qualified Technical Assistance personnel.
Any intervention of non-authorized personnel will result in the invalidation of any guarantee of the product
and the manufacturer will not be held responsible for any eventual damage to persons and/or objects due
to such interventions.
8.2 Recommended spare parts
It is advisable to order in time those spare parts which need to be changed more often.
In order to guarantee the optimal and long working life of the vacuum cleaner it is recommended to use
only original SISTEM-AIR spare parts, as detailed below.
DESCRIPTION SPARE PART
CODE MODEL
Filter cartridge 1610.0 TSOFT
Lot and tend to collect bag dust in the
container 1614.4 ALL
English
15

User manual T-SOFT
16 20/12/16 Rev:1.0.0English
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
9 - Troubleshooting
PROBLEM CAUSE SOLUTION
No air suction in all the inlets
The power supply cable in
unplugged Plug in the power supply cable
The start push button of the
suction unit is unplugged Press the start push botton
The start signal cable is
unplugged (micro line) Plug in the start cable (micro line)
The thermal relay of the motor
does work Leave the the motor some minutes for cooling
No air suction in only one inlet The power supply contacts are cut off or the
micro switch
Contact the technical service
provider
Weak air suction
Several suction inlets are
used simultaneously Use only one suction inlet at a time
Flexible hose or cleaning
accessories are
broken/demaged
Check if the hose is integral
and if the fitting is correctly
inserted
The filter cartridge is dirty Replace or clean the filter
cartridge
The fitting of the dust
container is damaged Check if the fitting is integral
and correctly
The pipes of the suction
system are obstructed Contact the technical service
provider
The air exhaust is obstructed Contact the technical service
provider
The suction unit does not stop when
the suction inlets are closed
The microswitch of a single
inlet doesn't work Contact the technical service provider
Vacuuming works intermittently with the
tube inserted into the inlet
The thermal relay of the motor
does work
Check for any obstructions
suction tubes of the tube
network
Check for any obstruction of
the airexhaust
Remove the pipe from the wall
socket and wait a few minutes
for the motor to cool down
Contact the technical service
provider

Register your warranty
Registra la tua garanzia
Enregistrez votre garantie
Registrieren Sie Ihre Garantie
Registre su garantía
sistemair.it/registrazione-prodotto

F0920524
www.sistemair.com
27020 Gravellona Lomellina (PV) ITALIA - Via Cilavegna, 53 - GPS: N: 45° 19’28” ; E: 8° 45’ 32”
Tel. + 39 0381 650082 - Fax [phone] - [e-mail]
USER MANUAL
V 1.0.0
Sistem Air
Group
