Tecnoware FBBATA48V1 User manual
Battery BOX
ATA Energy Storage System MM
User’s Manual
Manuale Utente
Index - Indice
User’s Manual - English..........................................................................1
1Safety Warnings ..............................................................................1
1.1 Product Disposal..........................................................................1
1.2 Lead Batteries ............................................................................1
2Mechanical Drawings for Battery Box 100Ah...........................................2
3Mechanical Drawings for Battery Box 200Ah...........................................3
4FBBATA48V1 and FBBATA48V2............................................................4
4.1CONNECTION BATTERY 100Ah ........................................................5
4.2CONNECTION BATTERY 200Ah ........................................................5
5Box Battery Mounting Instructions .......................................................6
6Connection with ATA......................................................................11
Manuale Utente – Italiano..................................................................... 12
1Avvisi di Sicurezza.........................................................................12
1.1 Smaltimento del Prodotto............................................................12
1.2 Batterie al Piombo.....................................................................12
2Disegno Meccanico Box con Batterie 100Ah..........................................13
3Disegno Meccanico Box con Batterie 200Ah..........................................14
4FBBATA48V1 e FBBATA48V2.............................................................15
4.1CONNESSIONE BATTERIE 100Ah..................................................... 16
4.2CONNESSIONE BATTERIE 200Ah..................................................... 16
5Istruzioni Montaggio Box Batterie ...................................................... 17
6Connessione con ATA .....................................................................22
© Copyright 2014 TECNOWARE s.r.l. All rights reserved.
All trademarks are property of their respective owners.
TECNOWARE s.r.l.
Via Montetrini, 2E – Molino del Piano – Florence – Italy
www.tecnoware.com
This manual has been printed and edited by TECNOWARE s.r.l.
February 2014 edition – version 1.0
Battery box for ATA Energy Storage System 1User’s Manual
User’s Manual - English
1Safety Warnings
Risk of electric shock: if all the batteries are connected, inside the Battery Box there are
internal parts which are at a high Voltage and are potentially dangerous, capable of
causing injury or death by electric shock.
Any repair or maintenance work must be performed exclusively by qualified technical
personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this
warning is disregarded.
Danger of explosion and fire if the batteries of the wrong type or number are used.
Do not dispose of batteries in a fire. The batteries may explode. Do not open or mutilate
batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic
The Battey Box is compliant with the European Community directives. Hence it is marked:
1.1 Product Disposal
This Battery Box cannot be disposed as an urban waste, but must be treated as a separate waste. Any
violation is indictable with financial sanctions as per in force regulations.
An incorrect waste disposal or an improper use of the same or of any parts can be damaging for the
environment and for human health.
A correct waste disposal of products having the dustbin symbol marked by a cross help to avoid
negative consequences to the environment and to human health.
1.2 Lead Batteries
The Battery Box may contain lead acid, sealed, maintenance free batteries.
This kind of batteries, if handled by non-experienced personnel, can cause electric shock or short-
circuit.
For this reason the batteries can be removed only by qualified technical personnel, specialized and
authorized by Tecnoware. Tecnoware declines any responsibilities if this rule is not followed.
The batteries cannot be disposed as an urban waste, but must be treated in conformity with
2006/66/CE European Directive; any violation is indictable with financial sanctions as established into
2006/66/CE European Directive.
User’s Manual 2Battery box for ATA Energy Storage System

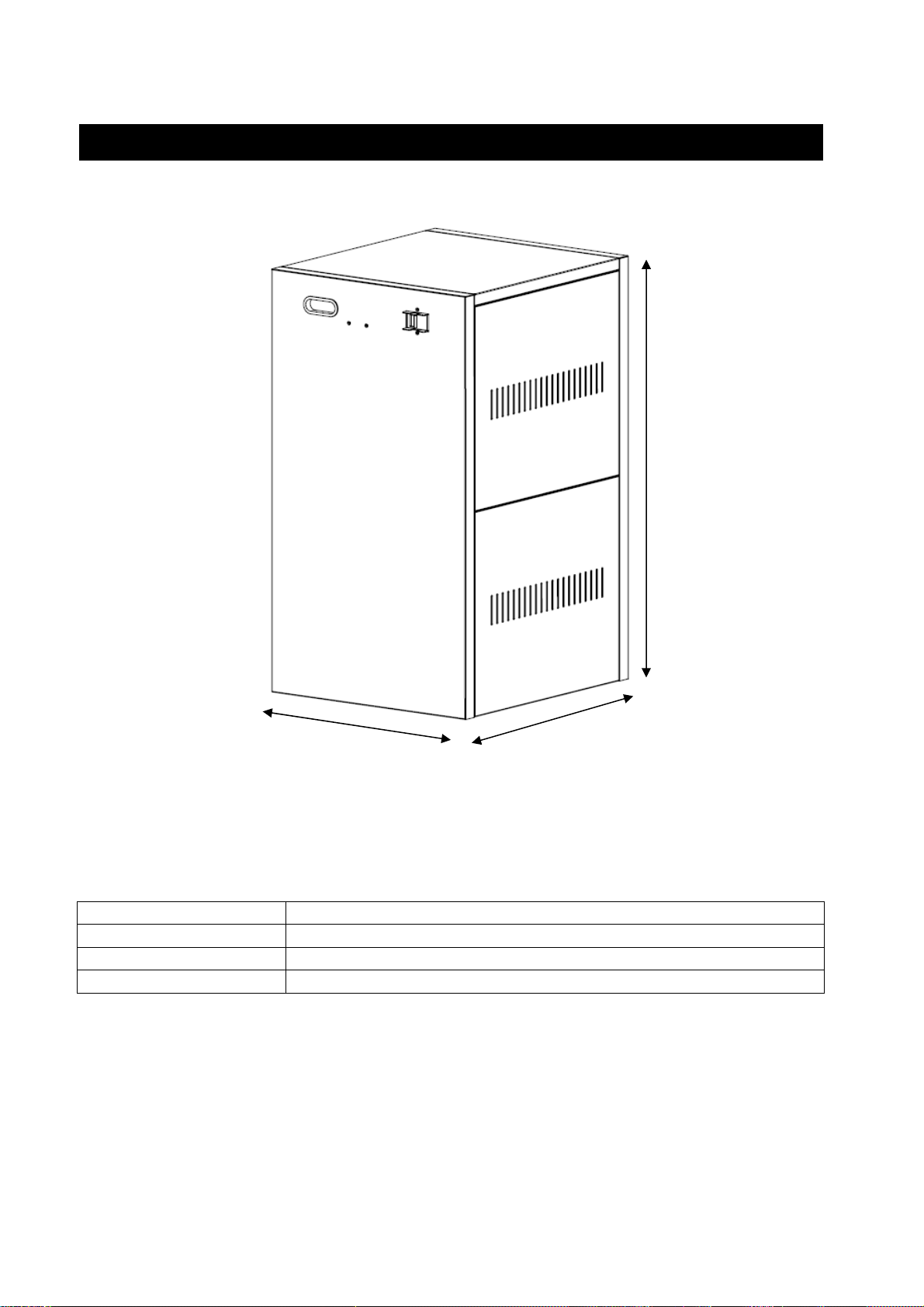

2Mechanical Drawings for Battery Box 100Ah
Dimension (W x H x D) (39.7 x 71 x 44.3) cm
Net Weight without Batteries 25 Kg
Batteries Number 4
Net Weight with Batteries 100Ah 155 Kg
39.7 cm 44.3
cm
71 cm
Battery box for ATA Energy Storage System 3User’s Manual
3Mechanical Drawings for Battery Box 200Ah
Dimension (W x H x D) (59.5 x 76 x 57.5) cm
Net Weight without Batteries 36 Kg
Batteries Number 4
Net Weight with Batteries 200Ah 300 Kg
59.5 cm
57.5cm
76 cm
User’s Manual 4Battery box for ATA Energy Storage System
4FBBATA48V1 and FBBATA48V2
MODELLI DISPONIBILI
Box Battery Code Description ATA
Power Battery
Capacity Cables Section Breaker Max
Current
FBBATA48V1/100 Battery Box Compatible with ATA
Energy Storage System 4-5 KVA 100Ah 4 AWG (2 x 8 AWG) 125 A
FBBATA48V2/200 4-5 KVA 200Ah 4 AWG (2 x 8 AWG) 125 A
BATTERIES
Battery Type Lead acid, sealed, free maintenance, 12 Vdc
Battery Number 1 x 4
Nominal Battery Voltage 48 Vdc
ENVIRONMENTAL CONDITIONS
Storage Temperature Range -25°C to +55°C (15°C to 30°C recommended for longer Battery life)
Operating Temperature Range 0°C to +40°C (20°C to 25°C recommended for longer Battery life)
Relative Humidity Range 0% - 95% (non condensing)
Max. Altitude without Derating 3000 meters
Battery box for ATA Energy Storage System 5User’s Manual
4.1 CONNECTION BATTERY 100Ah
4.2 CONNECTION BATTERY 200Ah
OFF
ON
16
cm
60 cm
25
cm
25
cm
70 cm
70 cm
TERMINAL BLOCK
WITH BATTERY
CONNECTION
BATTERY SELECTOR
TOP PART
BOTTOM PART
FIRST
SECOND FLOOR
TERMINAL BLOCK
WITH BATTERY
CONNECTION
BATTERY SELECTOR
OFF
ON
TOP PART
BOTTOM PART
FIRST
SECOND FLOOR
14
cm
48 cm
38
cm
38
cm
58 cm
55 cm
-
+
-
+
+
-
-
+
-
+
-
+
+
-
+ -
User’s Manual 6Battery box for ATA Energy Storage System
5Box Battery Mounting Instructions
PACKING CONTENT:
Below is reported the packing content:
Item Description Quantity
1 Top case 1
2 Side case 4
3 Rear case 1
4 Battery packs * 4
5 Bracket 2
6 Battery terminal block 1
7 Connector fixing plate 1
8 U-type fixing plate 1
9 Breaker 1
10 Front case 1
*The batteries are not included with the battery box. There is the cable kit for battery
connection.
Battery box for ATA Energy Storage System 7User’s Manual
BATTERY CABLE CONNECTION KIT:
SPECIFICATIONS BATTERY CABLE KIT FOR BOX BATTERY 100Ah
N° Cable Cable Color Cable Specifications Application
1 Red L=140mm，AWG#8*2PCS From breaker to battery
terminal block
2 Red L=480mm，AWG#8*2PCS From battery to breaker
3 Black L=380mm，AWG#8*2PCS From battery to battery
4 Black L=250mm，AWG#8*2PCS From battery to battery
5 Black L=580mm，AWG#8*2PCS From battery to battery
6 Black L=550mm，AWG#8*2PCS From battery to battery
terminal block
7 Red L=2000mm，AWG#8*2PCS From battery box to ATA
8 Black L=2000mm，AWG#8*2PCS From battery box to ATA
SPECIFICATIONS BATTERY CABLE KIT FOR BOX BATTERY 200Ah
N° Cable Cable Color Cable Specifications Application
1 Red L=160mm，AWG#8*2PCS From breaker to battery
terminal block
2 Red L=600mm，AWG#8*2PCS From battery to breaker
3 Black L=250mm，AWG#8*2PCS From battery to battery
4 Black L=250mm，AWG#8*2PCS From battery to battery
5 Black L=700mm，AWG#8*2PCS From battery to battery
6 Black L=700mm，AWG#8*2PCS From battery to battery
terminal block
7 Red L=2000mm，AWG#8*2PCS From battery box to ATA
8 Black L=2000mm，AWG#8*2PCS From battery box to ATA
User’s Manual 8Battery box for ATA Energy Storage System

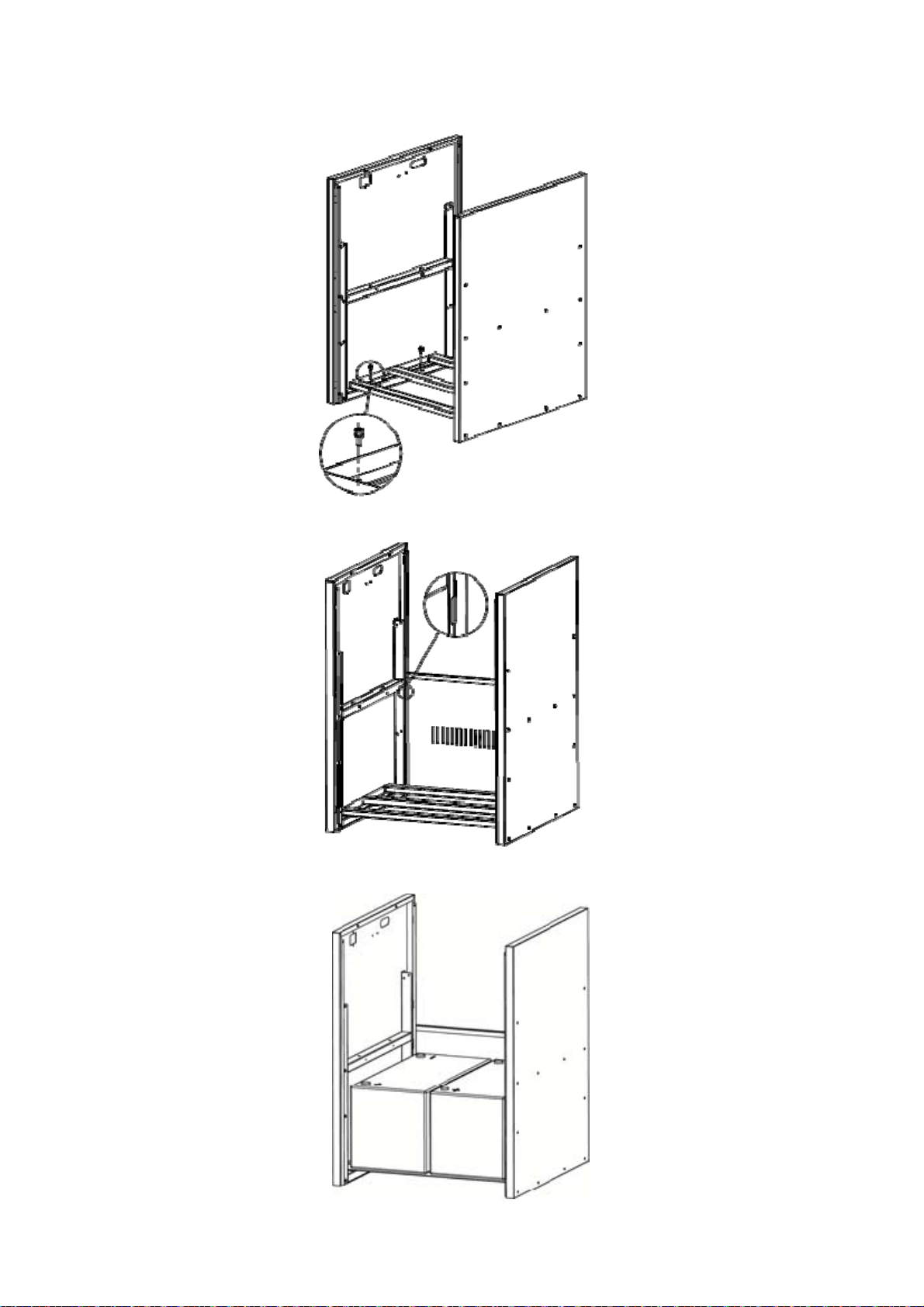

1Fix bottom bracket between front case and rear case with four M4 screws.
2Fix one side case in slot between front case and rear case. Refer to below diagram.
3Put two pieces of batteries on the bottom bracket as shown below.
Battery box for ATA Energy Storage System 9User’s Manual

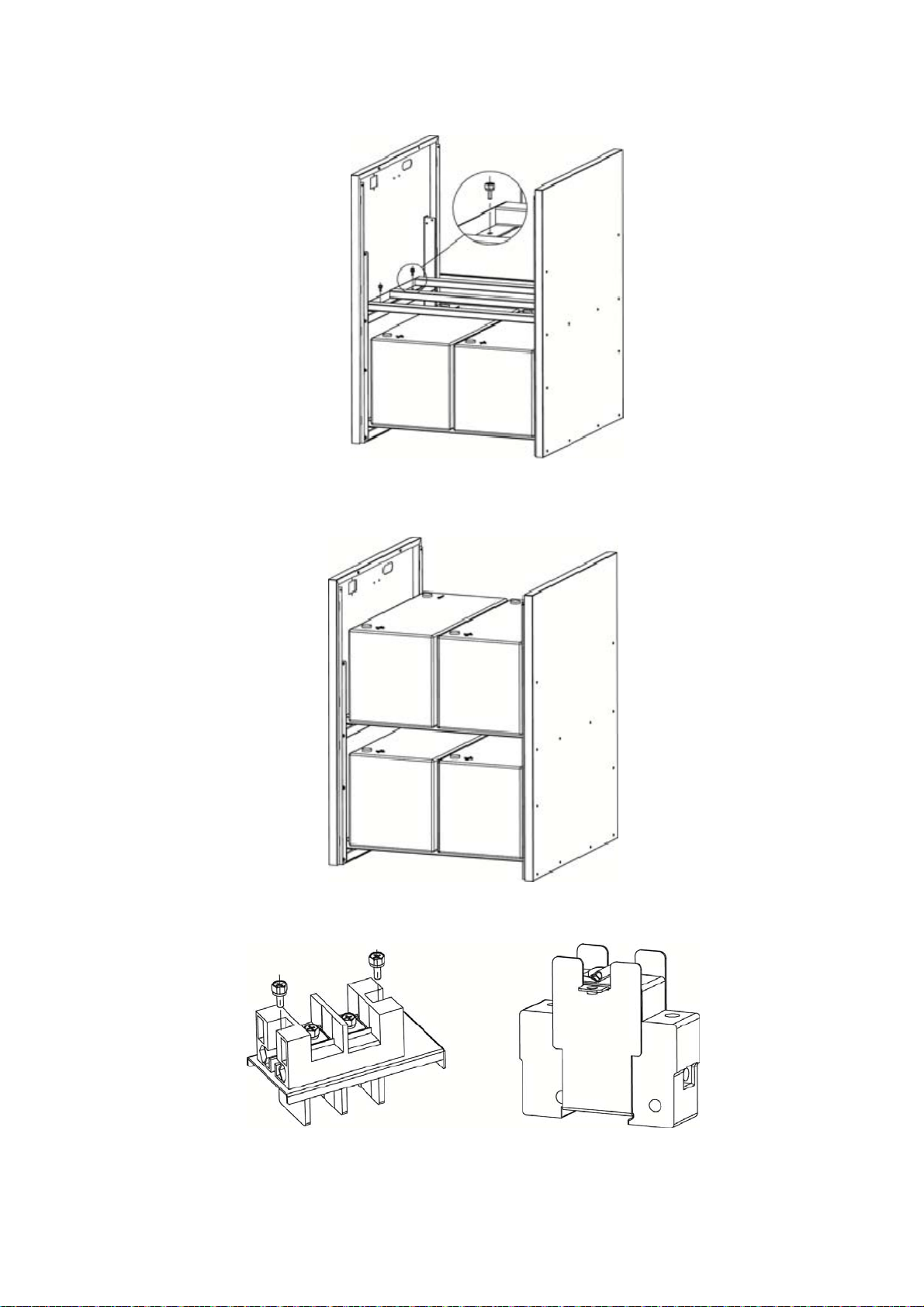

4Fix one bracket in the middle of battery box with four M4 screws. Refer to below diagram.
5Put two pieces of battery packs on the middle bracket as shown below.
6Follow below diagrams to assemble battery connector with connector fixing plate. Insert breaker into U-type fixing plate.
User’s Manual 10 Battery box for ATA Energy Storage System
7Install assembled breaker and battery connector into side case with screws as shown below.
8Connect the batteries as explained to the chapter 4.1 (for 100Ah batteries) or 4.2 (for 200Ah batteries).
9Install the remaining 3 pieces of side cases by following same procedure in step 2.
Battery box for ATA Energy Storage System 11 User’s Manual
10 Simply fix top case into slots. Refer to below diagram.
6Connection with ATA
Through the supplied connecting cables, connect ATA to the ATA battery box (See ATA user’s manual).
To active the system, see the instructions reported in ATA user’s manual.
+
-
+BATTERIES
-BATTERIES
+
BATTERIE
S
-BATTE
R
IES
BATTERY BOX
ATA BATTERY
CONTACT
ATA
BOX BATTERY
CONTACT
Manuale Utente 12 Box Batterie per ATA Energy Storage System
Manuale Utente – Italiano
1Avvisi di Sicurezza
Elevato rischio di shock elettrico: se nel Box Batterie sono state montate le batterie,
all’interno del Box Batterie sono presenti pericolose tensioni che possono provocare
lesioni o morte per shock elettrico.
Interventi tecnici di qualsiasi tipo devono essere compiuti solo da personale tecnico
specializzato ed autorizzato da TECNOWARE. In caso contrario TECNOWARE declina ogni
sua responsabilità.
Pericolo di esplosione o di incendio se si utilizzano batterie di tipo sbagliato o un numero
errato di batterie.
Non avvicinare le batterie al fuoco. Le batterie possono esplodere. Non aprire o
danneggiare le batterie. L’elettrolita contenuto nelle batterie che può fuoriuscire è
nocivo alla pelle e agli occhi.
Il Box Batterie è conforme alle Direttive Europee. Quindi ha il marchio:
1.1 Smaltimento del Prodotto
Il prodotto Box Batterie non può essere smaltito come rifiuto urbano, ma deve esserlo tramite raccolta
separata; qualsiasi violazione è punita con sanzioni pecuniarie ai sensi delle vigenti norme.
Lo smaltimento non corretto del prodotto, o l’uso improprio dello stesso o di sue parti, è dannoso per
l’ambiente e per la salute umana.
Il corretto smaltimento dei prodotti recanti il simbolo del bidone segnato da una croce aiuta ad evitare
possibili conseguenze negative per l’ambiente e la salute umana.
1.2 Batterie al Piombo
Il prodotto Box Batterie può contenere batterie al piombo acido, ermetiche, senza manutenzione.
Tali batterie, se manovrate da personale inesperto, possono essere causa di shock elettrico e di alte
correnti di cortocircuito.
Per questo motivo la rimozione delle batterie può essere compiuto solo da personale tecnico
specializzato ed autorizzato da Tecnoware. In caso contrario Tecnoware declina ogni sua
responsabilità.
Le batterie non possono essere smaltite come rifiuto urbano, ma devono essere smaltite nelle modalità
previste dalla direttiva europea 2006/66/CE; qualsiasi violazione è punita con sanzioni pecuniarie ai
sensi della direttiva stessa.
Box Batterie per ATA Energy Storage System 13 Manuale Utente

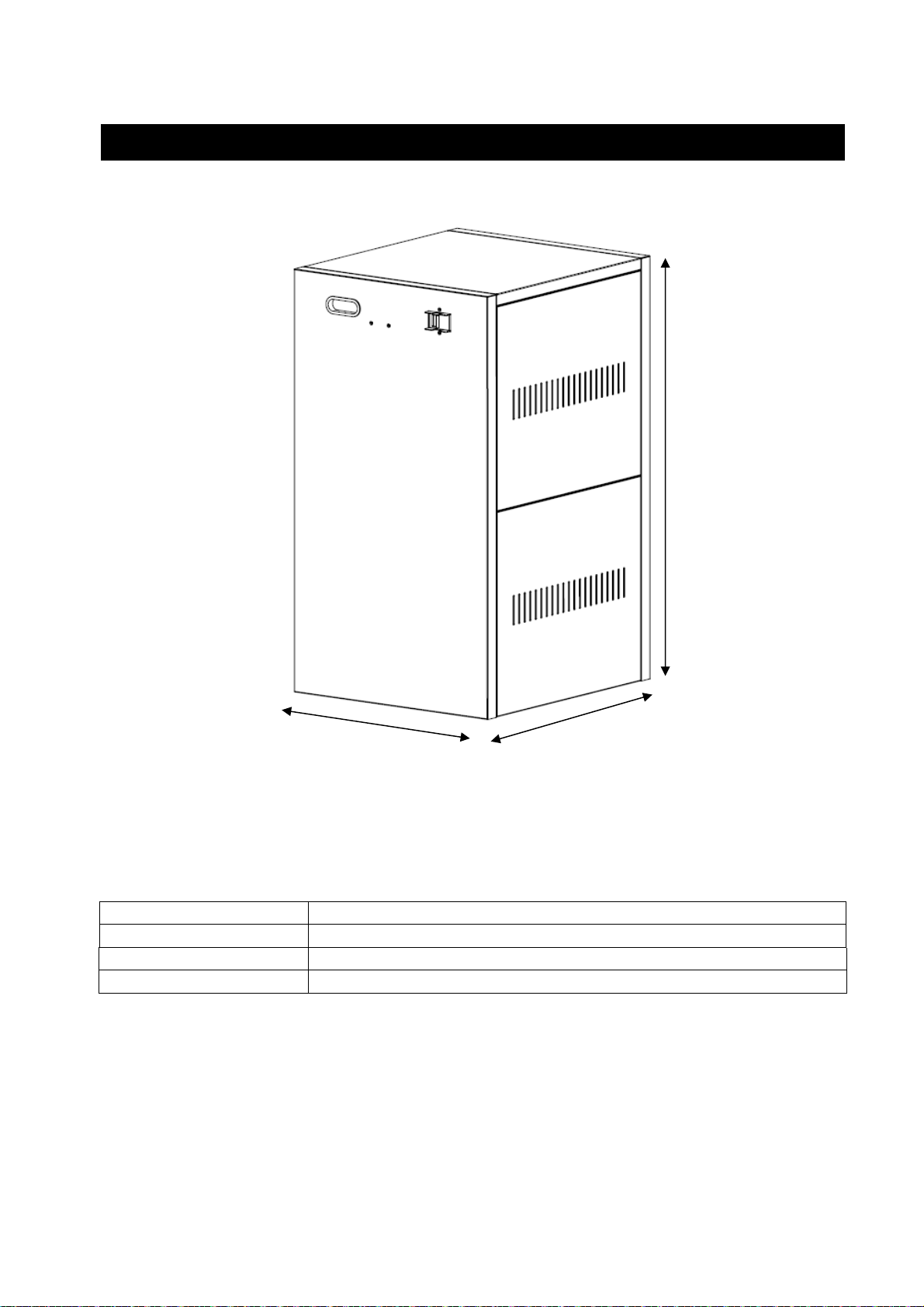

2Disegno Meccanico Box con Batterie 100Ah
Dimensioni (LxHxP) (39.7 x 71 x 44.3) cm
Peso Netto senza Batterie 25 Kg
Numero Batterie 4
Peso Netto con Batterie 100Ah 155 Kg
39.7 cm
44.3
cm
71 cm
Manuale Utente 14 Box Batterie per ATA Energy Storage System
3Disegno Meccanico Box con Batterie 200Ah
Dimensioni (LxHxP) (59.5x 76 x 57.5) cm
Peso Netto senza Batterie 36 Kg
Numero Batterie 4
Peso Netto con Batterie 200Ah 300 Kg
59.5 cm 57.5cm
76cm
Box Batterie per ATA Energy Storage System 15 Manuale Utente
4FBBATA48V1 e FBBATA48V2
MODELLI DISPONIBILI
Codice Box
Batterie Descrizione Potenza
ATA Tipo
Batterie Sezione Cavo Corrente Massima
FBBATA48V1/100 Box Batterie compatibile con ATA
Energy Storage System 4-5 KVA 100Ah 4 AWG (2 x 8 AWG) 125 A
FBBATA48V2/200 4-5 KVA 200Ah 4 AWG (2 x 8 AWG) 125 A
BATTERIE
Tipo Batterie Piombo acido, sigillate, senza manutenzione, 12 Vdc
Numero di Batterie 1 x 4
Tensione Nominale Batterie 48 Vdc
CONDIZIONI AMBIENTALI
Range temperatura
d’immagazzinamento da -25°C a +55°C (è raccomandato da 15°C a 30°C per avere una più lunga vita delle
batterie)
Range temperatura di
funzionamento da 0°C a +40°C (è raccomandato da 20°C a 25°C per avere una più lunga vita delle batterie)
Range umidità relativa 0% - 95% (senza condensazione)
Altitudine massima senza
declassamento 3000 metri
Manuale Utente 16 Box Batterie per ATA Energy Storage System
4.1 CONNESSIONE BATTERIE 100Ah
4.2 CONNESSIONE BATTERIE 200Ah
OFF ON
16 cm
60 cm
25 cm
25 cm
70 cm
70 cm
TERMINALI PER
COLLEGAMENTO
BATTERIE
SEZIONATORE BATTERIE
SOPRA
SOTTO
PRIMO PIANO
SECONDO PIANO
TERMINALI PER
COLLEGAMENTO
BATTERIE
SEZIONATORE BATTERIE
OFF ON
SOPRA
SOTTO
PRIMO PIANO
SECONDO PIANO
14 cm
48 cm
38
cm
38
cm
58 cm
55 cm
-
+
-
+
-
+
-
+
-
+ -
+
+
-
-
+
This manual suits for next models
1
Table of contents
Languages:
