TECO TDW06WBM User manual

TDW06WBM
TDW06SBM
Please read this manual carefully
before using the dishwasher and
Keep this manual for future reference.

CONTENTS
NOTE:
Reviewing the section on troubleshooting Tips will help you solve some
common problems by yourself.
If you cannot solve the problems by yourself, please ask for help from a
professional technician.
The manufacturer, following a policy of constant development and updating of
the product, may make modications without giving prior notice.
If lost or out-of-date, you can receive a new user manual from the manufacturer
or responsible vendor.
PAGE
3 SAFETY INFORMATION
8 QUICK USER GUIDE
9 USING YOUR DISHWASHER
11 Preparing and loading dishes
14 Function of the rinse aid and detergent
15 Filling the rinse aid reservoir
16 Filling the detergent dispenser
17 PROGRAMMING THE DISHWASHER
18 Starting a cycle wash
18 Changing the program mid-cycle
19 Forget to add a dish?
20 PRODUCT OVERVIEW
21 MAINTENANCE AND CLEANING
23 Caring for the dishwasher
25 INSTALLATION INSTRUCTIONS
26 Water supply and drain
27 Connection of drain hoses
29 TROUBLESHOOTING TIPS
32 ERROR CODES
33 TECHNICAL INFORMATION

SAFETY INFORMATION
WARNING
When using your dishwasher, follow the
precautions listed below:
This appliance is not intended for use by
persons(including children )with reduced physical,
sensory or mental capabilities, or lack of experience
and knowledge ,unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
Packaging material could be dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and performing
maintenance on the appliance.
Use a soft cloth moistened with mild soap, and then
use a dry cloth to wipe it again.
3

Earthing Instructions
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is
equipped with an earthing conductor plug.
The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualied electrician or service
representative if you are in doubt whether the
a
Do not modify the plug provided with the
appliance; If it does not t the outlet.
Have a proper outlet installed by a qualied
electrician.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.
ppliance is properly grounded.
4

When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points facing down or placed in a horizontal
position.
Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door
is open.
Check that the detergent powder is empty after
completion of the wash cycle.
5

6
Do not wash plastic items unless they are marked 
dishwasher safe or the equivalent.
For unmarked plastic items not so marked, check the
manufacturer's recommendations.
Use only detergent and rinse agents recommended for
use in an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
The door should not be left open, since this could
increase the risk of tripping.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance needs to be connected to the main
water valve using new hose sets. Old sets should not
be reused.
To save energy, in stand by mode , the appliance will
switch off automatically while there is no any
operation in 30 minutes .

Disposal
For disposing of package and the
appliance please go to a recycling centre.
Therefore cut off the power supply cable
and make the door closing device
unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product.
For more detailed information about recycling of this
product, please contact your local city office and
your household waste disposal service.
DISPOSAL: Do not dispose this product as
unsorted municipal waste. Collection of such
waste separatelyfor special treatment is
necessary.
7

5

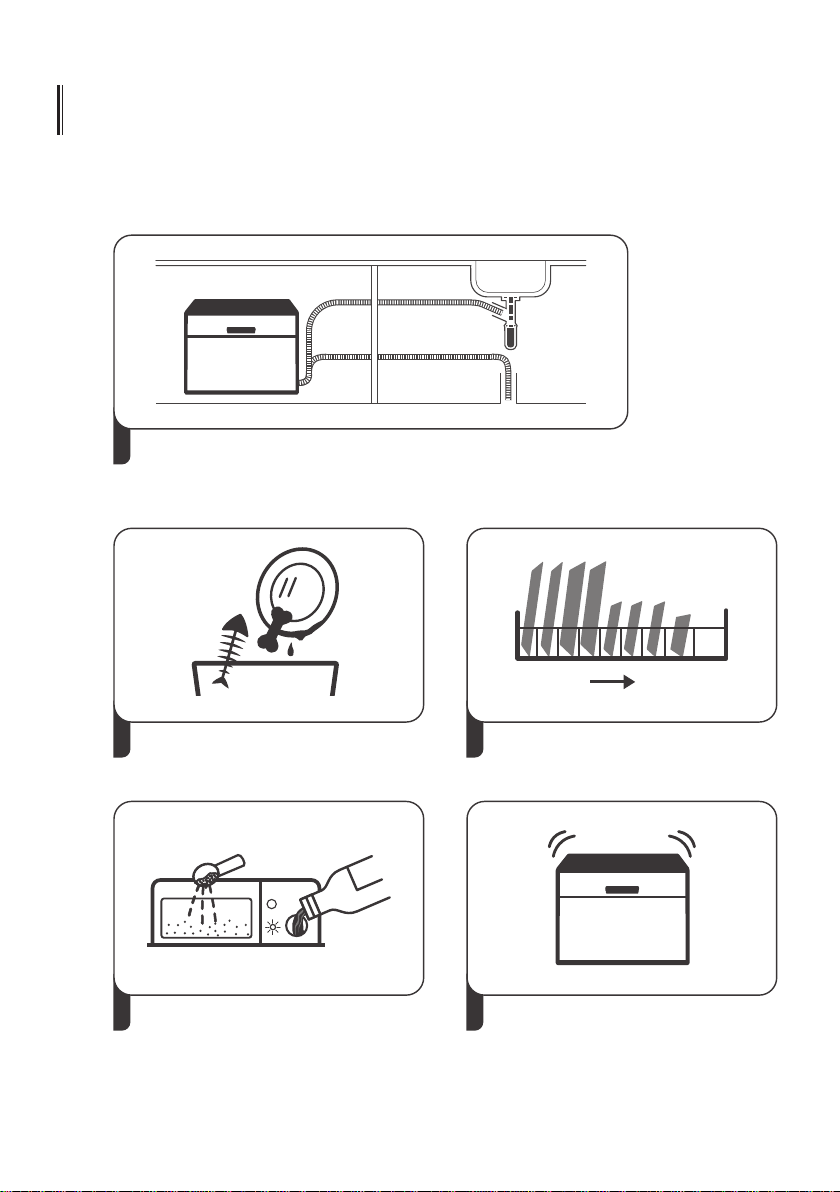

QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.
2Removing the larger residue on the
cutlery
3Loading the baskets
4Filling the dispenser Selecting a program and running
the dishwasher
Inside Outside
8
1Install the dishwasher
(Please check page 25 “INSTALLATION INSTRUCTION ”

USING YOUR DISHWASHER

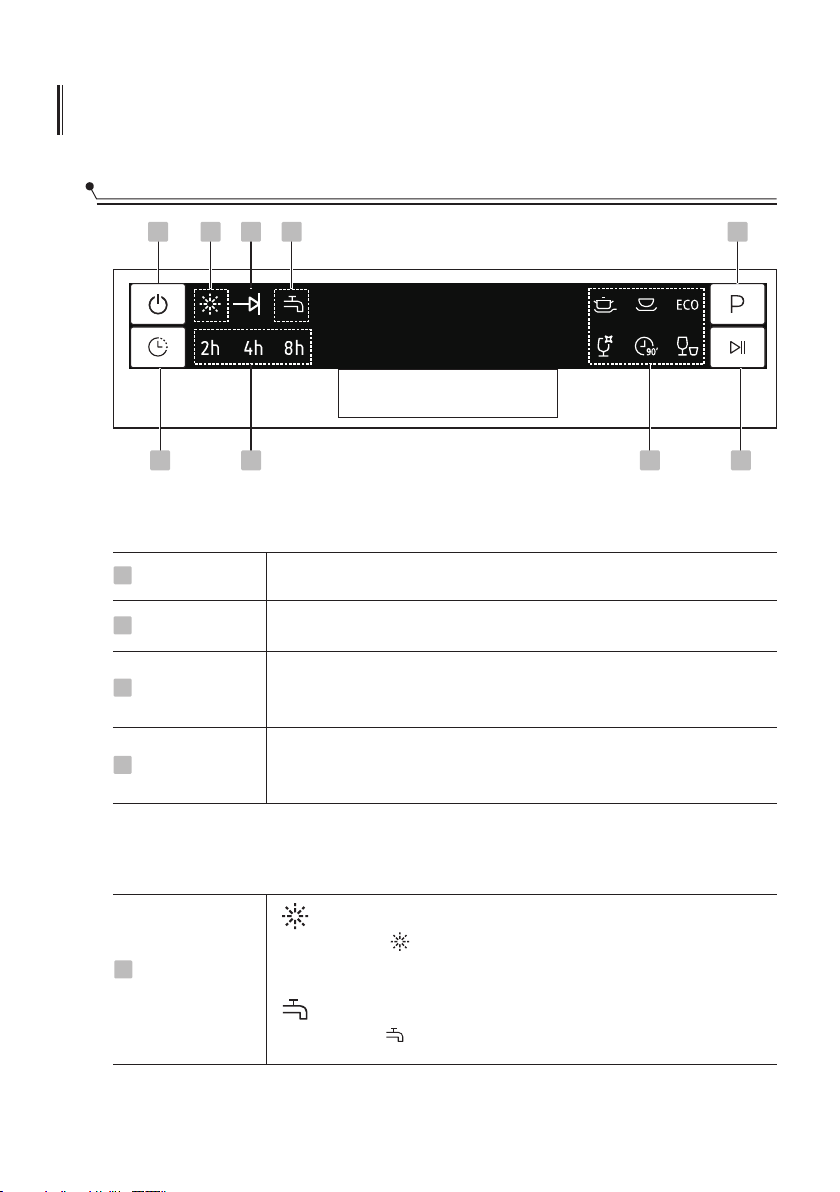

Control Panel
9
Operation (Button)
Power
1
Delay
2
Program
3
Press this button to turn on your dishwasher, the screen lights up.
Press the button to set the delay time.
Press this button to select the appropriate washing program, the
selected program indicator will be lit.
To start the selected washing program or pause it when the
dishwasher is working.
4Start / Pause
2 7
1 5
8 4
3
Display
Rinse Aid
If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher rinse aid and requires a refill.
5Warning
indicator
Water Faucet
If the “ ” indicator is lit, it means the water faucet closed.
56

10
8Program
indicator
Intensive
Heavy
For heavily soiled loads, such as pots, plates, glasses
and lightly soiled pans.
ECO
Rapid
90 Min
Glass
For heaviest soiled crockery, such as pots, pans, casserole
dishes and dishes that have been sitting with dried food on
them for a while.
A shorter wash for lightly soiled loads and quick wash.
For lightly soiled crockery and glass.
For normally soiled loads, such as pots, plates, glasses
and lightly soiled pans. standard daily cycle.
For lightly soiled loads, such as glasses, crystal and fine china.
6Progress
indicator
Delay time To show the delay time. (2h/4h/8h)
Program end
when the program is end, the indicator will be lit.
7

Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolour during washing
Glazed patterns may fade if machine washed frequently
For washing the following cutlery/dishes
Are not suitable
Are of limited suitability
Items such as cups, glasses, pots/pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded aslant so that water can run
off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotate freely during
washing.
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from
your model.)
Place objects in the dishwasher in following way:
11

Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage, glasses should not touch one another.
The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and / or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall
out of the basket.
To prevent water dripping from the upper basket into the lower basket, we
recommend that you empty the lower basket first, followed by the upper basket.
Removing the dishes
WARNING
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
12

13
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Generic VersionⅠ:
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Ⅰ: Generic Version
WARNING
Do not let any item extend through
the bottom.
Always load sharp utensils with the
sharp point down!
Loading the cutlery basket
For personal safety and a top quality cleaning,
place the silverware in the basket making sure that:
They do not nest together.
Silverware is placed with the handles-down.
But place knives and other potentially dangerous
utensils are placed handles-up.
Loading the basket
All tableware can't be placed face up, in order
to improve the cleaning area and washing
performance, it is recommended to place the
dirty side towards the spray arm.
Please don't let tableware out of basket bottom
to make sure not block the moving of the spray arm.
The maximum diameter advised for plates in front
of the detergent dispenser is of 19 cm, this not to
hamper the opening of it.

The rinse aid is released during the final rinse to prevent water from forming droplets
on your dishes, which can leave spots and streaks. It also improves drying by allowing
water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
When to refill the rinse aid dispenser
WARNING
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser
with any other substances (e.g. Dishwasher cleaning agent, liquid detergent).
This would damage the appliance.
Unless the rinse-aid warning light ( ) on the control panel is on, you can always
estimate the amount from the color of the optical level indicator located next to the
cap. When the rinse-aid container is full, the indicator will be fully dark. The size of the
dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid level
be less than 1/4 full.
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator
changes, as illustrated below.
Full 3/4 full 1/2 full 1/4 full Empty
Function Of The Rinse Aid And Detergent
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are
suitable for this purpose.
WARNING
Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent
fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash
dishes.
Dishwasher detergent is corrosive! Keep dishwasher
detergent out of the reach of children.
14

3Replace the cap by inserting it
aligned with "open" arrow and
turning it to the closed (right) arrow.
NOTE:
Clean up any spilled rinse aid with
an absorbent cloth to avoid
excessive foaming during the next
wash.
1 2
To open the dispenser, turn the cap
to the "open" (left) arrow and lift
it out.
Carefully pour in the rinse-aid into
its dispenser, whilst avoiding it to
overflow.
Rinse-Aid indicator
Filling The Rinse Aid Reservoir
Adjusting the rinse aid reservoir
The rinse aid reservoir has six settings. Both the
recommended setting and the factory setting is “4”. If the
dishes are not drying properly or are spotted, adjust the dial
to the next higher number until your dishes are spot-free.
Reduce it if there are sticky whitish stains on your dishes or
a bluish film on glassware or knife blades.
Adjust lever(Rinse)
15

Filling The Detergent Dispenser
1 2
Press the release catch on the detergent
dispenser to open the cover.
Push latch to open
AAB
Add detergent into the larger cavity
(A) for the main wash cycle .
For more heavily soiled wash loads,
also add some detergent into the
smaller cavity (B) for the pre-wash
cycle .
3Close the cover and press on it until
it locks into place.
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.
16

PROGRAMMING THE DISHWASHER
Wash Cycle Table
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs.
( )Means: need to fill rinse into the Rinse-Aid Dispenser.
Program Running
Time(min)
140
120
135
90
70
30
Energy
(Kwh)
0.85
0.65
0.45
0.65
0.45
0.32
Water
(L)
9.7
7.8
7.4
7
6
5.8
Description
Of Cycle
Pre-wash(50℃)
Wash(55℃)
Rinse
Rinse
Rinse(70℃)
Drying
Pre-wash
Wash(60℃)
Rinse
Rinse(70℃)
Drying
Pre-wash
Wash(47℃)
Rinse
Rinse(50℃)
Drying
Wash(65℃)
Rinse(70℃)
Drying
Wash(45℃)
Rinse
Rinse(50℃)
Drying
Wash(40℃)
Rinse
Rinse
Rinse
Aid
Detergent
Pre/Main
15g
(1 or 2 pieces)
5/17.5g
(1 or 2 pieces)
5/17.5g
(1 pieces)
5/17.5g
17
(1 pieces)
22.5g
(1 pieces)
22.5g
(*AS/NZS 2007.1)
Intensive
Rapid
Heavy
Glass
90 Min

18
Starting A Cycle Wash
1. Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page ”Product fiche”.
Make sure that the water supply is turned on to full pressure.
4. Close the door, press the Power button, to switch on the machine.
5. Choose a program, the response light will turn on. Then press the Start/Pause
button, the dishwasher will start its cycle.

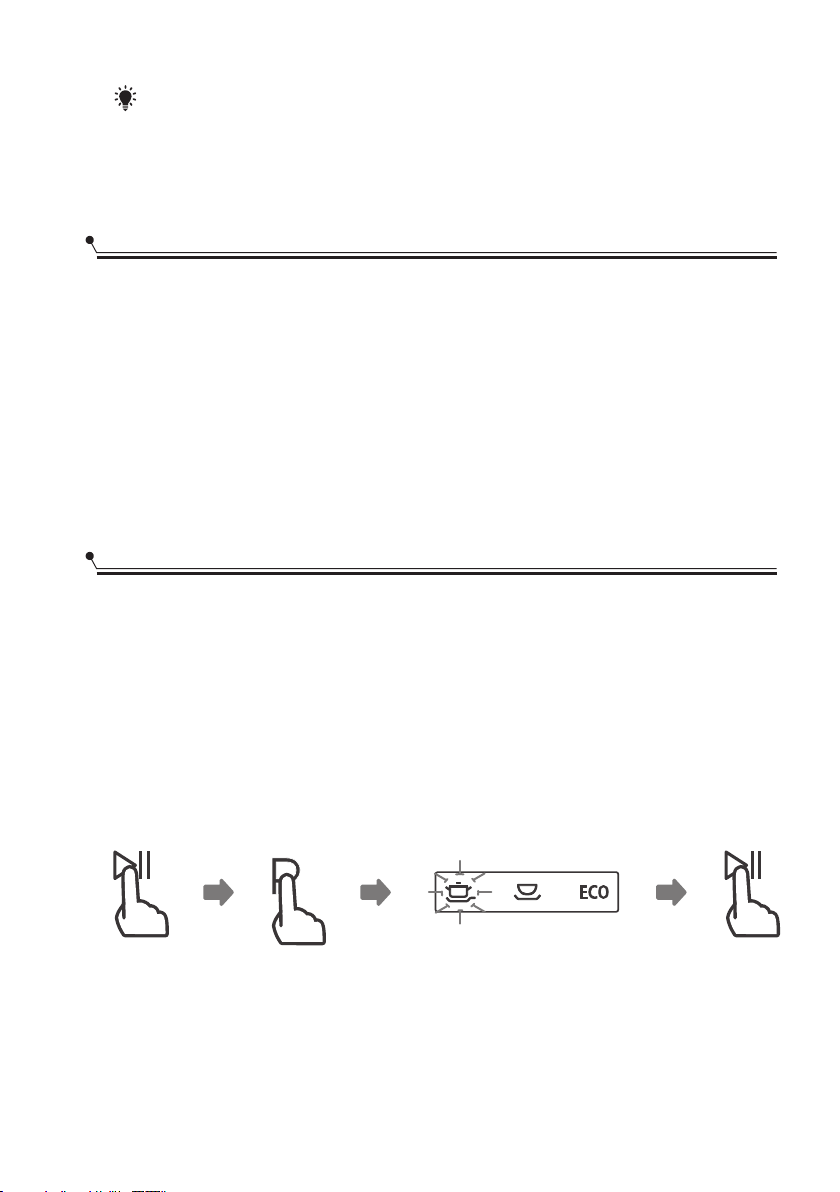

Changing The Program Mid-cycle
A wash cycle can only be changed if it has been running for a short time otherwise,
the detergent may have already been released and the dishwasher may have already
drained the wash water. If this is the case, the dishwasher needs to be reset and the
detergent dispenser must be refilled. To reset the dishwasher, follow the
instructions below:
1. Press the Start/Pause button to pause the washing.
2. Press Program button for more than 3 seconds - the program will cancel.
3. Press the Program button to select the desired program.
4. Press the Start/Pause button, after 10 seconds, the dishwasher will start.
3 sec
AS/NZS 2007.1 This program is the test cycle. The information for comparability
test in accordance with AS/NZS 2007.1.
:
NOTE:

19
Forget To Add A Dish?
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
1. Press the Start/Pause button to pause the washing.
2. Wait 5 seconds then open the door.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button after 10 seconds, the dishwasher will start.
After 5 sec
WARNING
It is dangerous to open the door
mid-cycle, as hot steam may
scald you.

PRODUCT OVERVIEW
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
IMPORTANT:
Pictures are only for reference, different models may be different.
Please prevail in kind.
NOTE:
20
Filter assembly
Spray arm
Salt container
Dispenser
Cutlery rack
Basket
Cup rack
