TECO TDW15WCG User manual

TDW15WCG/ TDW15SCG
15 place settings
Alt function

Compartment A:
For each wash cycle.
Compartment B:
For programs with pre-wash only.
(Follow the user instructions)
Mechanical indicator C.
Electronic LED Indicator also on Control Panel.
Check the rinse aid level
Load the baskets
Select a programme
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to breakage.
They will also dry better. Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large particles food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 seconds, then stop.
Turn off the appliance using the On/Off Button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hot steam may escape
when the door is opened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state.
Switch on the appliance Open the door, press the On/Off button to switch on the appliance.
For detailed operating method read the corresponding content on the instruction manual.
Press the Programme Button until the selected programme lights up.
( See the section entitled “Operation instruction”
Turn on the water tap , c lose the door. The machine will start working after about 10 seconds.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door and press the Programme Button for more than 3 seconds
to cancel the running program.
3.Select a new programme.
4.Close the door,the machine will restart after about 10 seconds.
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
AB
C

To review the section on troubleshooting Tips
will help you to solve some common problems
by yourself .
Dear Customer,
Please carefully read this manual before using the
dishwasher, it will help you to use and maintain the
dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,
Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
Keep it as a refer in the later days.
If you can not solve the problems by yourself ,
please ask for the help of professional technicians.
This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-by clients in hotels, motels and other residential
type environments;
-bed and breakfast type environments.
Dishwasher Features.................................... ...2
Attention before or after loading the Dishwasher
Baskets..........................................................6
Filtering System........................................................13
Caring for the Dishwasher........................................14
A. Rinse Aid Dispenser......................... .. ..3..... ...
B. Detergent ............................................4........
The Method Loading Normal Dishware .....................6
Wash Cycle Table....................................................10
Turning on the Appliance.......................................10
Change the Programme...........................................11
At the End of the Wash Cycle..................................12
Positioning the Appliance........................................15
Aqua Stop Hose / Water Connection......................16
About Power Connection.........................................15
Start of Dishwasher..................................................17
Before calling for service...........................................18
Error codes............................................................20
Technical information...............................................20
Control Panel...................................................2
10
Forget to Add Dish ..................................................11
13
15
18

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their points down or placed in a
horizontal position.
)
When using your dishwasher, you should
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines with a visual heating
element.)
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment is empty
after completion of the wash cycle.
The appliance is to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is 15.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
The dishwasher must always be connected to
the water system using new hose sets.
If the appliance is installed on a carpet floor,
take care that the openings in its base are not obstructed.

before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
Dishwasher Features
Front View
1 Upper Basket
2 Spray Arms
3 Lower Basket
4 Filters
5 Detergent Dispenser
6 Rinse Aid Dispenser
7 Cutlery Tray
8 Cup Holder
1
2
3
4
5
8
7
6
3
1 Power switch: To turn on/off the power supply.
2 Delay button: The START DELAY will allow you to delay the
start time of any cycle automatically up to 24hours.
3 Program button : Press the key to scroll through the wash
program. The corresponding programme light will be ON to
indicate which WASH PROGRAM has been selected.
4 ALT button : Press this button you can choose the
additional function "3 IN 1" ,washing of upper layer or washing of
lower layer and the corresponding light flashes.
5 Extra Dry : Press this button you can choose or cancel the
Extra Dry function.
6 Start \Pause button: The appliance will start or pause the expected
washing cycle.
7 Child lock button: Press DRY & ALT together for at least 3 sec.
could be locked and any button can not be used.
8 Program indicator light When you select a washing programme ,
the corresponding light will display.
Child lock :
13 Washing light of upper layer: To come on when the upper
layer is selected.
Washing
9 Dry+ indicator: An increased temperature during the final rinse
stage will improve the drying process The indicator will be
available when the Dry+ button is selected.
10 Rinse aid refill indicator: The indicator lights up when dispenser
needs to be refilled.
11 3 in 1 indicator: The indicator lights up when the a
function is selected.
12 indicator The "Child Lock" will be activated when
you press the Child lock buttons for 3 seconds, and the 3 in 1.
"Child lock"indicator lights up after flashing 6 times.
14 light of lower layer: To come on when the lower
layer is selected.
15 Digital display: To display the running time remain, malfunction
codes and delay time.
1 2 3
12
8 9
11
13
4
14
15
1 2 3
7
6
10 4
Dry+
5

Before using your dishwasher for the first time:

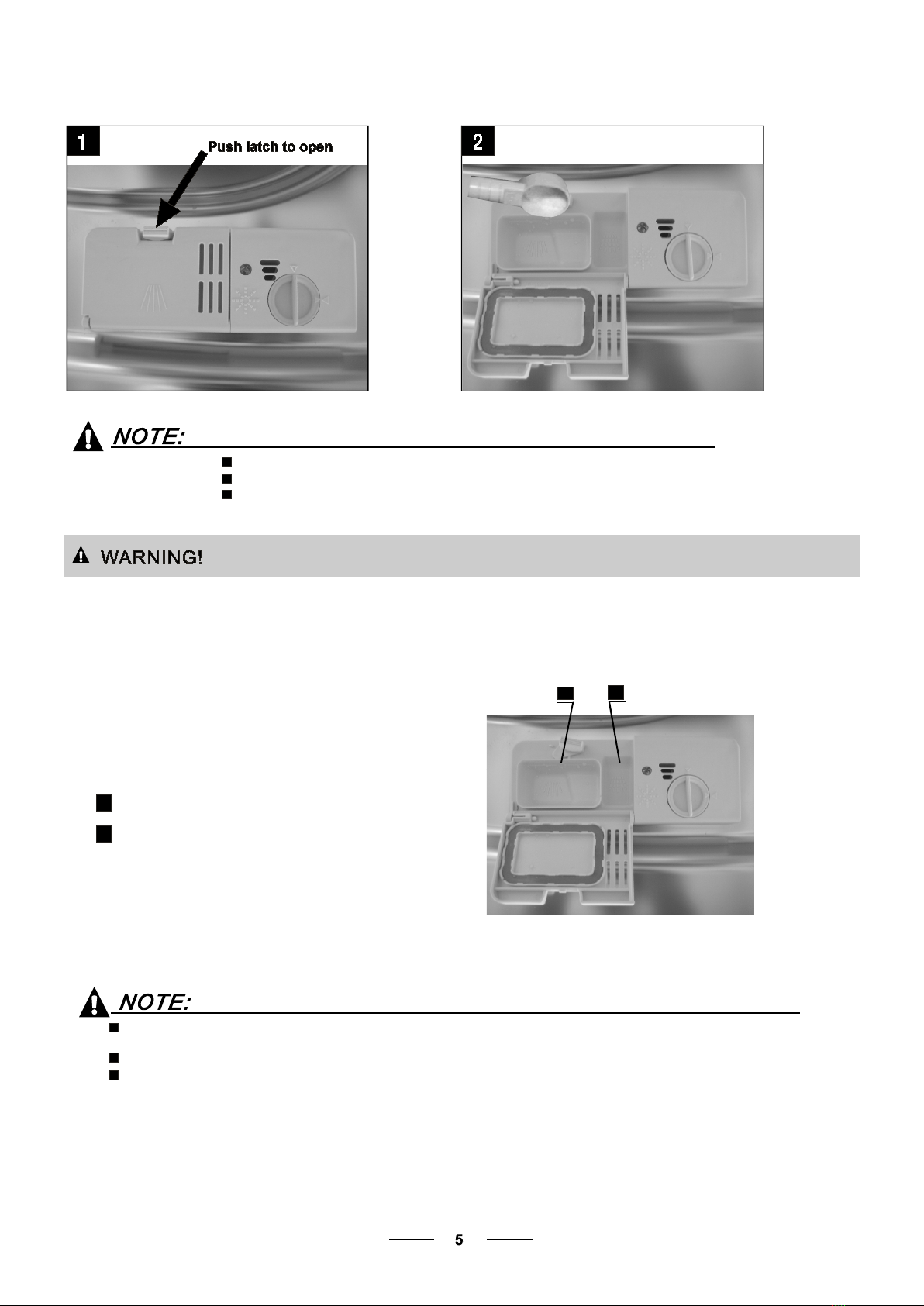

A. Rinse aid dispenser
B. Detergent
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate spotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the
optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be
dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below
1 / 4 full.
When to Refill the Rinse Aid Dispenser
RINSE AID DISPENSER
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close the dishwasher door.
Attention!
Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming
during the next wash.
1
2
3

Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are showing spots, adjust the dial to the next
higher level until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".) Please check the supplied model and individual adjustment
methods as they may differ from your model.
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwas her.
Most of the commercial quality detergents are suitable for this purpose.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
Based on their chemical composition, detergents can be split in two basic types:
The use of normal washing programs in combination with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal wash programs in which concentrated detergents are used can achieve the same
results that can otherwise only be achieved using intensive programs.
“ ”
“ ”
“ ”
Concentrated Detergent
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.
°
6
5
4
3
2
1
Use of "3 in 1" Detergent Tablets
General Advice
1. Before using these products you should first check that the water hard-ness in your supply is
compatible with the use of these products as the detergent manufacturers instructions (on the
product packaging).
2. These products should be strictly used according to the detergent manufacturers instructions.
3. If you encounter problems when using "3 in 1" products for the first time then please contact the
detergent manufacturers care line (the telephone number is given on the product packaging).
These products are detergents with integrated and combined detergent/rinse aid functions.
Before using these products you should first check that the water hardness in your supply is
compatible with the use of these products as per the detergent manufacturers (on the product
packaging).
To select "3in1" function:
1. close the door and select the 3in1 washing cycle by pressing the "ALT" button until the "3in1"
indicator blinks.
2. The 3in1 washing cycle will be available after pressing the start/pause button , and the"3in1"
indicator lights.
To cancel "3in1" function:
To cancel 3in1 washing cycle by pressing the "ALT" button or follow the "Change the programme"
instructions.
If you decide to switch to the use of a standard detergent system we advise that you:
1. Refill the rinse aid compartments.
2. Switch the water hardness setting to the highest possible position and run for three normal cycles
without load.
3. Readjust the water hardness setting again according to the conditions for your region (For more
Note: Drying outcome may vary depending on 3 in 1 product used.
information please refer to your instruction manual).

Amount of Detergent to Use
Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
Always add the detergent just before starting each wash cycle.
Only use branded detergent and rinse aid for dishwasher.
If the lid is closed: press release button. The lid will spring open.
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
The place for main wash cycle detergent.
The place for pre -wash cycle detergent.
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
AB
The information about the amount of detergent for the single programme please refer to the Wash
Cycle Table on the page 8.
The detergent amount could be adjusted according to the soiling level and the specific hardness of water.
Please observe the manufacturer's recommendations on the detergent packaging.

5 Loading the Dishwasher Baskets
Loading the baskets according to (*AS/NZS 2007.1) for best performance of the dishwasher,
Features and appearance of baskets and Cutlery tray may vary from your model.
Attention before or after Loading the Dishwasher Baskets
1. Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under
running water. Place objects in the dishwasher in the following way:
A. Items such as cups, glasses, pots/pans, etc. are stood upside down.
B. Curve items, or those with recesses, should be at a slant so that water can run off.
C. They are stacked securely and can not tip over.
D. They do not prevent the spray arms from rotating while washing takes place.
2. Very small items should not be washed in the dishwasher as they could easily fall out of the
Baskets.
3. The upper and lower baskets can not be pull out in
the same time when the dishwasher is Loading, or it
May lead to dumping.
Removing the Dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the Lower basket first and then the upper basket.

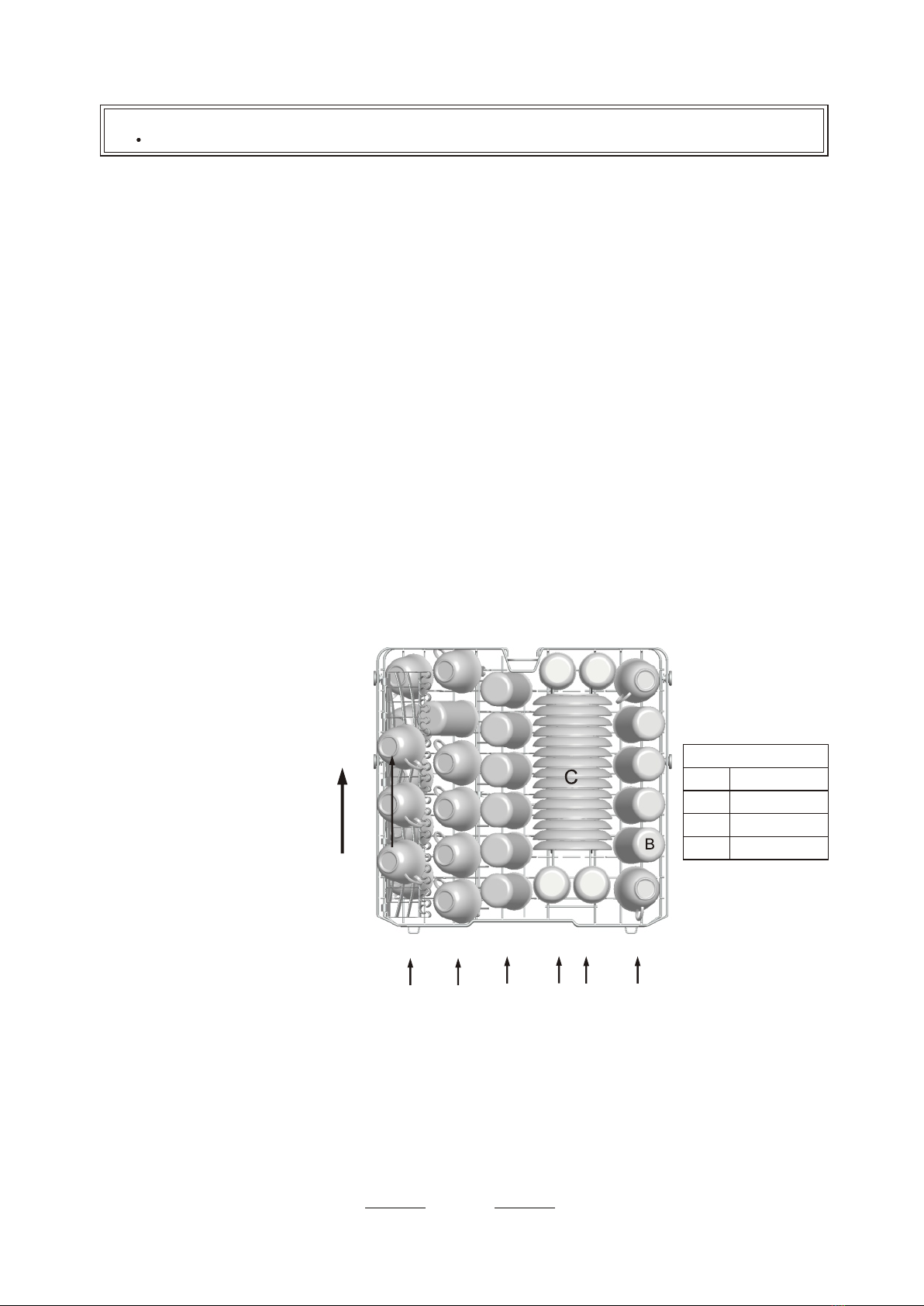

Loading the Upper Basket
The upper basket is designed to
hold more delicate and lighter
dishware such as glasses, coffee
and tea cup and saucers, as well
as plates, small bowls and
shallow pans (as long as
they are not too dirty).
Position the dishes and
cookware so that they
Do not get moved by
the Spray of water.
Upper basket
Type Item
Cup
Glass
Saucer
A
B
C
Upper Basket
IN
C1
C14
B15
B1
B4
B5
B8
B9
B14
A5
A1
A10
A6
A13
A11
A14
A15
Adjusting the Upper Basket
Height adjustment mechanism on the upper basket of your machine is designed to let you adjust
the height of the upper basket up or down as needed. The upper basket of is set to a lower
position in factory settings. In order to raise the upper basket, hold the upper basket from both
sides and pull it upwards. In order to lower it, hold it from both sides and lift it again.
NOTE: Ensure both sides of the upper basket adjustment mechanism are in the same position
when lifting or lowering the basket and ensure basket is secured firmly before use.
6

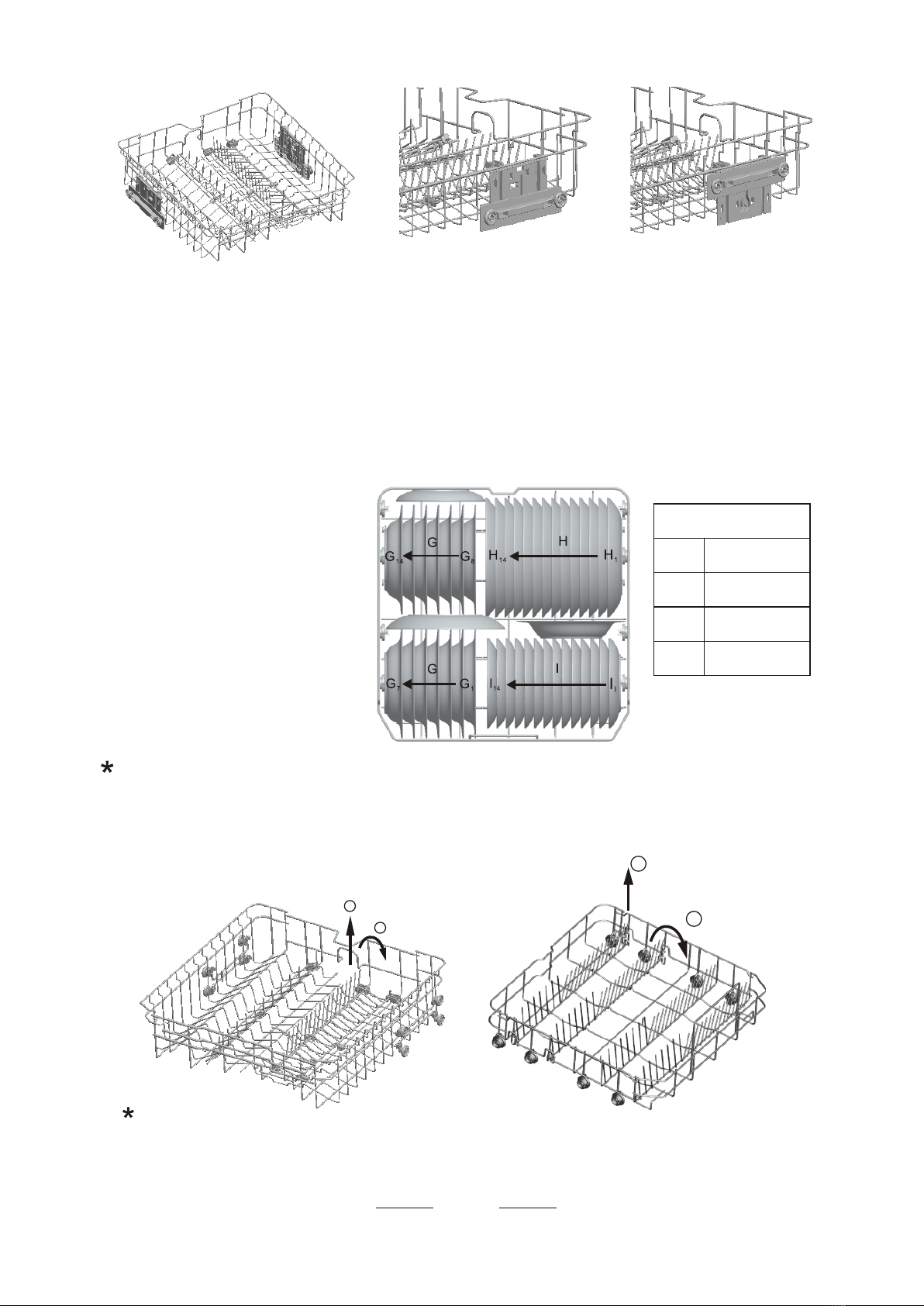

Loading the Lower Basket
We recommend that you place large items which are most difficult to clean in to the lower basket:
pots, pans, lids, serving dishes and bowls, as shown in the figure below.
It is preferable to place serving dishes and lids on the side of the baskets in order to avoid blocking
the rotation of the top spray arm.
Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom basket features fold down tine rows so that larger or more pots and pans can be loaded.
Lower basket
Type Item
Dessert plate
G
H
I
Dinner plate
Soup plate
Lower Basket
Upper/Lower basket Folding racks
Folding racks consisting of three/two parts in the upper/lower basket of your machine are designed in
order to let you place big items easier as pots, pans, etc. If requested, each part can be folded
separately, or all of them can be folded and larger can be obtained. You can use folding racks by
rasing then upwards, or by folding.
2
1
Upper Basket
For optional
G15
H15
I15
1
2
Lower Basket
7
NOTE: Oversized dishes may
not be suitable for this appliance
as they may obstruct the spray
arms and cause damage to the
appliance or dishes. Please
check spray arms are not
obstructed before starting each
wash.
This appliance has been tested
to meet Australian Standards for
crockery items and plates
AS/NZS 2007.1
Upper position Lower position

For washing in the dishwasher the following cutlery/dishes
Are not suitable
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that is not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Lead crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibre
WARNING!
Do not let any item extend through bottom
Are of limited suitability
Some types of glasses can become
dull after a large number of washes
Silver and aluminium parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
NOTE: Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint. If you buy
new dishes please make sure that they are suitable for dishwashers.

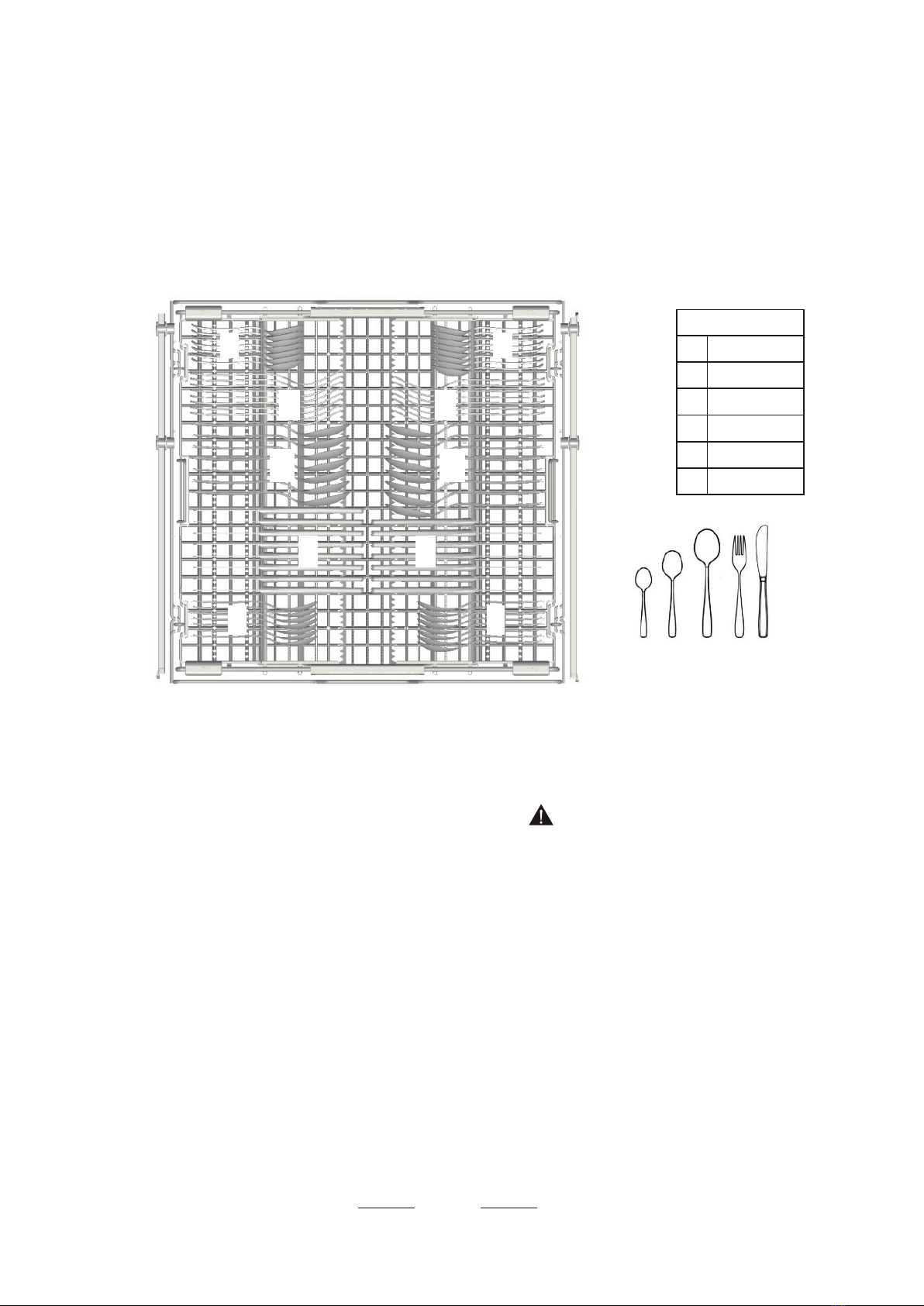

Cutlery tray
Arrange the cutlery in the tray as shown. Cutlery should be placed to ensure that water
runs off freely.
Cutlery tray
Type Item
Tea spoons
Dessert spoons
Soup spoons
Forks
Knives
1
2
3
4
5
1 2 345
1 1
2 2
3 3
4 4
5 5
8

NOTE: Please do not overload your dishwasher. There is only space for 15 standard dishes. Do not
use dish that is not suitable for dishwashers. This is important for good results and for reasonable
energy consumption.
Loading Cutlery and Dishes
Before loading the dishes, you should:
Remove large left-over
Soften remnants of burnt food in pans
When Loading the Dishes and Cutlery, Please Note:
Dishes and cutlery must not impede the rotation of the spray arms.
Load hollow items such as cups, glasses, pans etc. with the opening downwards so that water cannot
collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other
To avoid damage to glasses, they must not be touched
Load large items which are most difficult to clean into the lower basket
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and
tea cups
Attention!
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper
basket
Damage to Glassware and other Dishes
Possible causes:
Type of glass or manufacturing process. Chemical composition of detergent.
Water temperature and duration of dishwasher programme.
Suggested remedy:
Use glassware or porcelain dishes that have been marked dishwasher-proof by the manufacturer.
Use a mild detergent that is described as kind of dishes. If necessary, seek further information from
detergent manufacturers.
Select a programme with a low temperature.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the
programme has ended.
At the End of the Wash
When the working cycle has finished, the buzzer of dishwasher will ring for 6 times, then stop. Turn
off the appliance using the "Power"button, shut off the water supply and open the door of the
dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and
utensils while they are still hot and more susceptible to breakage. They will also dry better.
9

Starting a wash cycle...
Draw out the lower and upper basket, load the dishes and
1. push them back. It is recommended to load the lower basket first, then the upper one (see the
section entitled "Loading the Dishwasher"). Pour in the detergent.
2. Insert the plug into the socket. The power supply is 230V AC 50 Hz.
Make sure that the water supply is turned on to full pressure. Close the door, press the "Power"
button, press the " program " button to select a desired "Wash cycle". (See the section entitled
"Wash Cycle Table".) .
after every wash.
Turning on the Appliance
6. Starting a Washing Programme
Wash cycle table
AS/NZS 2007.1:This programme is the test cycle. The information for comparability test
in accordance with AS/NZS.2007.1, as follows:
- Capacity: 15 settings
- Position of Upper basket: Low position
- Rinse aid setting:5(or 4 for four setting dispenser)
NOTE:
We recommend you open the door slightly 50 mm to assist in drying of the dishes
Program Cycle Selection
Information
Description
of Cycle
Detergent
Pre/main
Running
Time
(min)
Energy
(kWh)
Water
(L)
Intensive
Heavy
Rinse
Rapid
Soak
For the heaviest soiled loads,
such as pots, pans, casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
For dishes that need to be
rinsed and dried only
A shorter wash for lightly
soiled loads that do not
need drying.
To rinse dishes that you
plan to wash later that day
Pre-wash(40 )
Main wash(55 )
Rinse 1
Rinse 2
Hot rinse(65 )
Drying
Main wash(60 )
Rinse 1
Rinse 2
Hot rinse(65 )
Drying
Pre-wash
Main wash(44 )
Rinse
Hot rinse(45 )
Drying
Pre-wash
Hot rinse(70 )
Drying
Main wash(40 )
Hot rinse(50 )
Pre-wash
5/29g
5/29g
5/29g
20g
167
142
165
60
47
7
1.35
1.25
0.66
0.86
0.60
0.06
16.0
12.5
8.0
8.0
4.0
Normal
(AS/NZS 2007.1)
(or 3in1)
(or 3in1)
(or 3in1)
For heavy soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle.
For normally soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
Standard daily cycle
10
12.2

A forgotten dish can be added any time before the detergent cup opens.
1Press the Start/Pause button, Open the door a little to stop the wash program.
2 After the spray arms stop working, you can open the door completely.
3 Add forgotten dishes.
4 Close the door, press the Start/Pause button and the dishwasher will work after ten seconds.
WARNING!
It is dangerous to open the door when washing, because the hot water may scald you. Switch Off
the Dishwasher
The digital display appears "---" and the buzzer rings 6 times, only in this case the programme
has ended.
1.Switch off the dishwasher by pressing the "Power"button.
2.Turn off the water tap!
Open the door carefully. Hot steam may escape when the door is opened!
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around
15 minutes before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In
this way they will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper
basket onto the dishes in the lower one.
NOTE: A click could be heard when the door is closed perfectly.
When the washing is over, you can shut off the switch by pressing "Power"button.
Change the Programme.
Premise: A cycle that is underway can only be modified if it has only been running for a short time.
Otherwise, the detergent may have already been released, and the appliance may have already
drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section
entitled " Fill in the Detergent " ).
Press the "Power"button and turn on it again. Press the "program”button to choose the expected
cycle setting (see the section entitled "Starting a wash cycle. . . " ).
NOTE: If you open the door when the washing cycle underway, the appliance will pause and emit
warning signals, the display appears E1. When you close the door, the machine will keep on working
after 10 seconds.
The 6 programme lights show the state of the dishwasher :
a) One of the programme lights on --> cycle running
b) One of the programme lights bliking--> pause
NOTE: If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the
main power and water supply before calling a service.
Forget to Add Dish
11

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to open the door when washing, because the hot water may scald you.
12

The filter prevents larger remnants of food or other objects from gettinginside the pump.
The residues may block the filter, in this case they must be removed.
The filter system consists of a coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
Food and soilparticles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down to drain.
Larger items, such as pieces of bones or glass, that couldblock
evomeroTniardeht
the items
and easilybecome trapped in the course filter
caught by the filter, gently squeeze the tap on the top of this
filter and lift out.
This filter holds soiland food residues in the sump area and
prevents it from being on the dishesduring wash cycle.redeposited
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filter assembly
The filter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it is a goodidea to
remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and
cup under running water. To remove the filter device, pull the cup handle in the upward direction.
removes foodparticles from the wash water, allowing it to be recycledduring the cycle.
For
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
anddamage dishesand utensils.
Step 1 contrarotate the
Coarse filter ,and then lift it up;
Step 2 lift the Flat filter up
NOTE: If operate from step 1 to step 2, the filter system will be removed; while operate from step 2
to step 1, the filter system will be installed.
1 2
13

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
please take frost protection measures on the dishwasher in winter. Every fter washing cycles,
please operate as follows
time a
：
Cleaning the Filter
Cleaning The Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on the previous page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of the dishwasher could be decreased.
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the Spray Arms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets and bearings.
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and
clean the filters under running water.
Remarks:
The entire filter assembly should be cleaned once a week.
To remove the lower spray arm, pull out the spray arm upward.
To remove the upper spray arm, hold the nut, rotate the arm
clockwise to remove it.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
14

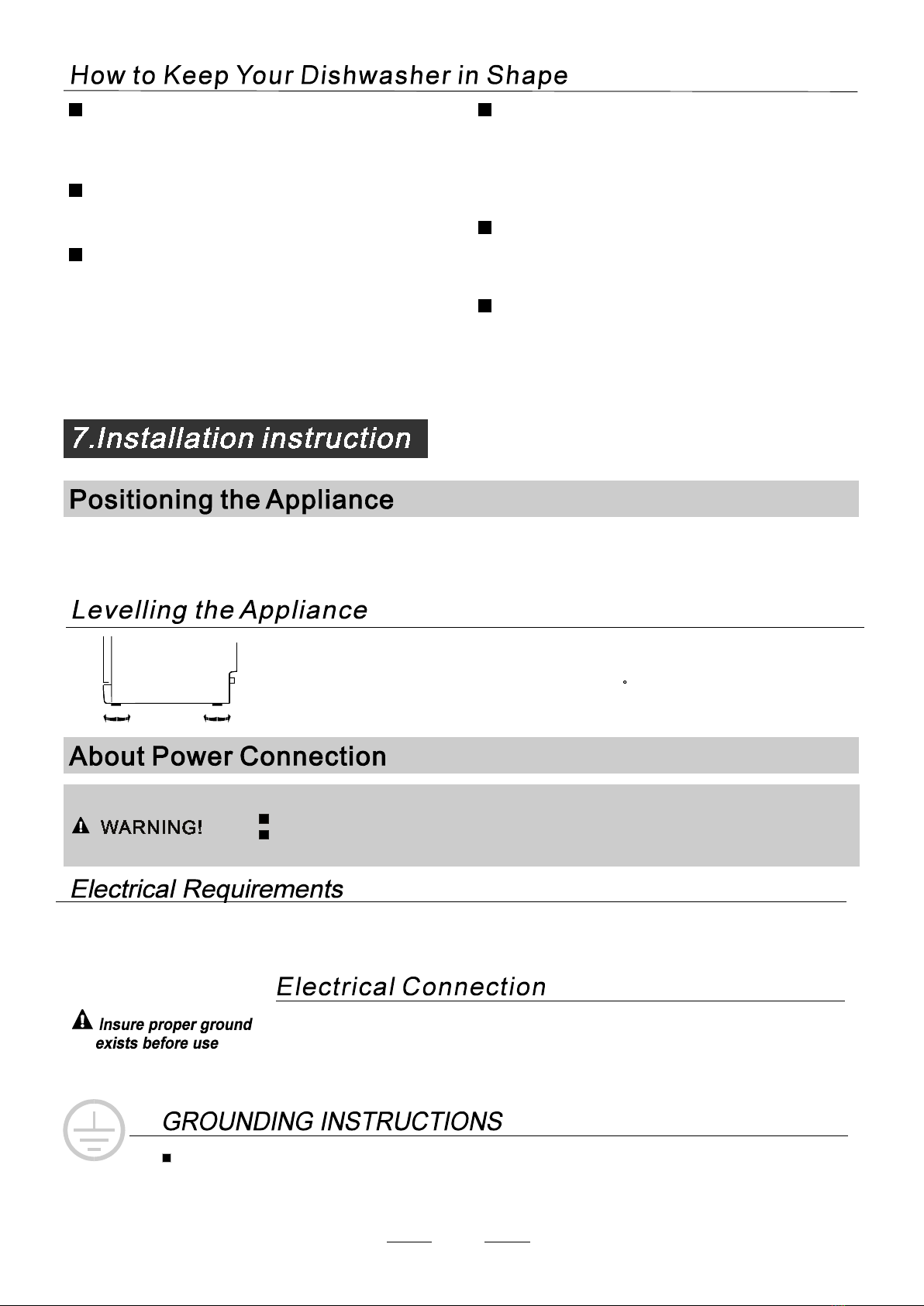

It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to last longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
Ensure the voltage and frequency of the power being used corresponds to
those on the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug , replace the socket, rather than using a adaptor or the likes as
they could cause overheating and burns.
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can
be positioned either to the right or the left sides to facilitate proper installation.
Once the appliance is positioned for levelling, the height of the dishwasher
may be altered via adjustment of the screwing level of the feet. In any case,
the appliance should not be inclined more than 2 .
For personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT
, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
Before cleaning or performing maintenance, always
remove the plug from the socket.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water and a little
vinegar, or a cleaning product made specifically for
dishwashers.
Remove the Plug
No Solvents or Abrasive Cleaning
Moving the Appliance
Seals
After every wash, turn off the water supply to the
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
After Every Wash
When not in Use for a Long Time
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a
cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
15

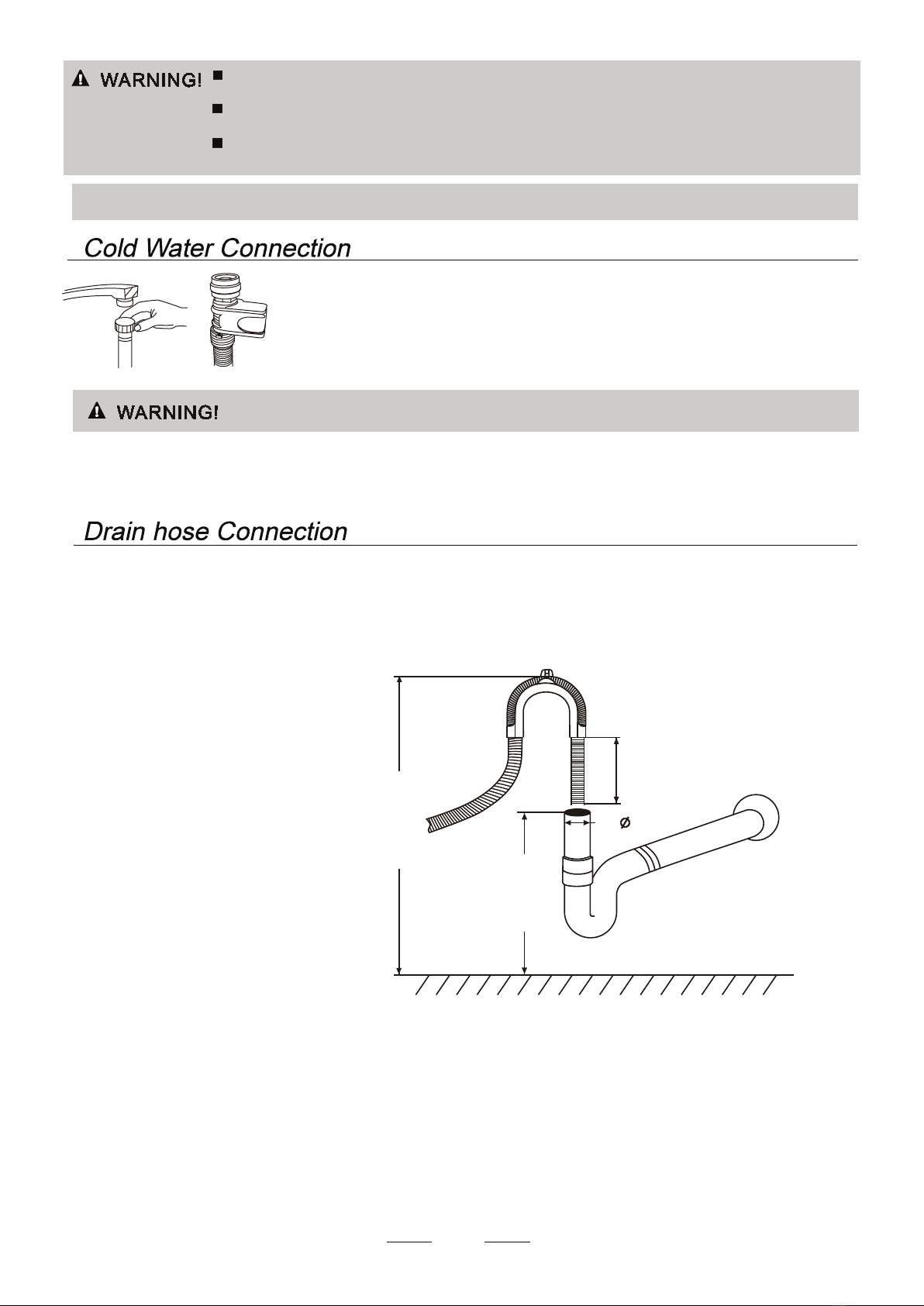

for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD.
EARTHING
CONNECTION
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the
water run to make sure that the water is clear. This precaution is needed to avoid the
risk of the water inlet to be blocked and damage the appliance.
Please close the hydrant after using.
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to
avoid bending or crimping it. The top of the hose must be less than 1000mm.
Aqua Stop Hose
max1100mm
min500mm
min120mm
min 4 0mm
16

Extension Hose
If you needadrain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.
Available from any good plumbing supplier.
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water drainhose is not kinked or squashed.
If the sink is 1000mm higher from the floor, the excess water in hoses cannot be draineddirectly
into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable
container that is heldoutsideandlower than the sink.
How to Drain Excess Water From Hoses
Syphon Connection
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to
avoid bending or crimping it. The top of the hose must be less than 1000mm.
The following things should be checked before starting the dishwasher.
The content of this manual is very helpful to the users.
After installation, please make sure to keep this manual.
1The dishwasher is level and fixed properly.
2The inlet valve is open.
3There is no leakage at the connections of the conducts.
4The wires are tightly connected.
5The power is switched on.
6The inlet and drain hoses are not knotted and kinked.
7All packing and printing materials should be taken out of the dishwasher.
17
