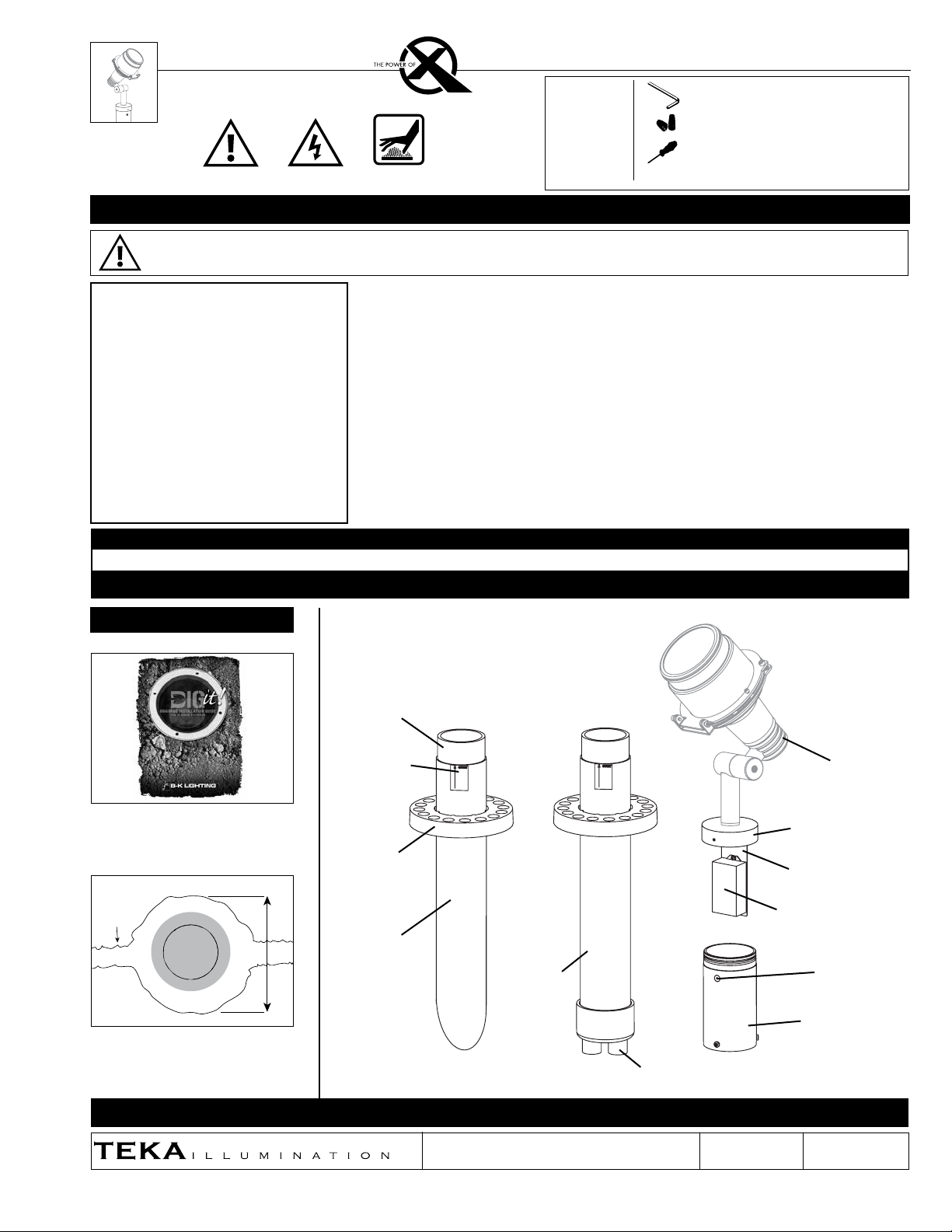

Teka POWER PIPE II SYSTEM User manual

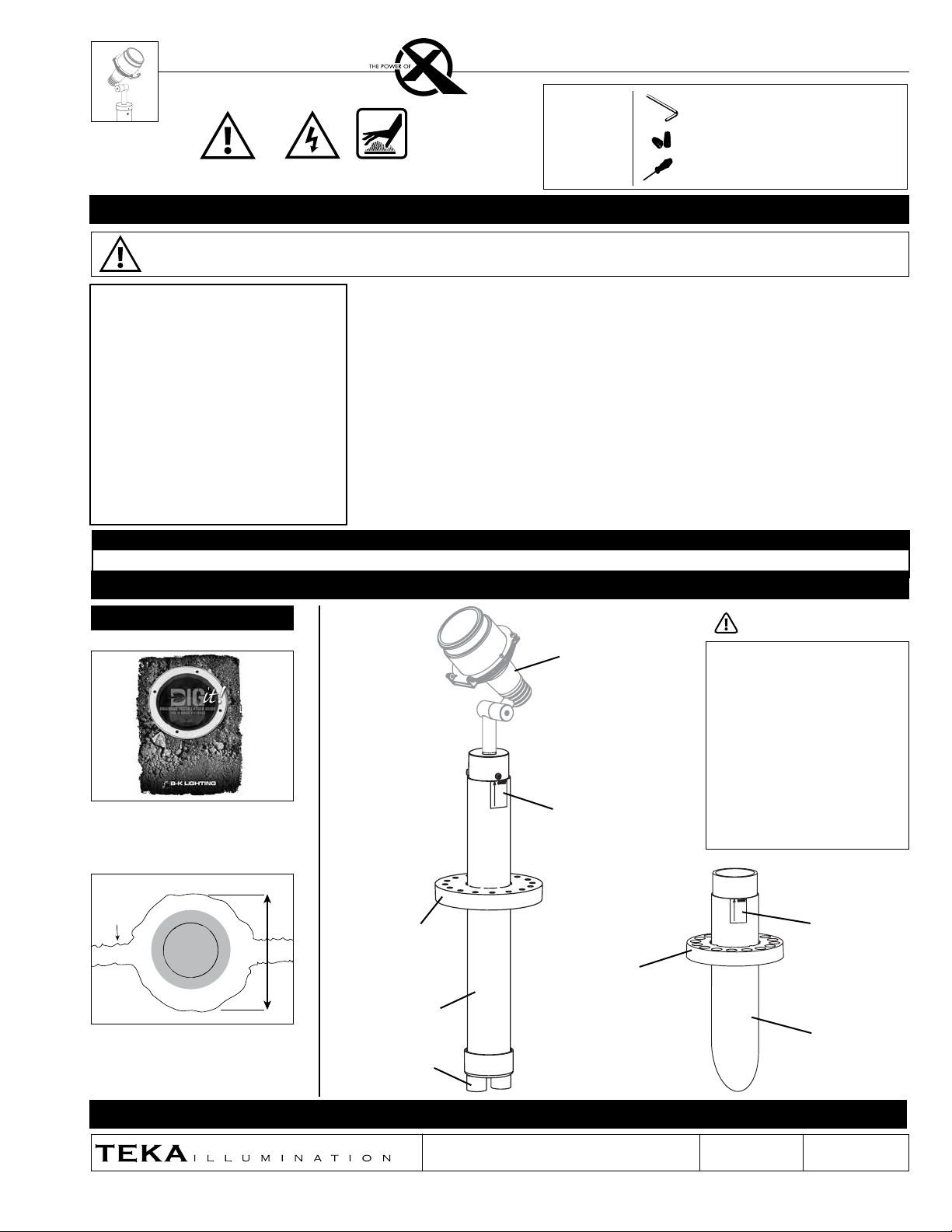

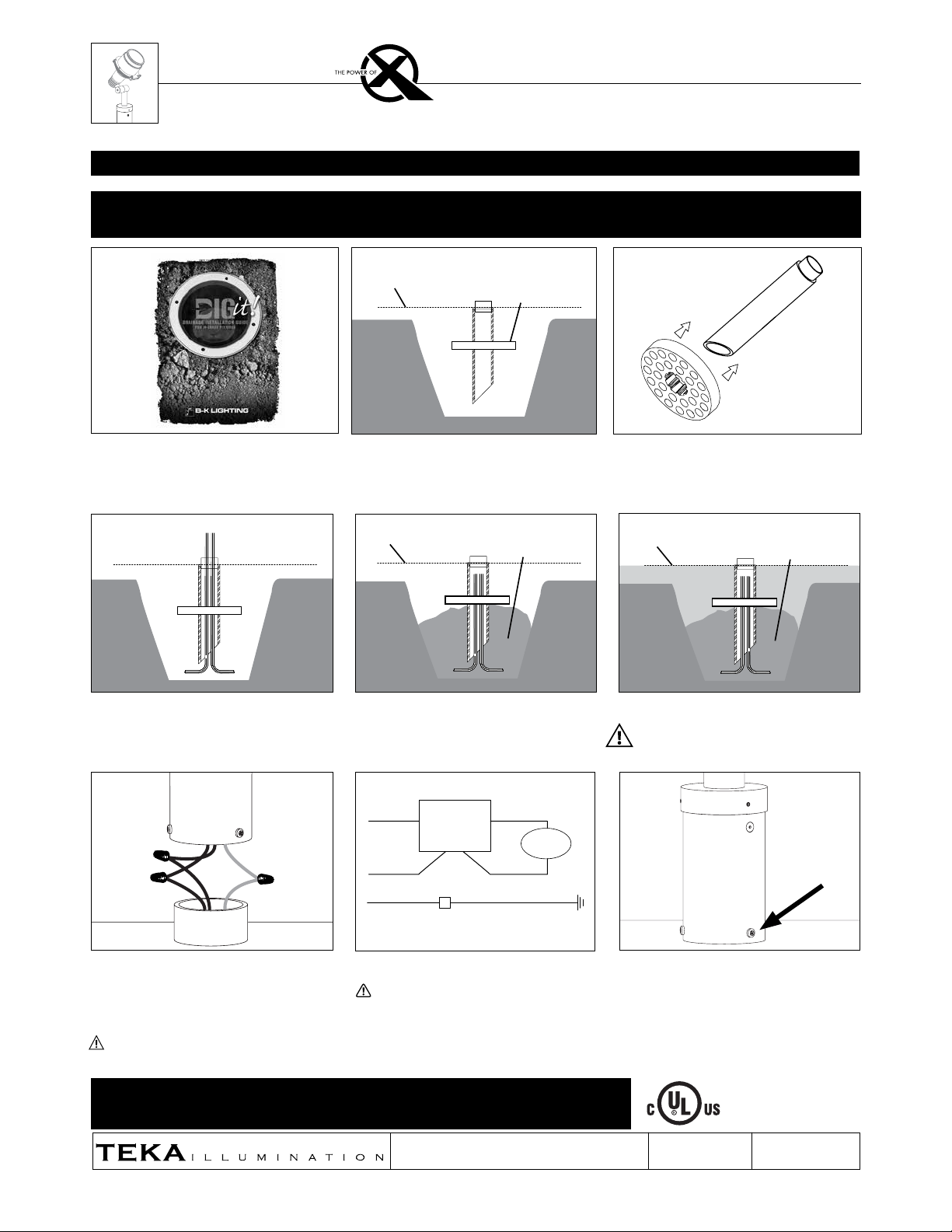

POWER PIPE II™ SYSTEM
Installation
Warning High Voltage
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TEKA ILLUMINATION AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF TEKA ILLUMINATION IS STRICTLY FORBIDDEN.
RELEASE DATE
9-13-17
DRAWING NUMBER
INS-2656-00
3/16” & 5/64” Allen Wrench
Waterproof Wire Connectors
Phillips Screwdriver
Hot Surface
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Stability
Flange™
Grade Label
Conduit Connectors
Driver Housing
Driver Bracket
Driver
Cap
Ground Screw
and Wire
Tenon
A. Determine Soil Type by referencing
DIG-IT Guide. Prep soil according to
DIG-IT Guide.
Soil Prep
B. Excavate a hole to the necessary
dimensions for fixture placement and
conduit runs.
Conduit
trench 18”
Dia.
TOOLS
REQUIRED:
By Others
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]
IMPORTANT - WEAR GLOVES TO AVOID GETTING FINGERPRINTS ON THIS PRODUCT. MANY TEKA ILLUMINATION PRODUCTS ARE DESIGNED TO NATURALLY PATINA.
OILS FROM YOUR SKIN WILL ACCELERATE THIS PROCESS WHERE TOUCHED AND ARE NEARLY IMPOSSIBLE TO REMOVE. THIS PROCESS OCCURS OVER TIME AND IS
DETERMINED BY THE INSTALLATION ENVIRONMENT.
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.tekaillumination.com/dig-it for more information.
Power Pipe II™
Stake
Power Pipe II™
Junction Box
Specify
Fixture
Separately

RELEASE DATE
9-13-17
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TEKA ILLUMINATION AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF TEKA ILLUMINATION IS STRICTLY FORBIDDEN.
DRAWING NUMBER
INS-2656-00
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
Junction Box Integral Driver Installation
POWER PIPE II™ SYSTEM
Installation
5. Connect conduit to the 3/4” conduit couplers
attached to the bottom of the Power Pipe II™.
Place Power Pipe II™ in hole.
6. Back fill hole with soil and/or prep for concrete.
7. Pull branch circuit wiring necessary for
installation (By Others).
4. Excavate trench according to designed lighting
plan. Dig hole a minimum of 24” deep and 10” wide
to accommodate Power Pipe II™ at desired fixture
locations.
Finished grade
Pea gravel or sand
Concrete or Dirt
Finished grade
Finished grade
Pea gravel or sand
Concrete or Dirt
Finished grade
Finished grade
Pea gravel or sand
Concrete or Dirt
Finished grade
WIRING DIAGRAM
120V
COM
GROUND
WIRING DIAGRAM
Driver
GROUND FROM FIXTURE
120V +
Fixture
COM
GROUND
Driver
-
GROUND IN T-HOUSING
120V
COM
All line voltage connections must be made
in accordance to NEC standards.
9. Insert wires and connectors into Power Pipe™.
Place fixture and cap on Power Pipe™.
10. Tighten three (3) Phillips screws using a Phillips
screwdriver.
8. Make waterproof connections from branch
circuit wiring to integral driver primary
side using waterproof wire connectors.
Connect incoming ground wire to
green fixture wire. See wiring diagram.
1. Determine Soil Type by referencing DIG-IT Guide.
Prep soil according to DIG-IT Guide.
Conduit
trench
2. Dig hole 10” wide and 18” deep.
Conduit
Trench
Excavated
for Housing
3. Prep soil according to DIG-IT Guide.
Failure to use waterproof wire connectors
will cause fixture to fail and VOID PRODUCT
WARRANTY.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]

POWER PIPE II™ SYSTEM
Installation
RELEASE DATE
9-13-17
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TEKA ILLUMINATION AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF TEKA ILLUMINATION IS STRICTLY FORBIDDEN.
DRAWING NUMBER
INS-2656-00
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
Finished grade
Pea gravel or sand
Finished grade
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
3. Slide Stability Flange onto Power Pipe II™. Use
Stability Flange to aid in installation of Power
Pipe II™.
2. Excavate trench according to designed lighting
plan. Dig hole a minimum of 24” deep and 10”
wide to accommodate Power Pipe II™ at desired
fixture locations.
1. Determine Soil Type by referencing DIG-IT Guide.
Prep soil according to DIG-IT Guide.
Finished grade
Pea gravel or sand
Finished grade
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
4. Pull low voltage wiring from remote driver to
Power Pipe II™. Allow for additional cable to
make connections to fixture leads and future
service. Place Power Pipe II™ in hole.
Finished grade
Pea gravel or sand
Finished grade
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
5. Back fill with pea gravel or sand prior to pour.
Finished grade
Pea gravel or sand
Finished grade
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
6. Pour concrete (By Others).
Label on Power Pipe II™ indicates
installation depth with finished grade.
7. Make waterproof connections from branch
circuit wiring to integral driver primary
side using waterproof wire connectors.
Connect incoming ground wire to
green fixture wire. See wiring diagram.
WIRING DIAGRAM
120V
COM
GROUND
WIRING DIAGRAM
Driver
GROUND FROM FIXTURE
120V +
Fixture
COM
GROUND
Driver
-
GROUND IN T-HOUSING
120V
COM
All line voltage connections must be made
in accordance to NEC standards.
8. Insert wires and connectors into Power Pipe II™.
Place fixture and cap on Power Pipe II™.
9. Tighten three (3) Phillips screws using a Phillips
screwdriver.
DRIVER HOUSING MUST BE INSTALLED ABOVE GRADE. POWER PIPE™ IS LABELED AT GRADE LEVEL.
DRIVER HOUSING INSTALLED BELOW GRADE WILL VOID WARRANTY
Stake Integral Driver Installation
Failure to use waterproof wire connectors
will cause fixture to fail and VOID PRODUCT
WARRANTY.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]

POWER PIPE II™ SYSTEM
Installation
Warning High Voltage
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TEKA ILLUMINATION AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF TEKA ILLUMINATION IS STRICTLY FORBIDDEN.
RELEASE DATE
9-13-17
DRAWING NUMBER
INS-2656-01
3/16” & 5/64” Allen Wrench
Waterproof Wire Connectors
Phillips Screwdriver
Hot Surface
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Specify
Fixture
Separately
Power Pipe II™
Stake
Stability
Flange™
Grade Label
REMOTE WIRING
LED Driver
Remote driver installations require inter-
connected wiring between the LED and
driver (by others). Drivers have specific
wiring requirements between these
components. Driver manufacturers regularly
recommend the following wiring details for
such installations:
• Do not exceed 50 foot overall wiring
distance using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product
warranty.
Conduit Connectors
A. Determine Soil Type by referencing
DIG-IT Guide. Prep soil according to
DIG-IT Guide.
Soil Prep
B. Excavate a hole to the necessary
dimensions for fixture placement and
conduit runs.
Conduit
trench 18”
Dia.
Power Pipe II™
Junction Box
Stability
Flange™
Grade Label
TOOLS
REQUIRED:
By Others
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]
IMPORTANT - WEAR GLOVES TO AVOID GETTING FINGERPRINTS ON THIS PRODUCT. MANY TEKA ILLUMINATION PRODUCTS ARE DESIGNED TO NATURALLY PATINA.
OILS FROM YOUR SKIN WILL ACCELERATE THIS PROCESS WHERE TOUCHED AND ARE NEARLY IMPOSSIBLE TO REMOVE. THIS PROCESS OCCURS OVER TIME AND IS
DETERMINED BY THE INSTALLATION ENVIRONMENT.
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.tekaillumination.com/dig-it for more information.

Junction Box Remote Driver Installation
Finished grade
Pea gravel or sand
Concrete or Dirt
Finished grade
3. Slide Stability Flange onto Power Pipe™. Use
Stability Flange to aid in installation of Power
Pipe™.
2. Excavate trench according to designed lighting
plan. Dig hole a minimum of 24” deep and 10”
wide to accommodate Power Pipe™ at desired
fixture locations.
1. Determine Soil Type by referencing DIG-IT Guide.
Prep soil according to DIG-IT Guide.
9. Insert wires and connectors into Power Pipe™.
Place fixture on Power Pipe™.
10. Tighten three (3) #10-32 set screws using Phillips
screwdriver.
8. Make waterproof connections from remote
driver to fixture leads using supplied waterproof
wire connectors. See wiring diagram.
Finished grade
Pea gravel or sand
Concrete or Dirt
Finished grade
4. Pull secondary wiring from remote driver to
Power Pipe™. Allow for additional cable to make
connections to fixture lead, future service and
stem length adjustment. Place Power Pipe™ in
hole.
Finished grade
Pea gravel or sand
Concrete or Dirt
Finished grade
6. Back fill with pea gravel or sand prior to pour.
Finished grade
Pea gravel or sand
Concrete or Dirt
Finished grade
7. Pour concrete (By Others).
Label on Power Pipe™ indicates installation
depth with finished grade.
5. Connect conduit to the conduit couplers
attached to the bottom of the Power Pipe™.
Place Power Pipe™ in hole.
Finished grade
Pea gravel or sand
Concrete or Dirt
Finished grade
RELEASE DATE
9-13-17
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TEKA ILLUMINATION AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF TEKA ILLUMINATION IS STRICTLY FORBIDDEN.
DRAWING NUMBER
INS-2656-01
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
POWER PIPE II™ SYSTEM
Installation
Failure to use waterproof wire connectors
will cause fixture to fail and VOID PRODUCT
WARRANTY.
WIRING DIAGRAM
LINE +
LED
COM
Remote
Driver
-
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]

Finished grade
Pea gravel or sand
Finished grade
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
3. Slide Stability Flange onto Power Pipe II™. Use
Stability Flange to aid in installation of Power
Pipe II™.
2. Excavate trench according to designed lighting
plan. Dig hole a minimum of 24” deep and 10”
wide to accommodate Power Pipe II™ at desired
fixture locations.
1. Determine Soil Type by referencing DIG-IT Guide.
Prep soil according to DIG-IT Guide.
Finished grade
Pea gravel or sand
Finished grade
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
4. Pull low voltage wiring from remote driver to
Power Pipe II™. Allow for additional cable to
make connections to fixture leads and future
service. Place Power Pipe II™ in hole.
Finished grade
Pea gravel or sand
Finished grade
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
5. Back fill with pea gravel or sand prior to pour.
Finished grade
Pea gravel or sand
Finished grade
Finished grade
Stability Flange
Pea gravel or sand
Finished grade
Pea gravel
or sand
Above Ground
Installation
Pea gravel
or sand
Concrete
Pea gravel
or sand
Pea gravel
or sand
Pea gravel
or sand
Concrete
Below Ground
Installation
Pea gravel
or sand
6. Pour concrete (By Others).
Label on Power Pipe™ indicates installation
depth with finished grade.
7. Make waterproof connections from remote driver
secondary side to fixture secondary leads using
waterproofwireconnectors.Seewiringdiagram.
WIRING DIAGRAM
LINE +
LED
COM
Remote
Driver
-
8. Insert wires and connectors into Power Pipe™.
Place fixture and cap on Power Pipe™.
9. Tighten three (3) Phillips screws using a Phillips
screwdriver.
Stake Remote Driver Installation
RELEASE DATE
9-13-17
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TEKA ILLUMINATION AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF TEKA ILLUMINATION IS STRICTLY FORBIDDEN.
DRAWING NUMBER
INS-2656-01
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
POWER PIPE II™ SYSTEM
Installation
Failure to use waterproof wire connectors
will cause fixture to fail and VOID PRODUCT
WARRANTY.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TEKA ILLUMINATION AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF TEKA ILLUMINATION IS STRICTLY FORBIDDEN.
Warning Hot Surface
NEEDED
FOR
INSTALLATION:
By Others
Wear Gloves
RELEASE DATE
8-14-17
REFERENCE NUMBER
INS-2615-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]
Low Voltage
5/32” Allen Wrench
Waterproof Wire Connectors
Gloves
Lens
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Aiming
Adjustment
Screw
Heavy Wall
Stem
Housing
Swivel Lock
Hinged
Clamp Rings
Locknut
LIBERTY FLOODLIGHT™ (LBF)
IMPORTANT - WEAR GLOVES TO AVOID GETTING FINGERPRINTS ON THIS PRODUCT. MANY TEKA ILLUMINATION PRODUCTS ARE DESIGNED TO NATURALLY PATINA.
OILS FROM YOUR SKIN WILL ACCELERATE THIS PROCESS WHERE TOUCHED AND ARE NEARLY IMPOSSIBLE TO REMOVE. THIS PROCESS OCCURS OVER TIME AND IS
DETERMINED BY THE INSTALLATION ENVIRONMENT.
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (by others). Drivers
have specific wiring requirements between these
components. Driver manufacturers regularly recommend
the following wiring details for such installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASE DATE
8-14-17
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]
REFERENCE NUMBER
INS-2615-00
1. Mount fixture onto suitable enclosure according
to designed lighting plan. Use locknut to secure. 2. Make watertight connections from remote
driver to fixture leads using waterproof wire
connectors (By Others). See wiring diagram.
Standard Fixture Installation
Aiming
1. To aim vertically, loosen the lamp head adjustment
screw using a 5/32” Allen wrench, adjust as needed,
then secure aiming position by tightening lamp
head adjustment screw.
Do not rotate more than 360 degrees to avoid
wire damage.
LINE +
LED
COM
Remote
Driver
-
WIRING DIAGRAM
LIBERTY FLOODLIGHT™ (LBF)
Must install to a suitable enclosure.
2. To aim horizontally, loosen two (2) #8-32 set screws
using 5/64” Allen wrench. Adjust horizontal aim,
then secure aiming position by tightening set
screws.
Do not rotate more than 360 degrees to avoid
wire damage.

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASE DATE
8-14-17
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]
REFERENCE NUMBER
INS-2615-00
LIBERTY FLOODLIGHT™ (LBF)
5. Gently lift LED module and disconnect from
fixture. Install new LED module. Secure set
screws through LED module and optic holder
using .050” Allen wrench.
Do not pull on connector or wiring. Handle
with care.
3. Remove optic by pulling gently and lift up.
4. Use .050” Allen wrench to loosen three (3) set
screws holding optic holder and LED module.
6. Replace optic by lining tabs with optic holder, then
pressing down gently until secured into place.

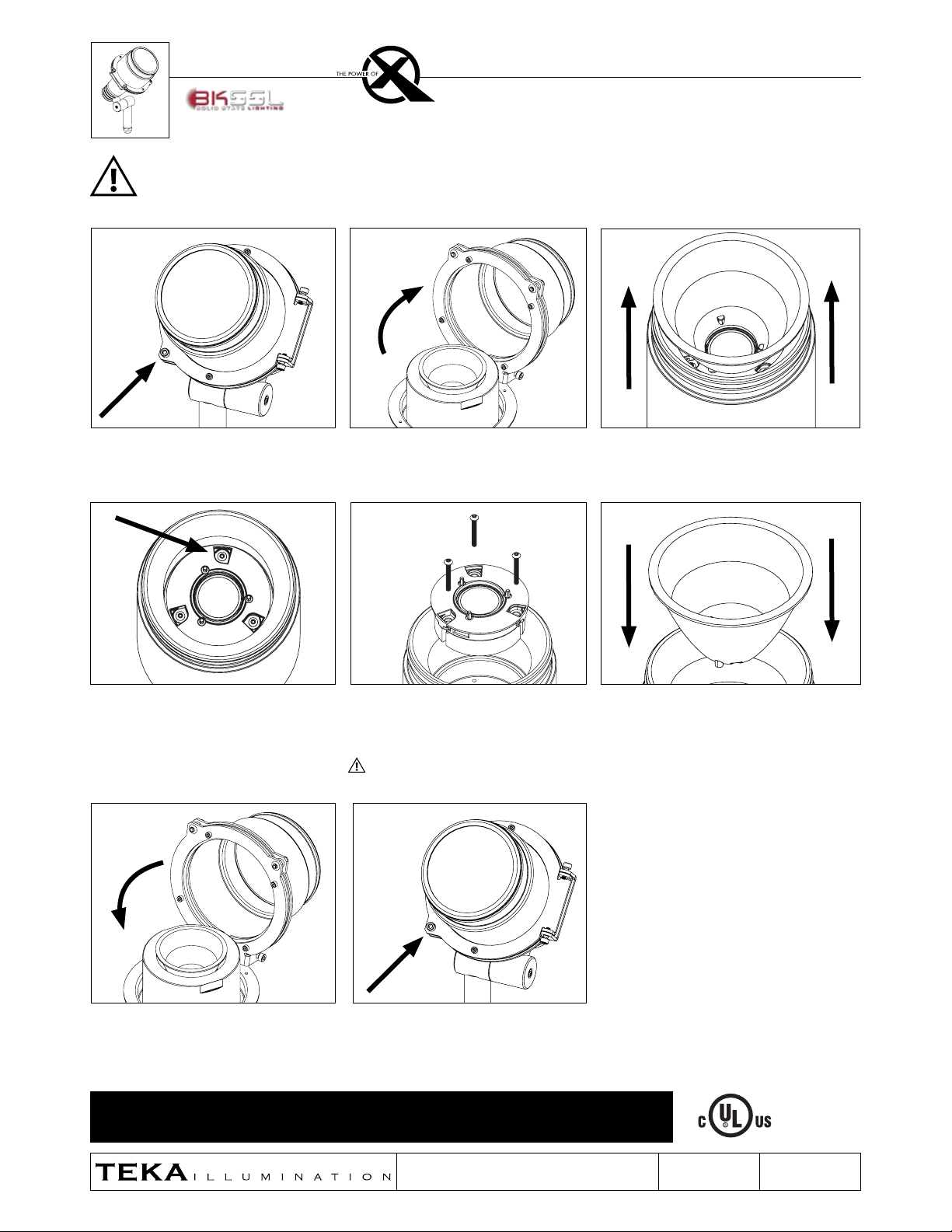

This product is available with field replaceable components. Exclusive interchangeable OPTIKITS and modular
LED components with quick disconnects simplifies upgrades and maintenance when necessary.
1. Loosen two (2) captive screws on stainless steel
clamp rings using 5/32” Allen wrench until the
screws disengage from back plate.
2. Swing lens assembly open.
7. Close swing assembly. 8. Tighten two (2) captive screws on stainless
steel clamp rings using 5/32” Allen wrench. Do
not overtighten.
