Dear customer:
Thank you for buying this upright refrigerator. To ensure that you
get the best results from your new refrigerator, please take time to
read through the simple instructions in this booklet.
Please ensure that the packing material is disposed of in
accordance with the current environmental requirements.
When disposing of any Refrigerator equipment please contact
your local waste disposal department for advice on safe disposal.
This appliance must be only used for its intended purpose.

2
CAUTION :
The appliance is not intended for use by young children or infirm
persons without supervision.
Young children should be supervised to ensure that they do not
play with the appliance

3
General
This type of refrigerator is widely used in places such as
hotels ,offices, student dormitories and houses. It is mostly suitable
for preserving foods such as fruits and beverage. It enjoys the
advantages of small size, lightweight, low electric consumption
and easy use。

5
4、Crisper
5、Leveler leg
UNPACKING YOUR REFRIGERATOR
WARNING: Use two or more people to move refrigerator.
Failure to do so can result in back or other injury.
·Remove tape and any labels from your refrigerator before
using(except the rating label).
·To remove any remaining tape or glue, rub the area briskly with your
thumb.
·Tape or glue residue can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with your fingers.
Wipe with warm water and dry.
·Do not use sharp instruments, rubbing alcohol, flammable fluids, or
abrasive cleaners to remove tape or glue. These products can
damage the surface of your refrigerator.
·When moving the refrigerator, do not tilt the refrigerator beyond
45°from upright position.
CLEANING BEFORE USE：
After you remove all of the packaging materials, （especially the
foam between outside condenser and cabinet should be removed）
clean the inside of your refrigerator before using it.
SPACE REQUIREMENTS
WARNING: Keep flammable materials and vapors, such as
gasoline, away form refrigerator.

6
Failure to do so can result in death, explosion, fine or burns.
·To ensure proper ventilation for your refrigerator, allow for 200mm
space on each side between walls, 200mm space between back of
your refrigerator and the wall, and 300mm space between counter
top and the roof or ceiling.
·If you are installing your refrigerator next to a fixed wall, leave
sufficient space on the hinge side to allow for the door to swing
open.
·Never install your refrigerator near heat source and direct sun
shins.
ELECTRICAL REQUIREMENT
WARNING: DO NOT REMOVE GROUND PRONG.
DO NOT USE AN ADAPTOR.
DO NOT USE EXTENSION CORD.
Failure to follow these instructions can result in death, fire or
electrical shock.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical connection.
Recommended Earthing Method
A 220～240 Volt /50 Hz AC only 10 ampere fused and properly
earthed electrical supply is required. It is recommended that a
separate circuit serving only this appliance be provided. Use a
receptacle which cannot be turned off with a switch or pull chain. Do
not use an extension cord.
NOTE: Before performing any type of installation, disconnect the
refrigerator from the electrical source. When you are finished,

7
connect the refrigerator to the electrical source and reset the control
to the desired setting.
LEVELING
If the refrigerator is not leveled during installation. The doors may not
close or seal properly, causing cooling, frost, or moisture problems. It
is very important of the refrigerator to be level in order to function
properly.
To level your refrigerator you may either turn the level leg clockwise
to raise that side to the refrigerator or turn counter –clockwise to
lower that side.
NOTE: Having someone push against the top of the refrigerator take
some weight off the leveling leg. This makes it easier to adjust the
leveling leg.
USE OF THE APPLIANCE
To obtain the best possible results form your refrigerator, it is
important that you operate it properly.
Temperature Control
The temperature selector knob is located on the right hand side
wall of the refrigerator interior
Setting“Off”： UnitOff
Setting“Min”or“1”： Less Cool Temperature
Setting“Med”or“3”： Normal Operation(adequate for most
situations)
Setting“Max”or“6”： Coolest Temperature
◆During high ambient temperatures e.g. on hot summer days. It
may be necessary to set the thermostat to the Coolest
setting(position “Max” or “6”).This may cause the compressor
running

8
continuously in order to maintain a low temperature in the cabinet.
◆For the first time you install your refrigerator, set the thermostat
knob at “Med” or“3”.
Give your refrigerator time to cool down completely before adding
food. It is the best to wait 24 hours before adding food. The
thermostat knob controls the temperature. When the thermostat
control knob is set to OFF, the refrigerator will not be running.
Fresh Food Storage
Wrap or store food in the refrigerator in airtight and moisture –proof
material. This prevents food odor and taste transfer throughout
refrigerator.
·Fruit –wash, let dry and store in refrigerator in
plastic bags or crisper.
·Leafy vegetables- Remove wrapping and trim or tear off
bruised and discolored areas, wash in
cold water and drain. Place in plastic
bag or plastic container and store in
crisper.
·Fish –Use fresh fish the same day as
purchased.
·Meat –Store most meat in original wrapping as
long as it is airtight and moisture –proof.
Re –wrap if necessary.
·Leftovers –Cover leftovers with plastic wrap or
aluminum foil.
Plastic containers with tight lied can also
be used.

9
Defrosting
Refrigerator compartment –Defrosting process is automatic
by thermostat knob Melted frost
flow into drip tray and automatic
evaporating.
Cleaning your refrigerator
Before you start to clean your refrigerator remove the mains plug
from the power supply.
Use a clean sponge or soft and a mild detergent in warm water. Do
not use abrasive or harsh cleaners.
Hand wash, rinse and dry all surfaces thoroughly.
Do not use cleaning waxes, concentrated detergents, bleaches or
cleaners containing petroleum on plastics and rubber parts.
Never use paper towels, window sprays, scouring cleansers or
flammable fluids on plastic parts as these can scratch or damage
material.
Clean with a cloth soaked in this solution and then dry with a soft
cloth.
PROLONGED OFF PERIODS
If the refrigerator is not in use for a long period of time, proceed as
follows:
Disconnect the refrigerator from the main supply by removing the
plug from the wall socket.
Clean and dry the inside as instructed under the heading of cleaning
the refrigerator r.
Leave the door open to prevent any unpleasant smells from building
up while the refrigerator is not in use.

10
TROUBLESHOOTING
In case of malfunction, you can solve many common problems
easily.
Your Refrigerator will not operate…Check if
-- The power supply cord is unplugged.
-- The thermostat knob is set to OFF position.
The light so not work…Check if
-- The power supply cord is unplugged.
-- A household fuse or circuit breaker has tripped.
-- A light bulb is loose in the socket.
-- A light bulb has burned out.
Food in the refrigerator compartment freezing…Check if
-- The thermostat knob is set too cold.
-- The position of food stored touches the refrigerant power of
refrigerator back wall.
Food in the refrigerator compartment is not cold…Check if
-- The air vents are blocked in the compartment. This prevents the
movement of cold air.
-- The door(s) are opened too often of not close properly.
-- Alarge amount of food has just been added to the refrigerator or
refrigerator compartment.
-- The position of thermostat knob is adjusted too low.
Melted frost Leak over compartment inside or on floor…Check if
-- The drain –off mouth entrance is blocked.
-- Evaporator pan is in place.

11
The refrigerator seems to make unusual noise…Check if
-- The refrigerator is leveled on the floor.
-- The body of the refrigerator touches the wall.
-- The drip tray is not placed properly.
There is interior moisture build - up…Check if
-- The air vents are blocked in the refrigerator.
-- The door is opened often.
-- The room is humid.
-- The food is not packaged correctly.
-- The control is not set correctly of the surrounding conditions.
The doors will not close completely…Check if
-- The shelves are out of position
-- The gaskets are dirty.
-- The fridge is not level.
WARNNING
1) WARNING –Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
2) WARNING –Do not use mechanical devices or other means
to accelerate the defrosting process, other than those recommended
by the manufacturer.
3) WARNING –Do not damage the refrigerant circuit.

12
4) WARNING –Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
5) The appliance has to be unplugged after use and before
carrying out user maintenance on the appliance.
6) This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
7) Children should be supervised to ensure that they do not play
with the appliance.
8) If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
9) Please abandon the refrigerator according to local regulators for
it use flammable blowing gas and refrigerant.
10）Please according to local regulations regarding disposal of the
appliance for its flammable refrigerant and blowing gas. Before you
scrap the appliance, please take off the doors to prevent children
trapped.

14
2、Remove the screws fixed the top-hinge with cross-slot screwdriver.

15
3、Replace the top-hinge and the door limit block and the door bearing
bush to the other side
A、replace the top-hinge.
The screws fixed
the top-hinge

16

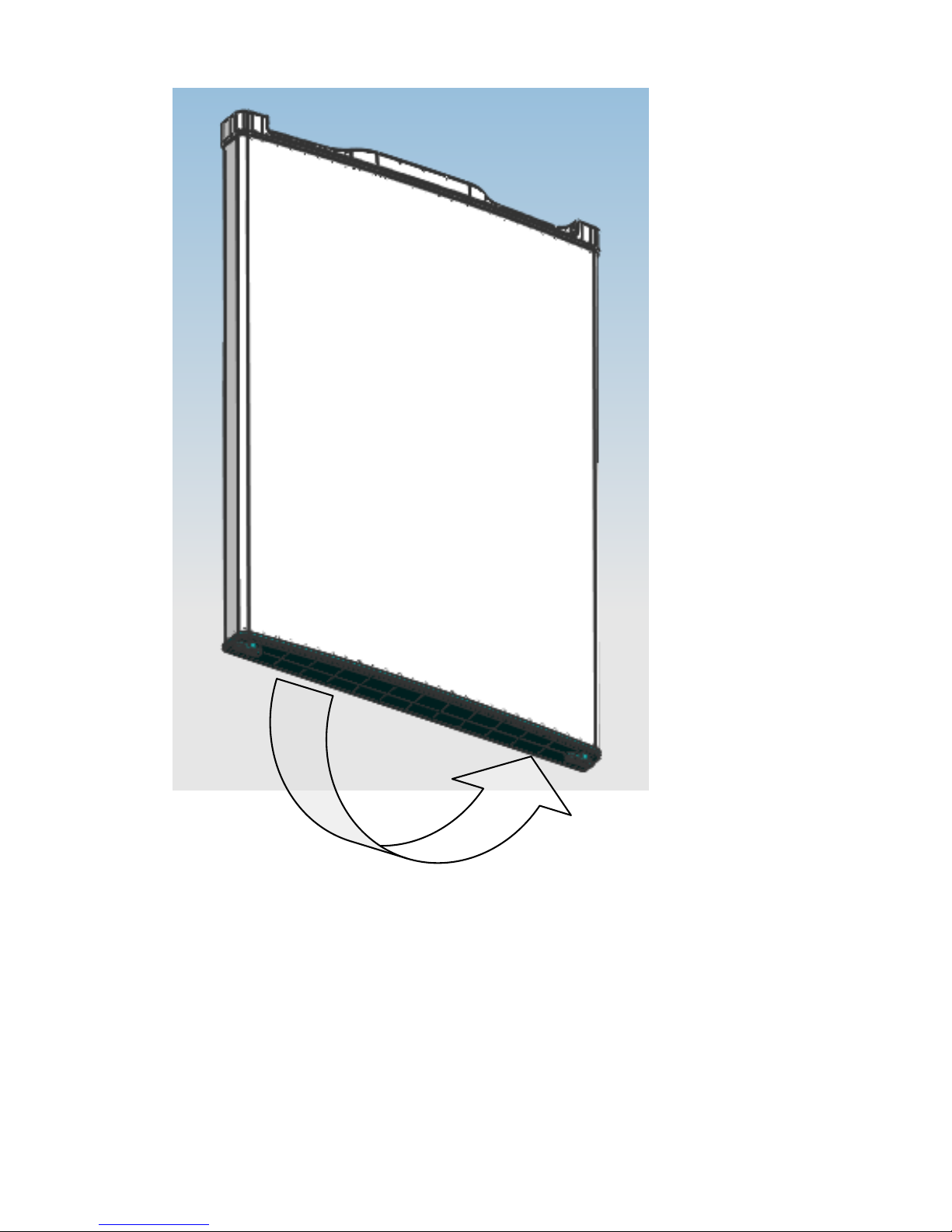

B、replace the door bearing bush and the limit block.

17
4、Disassemble the screws fixed the bottom-hinge with cross-slot
screwdriver and replace the hinge to the other side then fix it with
screws。
note：the refrigerator incline angle less 45°.

18
5、replace the leveler to the other side and adjust it to make sure the
cabinet level
The screws
fixed the
bottom-hinge

19
6、Set the door right position,fix the top-hinge and then the roof cover.
Ensure theAppliance is unplugged and empty。
Adjust the two leveling feet to their highest position。
We recommend you have someone to assist you。
