• Read this user’s manual.
• Your machine is designed to be used in
domestic environments. Using it for commercial
purposes shall cause your warranty to be void.
• Do not let your pets near the machine.
• Please check the packaging of your machine
before installation, and the outer surface of the
machine after the packaging has been removed. Do
not operate damaged machines or machines with
opened packaging.
• Have your machine installed only by an authorised
service company. Any interference to your machine
by anyone other than authorized services shall
cause your warranty to be void.
• This appliance is not intended for use by people
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience or
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
• Please use your machine for laundry that is
specied as washable and dryable after washing by
their manufacturer on their label.
BEFORE USING YOUR MACHINE
Correct Use

6
EN
• You must remove the transportation safety
screws before your machine’s rst use. The
machine will malfunction if it is operated with the
transport safety screws still in place and this will
void your warranty.
• Your machine warranty does not cover damage
caused by external factors (oods, re, rodents etc.)
• Please do not throw away this user manual. Store
it in a safe place. It might be needed by you or the
next user.
• The necessary ambient temperature for your
machine’s ideal operation is 15-25°.
• Frozen hoses can tear and explode. In regions
where the temperature is below zero, the electronic
card may not operate safely.
• Please ensure that the clothes you will load into
your machine do not have foreign substances (nails,
needles, coins, lighters, matches, clips etc.) in the-
ir pockets. These foreign substances can damage
your machine.
General warnings

7
EN
• As detergent or softener exposed to air for a long
time may cause residues, only put your detergent or
softener in the detergent drawer at the beginning of
each wash.
• It is advised that you unplug your machine and
close the water inlet tap if you will not use your mac-
hine for a long time. You should also leave the door
of your machine open to prevent bad odours forming
due to humidity.
• Some water might be left in your machine due to
trials and tests conducted for Quality Control pro-
cedures during production. This causes no harm to
your machine.
• Keep the document bag that came inside your
machine that contains the user manual out of the
reach of children and babies to prevent the risk of
suffocation.
• Keep small parts found in the document part away
from the reach of children and babies.
• Use pre-wash programs only for very dirty laundry.

8
EN
• You should not load your machine with the amo-
unt of laundry that will exceed the maximum laundry
amount specied in the washing or drying program
you have chosen.
• In case of any malfunction, unplug the machine
and close the tap rst. Do not attempt to repair by
yourself and consult the nearest authorized service
company.
• Never open the detergent compartment when the
appliance is running.
• Never force the door open when the machine is
running.
• Please adhere to the manufacturers’ advice regar-
ding the use of fabric conditioner or similar products
you will use in your machine.
• While your machine is in the drying process, ple-
ase do not stop your machine before the program
ends.
If you have to do this, remove all your laundry fast
and spread them on an appropriate place immedia-
tely to allow them to cool down.
• Set up your machine in a place where its door can
be completely opened. (Do not set up your machine
in places where its door cannot be fully opened.)
• Set up your machine in locations that can be venti-
lated and might have constant air circulation.

9
EN
You must read these warnings. Ignoring these
warnings may put you or your loved ones at
risk of fatal injuries.
• Do not touch the discharge hose or the water disc-
harged during the discharging process as the appli-
ance may reach high temperatures when running.
• Open the door of the machine all the way after the
drying process. Do not touch the door glass. Burn
hazard may occur due to high temperature.
Safety warnings
Burn risk!

10
EN
Electrocution risk!
• Do not use multiple plugs or
extension cords.
• Do not plug in damaged plugs or plugs with torn
cables.
• Never pull from the cable when unplugging.
• Grab the plug when unplugging.
• Do not plug-in or out the plug from the receptacle
with wet hands to prevent electric shock.
• Never touch the machine with a wet or damp hand
or foot.
• Call the nearest authorized service company for
assistance if the power cord malfunctions.

11
EN
Explosion risk!
• As there is a drying function on your machine,
make sure that materials like stain removing chemi-
cals or washing gas that you might have applied on
your laundry earlier are properly rinsed and purged.
There might be a risk of explosion when you run
your machine with the drying function otherwise.
Fire risk!
• Unwashed dry laundry must not be dried in your
machine.
• Do not keep ammable or explosive liquids near
your machine.
• Materials stained with food oil, acetone, alcohol,
petrol, kerosene, stain remover, turpentine, beeswax
and beeswax remover must rst be washed with
an extra amount of detergent and hot water before
being put through the drying process. There might
be a risk of re when you run your machine with the
drying function otherwise.
• If you’re going to choose a washing and drying
program, do not place a detergent dose adjustment
device/ball into your machine. They might pose a re
risk.

12
EN
• Laundry must not be dried in the machine under
the conditions specied below due to the risk of re:
- If laundry is not washed.
- If oil stains and other stains on the laundry (food
oils, balms and cosmetic remains, kitchen swab etc.)
are not cleaned enough.
- Laundry cleaned with industrial chemicals.
- Laundry that has high amount of foam-sponge-rub-
ber or rubber-like parts and accessories on.
-Rubber, sponge(latex), shower bonnet, watertight
textile products, rubber based objects and clothes or
pillows lled with rubber sponge must not be dried in
the washing machine with the drying function.
- Stuffed and damaged parts (pillows or jackets).
The sponge parts dangling outside these stufngs
might catch re during the drying process.
- The sulphur in paint-removing materials might cau-
se corrosion. Thus, never use paint-removing mate-
rials in your machine.
- Please ensure that detergent cups are not left insi-
de the laundry. These plastic cups might melt during
drying and damage your machine and laundry.
- Laundry that has had a stain removal process app-
lied must be rinsed thoroughly before washing.

13
EN
- Never use products that contain solvent material
(like washing gas) in your machine.
- Remove all the objects in the pockets of your la-
undry (needles, paperclips, lighters, matches etc.)
when loading your machine. Fire and Explosion
risk may occur.
Fall and injury risk!
• Do not climb on your machine. The upper table of
your machine may break and you might get injured.
• Tidy the hose, cable and packaging of your machi-
ne during installation. You might trip over and fall.
• Do not turn your machine upside down, or on its
side.
• Do not lift your machine by holding it from extru-
ding parts (detergent drawer, door). These parts
might break and cause you injury.
• There’s a risk of tripping and injury if the materials
like hoses and cables are not property stored after
your machine is installed.
Machine must be carried by 2
people or more.

14
EN
Child safety!
• Do not allow your children to play with the machi-
ne. It is an electrically driven appliance.
• Do not leave children unattended near the machi-
ne. Children might lock themselves into the machi-
ne.
• The door glass and machine surfa-
ce might be extremely hot during your
machine’s operation.
• It is therefore especially important that
children do not touch the machine as it may damage
their skin.
• Keep packaging material away from children.
• Poisoning might occur if the detergent and other
washing aids are consumed, and eye or skin irrita-
tion might occur if they come into contact with the
skin. Keep the cleaning materials where children
cannot reach them.

15
EN
Removal of packaging materials
Packaging materials protect your machine from the damage that
might occur during transportation. Please recycle you packaging
materials.
Recycled material provides both raw material savings and decre-
ases waste production
Removal of old machine
Old electrical devices might still contain salvageable parts.
So, never throw your old devices that you do not use into the
waste.
Ensure the parts of your old electronic or electrical devices are
reused by giving them to your local recycling centre.
Please ensure your old appliances are kept in an appropriate
place for the safety of children until they are taken outside the ho-
use.
DISPOSING OF PACKAGING AND YOUR OLD
MACHINE RESPONSIBLY
PACKAGING AND THE ENVIRONMENT

16
EN
SAVINGS & EFFICIENCY INFORMATION
Some important information to get more efciency out of your
machine:
• The amount of laundry you put in your washing machine should
not exceed the maximum amount indicated. By avoiding overloa-
ding, your machine shall run more efciently.
• Not using the pre-wash feature for normal and lightly soiled
laundry shall save electricity and water.

17
EN
OVERVIEW OF YOUR DEVICE
2-Detergent drawer
3-Programme button
4-High-resolution
LCD display
1-Upper tray
General Appearance
7-Pump lter
cover
6-Door
5-Touch buttons

18
EN

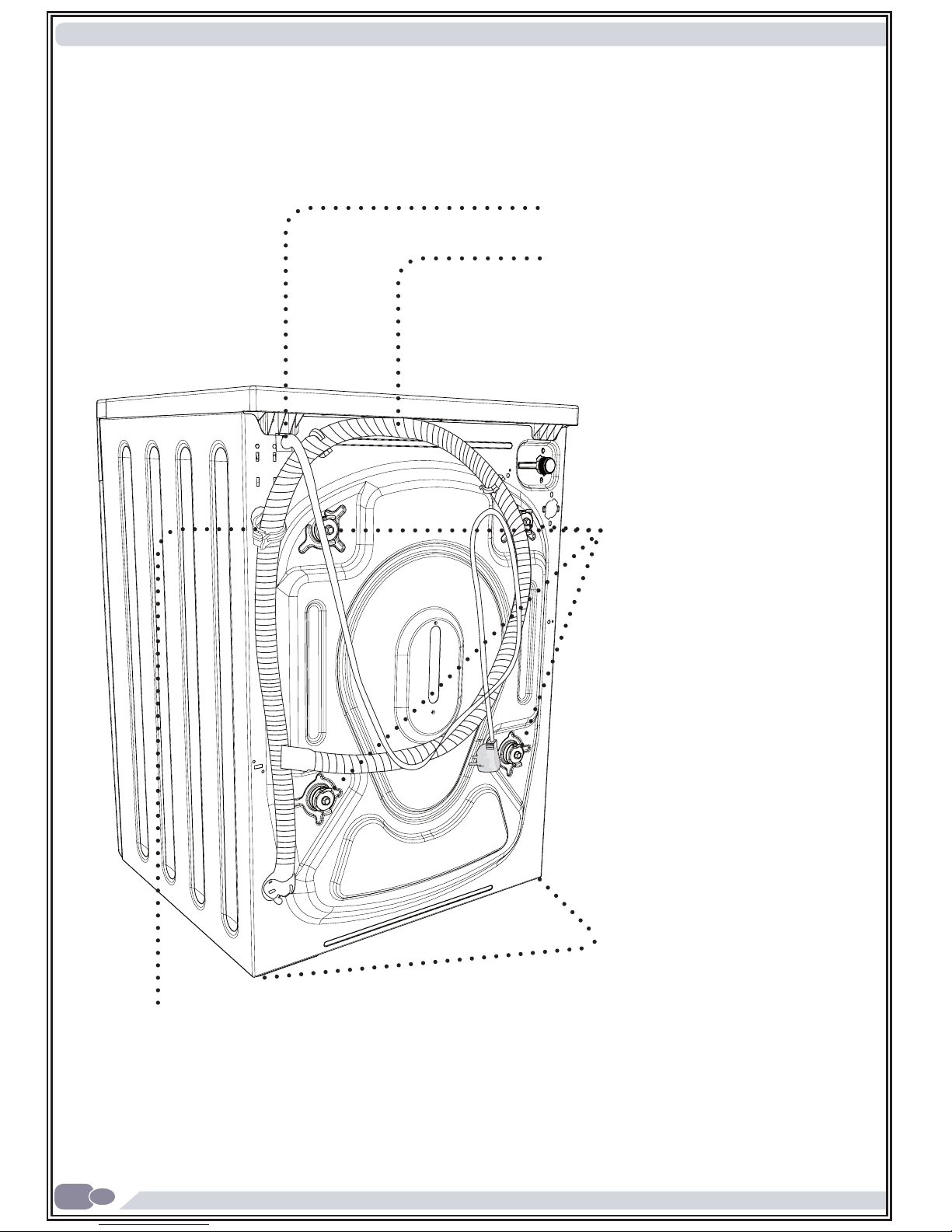

General Appearance
8-Power cord
9-Drain hose
10-Transportation
safety screws
11-Adjustable
12-Drain hose holding plastic:
(The operation of the machine will be affected if this plas-
tic part is removed. So please don’t remove this plastic
part under any condition.)

19
EN
Technical Specications
EN 50229 standard-compliant control programmes
Washing programme :
• 2. Programme "Cottons", temperature 60°C, maximum spinning speed 1400
rpm, 9 kg laundry.
Drying Programmes :
• 1. Drying : 13. Programme "Cottons drying"
Drying level auxiliary function selection: Level 2
Load group : (4.5 kg) (including a load group consisting of 1 bed sheet, 16 pillow
slips.)
• 2. Drying : 13. Programme "cottons drying"
Drying level auxiliary function selection: Level 2
Load group : (4.5 kg) (including a load group consisting of 2 bed sheets, 2 pillow
slips and hand towels.)
Maximum washing capacity (dry laundry)(kg) 9.0
* Maximum drying capacity (kg) 6.0
Spin speed (rpm) 1400
Number of programmes 15
Operation voltage /
Frequency (v / hz) 220-240 / 50
Water pressure (mpa) Maximum:1
Minimum:0.1
Dimensions (HxWxD)(mm) 845x597x582
* You should not put dry laundry in your machine for drying.
Energy consumption (washing, spinning, drying) (kWh/
cycle)
6.12
Energy consumption (only washing and spinning) (kWh/
cycle)
0.90
Water consumption (washing, spinning, drying) (l/cycle) 112
Water consumption (only washing and spinning) (l/cycle) 48

20
EN
Removing transportation safety screws
Before operating your machine, you
must remove the transport safety
screws on the backside of the machi-
ne.
Have your machine installed only
by an authorized service company.
SETTING UP THE MACHINE
The transport safety screws should
be loosened by rotating them counter
clockwise with an appropriate wrench.
