Tekkeon TekCharge MP2250 User manual

User Guide

USER GUIDE
Contents
Overview ............................................................................................................. 2
Getting Started.................................................................................................... 2
Unpacking TekCharge MP2250 ...................................................................... 2
Getting to Know TekCharge MP2250.............................................................. 3
Using TekCharge MP2250 .................................................................................. 4
Charging TekCharge MP2250 ......................................................................... 4
Connecting TekCharge MP2250 to Your CradlePoint Router.......................... 4
Powering/Charging Your CradlePoint Router.................................................. 4
Viewing the Battery Capacity .......................................................................... 5
Charging/Powering Other Devices .................................................................. 5
Troubleshooting.................................................................................................. 6
Limited Warranty ................................................................................................ 7
Customer Support .............................................................................................. 8

2
Overview
TekCharge™MP2250 is a rechargeable power source to charge and power your CradlePoint portable
router (model numbers CTR500, PHS300 and CTR350). The package includes brackets designed
specifically for mounting the battery to one of these routers, and the adapter tip for connecting to
the router’s power jack. To charge TekCharge MP2250, you will use the CradlePoint power adapter
(5V, 2.5A - 3.0A).
This lightweight battery also can be used to charge other 5V devices. In that case, the compatible
adapter tip is required.
Getting Started
Unpacking TekCharge MP2250

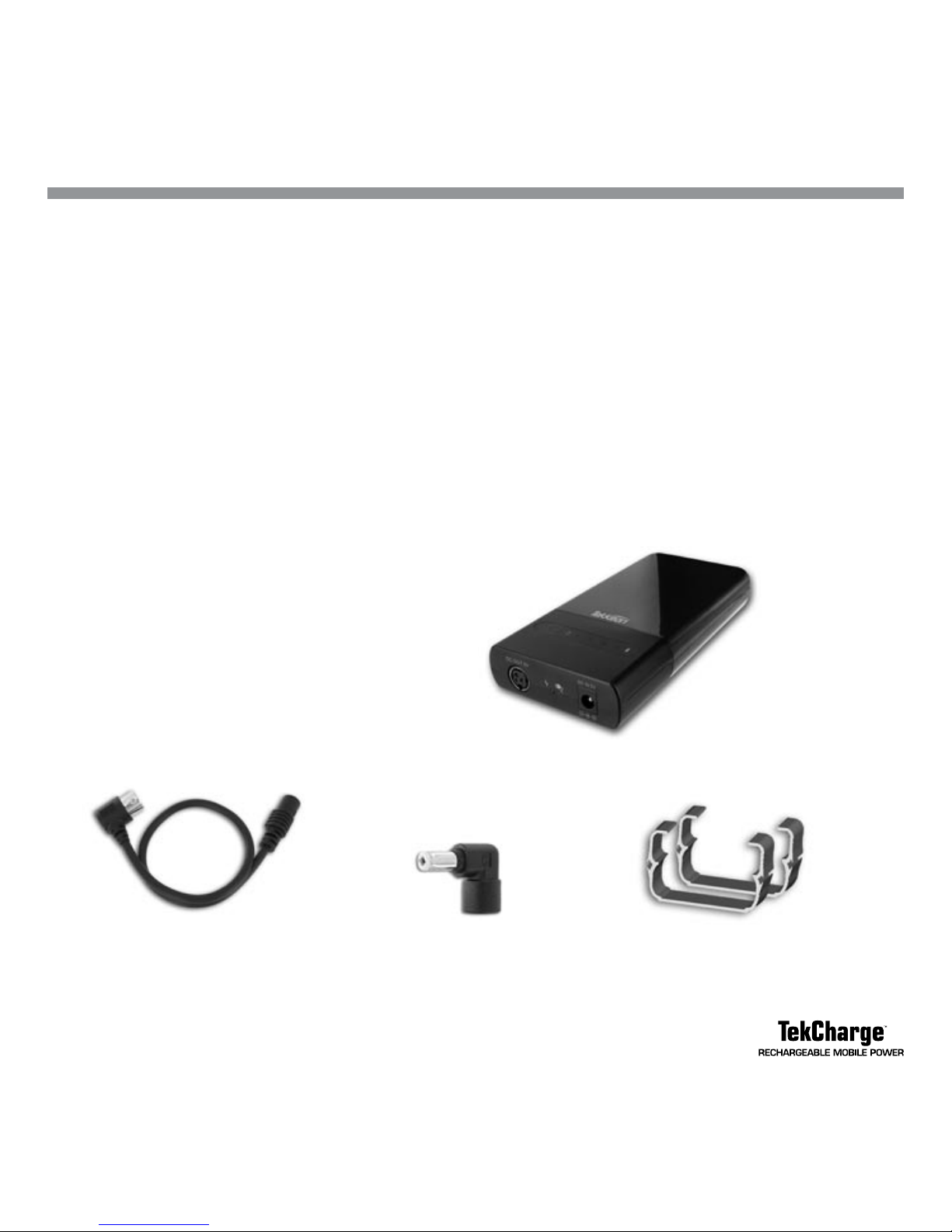

Your TekCharge MP2250 package includes the following:
User guide (not shown)
Registration card (not shown)
Adapter Tip “C”
5.5 x 2.5 mm
(Model Number PA-L5F)
TekCharge MP2250
rechargeable
mobile power
Right angle output cord, 9" Brackets for
CradlePoint Routers (2)

3
USER GUIDE

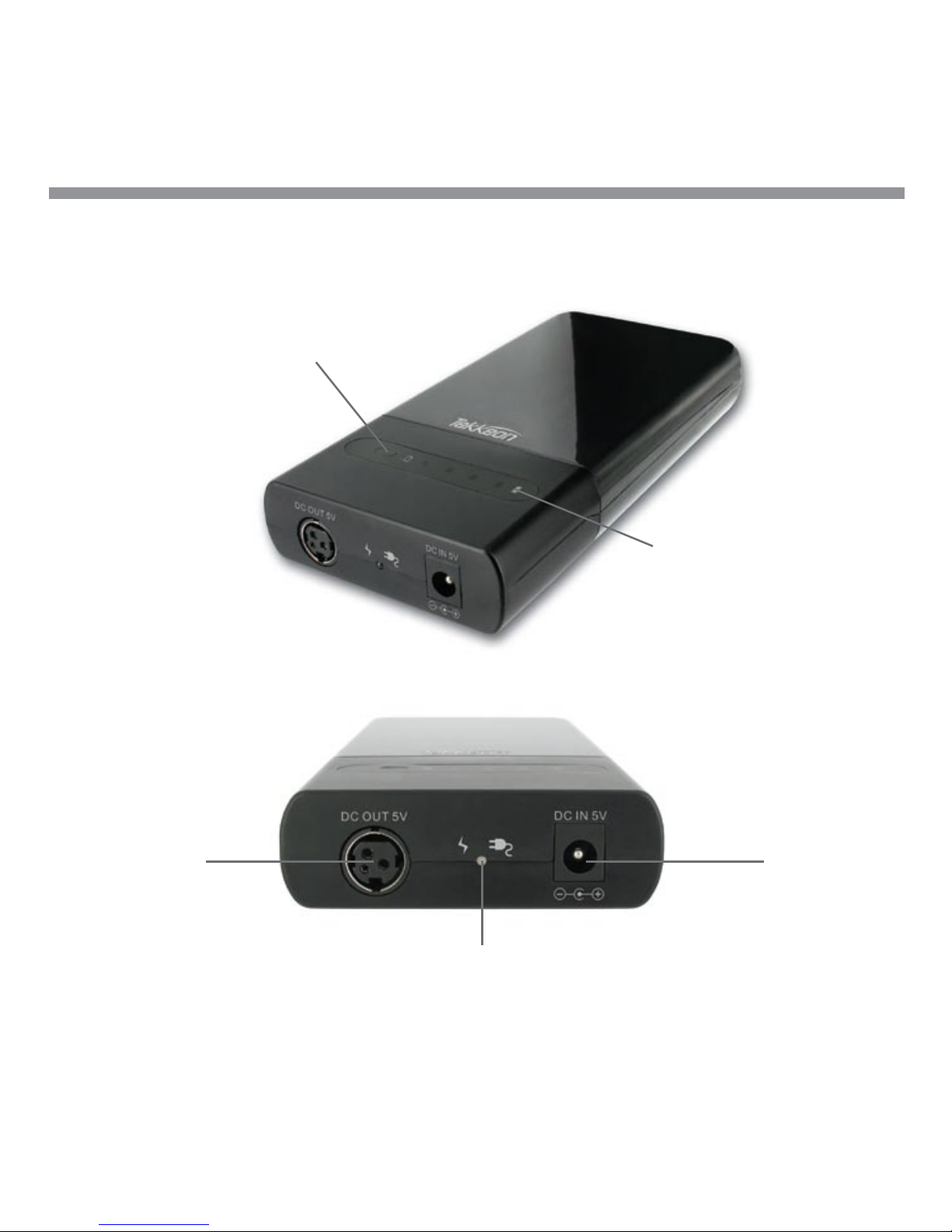

Getting to Know TekCharge MP2250
Capacity Display Button
Capacity Indicator
Indicates the battery
capacity of the
rechargeable battery
DC OUT 5V
For connection
to the router
DC IN 5V
For connection to
router power adapter
Power/Charging Indicator

4
Using TekCharge MP2250
Charging TekCharge MP2250
1. Plug the CradlePoint power adapter into the DC IN 5V adapter jack. While TekCharge MP2250 is charging
the charging lamp will be red, turning to green when more than 80% charged.
2. When the battery is fully charged, unplug the power adapter.

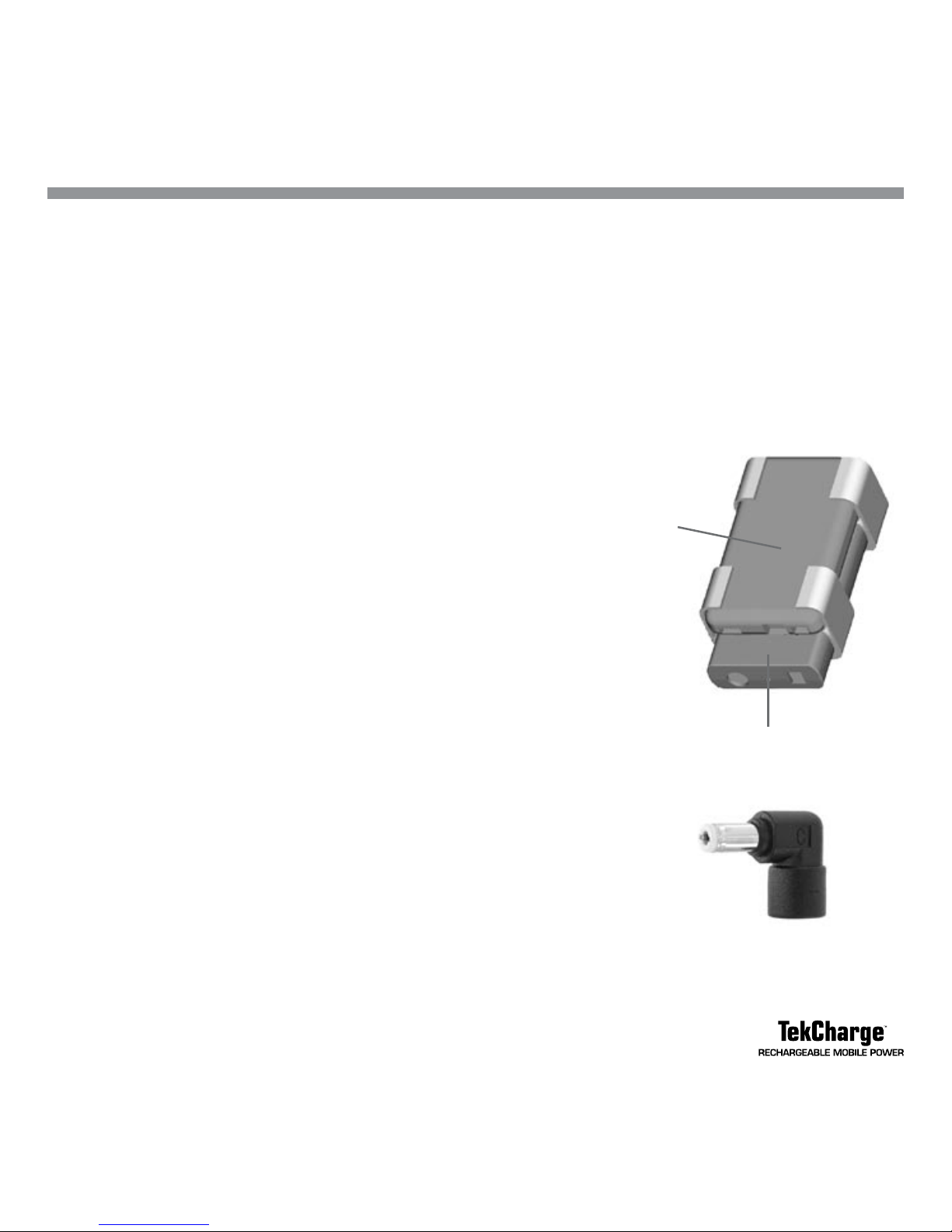

Connecting TekCharge MP2250 to Your CradlePoint Router
1. Place the CradlePoint router on top of TekCharge MP2250.
2. Slide one of the provided brackets onto each end to hold the
battery in place, as shown.
Powering/Charging Your CradlePoint Router
1. Connect the provided adapter tip (“C”) to the output cord.
2. Insert the output cord into the DC OUT 5V jack on TekCharge MP2250.
The green Power/Charging Indicator will light to indicate the battery
power is on while the output cord is connected.
3. Connect the adapter plug into the power jack on your router.
4. Turn on the router and use it as you would normally. While connected,
TekCharge MP2250 will power and/or charge your router.
5. When finished, unplug the power output cord from TekCharge MP2250
to turn off the battery.
Adapter tip “C”
CradlePoint
router
TekCharge 2250

5
USER GUIDE
Viewing the Battery Capacity
1. Press the Capacity Display Button. The capacity indicators on the top of the unit will light up to indicate
the remaining battery capacity as follows:
Charging/Powering Other Devices
You can use TekCharge MP2250 to power and charge any portable device that requires 5V input or devices
with a center positive DC jack. (If your device has a center negative DC jack, do not power the device with
TekCharge.)
If the included adapter tip does not fit snugly into your portable device power jack, please go to our web
site at www.tekkeon.com/tcadapters to determine which adapter plug you need for your device. You can
obtain most adapters through the web site, or by contacting Tekkeon by phone at: 1-888-787-5888 or
1-714-832-1266. If available through Tekkeon, the adapter will be sent to you for a nominal fee.
1st Green LED 1-15%
2nd Green LED 15-40%
3rd Green LED 40-70%
4th Green LED 70-100%

6
Troubleshooting
If TekCharge MP2250 does not power your router or other 5V device, take these steps:
1. Verify that the TekCharge battery is charged.
2. Check that the input/output cord is connected to both TekCharge and the router or other 5V device.
3. If connecting TekCharge to another portable device with a DC jack, ensure that the adapter tip fits snugly
into the power jack and that the polarity of the device power jack is center positive. If the polarity is center
negative, do not power the device with TekCharge as it does not support center negative.
3. If connecting TekCharge to another portable device, verify that a battery is installed in the portable device
as some devices will not function without a battery installed.
4. If connecting TekCharge to another portable device, determine if your device is designed with charging
circuitry that limits the input voltage. If so, TekCharge may not be able to power or charge the device.
(For example, if a device is designed to accept only a 4.2V input, then TekCharge may not be able to
power or charge the device.)
Center Positive Symbol Center Negative Symbol

7
Limited Warranty
The product enclosed herein is warranted to be free of operational defects for a period of one year from the
date of purchase. In the event of a defect in operation during the warranty period Tekkeon, Inc. will replace
the defective product when the owner returns all product contents. The limited warranty will be considered
void if the unit is tampered with, subject to misuse, negligence or accidental damage, has been improperly
serviced, or if the security seal is removed. This warranty is limited to replacement only and shall not cover
any other damages. Any product returned to Tekkeon, Inc. with no fault found will be returned to the owner
at the owner’s expense.
To obtain warranty coverage, please complete and submit the enclosed registration card.
Disclaimer of Warranties
Any user of this product does so at the user’s own risk. To the maximum extent permitted by applicable
law, Tekkeon, Inc. and its suppliers provide the hardware and any support services related thereto “as is”
and with all faults; and hereby disclaim all warranties and conditions, whether express, implied or statutory,
including, but not limited to implied warranties of merchantability, fitness for a particular purpose, non-
infringement, lack of negligence or correspondence to description, except for those warranties specifically
and expressly provided in the Limited Warranty.
With respect to the use of this product, in no event shall the company be liable for any loss of profit or any
other commercial damage, including but not limited to special, incidental, consequential and other damages.

8
Customer Support
Customer support for TekCharge is available at:
Tekkeon, Inc.
c/o TekCharge MP2250
3002 Dow Avenue, #134
Tustin, CA 92780
888-787-5888 / 714-832-1266
www.tekkeon.com
Tekkeon, Inc. must issue a Return Merchandise Authorization (RMA) number for all exchanges or refunds.

www.tekkeon.com
© 2009 Tekkeon, Inc.
All Rights Reserved.
TekCharge is a trademark
of Tekkeon, Inc.
CradlePoint is a trademark
of CradlePoint, Inc. in the
U.S. and other countries.
