Tekmar 003 User manual

Relay 003 - 24 V (ac) Coil
Installation & Operation Manual
D003
05/11
Accessories Replaces:01/10
1 of 4 © 2011 D003 - 05/11
The tekmar Relay 003 - 24 V (ac) is for use
in applications where device operation
requires a voltage that differs from the
control’s built-in inputs or outputs. They
can also be used in applications where the
device operation requires a higher current
than the on board relay is rated for.
Relay 003 is energized with 24 V (ac)•
Introduction Features
Test button
Red LED indicator
Pluggable base
•
•
•
Benefits
Mounts to TS35 DIN Rail
Pre-wire and test base before
plugging in relay
Replace relay without
disturbing wiring
•
•
•
Note
For 120 V (ac) coil relay see
D004
•

2 of 4© 2011 D003 - 05/11

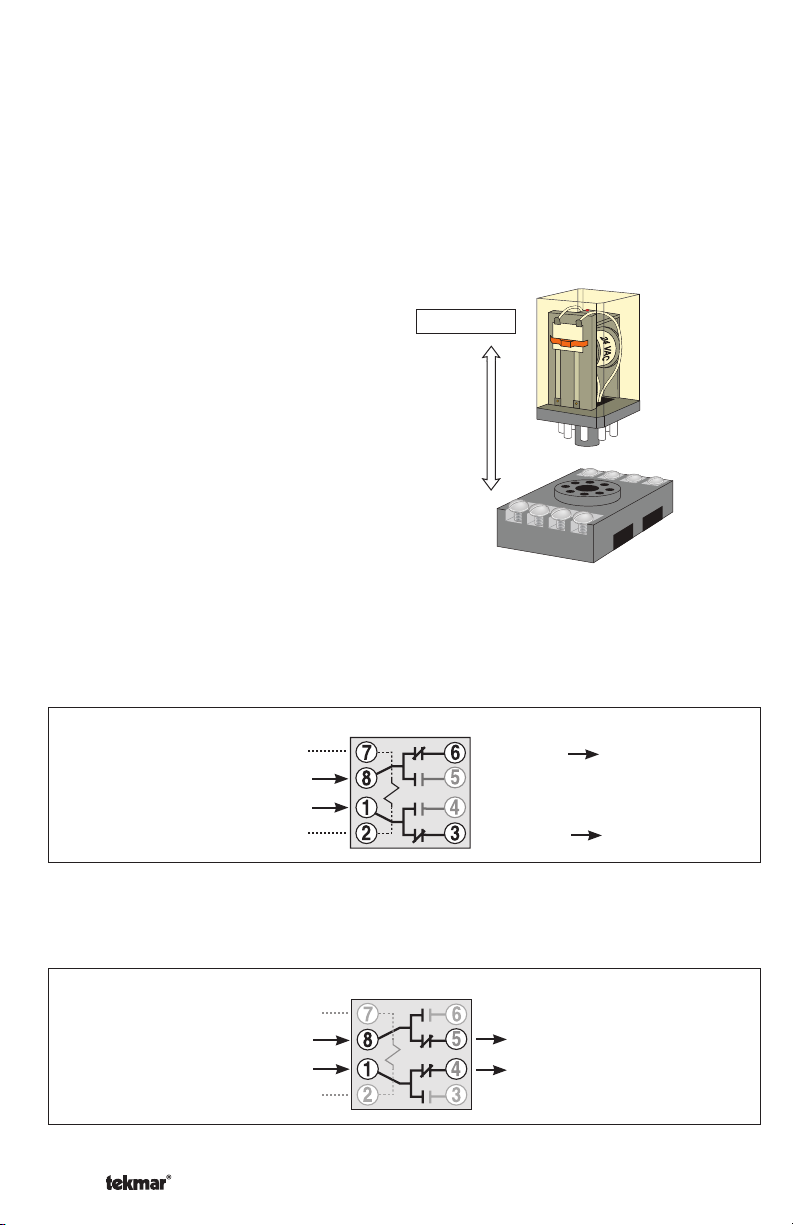

When 24 V (ac) is applied to the relay coil (terminals 2 and 7), the N.O. (Normally
Open) contacts will close and at the same time the N.C. (Normally Closed) contacts
will open. Also, the red LED indicator light on the top of the relay will turn on.
Coil powered with 24 V (ac)
Power Out
No Power
No Power
Power Out
Relay Coil POWERED
Relay Coil POWERED
Switching Power In
Switching Power In
Wiring
Power Out
No Power
No Power
Power Out
Relay Coil NOT POWERED
Switching Power In
Switching Power In
Relay Coil NOT POWERED
Coil with no power
When voltage is removed from the relay coil (terminals 2 and 7) , the spring will
automatically return the relay contacts to the normal (un-powered) position, and
the LED indicator will turn off.
Installation
The Relay base can be mounted directly to a flat surface, or onto a standard
TS35 DIN rail. Follow local codes for installation of the relay and wiring. For
class 2 circuits, no enclosure is required. For all other circuits, the relay should
be mounted in an approved enclosure.
Wiring connections are made at the base terminals and are checked with the
relay unplugged.
Relay pulls straight out of base. Base can
be pre-wired and wiring can be tested
before plugging in relay. Relay can be
replaced without disturbing the wiring.
Removable

3 of 4 © 2011 D003 - 05/11
120 V (ac) Power Supply
L
N
24 V (ac)
Power
Supply
R
3
4
6
5
7
2
1
8
R
C
C
2
1
ta
e
H
m
e
D
t
ae
H
m
eD
120 V (ac)
Pump
ON
Thermostat
CLOSED
Relay
POWERED
24 V (ac) Power Supply from
a Different Transformer 24 V (ac) Heat Demand
Signal ON
Thermostat on and calling for heat.
120 V (ac) Power Supply
L
N
24 V (ac)
Power
Supply
R
3
4
6
5
7
2
1
8
24V (ac) Power Supply from
a Different Transformer
R
C
C
24 V (ac) Heat Demand
Signal OFF
12
Heat Dem
Heat Dem
120 V (ac)
Pump
OFF
Relay
UNPOWERED
Thermostat
OPEN
Thermostat off and not calling for heat.
Low voltage thermostat energizes Relay 003 to turn on a 120 V (ac) zone pump. A
heat demand is sent to a tekmar control.
Application
The red LED indicator turns on when
the relay coil is energized. This LED is
visible as indicated through the top of
the relay and provides visual verification
when the relay is “on”. When the relay
coil is “off” the LED will also be off.
Push the test button on the front side
of the relay to manually close the N.O.
(Normally Open) contacts and open
the N.C. (Normally Closed) contacts for
testing purposes.
Test Button
Red LED
Testing

tekmar Control Systems Ltd., Canada
tekmar Control Systems, Inc., U.S.A.
Head Office: 5100 Silver Star Road
Vernon, B.C. Canada V1B 3K4
[phone] Fax. [phone]
Web Site: www.tekmarcontrols.com
Product design, software and literature
are Copyright © 2011 by:
tekmar Control Systems Ltd. and tekmar
Control Systems, Inc.
All specifications are subject
to change without notice 4 of 4 D003 - 05/11
Limited Warranty The liability of tekmar under this warranty is limited. The Purchaser, by taking receipt of any tekmar
product (“Product”), acknowledges the terms of the Limited Warranty in effect at the time of such Product sale and
acknowledges that it has read and understands same.
The tekmar Limited Warranty to the Purchaser on the Products sold hereunder is a manufacturer’s pass-through warranty
which the Purchaser is authorized to pass through to its customers. Under the Limited Warranty, each tekmar Product is
warranted against defects in workmanship and materials if the Product is installed and used in compliance with tekmar’s
instructions, ordinary wear and tear excepted. The pass-through warranty period is for a period of twenty-four (24) months
from the production date if the Product is not installed during that period, or twelve (12) months from the documented date
of installation if installed within twenty-four (24) months from the production date.
The liability of tekmar under the Limited Warranty shall be limited to, at tekmar’s sole discretion: the cost of parts and labor pro-
vided by tekmar to repair defects in materials and / or workmanship of the defective product; or to the exchange of the defec-
tive product for a warranty replacement product; or to the granting of credit limited to the original cost of the defective product,
and such repair, exchange or credit shall be the sole remedy available from tekmar, and, without limiting the foregoing in any
way, tekmar is not responsible, in contract, tort or strict product liability, for any other losses, costs, expenses, inconveniences,
or damages, whether direct, indirect, special, secondary, incidental or consequential, arising from ownership or use of the
product, or from defects in workmanship or materials, including any liability for fundamental breach of contract.
The pass-through Limited Warranty applies only to those defective Products returned to tekmar during the warranty period.
This Limited Warranty does not cover the cost of the parts or labor to remove or transport the defective Product, or to reinstall
the repaired or replacement Product, all such costs and expenses being subject to Purchaser’s agreement and warranty with
its customers.
Any representations or warranties about the Products made by Purchaser to its customers which are different from or in
excess of the tekmar Limited Warranty are the Purchaser’s sole responsibility and obligation. Purchaser shall indemnify and
hold tekmar harmless from and against any and all claims, liabilities and damages of any kind or nature which arise out of or
are related to any such representations or warranties by Purchaser to its customers.
The pass-through Limited Warranty does not apply if the returned Product has been damaged by negligence by persons other
than tekmar, accident, fire, Act of God, abuse or misuse; or has been damaged by modifications, alterations or attachments
made subsequent to purchase which have not been authorized by tekmar; or if the Product was not installed in compliance
with tekmar’s instructions and / or the local codes and ordinances; or if due to defective installation of the Product; or if the
Product was not used in compliance with tekmar’s instructions.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, WHICH THE GOVERNING LAW
ALLOWS PARTIES TO CONTRACTUALLY EXCLUDE, INCLUDING, WITHOUT LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, DURABILITY OR DESCRIPTION OF THE PRODUCT,
ITS NON-INFRINGEMENT OF ANY RELEVANT PATENTS OR TRADEMARKS, AND ITS COMPLIANCE WITH OR NON-
VIOLATION OF ANY APPLICABLE ENVIRONMENTAL, HEALTH OR SAFETY LEGISLATION; THE TERM OF ANY OTHER
WARRANTY NOT HEREBY CONTRACTUALLY EXCLUDED IS LIMITED SUCH THAT IT SHALL NOT EXTEND BEYOND
TWENTY-FOUR (24) MONTHS FROM THE PRODUCTION DATE, TO THE EXTENT THAT SUCH LIMITATION IS ALLOWED
BY THE GOVERNING LAW.
Product Warranty Return Procedure All Products that are believed to have defects in workmanship or materials must be
returned, together with a written description of the defect, to the tekmar Representative assigned to the territory in which such
Product is located. If tekmar receives an inquiry from someone other than a tekmar Representative, including an inquiry from
Purchaser (if not a tekmar Representative) or Purchaser’s customers, regarding a potential warranty claim, tekmar’s sole obli-
gation shall be to provide the address and other contact information regarding the appropriate Representative.
Relay 003 (24 V (ac) coil)
Literature D003, C003
Packaged weight 0.4 lb (180 g)
Dimensions 3” H x 1-9/16” W x 2-3/8” D (75 x 40 x 60 mm)
Approvals CSA C US
Power supply (coil) 24 V (ac) +10%, -20%, 50 Hz 2.7 VA, 60 HZ 2.3 VA
Relay contacts (max.)
10 A resistive @ 250 V (ac) N.O., N.C.
10 A resistive @ 30 V (dc) N.O., N.C.
7 A inductive @ 250 V (ac)
Relay contacts (min.) 10 mA 1 V (dc)
Ambient conditions Indoor use only, -40 to 140°F (-40 to 60°C), RH < 85% Non-
condensing
Specifications & Warranty
