Troubleshooting the Wiring
The following tests are to be performed using standard
testing practices and procedures and should only be carried
out by properly trained and experienced persons.
A good quality electrical test meter, capable of reading
from at least 0-300V(ac), 0-2,000,000 Ohms, and testing
for continuity is essential to properly test the wiring and
sensors.
General
Testing the Wiring

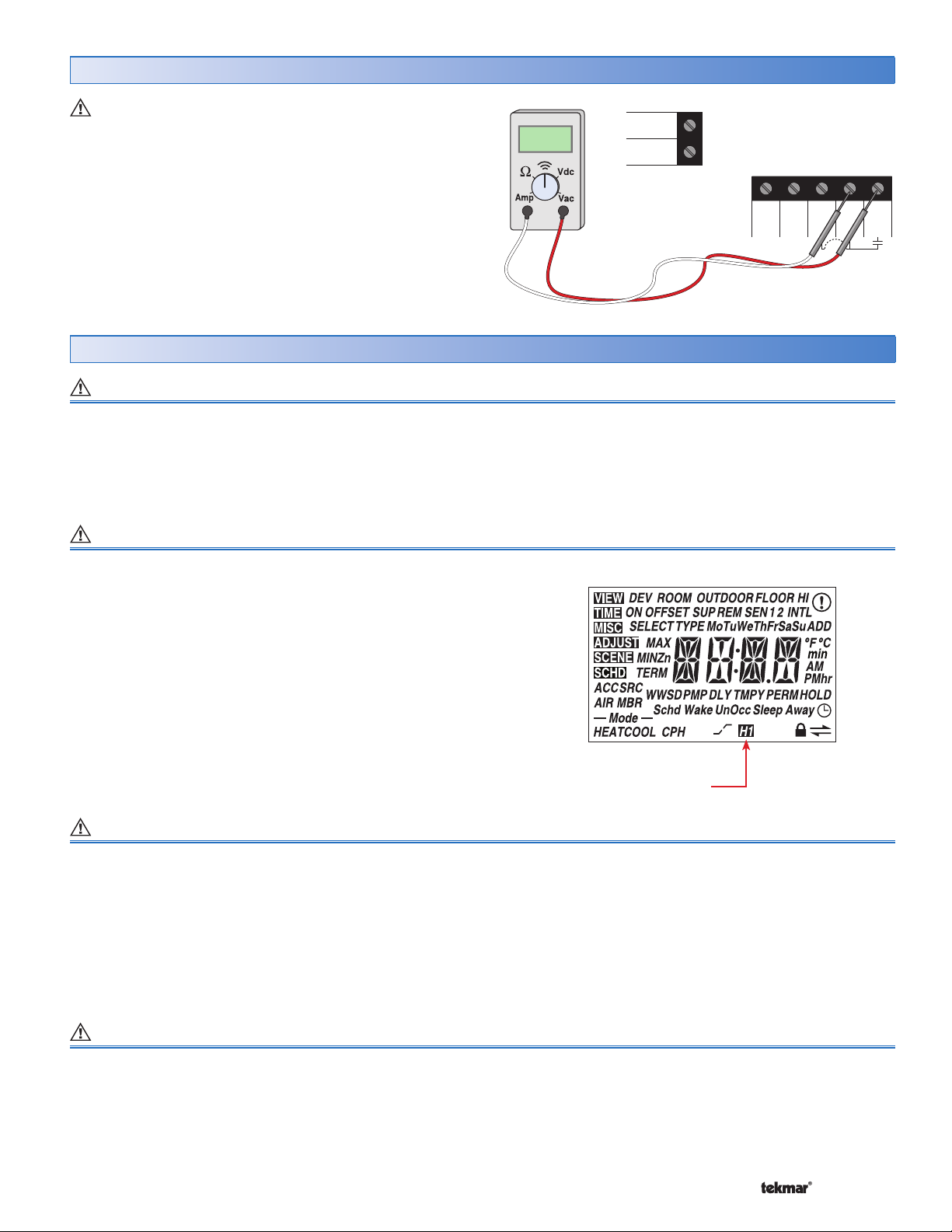

Testing 24V(ac) Power Supply

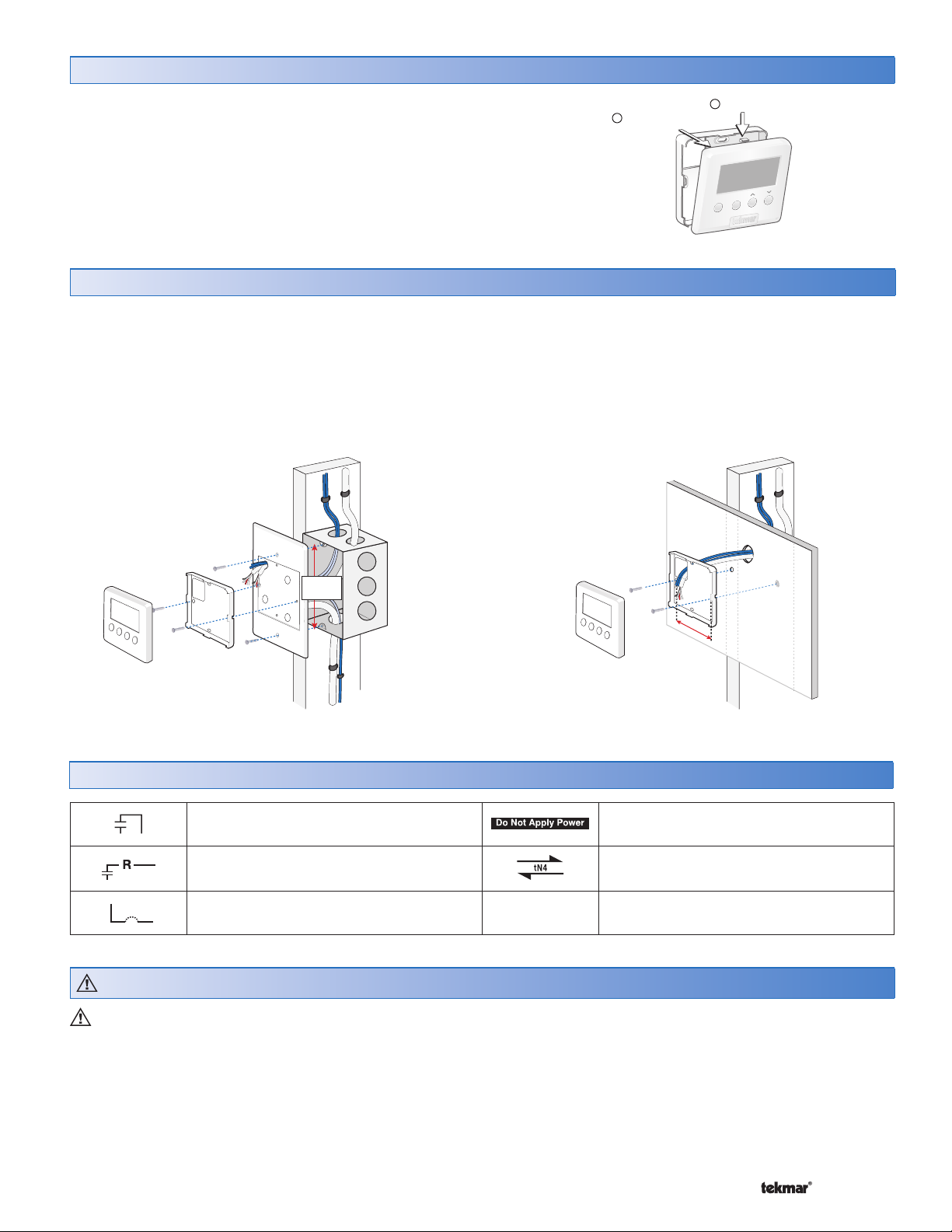

1. Remove the front cover from the thermostat.
2. Use an electrical test meter to measure (ac) voltage between the R and C terminals. The reading should be 24V(ac)
+/– 10%.
3. Install the front cover.
1. Remove the front cover from the thermostat.
2. Disconnect the wires from the relay that is to be
tested.
3. Use an electrical test meter and check for continuity
across the relay.
• When the relay’s symbol is displayed in the LCD,
there should be continuity.
• When the relay’s symbol is not displayed in the
LCD, there should be no continuity.
4. Reconnect the wires to the relay.
5. Install the front cover on the thermostat.
541 LCD Display Segments
Heat 1
Testing the Relays
To test the sensor, the actual temperature at the sensor
location must be measured.
Use a good quality digital thermometer with a surface
temperature probe for ease of use and accuracy. Where
a digital thermometer is not available, place a spare
sensor alongside the one to be tested and compare
the readings.
Testing the Sensor
1. Remove the front cover from the thermostat.
2. Disconnect the wires from the sensor that is to be
tested.
3. Test the sensor’s resistance according to the instructions
in the sensor Data Brochure D070, D074 or D079.
4. Reconnect the wires.
5. Install the front cover on the thermostat.

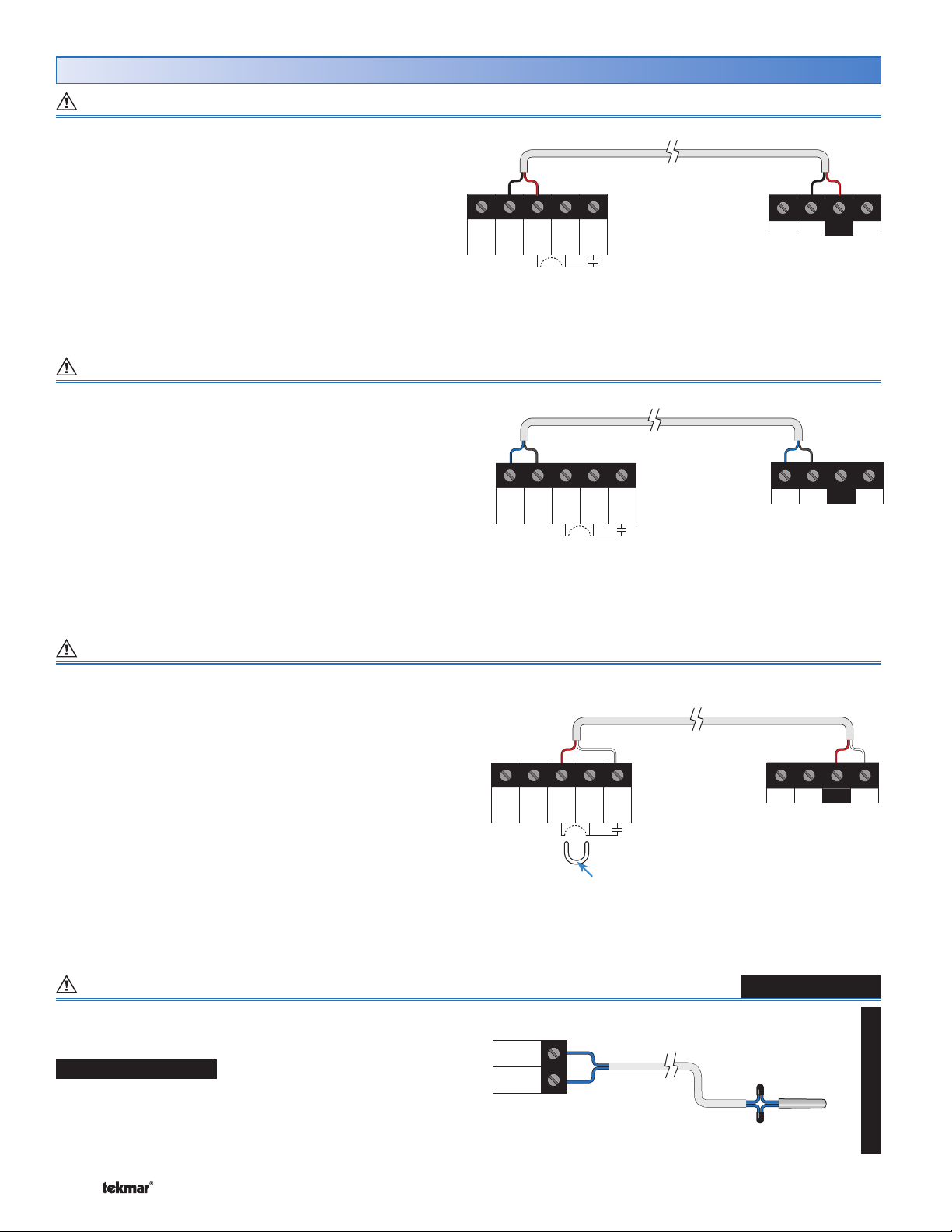

To test the tN4 Network, check the wires for continuity.
1. Remove the front cover from the thermostat.
2. Disconnect the two wires (tN4 and C) at one end and
connect them together.
Testing the tN4 Network
3. Go to the other end of the wires and disconnect them.
4. Using an electrical test meter, check for continuity.
5. Reconnect the wires.
6. Install the front cover on the thermostat.

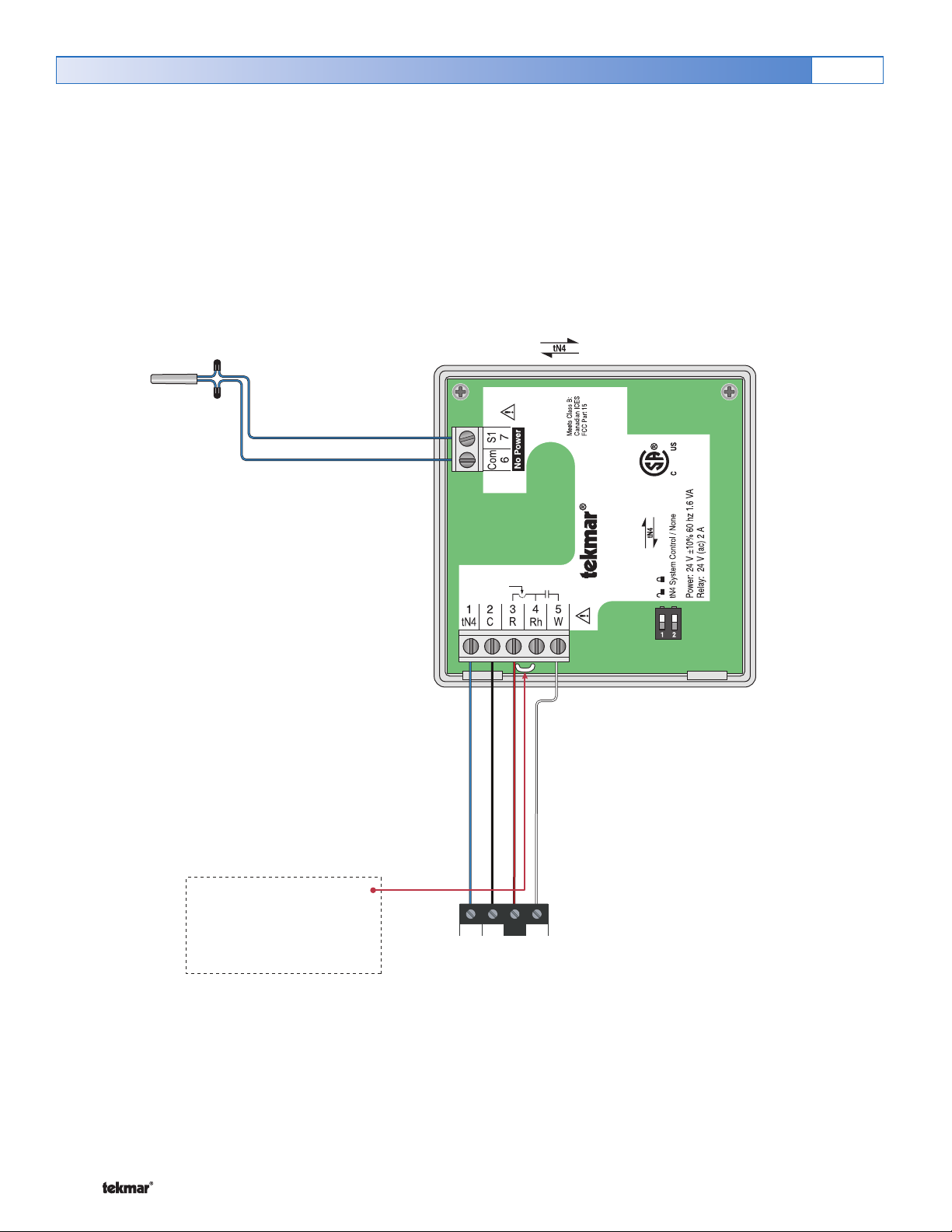

tN4 C R Rh W
12345
7S1
6Com
###
