Teknion XM Series Operating and maintenance instructions

Teknion
xm
installation
guides
october, 2006

Enclosed you will find a listing of new and updated xm Installation Guide information. Not all installation
guides in each section have been updated. Please replace only the guides included in this update.
There is one (1) section that requires updating – Desking.
Please follow these instructions to ensure that your installation guides are updated correctly.
I) Installation Guide Replacement Pages
These pages are identified by a Product Update icon located on the right hand side of the installation guide number
on the table of contents page at the front of each section.
a) Remove the original section (or updated pages, indicated on table of contents), discard and replace with the "updated"
pages provided (these pages will have the new effective date on the bottom – e.g. Effective Date: 2004 May 17)
II) New Installation Guide Pages
These pages are identified by a New Product icon located on the right hand side of the installation guide number
on the table of contents page at the front of every section.
a) insert the new installation guide in the proper numbering sequence as defined in the table of contents.
III) Delisted Products
These products are identified by a Delisted icon located on the table of contents page at the front of each section as
well as the Installation Guide Update Summary page included with each launch package.
a) When a delisted product shares an installation guide with other products that have not been delisted, a Product
Update icon will be used. See Installation Guide Replacement Pages instructions above.
b) When a delisted product affects the entire installation guide, please discard and replace with the "updated" pages
provided.
Please note, all changes to the product offerring are effective October 16, 2006. If you have any questions regarding the information
enclosed, please contact your Teknion Customer Service Representative.
xm installation guide instructions
10.2006
Teknion
D

xm installation guide update summary
10.2006
Teknion
Please be advised that changes have taken place within the xm product offering, therefore, the following
installation guide has been updated to reflect such changes.
desking
628 The Freestanding Arched Desk (XAFA) and the Semi-Supported Arched Desk (XASA) have been delisted and therefore,
removed from this guide.
629 The Semi-Supported Arched Desk (XASA) has been delisted and therefore, removed from this guide.
632 The Semi-Supported Radius Corner Desk (XASC) has been delisted and therefore, removed from this guide.
633 The Corner with Split Surface (XAHS), Rectangular Table (XAHR) and the Tapered Table (XAHT) have been delisted.
Please discard.
D
D
D
D

index
By Section
october, 2006
1installation guides
xm
Product Name Code Guide No.
space division
Divisional Screen – Desk XDDD 621
Divisional Screen – End XDDE 621
Desk Mounting Brackets XDCD 621
End Mounting Brackets XDC1 621
Divisional Screen – Spine XDDS 622
End Gable XDCG 622
Spine Mounting Bracket XDCS 622
Mid Rail XDMR 622
Transfer Screen – Tackable XDT1 623
Transfer Screen – Whiteboard XDT2 623
Transfer Screen – Frost XDT3 623
Service Spine XDS 624
Pedestal Mounting Bracket XDC2 625
desking
Freestanding Desks with C-Leg XAF__C 627
Semi-Supported Desks with C-Leg XAS__C 627
Freestanding Desks with Post Legs XAF__P 628
Semi-Supported Desks with Post Legs XAS__P 628
Semi-Supported Desks w/ Service Spine Bracket XAS_S_ 629
Freestanding Desk with Monopod XAF_M_ 630
Semi-Supported Desk with Monopod XAS_M_ 630
Freestanding Desks with Pedestal XAF_F_ 631
Semi-Supported Desks with Pedestal XAS_F_ 631
Freestanding Guest with 24'' Return XAFG__ 632
Semi-Supported Guest with 24'' Return XASG__ 632
Freestanding Radius Corner XAFC__ 632
Round Meeting Table XAFMR 634
Square Meeting Table XAFMS 634
stacking storage
Single Cabinet XSCS 635
Double Cabinet XSCD 635
Reverse Cabinet XSCR 635
Base XSAB 635
Seat Cushion XSAS 635
Top XSAT 635
Spine Mount XSAM 635
accessories
Table Rail XSTR 636
Shelf XSAA 637
Divider XSAD 638
Product Name Code Guide No.
lighting, electrics & communications
Tolomeo ACTO 423
Divisional Screen Wire Management Tray XEWD 639
Vertical Wire Manager XEWF 639
Remote Power Box XEPB 639
Worksurface Wire Management Clip XEWC 639
Base Feed XEBF 640
Power Communication Box XESB_ 640
Jumper Harness XEI 640
Ceiling Feed XECF 641
European & International Electrics
Divisional Screen
Wire Management Tray – Europe MXEWD 639e
Vertical Wire Manager – Europe MXEWF 639e
Worksurface Wire Management Clip – Europe MXEWC 639e
Remote Power Box – Europe MXEPB 639e
Remote Power Box – International VXEPB 639e
Base Feed – Europe MXEBF 640e
Base Feed – International VXEBF 640e
Interconnecting Power Cable – Europe MXVCC 640e
Interconnecting Power Cable – International XVCC 640e
Power Communication Box – Europe MXESB 640e
Power Communication Box – International VXESB 640e
Ceiling Feed – Europe MXECF 641e
Ceiling Feed – International VXECF 641e
Ceiling Feed Power Cable – Europe MXECP 641e
Ceiling Feed Power Cable – International VXECP 641e

index
By Product Name
october, 2006
2installation guides
xm
Product Name Code Guide No.
b
Base XSAB 635
Base Feed XEBF 640
Base Feed – Europe MXEBF 640e
Base Feed – International VXEBF 640e
c
Ceiling Feed XECF 641
Ceiling Feed – Europe MXECF 641e
Ceiling Feed – International VXECF 641e
Ceiling Feed Power Cable – Europe MXECP 641e
Ceiling Feed Power Cable – International VXECP 641e
d
Desk Mounting Brackets XDCD 621
Divider XSAD 638
Divisional Screen Wire Management Tray XEWD 639
Divisional Screen
Wire Management Tray – Europe MXEWD 639e
Divisional Screen – Desk XDDD 621
Divisional Screen – End XDDE 621
Divisional Screen – Spine XDDS 622
Double Cabinet XSCD 635
e
End Gable XDCG 622
End Mounting Brackets XDC1 621
f
Freestanding Desks with C-Leg XAF__C 627
Freestanding Desk with Monopod XAF_M_ 630
Freestanding Desks with Pedestal XAF_F_ 631
Freestanding Desks with Post Legs XAF__P 628
Freestanding Guest with 24'' Return XAFG__ 632
Freestanding Radius Corner XAFC__ 632
i
Interconnecting Power Cable – Europe MXVCC 640e
Interconnecting Power Cable – International XVCC 640e
j
Jumper Harness XEI 640
m
Mid Rail XDMR 622
p
Pedestal Mounting Bracket XDC2 625
Power Communication Box XESB_ 640
Power Communication Box – Europe MXESB 640e
Power Communication Box – International VXESB 640e
Product Name Product Code Guide No.
r
Rectangular Table XAHR 633
Remote Power Box XEPB 639
Remote Power Box – Europe MXEPB 639e
Remote Power Box – International VXEPB 639e
Reverse Cabinet XSCR 635
Round Meeting Table XAFMR 634
s
Seat Cushion XSAS 635
Semi-Supported Desks w/ Service Spine Bracket XAS_S_ 629
Semi-Supported Desks with C-Leg XAS__C 627
Semi-Supported Desk with Monopod XAS_M_ 630
Semi-Supported Desks with Pedestal XAS_F_ 631
Semi-Supported Desks with Post Legs XAS__P 628
Semi-Supported Guest with 24'' Return XASG__ 632
Service Spine XDS 624
Shelf XSAA 637
Spine Mount XSAM 635
Spine Mounting Bracket XDCS 622
Square Meeting Table XAFMS 634
t
Table Rail XSTR 636
Tolomeo ACTO 423
Top XSAT 635
Transfer Screen – Frost XDT3 623
Transfer Screen – Tackable XDT1 623
Transfer Screen – Whiteboard XDT2 623
v
Vertical Wire Manager XEWF 639
Vertical Wire Manager – Europe MXEWF 639e
w
Worksurface Wire Management Clip XEWC 639
Worksurface Wire Management Clip – Europe MXEWC 639e

index
By Code
october, 2006
3installation guides
xm
Code Product Name Guide No.
a
ACTO Tolomeo 423
m
MXVCC Interconnecting Power Cable – Europe 640e
MXEBF Base Feed – Europe 640e
MXECF Ceiling Feed – Europe 641e
MXECP Ceiling Feed Power Cable – Europe 641e
MXEPB Remote Power Box – Europe 639e
MXESB Power Communication Box – Europe 640e
MXEWC Worksurface Wire 639e
Management Clip – Europe
MXEWD Divisional Screen 639e
Wire Management Tray – Europe
MXEWF Vertical Wire Manager – Europe 639e
v
VXEBF Base Feed – International 640e
VXECF Ceiling Feed – International 641e
VXECP Ceiling Feed Power Cable – International 641e
VXEPB Remote Power Box – International 639e
VXESB Power Communication Box – International 640e
x
XAF__C Freestanding Desks with C-Leg 627
XAF__P Freestanding Desks with Post Legs 628
XAF_F_ Freestanding Desks with Pedestal 631
XAF_M_ Freestanding Desk with Monopod 630
XAFC__ Freestanding Radius Corner 632
XAFG__ Freestanding Guest with 24'' Return 632
XAFMR Round Meeting Table 634
XAFMS Square Meeting Table 634
XAS__C Semi-Supported Desks with C-Leg 627
XAS__P Semi-Supported Desks with Post Legs 628
XAS_F_ Semi-Supported Desks with Pedestal 631
XAS_M_ Semi-Supported Desk with Monopod 630
XAS_S_ Semi-Supported Desks w/ 629
Service Spine Bracket
XASG__ Semi-Supported Guest with 24'' Return 632
XDC1 End Mounting Brackets 621
XDC2 Pedestal Mounting Bracket 625
XDCD Desk Mounting Brackets 621
XDCG End Gable 622
XDCS Spine Mounting Bracket 622
XDDD Divisional Screen – Desk 621
XDDE Divisional Screen – End 621
Code Product Name Guide No.
x cont.
XDDS Divisional Screen – Spine 622
XDMR Mid Rail 622
XDS Service Spine 624
XDT1 Transfer Screen – Tackable 623
XDT2 Transfer Screen – Whiteboard 623
XDT3 Transfer Screen – Frost 623
XEBF Base Feed 640
XECF Ceiling Feed 641
XEI Jumper Harness 640
XEPB Remote Power Box 639
XESB_ Power Communication Box 640
XEWC Worksurface Wire Management Clip 639
XEWD Divisional Screen Wire Management Tray 639
XEWF Vertical Wire Manager 639
XSAA Shelf 637
XSAB Base 635
XSAD Divider 638
XSAM Spine Mount 635
XSAS Seat Cushion 635
XSAT Top 635
XSCD Double Cabinet 635
XSCR Reverse Cabinet 635
XSCS Single Cabinet 635
XSTR Table Rail 636
XVCC Interconnecting Power Cable – International 640e

gathering tables 4.1
work tables 2.1
Teknio
n
installation guidesxm
Desking
Product Code Product Name Guide No. Issue Date
Index Issue Date: 2006 October 16
XAF__C Freestanding Desks with C-Leg 627 2001 Nov 19
XAS__C Semi-Supported Desks with C-Leg
XAF__P Freestanding Desks with Post Legs 628 2006 Oct 16
XAS__P Semi-Supported Desks with Post Legs
XAS_S_ Semi-Supported Desks with Service Spine Bracket 629 2006 Oct 16
XAF_M_ Freestanding Desk with Monopod 630 2001 Nov 19
XAS_M_ Semi-Supported Desk with Monopod
XAF_F_ Freestanding Desks with Pedestal 631 2001 Nov 19
XAS_F_ Semi-Supported Desks with Pedestal
XAFG__ Freestanding Guest with 24'' Return 632 2006 Oct 16
XASG__ Semi-Supported Guest with 24'' Return
XAFC__ Freestanding Radius Corner
XAFMR Round Meeting Table 634 2001 Nov 19
XAFMS Square Meeting Table
The following products have been de-listed
effective October 16, 2006:
XAFA Freestanding Arched Desk 628
XASA Semi-Supported Arched Desk 628
XASA Semi-Supported Arched Desk 629
XASC Semi-Supported Radius Corner Desk 632
D

xm Installation Guides
Section – Desking

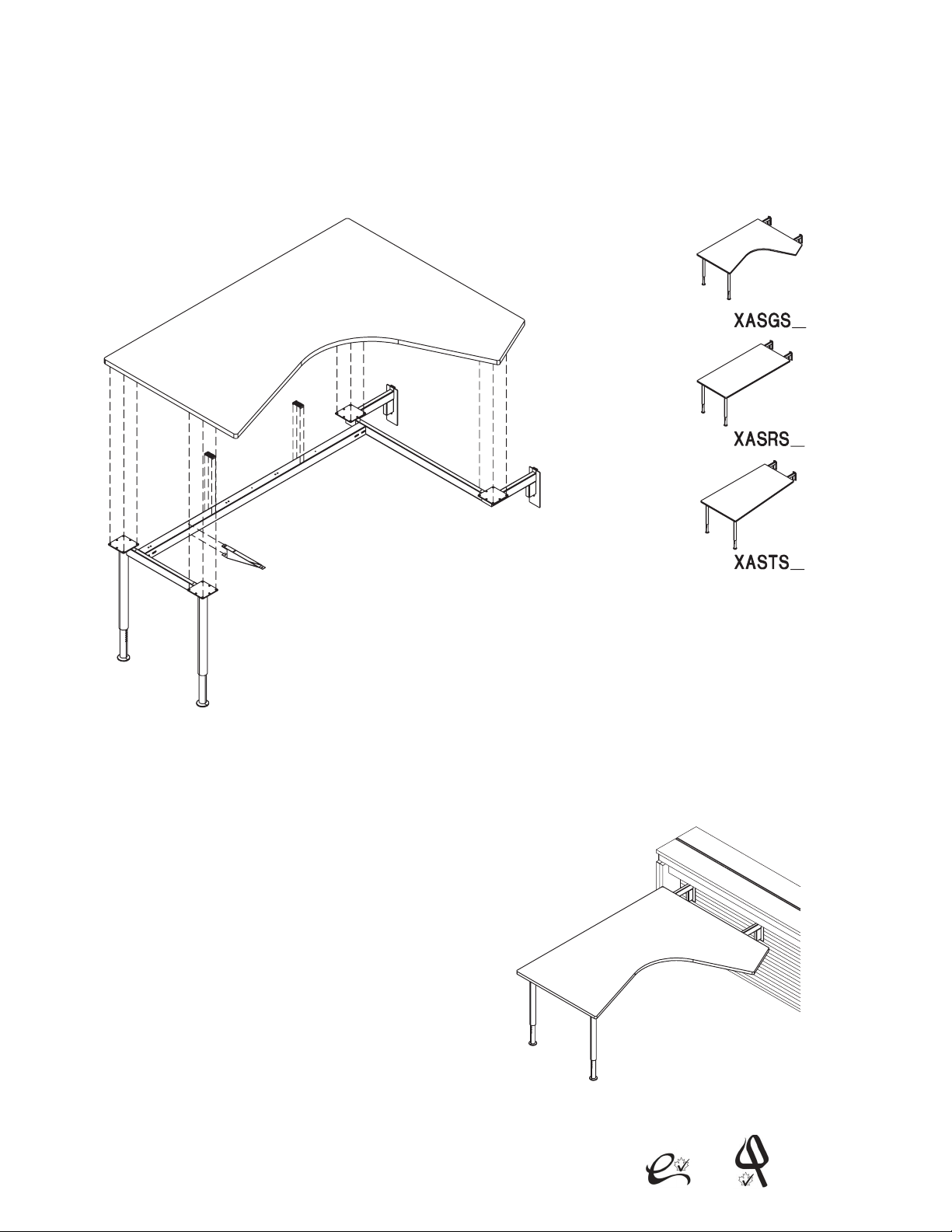

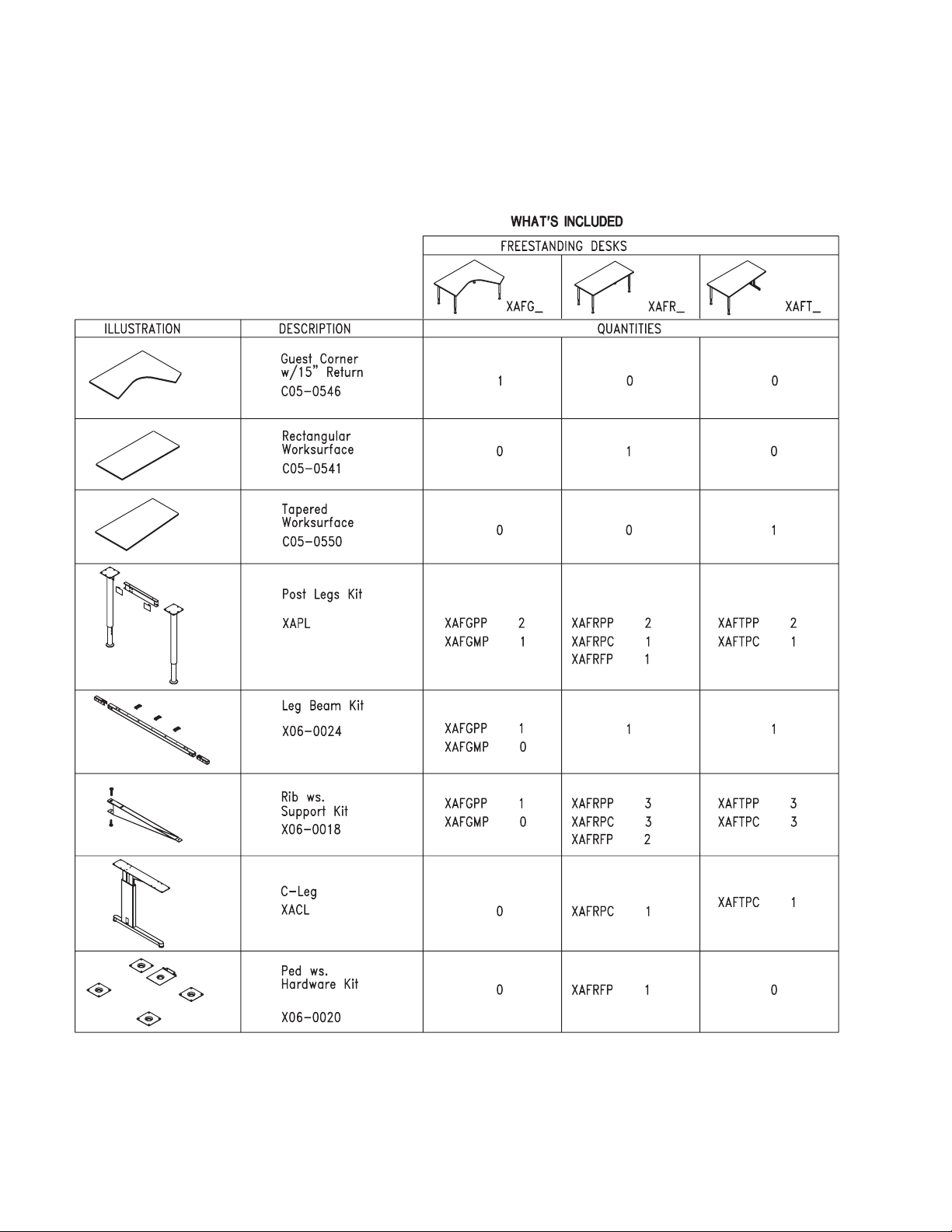

Freestanding Desks with Post Legs
Semi-Supported Desks with Post Legs
No. 628
XAF__P
XAS__P
For additional information on this installation contact Teknion Technical Support.
Issue Date: 2006 Oct 16 Page 1 of 8

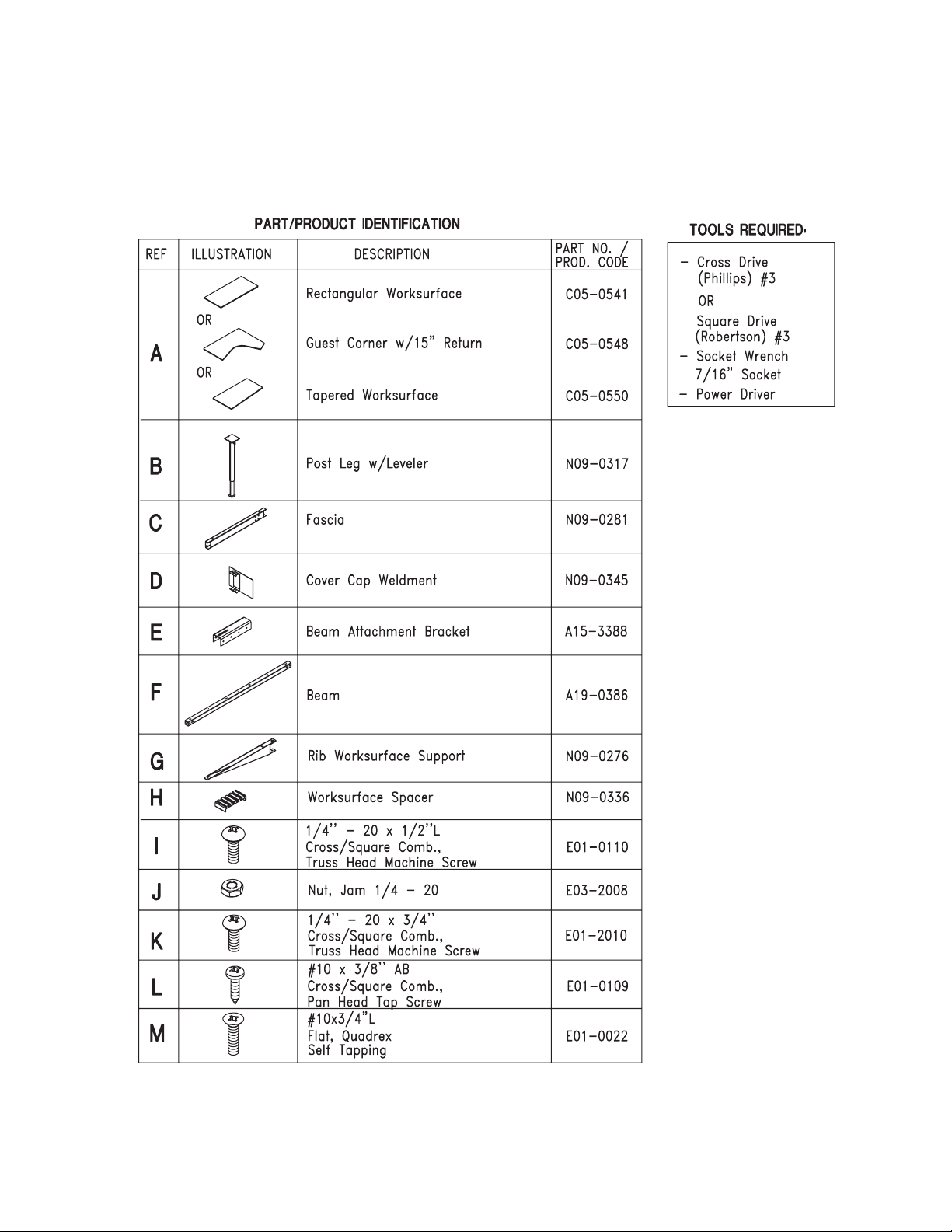

Reference Installation Guides:
No. 627 xm "DC-Leg (XAF__C/XAS__C)"
No. 629 xm "Desk with Service Spine Bracket (XAS_S)"
No. 630 xm "Monopod (XAF_M_/XAS_M_)
No. 631 xm "Pedestal (XAF_F_/XAS_F_)
EMS (ISO 14001) QMS (ISO 9001)

Issue Date: 2006 Oct 16 Page 2 of 8
xm Installation Guides
Section – Desking No. 628

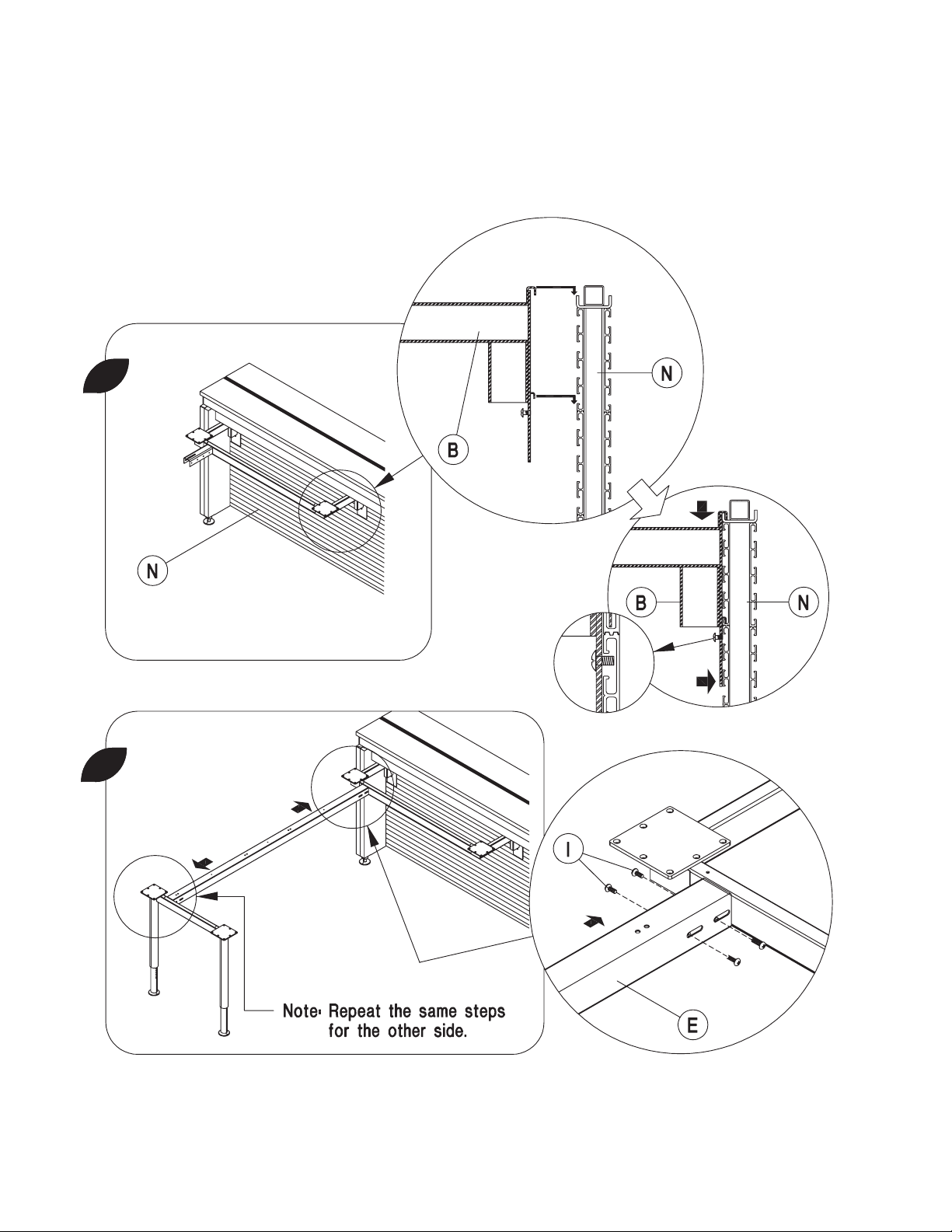

Issue Date: 2006 Oct 16 Page 3 of 8
xm Installation Guides
Section – Desking No. 628
1
2 2
2 3

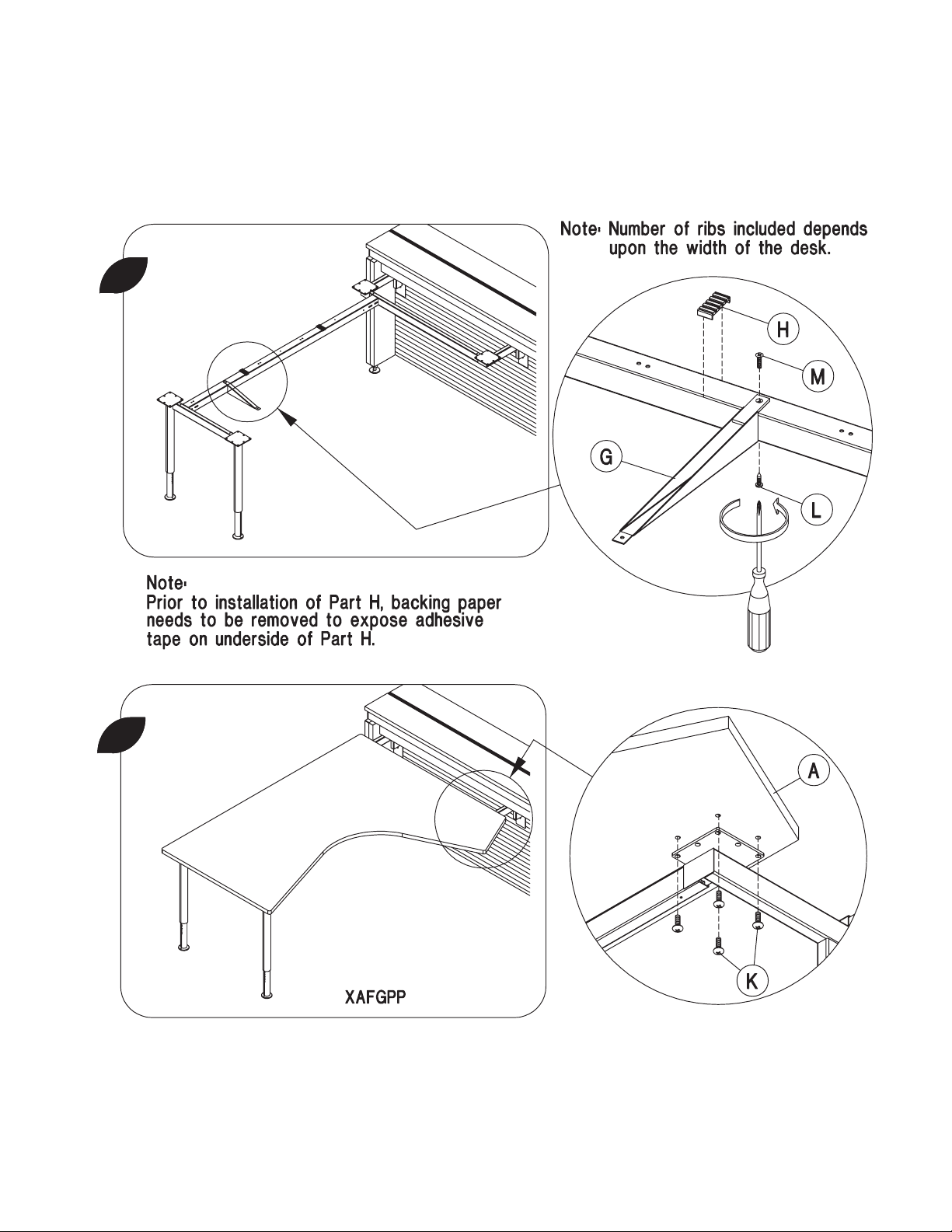

Issue Date: 2006 Oct 16 Page 4 of 8
xm Installation Guides
Section – Desking No. 628
2 1
2 2
2 3

Issue Date: 2006 Oct 16 Page 5 of 8
xm Installation Guides
Section – Desking No. 628
2 4
2 5

Issue Date: 2006 Oct 16 Page 6 of 8
xm Installation Guides
Section – Desking No. 628

Issue Date: 2006 Oct 16 Page 7 of 8
xm Installation Guides
Section – Desking No. 628

(628-G01-08)
Issue Date: 2006 Oct 16 Page 8 of 8
xm Installation Guides
Section – Desking
No. 628

xm Installation Guides
Section – Desking
Semi-Supported Desks with Service Spine Bracket
No. 629
XAS_S_
For additional information on this installation contact Teknion Technical Support.
Issue Date: 2006 Oct 16 Page 1 of 7
Reference Installation Guides:
No. 627 xm "DC-Leg (XAF__C/XAS__C)"
No. 628 xm "Post Legs (XAF__P/XAS__P)"
No. 630 xm "Monopod (XAF_M_/XAS_M_)
No. 631 xm "Pedestal (XAF_F_/XAS_F_)
EMS (ISO 14001) QMS (ISO 9001)

Issue Date: 2006 Oct 16 Page 2 of 7
xm Installation Guides
Section – Desking No. 629

Issue Date: 2006 Oct 16 Page 3 of 7
xm Installation Guides
Section – Desking No. 629
21
22

Issue Date: 2006 Oct 16 Page 4 of 7
xm Installation Guides
Section – Desking No. 629
2 3
2 4

Issue Date: 2006 Oct 16 Page 5 of 7
xm Installation Guides
Section – Desking No. 629
2 5
2 6
