bintec elmeg elmeg IP140 – More than just a telephone
elmeg IP140 – More than just a telephone
Your elmeg IP140is an IP phone designed for professional use.
uEasy to set up
Use automatic configuration together with a phone system of the elmeg hybird product
family.
uWeb user interfaces for telephony and configuration
Operate and configure your telephone from your PC with ease.
uHigh Definition Sound Performance – HDSP
Make phone calls with brilliant sound quality.
uPhone functions for the professional user
Use the call divert, conference call, call reject and Do Not Disturb (DND) functions.
uMultiple directories
Manage your personal directory with up to 500 vCards (caller pictures are possible) or use an
corporate directory (LDAP).
uNetwork connection
Connect your telephone to the local network via Ethernet. Connect a PC using your tele-
phone as a gigabit Ethernet switch.
uWireless connection to the local network (WLAN)
Use your telephone in a wireless network.
uNumerous options for mobile communication
Use DECT, Bluetooth or cable to connect a headset. You can connect a handset via DECT or
Bluetooth and a mobile phone via DECT.
uProtect the environment
Reduce environmental pollution with the power-saving power adapter and by automatically
deactivating the DECT function. Reduce radiation with Eco Mode+ for DECT.
uIndividual settings
Load your own pictures and ringers, subscribe to Internet services and choose how you want
the display to look.
Assign functions or frequently used numbers to the keys.
uMobile Office
Do you change workstations? Ensure your PC and phone settings are available wherever you
work.
uVirtually unlimited storage
Connect a USB storage device to save more pictures, ringers and vCards.
Further information about your phone can be found at
www.bintec-elmeg.com

elmeg IP140 / en / elmeg140_v1 / overview.fm / 09.04.2014
Version 2, 27.05.2010
4elmeg IP140
bintec elmeg Phone overview
Phone overview
1Mute key Activate/deactivate microphone (mute) £Page 37
2Speaker key Activate/deactivate speaker £Page 37
3Headset key Make call via headset £Page 35
4Volume key Depending on the operating mode: Adjust the volume of the
speaker, receiver, headset or ringer £Page 36
5Display keys Control of display functions £Page 23
6Information Centre Open the Information Centre £Page 65
7Do Not Disturb key Do Not Disturb (DND) function £Page 37
8Call records key Record a call £Page 38
9Message Centre Open call and message lists £Page 59
10 End call/back key End/reject call; cancel function;
go back one menu level (press briefly);
return to idle status (press and hold)
£Page 27
£Page 25
11 Navigation key Scroll through lists and entries. In idle status: £Page 25
È
Open redial list. £Page 44
‰
Confirm or start action, select entry £Page 25
Z
Open directory £Page 48
12 Consultation key Initiate/end consultation call £Page 40
13 Conference key Initiate conference call £Page 41
14 Transfer key Transfer call to another party £Page 42
15 Function keys Programmable keys £Page 140
Understanding the keys
21 3 4 5
6 7 8 9 10 11 12 13 14 15

elmeg IP140 / en / elmeg140_v1 / overview.fm / 09.04.2014
Version 2, 27.05.2010
5elmeg IP140
bintec elmegPhone overview
Understanding Light Emitting Diodes (LEDs)
Understanding the display
Understanding the display symbols
A
Flashes Incoming call. £Page 35
Lights up Call is being made via the speaker. £Page 37
B
Flashes Incoming call (a headset must be connected). £Page 35
Lights up Call is being made via the headset. £Page 35
C
Lights up The microphone is muted. £Page 37
E
Flashes New message in the Message Centre. £Page 59
F
Lights up Call is being recorded. £Page 38
G
Lights up "Do Not Disturb" function is activated. £Page 37
J
Lights up One or more callers on hold. £Page 40
K
Lights up Conference call is activated. £Page 41
S
Flashes Incoming call on the number programmed to this key. £Page 34
Lights up Call is being made on the number programmed to this key.
«
ÐiÑÒ Signal strength of the WLAN connection (device connected via WLAN). £Page 85
Ý
USB storage device is connected. The icon flashes when data is being transferred. £Page 101
¼
DECT function is activated. A green icon indicates that Eco Mode+ is also activated. £Page 92
¼ô
Headset connected via DECT.
¼l
Mobile phone connected via DECT. £Page 88
ò
Bluetooth function (BT) activated. £Page 89
òô
Headset connected via BT.
òl
Mobile phone connected via BT. £Page 88
ó
Ringer deactivated. £Page 68
Ã
New messages on the network mailbox. The number
is displayed to the
right.
£Page 54
™
Missed calls. £Page 44
Ë
New e-mails. £Page 56
·
Alarm clock function activated. The wake-up time is displayed to the right. £Page 62
Other icons may appear depending on the function. These are displayed alongside the corresponding
description.
Call Select Line
Current time
Area of application
Adjustable display, e.g.,
time zone, time, calendar,
picture £Page 71
Display functions
(Page 23)
T
T
T
Display icons
T
Display icons
Date and Time
U
U
You set the time and date
format using the Web
configurator
£Page 145.
Currently used
account £Page 32
U
Call Select Line

elmeg IP140 / en / elmeg140_v1 / IVZ.fm / 09.04.2014
Version 2, 27.05.2010
6elmeg IP140
bintec elmeg Contents
Contents
elmeg IP140 – More than just a telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Phone overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Understanding the keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Understanding Light Emitting Diodes (LEDs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Understanding the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Following safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using the phone in different scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Check the package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting up and connecting the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting up the device (for the first time) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Proceeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Using the phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Operating via the keypad and display menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Menu tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Operating via the PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Receiving incoming calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Ending a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Using functions when making a telephone call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Making a call to multiple participants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Setting up call divert (CD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Using the call lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Viewing entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Dialling a number from a list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Copying an entry from the call list to the directory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Deleting an entry or list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Using directories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Using the local directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Using your local directory on a USB stick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Using an LDAP directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Managing messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Managing voice mails on the network mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Call records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Managing e-mail messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Accessing messages via the Message Centre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

elmeg IP140 / en / elmeg140_v1 / IVZ.fm / 09.04.2014
Version 2, 27.05.2010
7elmeg IP140
bintec elmegContents
Managing the calendar and alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Managing the calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Displaying alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Displaying missed alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Alarm clock function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Using Internet services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Listening to Internet radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Displaying Internet services in the Information Centre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Configuring basic settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Setting the ringer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Activating/deactivating advisory tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Setting the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Setting the language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Resetting the device to the default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Configuring settings for the local network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
LAN settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Configuring WLAN settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Connecting a mobile phone or headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Connecting a headset via RJ9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Connecting a mobile phone or headset via Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Connecting a mobile phone or headset via DECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Using the resource directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Managing screensavers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Managing caller pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Managing sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Checking the capacity of the Resource Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Using a USB connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Connecting a USB device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Using a USB storage device to expand the memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Using a USB stick for Mobile Office . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Web configurator – configuring the phone on a PC . . . . . . . . . . . . . . . . . . . . . . . . . 102
Starting the Web configurator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Understanding the Web configurator menu tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Configuring phone settings via the Web configurator . . . . . . . . . . . . . . . . . . . . . . . 105
Network and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Telephony . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Function keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
System settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Checking the status of the phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

elmeg IP140 / en / elmeg140_v1 / IVZ.fm / 09.04.2014
Version 2, 27.05.2010
8elmeg IP140
bintec elmeg Contents
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Caring for your telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Contact with liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Using insert strips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Service (Customer Care) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Questions and answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Authorisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Using free software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

elmeg IP140 / en / elmeg140_v1 / security.fm / 09.04.2014
Version 2, 27.05.2010
9elmeg IP140
bintec elmeg Following safety precautions
Following safety precautions
Warning
Be sure to read this user guide and the safety precautions before using your telephone.
Use only the power adapter supplied, as indicated on the underside of the tele-
phone.
Using your telephone may affect nearby medical equipment. Be aware of the tech-
nical conditions in your particular environment, e.g., doctor's surgery.
Do not install the phone in a bathroom or shower room. The phone is not splash-
proof.
Do not use your phone in environments where there is a risk of explosion,
e.g., auto paint shops.
If you give your phone to a third party, make sure you also give them the user guide.
Remove faulty telephones from use or have them repaired by our Service team, as
they could interfere with other wireless services.
$
ƒ

elmeg IP140 / en / elmeg140_v1 / starting.fm / 09.04.2014
Version 2, 27.05.2010
10elmeg IP140
bintec elmeg Using the phone in different scenarios
Using the phone in different scenarios
Using your phone in a professional environment with phone system and server
structure
If you use your elmeg IP140 in a corporate network with a telephone infrastructure, your phone
incorporates functions and data from the phone system and servers.
In a corporate environment, the VoIP accounts and most of the settings are configured centrally
by the phone system.
§§1§§ bintec elmeg IP telephone
§§2§§ bintec elmeg IP telephone with integrated gigabit switch (e.g. elmeg IP140).
Your PC is connected directly to the phone, providing you with an additional LAN connection
in your network.
§§3§§ DECT base for connection to DECT handsets
§§4§§ Ethernet switch
Supports Quality of Service (QoS), Gigabit Ethernet and PoE (Power over Ethernet).
§§5§§ Phone system (e.g. elmeg hybird 300 oder 600)
Forms Internet telephony, ISDN or S2M connections. Analogue devices can be connected. A
network connection is established using Ethernet.
§§6§§ Acts as a gateway to the Internet for the connected devices. Routes VoIP calls from the phone
system to the Internet.
DSL connection
1
2
3
45
6
7
ISDN, S2M

elmeg IP140 / en / elmeg140_v1 / starting.fm / 09.04.2014
Version 2, 27.05.2010
11 elmeg IP140
bintec elmegUsing the phone in different scenarios
§§7§§ File, e-mail and workgroup servers, or NAS systems, can be wirelessly integrated into the
phone system architecture. As a result:
– Invitations to conference calls can be organised via the phone system
– The phone system can be backed up to a server or the system can be started via the net-
work
– Online directories (LDAP) can be managed centrally
Using your phone in a simplified environment without a phone system
You can also use your elmeg IP140 without a phone system.
§§1§§ bintec elmeg IP telephone with integrated gigabit switch (elmeg IP140).
Your PC is connected directly to the phone, providing you with an additional LAN connection
in your network.
§§2§§ Acts as a gateway to the Internet for the connected devices. Routes VoIP calls from the phone
to the Internet. You establish the connection to the gateway via cable or wirelessly via WLAN.
§§3§§ The SIP provider transfers calls from the Internet and establishes a connection with the
standard telephone network.
In this scenario, you must manually configure the VoIP accounts for your phone. You can create
up to 12 VoIP accounts on your phone.
Internet
Connection
ISDN,
S2M
SIP provider
1
3
2

elmeg IP140 / en / elmeg140_v1 / starting.fm / 09.04.2014
Version 2, 27.05.2010
12elmeg IP140
bintec elmeg First steps
First steps
Check the package contents
Telephone: elmeg IP140
Receiver with cable for connection to the phone
Ethernet cable for connection to the local network
(switch/router/gateway)
Power adapter for connecting the phone to the
mains power supply (if required)
with three different plug-in modules
(Europe, Great Britain, USA)
The device is powered by PoE (Power over Ether-
net) if it is connected to a switch with PoE-func-
tionality (£Page 16).
CD containing this user guide
Insert strips for labelling
the function keys (with protective film)

elmeg IP140 / en / elmeg140_v1 / starting.fm / 09.04.2014
Version 2, 27.05.2010
13 elmeg IP140
bintec elmegFirst steps
Setting up and connecting the device
The phone is designed for use in dry rooms in a temperature range of ±0°C to +45°C.
¤Set up the phone at a central point where a connection to the local network is available.
Firmware update
Whenever there are new or improved functions for your bintec elmeg, firmware updates are
made available for you to download to your phone (Page 150). If this results in operational
changes to your phone, a new version of this user guide or the necessary amendments are
published on the Internet at www.bintec-elmeg.com.
Select the product to open the relevant product page for your telephone, where you will find
a link to the user guide.
To find out what version of firmware is currently loaded on your phone, see Page 152.
Please note
The following conditions must be observed:
uIf you want to establish a wireless connection using DECT, pay attention to the range of the
base station. This is up to 300 m in unobstructed outdoor areas and up to 50 m inside build-
ings.
uIf you wish to establish a connection with the local network using WLAN, please ensure that
the device is within range of the access point.
Warning
uNever expose the elmeg IP140 to the following:
heat sources, direct sunlight or other electrical appliances.
uProtect your bintec elmeg from moisture, dust, corrosive liquids and fumes.

elmeg IP140 / en / elmeg140_v1 / starting.fm / 09.04.2014
Version 2, 27.05.2010
14elmeg IP140
bintec elmeg First steps
Connecting the receiver
§§1§§ Insert the connector, which can be found on the longer straight end of the connection cable,
into the connection port on the bottom of the phone.
§§2§§ Place the straight part of the cable in the cable recess provided.
3Insert the other jack on the connection cable into the port on the receiver.
1
2
3

elmeg IP140 / en / elmeg140_v1 / starting.fm / 09.04.2014
Version 2, 27.05.2010
15 elmeg IP140
bintec elmegFirst steps
Connecting the network cable
To make calls via VoIP, your phone must have Internet access. This connection is established in
the local network via a gateway.
You connect your phone to the same local network as the gateway. See the Using the phone
in different scenarios section on Page 10 for an overview of the different options.
§§1§§ Attach one end of the Ethernet cable supplied to the right-hand LAN port on the
rear of the phone.
§§2§§ Attach the other end of the Ethernet cable to a LAN port on your network Ethernet
switch or on the router itself.
An Ethernet cable is not required if you connect your phone to the local network using WLAN.
However, we recommend that you use a cable the first time you establish a connection.
Warning
If you connect your elmeg IP140 to a PoE-capable Ethernet switch (PoE class IEEE802.3af), it will
be supplied with power via PoE (Power over Ethernet). The PoE network must not exceed the
premises boundaries.
21

elmeg IP140 / en / elmeg140_v1 / starting.fm / 09.04.2014
Version 2, 27.05.2010
16elmeg IP140
bintec elmeg First steps
Connecting the PC
You must connect your elmeg IP140 to a PC to use the Web user interface or to configure the
phone using the Web configurator.
Your phone has an integrated two-port switch. This allows you to connect your PC to the local
network via the phone and avoid using additional connection ports on the switch or router.
You need an additional Ethernet cable to connect a PC.
§§1§§ Connect an Ethernet cable to the left-hand LAN port on the rear of the phone.
§§2§§ Connect the other end of the Ethernet cable to a LAN port on the PC.
Connecting a device to the mains power supply (if required)
Your elmeg IP140 is supplied with sufficient power by PoE (Power over Ethernet) and does not
need to be connected to the mains power supply. Prerequisite: The device is connected to an
Ethernet switch with PoE functionality (PoE class IEEE802.3af) (£Page 15).
However, in the following cases you must connect the device to the mains power supply:
uIf you connect the device to the local network using WLAN
uIf you connect additional extension modules to the device (£Page 18).
The power adapter is supplied with three different plug-in modules for Europe, Great Britain
and the USA. First attach the appropriate plug-in module to the power supply unit.
2
1

elmeg IP140 / en / elmeg140_v1 / starting.fm / 09.04.2014
Version 2, 27.05.2010
17 elmeg IP140
bintec elmegFirst steps
§§1§§ Slide the required plug-in module into the recess on the underside of the power supply unit
until it clicks into place.
§§2§§ To remove the plug-in module again, press on the button marked Push and pull the plug-in
module out of the power supply unit.
§§1§§ Connect the power adapter to the port on the rear of the phone.
§§2§§ Then insert the plug into the mains socket.
Warning
Use only the power adapter supplied.
Please note
You can safeguard your device against theft by fitting a Kensington lock. The corresponding
hole can be found on the rear of the device (§§3§§).
Europe
Geat Britain
USA
1
2
2
1
3

elmeg IP140 / en / elmeg140_v1 / starting.fm / 09.04.2014
Version 2, 27.05.2010
18elmeg IP140
bintec elmeg First steps
Connecting extension modules (optional)
You can increase the number of programmable keys using extension modules (max. three; can
be ordered as accessories £Page 164). Each module includes 14 additional programmable
keys. The function keys can be programmed using the Web configurator (£Page 140).
The package contains:
uOne extension module
uOne connection frame with four fastening screws
uOne connection cable
uInsert strips
§§1§§ Position the extension module to the right of the phone (on left when viewed from below),
so that the module and phone are the same height and meet in the centre.
§§2§§ Insert the clasps on the connection frame into the respective notches on the phone and
module and push the connection frame upwards until it clicks into place. Secure the connec-
tion frame with the screws provided.
§§3§§ Establish the connections using the cable supplied.
Extension module
1
3
Extension module elmeg IP140
2

elmeg IP140 / en / elmeg140_v1 / starting.fm / 09.04.2014
Version 2, 27.05.2010
19 elmeg IP140
bintec elmegFirst steps
Setting up the device (for the first time)
Your device will start automatically as soon as it is connected to the mains power supply.
Please be aware that the device is powered by PoE (Power over Ethernet). This means that it is
supplied with power as soon as it is connected to an Ethernet switch with PoE-functionality.
The first time you use the device, an installation wizard will start automatically and guide you
through the necessary installation steps.
Configuring language and time zone settings
When you have made your selection, press the end key I to return to the last entry screen.
You can correct your selection if necessary.
¤Use the navigation key to select the required
language. To do this, press up or down on
the navigation key
q .
Further information about the navigation
key can be found on £Page 25.
¤Press the display key under §OK§ to confirm
your selection.
You can also use the OK function on the nav-
igation key (by pressing
‰ in the centre of
the key).
¤Use the navigation key to select the required
time zone.
¤Press the display key under §OK§ to confirm
your selection.
Please note
The date and time are automatically set by a time server. You can select a time server using the
Web configurator or deactivate this function (£Page 142).
Select your Language
OK
English
Deutsch
Francais
Italiano
Espanol
Portugues
Nederlands
Select your Time Zone
OK
GMT: Dublin, London
GMT+1: Amsterdam, Berlin, ...
GMT+2: Athens, Cairo, Israel
GMT+3: Bagdahd, Kuweit ...
GMT+4: Abu Dhabi, Mucat
GMT+5: Islamabad, Karachi
GMT+6: Dhaka, Colombo

elmeg IP140 / en / elmeg140_v1 / starting.fm / 09.04.2014
Version 2, 27.05.2010
20elmeg IP140
bintec elmeg First steps
Establishing a connection to the local network/WLAN
Your phone must be connected to the local network before it can connect to the Internet and
before you can operate it from a PC.
The device checks to see if a network connection already exists. The network connection is
automatically established if the phone has automatically been assigned an IP address from a
DHCP server in the network. If this is the case, the following screen will not appear and you can
skip to £Page 21.
If your phone has no network connection, you will need to configure the network manually.
Depending on the type of network, you will need the following information about the configu-
ration:
uIf the network uses IP protocol version 4 (IPv4) with a static IP address, you will need:
The device IP address, the network subnet mask, the IP addresses of the standard gateway
and DNS server.
uIf the network uses IP protocol version 6 (IPv6):
IP addresses automatically: select IPv6 as Network Type. The connection is then established
automatically.
IP addresses statically: the device IP address, the address prefix length and the DNS server IP
address.
uIf you are using the wireless local network (WLAN), you will need:
The name of the WLAN with which you wish to connect the phone (SSID), network key
If there is still no network connection, you will then be asked whether you wish to configure the
connection manually.
¤Select §§Yes§§ if you have the required information.
¤Select §§No§§ if you want to use the display menu to configure the network at a later date
(£Page 79).
Your device is now connected to the local network and can be configured for Internet teleph-
ony.
Please note
The following network configuration is the default setting on your device: LAN with IP protocol
version 4 (IPv4) and DHCP. This are the suitable settings for operating the device on an elmeg
hybird phone system/gateway.

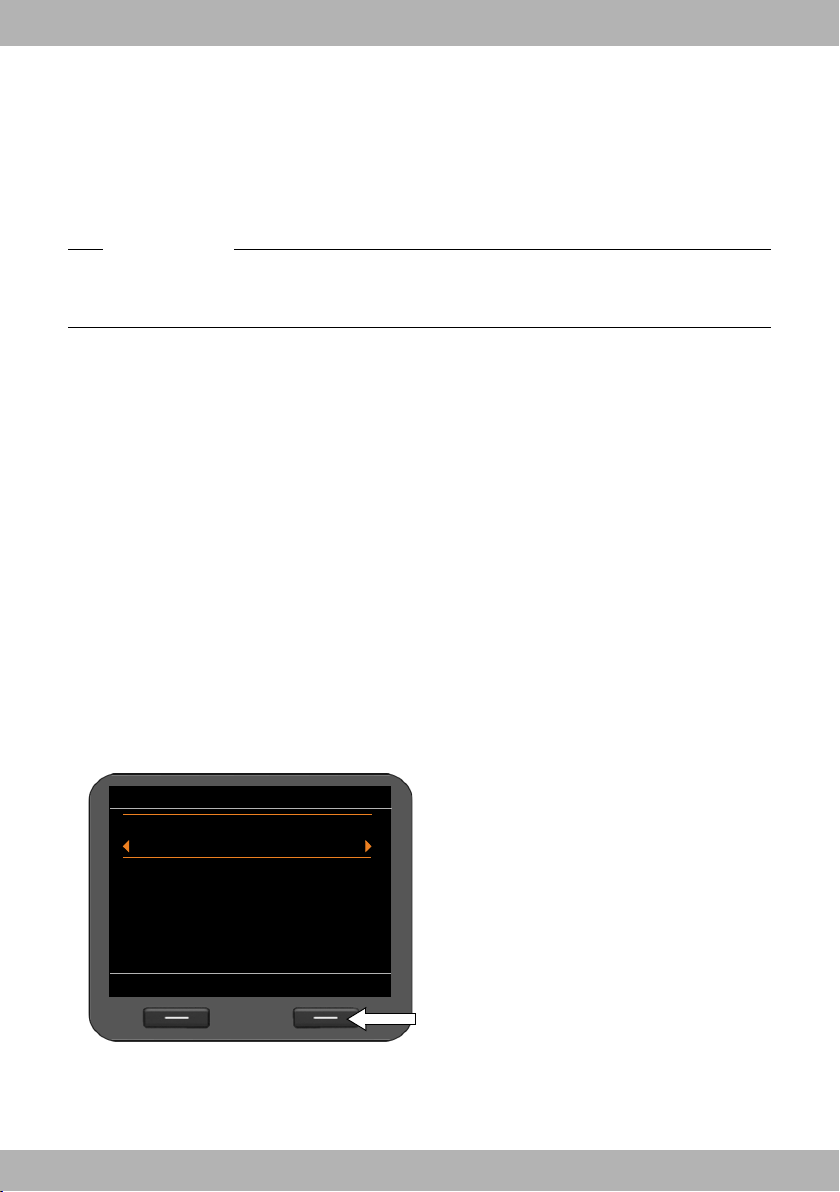

If you selected §§Yes§§§, you can configure the net-
work immediately.
Depending on your selection, additional
screens may be displayed so you can enter the
required information.
More detailed information on LAN/WLAN con-
figuration can be found on £Page 79.
¤Once you have configured the settings, press
the display key under §§Save§§.
Local Network
Back Save
Network Type
IPv4
Activated Network:
LAN
IP Address Type:
Static
IP Address:
