Digital Network Interface Panel:
64 Circuits (DNI-3)
User Manual
1.1 Overview: Digital Network Interface Panel
Telect’s DNI-3 is a multifunction support panel for DS3 telecommunications networks. It is an
accessible and centralized interconnect point between digital cross-connect systems (DCSs) and
central office network elements (NEs).
The DNI-3 panel serves as a platform for circuit configuration changes, maintenance activities,
and troubleshooting procedures. The DNI-3 becomes an extension of the DCS backplane that
provides complete circuit access, thus removing the risk of interrupting DCS operations.
1.1.1 Capabilities
• High circuit densities (up to 1280 coax cables per panel)
• Efficient circuit migration for system expansion
• Quick circuit patching, troubleshooting, and monitoring
• Compatability with all DS3, STS1, and STS3 signal types and system management software
1.1.2 Features
• Mini-WECO Twist Lok™ jacks (TLJs)
• Circuit designation labels
• Hinged designation holders
®
®
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
M
O
I
M
O
I
NE-2
NE-1
1234567891011121314151617181920212223242526272829303132
M
O
I
M
O
I
NE-2
NE-1

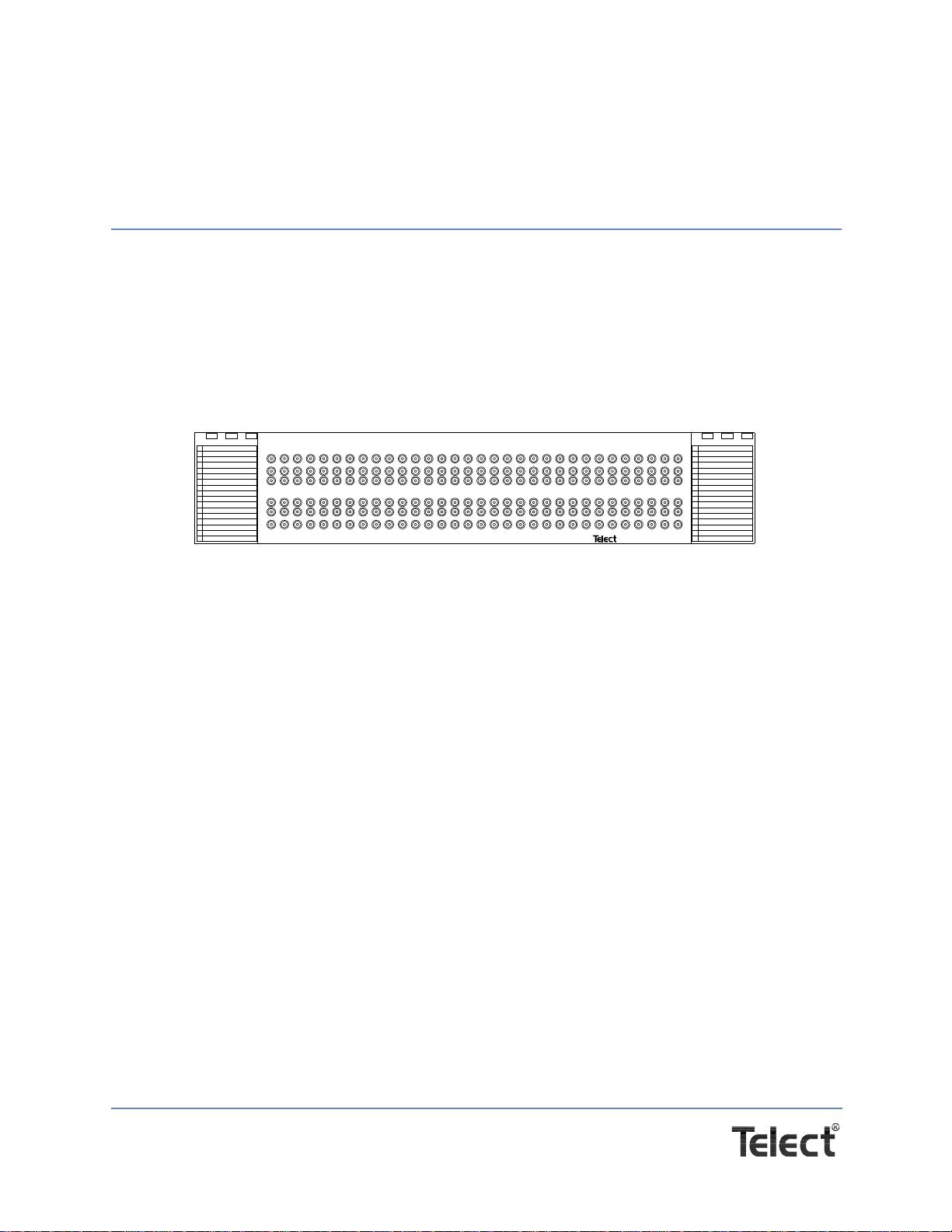

Figure 1 - DNI-3 Panel (64 Circuits)

Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52
www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 108469 A2.1
Page 2
1.1.3 System-Level Applications
Figure 2 shows a DNI-3 within a typical telecommunications network.
1.1.4 Physical Specifications
H x W x D: 5.25 x 23.0 x 10.0 (inches); 13.3 x 58.4 x 25.4 (cm)
Weight: 30 lb (13.6 kg)
Digital Switch
1:0 DCS
ORBs
Channel Banks
Loop MUX
DNI-1 3:1
DCS DNI-3 FOTS
DS1 Cables DS1 Cables DS3 Cable
Figure 2 - DNI-3 in a Typical Telecom Network
®
®
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
M
O
I
M
O
I
NE-2
NE-1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
M
O
I
M
O
I
NE-2
NE-1
Hinged Designation Holder
Circuit Designation Label FRONT PANEL
Mini-WECO Twist Lok Jacks
In Out Monitor
Network Element 1
Network Element 2
1234567891011121314151617181920212223242526272829303132
REAR PANEL
EIA/WECO
Mounting Spaces
BNC or TNC Termination Point Tie-Down Bar
Wire Management Tray
Figure 3 - Main Assemblies

Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52
www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 108469 A2.1
Page 3
1.2 Inspection
Please read these instructions carefully before beginning installation. If you need assistance, call
Technical Support at 1-888-821-4856 (domestic calls), or 509-921-6161 (Option 2), or email us at
[email protected].
Inspect equipment after unpacking and compare it to the packing list.
Immediately report any shipping damage, defects, or missing parts to Telect at 1-800-551-4567.
Keep all documentation that comes with your shipment.
Telect is not liable for shipping damage. If the product is damaged, notify the carrier and call
Telect’s Customer Service Department at 1-800-551-4567 (domestic only) or 1-509-926-6000 for
further recourse.
NOTE: For service or warranty information, please visit the telect.com website, or email inquiries
to [e-mail] and click on the “Support” tab, or phone us at 800-551-4567 (domestic
only) or 509-926-6000.
1.3 Installation Considerations
1.3.1 Location and Space
The DNI-3 panel mounts flush into both unequal-flange and equal-flange (EIA or WECO) 23"
(58.4 cm) network bays. The primary limiting factor of a DNI-3 rack configuration is the number of
cables a network bay can accommodate. (The DNI can accommodate 1280 coax cables.)
NOTE: Telect recommends a maximum of 14 DNI-3 panels per bay, regardless of bay capacity,
for easy access and adequate room for cable routing.
Table 1 - DNI-3 Space Requirements
DCS
Terminations Panels Total Cables Cable Space Needed
per Side of Bay (in.2)EIA Bay Spaces
Required
1–32 1 128 1.64 3
33–64 2 256 3.28 6
65–96 3 384 4.92 9
97–128 4 512 6.55 12
129–160 5 640 8.19 15
161–192 6 768 9.83 18
193–224 7 896 11.47 21
225–256 8 1024 13.11 24
257–288 9 1152 14.75 27

Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52
www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 108469 A2.1
Page 4
In the above table, the first shaded row is the capacity for a 7-ft bay. The second shaded row is
the capacity for an 8-ft bay; the last shaded row is for an 11.5-ft bay.
289–320 10 1280 16.38 30
321–352 11 1408 18.02 33
353–384 12 1536 19.66 36
385–416 13 1664 21.30 39
417–448 14 1792 22.94 42
449–480 15 1920 24.58 45
481–512 16 2048 26.21 48
513–544 17 2176 27.85 51
545–576 18 2304 29.49 54
577–608 19 2432 31.13 57
609–640 20 2560 32.77 60
641–672 21 2688 34.41 63
673–704 22 2816 36.04 66
705–736 24 2944 37.68 69
737–768 24 3072 39.32 72
769–800 25 3200 40.96 75
Table 1 - DNI-3 Space Requirements
DCS
Terminations Panels Total Cables Cable Space Needed
per Side of Bay (in.2)EIA Bay Spaces
Required

Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52
www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 108469 A2.1
Page 5
1.3.1.1 Network Bay Extender Panel
Each network bay extender panel provides 81
square inches (522.5 square cm) of cable routing
space (enough for 1280 RG59 cables). The panel
comes with nine cable management brackets that
secure and channel the circuit cables. Telect
recommends two extender panels for each fully
provisioned DNI-3 network bay. This provides
adequate cable routing space for cables going to
and coming from the DNI-3 network bay.
1.3.2 Tools and Equipment
No special tools or equipment are required.
1.4 Installation Procedure
1. Align the DNI-3 chassis mounting holes with the
mounting holes of the network bay.
2. Insert four 24 x 1/2" mounting screws (two on
each side) into the mounting holes and securely
tighten them.
3. Route the DCS IN cables to one side of the net-
work bay. Tie-wrap the cables in place within
the extender panel cable management brackets.
4. Starting at the lowest DNI-3 panel and working upward, connect the DCS IN cables to the
NE-1 IN termination points on the rear of the DNI-3 panels.
5. Secure the DCS IN cables to the wire management tray via the tie-down slots.
6. Route the DCS OUT cables to the opposite side of the network bay. Tie-wrap the cables in
place within the extender panel cable management brackets.
7. Starting at the lowest DNI-3 panel and working upward, connect the DCS OUT cables to the
NE-1 OUT termination points on the rear of the DNI-3 panels.
8. Secure the DCS OUT cables to the wire management tray via the tie-down slots.
9. Route the NE IN cables to the same side of the network bay as the DCS IN cables. Tie-wrap
the cables in place within the extender panel cable management brackets.
10. Starting at the lowest DNI-3 panel and working upward, connect the NE IN cables to the NE-
2 IN termination points on the rear of the DNI-3 panels.
11. Secure the NE IN cables to the tie-down bar.
12. Route the NE OUT cables to the same side of the network bay as the DCS OUT cables. Tie-
wrap the cables in place within the extender panel cable management brackets.
Existing
Network
Bay
Extender
Panel
Figure 4 - Installing the DNI-3

Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52
www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 108469 A2.1
Page 6
13. Starting at the lowest DNI-3 panel and working upward, connect the NE OUT cables to the
NE-2 OUT termination points on the rear of the DNI-3 panels.
14. Secure the NE OUT cables to the tie-down bar.
IN
IN
OUT
OUT
Tie-Down
Bar
Figure 5 - Securing the Cables

Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52
www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 108469 A2.1
Page 7
1.5 Electrical Operation
1.5.1 Data Signals
The DCS circuit cables
terminate at the lower pair of
terminationpointsontherear
of the DNI-3 panel, labeled
NE-1. The OUT cable
connects to the upper NE-1
termination pont and the IN
cable connects to the lower
NE-1 termination point.
The NE circuit cables
terminate at the upper pair of
terminationpointsontherear
of the DNI-3 panel, labeled
NE-2. The OUT cable
connects to the upper NE-2
termination point and the IN
cable connects to the lower
NE-2 termination point.
Internally, the DCS circuits and the NE circuits are cross-connected.
Inserting a Mini-WECO patch cord into the upper monitor Twist Lok Jack (TLJ) on the front of the
DNI-3 panel accesses the NE circuit. Inserting a Mini-WECO patch cord into the lower monitor
TLJ on the front of the DNI-3 panel accesses the DCS circuit.
1.6 User Functions
1.6.1 In-Service Patching
To temporarily connect an NE or DCS circuit to an alternate DCS or NE circuit on the same
or a different DNI-3 panel or DSX without disrupting service, follow the steps below, using
the Twist Lok Jacks (TLJs) on the front of the appropriate DNI-3 panels and the following
additional equipment:
• Four Mini-WECO patch cords (Mini-WECO plug at each end)
• Two 75-ohm Mini-WECO terminating plugs
• One dual bridging office repeater (BOR), or two single BORs
1. Using one Mini-WECO patch cord:
a. Insert the plug of one end into BOR position 1, INPUT.
R2
R1
R1
R1
R1
R2
M
O
I
M
O
I
O
I
O
I
NE-2
NE-1
RearFront
NE-1
NE-2
R1 = 75Ω, ¼W
R2 = 768Ω, ¼W

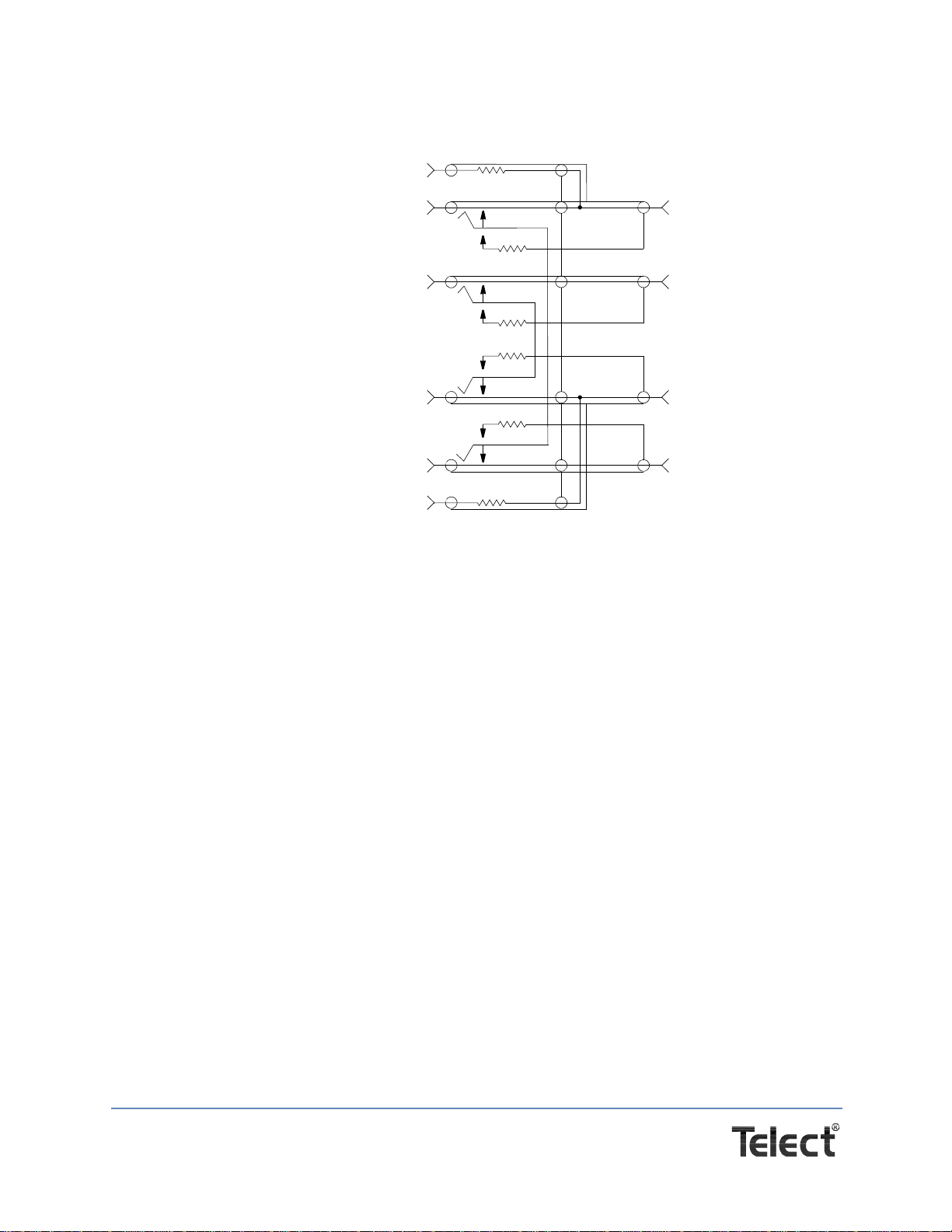

Figure 6 - NE Circuit Cables

Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52
www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 108469 A2.1
Page 8
b. Insert the plug of the other end to the monitor TLJ at the first location.
2. Using a second Mini-
WECO patch cord:
a. Insert the plug of one
end into BOR posi-
tion 1, OUTPUT.
b. Insert the plug of
the other end into
the IN TLJ at the
second location.
3. Using a third Mini-WECO
patch cord:
a. Insert the plug of one
end into BOR posi-
tion 2, INPUT.
b. Insert the plug of the
other end into the
monitor TLJ at the
second location.
4. Using a fourth Mini-
WECO patch cord:
a. Insert the plug of one
end into BOR position 2, OUTPUT.
b. Insert the plug of the other end into the IN TLJ at the first location.
5. Insert a Mini-WECO terminating plug into the OUT TLJ at the first location.
6. Insert a second Mini-WECO terminating plug into the OUT TLJ at the second location.
1.6.2 Out-Of-Service Patching
To temporarily connect an NE or DCS circuit to an alternate DCS or NE circuit on the same or a
different DNI-3 panel or DSX when service has been disrupted, follow the steps below, using the
TLJs on the front of the appropriate DNI-3 panels and two Mini-WECO patch cords (Mini-WECO
plug at each end).
1. Using one Mini-WECO patch cord:
a. Insert the plug of one end into the IN TLJ at the first location.
b. Insert the plug of the other end into the OUT TLJ at the second location.
2. Using a second Mini-WECO patch cord:
a. Insert the plug of one end into the OUT TLJ at the first location.
Output
Input
Pos 1
Output
Input
Pos 2
BOR
M
O
I
O
I
M
M
O
I
O
I
M
DNI-3s
1st
Location
2nd
Location

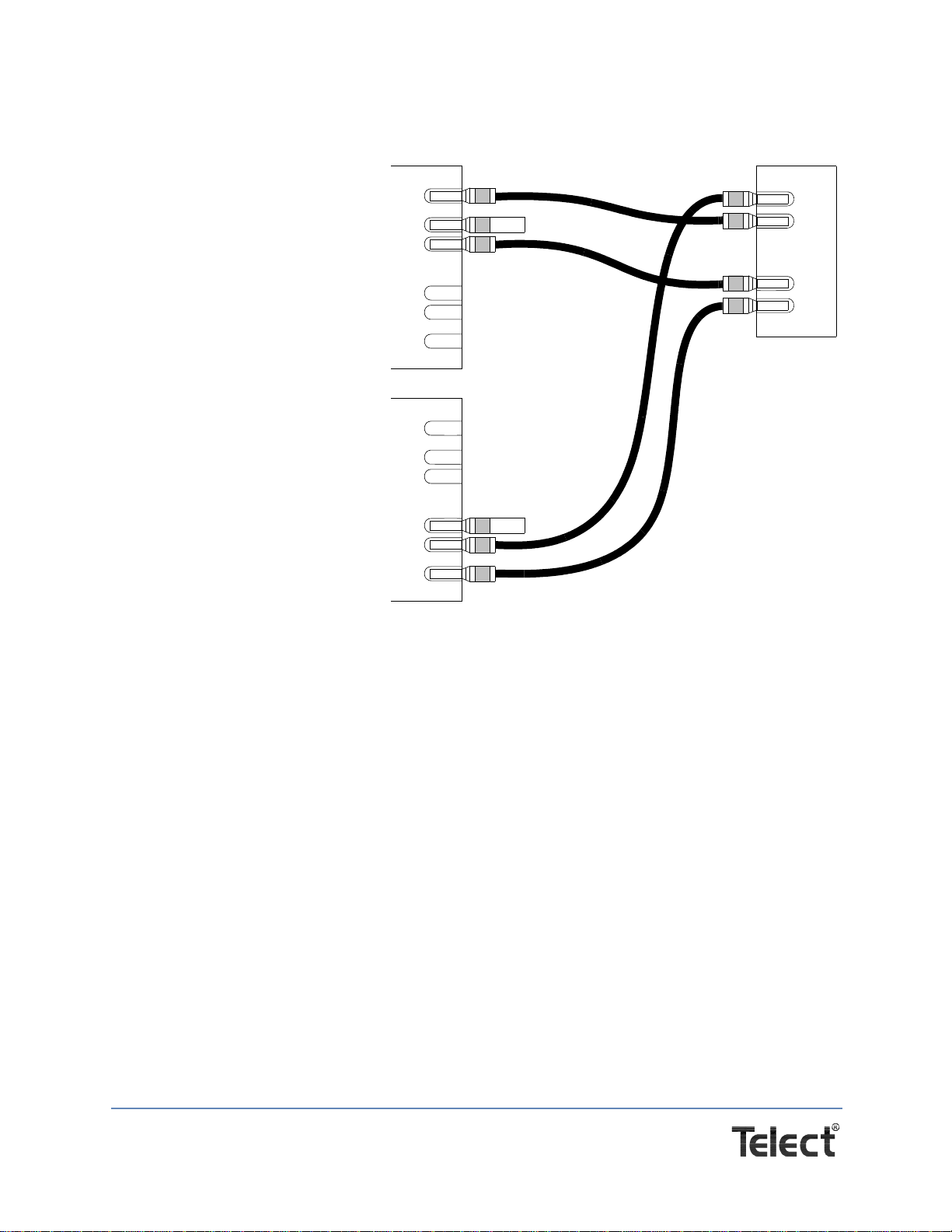

Figure 7 - Patching

Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52
www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 108469 A2.1
Page 9
b. Insert the plug of the other end into the IN TLJ at the second location.
1.6.3 Looping
To temporarily loop an NE or DCS OUT port to its IN port, use the TLJs on the front of the DNI-3
panel and a Mini-WECO looping plug.
Insert the looping plug into both the IN and OUT TLJs on the front of the DNI-3 panel for looping
either the NE (NE-2) or the DCS (NE-1) circuit.
1.6.4 Monitoring
Use the TLJs on the front of the DNI-3 panel and the following additional equipment:
• Mini-WECO patch cord (Mini-WECO plug at each end)
•Testset
1. To monitor the NE circuit outputs, insert a Mini-WECO patch cord into the NE (upper) Monitor
TLJ.
To monitor the DCS circuit outputs, insert a Mini-WECO patch cord into the DCS (lower) Mon-
itor TLJ.
2. Connect the other end of the the patch cord to the test set to complete your connection and
perform monitoring.
O
I
O
I
Figure 8 - Inserting the Plug

Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52
www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 108469 A2.1
Page 10
1.7 Service
CAUTION
!
CAUTION! Only qualified technicians may install and maintain this product.
1.7.1 Owner Maintenance
Telect’s DNI-3 does not need preventive maintenance. If problems occur after initial installation,
check all cable connections and the installation instructions in Section 2.
1.7.2 In-Warranty Service
Contact Telect's quality call center at 877-471-7245 or e-mail us at [e-mail]. Telect will
ship a new replacement product, along with a return shipping label and authorization information.
When you receive your replacement product, pack up the defective product and return it to Telect
using the return label, box and any additional information provided.
1.7.3 Out-Of-Warranty Service
Follow the In-Warranty directions above. Telect charges a processing fee for out-of-warranty
service, and you must submit a Purchase Order along with a Return Material Authorization
(RMA) before returning equipment. The processing fee guarantees a repair estimate and is
credited against actual material and labor costs. Call Telect's quality call center at 877-471-7245
for more information.
1.7.4 Repacking for Shipment
1. Tag the equipment showing owner’s name, address, and telephone number, together with a
detailed description of the problem.
2. Use the original shipping container if possible. If you do not have it, package the equipment in
a way to prevent shipping damage. Include the RMA inside the container and legibly print the
RMA number on the outside of the package, near the shipping address.
3. Insure the package.
