LB-1000-OSW
Headend Platform Optical Switch
User Manual

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
ii
LB-1000-OSW
User Manual
TABLE OF CONTENTS
TABLE OF CONTENTS ................................................................................................................ii
1.0 PRODUCT OVERVIEW AND FEATURES....................................................................... 1
1.1 Description...................................................................................................................... 1
1.2 Features .......................................................................................................................... 1
1.3 Specifications ................................................................................................................. 2
1.4 Block diagram of the LB-1000-OSW .......................................................................... 3
2.0 SAFETY NOTES................................................................................................................. 4
3.0 APPLICATION MODULE DESCRIPTION....................................................................... 5
4.0 INSTALLATION ................................................................................................................. 6
5.0 LB-1000-OSW SETTINGS ................................................................................................. 8
5.1 LB-1000-OSW settings: Using touch screen ............................................................ 8
5.2 LB-1000-OSW settings: Using Web interface......................................................... 10
6.0 WARRANTY AND RMA POLICY .................................................................................. 12

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
1 | P a g e
LB-1000-OSW
User Manual
1.0 PRODUCT OVERVIEW AND FEATURES
1.1 Description
Lindsay Broadband LB-1000-OSW is an Optical Switch module designed as an integral part of
the high density LB-1000 Headend system. The LB-1000-OSW optical switch is used to switch
between A/B optical signals provided with both automatic and manual switching functions and
characterized by simple and convenient operation. It can be widely used for systems requiring
optical signal control, switching and redundant backup. It accepts a wide range of optical
wavelength (1300 to 1620nm) and optical input power (-22 to +22dBm). All module parameters
can be monitored and configured through the LB-1000-CM system management module using
the touch screen or by using the PC (Web GUI or SNMP agent).
1.2 Features
•Wide optical input wavelength range: 1300nm to 1620nm
•Wide optical input power range: -22dBm to +22dBm
•Hot-swappable capability
•Optical input power monitoring and display
•RF state monitoring and switching based on both RF and optical detection
•Automatic and manual switching modes
•Optical threshold for switching can be adjusted
•Can select either port as primary
•Revert control on/off selectable in case primary port restored
•Can monitor and configure functioning parameters using LB-1000-CM

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
2 | P a g e
LB-1000-OSW
User Manual
1.3 Specifications
PARAMETER
SPECIFICATION
UNIT
NOTE
Optical Performance
Wavelength
1300 to 1620
nm
Optical Input Power
-22 to +22
dBm
Insertion Loss
≤ 1.5
dB
Optical Return Loss
> 45
dB
Connector
SC/APC
In band Flatness
± 0.5
dB
Channel Crosstalk
≥ 60
dB
Switching Time
≤ 12
ms
Switching based on
Both Optical and RF detection
Configurable
Transmission Power
≤ 300
mW
Electrical / Physical Performance
Power Consumption
≤15
W
From Backplane of LB-1000-CH
Dimensions
442 D x 22 W x 119 H
mm
Weight
0.8
Kg

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
3 | P a g e
LB-1000-OSW
User Manual
1.4 Block diagram of the LB-1000-OSW
Figure 1: Block diagram of the LB-1000-OSW Optical Switch

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
4 | P a g e
LB-1000-OSW
User Manual

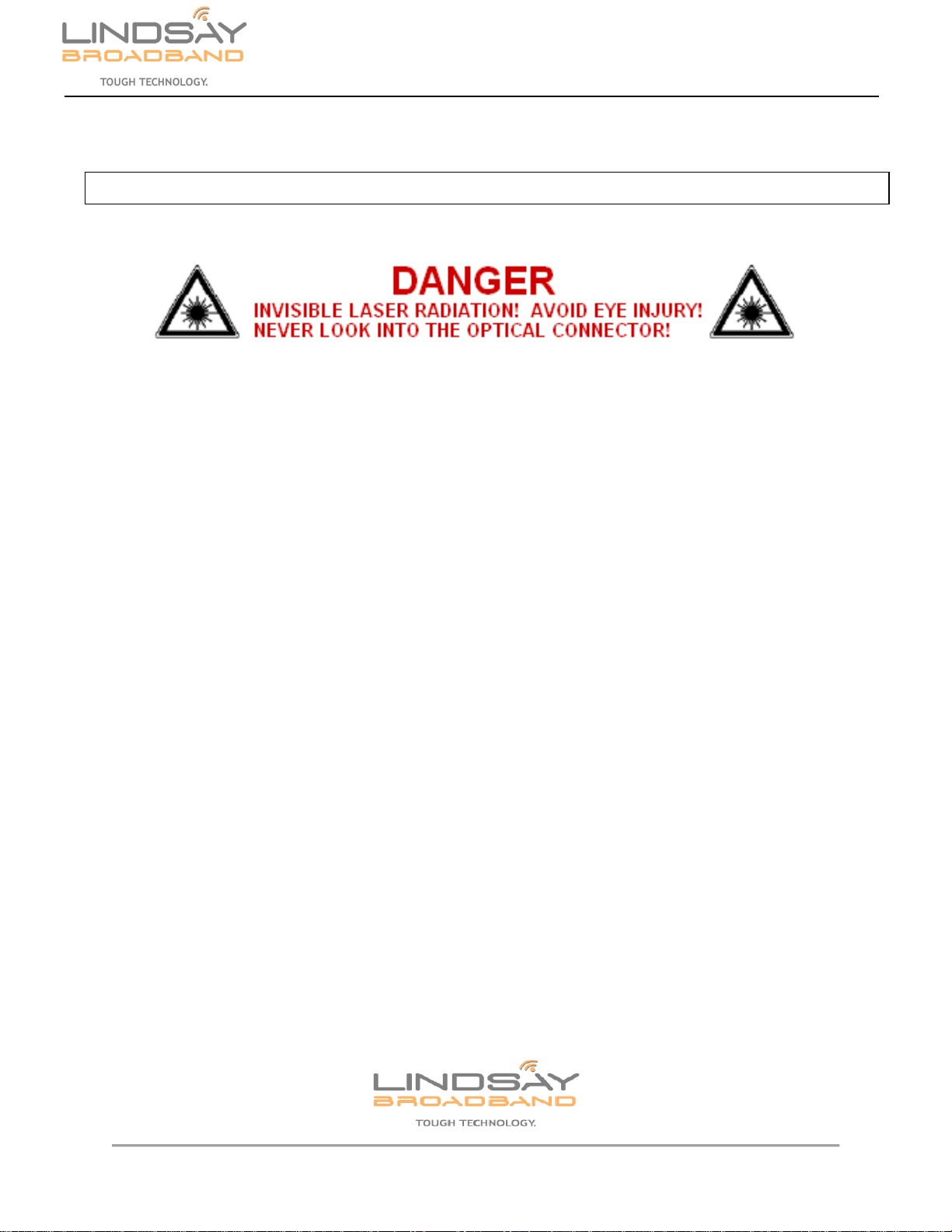

2.0 SAFETY NOTES
Failure to comply with these safety precautions and with the general or specific safety
precautions described elsewhere in the LB-1000 series manual violates the safety standards of
the design, manufacture, and intended use of the device. Lindsay Broadband Inc. assumes no
liability for the customer’s failure to comply with these precautions.
•Invisible optical radiation is emitted from fiber optic connectors which connects to this
LB-1000-OSW, exposure can cause permanent injury to eyes.
•Avoid direct exposure to the laser light source.
•Never stare directly into a fiber or at any mirror-like surface that could reflect light
emitted from an un-terminated fiber.
•Never view an active fiber through optical instruments.
CAUTION: To avoid damaging the touchscreen LCD, please do not tap it with anything sharp or
apply excessive pressure to it with your fingertips. It is recommended to use fingers when using
the touch screen LCD.
CAUTION: Do not operate the chassis outside of its maximum ratings. Doing so may result in
unsatisfactory performance, unit failure, shortened unit life span, or a safety hazard.
NO SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
5 | P a g e
LB-1000-OSW
User Manual
3.0 APPLICATION MODULE DESCRIPTION
Figure 2: LB-1000-OSW Front and Rear Panel
Front Panel:
1. Status LED will be green when the switch module is operating normally and will be red
when there is an alarm.
2. Handle to draw the application module in/out.
3. Input Optical ports to the switch module. Port A and Port B.
4. Output Optical port from the switch module.
5. Latch to secure the module.
Rear Panel:
6. PIN CONNECTOR for DC power and signals to the chassis backplane, connector type is
male.

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
6 | P a g e
LB-1000-OSW
User Manual
4.0 INSTALLATION
Application modules of LB-1000 can be installed in any of the general slots of the rack. Module
is inserted into the rack from the front part.
1) Gently insert the LB-1000 application module into any general slot (labelled 01 to 18)
from the front of the chassis. Be careful to align the metal guide rails on the top and
bottom of the module to the chassis housing.
2) Using the handle completely push the application module into the slot. Once the
module is completely inserted into the slot, the latch on the bottom of the module will
lock into place with the LB-1000 chassis securing the module in the rack. Ensure that
the application module is securely connected to the LB-1000-CH rear panel and F-
connectors. The application module will be automatically power “ON”. The Status
LED on the front of the module will turn ON and the module will show up on the
control module screen or web interface.
Figure 3: LB-1000 application module installation
3) If the module hasn’t been properly connected to the LB-1000-CH it will not power up
and status LED will be OFF. In such a case, remove the application module from LB-
1000-CH slot and reinsert carefully as described in steps 1 and 2 above. See below
step for safely removing the module.
4) To remove the application module from the slot, press down on the latch located in
the bottom front of the module. The application module will unlock from the LB-1000-
CH rack and module can be removed.
5) Carefully clean all the fiber optic connectors and jumper cables. Use appropriate
cleaning swabs for fiber optic cables and connectors. Check for

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
7 | P a g e
LB-1000-OSW
User Manual
contamination/blemish on the fiber cable and connector with a fiber inspecting
microscope. Ensure the fiber optic connectors and jumper cables are clean.
6) Ensure optical jumper connectors are matched properly to the device adapters. (i.e.
SC/APC to SC/APC). Using mismatched connectors will damage the connectors and
degrade system performance. Ensure that each fiber has a matching connector.
7) Use an optical power meter to verify that the optical input power level to the Optical
Switch is within the specification (-22 to +22dBm for this Switch). You can now
connect the Optical fiber to the OPT IN connector(s) on the front panel.
8) Also, you can now connect the Optical fiber to the OPT OUT connector on the front
panel. Use an optical power meter to verify that the optical output power level is
within the specification.
9) Using the touch screen or web interface via LB-1000-CM the operating parameters
for the application module can be monitored and adjusted. Operating parameters
and adjustments on the LB-1000-OSW are explained in the Section 5.0.

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
8 | P a g e
LB-1000-OSW
User Manual
5.0 LB-1000-OSW SETTINGS
Once the LB-1000-OSW module is successfully connected, powered up and operating normally,
you will be able to see the corresponding slot populated with the module on the screen and on
the web interface of the LB-1000-CM system management module.
5.1 LB-1000-OSW settings: Using touch screen
On the home screen of the LB-1000-CM touch screen, tap/touch the corresponding application
module slot (01-18) where the LB-1000-OSW is plugged in. The selected application module will
be highlighted and the screen will show settings for the LB-1000-OSW optical switch.
Figure 4: LB-1000-OSW settings - Page 1
If a parameter indicates an alarm it will be displayed in red font. No alarm, the parameter will be
displayed in green font.
PARAMETERS
DESCRIPTION
LB-1000-OSW
Output Port
Displays the Input port A/B which is currently connected to the output
Prior Output A / B
Select the main channel out of the two channels
A Optic Power
Shows the optical input power on channel A
Switch Mode A / M
Select Automatic or Manual mode for switching
B Optic Power
Shows the optical input power on channel B

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
9 | P a g e
LB-1000-OSW
User Manual
A Low Limit + / -
Set the low threshold level for switching of channel A. Low limit threshold
determines the optical level when automatic switching occurs based on optical
input.
B Low Limit + / -
Set the low threshold level for switching of channel B. Low limit threshold
determines the optical level when automatic switching occurs based on optical
input.
Revert Control ON /
OFF
If Revert Control is ON, then the output will automatically switch to main input
channel (prior output channel) when main channel is back to normal operation.
If Revert Control is OFF, then the output doesn’t automatically switch back to
main input channel even when the main channel is back to normal operation.
RF Switch ON / OFF
If RF Switch is ON, then automatic switching will occur not only because of
optical channel level, but also due to the RF status on the optical channel.
Whenever there is an alarm on RF State of the channel, switching is triggered.
If RF Switch is OFF, then automatic switching is only because of optical channel
status (RF status doesn’t play a part here).
RF A State
Shows the status of RF level on channel A. Important for RF switching.
RF B State
Shows the status of RF level on channel B. Important for RF switching.
Serial Number
Shows the module serial number
Hardware Version
Shows the hardware version
Firmware Version
Shows the firmware version
Temperature
Shows the current module temperature (°C)
Running Time
Shows the active run time of the module
Figure 5: LB-1000-OSW settings - Page 2

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
10 | P a g e
LB-1000-OSW
User Manual
Figure 6: LB-1000-OSW settings - Page 3
5.2 LB-1000-OSW settings: Using Web interface
Refer to LB-1000-CM manual. Connect your computer to the LB-1000-CM using the RJ-45 LAN
port. Login to the LB-1000-CM Web interface.
On the home screen of the LB-1000-CM Web interface, click the corresponding application
module slot (#1 - #18) where the LB-1000-OSW is plugged in. The selected application module
will be highlighted and the screen will show settings for the LB-1000-OSW optical switch.
User can monitor parameters and modify the configurable parameters of the LB-1000-OSW
module in this interface. Press +/- buttons to modify the parameters.
If the application module parameter has an alarm it will be displayed in red font. If no alarm, the
parameter will be displayed in green font. Click the “Alarms” option on the left hand side of the
screen to see the Alarm list. Find alarm information for corresponding slot number and module
from alarm list.

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
11 | P a g e
LB-1000-OSW
User Manual
Figure 7: LB-1000-OSW Web Interface

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
12 | P a g e
LB-1000-OSW
User Manual
6.0 WARRANTY AND RMA POLICY

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
13 | P a g e
LB-1000-OSW
User Manual
Lindsay Broadband Return Material Authorization Policy
Send your returns to:
Lindsay Broadband Inc.
2035-2 Fisher Dr.
Peterborough, ON Canada K9J 6X6
Attn: Product Returns
All shipments are to be pre-paid by the sender. No COD’s will be accepted.
A Return Material Authorization (RMA) Number is Required On all Product Returns
(Regardless if Product is Being Returned to Repair or credit)
Product Received at the Lindsay Broadband Factory
Without an RMA Number will be Returned to Sender
RMA number must be used when returning product for credit or repair. Use of RMA numbers
will ensure efficient processing. When returning product to Lindsay Broadband, please follow the
simple steps below (in the order that they appear):
RETURNS
1. Fill out the Product Return Authorization Form indicating product information. Repair items do not require original invoice
information, but it is helpful to determine warranty eligibility.
2. Contact Lindsay Broadband Inc. Service Department in one of three ways:
•E-mail to: [email protected] (recommended method) Include all of the information from the product
Authorization Form, or,
•Fax the Product Authorization Form to 1-705-742-7669 or,
•Call Lindsay Broadband Inc. @ 800-465-7046 Ext 235 / 261
3. After completing Steps 1 & 2, an RMA number will be assigned to you.
4. Securely pack the product and mark the box with your RMA #. If shipping multiple boxes, all boxes should be marked with
the RMA #. The RMA # must be placed near your return address in large, bold print (approximately 2” in height). Please see
the address label below as an example of the relative size location of the RMA #.
Sample Address label with RMA #
John Smith
ABC Company RMA 1234
123 Smith Street
Anytown, USA 00000
Lindsay Broadband Inc
2035 Fisher Dr.,
Peterborough, ON K9J 6X6
Attn: PRODUCT RETURNS

2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: [phone] or [phone] Email: [email protected]
14 | P a g e
LB-1000-OSW
User Manual
Lindsay Broadband Return Material Authorization (RMA) Form
Company
Contact Name:
Address:
City:
Prov/State:
Postal Code/Zip:
Phone: #:
Fax #:
Email address (if applicable)
RMA #
(To be supplied by Lindsay Broadband)
Date: ___________
Reason for return
Qty.
LBI Part #
Description
P.O. #
P.O.
Date
Service Repair Policy
Lindsay Broadband product may be
returned for repair under the following
condition:
1. Please contact Lindsay Broadband
Service Dept. to obtain an RMA#.
2. Please supply requested
information to verify 2warranty
coverage.
Any shipments received by Lindsay
Broadband without an RMA # will be
refused.
Credit Return Policy
Lindsay Broadband products may be
retuned for credit under the following
conditions:
1. Products are unused and
undamaged.
2. Products are accompanied by a one
dollar (new purchase) for one
dollar (credit return) order.
3. Products were purchased within
one year from credit return date
and are in a current catalog.
4. Products are subject to a 10% per
RMA and $2.00 per line item.
5. Products that are custom made are
subject to an additional charge for
conversion of not less than 20%
and not more than 50% of the FFP
price.
6. Product that require factory
repacking are subject to an
additional charge for material and
labour.
7. Please contact Lindsay Broadband
Customer Service to obtain an
RMA#.
Any shipments received by
Lindsay Broadband without
an RMA# will be refused.
Note: Products that are judged by
Lindsay Broadband Inc. upon receipt as
being unacceptable for credit shall be
returned to sender at their expense.
SHIPPING INSTRUCTIONS
1. Make Sure to Obtain an RMA# and
mark a box(s) accordingly
2. Ship Only Items Authorized
3. Enclose Packing Slip & Product
Return Authorization Form
4. Ship Prepaid Only to :
Lindsay Broadband Inc
2035-2 Fisher Dr.
Peterborough, ON CANADA
K9J 6X6
Attn: Product Returns
