TELEFLY MIGE2206G-2GF-4GT User manual

MIGE2206G-2GF-4GT
Gigabit Din-rail Mounting
Industrial Ethernet Switch
User Manual
(Edition: V1.0)
www.telefly.cn
TELEFLY TELECOMMUNICATIONS EQUIPMENT CO.,LTD

TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
II
Safe Use Instruction
This product performance is excellent and reliable in the designed range of use,
but it’s necessary to avoid man-made damage or destroy for the
equipment.
Read the manual carefully and keep this manual for reference if need
afterwards.
Do not put the device close to the water sources or damp places.
Do not put anything on the power cable, it should be placed out of reach.
To avoid causing fire, do not knot or wrap the cable.
Power connector and other device connectors should be firmly
connected with each other, frequently inspection is needed.
Please keep the fiber socket and plug clean. Do not look directly at the
fiber section when the equipment is working.
Please keep the equipment clean and wipe it with a soft cotton cloth if
necessary.
Please do not repair the equipment by yourself, unless there is clear
instructions in the manual.
Under the following circumstances, please cut off power immediately and
contact us.
Equipment water damage.
The equipment is broken or the casing is broken.
The equipment works abnormally or the performance has completely
changed.
The equipment produces odor, smoke or noise.
Statement: Information requiring explanation in use of the managed software.
Attention: Matters requiring specific attention in the use of the managed
software.
www.telefly.cn

III
Catalogue
1. Product Introduction.................................................- 1 -
1.1. Brief introduction.......................................................................... - 1 -
1.2. Features......................................................................................... - 1 -
1.3. Product model choose list..........................................................- 1 -
1.4. Product packing list..................................................................... - 2 -
2. Technical Parameter................................................. - 3 -
2.1. Technical parameters..................................................................- 3 -
3. Installation and Testing............................................- 4 -
3.1. Casing configuration................................................................... - 4 -
3.2. Front panel.................................................................................... - 4 -
3.3. LED indicator lights......................................................................- 4 -
3.4. Power supply................................................................................ - 5 -
3.5. Fiber connection...........................................................................- 6 -
4. Hardware Installation................................................- 8 -
4.1. DIN-Rail installation.....................................................................- 8 -
4.2. Cable connection......................................................................... - 8 -
5. Testing.......................................................................... - 9 -
5.1. Self-examination.......................................................................... - 9 -
5.2. RJ45 port testing..........................................................................- 9 -
5.3. Fiber port testing.......................................................................... - 9 -
6. Maintain and Service.............................................. - 10 -
6.1. On-line service........................................................................... - 10 -
6.2. Call for our customer service.................................................. - 10 -
6.3. Warranty policy...........................................................................- 10 -
.
TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
www.telefly.cn

- 1 -
1. Product Introduction
1.1. Brief introduction
The TELE2206G-2GF which developed and produced by Wuhan Maiwe is
a high performance industrial Ethernet switch with 6 gigabit Ethernet ports.It
includes 2x1000Base-X SFP fiber ports and 4x 10/100/1000Base-TX RJ45
ports.
The TELE2206G-2GF is an unmanaged industrial Ethernet switch with
35mm din-rail mounting. It can stably work in various hard industrial
environments.
1.2. Features
High performance Ethernet switch interfaces
The 10Base-T/100Base-TX/1000Base-T adaptive port (full/half duplex),
automatic MDI/MDI-X connection.
Support 2x1000Base-X SFP fiber ports with SFP fiber modular.
Industrial grade power supply design
Provide different power supply applications to be chosen:
a,Wide range DC power supply:DC12~48V (redundant dual power input
supported)
b,Wide range DC/AC power supply:DC110~370V and
AC85V~265V(only single power input)
Reliable EMC protection and over-current / over-voltage protection.
Reliable over-current, over-voltage and EMC protection
With relay alarm function for power supply fault.
Rugged configuration design
Single-ribbed aluminum chassis cooling surface design, efficient cooling
without fan, the system can work reliably at -40 ℃~ +85 ℃environment.
Closed high-strength aluminum casing, enabling the system to work
reliably in harsh and hazardous industrial environments.
Standard DIN-Rail mounted installation
1.3. Product model choose list
Model name 1000Base
Fiber port RJ45 port Power supply
TELE2206G-2GF 2 LC 4 DC12~48V
TELE2206G-2GF-AD220 2 LC 4 DC110~370V/
AC85~264
TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
www.telefly.cn

- 2 -
1.4. Product packing list
TELE2208G includes following items:
Item QTY
TELE2206G-2GF Industrial Ethernet switch 1pcs
User manual 1pcs
TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
www.telefly.cn

- 3 -
2. Technical Parameter
2.1. Technical parameters
Content TELE2206G-2GF
Ports quantity
2x1000Base-X SFP LC
8x10Base-T/100Base-TX/1000/Base-T
RJ45
System parameter
Standard support: IEEE802.3, IEEE802.3u,
IEEE 802.3x
MAC address table:1K
Switch method: storage and forward
Optic port parameter
Wavelength: 1310nm or 1550nm (Single
mode); 850nm (Multimode)
Typical Distance: 10~80Km to be chosen
(Single mode) 550m (Multi mode)
Converter type: shielded SFP LC
Transport rate: 1.25Gbps.
Electric port parameter
Physical port:RJ45 (shielded)
RJ-45 port:
10Base-T/100Base-TX/1000Base-T,auto-ne
gotiation
Communication distance:<100m
Power parameter
Voltage input:
DC power:DC12~48V(redundant dual
power input supported)
DC/AC power:
DC110~370V/AC85V~265V(only single
power input)
Input power: 2.4W/DC24V(empty
load);4.8W/DC24V(full load)
Physical parameter
Shell: Metal with no fan
Dimensions(HWD):144mm33mm97m
m(not include DIN rail equipment
dimensions)
IP grade:IP40
Installation:35mm din-rail mounting
Working environment
Temperature: -40℃~+85℃
Ambient Relative Humidity:
5~95%(non-condensing)
TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
www.telefly.cn

- 4 -
3. Installation and Testing
3.1. Casing configuration
The TELE2206G-2GF uses Din rail mount installation. Whole machine
with six sides fully enclosed structure.

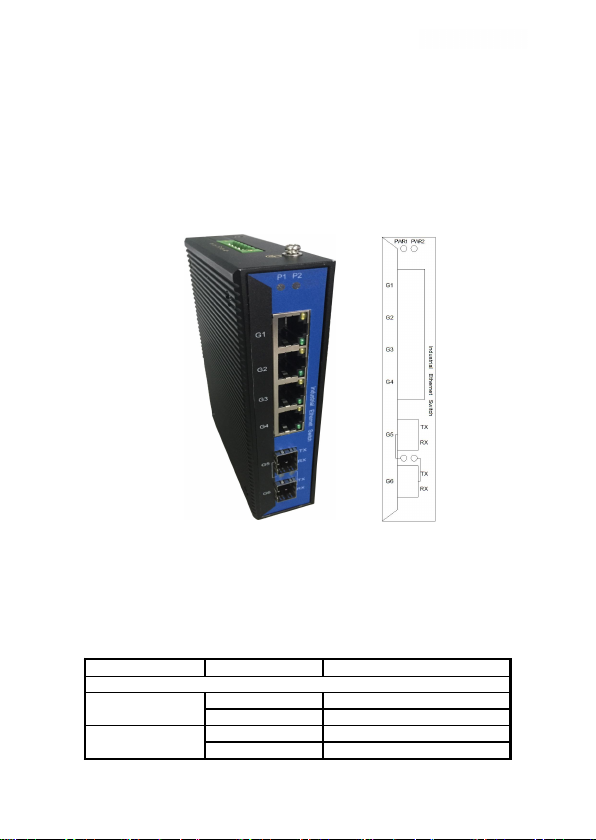

3.2. Front panel
The TELE2206G-2GF offers total 6 Ethernet ports on the front panel.
3.3. LED indicator lights
The LED indicator on the front panel can show the status of the system
and port operation, easy to find and solve problems. The below table shows
the LED indicator lights functions:
LED indicator lights
LED Status Function
System Status LED
P1
(Red)
On Power 1 input is correct
Off Power 1 input is not working
P2
(Red)
On Power 2 input is correct
Off Power 2 input is not working
TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
www.telefly.cn

- 5 -
RJ45 Port LED
Each RJ45 port has two LED indicator lights, the yellow LED indicates
the baud rate, the green LED indicates the port connection status.
1000M
(Yellow)
On 1000M state (1000Base-T）
Off 10/100M state
(10Base-T/100Base-TX)
LNK/ACT
(Green)
On Link is active
Blinking Data is being transmitted
Off Link is inactive
SFP fiber port LED
1000M
(Green)
On Link is active
Off Link is inactive

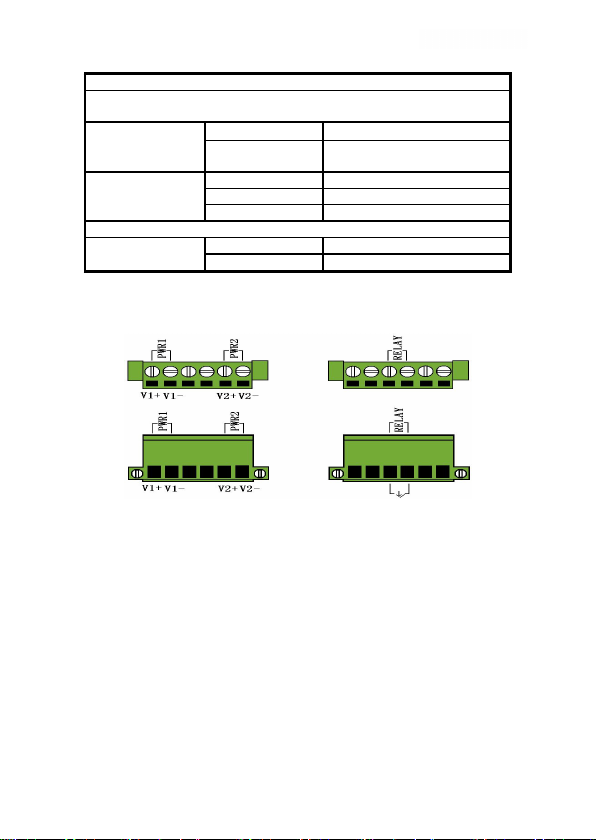

3.4. Power supply
The TELE2206G-2GF has a 6-ways terminal block on the top panel for the
power supply input as below.
The DC power model switch supports DC12~48V power supply, and
supports redundant dual power input (V1 and V2).
The DC/AC power model switch supports DC110~370V and AC85~265V
power supply, only single power input (V1).
When use AC power supply, connect the Fire line L to V1+, connect the
Zero line N to V1-,DO NOT CONNECT TO V2+ AND V2-.And pay attention to
safety.
TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
www.telefly.cn

- 6 -
Power fault alarm relay:
The TELE2206G-2GF supports the power fault alarm relay function on the
terminal block (the 2 blocks in middle).
When the power supply is correct, the relay keeps open. When the power
supply fault, the relay changes to closed state.
3.5. Fiber connection
This product has two full-duplex 1000Base-LX single mode / multimode
fiber interface, the port number for the G1 and G2, using hot-swappable SFP
during the optical interface using LC connectors. Optical interface to be used in
pairs (TX and RX as a pair), TX mouth to light the originator, the remote switch
connected to another optical interface of the light receiving end RX; RX ports
for the light receiving end, to connect with a remote switch with an optical
interface light originator TX. The use of two redundant 1000Base-LX optical
interface fiber optic redundant ring network can be formed in the system failure
redundant ring switching time less than 20ms, can effectively improve network
reliability.
SFP optical module shown in the figure :
Hot-swappable SFP modules as follows:
Hot-plug procedure:
1. SFP during the observation of a finger end of the PCB.
2. the finger end into the SFP metal shielding cage, hear a click sound
indicates that the device has been inserted in place, then the SFP plug handle,
into the interface parallel to the normal position, you can use.
Hot drawing steps:
TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
www.telefly.cn

- 7 -
1. first unplug the SFP's plug handle perpendicular to the interface, this
time the device should be shielded with SPF cage mount hook disengaged.
2.parallel to pull the SFP module.
TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
www.telefly.cn

- 8 -
4. Hardware Installation
4.1. DIN-Rail installation
Most of the industrial applications use 35mm standard DIN-Rail installation.
The DIN-Rail plate should be fixed to the back panel of the TELE2206G-2GF
when you take it out of the box. Before you install the TELE2208G on the
din-rail, please check the DIN-Rail is situated and notice following two
contents:
Checking DIN-Rail is fixed firm and whether there is enough space for
the installation of the switch.
Checking if there was suitable power supply for the switch.
Please selected the correct position for the switch. As below behind
picture shows:
Insert DIN-Rail into DIN-Rail slot and turning equipment.
Insert DIN-rail into DIN-Rail slot and confirm the switch reliable installed
on the DIN-rail.
4.2. Cable connection
Connect the electric cable after the equipment installing, include:
Operation port
The operation port of the switch is the 10 /100/1000Base-TX(T) Ethernet
RJ45 interface, which is connected with the DTE or other Ethernet equipment
by cable.
TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
www.telefly.cn

- 9 -
5. Testing
5.1. Self-examination
When the power supply turn on, the indicator lights on the front panel will
blinking once.The light of the fiber port will only turn on when the fiber link is
active.
5.2. RJ45 port testing
As picture show, connect two PC with TELE2206G-2GF RJ45 ports and
sent Ping command each other, the two sides get right Ping message and don’t
loss package.
5.3. Fiber port testing
As picture show, connect two TELE2206G-2GF switch fiber port with fiber
cable, and then connect two PC with TELE2208G RJ45 ports and sent Ping
command each other, the two sides get right Ping message and don’t loss
package.
TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
www.telefly.cn

- 10 -
6. Maintain and Service
The switch has 5 years’ guarantee. According to the Product
Specifications of , we will maintain or change the product for free which
has any problem in this guarantee, that is not including the destroy of error
usage, accident, natural disaster and incorrect installation.
To ensure the customer’s profit, we also provide some methods to help the
customer and solve their problem as followings:
Service on line
Call for our customer service
Maintain or exchange
6.1. On-line service
In our website , you can get more useful product
information and usage methods in the part of technical support.
6.2. Call for our customer service
When you have any problem, please contact our technical support or
sales. Our engineer will give you reply and solve your problem as soon as
possible.
6.3. Warranty policy
According to the solving process, maintain, exchange or return should be
confirmed by our technical staff. You have to contact our sales person to solve
after this kind of negotiation.
Telefly
www.telefly.cn
TELE2206G-2GF-4GT Gi
g
abit Din-rail Mountin
g
Industrial Ethernet Switch
www.telefly.cn
