Leonton BG5-0702-SFP Series User manual

LEONTON
BG5-0702-SFP Series
(BG5-0702-SFP / BG5-0702-SFP-T)
User Manual

© Copyright 2020 Leonton Technologies Co., Ltd.
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or
translation without prior permission is prohibited, except as allowed under the copyright laws.
Disclaimer
Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or
implied, including but not limited to the implied warranties of merchantability and fitness for a
particular purpose. Leonton Technologies, Co. Ltd. may make improvements and/or changes to the
product and/or specifications of the product described in this manual, without prior notice. Leonton
Technologies, Co. Ltd. will not be liable for any technical inaccuracies or typographical errors found in
this guide. Changes are periodically made to the information contained herein and will be
incorporated into later versions of the manual. The information contained is subject to change
without prior notice.

FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. It may cause harmful interference to radio communications if the
equipment is not installed and used in accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
Déclaration FCC
Cet équipement a été testé et reconnu conforme aux limites de la classe A pour les équipements
numériques, conformément à la section 15 des Réglementations FCC. Ces limites sont conçues pour
fournir une protection raisonnable contre toutes interférences nuisibles dans un milieu résidentiel.
Cet équipement génère, utilise, et peut émettre de l’énergie de fréquence radio et, s’il n’est pas
installé et utilisé conformément au manuel d’instruction, peut perturber la réception radio.
Cependant, il n’est pas garanti que l’équipement ne produira aucune interférence dans une
installation particulière. Si cet équipement cause des interférences nuisibles à la réception radio ou
télévisée, qui peuvent être déterminées en l’éteignant et le rallumant, l’utilisateur est encouragé à
essayer de remédier au problème en prenant les mesures suivantes:
* Réorienter ou déplacer l’antenne réceptrice.
* Augmenter la distance entre l’équipement et le récepteur.
* Connecter l’équipement à une prise secteur sur un circuit différent de celui utilisé par le récepteur.
* Consulter le négociant ou un technicien radio/TV expérimenté.
Attention: Tout changement ou modification non expressément approuvé par le concessionnaire de
cet appareil pourrait annuler l'autorité de l'utilisateur à utiliser l'équipement.

CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
CE Mark Avertissement
Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en
présence d'interférences radio.
This document is the current official release manual. Please check our website (www.leonton.com)
for any updated manual or contact us by e-mail ([email protected]).

Contents
Overview .............................................................................................................................................................................................. 1
Key Features ............................................................................................................................................................................. 1
Package Contents................................................................................................................................................................... 2
Safety Precaution ................................................................................................................................................................... 2
Hardware Description ..................................................................................................................................................................... 3
Physical Dimensions.............................................................................................................................................................. 3
Front Panel ................................................................................................................................................................................ 4
Top View..................................................................................................................................................................................... 4
LED Indicators.......................................................................................................................................................................... 5
PoE Port LED Indicators........................................................................................................................................................ 7
PoE Dip Switch......................................................................................................................................................................... 9
Relay Contact Alarm Warning ........................................................................................................................................... 9

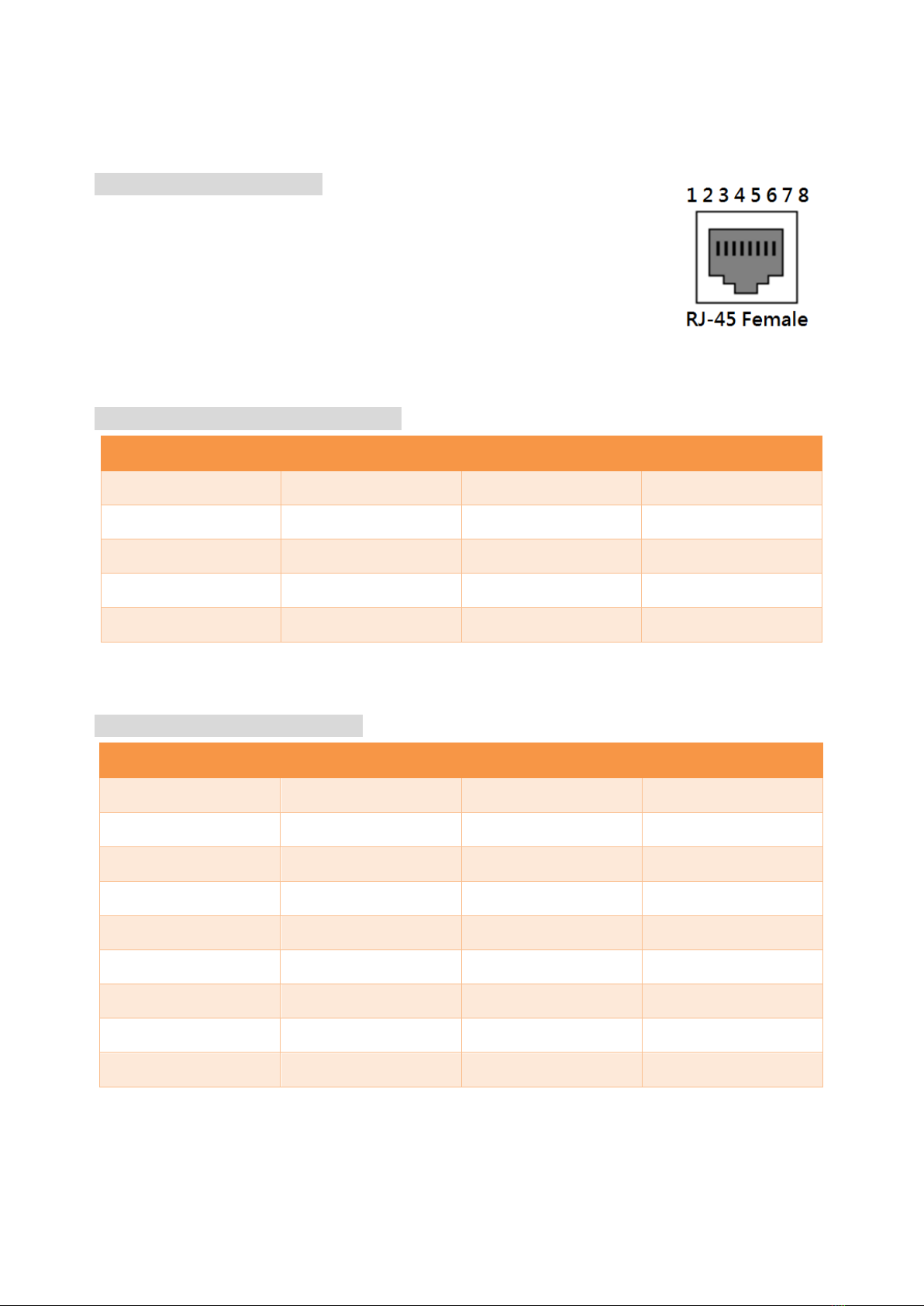

Ethernet Ports ........................................................................................................................................................................10
Cabling .....................................................................................................................................................................................11
Wiring the Power Inputs....................................................................................................................................................13
Wiring the Fault Alarm Contact ......................................................................................................................................14
Grounding Note....................................................................................................................................................................14
Mounting Installation ...................................................................................................................................................................15
DIN-Rail Mounting ..............................................................................................................................................................15
Wall Mounting.......................................................................................................................................................................17
Hardware Installation ....................................................................................................................................................................18
Installation Steps ..................................................................................................................................................................18
Trouble Shooting ............................................................................................................................................................................20

1
Overview
This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit managed
Ethernet switch series has 4 IEEE 802.3bt compliant PoE, 90W/port + 1 10/100/1000Base-T(X), and
2 dual-rate (100/1000) SFP slots, suitable for applications that require high bandwidth and long
distance communication.
In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This also
allows it to function in harsh environments, as well as support power redundancy with a dual power
input design with reverse polarity protection. The built-in relay warning function alerts users about
occurring power failures.
With one model having an operating temperature of -10 to 65°C, and another with a wide operating
temperature of -40 to 75°C, this series is designed to meet any needs for industrial automation,
outdoor application and harsh environments.
Key Features
Interface & Performance
•Copper ports support auto MDI/MDI-X function
•Embedded 4*10/100/1000Base-T(X) with bt PoE-PSE (90W/Port) + 1*10/100/1000Base-
T(X), and 2*100/1000Base-(F)X SFP Slots
•Store-and-forward switching architecture
•8K MAC Address Table
•Supports 9.6Kbytes Jumbo Frame
•4Mbits memory buffer
Power Input
•Dual 48-55VDC redundant power inputs
•1 removable 6-contact terminal block
•Max. current 5.22A
•Max. PoE output: 240W
•For IEEE802.3bt applications, the power input not less than 53VDC is recommended
Certification
•CE/FCC
Operating Temperature
•Standard operating temperature model: -10°C ~ 65°C
•Extended operating temperature model (–T): -40°C ~ 75°C
Case/Installation
•IP30 protection
•DIN-Rail and wall mount design
•Installation in a pollution degree 2 industrial environment

2
Package Contents
•1 - BG5-0702-SFP(-T) - Unit weight: 1.038 kg (2.29 lb), Shipping weight: 1.351kg (2.98lb)
•2 - Wall mounting brackets and screws
•1 - Quick installation guide
•1 - RJ45 to DB9 Serial Console cable
Safety Precaution
Attention
If the DC voltage is supplied by an external circuit, please use a protection device on the power
supply input. Supply by UL Listed industrial use power. The industrial Ethernet switch’s hardware
specs, ports, cabling information, and wiring installation will be described within this user manual.
Attention
Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur
l'entrée d'alimentation. Fourniture par courant industriel homologué UL. Les spécifications
matérielles, les ports, les informations de câblage et l'installation du câblage du convertisseur de
média industriel seront décrits dans ce manuel d'utilisation.
Warning Labels
The caution label means that you should check the certain information on user manual when
working with the device. (Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations sur le manuel
d'utilisation lorsque vous travaillez avec l'appareil. (Montré dans la Figure 1.2)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude

3
Hardware Description
Physical Dimensions
Figure 2.1, below, shows the physical dimensions of BG5-0702-SFP series.
(W x H x D) is 54mm x 142mm x 99mm
Figure 2.1: Physical Dimensions

4
Front Panel
The front panel of the BG5-0702-SFP series industrial Gigabit managed Ethernet switch is shown
below in Figure 2.2.

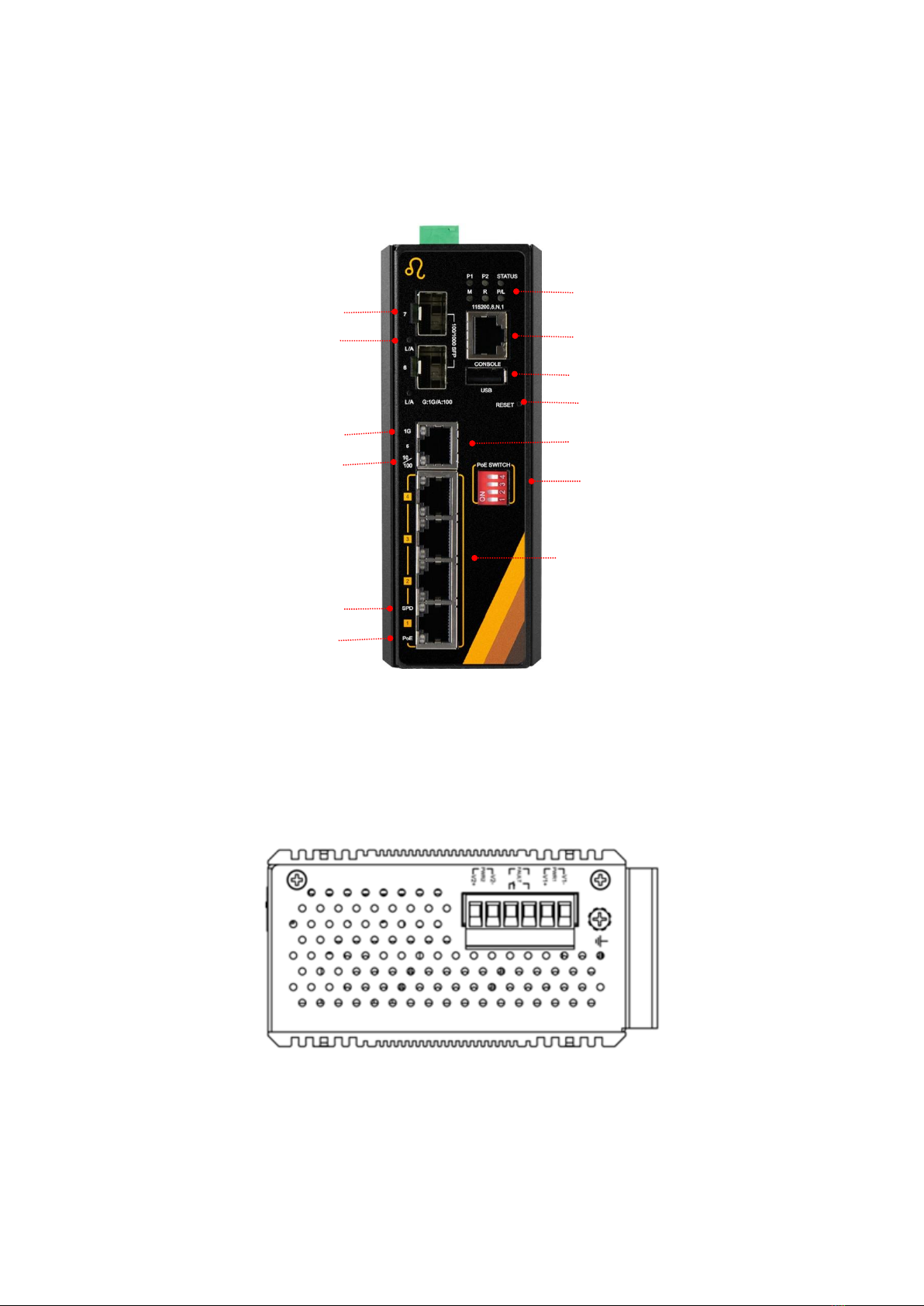

Figure 2.2: The Front Panel
Top View
Figure 2.3, below, shows the top panel of the BG5-0702-SFP series switch that is equipped with
one 6-pin removal terminal block connector for dual DC power inputs (48-55VDC).
Figure 2.3: Top Panel View
LED Indicator
Console Port
USB Port
Reset Button
PoE Status LED
10/100/1000Mbps Link/Act LED
10/100/1000Tx RJ45 bt PoE Copper Port
(1-4 Port)
100/1000 SFP Port
100/1000 SFP Port
Link/Act LED
PoE DIP Switch
10/100/1000Tx RJ45 Copper Port
1000Mbps Link/Act LED
10/100Mbps Link/Act LED

5
LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has its
own specific meaning, see below in Table 2.1
LED
Color
Description
P1
Green
On
Power input 1 is active
Off
Power input 1 is inactive
P2
Green
On
Power input 2 is active
Off
Power input 2 is inactive
STATUS
Green
On
No event happened by software setting
Red
On
System booting
Event happened by software setting
MASTER
Green
On
ERPS Owner Mode (Ring Master) is ready
Off
ERPS Owner Mode is not active
RING
Green
On
ERPS Ring Network is active and works well
Flashing
ERPS Ring works abnormally or misconfigure
Off
ERPS Ring Network is not active
PoE Load
(max:240w)
-
Off
PoE Load<= 50%
Blue
On
PoE Load 51-70%
Red
On
PoE Load 71-90%
Red
Flashing
PoE Load 91-100%
GE
(Port 1-4
Copper)
(Upper LED)
Green
On
Connected to network, 1Gbps
Flashing
Networking is active
Off
Not connected to network
Amber
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
bt PoE Mode
(Port 1-4
Copper)
Green
On
IEEE 802.3bt connection
(Single Signature PD Class 5~8/Dual Signature PD
Channel Class 1~5)

6
Table 2.1: LED Indicators
(Lower LED)
Off
No powered-device attached or power supplying
fails
Flashing
Port link is recovered from failure event
Amber
On
IEEE 802.3af/at connection (Single Signature PD
Class 0~4)
Off
No powered-device attached or power supplying
fails
Flashing
Port link is recovered from failure event
Green/Amber
Alternating
Flashing
The port is trying to recover from event failure
(Frequency: 20secs/time)
10/100/1000
LED
(Port 5 Copper)
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Green
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
SFP Link/Active
(Port 6-7)
Green
On
Connected to network, 1Gbps
Flashing
Networking is active
Off
Not connected to network
Amber
On
Connected to network, 100Mbps
Flashing
Networking is active
Off
Not connected to network

7
PoE Port LED Indicators
The LED light indicators on the PoE copper port can help the user know if an event once occurs or is
happening. When the event is happening, user can verify the event from the Dual-color LED status.
If the port has recovered from an event, user can verify the event from the blinking frequency of
the PoE LED(5 seconds as a cycle,).

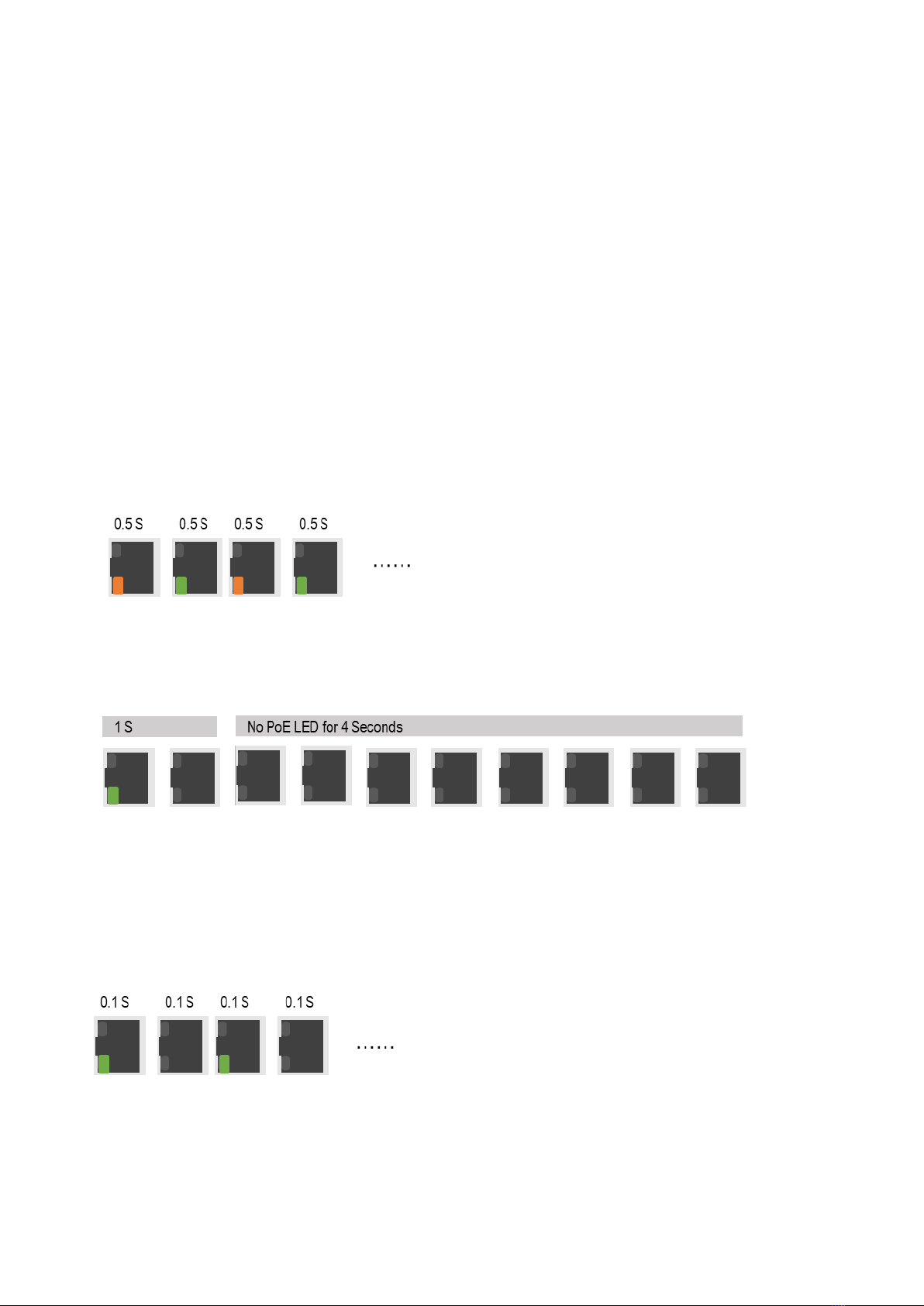

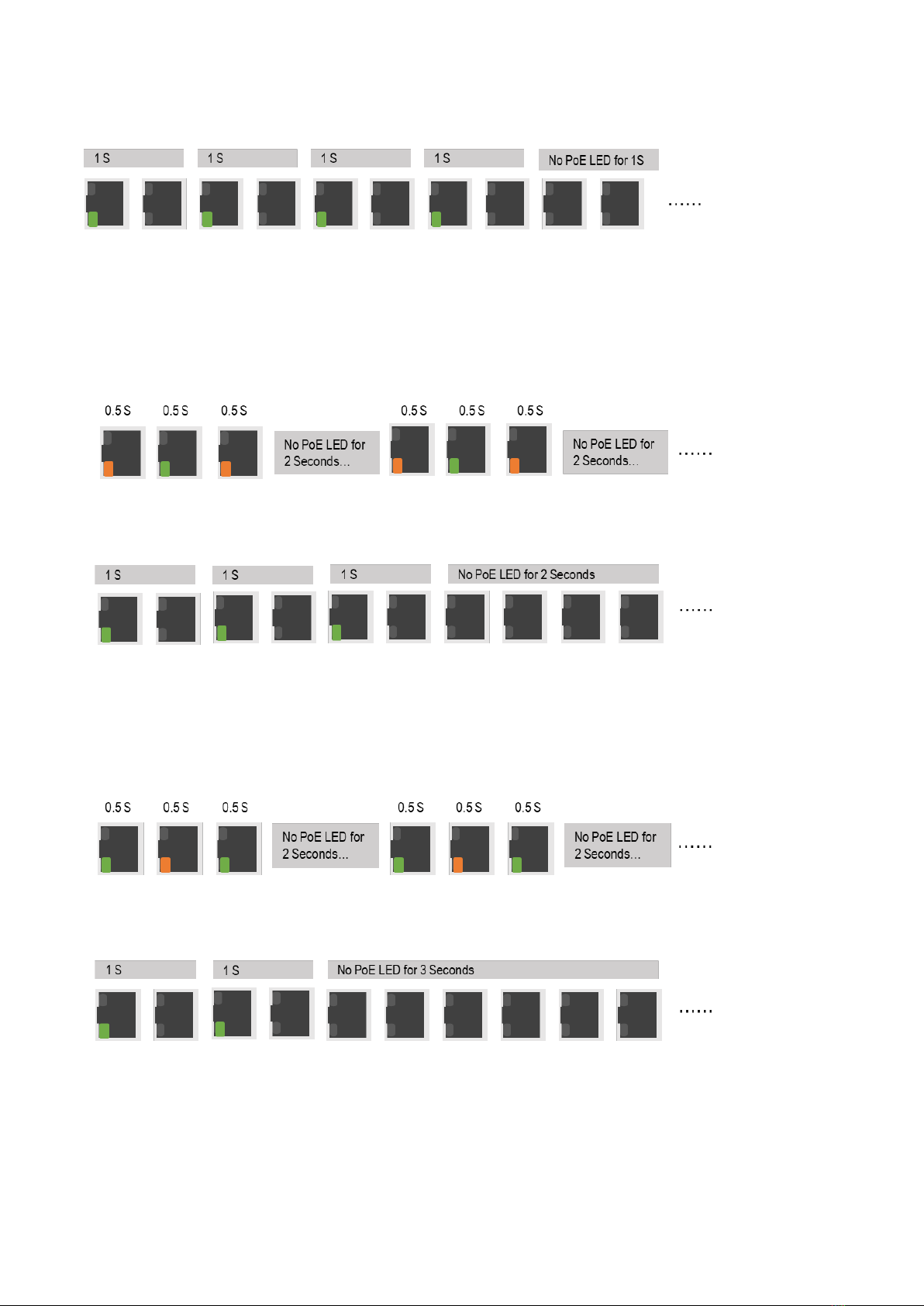

•PoE Budget Overload Event
When the total PoE budget is overload (>100%), the PoE port of the lowest priority PoE port will be
shutdown. The PoE LED of the port will act cyclically as below until the port is recovered from the
event:
After the PoE port is recovered from the PoE budget overload event, the PoE LED of the will act
cyclically as below until the event indicator is clear manually:
**AF/AT: Amber; BT: Green
•PoE Port Over Current Event (Per Port)
When the current limit of the specific PoE port is exceeded, the PoE power will be shutdown.
The PoE LED of the port will act cyclically as below until the port is recovered from the event:
**AF/AT: Amber; BT: Green
After the PoE port is recovered from the PoE Port Over Current event, the PoE LED of the port will

8
act cyclically as below until the event indicator is clear manually:
**AF/AT: Amber; BT: Green
•Cable Short Event
When the working PD encounters a cable short event, the PoE Port LED will act cyclically as below
until the port is recovered from the event:
After the PoE port is recovered from the Cable Short event, the PoE LED of the port will act cyclically
as below until the event indicator is clear manually:
**AF/AT: Amber; BT: Green
•Dual PD Fail Event
When one channel of the connected dual PD is failed, the PoE port will be shutdown. The PoE Port
LED of the port will act cyclically as below until the port is recovered from the event:
After the PoE port is recovered from the Dual PD Fail event, the PoE LED of the shutdown port will
act cyclically as below until the event indicator is clear manually:
**AF/AT: Amber; BT: Green

9
[Notice]
1. The system will automatically retry to recover from the event failure every 20 seconds.
2. To clear the warning PoE Indicator of the recovered port, please re-plug the port cable or re-
open the PoE function of the port via DIP Switch(>=2sec).
PoE Dip Switch
The 4-pin Dip Switch on the front panel of the Ethernet Switch works as the PoE Controller for PoE
Port 1~Port 4.
On
Off
PoE DIP Switch 1
Enable Port 1 PoE Function
Disable Port 1 PoE Function
PoE DIP Switch 2
Enable Port 2 PoE Function
Disable Port 2 PoE Function
PoE DIP Switch 3
Enable Port 3 PoE Function
Disable Port 3 PoE Function
PoE DIP Switch 4
Enable Port 4 PoE Function
Disable Port 4 PoE Function
Relay Contact Alarm Warning
2-pin 1*24VDC@1A resistive normal open on 6-pin terminal block.
The relay contact alarm will be triggered when anyone of the pre-configured events occurs. User
can configure the event warning for the events listed below. (Software Default: OFF)
The relay contact alarm will be triggered when anyone of the listed events occurs.
Key trigger event 1: Power-1 or Power-2 is inactive
Key trigger event 2: PoE total loading >100% PoE output budget
Key trigger event 3: PoE over current per port
Key trigger event 4: Cable short per port
Key trigger event 5: One of the channels in Dual PD fail
[Notice] When the relay is triggered because of Event 2~5, the relay contact alarm, will update the
status every 30 seconds. If there is no event happening for 30 seconds, the relay contact alarm will
be turn off. If the user disables the failed PoE port by removing the cable or Dip Switch manually,
the relay will be recovered immediately.

10
Ethernet Ports
RJ-45 Ports (Auto MDI/MDIX)
The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T devices connections. Auto MDI/MDIX means that the
switch can connect to another switch or workstation without
changing the straight-through or crossover cabling. See the figures as
below for straight-through and crossover cabling schematics.
10/100BASE-T(X) RJ-45 Pin Assignments (Table 2.2)
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Table 2.2
1000BASE-T RJ-45 Pin Assignments (Table 2.3)
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Table 2.3
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

11
Cabling
Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable
between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100
meters (328 ft.) long.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical
communications for both telecommunication and data communication applications.
Caution: Please employ optional optical transceiver (SFP/Fixed Fiber) that complies with
IEC 60825-1 and classified as Class 1 laser product.
Attention: Veuillez utiliser un émetteur-récepteur optique (SFP) conforme à la norme CEI
60825-1 et classé comme produit laser de classe 1.
To connect the transceiver and LC cable, please follow below steps:
Step 1 Insert the SFP transceiver module into the SFP slot as shown below in Figure 2.4. Notice
that the triangle mark is at the bottom of the SFP slot. Figure 2.5 shows SFP transceiver
module was inserted.
Figure 2.4: Transceiver to the SFP Module
Figure 2.5: Transceiver Inserted
Step 2 Insert the fiber cable of the LC connector into the transceiver as shown below in Figure
2.6.

12
Figure 2.6: LC Connector to the Transceiver
To remove the LC connector from the transceiver, please follow the steps shown below:
Step 1 Press the upper side of the LC connector from the transceiver and pull it out to release as
shown below in Figure 2.7
Figure 2.7: Remove LC Connector
Step 2 Push down the metal clasp and pull the transceiver out by the plastic part as shown below
in Figure 2.8
Figure 2.8: Pull Out from the SFP Module

13
Wiring the Power Inputs
Caution: Please follow the below steps to insert the power wire.
Attention: Veuillez suivre les étapes ci-dessous pour insérer le câble d'alimentation.
Step 1 Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.9.
Figure 2.9: Power Terminal Block
Step 2 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in
Figure 2.10.
Figure 2.10: Power Terminal Block
Caution: Only use copper conductors, 125°C, tighten to 7 in-lbs (0.79 Nm). The wire
gauge for the terminal block should range between 18~20 AWG.
Attention: Utilisez uniquement des conducteurs en cuivre, 125 ° C, serrer à 7 in-lbs
(0,79 Nm). Le calibre des fils du bornier doit être compris entre 18 et 20 AWG.

14
Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows
below in Figure 2.11. By inserting the wires, it will detect the fault status including power failure
or port link failure (managed industrial switch only) and form a normally open circuit. An
application example for the fault alarm contact is shown below in Figure 2.11.
Figure 2.11: Wiring the Fault Alarm Contact
Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate
power fault alarm.
Attention: Le calibre des fils du bornier doit être compris entre 12 et 24 AWG.
Si vous n'utilisez qu'une seule source d'alimentation, jumelez les broches 1 à 5 et les
broches 2 à 6 pour éliminer l'alarme de panne de courant.
Grounding Note
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the ground screw to the grounding surface prior to
connecting devices. The grounding screw symbol is shown blow in Figure 2.12.
Figure 2.12: Grounding screw symbol
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité
électromagnétique.

15
Mounting Installation
DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is
not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail
on the switch.
Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket
Follow the steps below to learn how to hang the industrial Ethernet switch.
Step 1 Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet
switch.
Step 2 To remove the DIN-Rail bracket, do the opposite from Step 1.
Step 3 After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of
the DIN-Rail on to the track as shown below in Figure 3.2.
