Telegesis Zigbee gw357 User manual

Telegesis

TG-PM-510 ZigBee Communications

Gateway

ZigBee Communications

Gateway

Product Manual 0510

Telegesis ZigBee Communications Gateway

Product Manual

Rev: 1

Date: Aug 2013

ZigBee Communications Gateway

Table of Contents

Abbreviations....................................................................................................................................4

Package Contents.............................................................................................................................5

Specifications....................................................................................................................................6

Order Codes..................................................................................................................................6

Examples ......................................................................................................................................6

Layout...............................................................................................................................................7

Power............................................................................................................................................9

LED Indicators.............................................................................................................................10

Buttons Actions ...........................................................................................................................11

Restore factory defaults...........................................................................................................11

Gateway reboot........................................................................................................................11

Gateway recovery mode..........................................................................................................11

Issue ZigBee command ...........................................................................................................11

Functionality....................................................................................................................................12

Start-up .......................................................................................................................................12

Gateway Discovery......................................................................................................................12

Discovery on a windows-7 PC..................................................................................................12

Discovery on other platforms:...................................................................................................13

Gateway Webserver....................................................................................................................14

Authentication..........................................................................................................................14

Web Pages..............................................................................................................................15

Appendix A .....................................................................................................................................28

Bootloading ETRX3 ZigBee module............................................................................................28

Warranty.........................................................................................................................................31

Caution........................................................................................................................................32

Cleaning......................................................................................................................................32

Compliance with Laws and Regulations..........................................................................................33

Disclaimer.......................................................................................................................................33

Contact Information.........................................................................................................................33

ZigBee Communications Gateway

Table of Figures

Figure 1: Package contents...............................................................................................................5

Figure 2: Gateway front view.............................................................................................................7

Figure 3: Gateway back view............................................................................................................7

Figure 4: Gateway bottom view.........................................................................................................8

Figure 5: Top label............................................................................................................................8

Figure 6: Bottom label.......................................................................................................................9

Figure 7: Device Discovery .............................................................................................................12

Figure 8: Discovery Python Script...................................................................................................13

Figure 9: Discovery Output..............................................................................................................13

Figure 10: HTTP server authentication............................................................................................14

Figure 11: Configurations Page.......................................................................................................15

Figure 12: ZigBee Interface Configurations page............................................................................22

Figure 13: Web Terminal page........................................................................................................23

Figure 14: Firmware Upgrade page.................................................................................................24

Figure 15: Logout page...................................................................................................................27

Figure 16: Dialin socket connection.................................................................................................28

Figure 17: ETRX3 Bootload prompt ................................................................................................29

Figure 18: Ready to receive upgrade image file via XMODEM........................................................30

ZigBee Communications Gateway

Abbreviations

PoE Power over Ethernet

LED Light Emitting Diode

HTTP Hyper Text Transfer Protocol

UPnP Universal Plug and Play

UDP User Datagram Protocol

TCP Transmission Control Protocol

SSL Secure Socket Layer

DNS Domain Name System

SNTP Simple Network Time Protocol

DHCP Dynamic Host Control Protocol

IP Internet Protocol

MAC Media Access Control

ZigBee Communications Gateway

Package Contents

The package contains the following items,

Figure 1: Package contents

a. ZigBee Communications Gateway

b. Micro USB power cable

c. Mounting screws

(a)

(b)

(c)

ZigBee Communications Gateway

Specifications

Model Number

GW357

RF Interface

ZigBee Pro

RF Output Power

+8dBm

Antenna

Half-wave Dipole Antenna 2dBi Gain or Integrated Antenna

Battery

1x 3V 220mAh Sony CR2032 Battery

Power Source

5Volts @ 500mA via USB Micro Connector

Charging source should be current limited

Ethernet

RJ45 10/100Mbps

Power Over Ethernet

(optional)

802.3af Compliant Class 1 Device

Operating Temperature

-20 to 70C

Humidity

95% TH Non-condensing

IP Rating

IP20 (subject to testing)

Net Weight

110g

Order Codes

Examples

GW-357-11-P-W-1-8 Gateway with 2xETRX357 module, Power-over-Ethernet, WiFi,

RS232/RS485 and an 8MB SD Memory Card

GW-357-1 Basic Gateway with 1xETRX357 module

GW-357-30-0-0-1 Gateway with 1xETRX357-LRS and RS232/RS485

GW-

Gateway

GW-357

Core Silabs IC

GW-357-X

1st module

1 = ETRX357

2 = ETRX357HR

3 = ETRX357-LRS

4 = ETRX357-HR-LRS

GW-357-0X

2nd module

GW-357-00-X

Power of Ethernet (P)

GW-357-00-0-X

WiFi or GSM (W or G)

GW-357-00-0-0-X

RS232/RS485 (1=yes 0=No)

GW-357-00-0-0-0-X

SD Memory Card size i.e. 4, 8 etc.

(a)

(b)

ZigBee Communications Gateway

Layout

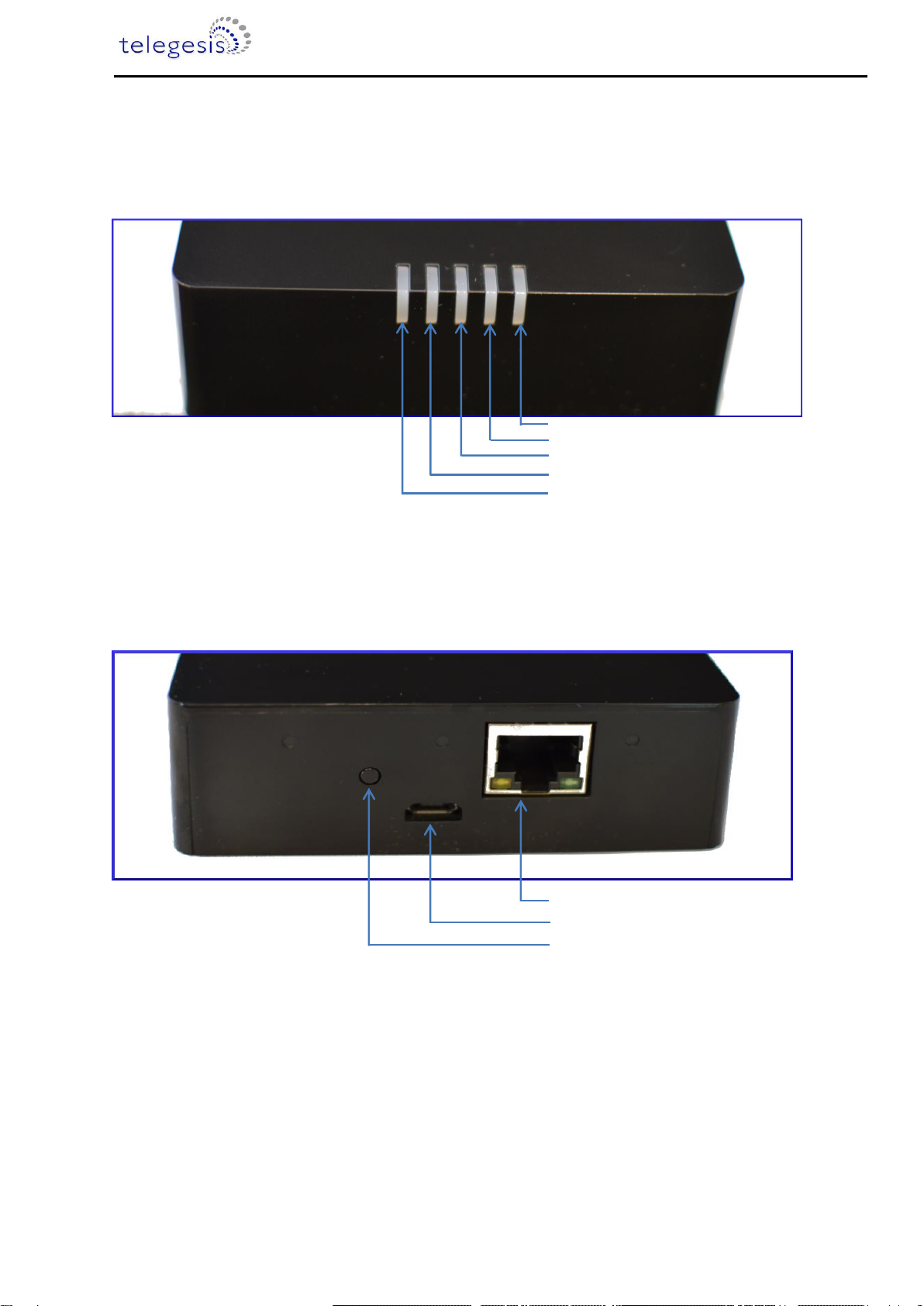

Figure 2: Gateway front view

Figure 3: Gateway back view

2nd ETRX3 Status LED

Interface Active LED

Gateway Activity LED

Link Status LED

LED1st ETRX3 Status

LED

Ethernet connector RJ45

Micro USB power socket

Button-2 (B2)

ZigBee Communications Gateway

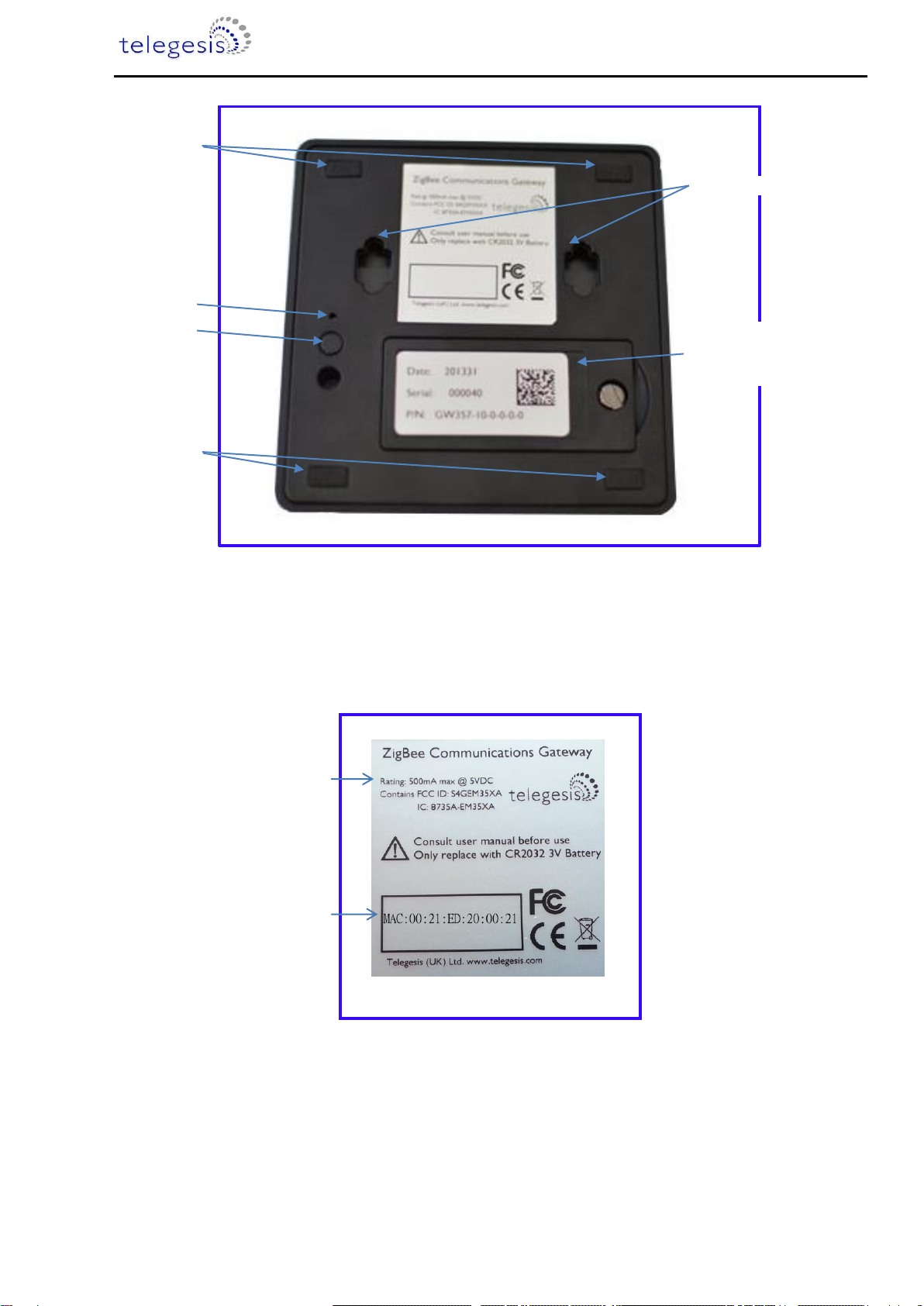

Figure 4: Gateway bottom view

Figure 5: Top label

Mounting holes

Opening for

battery and SD

card holder

Button-1 (B1)

Button-3 (B3)

Anti-slip pads

Power supply

ratings

Gateway MAC

address

ZigBee Communications Gateway

Figure 6: Bottom label

Power

The Gateway can be powered ON by plugging in the micro USB cable in the socket provided as

shown in figure-3 with power source as specified in the Specifications. Selected models of gateway

incorporating Power over Ethernet (PoE) can be powered on using the PoE injector through RJ45

cable.

Manufacture date

Gateway serial number

Gateway model number

ZigBee Communications Gateway

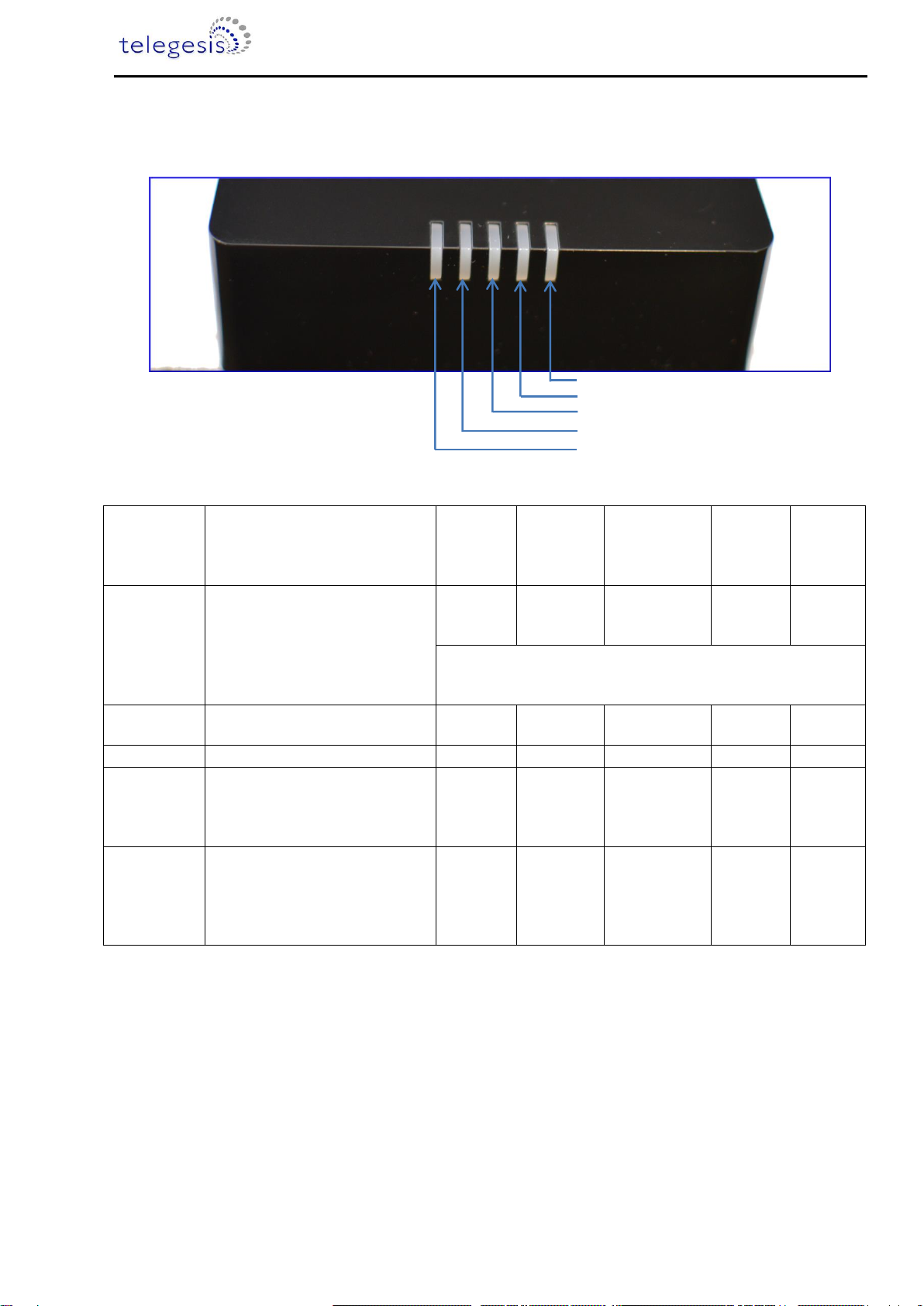

LED Indicators

Sequence

Number

Gateway State

1st

ETRX3

Status

LED

Link

Status

LED

Gateway

Activity LED

Interface

Active

LED

2nd

ETRX3

Status

LED

Power UP Sequence

Red +

Green

Blinking

Amber for

5 sec

OFF

All LEDs will turn ON and then following blink one after

the other twice except for the ETRX3 Status LEDs

which are controlled by ETRX3 ZigBee modules

Ethernet link inactive

Red

Blinking

Amber

Ethernet link active

Green

OFF

Any socket connected to

either ZigBee module

Web Terminal connected

Green

Any communication with

ZigBee modules

Any communications on

Ethernet lines

Blinking

Amber

Table 2: LED Sequence table

1st ETRX3 Status LED

Interface Active LED

Gateway Activity LED

Link Status LED

2nd ETRX3 Status

ZigBee Communications Gateway

Buttons Actions

The Gateway has three hardware buttons as shown in the Layout which can perform multiple

functions as described in this section.

1. Button 1 (B1)

2. Button 2 (B2)

3. Button 3 (B3)

Restore factory defaults

Follow the following procedure with buttons in order to restore the factory default configuration

settings on the Gateway using B1 and B3.

1. Press and hold B1

2. Then with B1 pressed, press and hold B3 for approximately 3 seconds after which the

Gateway reboots and LED power up sequence is seen.

Gateway reboot

Press B3 and hold for 5 seconds to reboot the Gateway.

Gateway recovery mode

Perform following procedure to put the Gateway in recovery mode

1. Press and hold B3 until gateway reboots.

2. At power up hold B2 and wait for 3 seconds.

3. The Gateway will be in recovery mode now.

Issue ZigBee command

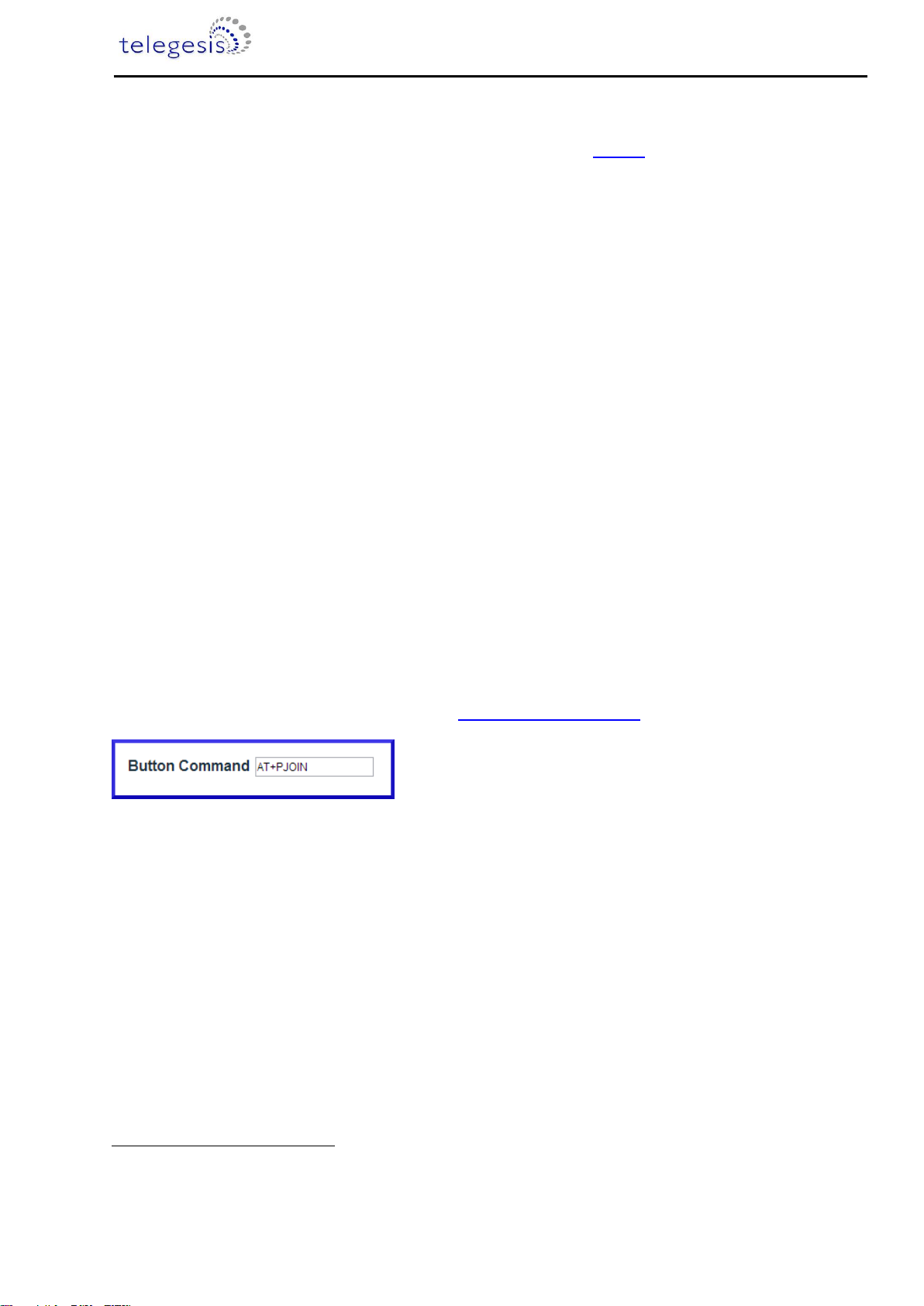

Button B2 is used to issue custom ZigBee command to the 1st ETRX3 ZigBee module which can be

configured in Button Command section of the Gateway Configurations as shown below.

So whenever the B2 is pressed the command (“AT+PJOIN” by default) is issued to the 1st ETRX3

ZigBee module.

Recovery mode not implemented in initial release but will be added in subsequent release soon.

ZigBee Communications Gateway

Functionality

Start-up

Turn ON the ZigBee Communications Gateway by inserting the micro USB power cable into the

socket shown in figure 3. The LEDs on the front panel will light up as described in the LED’s

Sequence table. Once the Start-up LED sequence is complete the gateway will continuously look for

an Ethernet link which is indicated by LED sequence-3. Insert the Ethernet cable in the RJ45 socket

shown in figure 3. The gateway will try to obtain an IP address by using DCHP (by default DHCP is

enabled but the user can also set static IP address for the Gateway). Once an IP address is

allocated successfully the LED sequence-4 is displayed on the LED panel.

Gateway Discovery

Discovery on a windows-7 PC

Gateway implements UPnP discovery service so the user can directly go to “Network settings”and

look for devices under “Network Infrastructure”category. The Gateway will show up as ZigBee

Communications Gateway as shown below. Navigate to properties by right clicking on the device to

view the device properties. Browse to the IP address shown in the device properties or alternatively

double click on the device to navigate to the webpage hosted by Gateway.

Figure 7: Device Discovery

ZigBee Communications Gateway

Discovery on other platforms:

On other platforms where UPnP services are not available, the device can be discovered using the

following python script which basically listens to the UDP broadcast on port 14099 by the gateway

once every minute.

Run the above script from command line and the output window would show the IP addresses of the

ZigBee Communications Gateways in the network as shown below

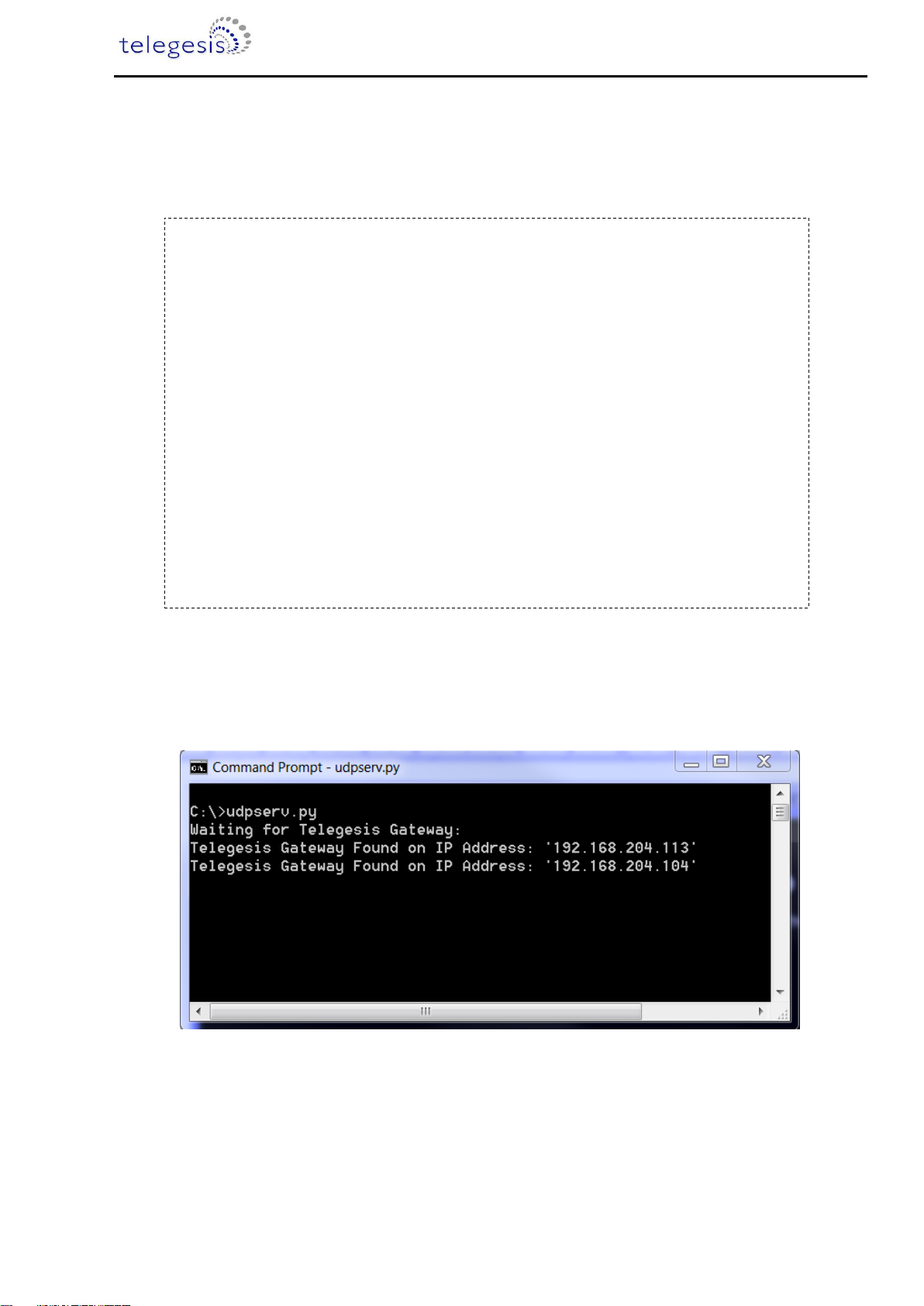

Figure 9: Discovery Output

import socket, traceback, commands

host = '' # Bind to all interfaces

port = 14099

#start a udp socket server to listen on port 14099

s = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)

s.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)

s.setsockopt(socket.SOL_SOCKET, socket.SO_BROADCAST, 1)

s.bind((host, port))

print "Waiting for Telegesis Gateway:"

while 1:

try:

message, address = s.recvfrom(8192)

print "Telegesis Gateway Found on IP Address:

%r"%(address[0])

except (KeyboardInterrupt, SystemExit):

raise

Figure 6: Discovery ScriptFigure 8: Discovery Python Script

ZigBee Communications Gateway

Gateway Webserver

ZigBee Communication Gateway hosts a http webserver to serve webpages which help the user to

configure the Gateway and communicate with the ZigBee device via a simple web interface.

Authentication

The http webserver is protected by basic authentication hence a valid username “admin” and

password “password” must be provided when prompted to access the webpages. The password

can be changed through the GW357 Configuration webpage as explained in the later section.

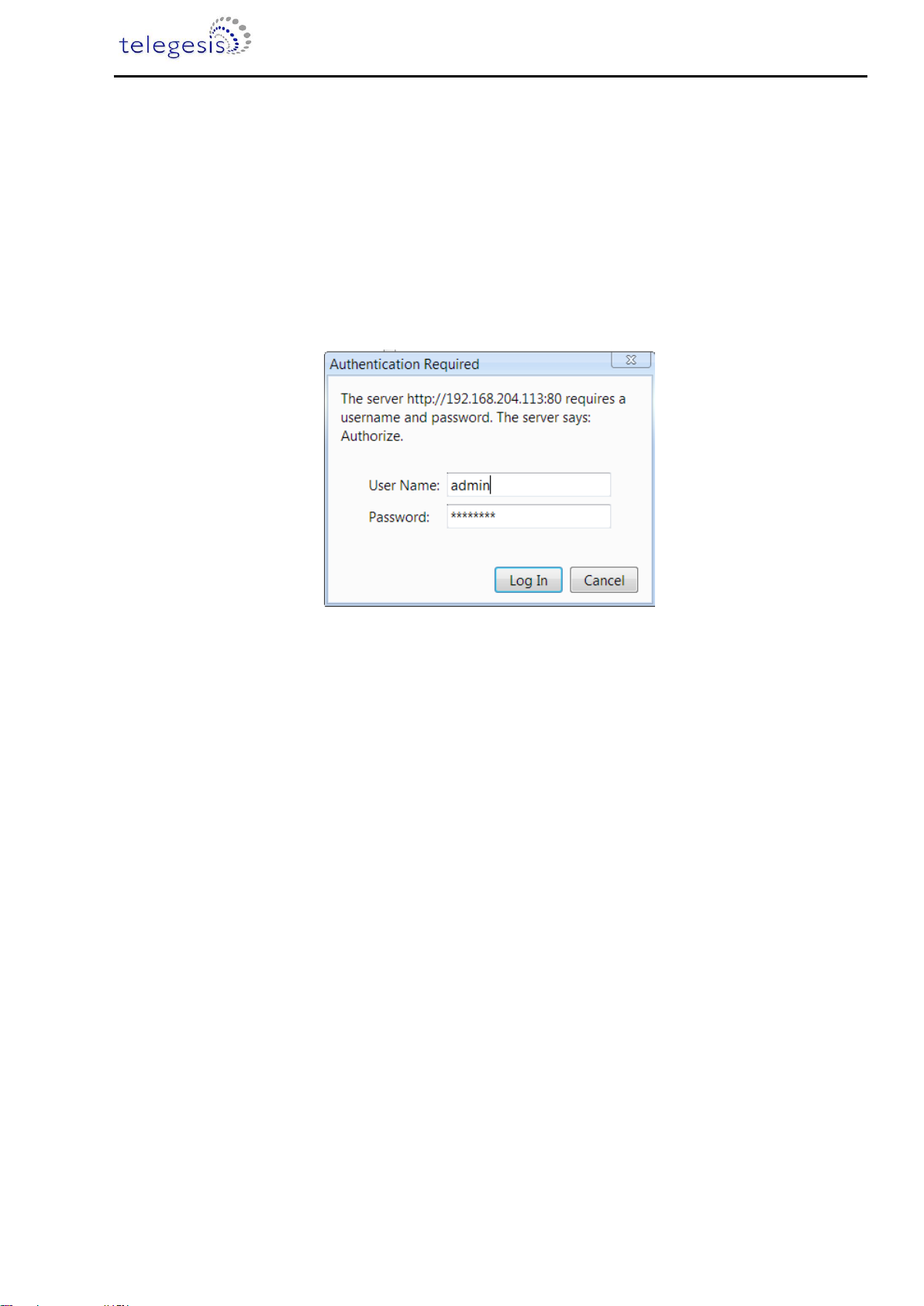

Figure 10: HTTP server authentication

ZigBee Communications Gateway

Web Pages

Following web pages are served by the http web server on the ZigBee Communications Gateway

GW357 Configuration

The Gateway configuration page is the main page of the http webserver. This page provides access

to the configuration parameters of the Gateway.

Figure 11: Configurations Page

Gateway Configuration

a. Web Terminal

This option enables or disables the access to ZigBee module via the web terminal. The

Gateway provides an access to the ZigBee module via Web Terminal page which can be

used to issue commands to the ZigBee module and monitor the response of the module. The

Web Terminal only supports communication in ASCII.

Default value is enabled.

ZigBee Communications Gateway

b. Dialout TCP Sockets

Enable

The Gateway can establish an outgoing TCP socket connections to a specified dialout

addresses and port numbers. This option can enable or disable the outgoing socket

connections for both the ZigBee modules.

Default value is disabled.

Out 1 Address

The address specified in this option is used by the gateway to establish the outgoing socket

connection for the 1st ETRX3 ZigBee module. The dialout address can either be an IP

address or a host name.

Out 1 port

This item specifies the port number for the dialout connection from 1st ETRX3 ZigBee

module.

Out 2 Address

The address specified in this option is used by the gateway to establish the outgoing socket

connection from the 2nd ETRX3 ZigBee module. The dialout address can either be an IP

address or a host name.

Out 2 port2

This item specifies the port number for the dialout connection from 2nd ETRX3 ZigBee

module.

Secure Connection

This option enables the SSL on the outgoing socket connection

This option only available in Gateway models with two ZigBee modules on-board. Please refer order codes

The SSL is not implemented in current release.

ZigBee Communications Gateway

c. Dialin TCP Sockets

Module 1 Enable

The Gateway also allows an incoming TCP socket connection on a specified port which

enables access to the 1st ETRX3 ZigBee module.

Module 1 Port

The IP port number to access the 1st ETRX3 ZigBee module via incoming TCP socket.

Module 2 Enable

The Gateway also allows an incoming TCP socket connection on a specified port which

enables access to the 2nd ETRX3 ZigBee module.

Module 2 Port4

The IP port number to access the 2nd ETRX3 ZigBee module via incoming TCP socket.

d. Discovery

This option is enables the Gateway to send discovery broadcasts by UDP on port 14099

once every minute. This option is enabled by default.

e. Button Command

This is a command string that will be sent to the 1st ETRX3 ZigBee module each time the

Button-2 (B2) is pressed.

This option only available in Gateway models with two ZigBee modules on-board. Please refer order codes

ZigBee Communications Gateway

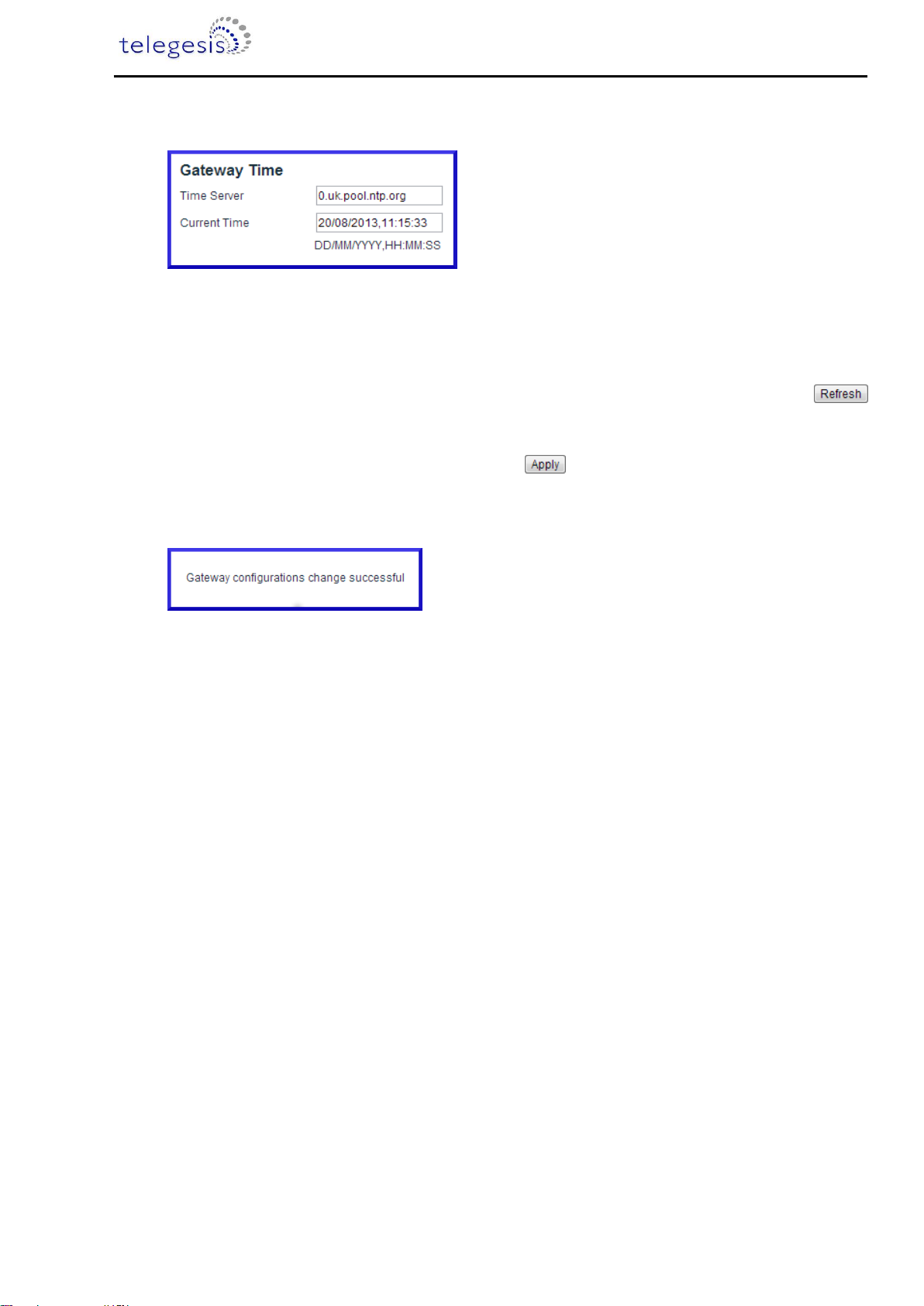

f. Gateway Time

Time Server

The Gateway implements SNTP client which can update Gateway time from a valid time

server specified in time server field.

Current Time

The current time of the gateway is displayed in this field when the page is loaded or

is clicked.

After changing any settings on the webpage must be clicked in order to apply the

changes to Gateway configuration. Following message will be displayed to confirm the

change.

ZigBee Communications Gateway

IP Configuration

a. Current IP Configurations

IP address

The current IP address of the Gateway is displayed in this field.

MAC address

The MAC address of the Gateway is displayed in this field.

b. DHCP Configuration

DHCP Enable

If this option is enabled the Gateway can acquire IP configurations like IP address, subnet

mask, default gateway and the DNS server dynamically by using DHCP protocol. If the

DHCP option is not selected then stored Static IP configuration is used to setup the network

interface.

c. Static IP Configurations

IP Address

The gateway uses the IP address specified in this field as static IP when DHCP option is not

selected.

Subnet Mask

The gateway uses the subnet mask specified in this field as subnet mask when DHCP option

is not selected.

Default Gateway

The gateway uses the default gateway specified in this field as default gateway when DHCP

option is not selected.

ZigBee Communications Gateway

DNS Server

The gateway uses the DNS server specified in this field as DNS server when DHCP option is

not selected.

After changing any settings in the IP configuration must be clicked in order to apply the

changes in Gateway. Following message will be displayed to confirm the change.

Click refresh to verify if the settings are changed successfully.

Restoring Factory Defaults

The factory settings can be restored by clicking . The factory defaults can also

be restored by combination of hardware button presses as described in Buttons Actions

section. Following are the factory defaults:

Default Gateway Configurations

1. Web Terminal : Enabled

2. Dialout : Disabled

3. Out 1 Address : 192.168.204.107

4. Out 1 Port : 4094

5. Out 1 Address : 192.168.204.107

6. Out 1 Port : 4095

7. Secure Connection

: Disabled

8. Module 1 Enable : Enabled

9. Module 1 Port : 4096

10. Module 2 Enable : Enabled

11. Module 2 Port : 4097

12. Time Server : 0.uk.pool.ntp.org\0

13. Username : admin

14. Password : password

Default IP Configurations

1. DHCP Enable : Enabled

2. Static IP Address : 192.168.204.121

3. Subnet Mask : 255.255.255.0

4. Default Gateway : 192.168.204.10

The SSL is not implemented in current release.

Table of contents

Popular Gateway manuals by other brands

Juniper

Juniper SRX5600 instructions

Poly

Poly ATA 400 Series Deployment guide

IP Gear

IP Gear SmartCell 111L user guide

Guest Internet

Guest Internet GIS-K1 quick start guide

AVIRE

AVIRE 452 003/M installation guide

eTactica

eTactica EG-200 user manual

Neocom

Neocom TRBOnet Swift A200 How to reset

FRIENDCOM

FRIENDCOM GW300 user manual

HELIX

HELIX FI installation guide

Inovonics

Inovonics EN6080 installation instructions

ZyXEL Communications

ZyXEL Communications ZyWALL USG Series Application note

Volansys

Volansys Modular IoT Gateway Hardware user's guide

WePresent

WePresent WiPG-1000 user manual

AudioCodes

AudioCodes MediaPack Series Hardware installation manual

COTX

COTX X5 quick start guide

Iget

Iget Home GW1 user manual

Huawei

Huawei HG532f user guide

ZyXEL Communications

ZyXEL Communications P-324 user guide

Telegesis ZigBee GW357 User manual

Popular Gateway manuals by other brands
