Teleste Optimo User manual

OPTIMO SERVER

Installation Guide and Release

Notes v2.0.2

March 5, 2013

CONTENTS

Introduction .................................................................................................................................................. 3!

Documentation standards............................................................................................................................ 3!

First time installation .................................................................................................................................... 3!

Optimo server web user interface.............................................................................................................7!

Configuring the keyboard layout for system console ............................................................................... 7!

First time installation of multiple servers...................................................................................................... 7!

Release Notes ............................................................................................................................................. 8!

New Product Features 2.0.2 .................................................................................................................... 8!

New Product Features 2.0.1 .................................................................................................................... 8!

New product features 2.0 ......................................................................................................................... 9!

Appendix A: Configure details ................................................................................................................... 12!

Appendix B: Using a second network interface ......................................................................................... 13!

Appendix C: Optimo Server clusters ......................................................................................................... 14!

The management node .......................................................................................................................... 14!

The worker node .................................................................................................................................... 15!

Copy-local location ................................................................................................................................. 15!

Upgrading a cluster from a previous version.......................................................................................... 15!

Configuring a worker node using a configuration file ............................................................................. 16!

INTRODUCTION

This guide describes how to turn on the Optimo Server hardware and connect to the system forthe

first time.

DOCUMENTATION STANDARDS

Note that text in this font must be typed exactly as is. Text in angle brackets (‘<’ or ‘>’) indicates

substitution.

For example, to show the contents of a file, you should use the cat command with the filename that you

want to view. This is documented as follows: cat <filename>

FIRST TIME INSTALLATION

1. Before turning on the system, connect a keyboard, power cable, monitor, and Ethernet cable to the

system as shown in the diagrams below. Note that a USB keyboard will work for all systems.

a. In a 1RU and 2RU systems, the Ethernet cable should be connected to eth0, the left-most LAN

port before powering the system on.

Optimo(R) Server S200AE

Optimo(R) Server S220AE

Ethernet (eth0)

VGA

Ethernet (eth0)

VGA

IPMI

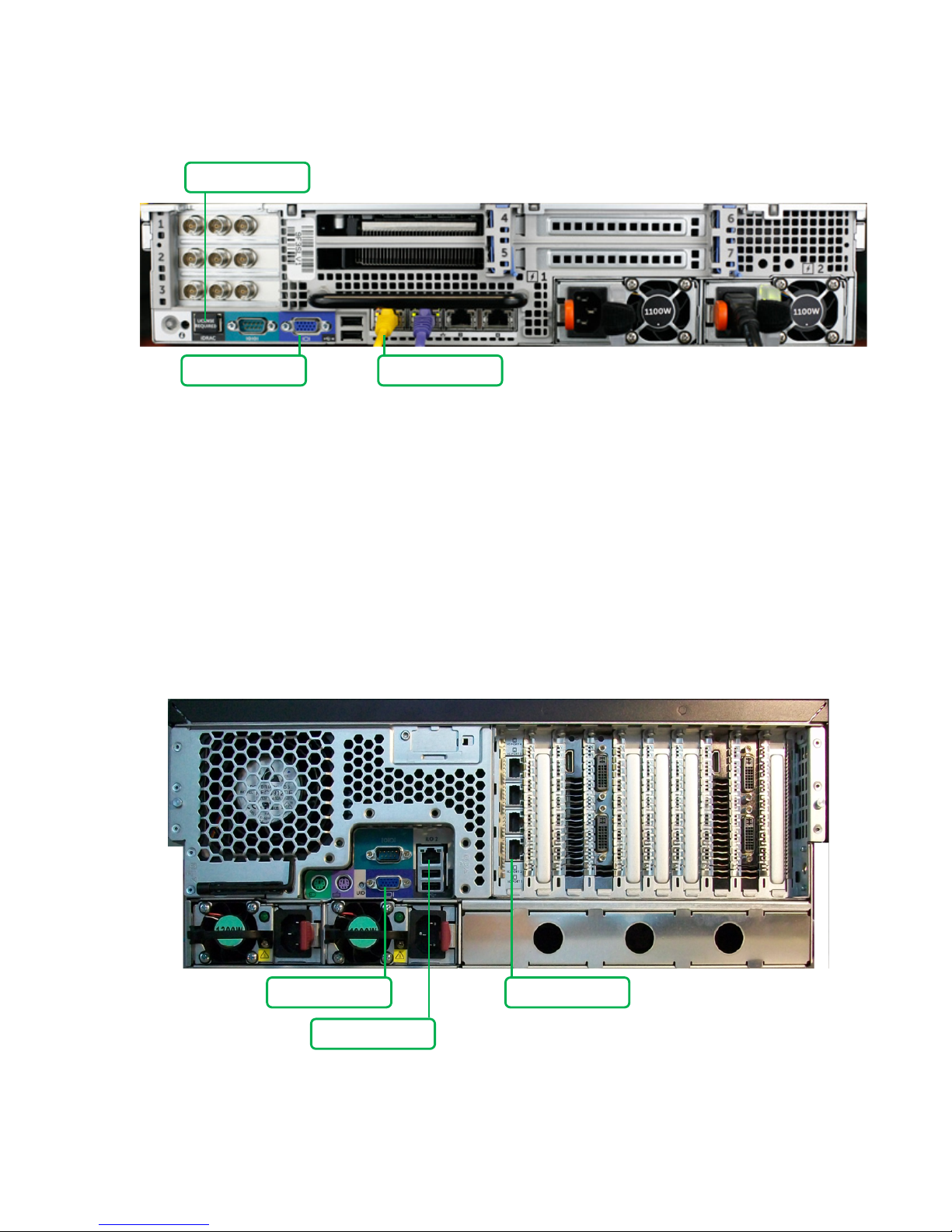

Optimo(R) Server S234AE

b. The monitor should be connected to the center VGA connector (the monitor is only needed to run

the initial configuration script and determine the IP address).

c. In a 4RU system, the Ethernet cable should be connected to eth0, the bottom-most LAN port

before powering the system on.

d. The monitor should be connected to the VGA connector.

Optimo(R) Server S206AE (*representation)

e. In a 5 RU system, the Ethernet cable should be connected to eth0, the bottom-right Ethernet port,

before powering the system on.

VGA

Ethernet (eth0)

iDRAC

VGA

ILO

Optimo(R) Server S230AE

2. Power on the machine.

3. Log into the system with the username “elemental” and password “elemental”.

4. Type the following command to see the software versions available for installation:

ls ~/elemental_production_*

5. Run the installer and follow the prompts to set up the software, replacing the #### placeholder

characters with the version number shown in the prior step:

sudo ./elemental_production_server_2.0.2.####.run

When the installation completes, you should see the following:

Installation and configuration complete!

Starting elemental_se: [ OK ]

Please open a web browser and point it to: http://<your ip address> to get to

the web interface.

Please contact [email protected] if you are having

difficulties.

Enjoy!

If you do not see successful output after running the configure script, please contact Optimo

support ([email protected]).

For more information on the configuration script, please see Appendix A – Configuration details.

NOTE: follow the prompts to set up a static IP or use DHCP. The system ships from Teleste

Corporation with DHCP enabled.

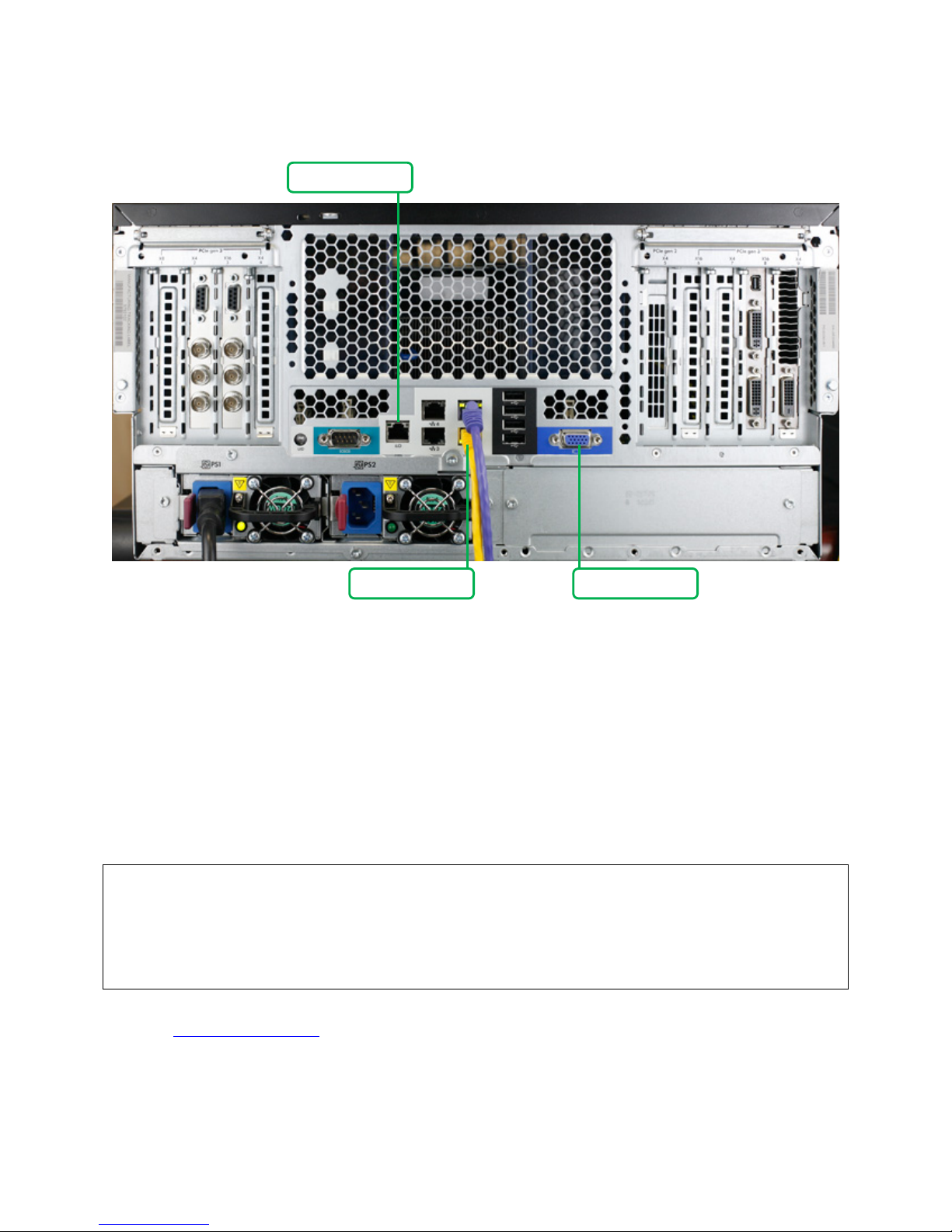

At this point, you can determine the IP address of your system by typing:

VGA

Ethernet (eth0)

ILO

ifconfig

The IP address of the system is listed next to the inet addr field in the eth0 section.

OPTIMO SERVER WEB USER INTERFACE

When the basic system parameters have been configured, you can connect to the web-based user

interface by entering the IP address into a web browser. Firefox is recommended.

To access the system home page and to view current jobs, navigate to:

http://<ip address>

For more information about the system and specifically for details about how to use the web-based or

REST interfaces, navigate to the “Support” page:

http://<ip address>/help

Note that you can find the currently installed version of Optimo Server at the bottom of the user

interface or by typing the command:

cat /opt/elemental_se/versions.txt

After typing the command, the currently installed version is displayed just above the dashed line.

CONFIGURING THE KEYBOARD LAYOUT FOR SYSTEM CONSOLE

Optimo systems ship with the default keyboard layout set toUS. To change the keyboard layout for the

system console, follow these steps:

1. Log in as the “elemental” user.

2. Run the command:

sudo ./kp-config.sh

Choose the appropriate settings. If unsure, choose the default setting.

FIRST TIME INSTALLATION OFMULTIPLE SERVERS

In order to make it easier to configure multiple servers, the configure script accepts an XML file of settings

parameters. This feature is especially helpful if the servers to be configured require similar settings or are

part of a Cluster. For configuring servers into a Cluster using this feature, please read the Configuring a

Worker Node using a Configuration File section of Appendix C.

These instructions assume that an initial server has already been configured. The settings XML file may

be queried via the REST interface from this initial server:

curl -H 'Accept: application/xml' http://<initial_server>/settings.xml >

settings.xml

This creates a settings.xml file. This file should be reviewed for accuracy and updated as necessary. In

particular, the hostname and any static IP configuration must be changed to the values desired for the

second server.

Next, configure the second server using the following command:

sudo ./elemental_production_server_2.0.2.####.run -i settings.xml

This step assumes that the settings.xml file has been copied to the /home/elemental/ directory.

RELEASE NOTES

This section describes new features, improvements and known issues in Optimo Server release 2.0.

You can find the currently installed version of Optimo Server at the bottom of the user interface or by

typing thecommand:

cat /opt/elemental_se/versions.txt

NEW PRODUCT FEATURES 2.0.2

!SCC files can be created as caption outputs from SCC or embedded (608) inputs

!DVB subtitles can be a source for burn-in captions

!Quality improvements at lower bitrates for MPEG-2 encoder

oMinimum I-frame interval prevents regular GOP I-frames from being created near scene

change I-frames

oFraming quantization reduces QP near the center of the image for better visual quality

oSoftness varies the quantizer matrix for improved visual quality at higher quantization levels

!Added SubContentType for Irdeto so the same content key can be used for Smooth Streaming and

HLS

!Writes IV to HLS manifest when iv_follows_segment_number is true for later manifest manipulation

!Permissions on log files and content files are now set to 0664

!Updated HDS onCaptionInfo capabilities for compatibility with existing players

!Updated Smooth Streaming and Apple output group validation for GOP alignment when using frame

rate follow source

!Fixed common encryption playback issue with UltraViolet files in Silverlight-based players

!Nielsen ID3 support is incompatible with manual audio remixing

!When a job is cancelled or stopped for any reason then the parts of the upload that were successfully

sent to the S3 bucket will now be deleted from the bucket before the job ends

NEW PRODUCT FEATURES 2.0.1

!SMI and SRT are valid caption source formats

oFunction with text-based outputs (non-Embedded)

!Smooth Streaming output groups can produce audio-only .isma files to separate video and audio

outputs

!Updated Nielsen metadata library to collect input metadata from subaudible cue tones and separate

id3 track

oNote that outputs with neilsen_id3_passthrough enabled should contain audio output tracks

!Support for Adobe ad messaging in HLS streams

Selector for ad marker style is in output group settings. Selecting “Optimo” ad markers is

functionally equivalent to selecting SCTE-35 in Metadata settings of individual streams in

previous versions

!Adobe HDS support is now production ready

oSupport for stream-level manifest versions 1.0, and 3.0 (for Primetime players)

osmpteTimecode elements moved from set-level manifests to stream-level manifests

!Support for Encoder Boundary Point segmentation/fragmentation markers in MPEG Transport Stream

outputs

!Support for periodic database backups. Backup frequency and number of backups to keep can be

configured in the Settings -> General tab

Optimo Cloud Changes

!S3 output integrated into Elemental Media Engine for better performance and progressive (multipart)

upload

!S3 input performance is much improved due to much faster transfer engine

!Support for IAM instance roles for more secure data transfer in and out of the instance (S3

credentials are no longer needed in the Job / Event XML)

NEW PRODUCT FEATURES 2.0

User Interface Changes

!Multiple output groups allowed in a single job

oDestination field has moved to individual output groups

oVideo, audio, and caption streams are configured separate from outputs, and can be used in

multiple output files

oThe maximum character length of profile names has been extended to 200 characters

!Unicode file names and directories are supported

REST Interface Changes

!The object model for Job XMLs has changed to reflect multiple output groups. This change is not

backwards compatible with previous versions of Optimo Server; automation systems should be

updated to reflect the new XML structure.

o<profile> has been changed to <job_profile>

o<watch_folder> has been changed to <job_watch_folder>

!REST endpoints have been updated to be prefixed by /api (for example, http://<server ip>/api/

jobs )

!A REST command has been added to return the version of the current Teleste product

Pre and Post Processing Script Changes

!The format for passing arguments to pre- and post- processing scripts has changed to JSON

A compatibility script has been provided which translates script arguments to the Optimo

Server 1.x format

oExisting profiles and jobs have been updated to use this script

Licensing Changes

!There are no longer separate installers for Cable Pack customers. Access to Cable Pack features is

controlled with a valid cable.lic license file.

!Codecs and containers which the user does not have a license to will appear greyed out in the user

interface

Multiple Optimo Server units should have the same licensing if used in aclustered

configuration

Beta Adobe HDS Support

!Added support for Adobe HTTP Dynamic Streaming

!onCaption support added for HDS outputs

!onCuePoint ad messages added to HDS outputs

!smpteTimecode element added to HDS outputs

!Flash Access support added for HDS outputs

!Final release of HDS support in January 2013

Microsoft Smooth Streaming Changes

!Updated default fragment size to 2 seconds to match Microsoft recommendations

oUpdated ISMV presets to have 2 second GOP lengths

!Updated language descriptor to be compatible with additional players

!Manifests are selectable as either UTF-16 or UTF-8 encoding

!Updated PlayReady encryption has an option for 64 bit IV or 128 bit IV

NOTE Previous versions of Optimo Server always used 64 bit IV, despite thepresence of

the 128 bit option

128 bit IV isknown to cause playback problems onmany Silverlight players; Teleste

recommends changing any profiles to use 64 bit IV

Apple HLS Changes

!The Base URL field is available to create playlists with absolute URLs

!Support added for Apple’s new Enhanced Encryption technology

!Support added for WebVTT outputs

!Added user selectable EXT-X-PROGRAM-DATE-TIME tags into HLS manifest files

!White spaces in manifests will be represented as %20 for conformance to the Pantos specification

!Added the ability to specify external outputs to the variant playlist

Quicktime Changes

!An option for including or omitting the CLAP atom has been added

Timecode Changes

!Burn in Time Code (BITC) is supported for all output types

!The ability to specify a user defined starting timecode value has been added

Captioning Changes

!Open Captions are supported for all output types

oAll caption inputs except DVB-Sub function with open captions

!WebVTT captions are available for Apple HLS outputs

!onCaption support available for Adobe HDS outputs

!Added support for STL inputs when going to text-based output captions such as TTML, WebVTT,

Open captions, etc

UltraViolet Changes

!Corrected calculated SegmentSize as stored in final .xml

!CFF-TT language codes set to 2 characters

!Improved fragment ordering for decimate 0.15 compliance

!Support for full Ultraviolet metadata pass-through

oMetadata is now validated against the UVU Metadata XSD 1.0.3

oXSD's used for validation can by changed by replacing

/opt/elemental_se/config/uvu_schema.xsd with a different version of the Ultraviolet Metadata

schema from http://www.uvvu.com/schema/

!Support for 8-byte IV's in CFF Encryption

!Multiple subtitle track support for Ultraviolet outputs

!Leading or trailing whitespace in captions is stripped for CFF-TT outputs for specification compliance

Other Changes

!"Max total CPU threads" has been changed to "CPU Load Factor"

!Message of the day updates provide additional details about the system and its configuration

!Partial files resulting from aborted copy to local requests are removed

!Max bitrate field is applied to ABR rate control mode

Known Issues

!EXT-X-PROGRAM-DATE-TIME will use the date the file was encoded on

!A name modifier is required for proper playback of WebVTT caption outputs in HLS, however the user

interface will not mark jobs missing this invalid

APPENDIX A: CONFIGURE DETAILS

The configure program is run to configure a new system or upgrade an existing system with new

software. It behaves like a standard command line utility. It is interactive by default, requesting simple

input from the user. However, there are command line options you can enter to install automatically,

which is important when installing multiple machines over ssh.

The following is the command for usage help:

./elemental_production_server_2.0.2.####.run --help

OPTIONS:

-i <filename>: Use the configuration XML <filename> to configure

-h, --help : Show this help message

-v, --version: Show version information

-s, --start: Start the services once installed without asking

-c, --cleandb: Clean out databases before updating

-t, --skip-tz Bypass entering time zone settings

-n, --skip-net: Bypass entering network settings

-l, --skip-cluster: Bypass entering cluster settings

-z, --skip-auth: Bypass entering authentication settings

-a, --config-auth: Configure authentication settings only (does not run

full configure)

-e <port@host>: Set license server location port@host. For example:

2701@licserv1

--skip-all Bypasses time zone, network and authentication

settings

-ns, --no-start: Don't ask to start the service at the end of

installation

-xeula: Bypass the display and prompting for acceptance of

the End User License Agreement. By

using this option, you indicate that you have read

and accept the License Agreement contained in the

file

opt/elemental_se/doc/ESAE_EULA.txt and in the About

section of the user interface

--install-driver <driver>: Install one of the following drivers during a

system update: celerity8fc

APPENDIX B: USING A SECOND NETWORK INTERFACE

Optimo Server supports using asecond network interface card (NIC) to partition cluster data traffic

between the database (control) and the file system (data). Partitioning network traffic allows aphysical

separation between server data and outputs, helps alleviate network bottlenecks, and is useful for

installations where file storage may be maintained independently of Optimo Server. The Optimo

Server user interface and database will always use the control interface.

The configure script will assume the first network interface (i.e., eth0) will manage control data, and the

second (eth1) will be used for file system traffic.

If you choose to configure a second network device using a static IP address, then all required

information will be queried during configuration. Any valid IP address may be specified.

Each Optimo Server node is pre-configured using the subnet configuration specified above. The

configuration of subnets beyond the server’s default is left as the responsibility of the customer. This

includes both software (file servers) and any additional hardware devices (switches, routers, etc.).

APPENDIX C: OPTIMO SERVER CLUSTERS

A cluster of Optimo Servers is comprised of asingle management server, or node, and one or more

worker servers (nodes). A cluster functions as asingle transcoding engine, distributing the total workload

to available nodes. Nodes ina cluster share asingle, common database, common system time, and file

system share. All cluster nodes execute transcoding jobs, and each provides an identical user interface to

the cluster. Both management and worker nodes require NAS/SAN connectivity.

Optimo Server Cluster Configuration

THE MANAGEMENT NODE

The!management!node!of!a!cluster!is!the!Optimo!Server!installation!that:!

!Maintains and runs the server database.

!Provides the server’s REST web service interface.

!Maintains and exports a file system share that contains the server’s incoming, outgoing and

completed file locations, as well as the pre-configured watch folder directories.

!NTP time server to synchronize system time with all worker nodes.

If a management node is configured with dual network interfaces, the REST web service and database

traffic use the first (control) NIC.

When preparing an Optimo Server cluster, the management node should always be configured before

any worker nodes.

THE WORKER NODE

A worker node is any Optimo Server that:

!Connects to the management node’s database.

!Mounts the management node’s file share.

The configure script will prompt for the name or IP address of the cluster’s management node:

What is the hostname or IP address of the management node you'd like to connect to?

If the IP address is given, the management node should always be specified as the first network interface,

i.e. 10.82.6.100.

Worker nodes can be added to acluster anytime after the management node is configured. The cluster

will come on-line as each node is added. Jobs will be distributed to worker nodes as soon as they are

configured and the Optimo service is started.

COPY-LOCAL LOCATION

Since a worker node mounts the file share of the management node at /data/server, an additional

directory outside of this tree is created for jobs that specify “copy to local” in the Pre Processing options of

a job’s configuration.

The default location is /data/local_sources, but any file location may be used that is read and writable by

the “elemental” user. This value is stored in the <sequencer_config> section of the settings.xml file.

(In the case of the settings.xml file, text in angle brackets (‘<’ or ‘>’) does not indicate substitution except

in the command below <full path to local file store>.)

<copy_local_dir> <full path to local file store> </copy_local_dir>

These controls are also available from the user interface by navigating to the Settings tab and selecting

Advanced.

UPGRADING A CLUSTER FROM A PREVIOUS VERSION

When upgrading an Optimo Server cluster:

!Stop each node’s elemental_se service in the cluster (the order in which nodes are stopped is not

important). From a secure (ssh) shell, enter: /sbin/service elemental_se stop

!Stop each node’s httpd service in the cluster (the order in which nodes are stopped is not

important). From a secure (ssh) shell, enter: /sbin/service httpd stop

!Update the management node with version 2.0.2 software. See the$Optimo Server$Upgrade$Guide

for more information.

!Update each cluster node (again, order is not important).

CONFIGURING A WORKER NODE USING A CONFIGURATION FILE

After the Management Node has been configured, a special settings XML file may be queried via the

REST interface that will help with the configuration of any worker nodes.

curl -H 'Accept: application/xml' http://<management_node ip

address>/settings.xml?cluster=true > settings.xml

This creates a settings.xml file that contains the default cluster settings already filled out for the given

master node. This file should be reviewed for accuracy and updated as necessary. In particular, the

hostname and any static IP configuration must be updated to the values desired for this worker node.

Next, configure the worker node using the command:

sudo ./elemental_production_server_2.0.2.####.run -i settings.xml

This step assumes that the settings.xml file has been copied to the /home/elemental/ directory.

Table of contents

Popular Transceiver manuals by other brands

Yaesu

Yaesu FT-901DM Survival guide

Midland

Midland Handheld VHF Marine Transceiver user manual

Delta Electronics

Delta Electronics SFP Bi-Directional Transceiver Module... Specification sheet

Alinco

Alinco DJ-PN446 instruction manual

RF Neulink

RF Neulink NL900S user manual

Adeunis RF

Adeunis RF Sigfox BREATH user guide

Nokia Mobile Phones

Nokia Mobile Phones NPB-1 NB Series Troubleshooting

Kenwood

Kenwood SKY COMMAND SYSTEM II quick start guide

JOPIX

JOPIX MARINE 515P instruction manual

Yaesu

Yaesu FTM-7250DR Advance manual

Yaesu

Yaesu FT-891 Reference book

SRT

SRT Chronos quick start guide

Heathkit

Heathkit HW-9 user manual

AirCell

AirCell ST 3100 installation manual

Weatherdock

Weatherdock easyTRX2S Series manual

ListenTALK

ListenTALK LK-1 quick start guide

Nokia

Nokia NSE-6 SERIES Technical documentation

Icom

Icom IC-H21T instruction manual
