Tema Telecomunicazioni SipComStage AD639SR User manual

AD639SR
VoIP SIP PoE Call Repeater
Audio Over IP Network Series
PRODUCT MANUAL
Version HW 1.0 - Version SW 1.0
Revision
D
ate
Revision reason
Prepared
Checked
/Approv
ed
0 07/01/2021 First release MM, DP DP, FL
TEMA TELECOMUNICAZIONI
“IP COMMUNICATION AND SECURITY COMPANY”
WWW.TEMATLC.IT
Products for VoIP SIP LAN networking Communications, Paging Amplifiers Systems and
Audio Applications. Zone Announcements, Night Ringer, Multicast general call,
Background music, Standard SIP call or Emergency call, SD memory with pre-recorded
me
ssages, Relays for LAN drives.

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 2 di 31
We, TEMA TELECOMUNICAZIONI SRL Via C. Girardengo, 1/4 - 20161 MILANO
declare under our sole responsibility that the product:
Product name Altoparlante VoIP SIP PoE ripetitore di chiamata
Trade name TEMA TELECOMUNICAZIONI Srl
Type or model AD639SR
and accessories --
to which this declaration relates is in conformity with the essential requirements and other
relevant requirements of the R&TTE Directive ( 1999/5/EC, 2006/95/EC, 2004/108/EC ).
The product is in conformity with the followings standards and/or other normative documents:
HEALT & SAFETY EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011
EMC EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006
EN 61000-3-3 :2008
MILANO, 07 Jan 2021 TEMA TELECOMUNICAZIONI SRL
D. Pontillo
I. IMPORTANT INFORMATIONS REGARDING THE RECOVERY AND RECYCLING OF THIS
ELECTRONIC DEVICE
DICHIARAZIONE DI CONFORMITÀ CE
DECLARATION OF CONFORMITY CE
The crossed
-
out wheeled bin symbol below indicates that this electronic equipment is
intended to be disposed in a separate collection and not in an unsorted municipal
waste, in order to provide for the treatment of WEEE (Waste Electrical and Electronic
Equipment) using best available recovery and recycling techniques. Specific treatment
for WEEE is indispensable in order to avoid the dispersion of pollutants and other
hazardous substances into the waste stream, while recycling leads to reduction of
disposal of waste and the negative impacts on environment and human health. That is,
priority is given to reuse of WEEE in its components, subassemblies and
consumables. As the final holder, the user has an important role in contributing to
reuse, recycling and other forms of recovery of WEEE and is responsible to return this
waste in the collection facilities set up by EC Member States and to fulfill other duties
in compliance with Directive 2002/96/EC and local laws.
UNI EN ISO 900
1:20
15
TEMA TELECOMUNICAZIONI
is a certified company

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 3 di 31
RECOMMENDATIONS
1. It is recommended to read this entire manual before proceeding to the installation of the device.
2. The installation and commissioning of the device can only be performed by specialized technicians.
3. The device is accurately manufactured and tested. In any case, the product is not recommended for use
where an error of operations can cause property damage and/or injury to persons.
4. It is expressly not recommended maintenance inside the device which must be carried out by Tema
Telecomunicazioni, the removal of the closures will invalidate the warranty and makes accessible internal
parts with risk of electric shock.
5. Tema Telecomunicazioni accepts no responsibility for damage to property and/or persons resulting from
incorrect use of the equipment or by procedures that do not comply with the instructions in this manual.
Tema Telecomunicazioni reserves the right to make modification to the technical and functional
specifications at any time and without any notice.
6. Products powered via PoE (Power over Ethernet) may only be connected with cables coming from the
internal network company (inside the building), are not allowed connections LAN cables coming from outside
the building.
7. Use for this device only and exclusively original spare parts and consumables supplied by Tema
Telecomunicazioni. The company is not responsible for damage caused by the use of materials not supplied
by the same.
8. Do not expose the unit to direct sunlight, protect from heat, dust, humidity and chemicals.
9. Tema Telecomunicazioni reserves the right to vary the product characteristics for improvement without prior
notice. Check the WWW.TEMATLC.IT website for any updates to the latest firmware, manuals, and
technical documentation.
10. This document is property of Tema Telecomunicazioni, It is forbidden any duplication and reproduction, even
partial, as well as storage on any medium without written permission of Tema Telecomunicazioni.
This symbol in the descriptions indicates a general warning or a damage danger
to equipment or people.
This symbol in the descriptions indicates useful information or a suggestion for
the optimization of the device functionality.

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 4 di 31
1. PRESENTATION ........................................................................................................................................ 5
2. AVAILABLE MODELS AND ACCESSORIES......................................................................................... 6
3. FEATURES AND PERFORMANCE ......................................................................................................... 7
4. PACKING LIST ........................................................................................................................................... 7
5. TECHNICAL SPECIFICATIONS ............................................................................................................... 8
6. OPERATION................................................................................................................................................ 9
6.1. D EVICE CONNECTION DIAGRAMS ..........................................................................................................................9
7. OPERATING MODES............................................................................................................................... 10
7.1. C ALLS TO DEVICES ...........................................................................................................................................10
7.2. RELAY FUNCTION ...........................................................................................................................................10
7.3. C ALLS GENERATED FROM AD639SR FOR THE ACQUISITION OF EXTERNAL CONTACTS FOR SPECIAL SIGNALINGS ........10
8. INSTALLATION OF THE DEVICE .......................................................................................................... 11

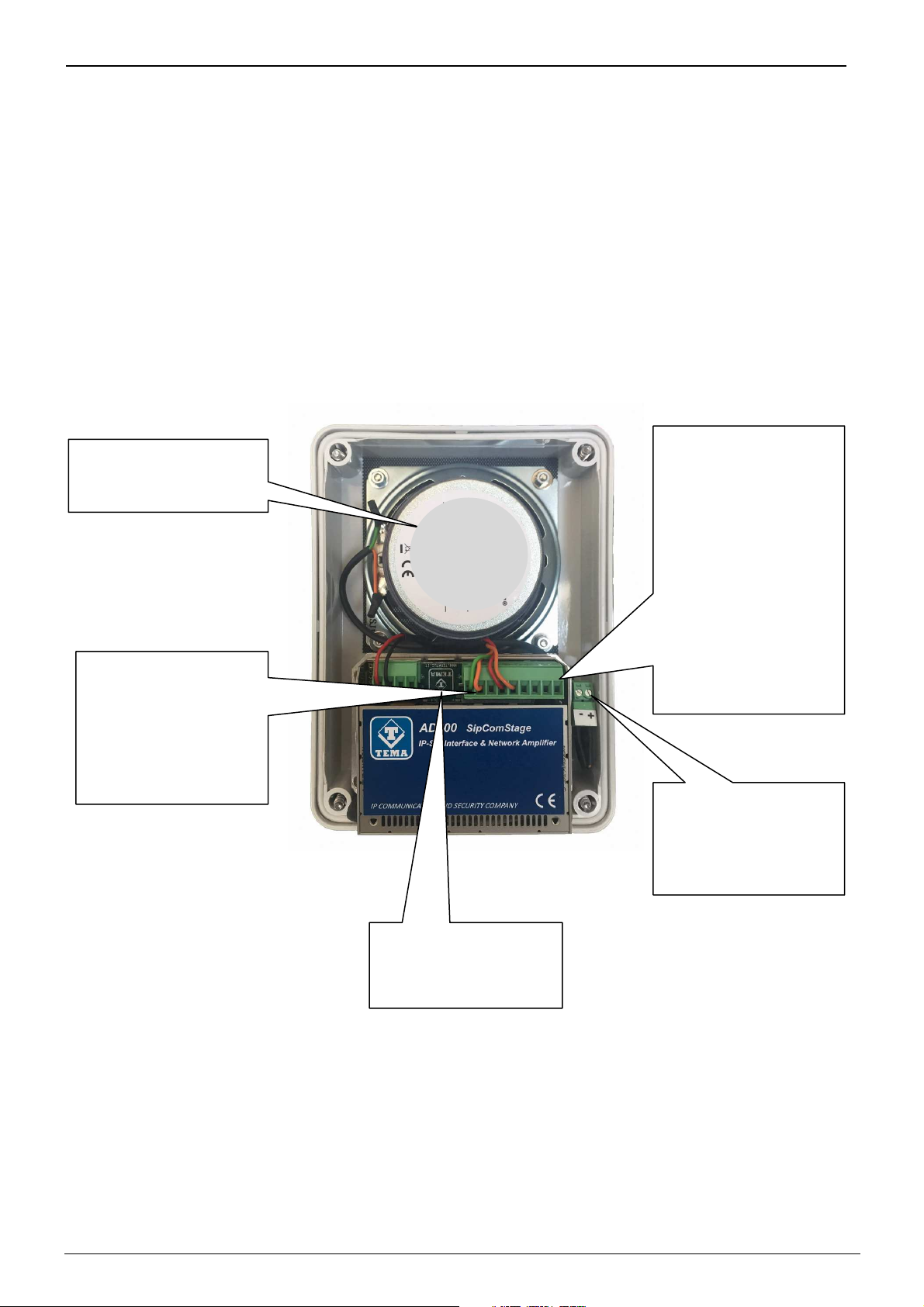

8.1. C ONNECTING THE AD639SR INTERNAL MODULE .................................................................................................11
9. PROGRAMMING ...................................................................................................................................... 13
9.1. P REPARATION FOR THE SYSTEM PARAMETERS PROGRAMMING ..............................................................................13

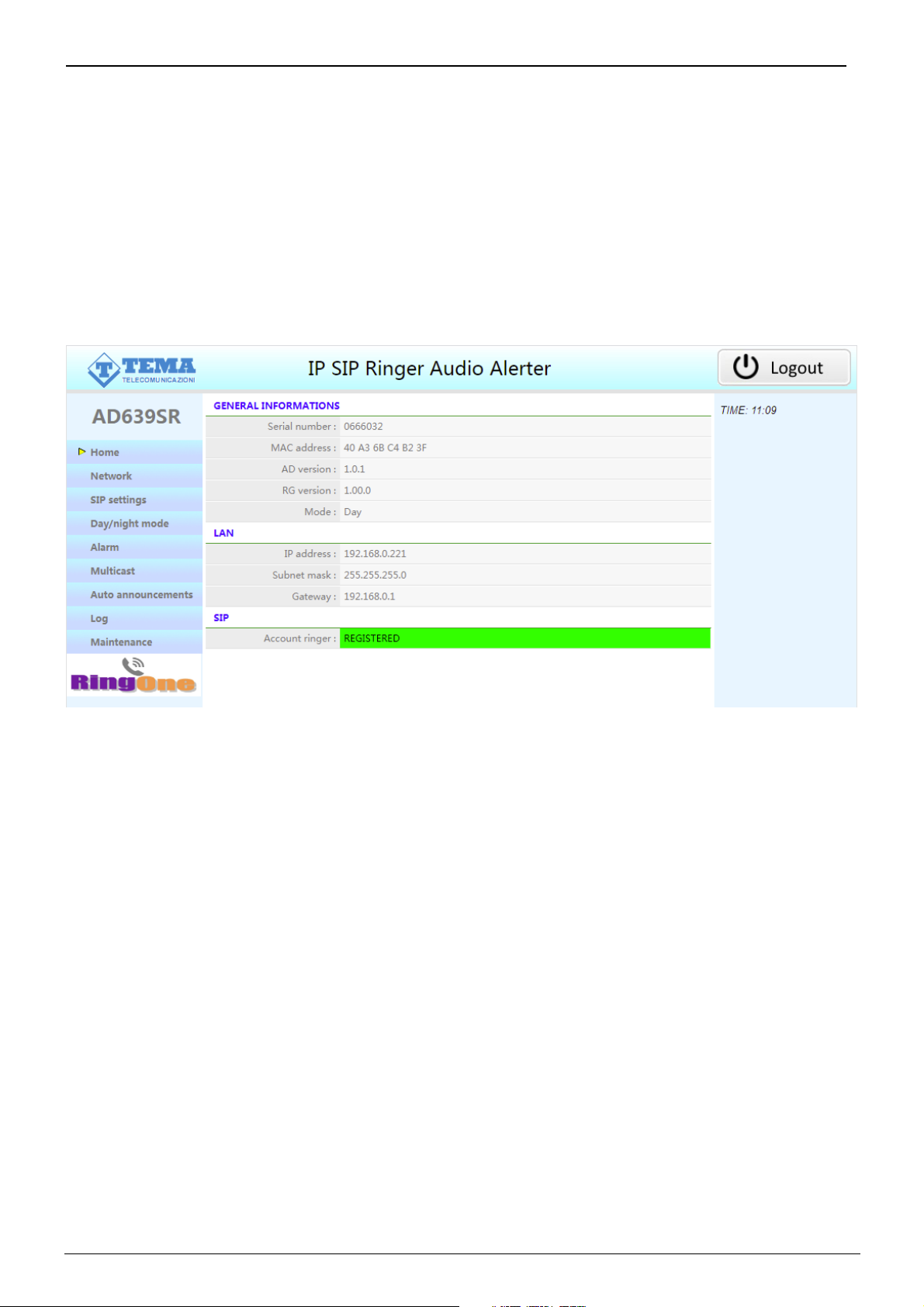

9.2. A CCESS TO PROGRAMMING ...............................................................................................................................14
9.3. N ETWORK PARAMETERS ...................................................................................................................................15

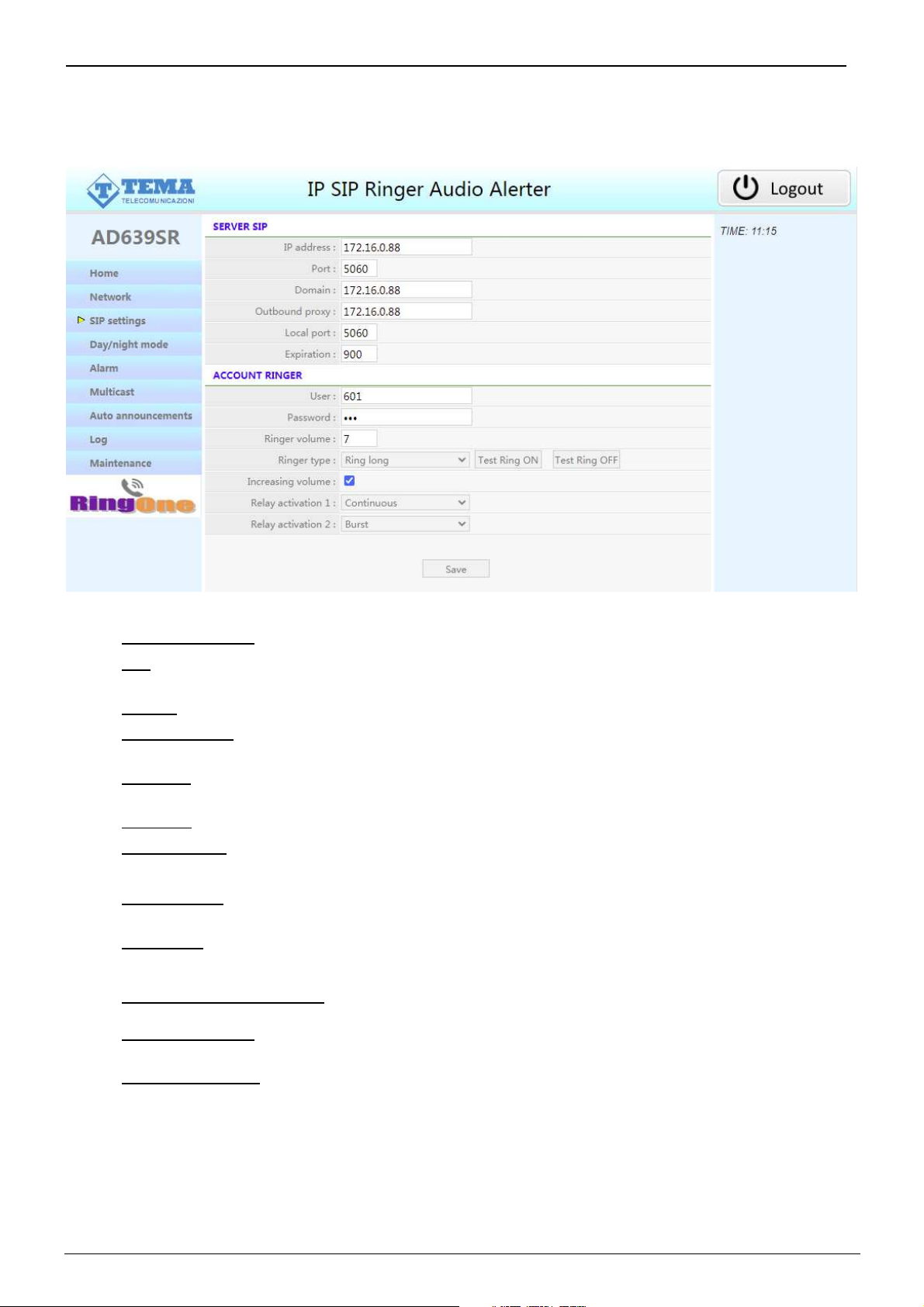

9.4. SIP PARAMETERS ............................................................................................................................................16

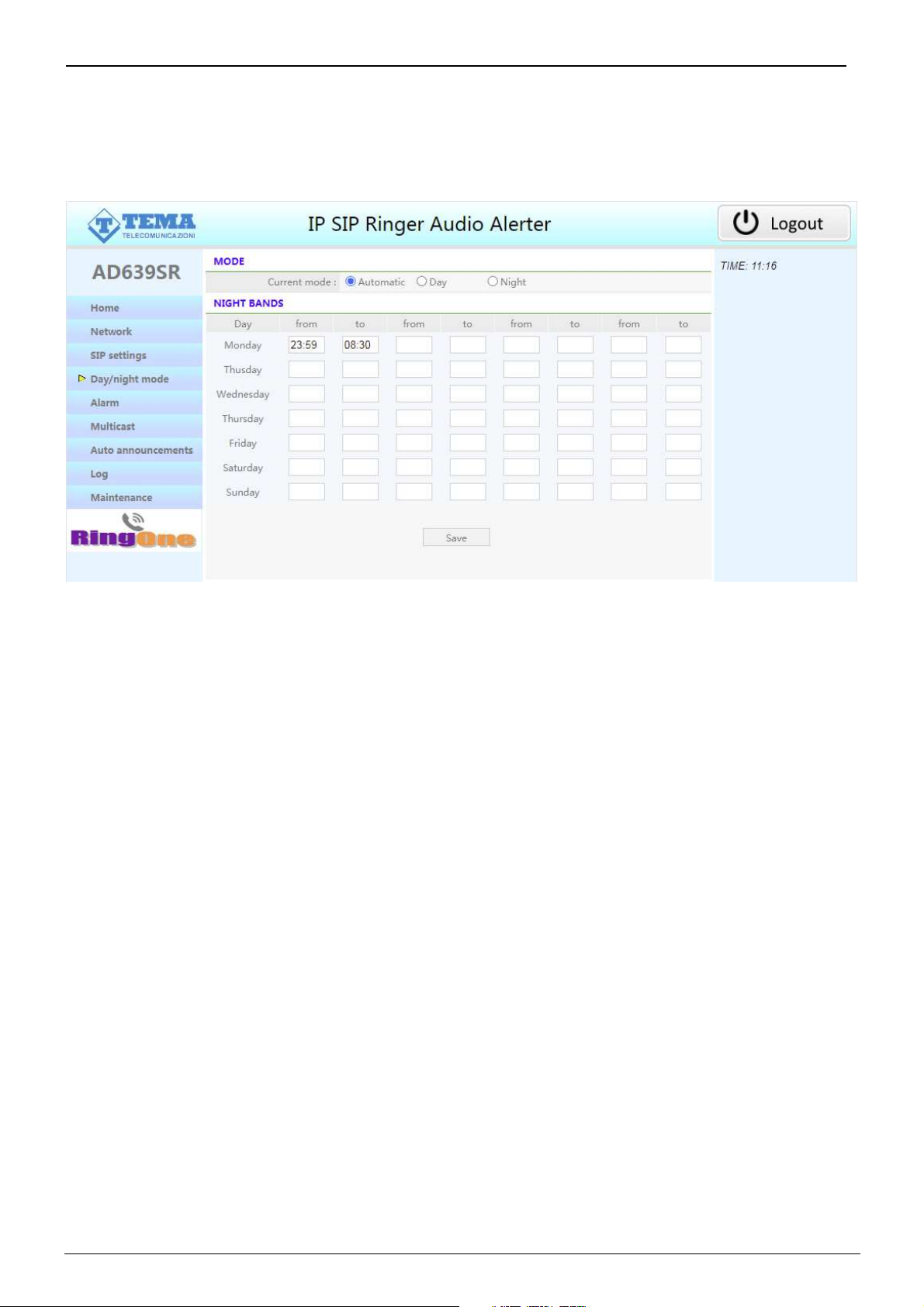

9.5. D AY /N IGHT MODE ............................................................................................................................................17
9.6. A LARM INPUT SETTINGS ....................................................................................................................................18
9.7. M ULTICAST .....................................................................................................................................................20
9.8. A UTOMATIC ANNOUNCEMENTS ..........................................................................................................................21
9.9. M AINTENANCE .................................................................................................................................................23
9.10. D IAGNOSTIC LOGS ......................................................................................................................................24
9.11. M ULTICAST A UDIO S TREAMING FOR ANNOUNCEMENTS ...................................................................................25
10. APPENDIXES............................................................................................................................................ 26
10.1. FAQ F REQUENTLY A SKED Q UESTIONS .........................................................................................................26
10.2. A PPENDIX 3: U SE OF THE AUDACITY SOFTWARE FOR AUDIO FILES RECORDING ...............................................29
10.3. A PPENDIX 4: C ABLING OF A UTP RJ45 NETWORK CABLE ACCORDING TO THE STANDARD EIA568B.....................30
INDEX
PAGE

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 5 di 31
1. PRESENTATION
AD639SR is a IP SIP telephone call repeater which is registered on the VoIP PBX with its own telephone number
and inserted in the night ringtone group or in any group where you want to repeat the phone call routed on that
group. When an incoming call arrives, the system reproduces a warning sound from the powerful internal speaker.
The system already has several call tones in memory that can be selected during the configuration, some of which
show an increase in volume over time: they start with a low volume that increases progressively in case of no
response. The default tone can be replaced by another by choosing from those supplied, or it can be freely
registered by the user and loaded into the system via web browser with simple operations. The volume can be
adjusted as desired.
AD639SR can be powered directly on the same LAN cable if it comes from a PoE switch, or from a PoE injector or
230Vac external power supply, both in the Tema catalog. Power supplies from PoE switches and external power
supply can coexist. AD639SR incorporates an efficient 40W amplifier (with external power supply, 10W in PoE), in
D-class.
The programming of the systems takes place remotely via LAN with few operations and in a few minutes:
1) Connect AD639SR in a LAN socket to a PoE switch with standard cat. 5/6 cable, or to a generic switch by
powering it with an external power supply.
2) Connect with a browser and assign an IP address and the credentials of the LAN network.
3) Register into IP-PBX the number assigned to AD639SR in the space reserved for SIP account.
4) Enter the number assigned to AD639SR in the night group of the PBX, or divert incoming calls (in the absence of
the PO) to the number assigned to AD639SR.
Some models of AD639SR can be supplied with a LED or FLASH Xenon optical indicator in different colors, to add
a light signal to the acoustic signal. The luminous indicators are also available separately and can also be mounted
later on outside the device, with the power supply available from the device itself and controlled by one of the 2
internal relays integrated in the system.
AD639SR is also equipped with an External contact input with multiple functions, for example: it provides for
making a SIP call to a programmed IP address (peer2peer call) and informing the operator of the event with a
specific voice message. The signal can be repeated a programmable number of times, the operator can interrupt
the sequence with a code from the keyboard. Other examples of use will follow in this manual.
Multicast Audio Streaming for music and announcements broadcast. AD639SR handles 1 multicast channel in
LAN for background music and announcements broadcasting. The generation of musical programs in streaming
audio can be managed from a PC of the LAN/WAN network with the Tema “ADAM” management software or with
the dedicated Tema Encoder AD615/S.
Total remote management via LAN, integrated Web Server. Programming, configuration, loading and listening to
audio files, firmware release update, audio volume adjustment, backup and restore the configuration, device
reboot.
AD639SR is part of the series of Audio over IP Tema “SipComStage” products tested and compatible with the
most popular brands of PBX and Asterisk-based systems.
Tested with most popular P X brands
:
SIEMENS - AVAYA - ALCATEL – PANASONIC – SAMSUNG - NEC - 3CX
CISCO CUCM - LG - WILDIX - AASTRA - ASCOM - NITSUKO - SELTA
– PHILIPS - MITEL – CISCO -SISTEMI BASATI ASTERISK
Other IP SIP Spe kers from the
“
SipComStage
”
series

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 6 di 31
2. AVAILABLE MODELS AND ACCESSORIES
A
A
-
39P4
PoE injector 230Vac/
48Vdc 0,5A.
A
D639
S
R
Without
flashing light
AD639
S
R/LA
With orange ED
flashing light
AD639
S
R/FT
With transparent Xenon
F ASH flashing light
AD639
S
R
/FR
With red Xenon F ASH
flashing light
AA
-
39E3
DIN Power Supply 220Vac/
24Vdc-1,5A
AD699/X10B
F ASH transparent
Xenon flashing light,
for external connection
AD699
/L10A
Flashing orange
ED, for external
connection
AD699/X10B
Flashing red Xenon
F ASH, for external
connection
AD699/RT
Adjustable support in
horizontal and vertical,
grey color, 5 kg capacity
AD639SR/LM
With multicolor RGB ED
flashing light
AD699/L10M
Multicolor RGB ED
flashing light,
external installation

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 7 di 31
3. FEATURES AND PERFORMANCE
• 30W (10W PoE) IP wall speaker for indoor or outdoor installation with IP56 protection
• 40W power audio output
• 1 RX Multicast channel for Music/Announcements broadcast
• 2 remote-controlled relays via LAN network or following the incoming telephone call
• 1 multi-function external contact input
• Possibility of broadcast a pre-recorded announcement, associated with the available input
• Alert service with dedicated messages following an external event
• Independent adjustment of audio volumes: multicast, ringtone
• Customizable audio files
• Great versatility combined with ease of use and programming
• P2P SIP Peer to Peer mode for alarm reporting
• Power supply via PoE (Power over Ethernet) 802.af with a single UTP cable for the connection or from an
external power supply, even simultaneously
• Programming via integrated Web Server interface and password protection
• Possibility of software/firmware update via LAN
• Integration with local LAN, Ethernet LAN 100 BaseT port with RJ45 connector
• Possibility of issuing pre-recorded announcements at set times (up to 5 for each day of the week)
• Possibility of issuing a daily pre-recorded announcement, at a set time or manually
4. PACKING LIST
The systems are supplied with the parts included in the following list:
• One AD639SR device
• A printed system documentation, installation, programming, use manual
• A CD-ROM with complete documentation

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 8 di 31
5. TECHNICAL SPECIFICATIONS
LAN
TCP/IP Network 10/100BaseTx
Protocols
S
IP 2.0, RFC 3261
RTP Multicast audio Streaming
G711µ, G711a, G722, L16 from 16 to 44 kHz
Connection
SIP Server (IP
-
PBX) o
r
P2P (Peer To Peer)
Power Supply
PoE, PoE Injector and/or
external
Ac/Dc
power supply
PoE
802.3af class
0 12,95W
External Power Supply
(Op
t
.)
230Vac / 12Vdc
-
1A, 24Vdc
-
2A
Technology
580MHz
MIPS CPU
Microprocessor
Memory
128
MB Ram,
32MB storage Flash
Programming
practical Web interface and password
Messagges/S
o
unds
prerecorded in the internal memory
Audio File Format
Windows .wav
–
8K
–
16 bit
Duration
6
0
sec each
B
andwidth
350Hz
–
6KHz
Power
D
-
Class Amplifier 40W on 4 Ohm
Acoustic pressure
100dB A (SPL)
Dispersion angle
110° @ 2KHz
A
udio
c
om
m
unica
t
ion
Unidirectional
Inputs from buttons or external contacts
1 fo
r
alter
/al
arm
Integrated relais
2
Relays load capacity
Max 30Vdc
–
1,5
A
Signalings
Active Call
Led
Installation
Wall mount, adjustable with optional
accessor
y
Containe
r material
Halogen free EN60754
-
2
Technopolymer
Storage temperature
From
-
20°
to
+65°C
Operating temperature
From
-
20° to
+55°C
Relative humidity
Up to 90% non
-
condensing
Dimensions
119 x 70 x 59 mm (
H
x
W
x
D
)
Weight
1,8 Kg
W
arrant
y
2
years, possib
ility of extension (
O
ption)
Compatibility
CE, ROHS
Call in progress
ed indicator
El
ectronic IP
interface module
with audio power
amplifier
Plastic
membrane
speaker
Signals and
relays
connection
External
flasher
connection
External
power supply
connection
AN cable input
UTP cat.5/6 with
PoE
4
Ω
40W

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 9 di 31
6. OPERATION
In Stand-by and correctly configured, the system waits for incoming calls. When a call arrives, the device plays the
programmed ring tone, at the set volume, without ever answering. The purpose is to repeat the warning of an
incoming call (for example when the switchboard is in night mode or to repeat the signal in noisy environments).
On the PBX it is needed to create a call group that also contains the user number used for AD639SR. The
activation of the ringer is also associated with the lighting of the front led and the flashing light (if provided).
During the call it is possible to configure the system to operate its own internal relays to which it is possible to
connect an external flashing light that increases its warning effectiveness (AA-699xxx see Tema catalog).
It is also possible to use the device for Multicast streaming sound broadcast. In this case the RTP audio broadcast
on the network is reproduced amplified (to a different volume than that used for the ringer, useful for background
music or warning messages).
Finally, the status change of an incoming alarm is always monitored, to which it is possible to associate a user to
call and a message to be played to the answer of the called.
6.1. Device connection diagrams
UTP cat 5/6
Cable
PO and internal
network phones
PoE
Switch
AD639
S
R
IP-SIP Call
Repeater
IP PBX
SIP
SERVER
1st R
e
lay
2nd R
e
lay
Fre
e for other uses
ED light
indicator
•
SIP telephone c ll repe ter with PoE direct power supply
External Power Supply
230Vac/24Vdc/30W
Cod. Tema AA-39E3
UTP cat 5/6
Cable
PO and internal
network phones
Generic Switch
IP PBX
SIP
SERVER
1st R
e
lay
2nd R
e
lay
Fre
e for other uses
230Vac
PoE Injector
•
SIP telephone c ll repe ter with PoE injector or extern l 230V c power supply
AD639
S
R
IP-SIP Call
Repeater
Note: for other applications of
AD639
S
R
and
insertion
diagrams
see the FAQ section in
the Appendices at the end of this manual

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 10 di 31
7. OPERATING MODES
7.1. Calls to devices
The AD639SR device must be registered to a SIP PBX. It is normally inserted in the night ring group but can also
be called directly with its number. In any case, however, it will never reply (the only purpose is the activation of the
ringer and the eventual light signal).
Using the ADAM software or a microphone base and the AD615 codec it is possible to broadcast an
announcement in streaming (in unidirectional mode).
7.2. RELAY function
The internal relays can be used to connect any external flashers. In programming it is possible to decide whether
they should be activated during the ringing of the incoming call and it is possible to choose also in which mode
(flashing, steady, etc).
If they are not programmed to be activated during the call, they can only be controlled using the Tema ADAM
software.
7.3. Calls generated from AD639SR for the acquisition of external contacts for special
signalings
These are the calls that the system generates on the line connected to itself to warn after the trigger of the alarm
input contact by the connected equipment (auxiliary devices or a button made available to users in the proximity of
the device), for the details of the operation see paragraph 9.6.

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 11 di 31
8. INSTALLATION OF THE DEVICE
8.1. Connecting the AD639SR internal module
Once the necessary equipment has been prepared for fixing the AD639SR device, it is first necessary to make the
connections for its operation.
Inside AD639SR there is an electronic module for managing the communication functions on the VoIP network and
for amplifying the audio signal. The connection of the signal cables from the field must be carried out by qualified
technical personnel, operate verifying that no cable is live, also strictly comply with the indications of the voltage
and current values for the power supplies and other parts of the system.
Follow the instructions given in the block diagram for the correct electrical connection of the system. On the
following page, the detail of each terminal will be shown.
9 8 7 6 5 4 3 2 1
C A
4
3
2
1
+
-
A C
9 8 7 6 5 4 3 2 1
1
Input from external
power supply
terminals "C" "A"
The polarity is
irrelevant
3
SP1+ 9 Speaker
SP1- 8 Speaker
K1.NC 7 (Relay 1)
K1.CC 6
K1.NA 5
K2.CC 4 (Relay 2)
K2.NA 3
GND 2 (Input 1)
ING1 1 (Input 1)
4
Terminal for
external flasher
Speaker pre-wired
internally
2
LAN RJ45 Port
4
Ω
40W

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 12 di 31
1 Removable 4-pole terminal block (screw connector connected to the electronic module)
+Vout Terminal from which it is possible to withdraw power, POSITIVE
- (GND) Terminal from which it is possible to withdraw power, NEGATIVE
A Terminal to power the system, polarity irrelevant
C Terminal to power the system, polarity irrelevant
2 RJ45 LAN port (present on the electronic module)
AD639SR requires a LAN cable to connect to the LAN network. If the cable also carries PoE power supply, it will
not be necessary to supply the module with other power sources (for max 10W power). For higher powers it will be
necessary to power AD639SR with a 24Vdc 2A or max 18Vac 2.5A power source.
See also appendix 2 at the end of the manual for the correct wiring of the LAN cable to the RJ45 connector.
3 Removable 9-pole terminal block (screw connector connected to the electronic module)
9 SP1+ Output terminal 1st Class-D amplifier, connected to the internal loudspeaker, positive front
8 SP1- Output terminal 1st Class-D amplifier, connected to the internal loudspeaker, negative front
7 K1.NC K1 relay terminal – NC normally closed contact
6 K1.CC K1 relay terminal – CC central contact (maximum contacts load max 30V 1.5A)
5 K1.NA K1 relay terminal – NO normally open contact
4 K2.CC K2 relay terminal – CC central contact (maximum contacts load max 30V 1.5A)
3 K2.NA K2 relay terminal - NO normally open contact
2 GND Terminal related to the system power supply negative, for the alarm contact
1 ING1 Terminal for detecting the alarm contact
4 Removable 2-pole terminal block (connector connected to the cable leaving the module)
+ Connect here the positive of the flashlight or external device
- (GND) Connect here the negative of the flashlight or external device
At the "+Vout" output there is a + 12Vdc voltage when the device is powered via PoE, otherwise, at
this output the voltage will be the same as at the terminals A-C. The use of "+Vout" is permitted as
long as it is not exceeded a maximum 200mA current consumption and the load has a protection on
the input current. Improper use of this output will permanently damage the unit.
Devices powered via PoE (Power over Ethernet) may only be connected with cables coming from
inside the building, they are not allowed connections to LAN cables coming from outside the
building.
To terminals
1 (ING1)
and
2 (GND)
must only be connected a relay contact or a button free from any
voltage to prevent permanent damage to the device.
Relay K1 is pre
-
wired to supply power to terminal 4 which supplies an external flashing light, relay
K2 is free for other uses by the user.
The power supplied by this terminal is protected and limited to 300mA maximum current, do not
connect devices with a higher power consumption as internal protection would be activated.

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 13 di 31
9. PROGRAMMING
9.1. Preparation for the system parameters programming
Programming is done via the WEB interface. To gain access, simply connect an Ethernet cable from a PC or from a
switch to the LAN port of AD639SR.
The system comes with active DHCP (dynamic setting of the network address) so the IP address is automatically
assigned by the local DHCP server. To find out the assigned IP address, or, in the absence of a local DHCP server
to be able to program one, use the appropriate TEMA network device scan program called "devicescan-
tema.exe".
This software will show all Tema devices in the LAN network with their respective serial numbers, MAC address, IP
address, description of the devices. By double clicking on the device it will be possible to manually change the IP
address and the Netmask.
Please note that of the network setting is changed from Dynamic to Static, you will need to make sure you are
using the same subnet configured on your computer.

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 14 di 31
9.2. Access to programming
To program the device, it is sufficient to use a standard browser such as Explorer, Firefox, Chrome or others. The
user/password with which to connect are master/master. Once logged in, it is possbile to change the
administrative password for the maximum safety of your device, see par.9.9
The use is very simple and intuitive, it is always visible on the left the menu for selecting the functions to be
programmed, while on the right is shown the configuration window that is currently active. Any change will be
confirmed by pressing the "Apply" or "Save" buttons. Closing the browser or changing the page without
selecting those buttons will make lost any change .
As soon as you access the device, a mask will be shown that summarizes the general status of the system:
Any changes do not require restarting the device (except the change of IP address, and the software update).

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 15 di 31
9.3. Network parameters
On this page it is possible to set the network parameters, such as IP address, netmask, etc.:
In case you choose the static network configuration, gateway and DNS are only needed if you want the device to
have the ability to access the Internet (for example to get the current date / time, in the example from the site
ntp1.inrim.it).
The changes to the network settings are taken over by the device until the next reboot. Once you have completed
the configuration steps so be sure to reboot the system and if necessary, change the network segment of your
computer so that it can connect to the new address.
•Connection type: indicate the type of connection, Dynamic (DHCP) or Static.
•IP Address: indicate the IP address you want to assign to AD639SR.
•Subnet mask: indicate the subnet mask you want to assign to AD639SR
•Default gateway: indicate the gateway that can allow AD639SR to connect to the internet.
•Primary/Secondary DNS Server: indicate the addresses of the two DNS servers to be used.
•Time server: indicate the address of the server you want to use to have the time synchronization of the
device.
•Test address (ping): if entered, this address is used by the system to verify the correct functioning of the
network connection. It is advisable to enter the address of your pbx, first checking that it responds to ping
requests.
•Device description: text that will appear on the search mask of the Adam software.

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 16 di 31
9.4. SIP parameters
Once the network parameters have been set correctly, you must configure the connection with the VoIP SIP PBX:
•SIP server address: specify the IP address of the SIP PBX to which AD639SR should connect.
•Port: is the port number of the SIP PBX with which AD639SR must operate. Generally it is the 5060, but
some stations use a different port.
•Domain: enter the domain to which register the system.
•Outbound proxy: some PBXs require that the extension number to call is followed by the proxy address. In
most cases this field can be left empty.
•Local port: generally the 5060 port is used, but it is possible to specify a different number (i.e. for particular
routing tables).
•Expiration: indicates how many seconds the device should check the correct registration of the client.
•User/password: credentials for the registration of the extension (which obviously must have been already
created on the PBX).
•Ringer volume: it is possible to set the volume used to reproduce the sound of Night Ringer. It is also the
volume used to reproduce the prerecorded announcements.
•Ringer type: it is possible to choose up to 6 pre-programmed ring tones in the device plus a customizable
one (that coincides with the default one). It is possible to change it in the maintenance page, see par.9.9
•Test Ring ON-Test Ring OFF: buttons that activate the ringer for the purpose of testing the sound emitted.
•Increasing volume: with this option, the volume will start low and will increase, due to no response over
time, until reaching the maximum volume set in "Ringtone volume".
•Relay 1-2 activation: it is possible to choose whether the 2 relays are to be activated during the call and in
which mode.

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 17 di 31
9.5. Day/Night mode
The system can activating the day/night operating mode automatically (as long as it is synchronized with a time
server) or manually. The day/night mode, as you can see in the next paragraph, is used to differentiate the
numbers to call in the event of an incoming alarm:
It is possible to select the automatic mode (in this case the time bands set in the following table come into
operation, outside the time bands set the system is in "day" mode) or manual and in this case the switch from day
to night it takes place only through the programming web page.
The current mode is visible on the main page (Home).

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 18 di 31
9.6. Alarm input settings
In this page it is possible to program the behavior of the acquisition input of the external contact (Terminal 1-2 of
the 9-pole terminal block).
•Function active: indicates whether to monitor the status of the alarm input or not
•DAY/NIGHT number: IP address of the phone to contact in day or night mode when the alarm occurs.
•Attempts: number of call attempts (max 999).
•Separation: separation, in seconds, between one call attempt and another (max 999).
•Delay: is the minimum time, in seconds, before the input status change is evaluated. It can be used, for
example, to mask a door indicator left open after the visitor has entered. Assuming that the maximum time
that the pedestrian entrance must remain open is 30 seconds, only at the end of this time a warning
telephone call would be sent to the staff in charge.
•Alarm stop code: code to dial on the called telephone to accept and silence the alarm (max 3 digits).
•Input inversion: normally the contact is open and the alarm occurs when the contact is closed. Activating
this flag it is possible to instruct the device to behave in the opposite way (the contact is normally closed
and the alarm occurs at opening).
•Announcement: the activation of the input (of the contact connected to him) causes the broadcast of a pre-
recorded message on the local speaker before the call is made, see par.9.9.
The system can generate a VoIP call to alert, after triggering the alarm input contact (from auxiliary devices or from
a button made available in the vicinity) an appointed operator.
A prerecorded message is played back to the called party. It is possible to invert this logic, so the triggering of the
signaling can occur following the opening of the contact connected to the input.
AD639SR continuously monitors the status of the contact and in the event of activation it will begin to call the
person who will manage the situation detected on the programmed telephone number and reproduce the message
associated with the event. It is possible to define an acquisition / acknowledgment code for the alarm signal that the
person called must enter to inform the device of the taking of the alarm signal as notified. If the called number
proves to be busy or does not answer or in any other case where AD639SR does not receive the acquisition /
acknowledgment code anyway, at the end of each single call attempt it returns in stand-by and it is ready for a new
alarm notification.
When the AD639SR receives the acknowledgment code, the alarm condition signaling stops and no further
notification calls will be made. To be able to be triggered again the notification phase of an activation, the condition
172.16.90.118
172.16.90.118

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 19 di 31
that had triggered the previous notification must return to stand-by. To Only following the occurrence of a new
contact activation condition, the notification cycle with notification calls restarts. In practice: if a connected contact
closes and its activation is detected, AD639SR starts making alert calls.
In the event that the person called by the system reply and correctly enters the acknowledgment code, the alert
calls will be terminated. To trigger a new cycle, the contact must reopen and close again.
The alarm text message can be modified in the "Maintenance" page.

TEMA TELECOMUNICAZIONI AD639SR VoIP SIP PoE Call Repeater
MAS-AD639SR-REV00 Pagina 20 di 31
9.7. Multicast
In the multicast mode, AD639SR will listen to the specified address/port, and can reproduce on its speaker any
received audio streaming. This function has a lower priority than the normal telephone operation of the system
(outgoing or incoming calls will block or prevent the reproduction of the audio stream).
It is possible to program the volume of the Multicast audio, normally it will be low if the system is used to play
background music or higher if it is used for the broadcast of announcements (for example in combination with a
Tema AD696/BM microphone base).
