TERK Technologies T2 AP-35 User manual

AMPLIFIER
OWNER’S MANUAL
AP-35 AP-20
T0205-T2 amp-OM.qxp 9/16/03 09:38 AM Page C1

Output Test Port::

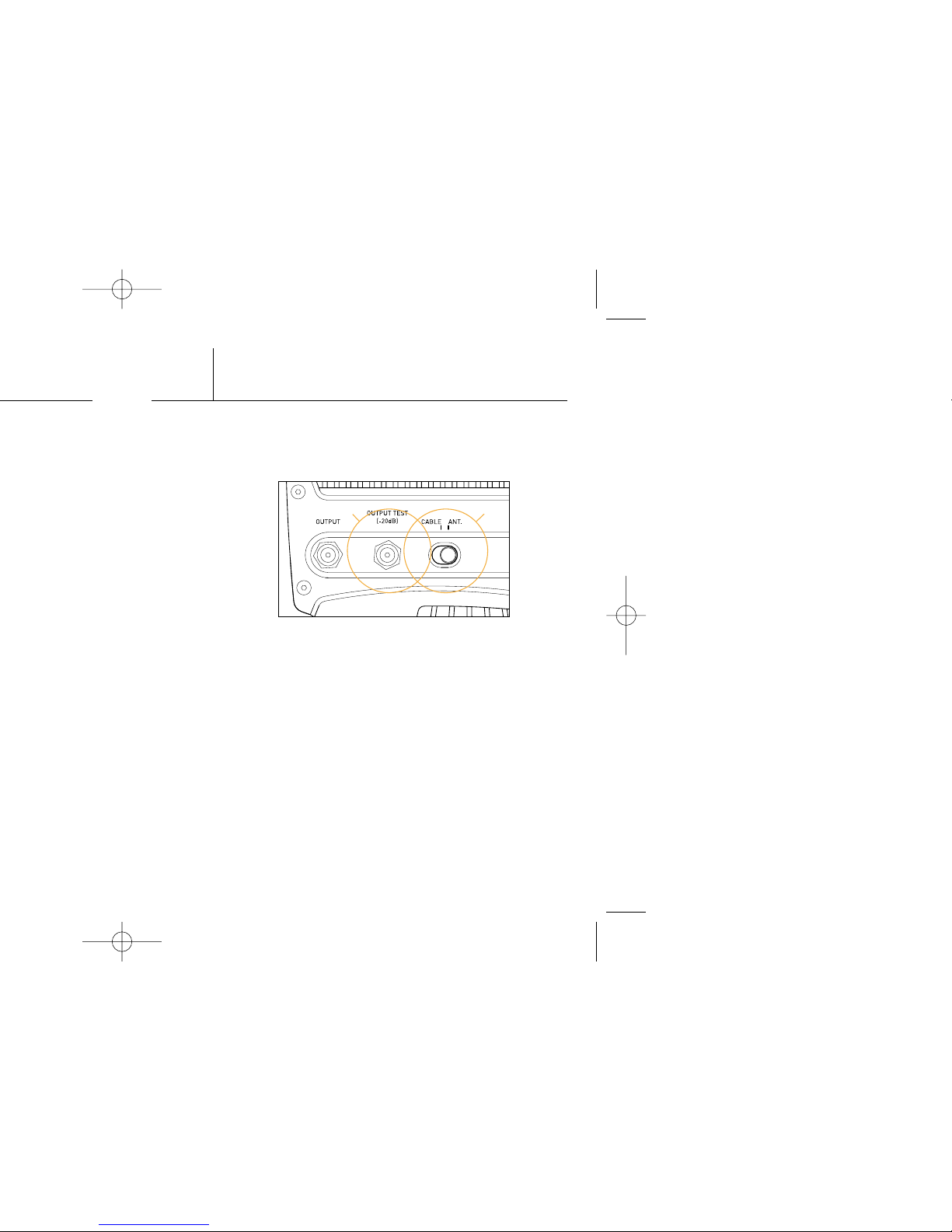

Your amplifier comes with a test output port. Simply
connect a device to the F-connector marked “OUTPUT
T ST” to utilize this feature. See fig. 2a.
Swit hable Ba k-Channel Cir uitry::
T2 amplifiers come with switchable, back-channel
circuitry. This means that your amplifier can pass signals
either one-way or bi-directionally. To select the proper
mode, choose the “CABL ” setting when using a cable
modem or any other bi-directional application. Choose
the “ANT” setting otherwise. Using the bi-directional
(CABL ) mode in conjunction with an antenna would result
in broadcasting the signal between 5 and 42 MHz, which is
a violation of FCC regulations. See fig. 2b.
Note::
Amplifiers should be placed as close to the signal source
as possible, i.e. antenna, cable input, satellite dish, etc.
2
50%
Fig. 2
ba
Features::
Introdu tion::
Thank you for purchasing this T2 Amplifier. T2 is the
brainchild of some of the most experienced professionals
in the custom installation and home entertainment
industries. Please read through this manual so that you
will know how to operate your amplifier properly, and
always keep it in a safe place for future reference.
Gain & Tilt::
Your amplifier has two knobs on the front, which should
be used to adjust the gain and tilt of your amplifier. Turn
the knob marked “GAIN” clockwise to increase the gain.
The other knob controls a built-in tilt compensator,
which proportionally decreases the gain at the lower
frequencies to compensate for the disproportionate signal
loss over cable at high frequencies.
It can simply be
rotated clockwise
from “TILT” to
“FLAT” based on
the individual
installation.
See fig. 1.
1
50%
Fig. 1
T0205-T2 amp-OM.qxp 9/16/03 09:38 AM Page C2

Lo king System::
Mounting & Using the T2 Lo king System::
Your amplifier comes with the proprietary T2 locking
system attached, and is designed to be mounted in
most UL listed structured cable enclosures. Position
the product in the enclosure as shown in fig. 3.
3
Fig. 3
Fig. 4
Fig. 5
open
lo ked
180˚
4

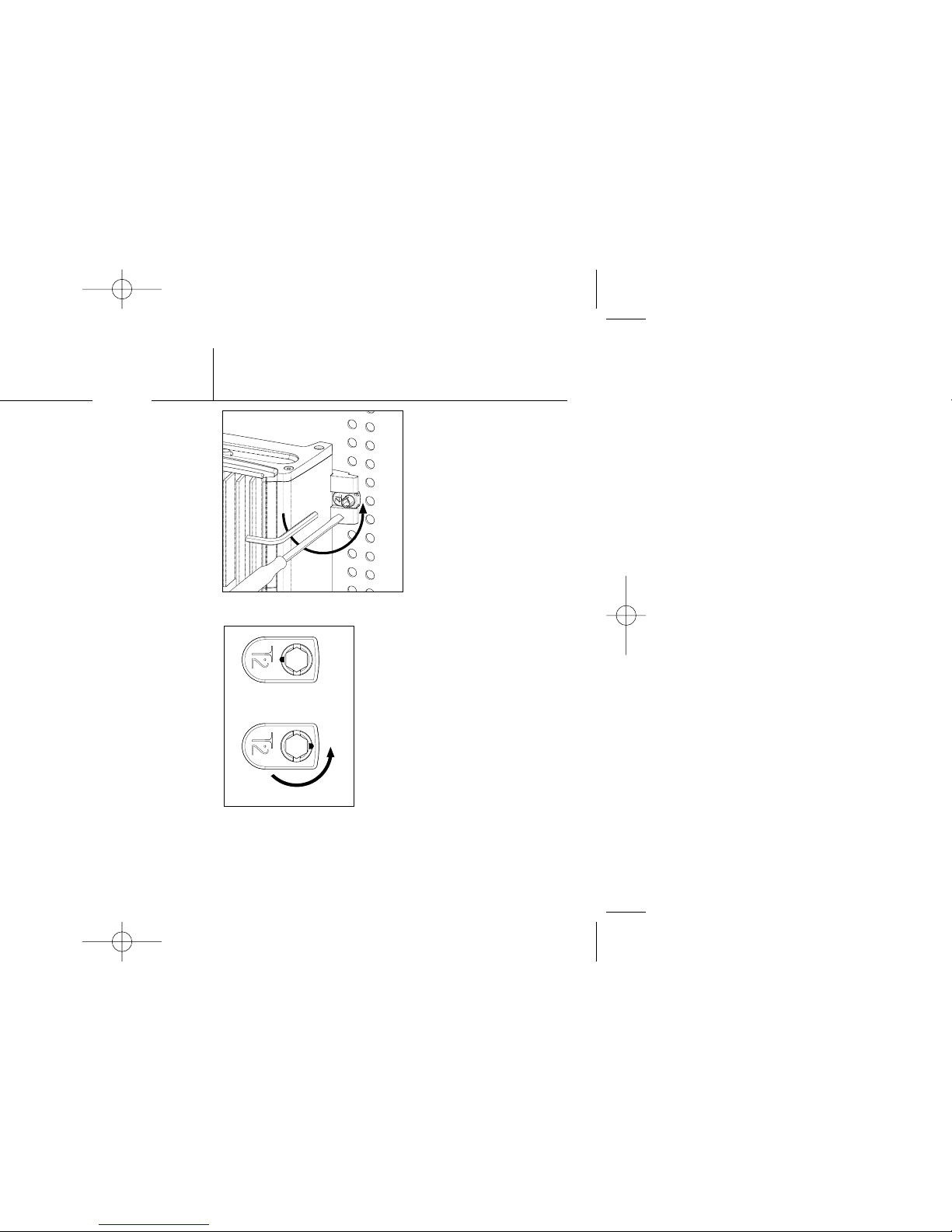

Rotate the lock 180
degrees to secure the
unit as shown in fig. 4
& fig.5. (Use a 3/16"
hex key or a flat head
screwdriver.)
T0205-T2 amp-OM.qxp 9/16/03 09:38 AM Page C4

Troubleshooting::
Herringbone Patterns::
The most common cause of wavy, herringbone lines on
multiple channels is an over-driven amplifier. There are
a few causes of an over-driven amplifier:
•Too much gain in the system. If this is the case, turning
the gain dial counter-clockwise will reduce the gain and
improve the picture.
•A strong local FM signal may be present. An FM trap,
installed before the amplifier, will solve the problem.
•A strong local TV signal may be present. You may
need a tuned filter to reduce that station’s signal.
6
Spe ifi ations::
AP-20 AP-35
Maximum Gain 20dB 35dB
Gain Adjustment 0dB to 15dB to
Range 20dB 35dB
Forward Bandwidth 54MHz - 1000MHz
Reverse Bandwidth 5MHz - 42MHz
Noise Figure 2.5dB typical
Flatness ±1.5dB typical
Max Output @ 42dB 49dB
36 Channels
Operating
Tilt Compensation 12 to 14dB @ 54MHz
Range
Dimensions 8.75”x6.5”x3.5” 10.5”x6.5”x3.5”
5
T0205-T2 amp-OM.qxp 9/16/03 09:38 AM Page C6

Warranty::
T2 Signal Management (T2) warrants this product to be free from defects in materials and
workmanship for a period of three (3) years from the date of purchase or T2 will repair, or at
its option, replace the defective product (with a new or factory reconditioned product, as T2
may determine). To obtain warranty service under this warranty, call T2 for a return material
authorization (RMA) number and return the defective product together with a copy of the sales
receipt or other satisfactory proof of purchase to T2 Signal Management, 63 Mall Drive,
Commack, NY 11725, Attention: Customer Service. Please put the RMA number on the outside
of the carton. Ship all cartons freight prepaid.
This warranty does not cover damage resulting from (1) use or installation other than in strict
accordance with manufacturer’s written instructions, (2) disassembly or repair by someone
other than the manufacturer, (3) misuse, misapplication or abuse, (4) alteration,
(5) lack of reasonable care, (6) wind, ice, snow, rain, lightning, or any other extreme weather
conditions, acts of nature, fire or any other cause not within the reasonable control of T2.
ANY IMPLIED WARRANTY ARISING FROM THE SALE OF THE PRODUCT, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS, FOR PURPOSE, ARE LIMITED TO THE
WARRANTY STATED ABOVE. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE
DESCRIPTION OF WARRANTY SET FORTH ABOVE. THIS PRODUCT IS SOLD AS IS.
T2 shall in no event, and under no circumstances, be liable or responsible for any
consequential, indirect, incidental, punitive, direct or special damages based upon breach or
warranty, breach of contract, negligence, strict tort liability or otherwise or any other legal
theory, arising directly or indirectly from the sale, use, installation or failure of any product
acquired from T2. Buyer’s remedy is strictly limited to return of the goods and repayment of
the price or repair or replacement of the non-conforming goods or parts, whichever T2 chooses.
For more information, visit www.t2signal. om.
For te hni al support, all 1.800.827.5540. 81P004A
T RK and T2 are registered trademarks. The T2 logo is a trademark of T RK Technologies Corp.
T0205-T2 amp-OM.qxp 9/16/03 09:38 AM Page C4
