XMarine
DUAL MOUNT MARINE XM SATELLITE RADIO ANTENNA

.,.. -------------------
Table of Contents
About Installation. ....................................................... 2
Introduction 3
Applications 4
Installation 6
Parts for TERK XMarine Satellite Radio Antenna 6
Recommended Tools and Supplies 6
Installation Precautions and Tips 6
Installing the TERK XMarine Satellite Radio Antenna 7
Use and Care 10
Troubleshooting 10
Specifications 10
Electrical Specifications ................................................ 10
Mechanical Specifications 10
Quality and Performance Specifications 10
Limited Warranty 11
About XM Satellite Radio 11
About Installation
Installation of marine audio components can require extensive experience with a variety of mechanical
and electrical procedures. Although the instructions in this guide explain how to install the TERK
XMarine Satellite Radio Antenna in a general sense, they do not show the exact installation methods
for your particular boat.
IMPORTANT: If you are not comfortable performing a complex installation, ask your local
marine audio dealer about professional installation options.
2 Table Of Contents

________________ XMarine Owner's Manual
Introduction
The TERK XMarine Satellite Radio Antenna is a high-performance antenna designed specifically for
XM Satellite Radio reception on recreational marine craft such as fishing boats, sport boats, yachts,
and sailboats. Its features include:
• Rugged antenna to withstand high-vibration salt-water environment
• Dual mounting options:
- Through hole mounting for deck mount or mounting on any flat surface. Perfect for use on
small vessels.
- Bracket or mast mounting when used with the supplied threaded flange adaptor with the
standard 1 "-14 marine thread. Perfect for larger vessels and sail boats. (Mounting bracket
and mast not included)
• Antenna supplied with 6 inch cable and gold plated TNC connector for ease of mounting. Also
includes 25 feet of RG174 coax cable terminated with gold plated TNC and 5MB connectors
• Meets or exceeds all XM Satellite Radio mobile-antenna specifications
• Shock- and vibration-proof design
The TERK XMarine Satellite Radio Antenna is easy to install on most recreational marine craft.
Remember to save your sales receipt and this guide so both are available for future reference.
NOTE To achieve best XM Satellite Radio reception, also refer to your XM radio's owner's manual.
Introduction 3

TERK. _
Applications
The TERK XMarine Satellite Radio Antenna can be installed on a variety of recreational marine craft,
as shown below. For details, see Installation starting on page 6.
Fishing Boats
JERK XMarine
Satellite Radio
Antenna
JERK XMarine
,./ Satellite Radio
Antenna
Figure 1. The TERK XMarine is shown installed on the fishing boat's fly bridge, both with a
bracket and a mast mount
Sport Boats
JERK XMarine
_____ Satellite Radio Antenna
c::>
t--~===:)===::::::::=========~::::::::==~---
Figure 2. The TERK XMarine is shown mounted on the electronics arch ofa sports boat.
JERK XMarine
Satellite Radio
Antenna
4 Applications

________________ XMarine Owner's Manual
Sailboats
TERK XMarine
Satellite Radio
Antenna
\
(
----------<c::::> c=>-
Figure 4. The TERK XMarine is shown installed on an antenna extension on the stern of a sailboat.
NOTE: When mounted in this configuration, the mast and sails may interfere with reception when
the craft is at certain angles to the satellite.
Applications 5

'J&I( _
Installation
Slotted
extension
_____ adapter
25 foot cable
~
Threaded
Flange Adapter
XMarine Antenna
Lock @
Washer ©
Hex nut
Figure 5. Verify that your JERK XMarine package includes the above items.
Recommended Tools and Supplies
• Any electric drill and a 9/16 inch drill bit
• A 24mm open end or adjustable wrench to tighten hex nut when deck mounting
• Any tool to help cable routing (e.g., flat dental pick, screwdriver, etc.)
• Grommet and silicone sealer (for cable routes)
• (Optional) Antenna Extension with 1"-14 threads
• (Optional) Any mounting bracket with 1"-14 threads
Installation Precautions and TIps
• When selecting an antenna location, make sure the antenna is not enclosed by any metal material.
If a metal fly bridge is to be used, the antenna must protrude at least 5 inches above the bridge's
top edge. Consider using an antenna extension to increase the height above the boat.
• Also, at the proposed site, verify that there is at least a 20-degree clearance from any metallic
obstruction on all sides, as shown in figure 6 (on the next page).
• Prior to installation, tum off all audio systems and other electrical devices. Disconnect the (-)
negative lead from the boat's battery.
• At the installation site, locate and make a note of all fuel lines, cables, and electrical wiring.
Use extreme caution when cutting or drilling in and around these areas. Always wear protective
eye wear when using tools.
• When drilling fiberglass surfaces, use a small backup block of wood to help control splintering.
6 Installation

________________ XMarine Owner's Manual
Correct
Incorrect
Clear Signals _
__---- 20
0
Clearance
Blocked Signals
Figure 6. Correct and incorrect TERK XMarine locations on a fishing boat.
• As you plan the cable route, avoid running the cable through any component that may cause
excessive chafing. Doing so may erode the jacket and break signal continuity. Also, avoid
kinking, pinching, excessive bending, or twisting of the cable during a run.
• Do not trim the cable length. It is optimized for best signal reception. Coil and store any excess
cable behind the XM receiver.
• Do not remove the connectors from the cables.
Installing the TERK XMarine Satellite Radio Antenna
Deck or Flat Surface Mounting
1. At the chosen site, drill a 9/16 inch mounting hole. For mounting surfaces thicker then 1/4 inch
you will need to attach the supplied slotted extension adapter to the XMarine antenna. Simply
route the 6 inch long antenna cable through the slot and thread the extension adapter onto the
existing antenna shaft and tighten.
2. Pass the TNC connector and the 6 inch antenna cable through the hole in the mounting surface.
3. Install the lock washer and hex nut onto the antenna shaft and tighten securely assuring that
the antenna is seated properly.
4. Attach the 25 foot coax cable to the 6 inch antenna cable by connecting the TNC connectors
securely. See figures 7 and 8 on the next page.
Continue to the "Connecting To Your XM Radio" section on the next page.
Continued on next page ...
Installation 7

URIC _
Installation (continued)
Slotted
Threaded
Adapter
Figure 8.
Surface Mounting on
surfaces 1/4 inch
thick to 1 inch thick
==::::.., _ Mounting _,..:;;::===;
Surface
Lock
,--r-'-"""""--- Washer -----:.-r-'-~
~ ~Hexnul~ A
S 25 It cable ~
o0
Figure 7.
Surface Mounting
on surfaces up
to 1/4 inch thick
XMarine
_____ Antenna _______
Mast or Bracket Mounting
The Terk XMarine Satellite Radio Antenna is easy to install on any standard mast or brackets that
have a 1"-14 thread.
1. Attach the Threaded Flange Adapter to the XMarine by first passing the TNC connector on the 6
inch antenna cable lead through the adapter as shown in Figure 9 on the next page. Next thread
the adapter on to the threaded extension of the XMarine and tighten securely. (Note: do not use
the supplied Slotted Threaded Adaptor in this application.
2. Connect the TNC connector on the 6 inch antenna cable lead to the mating TNC connector on
the 25 foot cable and tighten securely. The 25 foot cable can be routed through the provided
access holes and grommet that are located on the mast or bracket. Since the 5MB connector
has a much smaller diameter it is recommended that you route this connector through any
access hole necessary. Many masts have grommets that can be removed which makes it easier
to route the cable through the access hole. The grommet can be placed over the 5MB connector
and put back in place for a neat install.
3. Secure the XMarine antenna and adapter to the mast or bracket by tightening onto the 1 "-14
thread securely. All mast and brackets should be installed on the boat per manufacturers speci-
fications. If needed, adjust the tilt so that the antenna is perpendicular to the horizon.
Connecting to your XM Radio
1. Connect the 5MB connector to the XM Satellite Receiver. Turn on the XM system and tune the
radio to channel 1 (i.e., the preview channel) to verify that the antenna is properly installed. If
there are any problems, review the installation steps and verify that each one was performed
correctly. Also see Troubleshooting on the next page.
2. After the system has been tested successfully, continue dressing the cable from the antenna to
the receiver for best appearance and complete any remaining installation. Use cable tie wraps
where needed to secure cables from flagging in the wind and catching on objects. Seal any
holes in the bulkheads with a marine grade RlV or silicon adhesive.
Note: For additional help with cable routing, consult your local marine audio dealer.
8 Installation

________________ XMarine Owner's Manual
Figure 9. XMarine Antenna with Threaded Flange Adapter for Mast mounting.
Antenna
Extension
(optional -length
determined
by application)
XMarine Antenna
Threaded Flange Adapter
TNC Connector on 6" cable
25' Coax Cable
Removable gromet to be placed over
small connector then pressed back
into mast extention
Mounting Bracket
(optional)
Installation 9

'I&K _
Use and Care
In normal daily use, the TERK XMarine Satellite Radio Antenna is a rugged, high-performance
antenna that does not require any special attention.
Troubleshooting
Symptom
XM radio displays "Antenna"
or "Check Antenna" message
XM radio displays "No Signal"
message
Other symptoms
Specifications
Electrical
Passive Satellite Antenna Element -
Frequency
Gain
Bandwidth
Impedance
Polarization
LNA for Satellite Signals -
Gain
Noise Figure
Cable Loss
Current Draw
OutputVSWR
Input P1dB
Mechanical
Total Height
Max Diameter
Coax Cable
Quality and Performance -
Temperature
XM Approved
Solutions
• Check antenna connections to the XM receiver.
• Boat may be in an area where the XM signal is
obstructed. Move the boat to more open surroundings.
• Call TERK for help at 1-800-942- TERK (8375) on
any business day, between 9 A.M. and 5:30 P.M., EST
and ask for Technical Support.
2332.5 to 2345.0 MHz
2 to 7 dBi from 30 to 90 deg.
12.5 MHz
50 ohms
LHCP (Circular)
35.5 dB, typical
0.8 dB, maximum
-12.0 dB
160 rnA, maximum
1.5:1
-14
Deck Mount -1.08 inches
Mast Mount - 3.13 inches
3.75 inches (outside)
25 ft RG-174
-40
0
to + 185
0F
(operating)
Per XM Satellite Radio Specifications
10 Use and CarefTroubleshooting/Specifications

________________ XMarine Owner's Manual
AUDIOVOX Corp. strives to maintain and exceed the highest consumer standards. Due to these on going efforts, modifications
may be made from time to time to existing products without any prior notice. Specifications and appearance may differ from
those listed or shown in this manual. The XM name and related logos are trademarks of XM Satellite Radio, Inc. TERK and TERK
logo are trademarks of AUDIOVOX Corp.
About XM Satellite Radio
For more information about XM Satellite Radio service, visit their web site at: www.xmradio.com
About XM Satellite Radio 11

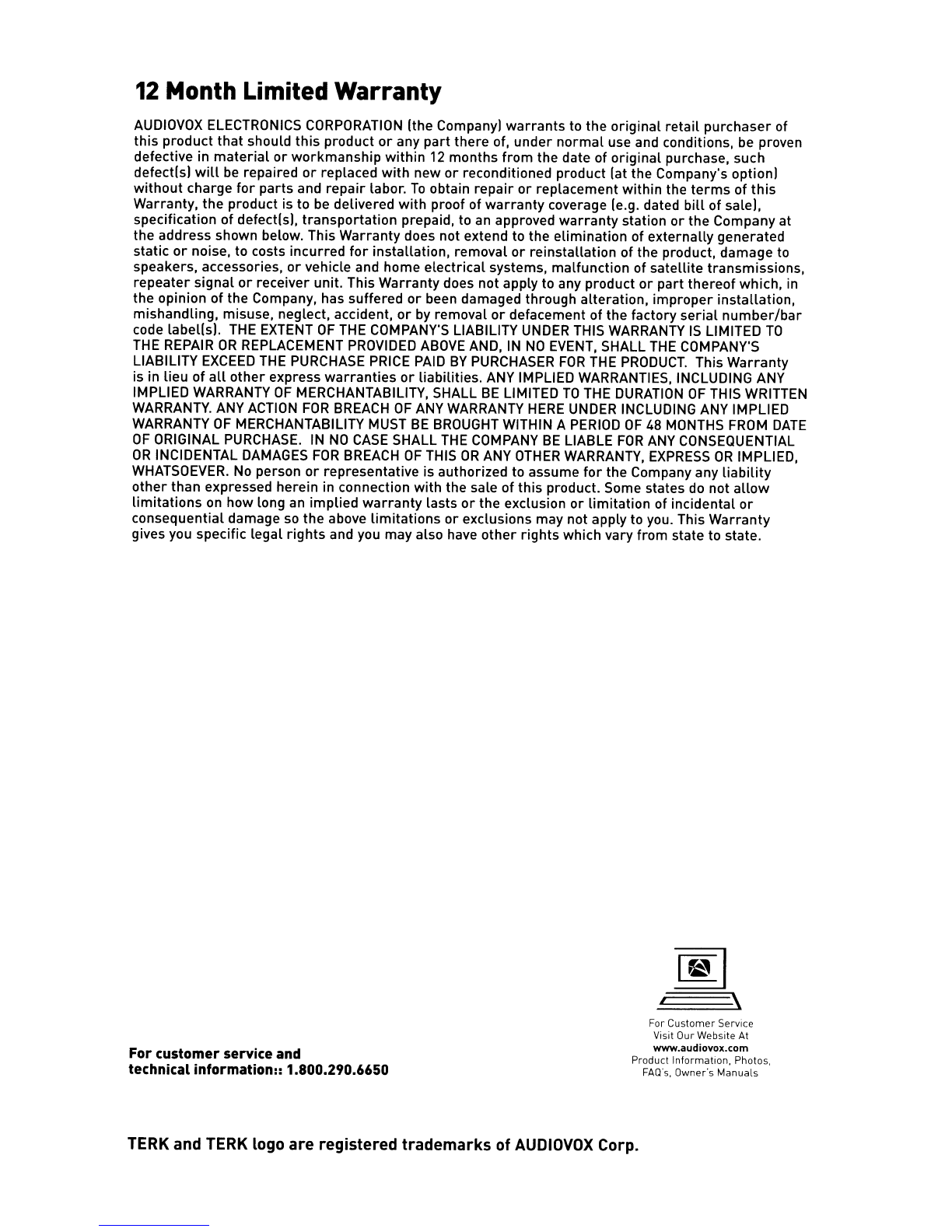

12 Month Limited Warranty
AUDIOVOX ELECTRONICS CORPORATION (the Company) warrants to the original retail purchaser of
this product that should this product or any part there of, under normal use and conditions, be proven
defective in
material or workmanship within 12 months from the date of original purchase, such
defectls)
will be repaired or replaced with new or reconditioned product lat the Company's option)
without charge for parts and repair labor. To obtain repair or replacement within the terms of this
Warranty, the product is to be delivered with proof of warranty coverage (e.g. dated bill of sale),
specification of defectls),
transportation prepaid, to an approved warranty station or the Company at
the address shown below. This
Warranty does not extend to the elimination of externally generated
static
or noise, to costs incurred for installation, removal or reinstallation of the product, damage to
speakers, accessories,
or vehicle and home electrical systems, malfunction of satellite transmissions,
repeater signal or receiver unit. This Warranty does not apply to any product or part thereof which, in
the opinion of the Company, has suffered
or been damaged through alteration, improper installation,
mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar
code labellsJ. THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO
THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S
LIABILITY
EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT. This Warranty
is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY
IMPLIED WARRANTY
OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN
WARRANTY. ANY
ACTION FOR BREACH OF ANY WARRANTY HERE UNDER INCLUDING ANY IMPLIED
WARRANTY
OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 48 MONTHS FROM DATE
OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. No person or representative is authorized to assume for the Company any liability
other than expressed herein in connection with the sale of this product. Some states do not allow
limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damage so the above limitations or exclusions may not apply to you. This Warranty
gives you specific legal rights and you may also have other rights which vary from state to state.
~I
,\
For customer service and
technical information:: 1.800.290.6650
For Customer Service
Visit Our Website At
www.audioyox.com
Product Information, Photos,
FAQ's, Owner's Manuals
TERK and TERK logo are registered trademarks of AUDIOVOX Corp.
