Termoakim GALAXI SMART S Series Dimensions and installation guide

heating systems
GALAXI SMART S SERIES
ELECTRIC COMBI BOILER
User Manual and Warranty Certificate
CertificateNo: AQ/TR/2165
TSEN ISO 9 001:2000

Dear customer,
Our company,which operates in the heating sector,continues its Research & Develop-
ment activities by following the developing technology in addition to the production of
electric combi boiler and floor heating very closely.
We aim to make our customers benefit from the latest technology by applying technologi-
cal developments to our products.
Warming and producing hot water will no longer be a problem,we will continue to pro-
duce the best products for you.
Thank you for choosing us.
Hope to use your product on good days.
Best Regards.
* Always read the operating instructions before using the product.
heating systems

Parts Of Electric Boiler 2
Device Installation 3
Opening The Device Cover 4
Installation connection of the device 5
Electrical Connection Of The Device 6
Flooding The Device 8
Initial Operation Of The Device 9
Using The Control Panel Of The Device 10
Device Error Information 14
Electrical connection diagram and 15
Panel Output information
Safety Precautions Of The Device 16
Periodic Maintenance Of The Device 16
Rules That Must Be Followed 18
CONTENTS

2www.termoakim.com
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

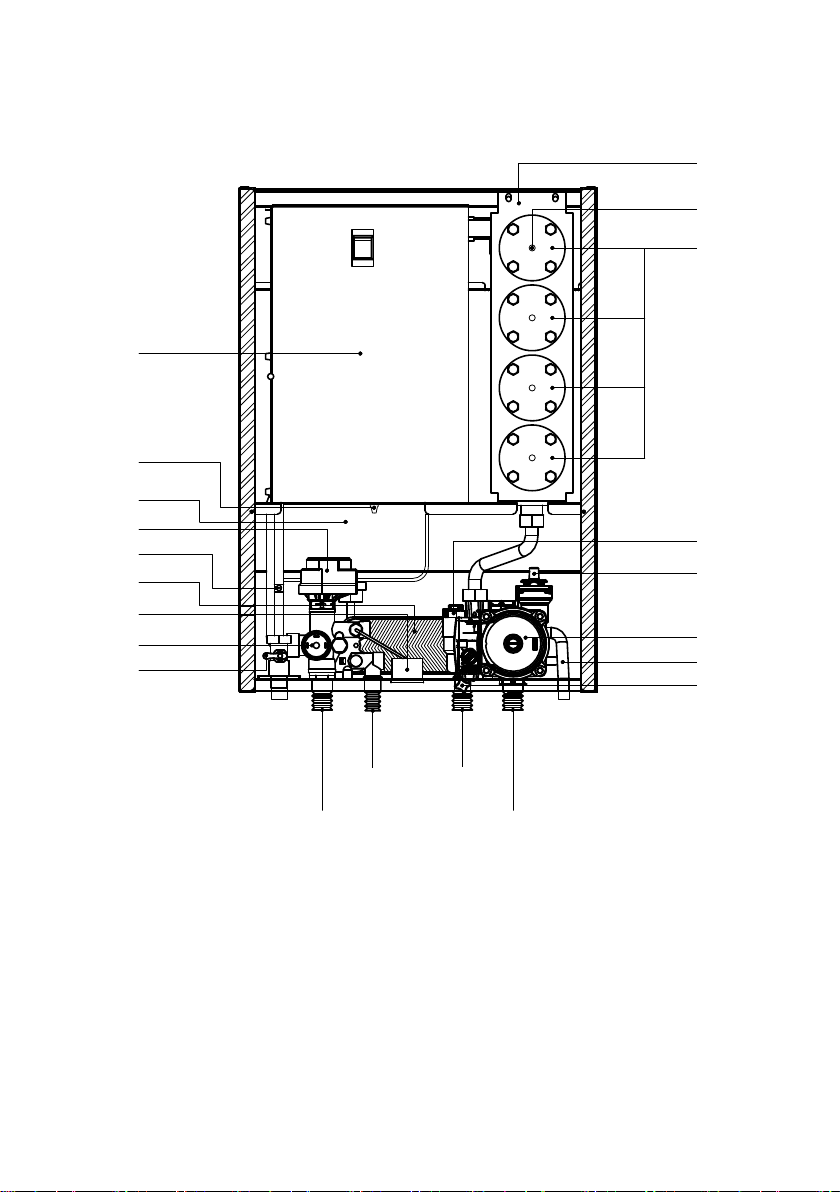

1. Air intake valve
2. Low Pressure Sensor (Water kit)
3. Manometer
4. Plate Heat Exchanger
5. Domestic Water Heat Sensor (NTC)
6. Three-Way Valve Engine
7. Expansion Tank
8. Reset Safety Thermostat
9. Power Distribution Board
10. Boiler Body
11. Boiler Heat Probe
12. Resistances
13. Flow Sensor
14. Automatic Air Evacuation
15. Circulation Pump
16. 3 Bar Safety Valve
17. Filling Valve
PARTS OF ELECTRIC BOILER
Hot Water Outlet
1/2
Cold Water Inlet
1/2
Heating Return
3/4
Heating Going
3/4

3www.termoakim.com
DEVICE INSTALLATION
• Do not place the device in humid environments such as
bathrooms, rain, snow, etc. it should not be installed in areas
where it may be affected by water.
• The device should be mounted on solid walls that can carry
itself with the dowel, screw and hanging apparatus supplied
with the device.
• In order for the Authorized Service to interfere with the devi-
ce in the event of a technical failure or maintenance, a gap
must be left around the device in the following dimensions.
• If the installation of the device has not been carried out ac-
cording to the standards specified in the user guide and the
dimensions specified below are not left around the device,
the Authorized Service will charge a fee regardless of war-
ranty status.
Warning
It is the customer’s responsibility to install the device ac-
cording to the standards specified in the user guide.
50 CM
20 CM 20 CM
Minimum space values to be left around the device

4www.termoakim.com
OPENING THE DEVICE COVER
(Easy-to-open cover)
• The easy-to-open and close cover is designed by Termoa-
kım for easy intervention in the device.
• To open the cover, the bottom right and top screws are re-
moved, as shown in the picture below, and the cover opens
to the left side.
Easy-to-open cover opening shape and direction

5www.termoakim.com

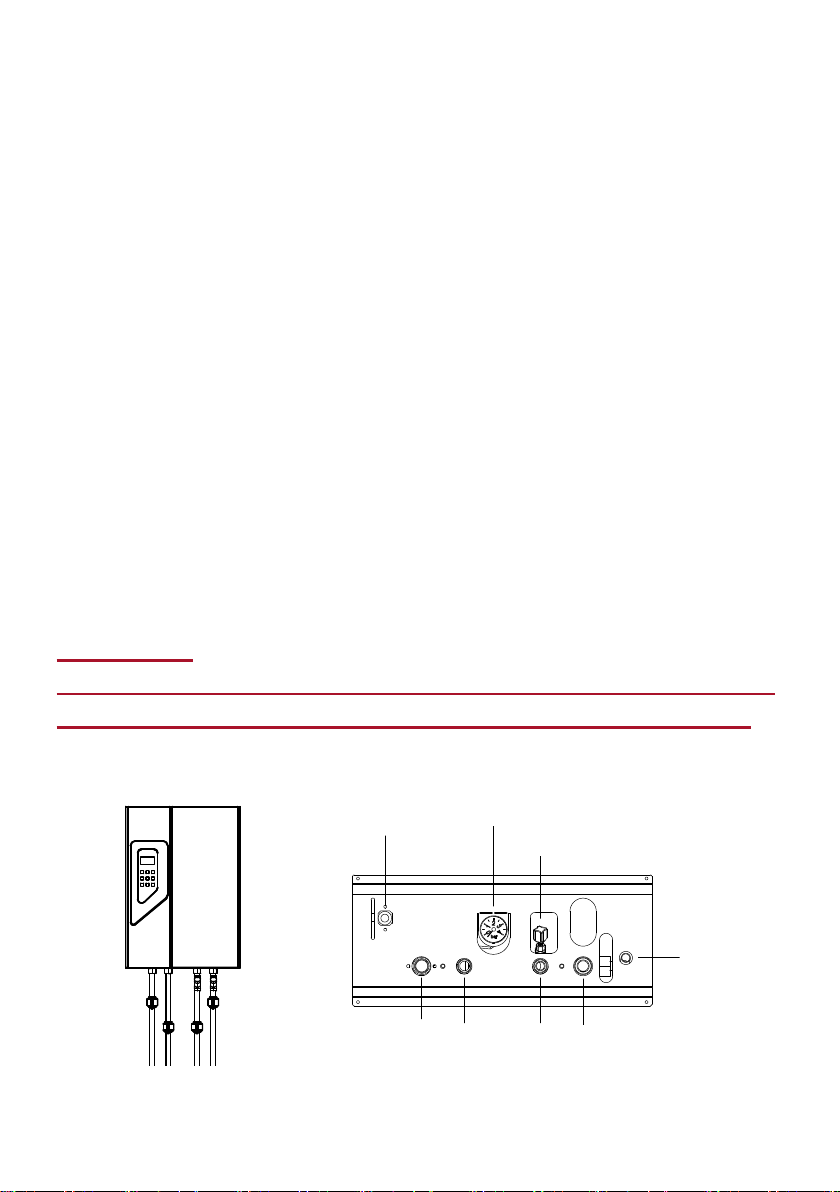

Fig. 1 Fig. 2
INSTALLATION CONNECTION
OF THE DEVICE
• In order to provide a good circulation in the heating installati-
on, appropriate diameter pipes should be used.
• The main pressure in place where the device will be used
such as home, workplace, etc. should not be more than 5
bars. If the main pressure is more than 5 bars, the pressure
regulator should be installed.
• The installation connection of the device should be made
in such a way that its valves, dirt holders and records are
complete as shown in Fig.1.
• The air intake valve outlet under the device is used to take
the air out of the device. When air is being taken from here,
the air intake valve should be connected to any outlet for the
future of water(Fig.2).
• The drain outlet under the device should be connected to
any outlet because it will automatically open and drain itself
out in 3 bars when too much water is pressed(Fig.2).
WARNING
It is the customer’s responsibility to complete the ins-
tallation of the device as specified in the user guide.
R R R
P
V
V
V
V
P
R
R: Record
P: Dirt Holders
V: Valve
Air Intake
Valve Manometer
Water Pressure Valve
3 Bar
Safety
Valve
Outlet
Heating
Return
Cold
Water
Inlet
Hot
Water
Outlet
Heating
Going

6www.termoakim.com
WARNING: The values given were calculated for a
maximum length of 20 m cable to be pulled.
Power Of The
Device (kw)
Operating
Voltage (V)
Cable Cross
Section (mm2)
Leakage
Current Relay
(A)
Grounding
Cross
Section (mm2)
10 220 3x6 2x50 4
12 220 3x10 2x63 6
12 380 4x4 4x25 4
18 380 4x4 4x32 4
24 380 4x6 4x40 4
30 380 4x10 4x50 6
36 380 4x10 4x63 6
ELECTRICAL CONNECTION OF THE DEVICE
• Termoakım electric combi boilers are designed in such a way that the
18 kw triphase model can also operate as a 10 kw monophase.
• Thermoactive 12 kw model is designed in such a way that it can work
both monophase and triphase at the same time.
• The supply cable to be pulled into the device must comply with TSE
(Turkish Standards Institute) norms.
• Electrical connections of the device should only be made by authori-
zed electricians.
• The cable to be drawn to the device must be pulled from the main
network panel. The cable to be pulled must be in one piece with no
attachment.
• The cable section to be cut into the device, the leakage current relay
ampere and the ground cable section must comply with the standards
specified in the chart.
• The tightness of the fuse and terminal connections should be checked
periodically every year.
WARNING
It is the customer’s responsibility to comply with the schedule,
to install the cable section, leakage current relay and to conne-
ct the ground line to the specified standards.

7www.termoakim.com
10 KW Monophase Connection
From the R S T phase ends at the
input terminal, input is made to R
phase and bridged to T phase. The
S phase entry is left blank. Neutral
and ground line are connected. Is
shown in the figure.
12 KW Monophase Connection
From the R S T phase ends at the
input terminal, input is made to R
phase and bridged to S and T pha-
ses. 3 phases are bridged together.
Neutral and ground line are connec-
ted. Is shown in the figure.
12-18-24-30-36 kw
Triphase Connection
Input to R S T phase ends at the
input terminal. Neutral and ground
line are connected. Is shown in the
figure.

8www.termoakim.com
FLOODING THE DEVICE
The air intake valve under the device opens. The automatic air drain
located through the circulation pump is loosened. The filling valve is
opened in half and slowly flooded. Water will come from the air inta-
ke valve at the end of the air. Until this process, the flooding continu-
es. When water comes from the air intake valve, the air intake valve
is closed. The pressure is brought to 1.5 bar and the water pressing
process is completed. When the water pressure of the device falls
below 1 bar, it causes a low pressure error. In this case, the filling
valve is opened and the pressure is brought to 1,5 bar. If this situa-
tion is constantly happening, there is a possibility of leakage in the
installation. This may also damage the device. Contact Authorized
Service.
Air Intake
Valve Manometer
Water Pressure Valve
3 Bar
Safety Valve
Outlet

9www.termoakim.com
INITIAL OPERATION OF THE DEVICE
• Ensure that the installation connections of the device are made
correctly.
• It should be sure that the air of the device and the installation
system (radiator or underfloor heating) is taken and the pressure
on the manometer should be 1.5 bar.
• Ensure that the electrical connection of the device is made cor-
rectly, that the cable is drawn in the appropriate section, that the
leakage current relay is installed in the appropriate amperes, and
that the ground line is connected. These procedures must be
done by authorized electricians.
• Ensure that the voltage supplied to the device is appropriate, low
or not high.
• The radiator temperature and domestic water temperature should
be set to 40 °C during the first operation of the device. When it is
operated for a while and made sure there is no air in it, the con-
sumer can adjust the temperature he wants.
• The device must be activated by our technical services in order
to operate efficiently and smoothly and to be valid under warranty
conditions.
Warning
The circulation pump can be locked due to calcareous water
and corrosion in devices that have not been run for 3 months
or more after water pressing. The pump should be given way.
For the devices in this case, contact the Authorized Service
must be made before starting.

10 www.termoakim.com
USING THE CONTROL PANEL
OF THE DEVICE
MENÜ
ESC ENTER
YAZ KIŞ
TIMER
wwwwww..tteerrmmooaakkiimm..ccoomm
PUMP
POSITION
DOMESTIC WATER
TEMPERATURE
CLOCK
DEVICE
RATING
SUMMER MODE
KEY WINTER MODE
KEY
INPUT /
CONFIRMATION
KEY
ON/OFF
KEY
MENU INPUT
KEY
EXIT KEY
DOWN ARROW
DECREASE KEY
TIME CLOCK
ACTIVATION KEY
UP ARROW
INCREASE KEY
RADIATOR
TEMPERATURE
DEVICE
MODE
POWER
LEVEL

11www.termoakim.com
Choosing the device’s summer / winter mode
Press the power key from the panel. Device information will appear
on the screen. Press -winter mode or summer mode- in the panel to
select which position you want it to operate in.
When winter mode is selected in the upper left corner of the mode
section on the screen, the shape of snow will appear. When summer
mode is selected, the shape of the sun will appear. These shapes
show you which mode you are in.
Menu and contents
1. Radiator Temperature Adjustment 5. Device Information
2. Domestic Water Temperature Adjustment 6. Date and Time
3. Timer 7. Factory Settings
4. Language Selection 8. Service
Setting The Set (Temperature) Of The Device
Radiator temperature adjustment:
Press the menu button, scroll to the radiator temperature setting,
press enter, press the arrow keys to the desired degree and press
enter, the degree will be stored. Exit with the Esc key.
Repeat this process while adjusting again.
Domestic water temperature adjustment:
Press the menu key, press the arrow key to enter the domestic water
temperature setting, press enter, press the arrow marks to the desi-
red temperature, and press enter. The temperature you requested is
set. Exit with the Esc key.
Repeat this process while adjusting again.
Timer setting:
You can set the device in ve different time zones during the day.
You can also choose weekly working days. By setting the Timer, you
can operate your device at different times to the desired degree.
Press Menu key, scroll to timer position with arrow marks, press
enter, program 1 will appear, press enter again, timer page will open,
enter the time when the device will start on.
On: 00-00
You’ll see a line under the rst numbers. This line will show you whe-
re you are on the menu. Press enter at the setting place where the
line 00-00 is located, the position will be activated. Set the time with

12 www.termoakim.com
arrow marks when you press enter, it is taken into memory. Scroll
with the down arrow mark set the minute in the second digits press
enter scroll with the arrow mark.
Off: 00-00
Scroll to the rst digits of its location, press enter, enter the time of
closure, press enter, store the time. Scroll with the arrow sign, press
enter in minute numbers, set the minute, press enter, you will move
to the degree position, press enter, Adjust the degree, the degree will
be stored when you press enter. You’ve become weekly days. If you
want it to work on all days, press enter to position the square full, if
you do not want it to work with the arrow key past the empty square
to leave the device will not work on the day with the empty square.
Exit with the Esc key. The timer setting is now in memory. To run in
the timer position, press the timer key in the panel and the device
switches to my timer position. In the upper-left corner of the screen,
the mode section exits the clock shape and writes the timer in the
information corner at stop time. The timer in the information section
is deleted when the run time is reached. Next to the clock shape is
the number in which program you are in. You need to press the timer
button on the panel to deactivate and restart the timer. The program
is set to 2-3-45 by doing the same.
Note: You must value it between 00:00 and 23.59 hours because it
is a weekly program. If the timer program passes to the next day,
you must enter two or more programs into the system.
Language Selection Of The Device
Press menu, scroll to language selection with the arrow key, press
enter, select the desired language, and press enter. It is taken into
the memory. Exit with the Esc key.
• English• Turkish • Greek

13www.termoakim.com
Device Information
This location is the memory section where the pump and malfunctions
are recorded in the system. It records all the faults and negatives it sees
during the period of operation of the device, and the prescription of the
device is kept.
Stored records
1. ID number: The computer operating code of the device.
2. Setup: First start date. The date is the date automatically taken to me-
mory after the device is activated.
3. Room: The number of times the device is deactivated by the room
thermostat.
4. Pressure: Counts the device’s lack of water.
5. Telephone: Counts the number of times the device is switched on with
the phone.
6. Flow: Counts the number of times the device has been switched to hot
water use.
7. Private: This mode counts how many times the device has been chec-
ked with another device.
8. High Temperature : Counts how many times the device has seen high
temperatures.
9. Safety Thermostat: Counts how many times the device sees a safety
thermostat.
10. Boiler Sensor: Counts the boiler sensor failure of the device.
11. Flow Sensor: Counts the device’s flow sensor failure.
12. Pump: Counts the working time of the circulation pump.
Setting the date and time of the device
Press the menu button, press the arrow key to move to the date and time
position, press enter, press the arrow key to adjust and press enter, the
date and time setting is stored.
Factory settings
This location is activated by the service and cannot be adjusted by the
customer.
Service location
Press menu, press ok to service position, press enter, the Thermoakım®
factory technical support phone is displayed. The service number of the
zone is displayed in the Authorized Service Area. You can see this number
if entered by the service.

14 www.termoakim.com
DEVICE ERROR INFORMATION
Low Pressure Error: Automatic pressure control is performed in the devi-
ce. The device is designed to be a minimum of 0.8 bar and a maximum of
1.5 bar. When the pressure of the device falls below 0.8 bar, it gives a low
pressure error and protects itself by shutting down.
Solution: You will see the water pressure in the manometer under the de-
vice. There is a filling valve on the right side, which opens slowly and the
pressure on the manometer is brought to 1.5 bar and the valve is closed.
When the device is turned off and turned on, the error information on the
display will be erased.
You can now use your device in any location.
Safety Thermostat Error: The device has a reset safety thermostat.
When the water temperature inside the device rises to 95 °C and above,
the device turns off to protect itself and this error appears on the display.
Solution: If this error is given, you will need to reset your device. Insert
your hand through the opening at the bottom of the device as shown in the
picture and remove the cover of the reset thermostat. After waiting for a
while, press the reset button. If the rating is still high, the button will not fit
in. When you press it after the degree has dropped, it will snap into place
with the click sound. The device is reseted with this way. When the devi-
ce is turned off and turned on, the error information on the display will be
erased. You can now use your device in any location. If this error repeats
repeatedly, contact the service.
Boiler Sensor Error: It gives the error of the probe measuring the tempe-
rature of the boiler. The cable may have come off or the terminal may have
made oxide. Check the input by looking at the control panel outputs. If the
error still persists, contact the service
Domestic Water Sensor Error: It is the fault of the probe that measures
the output temperature of the device. The cable may have come off or the
terminal may have made oxide. Check the input by looking at the control
panel outputs. If the error still persists, contact the service.

15www.termoakim.com

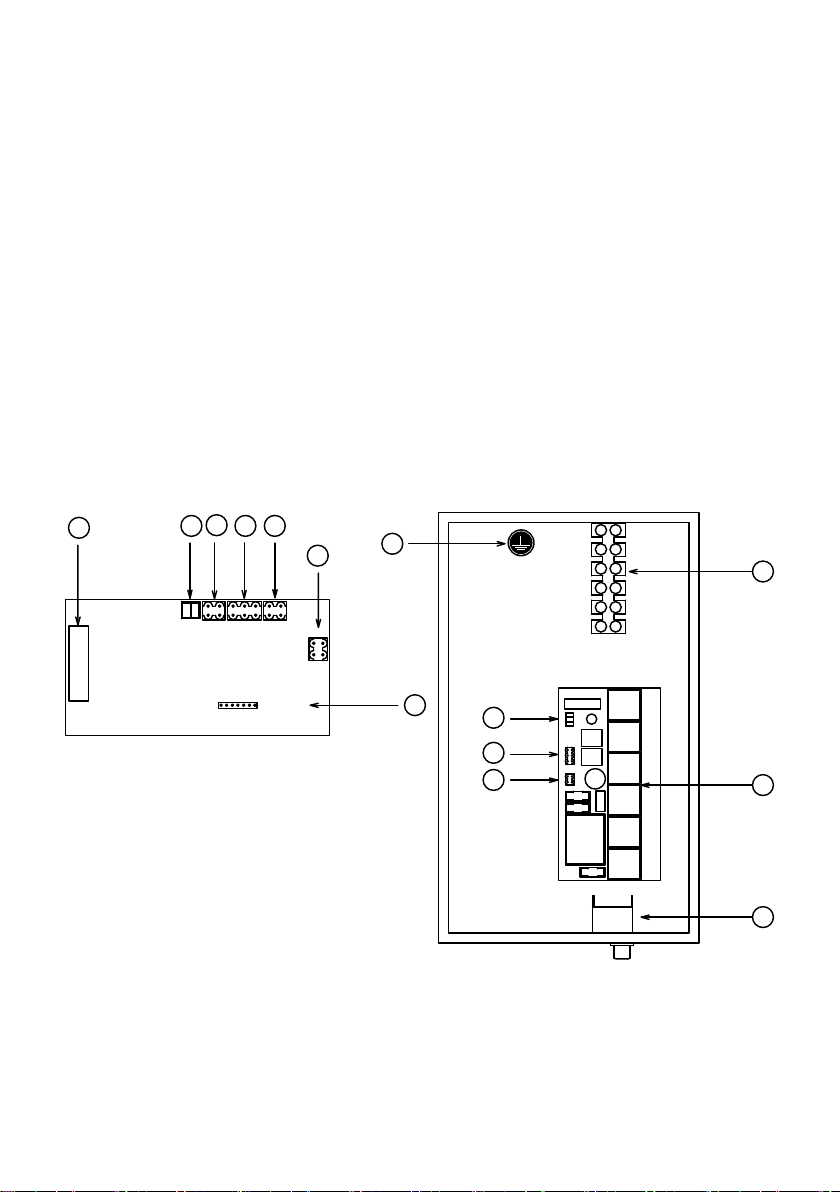

ELECTRICAL CONNECTION DIAGRAM AND
PANEL OUTPUT INFORMATION
High Temperature Error: If the temperature of the device is 85 °C and
above, this error will occur. Please contact the Authorized Service.
Circulation Error: This error is given if the temperature difference betwe-
en the heat probe on the boiler and the pipe type heat sensor at the outlet
is above 20 ° C due to the fact that the device does not circulate.
Solution
• Check that the circulation pump is working.
• Check whether there is air in the device.
• Check that the valves on the return and return line of the
device and the radiator valves on the installation are open.
If the problem persists even though you have done these, contact the
service.
4
10 9
7
814
6
5
12 11
13
2
1
3
1 Safety Thermostat
2 Relay Card
3 Input Terminal
4 Safety Thermostat Socket
5 Three-Way Engine Socket (T1)
6 Circulation Pump Socket(T2)
7 Control Panel
8 Room Thermostat Socket(T3)
9 Pressure Switch (Water Kit) (T4)
10 Flow Sensor Socket(T5)
11 Ntc Heat Sensor(T6)
12 Boiler Probe
12 Data Cable
13 Ground Line Connection

16 www.termoakim.com
SAFETY PRECAUTIONS OF THE DEVICE
Prevention Against Freezing: When the water temperature in the heating
circuit falls below 5 °C, the circulation pump is automatically switched on
and the water is revved up.
Prevention Against Pump Locking: When the device is turned off, the
circulation pump is operated automatically every 72 hours in case of lock
and jam.
Warning : In order for these preventions to work, the device is switc-
hed off and never switched off from the fuse. Especially in the winter
months should be closed in cases where there is a risk of frost, the
device should be drained of water.
PERIODIC MAINTENANCE OF THE DEVICE
• The following maintenance must be performed by the Authorized Ser-
vice every year regardless of whether the device is guaranteed or not.
•
• * Water circuit is checked whether there is any leakage, if any sealing
is provided.
• * Whether the resistances are working is controlled by measuring inst-
rument.
• * Check the seals of the resistances. Replaced if necessary.
• * The safety parts in the device, safety valve, safety thermostat, air
purger, low pressure sensor (water kit) are controlled.
• * The tightness of the electrical connections is controlled.
• * The air of the expansion tank is controlled.
• * The voltages coming to the device are controlled.
• * The device’s heat probes are controlled.
• * The manometer of the device is checked. If there is any congestion, it
is cleared.
• * The general condition and operation of the device are checked.
