Termomont TEMY ES 10 User manual

Central heating solid-fuel boiler with a cooking plate
TEMY ES 10-15-25
Technical manual for use and maintenance
Prhovačka bb, 22310 Šimanovci, Serbia,
Tél / Fax. [phone] [phone]
[e-mail] www.termomont.rs
November 2023

2
Contents
Contents ................................................................................................................................2
1General product data..........................................................................................................3
1.1 Technical data chart...............................................................................................................................7
1.2 Emision values........................................................................................................................................7
1.3 Description of the product ...................................................................................................................7
2Recommendations for shipment and storage.........................................................................8
2.1 Delivery ...................................................................................................................................................8
2.2 Additional parts and documents.........................................................................................................8
3Introduction notes..............................................................................................................8
4Safety remarks.................................................................................................................10
5Boiler installation ............................................................................................................10
5.1 Boiler room.................................................................................Greška! Obeleživač nije definisan.
5.2 Connecting to the chimney ................................................................................................................11
5.3 Filling the system with water ............................................................................................................12
5.4 Connecting the boiler with a closed central heating system with circulation .........................12
pump on the return line...............................................................................................................................12
6Boiler cleaning and maintenance .......................................................................................13

1 General product data

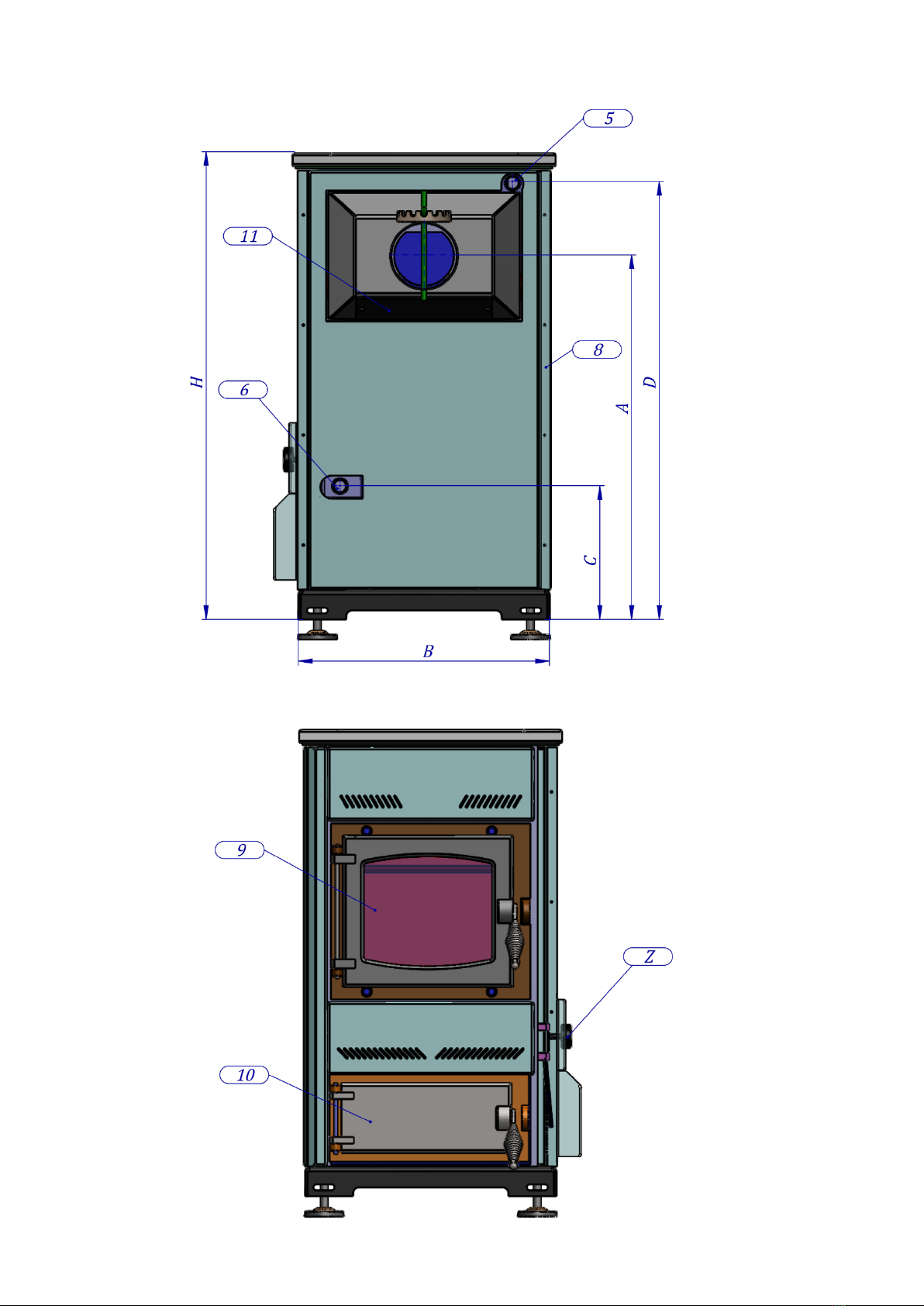

Boiler part description: 1. Heating chamber 2. Heat-exchanger tubes 3. Boiler (hot-water) 4. Flue 5. Flow line
6. Return line 7. Draught regulator 8. Boiler housing without insulation 9. Upper boiler door (cast-iron) 10.
Lower boiler door (cast-iron) 11. Opening for cleaning of the flue box 12. Flow line 13. Cooking plate with
stainless-steel frame 14. Return-line Z. Draught regulator handle

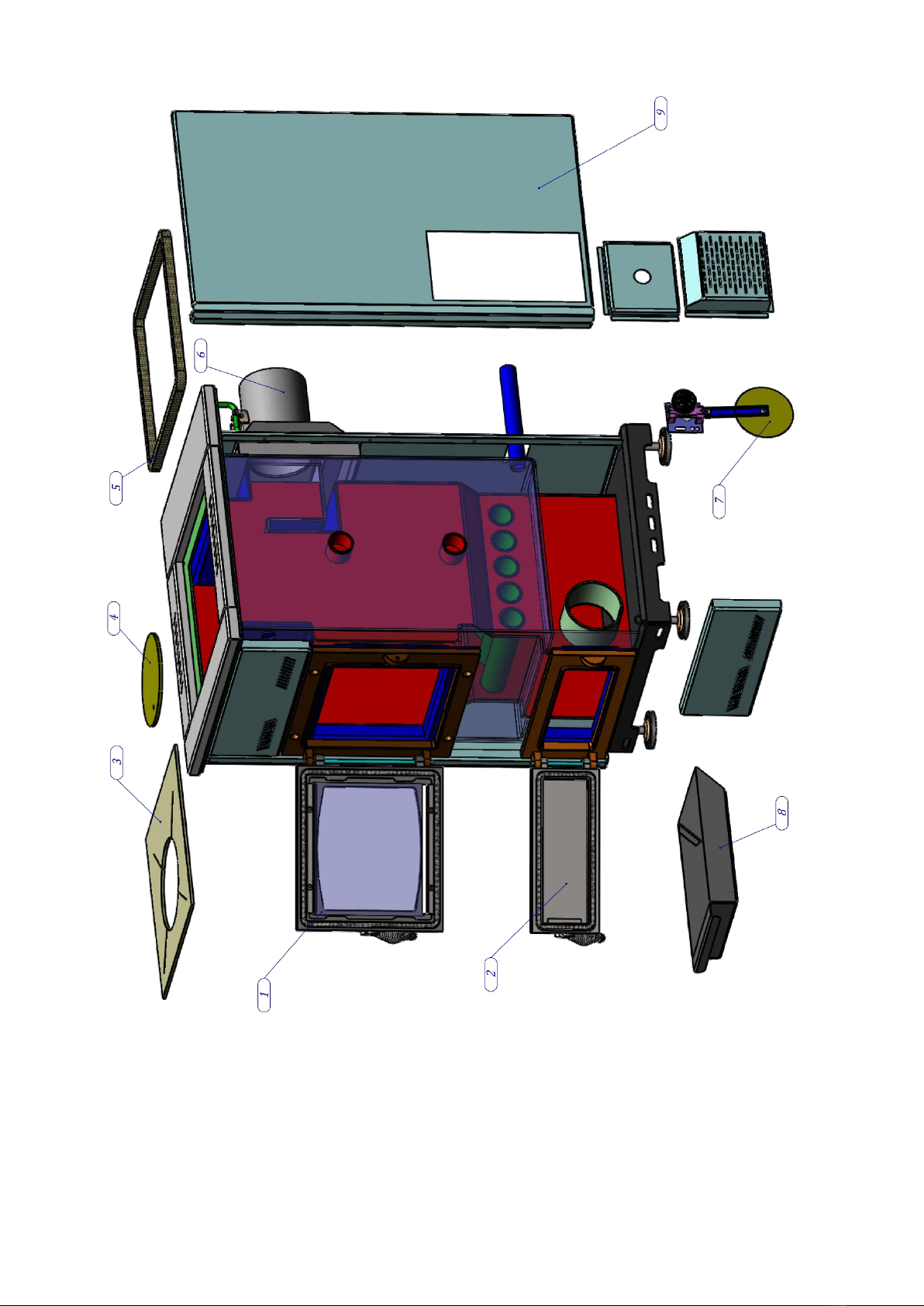

Exploded part description: 1. Upper door 2. Lower door 3. Flue gas connection element on the heat plate 4.
Flue gas exit 5. Flue gas exit cover 6. Flue exit 7. Automatic draught regulator 8. Ash-tray 9. Lateral housing
plate (draught regulator is at the bottom)

7
1.1 Technical data chart
1.2 Emission values
TEMY ES is evaluated according to European Directive 2015 :1189 and its emission values as well as
boiler efficiency are officially tested and confirmed to be below prescribed limits.
1.3 Description of the product
• This product is aimed for living areas. It’s a solid fuel boiler device with no thermal insulation
coat. Upper surface can be used for preparing food. Product dimensions make it suitable for
placement in small areas (TEMY ES 10).
• TEMY ES stove-boiler is made according to EN 303-5 and fulfills Ecodesign criteria 2015:1189.
• This product can be used as a residential space heater only if the safety requirements
defined by EN 12809:2006 are fully respected.
• This product can only be fed and fired with dry firewood logs with caloric value of min 15 MJ/kg.
• Boiler chamber is entirely made of steel, while the frame parts of the upper plate are made of
stainless steel AISI 314. The door frames are made of cast-iron. The upper door is filled with
fireproof glass, while the lower door is made of steel.
• The flue opening is placed on the back side.
• Hot-water volume inside the boiler is high (up to 60 litres for TEMY ES 25) –this fact guarantees
functionality of the product as a central heating boiler. It has no insulation coating around, so that
the heat radiation is also transmitted in a smaller amount to the surrounding area.
Type
TEMY ES 10
TEMY ES 15
TEMY ES 25
Nominal power
10 KW
15 KW
25 KW
Power transmitted to the central heating
8 KW
11 KW
19 KW
Temperature range
60- 80 °C
60- 80 °C
60- 80 °C
Minimum temperature of the return line
60 °C
60 °C
60 °C
Width (B)
445 mm
565 mm
620 mm
Height (H)
790 mm
830 mm
880 mm
Length (L)
770 mm
880 mm
970 mm
Flue gas exit height (A)
615 mm
645 mm
695 mm
Flow line height (D)
740 mm
770 mm
820 mm
Return line height (C)
220 mm
225 mm
225 mm
Total weight of the boiler
108 kg
151 kg
182 kg
Flow / Return (F) (inch)
1"
1"
1"
Fill / Drain tap (inch)
1/2"
1/2"
1/2"
Flue gas diameter (E)
Ø118 mm
Ø128 mm
Ø148 mm
Necessary draught
13 Pa
14 Pa
15 Pa
Boiler water volume
25 lit
40 lit
60 lit
Upper door size
258 x 196 mm
258 x 196 mm
258 x 196 mm
Lower door size
258 x 92 mm
258 x 92 mm
258 x 92 mm
Results
TEMY ES 10
TEMY ES 15
TEMY ES 25
Dust [mg/Nm3]
42
44
50
CO [mg/Nm3]
541
572
654
OGC [mg/Nm3]
19
21
23
NOx [mg/Nm3]
99
104
136
Seasonal space heating energy efficiency
ηS
79 %
80 %
80 %

8
2 Recommendations for shipment and storage
2.1 Delivery
Make sure product is during transport always placed in its vertical position.
Turning boiler upside-down can seriously damage the unit.
It is forbidden to stack products.
Product can be stored only in closed area without atmospheric influence. Moisture cannot
exceed 80%, room temperature should be between 0°C and 40°C.
While unpacking make sure if the paint is scratched somewhere, and that all boiler parts are
stable and fixed in its place.
2.2 Additional parts and documents
Following parts and documents are delivered along the boiler:
• A cleaning kit
• This manual
• Energy efficiency label
• Boiler draught regulator (part of the boiler)
• Ash-tray inside
Following parts are not delivered with the boiler:
• Thermo-manometer and the safety group
• Mixing valve
• Additional boiler room valves and fittings
3 Introduction notes
The end user must strictly follow the guidelines prescribed in this manual. On the contrary, the
warranty will not be recognized.

9
Permitted fuel for this boiler is dry firewood with caloric value of at least 15 MJ/kg.
The heating chamber of the boiler is factory tested at test pressure of 4 bar.
Pay strict attention that boiler valves are always open while boiler in use.
Don’t forget to do a mechanical reset of the circulation pump in your system at start of every
heating season.
Clean the boiler on a regular base.
While the boiler is heating up, damp patches and drips may occur in the chimney area and in the
hearth. If the pressure in the installation is constant, this phenomenon represents condensation and not a
leak from the boiler. The reason for the condensation is a large temperature difference between the flow
circuit and the return circuit, and occurs as a consequence of the following errors:
• If the power of the installed boiler exceeds the size of the installations,
• The mixing valve for the protection of the cold part of the boiler has not been installed.
• The boiler door or the ash pan are not correctly positioned (there is more air than necessary).
If the boiler leak is reported to the repair team and it is condensation, the team's visit will be
invoiced.
An expert should be entrusted for the planning and construction of the heating system.
In the case of an incorrectly planned system or the the incorrect installation of the system,
which can again lead to an incorrect operation of the boiler, the complete liability for the material
damage and new costs arising are to be covered by the person who was entrusted with the mounting of
the central heating system, and not by the boiler manufacturer, sales representative or seller.
Initial operation of the boiler is only to be performed by an authorized person (service). Please
contact your local seller.

10
4 Safety remarks
While in use, parts of the boiler are hot. Don’t touch the boiler without appropriate
hand protection against heat!
If some parts of the boiler occur to be damaged it is strictly forbidden to continue
using the boiler.
5 Boiler installation
5.1 Boiler placement
Room where heater is placed, must have windows, minimum surface area of window is
given by equation:
A (cm2) = 60
where Prepresents nominal power of the KW.
This product can be used as a residential space heater only if the safety requirements
defined by EN 12809:2006 are fully respected.
Boiler basement must be stable and made of fireproof material.

11
5.2 Connecting to the chimney
This product requires a natural draught and a chimney not just to transport flue gases out of the boiler but
also to create natural pressure difference necessary for boiler function. This boiler requires pressure drop
of 13-15 Pa depending on the model. Based on this fact chimney diameter and height are to be calculated –
according to the manual of the chimney producer! Boiler producer is not responsible for proper chimney
dimensioning!
Chimney is to be connected as depicted below and it is necessary to clean the chimney 1-2 times per year.
To reduce heat loss and due to ecological and safety factors, it is essential to have a vertical chimney
connected according to the picture and, if conditions allow, the chimney must be of quality (made with
ceramic segments thick up to 5 cm).
Clean the chimney regularly, at least once or twice a year.
The maximum number of elbows between the boiler and the chimney is 2.

12
5.3 Filling the system with water
Filling the system with water is to be done using the tap valve connection of the boiler.
When filling the system with water take care that no air remains in the boiler.
The filling process is done when no air is coming out through automatic air vent and pressure gauge is
showing the value between 1 bar and 1,5 bar (closed systems). Air vent is to be set at the highest point of
the (closed) central heating system. If the pressure is below 1,5 bar the filling process must be repeated.
After the filling process is done, it is obligatory to close the drain tap valve, close the water supply to the
water-filling pipe and detach the water-filling pipe.
5.4 Connecting the boiler with a closed central heating system with circulation
pump on the return line
Recommended connection scheme is depicted below:
1) Boiler 2) Boiler valve 3) Automatic air vent 4) Thermo-manometer 5) Safety valve 6) Mix valve 7) Expansion vessel 8)
Circulation pump 9) Dirt catcher
The safety valve (with preset 1,5 bar threshold) should be mounted on the backside of the boiler.
It is essential to have a thermometer and a manometer installed to the system (Position 4 on
upper scheme)

13
It is recommended to install a dirt catcher and also an anticondensation valve on the return
line. (3-way mixing valve).
Additional closed expansion vessel (position 7) should be mounted close to the boiler. Vessel must
be positioned so that its membrane is in horizontal position. The volume of the expansion vessel should be
around 18 lit.
Please read the circulation pump manual before placing it into operation. Please note air vent is
not pre-mounted within the boiler, it should be installed (Position 3) additionally.
6 Boiler cleaning and maintenance
Regular maintenance and cleaning of solid fuel boilers is necessary to ensure product
functionality and long-life operation. Boiler cleaning consists of following operations:
1. Emptying ash-trail of the boiler
2. Removing ash from the bottom part of the boiler
3. Cleaning all other accessible parts from ash. Opening for cleaning (Position 11, boiler drawings) are to
be used for additional access (at the end of season in any case).
Dry firewood with a caloric value of at least 15 MJ/kg is the only fuel allowed for this type of
product. Using other materials is an ecological act of crime and can be punished legally.
Lack of cleaning of the boiler leads to rapid degradation, i.e. corrosion of certain parts of the
boiler, which leads to poor combustion and heat loss.
Before accessing cleaning, all parts of the boiler must be completely cold.
Use of gloves is obligatory for all operations described.

14
THANK YOU FOR READING THIS DOCUMENT CAREFULLY –IF YOU HAVE
ADDITIONAL QUESTIONS FEEL FREE TO CONTACT US OR YOUR LOCAL
RESELLER.
