Sime DEWY EQUIPE BOX Series User manual

FOR THE INSTALLATION TECHNICIAN
CONTENTS
1 DEVICE DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 58
2 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 64
3 FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 75
4 USE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 81
IMPORTANT
When turning the boiler on for the first time it is best to run the following checks:
–
Make sure there are no flammable li uids or materials in the boiler’s near vicinity.
– Make sure that electrical connections are correct and that the grounding wire is connected to a good
grounding system.
– Open the gas tap and check the seal on the fixtures including the burner.
– Make sure that the boiler is set to operate with the type of gas supplied.
– Make sure that the exhaust flue is free and/or correctly assembled.
– Make sure that any shutters are open.
– Make sure that the system was filled with water and that all air was drained.
– Make sure the distributor is not obstructed.
– Discharge any air in the gas pipes by using the pressure escape on the gas valve.
FONDERIE SIME S.p.A. located in Via Garbo 27 - Legnago (VR) - Italy declares that its hot water boilers, CE appro-
ved according to Gas Directive 90/396/CEE and e uipped with safety thermostat calibrated to maximum 110°C,
are exempt from PED Directive 97/23/CEE application field because they meet the re uisites foreseen in arti-
cle 1 comma 3.6 therein.
DEWY EQUIPE 0/3 0 BOX - ENGLISH

58
IT
ES
GB
FR
BE
1.1 INTRODUCTION
“DEWY EQUIPE 0-120 BOX” are pre-
mixed condensation heating modules inten-
ded only for heating, inter-connectible and
easy to assemble, designed to work singu-
larly or in se uence/cascade autonomou-
sly.
They are designed and constructed to
meet European directives
90/336/CEE, 73/23/CEE and Euro-
pean regulation EN 483.
NOTE: Authorised personnel must turn
on the device the first time.
1 DEVICE DESCRIPTION

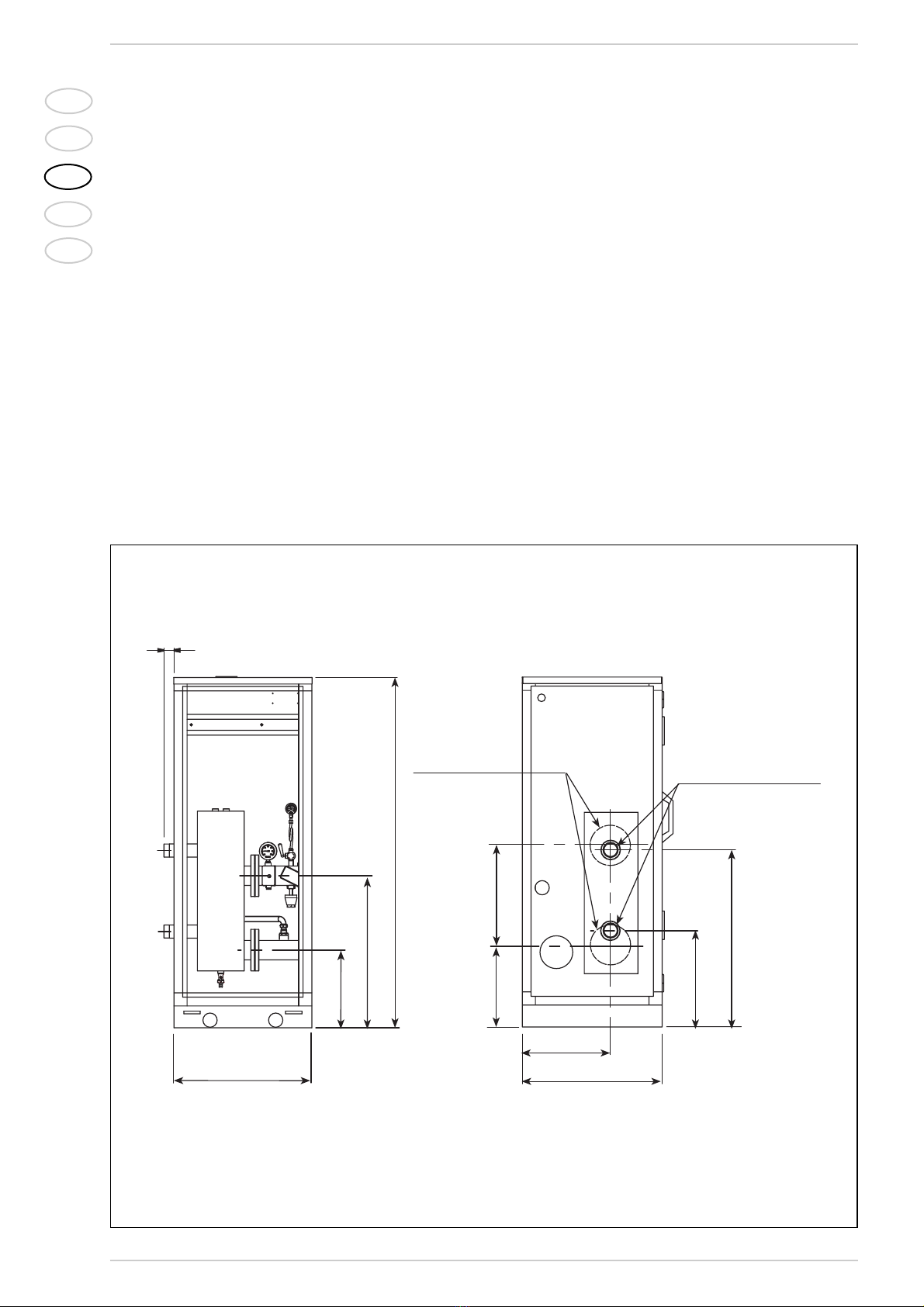

1.2 DIMENSIONS MODULES
1.2.1 “DEWY EQUIPE 0-120 BOX”
1305
390
415 260
675 630
355
695
1600
194 5
180
90
15 5
403
640
637
342
440
810
G
S3
M
R
DEWY EQUIPE 0 BOX
180
90
15 5
403
640
637
342
440
810
G
S3
M
R
355
695
1600
194 5
415 260
675 110 0
1775
470 390
DEWY EQUIPE 120 BOX
Fig. 1
FIXTURES
M System supply G 2” (UNI - ISO 7/1)
R System return G 2” (UNI - ISO 7/1)
G Gas (Flange PN6-DN50)
S3 Condensation drain ø 40
NOTE: Fixtures may be assembled on the left-hand side by moving the system supply/return manifold blind flanges and requesting
the safety kit 8101511 separately. Safety kit assembly is mandatory.

IT
ES
GB
FR
BE
59

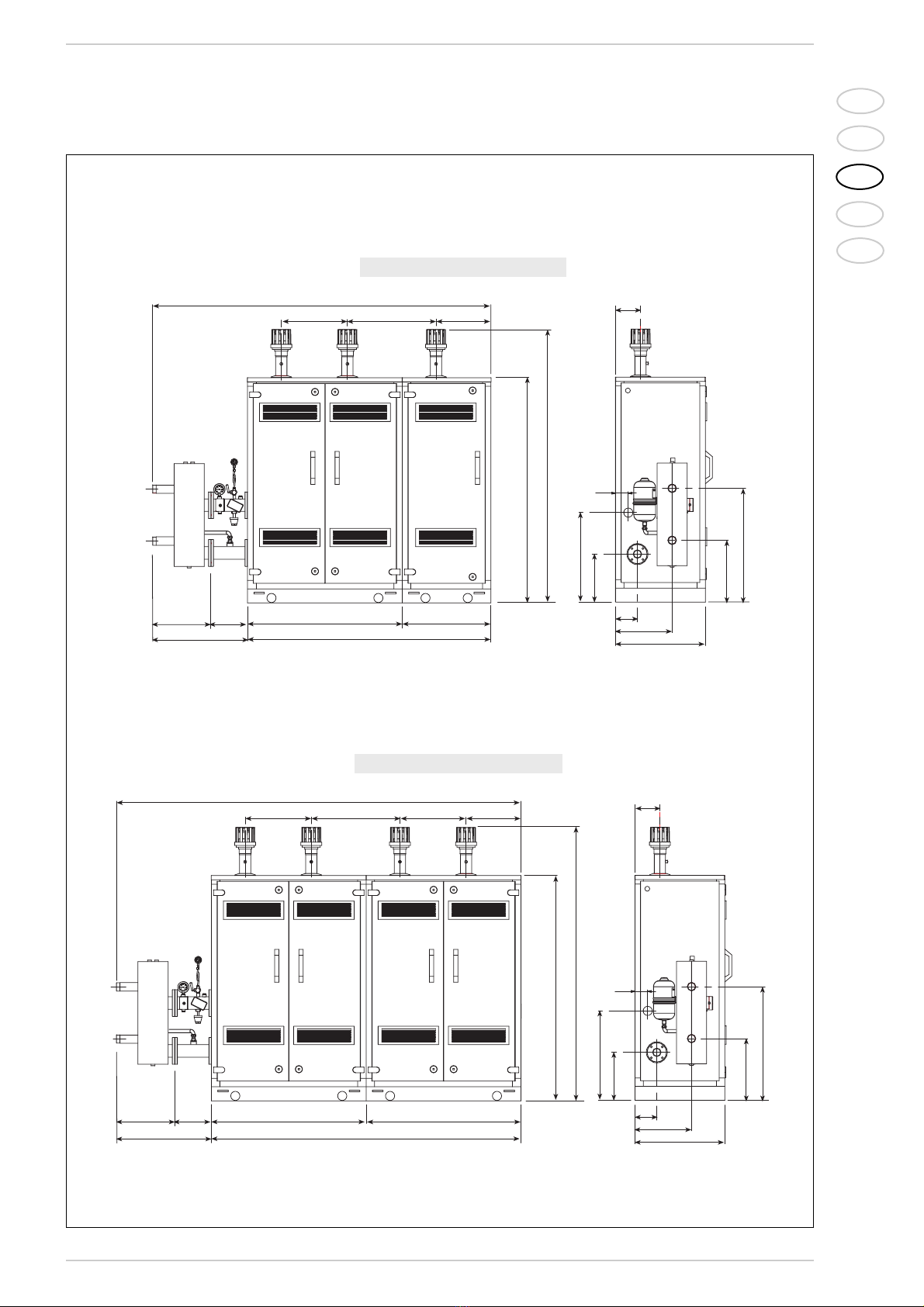

1.2.2 “DEWY EQUIPE 180-240 BOX”
2405
470 630 390
1100 (120 BOX) 630 ( 0 BOX)
1730
1600
194 5
DEWY EQUIPE 180 BOX
180
90
15 5
403
640
637
342
440
810
G
S3
M
R
415 260
675
DEWY EQUIPE 240 BOX
1600
194 5
2875
470 630 470 390
1100 (120 BOX)
2200
1100 (120 BOX)
415 260
675
180
90
15 5
403
640
637
342
440
810
G
S3
M
R
Fig. 1/a
FIXTURES
M System supply G 2” (UNI - ISO 7/1)
R System return G 2” (UNI - ISO 7/1)
G Gas (Flange PN6-DN50)
S3 Condensation drain ø 40
NOTE: Fixtures may be assembled on the left-hand side by moving the system supply/return manifold blind flanges and requesting
the safety kit 8101511 separately. Safety kit assembly is mandatory.

60
IT
ES
GB
FR
BE
1.2.3 “DEWY EQUIPE 300-3 0 BOX”
M
R
S3
G
S3
G
M
R
DEWY EQUIPE 300 BOX
DEWY EQUIPE 3 0 BOX
825
355
630
3465
470 630 470 390
630 ( 0 BOX) 110 0 (120 BOX) 110 0 (120 BOX)
2830
90
15 5
403
640
637
342
1600
194 5
180
825
355
3935
470 630 470 470
630 390
110 0 (120 BOX)
110 0 (120 BOX)
110 0 (120 BOX)
3300
180
90
15 5
403
640
342
637
Fig. 1/a
FIXTURES
M System supply (Flange PN6-DN80)
R System return (Flange PN6-DN80)
G Gas (Flange PN6-DN50)
S3 Condensation drain ø 40
NOTE: Fixtures may be assembled on the left-hand side by moving the system supply/return manifold blind flanges and requesting
the safety kit 8101511 separately. Safety kit assembly is mandatory.

IT
ES
GB
FR
BE
61
1.3 TECHNICAL SPECIFICATIONS
DEWY EQUIPE 0 BOX 120 BOX 180 BOX 240 BOX 300 BOX 3 0 BOX
Nominal heat output (80-60°C) kW 57,0 113,9 170,9 227,8 284,8 341,7
kcal/h 49.000 98.000 146.900 196.000 244.900 293.900
Nominal heat output (50-30°C) kW 62,2 124,5 186,7 248,9 311,2 373,4
kcal/h 53.500 107.000 160.600 214.000 267.600 321.100
Minimum heat output G20 (80-60°C) kW 16,8 16,8 16,8 16,8 16,8 16,8
kcal/h 14.400 14.400 14.400 14.400 14.400 14.400
Minimum heat output G20 (50-30°C) kW 18,2 18,2 18,2 18,2 18,2 18,2
kcal/h 15.700 15.700 15.700 15.700 15.700 15.700
Minimum heat output G31 (80-60°C) kW 22,4 22,4 22,4 22,4 22,4 22,4
kcal/h 19.200 19.200 19.200 19.200 19.200 19.200
Minimum heat output G31 (50-30°C) kW 24,3 24,3 24,3 24,3 24,3 24,3
kcal/h 20.900 20.900 20.900 20.900 20.900 20.900
Nominal heat input kW 58,0 116,0 174,0 232,0 290,0 348,0
kcal/h 49.900 99.800 149.600 199.500 249.400 299.300
Minimum heat input G20 kW 17,4 17,4 17,4 17,4 17,4 17,4
kcal/h 15.000 15.000 15.000 15.000 15.000 15.000
Minimum Minimum heat input G31 kW 23,2 23,2 23,2 23,2 23,2 23,2
kcal/h 19.900 19.900 19.900 19.900 19.900 19.900
Min-max operating yield (80-60°C) % 96,4-98,2 96,4-98,2 96,4-98,2 96,4-98,2 96,4-98,2 96,4-98,2
Min-max operating yield (50-30°C) % 104,7-107,3 104,7-107,3 104,7-107,3 104,7-107,3 104,7-107,3 104,7-107,3
Operating yield at 30% (50-30°C) % 106,4 106,4 106,4 106,4 106,4 106,4
Energy yield markings (CEE 92/42) ★★★★ ★★★★ ★★★★ ★★★★ ★★★★ ★★★★
Heat modules n° 1 1 1 de“ 0”+2 de “120” 1 de “ 0”+3 de “120”
1 de “120” 2 de “120”
NOx class 5 5 5 5 5 5
Exhaust temperat. at nominal Q. (80-60°C) °C 68 68 68 68 68 68
Exhaust temperat. at Minimum Q. (80-60°C) °C 58 58 58 58 58 58
Exhaust temperat. at nominal Q. (50-30°C) °C 49 49 49 49 49 49
Exhaust temperat. at Minimum Q. (50-30°C) °C 42 42 42 42 42 42
Maximum exhaust capacity kg/h 95,2 190,5 285,7 380,9 476,2 571,4
CO2at Q. Nominal/Minimum G20 % 9,0/9,0 9,0/9,0 9,0/9,0 9,0/9,0 9,0/9,0 9,0/9,0
CO2at Q. Nominal/Minimum G31 % 10,0/10,0 10,0/10,0 10,0/10,0 10,0/10,0 10,0/10,0 10,0/10,0
Maximum pressure exhaust manifold output Pa 100 100 100 100 100 100
Potencia eléctrica absorbida W 198 396 594 792 990 1188
Absorbed power IPX4D IPX4D IPX4D IPX4D IPX4D IPX4D
CE certification n° 1312BP4142 1312BP4142 1312BP4142 1312BP4142 1312BP4142 1312BP4142
Category II2H3P II2H3P II2H3P II2H3P II2H3P II2H3P
Category in France I2Er I2Er I2Er I2Er I2Er I2Er
Category in Belgium I2E(S)B I2E(S)B I2E(S)B I2E(S)B I2E(S)B I2E(S)B
Type B23-53 B23-53 B23-53 B23-53 B23-53 B23-53
HEATING
Max operating pressure bar 4 4 4 4 4 4
Max operating temperature °C 85 85 85 85 85 85
Water content modules l 20,7 30,3 41,7 51,3 76,4 86,0
Single module temperature regulation °C 20/80 20/80 20/80 20/80 20/80 20/80
GAS AND NOZZLE PRESSURE
Supply pressure G20/G25 mbar 20/25 20/25 20/25 20/25 20/25 20/25
Supply pressure G31 mbar 37 37 37 37 37 37
Number of nozzles n° 1 2 3 4 5 6
Nozzle diameter G20/G25 ø 9,3 9,3 9,3 9,3 9,3 9,3
Nozzle diameter G31 ø 6,7 6,7 6,7 6,7 6,7 6,7
Consumption at nom./min. power G20 m3/h 6,14/1,84 12,27/1,84 18,41/1,84 24,54/1,84 30,68/1,84 36,81/1,84
Consumption at nom./min. power G31 kg/h 4,51/1,80 9,01/1,80 13,52/1,80 18,02/1,80 22,53/1,80 27,03/1,80
WEIGHT kg 172 282 454 564 736 846

62
IT
ES
GB
FR
BE
M
R
1
2
3
19
20 7
21 25
23
18
1
24
17
15
14
13
5
11
10
9
8
12
422
S3
G
2
27
28

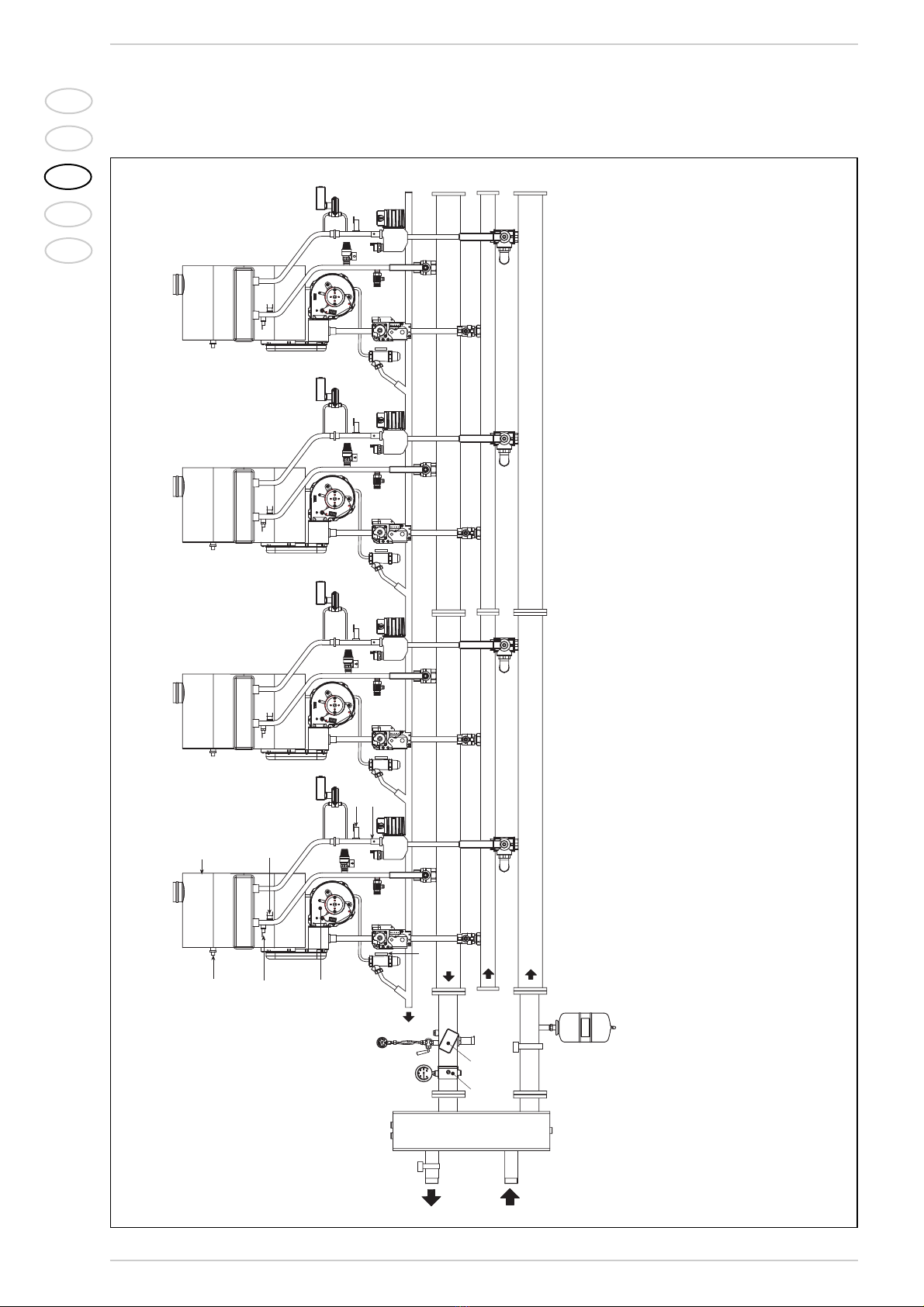

1.4 OPERATING DIAGRAM
Fig. 2
KEY
1 Cascade supply probe
2 Hydraulic compensator
3 Thermometer
4 Cascade return probe
5 Condensation drain siphon
6 Gas valve
7 3.5 BAR safety valve
8Fan
9 Heating probe (SM)
10 Safety thermostat 95°C
11 Exhaust thermostat
12 Primary exchanger
13 Diaphragm
14 Differential pressure switch
15 Water pressure transducer
16 Air escape valve
17 Check valve
18 Distributor
19 0-6 BAR pressure gauge with tap
20 4 BAR water pressure switch
21 Safety thermostat 100°C
22 3-way drain tap
23 System supply tap
24 Single module drain
25 Gas tap
26 8 litre expansion tank
27 4 BAR safety valve
28 Water trap frost sensor
FIXTURES
M System supply
R System return
G Gas
S3 Condensation drain

IT
ES
GB
FR
BE
63
1.5 MAIN COMPONENTS
Fig. 3
KEY
1 System return manifold
2 Gas manifold
3 Gas tap
4 System supply manifold
5 Gas valve
6Fan
7 Ignition electrode
8 Detection electrode
9 Ignition transformer
10 Exhaust thermostat
11 Control panel
12 Exhaust analysis point
13 Air pressure switch
14 Heating probe (SM)
15 Safety thermostat 95°C
16 Differential pressure switch
17 Automatic escape
18 Check valve
19 Distributor
20 4 BAR safety valve
21 Module drain
22 System supply tap
23 3-way drain tap
24 Shunt box

64
IT
ES
GB
FR
BE
Installation is permanent and must exclu-
sively be performed by specialised and
ualified personnel, following all the
instructions and provisions included in
this manual.
Current regulations must also be met.
2.1 SUPPLY
“PLANET DEWY 0-120 BOX” heat modu-
les, inter-connectible by flange, are supplied
with an external pre-painted zinc-coated
laminate case. They are complete with
hydraulic separator, supply/return water
manifold fastening screws and gaskets and
se uence/cascade digestion unit cod.
8096311 supplied with “120-180-240
BOX” modules and cod. 8096312 supplied
with “300-3 0 BOX” modules.
Available separately:

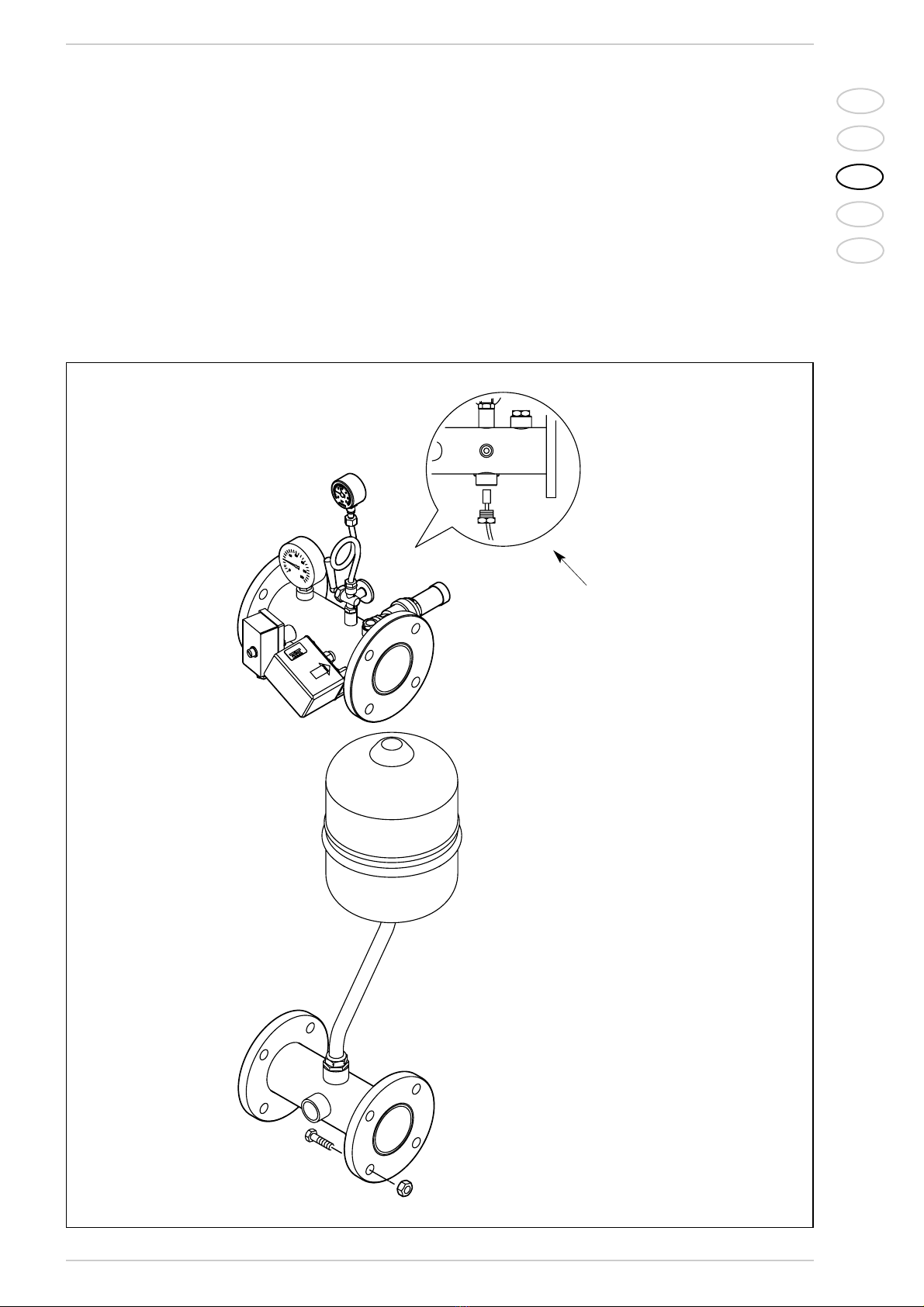

– Safety kit to re uested according to
module fixture positions:
cod. 8101511 for right-hand fixtures
cod. 8101510 for left-hand fixtures.
– Additional safety valve kit code 8103825
for modules “300-3 0 BOX”

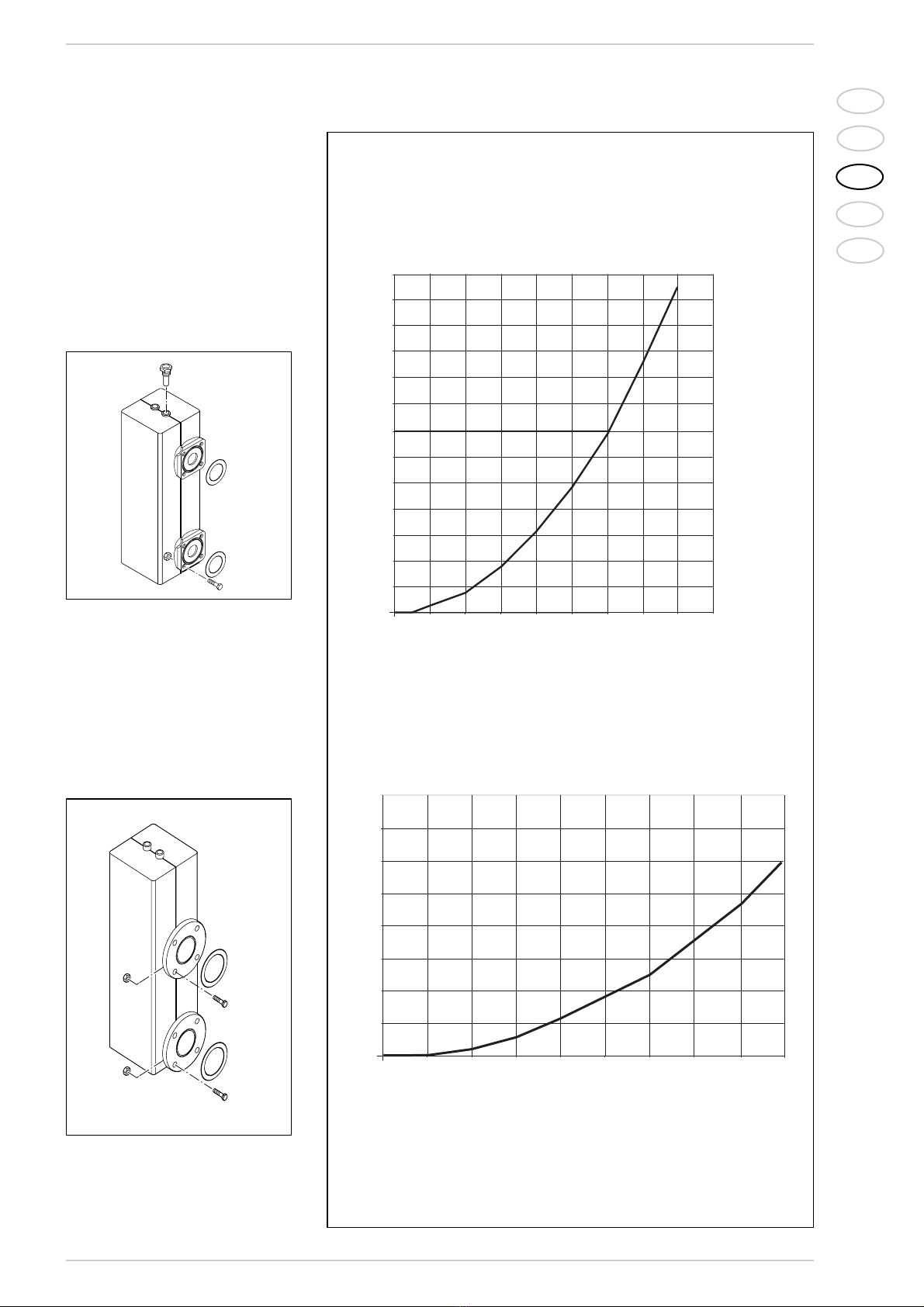

- Hydraulic separator box/safety kit cod.
8101517 (fig. 4)

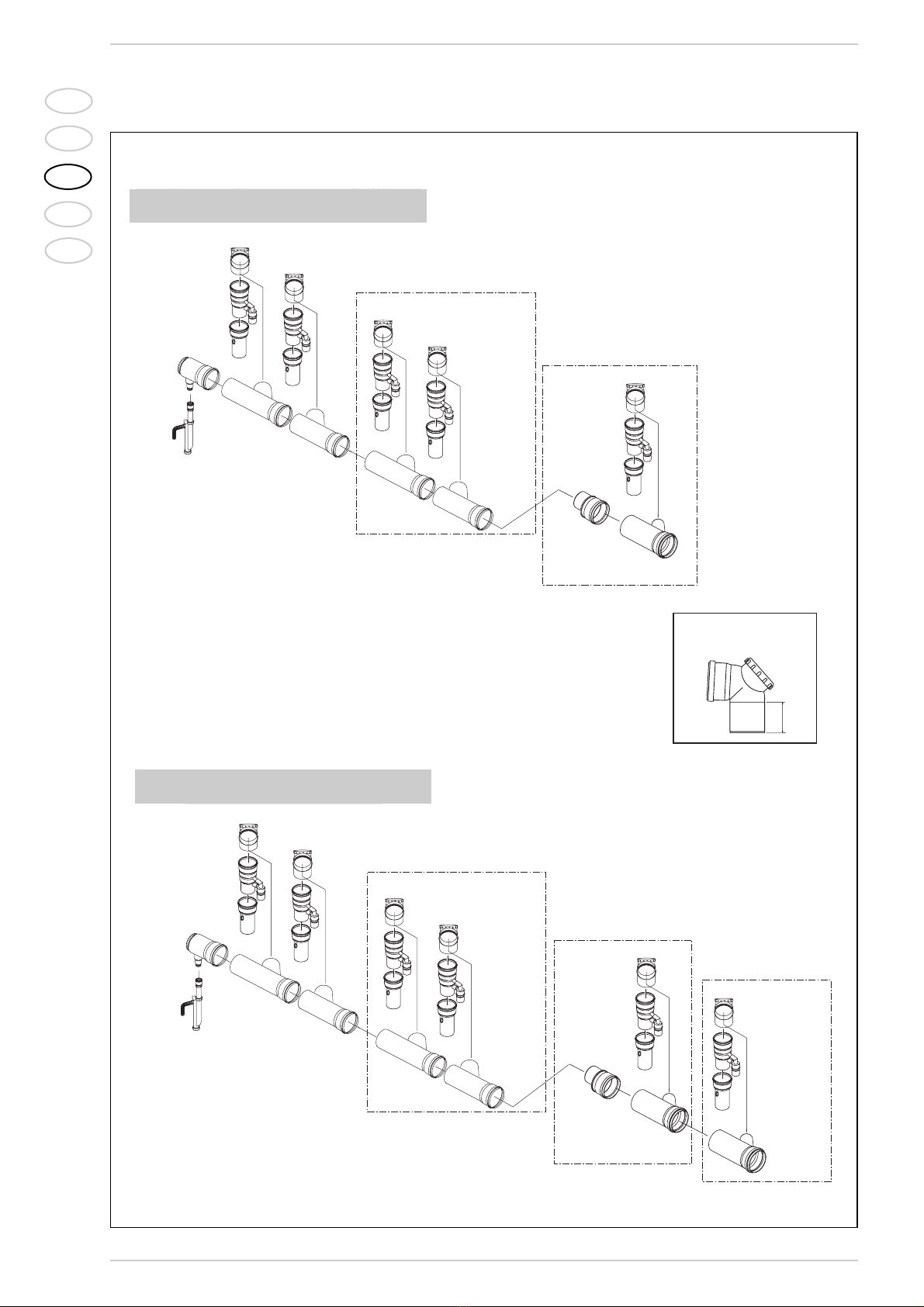

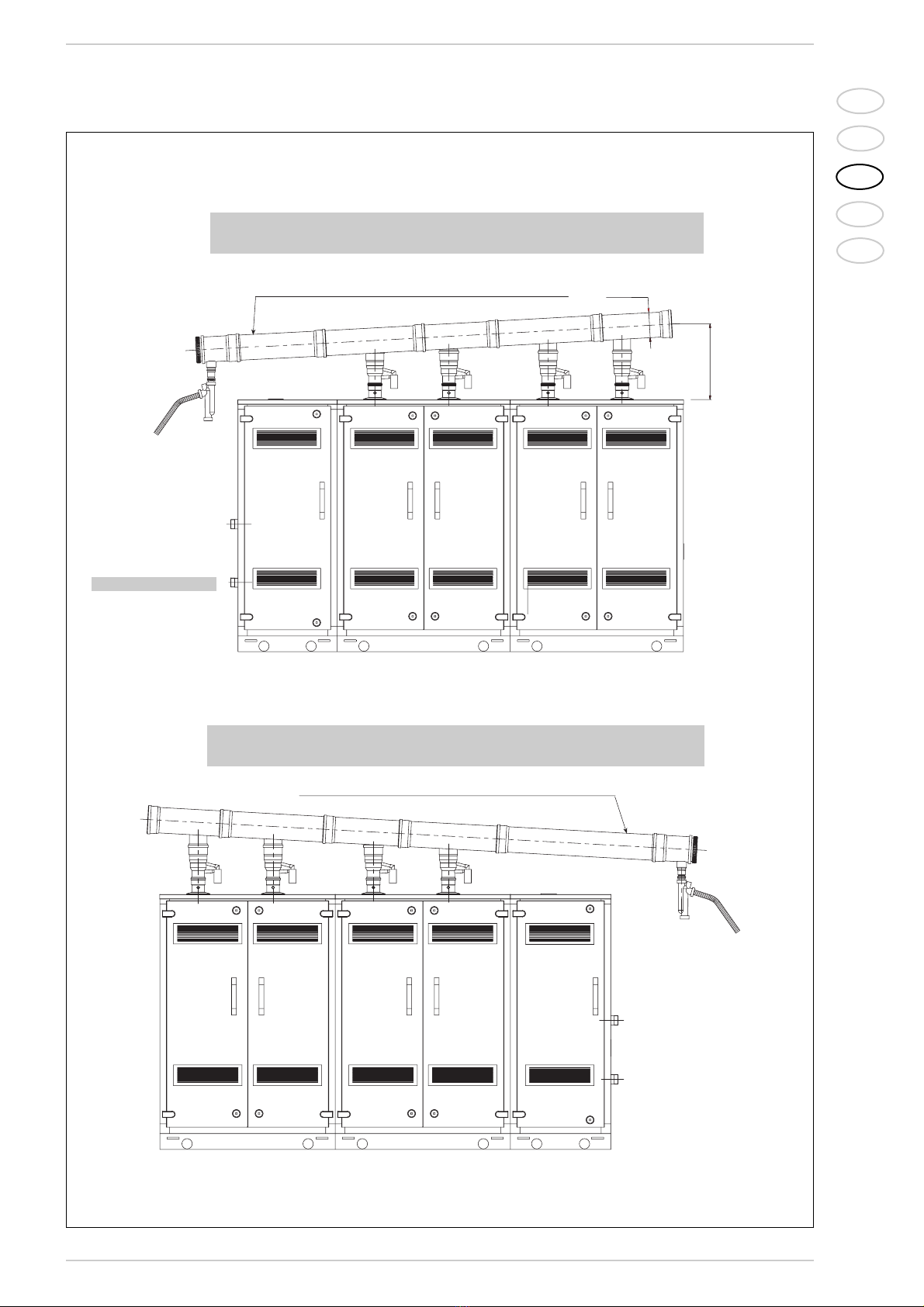

– Polypropylene exhaust manifold kit for
indoor installation:
cod. 8102510 for “ 0 BOX” module
cod. 8102511 for “120 BOX” module
cod. 8102512 for “180 BOX” module
cod. 8102513 for “240 BOX” module
cod. 8102514 for “300 BOX” module
cod. 8102515 for “3 0 BOX” module
– Exhaust terminal cod. 8089530 for out-
door installations.
To electrically connect the modules and to
assemble the exhaust for indoor or outdoor
installations, see points 2.6, 2.7 and 2.10 in
this manual.
2.2 INSTALLATION
2.2.1 Indoors
“PLANET DEWY 0-120-180-240-300-
3 0 BOX” heat modules can be installed in
boiler rooms whose size and re uirements
meet current regulations.
Furthermore, vents, with surface areas at
least 3.000 s . cm or 5.000 s . cm for
gas with density over 0.8, must be installed
in the outer walls for room ventilation.
2.2.2 Outdoors
“PLANET DEWY 0-120-180-240-300-
3 0 BOX” heat modules can also be instal-
led outdoors with the specific exhaust for
single module cod. 8089530.
2.3 SYSTEM CONNECTIONS
To protect the heat system from damaging
corrosion, incrustation or deposits, after
installation it is extremely important to
clean the system using suitable products
such as, for example, Sentinel X300 or
X400. Complete instructions are provided
2 INSTALLATION
Fig. 4
45
1600
695
355
630 640
403
440
810
355 470
“300-3 0 BOX” “ 0÷240 BOX”

IT
ES
GB
FR
BE
65
with the products but, for further informa-
tion, you may directly contact GE Betz.
For long-term protection agains corrosion
and deposits, the use of inhibitors such as
Sentinel X100 is recommended after clea-
ning the system.
It is important to check the concentration
of the inhibitor after each system modifica-
tion and during maintenance following the
manufacturer’s instructions (specific tests
are available at your dealer).
The safety valve drain must be connected
to a collection funnel to collect any dischar-
ge during interventions.
WARNING: Failure to clean the heat
system or add an adequate inhibitor inva-
lidates the device’s warranty.
Gas connections must be made in accor-
dance with current standards and regula-
tions. When dimensioning gas pipes from
the meter to the module, both capacity
volume (consumption) in m3/h and gas
density must be taken into account.
System pipe sections must be able to gua-
rantee sufficient supply to cover maximum
demand, limiting pressure loss between the
meter and any utility device no greater than
1.0 mbar for second family gas (natural
gas). A sticker inside the module includes
identification and gas type data specific to
the module.
2.3.1 Condensation drain connection
A siphoned drain must be connected to
the civil drain by a pipe with minimum 5
mm per meter gradient for condensation
collection.
Only normal plastic civil drain pipes are
suitable to convey condensation to the
building’s sewer drain.
2.5 FILLING THE SYSTEM
Cold system filling pressure must be 1 bar. The
system must be filled slowly so that air bubbles
are released through the specific escapes.
2. EXHAUST FOR OUTDOOR
INSTALLATION
The exhaust terminal for single module cod.
8089530 is re uired for this type of instal-
lation. For separately supplied accessory
assembly see fig. 5.
Fig. 5

66
IT
ES
GB
FR
BE
2.7 INDOOR INSTALLATION
EXHAUST KIT
Refer to fig. 6 and 6/a-b for this type of
installation.
The indicated solutions have the exhaust
manifold positioned both on the module’s
right and left and the use of extension cod.
8102522/23, supplied separately, is only
necessary when the hydraulic separator
box/safety kit cod. 8101517 is installed.
Figure 6/c for 6/d illustrates the elements
included in the polypropylene exhaust
manifold re uired for single and multiple
module installation, and the available acces-
sories to be used according to installation
type.
DEWY EQUIPE 240 BOX - Kit collettore fumi uscita lato dx
DEWY EQUIPE 240 BOX - Kit collettore fumi uscita lato sx
405
Ø 160
H
Fig. 6
H
120 BOX 470
180 BOX 525
240 BOX 525
DEWY EQUIPE 240 BOX - Right side exhaust manifold Kit
DEWY EQUIPE 240 BOX - Left side exhaust manifold Kit

IT
ES
GB
FR
BE
67
DEWY EQUIPE 240 BOX - Kit collettore fumi uscita lato sx
e box contenitore separatore idraulico/kit sicurezze ISPESL
DEWY EQUIPE 240 BOX - Kit collettore fumi uscita lato dx
e box contenitore separatore idraulico/kit sicurezze ISPESL
Ø 160
H
Prolunga L. 500 da richiedere a parte cod. 8102522
Prolunga L. 1000 da richiedere a parte cod. 8102523
Fig. 6/a
H
120 BOX 470
180 BOX 525
240 BOX 525
DEWY EQUIPE 240 BOX - Left side exhaust manifold kit
and hydraulic separator box/safety kit
DEWY EQUIPE 240 BOX - Left side exhaust manifold kit
and hydraulic separator box/safety kit
Extension supplied separately cod. 8102522
Extension supplied separately cod. 8102523

68
IT
ES
GB
FR
BE
DEWY EQUIPE 300 BOX - Kit collettore fumi uscita lato dx
ø 160
ø 200
420
560
DEWY EQUIPE 3 0 BOX - Kit collettore fumi uscita lato dx
ø 200
585
ø 160
DEWY EQUIPE 3 0 BOX - Right side exhaust manifold Kit
DEWY EQUIPE 300 BOX - Kit collettore fumi uscita lato dx
e box contenitore separatore idraulico/kit sicurezze ISPESL
ø 160
ø 200
420
560
Prolunga L. 500 da richiedere a parte cod. 8102522
DEWY EQUIPE 3 0 BOX - Kit collettore fumi uscita lato sx
e box contenitore separatore idraulico/kit sicurezze ISPESL
585
ø 160
ø 200 Prolunga L. 1000 da richiedere a parte cod. 8102523
Fig. 6/b
DEWY EQUIPE 300 BOX - Right side exhaust manifold Kit
DEWY EQUIPE 300 BOX - Left side exhaust manifold kit
and hydraulic separator box/safety kit
DEWY EQUIPE 3 0 BOX - Left side exhaust manifold kit
and hydraulic separator box/safety kit
Extension L. 500 supplied separately cod. 8102522
Extension L. 1000 supplied separately cod. 8102523

IT
ES
GB
FR
BE
69
ALTEZZA VARIABILE
DELLA CURVA A 93°
KIT COLLETTORE FUMI ø 125 cod. 8102510
“DEWY EQUIPE 0 BOX”
KIT COLLETTORE FUMI ø 1 0 cod. 8102511
“DEWY EQUIPE 120 BOX”
KIT COLLETTORE FUMI ø 1 0 cod. 8102513
“DEWY EQUIPE 240 BOX”
KIT COLLETTORE FUMI ø 1 0 cod. 8102512
“DEWY EQUIPE 180 BOX”
cod. 6296501 x 2
cod. 6296514
(L. 630)
cod. 6296516
cod. 6296500
Curva n° 2
cod. 6296506
(A = 104 mm)
cod. 6296513 x 2
Curva n° 1
cod. 6296505
(A = 78 mm)
cod. 6296515
(L. 470)
cod. 6296501 x 4
cod. 6296514
(L. 630)
cod. 6296516
cod. 6296500
Curva n° 2
cod. 6296506
(A = 104 mm)
cod. 6296513 x 4
Curva n° 1
cod. 6296505
(A = 78 mm)
cod. 6296515
(L. 470)
cod. 6296514
(L. 630)
Curva n° 4
cod. 6296508
(A = 158 mm)
Curva n° 3
cod. 6296507
(A = 133 mm)
cod. 6296515
(L. 470)
cod. 6296501 x 3
cod. 6296514
(L. 630)
cod. 6296516
cod. 6296500
Curva n° 3
cod. 6296507
(A = 133 mm)
cod. 6296513 x 3
Curva n° 2
cod. 6296506
(A = 104 mm)
cod. 6296515
(L. 470)
cod. 6296514
(L. 630)
Curva n° 4
cod. 6296508
(A = 158 mm)
cod. 6296518
cod. 6296510 (ø 125 L. 1000)
Curva a 90° ø 125
cod. 6296519
cod. 6296513
Cod. 519290
Cod. 5192905
Cod. 5192905
Cod. 8102511
Fig. 6/c
WARNING:
To facilitate exhaust manifold com-
ponent connections, spread the
content of the supplied tube on the
gaskets.
Pay attention to the assembly
sequence of the curves numbered
with variable heights.
ACCESSORY LIST
POLYPROPYLENE ø 1 0
AVAILABLE OPTIONS:
– Extension L. 500 cod. 8102522
– Extension L. 1000 cod. 8102523
– 45° curve cod. 8102520
– 90° curve cod. 8102521
EXHAUST MANIFOLD KIT COD. 8102510
“DEWY EQUIPE 0 BOX”
EXHAUST MANIFOLD KIT COD. 8102512
“DEWY EQUIPE 180 BOX”
EXHAUST MANIFOLD KIT COD. 8102513
“DEWY EQUIPE 240 BOX”
EXHAUST MANIFOLD KIT COD. 8102511
“DEWY EQUIPE 120 BOX”
VARIABLE HEIGHT
FOR 93° CURVE
90° curve ø 125
Curve n° 1
Curve n° 2
Curve n° 4
Curve n° 2
Curve n° 3
Curve n° 1 Curve n° 2
Curve n° 3
Curve n° 4

70
IT
ES
GB
FR
BE
ALTEZZA VARIABILE
DELLA CURVA A 93°
cod. 6296501 x 5
cod. 6296514
(L. 630)
cod. 6296516
cod. 6296500
Curva n° 2
cod. 6296506
(A = 104 mm)
cod. 6296513 x 5
Curva n° 1
cod. 6296505
(A = 78 mm)
cod. 6296515
(L. 470)
cod. 6296514
(L. 630)
Curva n° 4
cod. 6296508
(A = 158 mm)
Curva n° 3
cod. 6296507
(A = 133 mm)
cod. 6296515
(L. 470)
Cod. 5192905
Curva n° 5
cod. 6296523
(A = 213 mm)
cod. 6296525
(Ø 200)
Cod. 5192907
Cod. 8102511
cod. 6296526
(Ø 160/200)
cod. 6296501 x 5
cod. 6296514
(L. 630)
cod. 6296516
cod. 6296500
Curva n° 2
cod. 6296506
(A = 104 mm)
cod. 6296513 x 5
Curva n° 1
cod. 6296505
(A = 78 mm)
cod. 6296515
(L. 470)
cod. 6296514
(L. 630)
Curva n° 4
cod. 6296508
(A = 158 mm)
Curva n° 3
cod. 6296507
(A = 133 mm)
cod. 6296515
(L. 470)
Cod. 5192905
Curva n° 5
cod. 6296523
(A = 213 mm)
cod. 6296525
(Ø 200)
Cod. 5192907
Cod. 8102511
cod. 6296526
(Ø 160/200)
Curva n° 6
cod. 6296524
(A = 238 mm)
cod. 6296525
(Ø 200)
Cod. 5192908
A
KIT COLLETTORE FUMI cod. 8102515
“DEWY EQUIPE 3 0 BOX”
KIT COLLETTORE FUMI cod. 8102514
“DEWY EQUIPE 300 BOX”
Fig. 6/d
WARNING:
To facilitate exhaust manifold com-
ponent connections, spread the
content of the supplied tube on the
gaskets.
Pay attention to the assembly
sequence of the curves numbered
with variable heights.
VARIABLE HEIGHT
FOR 93° CURVE
SET ROOKGASVERDEELSTUK CODE 8102514
“DEWY EQUIPE 300 BOX”
SET ROOKGASVERDEELSTUK CODE 8102515
“DEWY EQUIPE 3 0 BOX”
Curve n° 1 Curve n° 2
Curve n° 3
Curve n° 4
Curve n° 5
Curve n° 1 Curve n° 2
Curve n° 3
Curve n° 4
Curve n° 5
Curve n° 6

IT
ES
GB
FR
BE
71
2.8 SAFETY KIT
Safety kit assembly is mandatory.
According to module fixture positions, kit
cod. 8101510 can be re uested for left
side installations and kit cod. 8101511 for
right side installations.
The kit is made up of the following compo-
nents (fig. 7):
– System supply flanged section:
Cod. 6291963 for left-hand fixtures
Cod. 6291964 for right-hand fixtures
– System return flanged section cod.
6291965
– Gaskets, nuts and fastening screws M16
– Thermometer 0-120°C 1/2” cod.
6146004
– 3.5 BAR safety valve cod. 6042203 and
drain funnel cod. 6269402
– Safety thermostat 100°C manual reset
cod. 6001409
– 4 BAR 1/4” water pressure switch cod.
6037550
– 0-6 BAR 1/4” pressure gauge cod.
6217050, tap cod. 6216606 and lock
cod. 6216650
– Expansion vessel 8 liters code 6245108,
connection pipe code 6227661, gaskets
and nipple.
WARNING: In models “ 0-120-180-240
BOX” the safety kit can be inserted in a
specific protective case cod. 8101512
supplied separately.
In models “300-3 0 BOX” safety valve
code 042203 and exhaust funnel code
2 9402 must be replaced with those in
the safety valve kit code 8103825 to be
requested separately.
Fig. 7
Capillary assembly of fuel
on/off valve calibrated to
98°C, not supplied.

72
IT
ES
GB
FR
BE
CALDAIA 1 CALDAIA 2 CALDAIA 3 CALDAIA 4
DEWY EQUIPE 120 BOX
DEWY EQUIPE 180 BOX
DEWY EQUIPE 240 BOX
KEY
L Line
N Neutral
TS Safety thermostat 100°C
PA Water pressure switch
C RVA 47 regulator with shunt box
R1 536 Ohm resistance (1)
R2 562 Ohm resistance (1)
R3 604 Ohm resistance (1)
R4 649 Ohm resistance (1)
R5 576 Ohm resistance (1)
(1) Resistances are supplied in RVA 47
se uence/cascade kit cod.
809631/12.
NOTE: To connect other accessories to the
RVA 47 regulator (system pump, outdoor
temperature probe, cascade supply probe,
etc.) see the manual supplied with specific
kit cod. 809 311/12.
Fig. 7/a
2.8.1 Electrical sequence/cascade and safety kit connection (fig. 7/a)
SECTION
BOILER 1 BOILER 2 BOILER 3 BOILER 4
R3 R2 R5 R3 R2 R5
DEWY EQUIPE 300 BOX DEWY EQUIPE 3 0 BOX
“DEWY EQUIPE 300 - 3 0 BOX”
“DEWY EQUIPE 120 - 180 - 240 BOX”
SECTION
BOILER 1 BOILER 2 BOILER 3 BOILER 1 BOILER 2 BOILER 3

2.9 HYDRAULIC SEPARATOR
2.9.1 DEWY EQUIPE
0-120-180-240 BOX
The hydraulic separator is supplied with
modules in a kit cod. 5196320 complete
with gaskets, nuts and fastening screws
(figure 8).
WARNING: The hydraulic separator can
be inserted in a specific protective case
cod. 8101517 supplied separately.
2.9.2 DEWY EQUIPE
300-3 0 BOX
The hydraulic separator is supplied with
modules in a kit cod. 5196322 complete
with gaskets, nuts and fastening screws
(figure 8/a).
WARNING: The hydraulic separator can
be inserted in a specific protective case
cod. 8101517 supplied separately.
2.9.3 Load loss
Hydraulic separator load losses are indica-
ted in the diagram in fig. 9.
IT
ES
GB
FR
BE
73
Fig. 8
80
100
120
140
2PORTATA (m3/h)
4681012
0
20
40
60
∆p (mbar)
14 16 18
160
180
200
220
240
260
Fig. 9
CAPACITY (m3/h)
Hiydraulic separator “DEWY EQUIPE 0-120-180-240 BOX”
Hiydraulic separator “DEWY EQUIPE 300-3 0 BOX”
20
25
30
35
2
PORTATA (m3/h)
4681012
0
5
10
15
∆p (mbar)
14
Dewy E uipe 300-360 BOX
40
16 18
CAPACITY (m3/h)
Fig. 8/a

74
IT
ES
GB
FR
BE
J2
J3
J4
J5
J7
Fig. 11
2.10 ELECTRICAL
CONNECTIONS
Each module is supplied with a power cord
which, if replacement is re uired, must be
ordered from SIME.
230V – 50 Hz single phase voltage is
re uired using a fuse protected main swit-
ch with at least 3 mm. between contacts.
Observe the L – N polarity and grounding
connection.
NOTE: SIME shall not be liable for any
damages to persons and things due to
lack of boiler grounding.
2.10.1 “DEWY EQUIPE 0 BOX” wiring diagram
KEY
EV1 Gas valve coil
EV2 Gas valve coil
EA Ignition electrode
ER Detection electrode
TS Safety thermostat 100°C
VFan
TPA Water pressure transducer
PI System pump
SA Water trap frost sensor
SM Heating probe
TR 230 – 24V transformer
PD Differential pressure switch
SV Fan board
TF Exhaust thermostat
PA Air pressure switch
TRA Ignition transformer
R1 Resistance 100 (Ω)
R Resistance*
* The resistance in se uence/cascade installations is supplied in RVA
47 unit kit cod. 8096311/12. Use the resistance according to
module use (Boiler 1,2,3 or 4).
NOTE: Fan control board (SV) “MAX” and “MIN” trim-
mers are sealed and must never be tampered with.
CONNECTOR SPARE PART CODES:
J2 cod. 6278613
J3 cod. 6293596
J4 cod. 6293595
J5 cod. 6293594
J7 cod. 6293593

IT
ES
GB
FR
BE
75
Module are electrically connected to the 6-
pole terminal board in the shunt box.
To connect modules and power supply, see
diagram in fig. 7/a.
Fig. 12
3.1 ELECTRONIC BOARD
Built according to Low Voltage directive
CEE 73/23 and powered at 230 Volt, via a
transformer it sends 24 Volt power to the
following components: gas valve, safety
thermostat, heating probe, water pressure
transducer and air pressure switch.
An automatic and continual modulation
system permits the boiler to adjust power
to the various system or user needs.
Electronic components are guaranteed to
operate in a temperature range from 0 to
+60°C.
3.1.1 Malfunctions
The led that signal errors and/or malfunc-
tions are indicated in fig. 14.
3.1.2 Devices
The electronic board is e uipped with the
following devices:
–“POT. RISC.” trimmer (10 fig. 15)
Adjusts maximum heating power.
To increase the value, rotate the trim-
mer clockwise, to reduce it, rotate the
trimmer counter-clockwise.
–“POT. ACC.” trimmer (6 fig. 15)
Trimmer to vary the gas valve ignition
pressure level (STEP). According to the
type of gas the boiler is designed for, the
trimmer must be adjusted to achieve a
burner pressure of approximately 6.5
mm H2O for methane gas and 9.5 mm
H2O for propane gas (G31).
To increase pressure, rotate the trim-
mer clockwise, to reduce it, rotate the
trimmer counter-clockwise. The slow igni-
tion pressure level can be set during the
first five seconds after the burner is lit.
After setting the ignition pressure level
(STEP) according to the type of gas,
make sure that the heating gas pressu-
re is still the previously set value.
–“ANN. RIT.” connector (5 fig. 15)
The electronic board is programmed,
during heating, with a technical burner
delay of about 90 seconds that is perfor-
med both at cold start and subse uent
ignitions. This is to prevent rapid ignitions
and shutdowns that could, in particular,
occur in systems with high load losses.
Each time the boiler restarts, after the
slow ignition, for about 1 minute it will run
at minimum modulation pressure before
moving to the set heating pressure. The
addition of a bridge will cancel both the
programmed technical delay and the
minimum pressure operating period at
ignition. In this case, the time between
shutdown and the next ignition will depend
on a 5°C differential detected by the hea-
ting probe (SM).
–DIP SWITCH (13 fig. 15)
For correct module operations, the dip
switches must be positioned as indicated
below:
–“Modureg Sel.” connector (14 fig. 15)
The bridge must always be off.
–“Albatros” connector (15 fig. 15)
The bridge must always be off.
It is only engaged in se uence/cascade
installations with several boilers.
WARNING: All the above operations must be
performed by authorised personnel,
otherwise the warranty shall be invalidated.
3 FEATURES
2.10.2 “DEWY EQUIPE 120-180-240-300-3 0 BOX” sequence/cascade electrical connections
Fig. 12/a
2.10.3 Installing the shunt box and cascade/sequence control unit supplied with kit code 809 311/12
The shunt box, containing the RVA 47 regulator,
is simply assembled by fastening the pins in the
housings on the bracket installed on every single
“120 BOX” module.
In se uence, perform wiring connections and
install the shunt box with regulator in the modu-
les indicated by the diagram in fig. 7/a.

76
IT
ES
GB
FR
BE
15 13
1
3
5
8
910 11
12
14 6
610
No communication with
“Logical Remote Control”
blinking red led
Green led off without
power supply
Blinking red air pressure switch fault led
Insufficient water pressure
blinking red led (*)
Heating probe fault blinking red led (SM)
System safety valve triggered
blinking red led (*)
Red ignition lock led:
turn the CR/OFF/INV/RELEASE
selector to the release ( ) position
to restore operations
Safety/exhaust thermostat triggered blinking
red led. Turn the CR/OFF/INV/RELEASE
selector to the release ( ) position
to restore operations
(*) If all 0,5 to 2,5 bar leds are off, check water pressure transdu-
cer connections
Fig. 14
Flame detection circuit fault blinking red led
Blinking red fan fault led. 30 minutes after the fan turns off, the board attempts
to restart it. To identify where the fault occurred in se uence/cascade installations,
turn the CR/OFF/INV/RELEASE selector on each module to the ( ) position
and check where the red fault led blinks.
KEY
1 1 Ignition grounding electrode faston
3 Fuse (1,6 AT)
5 “ANN. RIT.” connector
6 “POT. ACC.” trimmer
8 Hot water potentiometer
9 Detection electrode faston
10 “POT. RISC.” trimmer
11 Heat potentiometer
12 CR/OFF/INV/RELEASE selector
13 DIP SWITCH
14 “Modureg Sel.” connector
15 Albatros connector
NOTE:
To turn on adjustment trimmers ( )
and (10), pull out the heat potentio-
meter knob.
Fig. 15
