Teryair 6VMS Series Instruction Manual

6 VM SG Iron and Stainless Steel Construction, All variants
Models Descriptions
6VMSXXX FOOT Model with Lube / Lube-Free, SG Iron / SS & NPT / BSPT
Variants
6VMLXXX FACE Model with Lube / Lube-Free, SG Iron / SS & NPT / BSPT
Variants
6VMNXXX NEMA Model with Lube / Lube-Free, SG Iron / SS & NPT / BSPT
Variants
6VMDXXX IEC Model with Lube / Lube-Free, SG Iron / SS & NPT / BSPT
Variants
6 V M
Read this manual carefully before installing, operating or servicing this equipment. It’s the responsi-
bility of the employer to ensure this manual is read by the operator. Please preserve this manual.
is document is issued with Product Serial No
Operation and Maintenance Guide

FF-MM-370-REV - 01
Page 2
Operation and Maintenance Guide 6 VM Air Motor Series
Table of Contents
3 Nomenclature
3 Technical Data
4 SafetyInstrucons     
5 InstallaonInstrucons
6 Operanginstrucons
7 SuggestedLubricants
7 Troubleshoong
8 DisassemblyandRe-assembly
9 ExplodedViewfor6VMAirMotor
10 BillofMaterialsfor6VMSeries(SGIron)
11 BillofMaterialsfor6VMSeries(SS)
12 Dimensional Data
14 RepairKitsfor6VM
14 TestCercateOfMaterials,Performance
15 EuDeclaraonOfConformity
16 WarrantyCercate

FF-MM-370-REV - 01
Page 3
Operation and Maintenance Guide 6 VM Air Motor Series
Nomenclature
X XX X X X X
Size Motor Type Mounting Lubricated or
Lube-Free
Material of
Construc-
tion
Threading on Inlet
and Outlet
1
2
4
6
8
16
VM - Vane Type
PM - Piston Type
VG - Vane Geared
PG - Piston Geared
L - Face Type
S- Foot Type
T - Hub
D - IEC Flange Type
N - NEMA Flange Type
A- Lubricated
O - Lube Free
L - SG Iron
S - SS
R- NPT
G - BSPT
For example, 1VMTALR is a size 1, Vane type, Hub Mounted, Lubricated, SG Iron MOC with NPT threading
Technical Data
Power upto 3 kW (4 HP)
Torque upto 12 Nm (105 lbs-in)
Air Consumption 0 to 240 m3/hr (0 to 140 cfm)
Motor Weight 7.5 kgs (16.5 lbs)
Operating Pressure 1.4 to 7kg/cm2 (20 to 100PSI)
Max Allowable speed 3500 rpm (ATEX limit)
500 2500
20001000 1500 35003000
SPEED in rpm
POWER
1
0
5
4
3
2
in HP
3.75
2.80
1.87
0.93
0
in kW
Power
Torque
@100 psi
@80 psi
6 VM
120
96
72
48
in lbs-in
24
0
14
10.5
7
3.5
0
in Nm
@40 psi
@60 psi
@20 psi
@100 psi
@80 psi
@60 psi
@40 psi
@20 psi
Air supply Pressure
@100 psi = 7bar = 7Kg/cm2
TORQUE
28
0
500 2500
20001000 1500 35003000
SPEED in rpm
AIR CONSUMPTION
140
112
84
56
240
180
120
60
0
in cubic feet/min in mt3/hr
Air
Consumption
@100 psi
@80 psi
6 VM
@40 psi
@60 psi
@20 psi
Air supply Pressure
@100 psi = 7bar = 7Kg/cm2
Power and Torque Graphs 6VM Air Consumption Graph 6VM

FF-MM-370-REV - 01
Page 4
Operation and Maintenance Guide 6 VM Air Motor Series
Following symbols are used through out this
manual.
Safety Instructions
Warning: If not followed could
cause personal injuries
Caution: If not followed could result in damage
to equipment.
Warning
is manual must be read and the operating
instructions carefully followed.
Warning
Safety and protective clothing, eyewear, head-
gear, ear protection, gloves and footwear to be
worn during operation of this Vane motor.
Caution
Install proper guard around the output sha as
needed.
Warning.
Operators under 18 not allowed to operate this
Vane motor operators must be made familiar
with the instructions in this manual before
attempting to operate the Vane motor Ensure
that job site is clear of bystanders. Do Not
dis-assemble in explosive atmosphere.
Caution
Use only genuine Teryair or Teryair approved
accessories.
Warning
is Vane motor is designed for use in an ex
p losive environment for Zone 1 & 2 for Gas
and Dust.
Warning
Operate the motor for approximately 2 hours at
the maximum desired load. Measure the sur-
face temperature of the motor on the casting
opposite the pipe ports. e maximum surface
temperature listed on the motor is for nor-
mal environmental and installation conditions.
Fort air motors Temp. Class T6 (Gas) and T85°
C (Dust). e maximum surface temperature
Ex code
ll 2 G Ex h IIC T6 Gb
ll 2 D Ex h IIIC T85° C Db
Amb. Temp ( +1° C to +40° C)
Checklist for installation in
hazardous areas
Read air motor label to check that motor has
been designed for use in a hazardous
application:
• Hazardous zone
• Hazardous category
• Equipment group
• Temperature class
• Maximum surface temperatures
Intended And Prohibitive Use
Intended Use
Marine and Oshore industries. Can be in
various application subjected to availability of
air pressure.
e design of this pneumatic vane motor is
conrming to EN/ ISO 80079-36 and 80079-37
explosive atmosphere suitable to use in zone 1
& 2 area, gas group IIC and Dust group IIIC,
temp. Class T6 (85°C).
i. EN / ISO 80079-36 : 2016 : Explosive
atmospheres—Part 36 :Non-electrical
equipment for explosive atmospheres—
Basic metod and requirements
ii. EN / ISO 80079-37 : 2016 : Explosive
atmospheres—Part 37 : Non-electrical
equipment for explosive atmospheres—
Non-electrical type of protection construction-
al safety ‘c’, control of ignition sources ‘b’, liquid
immersion ‘k’.
Prohibitive use
Use with non-genuine spare parts or
accessories is prohibited

FF-MM-370-REV - 01
Page 5
Operation and Maintenance Guide 6 VM Air Motor Series
Warning
Check the site to make sure that the Vane
motor will be adequately ventilated and that
there is no external heat input.
Caution
Completely turn o the Vane motor and
disconnect air supply line before attempting
any service. Read Assembly and Dis-assembly
instructions.
Warning
Do not use a hammer on the sha or
connections.
Do Not dis-assemble in explosive atmosphere.
Warning
Take care not to exceed the supply air pressure
maximum 7kg/cm²(100 psi) for Lubricated
and maximum 5.6 kg/cm²(80 psi) for Lube-
free .
Caution
Do not exert excessive pressure against the
work surface. Keep hoses in good condition.
Check hoses for signs of wear, cracks & bulges
and ensure that they are secure. Accidental
disconnection while hose is pressurized makes
the hose whip and can be a safety hazard.
Caution
• Please check the hose connection prior to
starting motor
• Keep hands & clothing away from
moving parts.
• Store these Vane motors in secure & dry
environment.
• Do not modify this Vane motor in any way
as this will invalidate the warranty and
could lead to serious injury.
• Do not drag this Vane motor by air hose.
Installation Instructions
An automatic air line lubricator should be in-
stalled in the air line as close as possible and no
more than 18inches (1/2 meter) from the air
motor. Install the lubricator level with or above
the air motor so that the oil mist will blow direct-
ly into or fall down into the motor. Install a ilter
in the air line before the connection to the motor.
Next install an air pressure regulator to control
motor speed and torque.
Clean the compressed air connection with low
pressure air to remove any dirt from the line
before connecting to the ports. Use the proper
sized fasteners. For the most ecient output and
control of speed, use air lines that are the same
size as the motor inlet port if the connection is
less than 7 feet (2 meters). For longer connec-
tions, use the next pipe size larger than the motor
intake port. Connect lines to motor in the proper
direction
Safety wear mandatory while operating Vane
motor
Air stream from product may contain solid o
liquid particle that can result eye or skin dam
age.Eye and face and ear protection must be
worn at all times during operation
Suitable gloves must be worn at all times during
operation.
Operators must wear helmets of suitable
strength at all times. Helmet must be able to
withstand 10G in 8ms without fracturing.
Waterproof heavy duty outerwear and Shoes
with toe cap protection are a must during
operation
should not exceed 80º C. Do not continue
to operate the motor if the measured sur-
face temperature exceeds temperature listed
on the motor. If your measured temperature
does exceed listed value, consult with your
Distributor / Representative for a recom-
mendation.

FF-MM-370-REV - 01
Page 6
Operation and Maintenance Guide 6 VM Air Motor Series
Daily Before Operating
1. Disconnect air line and muer.
2. Add ushing solvent directly into motor. If
using liquid solvent pour in 1 to 2 ounces of
recommended oil into the motor.
3. Rotate the sha by hand in both directions for
a few minutes.
4. You must wear eye protection for this step.
Cover exhaust with a cloth and reconnect the
air line.
5. DO NOT use kerosene or ANY other
combustible solvents to ush this product.
6. Restart the motor at a low pressure of
approximately 10 PSI/0.7 bar until there is no
trace of solvent in the exhaust air.
7. Listen for changes in the sound of the motor.
If motor sounds smooth, you are nished.
If motor does not sound like it running
smoothly, installing a service kit will be
required.
Air Supply
e air should be clean and dry. Supply
air pressure maximum 7kg/cm²(100 psi) for
Lubricated and maximum 5.6 kg/cm²(80 psi) for
Lube-free.
Hoses
• Daily before operation check the hoses,
especially the high pressure hoses for damage
or leaks
• Use genuine Teryair spares and if possible
mention the serial number of the Vane motor
when ordering spares.
Operating instructions
Vane motors are rugged dependable product
designed to give you years of satisfactory
service. Follow the instructions mentioned here
to enhance life and performance. Check the
direction of the motor airow. A single rotation
motor will operate properly only in one
direction.Single rotation motors require a
muer to be connected to the air port. Remove
the plastic shipping plugs from the ports. Save
plugs for future use during shutdown.
Mounting
is product can be installed in any orientation.
Mount the motor to a solid metal base plate that is
mounted to a stable, rigid operating surface. Use
shock mounts to reduce noise and vibration. Install
a pressure regulator or simple shut-o valve to
control motor.
Storage
• It is your responsibility to follow proper
shutdown procedures before storage.
• Turn o air intake supply.
• Disconnect air supply and vent all air lines.
• Remove Vane motor from connecting
machinery.
• Remove the muer.
• Wear eye protection. Keep away from air stream.
Use clean, dry air to remove condensation from
the inlet port of the motor.
• Lubricate motor with a small amount of oil into
the intake port. Rotate sha by hand several times
to distribute oil.
• Plug or cap each port.
• Coat output sha with oil or grease.
• Store motor in a dry environment.
Lubrication Requirements
Lubricated Vane motor: Always install a line
lubricator on the air line as close to the Vane motor
as possible. A Filter Regulator Lubricator unit (FRL)
is strongly recommended. Keep the lubricator bowl
topped up with recommended grade of oil and check
that the oil is reaching the Vane motor Running the
Lubricated Vane motor without lubrication is likely to
cause damage to the components causing premature
replacement.

FF-MM-370-REV - 01
Page 7
Operation and Maintenance Guide 6 VM Air Motor Series
Troubleshooting
L ow Tor qu e Low Speed Won’t run Runs well but
slows down Reason & Remedy for problem
√ √ √ Dirt or foreign material present. Inspect
and ush.
√ √ √ Internal rust. Inspect and ush.
√ √ Low air pressure. Increase pressure.
√ Air line too small. Install larger line(s).
√ √ Restricted exhaust. Inspect and repair.
√ √ √ √ Motor is jammed. Have motor serviced.
√ √ Air source inadequate. Inspect and repair.
√ √ Air source too far from motor. Recongure
setup.
Suggested Lubricants
Brand Above 27 Deg C ( From 5 Deg C to 27 Deg C Below 5 Deg C
Shell Toona R 72 Toona R 41 Toona R 27
Mobil Almo 529 Almo 527 Almo 525
Esso -- Arox EP.65 Arox EP.45
Caltex Rando Oil 100 Rando Oil 100 Rando Oil 46
Texaco -- -- Airolene Tool OiI
Daltron Regal Oil F (R&O) Regal Oil PE(P&E) Regal Oil PE(R&O)
Burmah Castrol Silkolene 881 Silkolene 548/T Silkolene 733
BP Castrol RD Oil 3 Castrol RD Oil Light Megna SPX
Duckham Garnet 7 Garnet 6 Zero Fio 5
Sternol Merlin 87 Merlin 71 Merlin 54

FF-MM-370-REV - 01
Page 8
Operation and Maintenance Guide 6 VM Air Motor Series
Dis assembly and Re-assembly
Disconnect air supply and vent all air lines.
Air stream from product may contain solid or
liquid material that can result in eye or skin
damage.
Flush this product in a well ventilated area.
Do Not use kerosene or other combustiblesol-
vents to ush this product.
Failure to follow these instructions can result
in eye injury or other serious injury.
Always open from the back side rst.
Use proper tools to open the fasteners.
a. Unscrew Allen Bolts(11) with Spring
Washer (19) from Bearing Cap (5) from
Rear Flange (3). Remove O-ring (9) from
Bearing Cap (5) and replace with new one
(if found damaged).
b. Unscrew Allen Bolts (14) with Spring
Washer (18) from Rear Flange (3) & re-
place Shim (17) with new one (if found
damaged).
c. Now remove Ball bearing (7) from Rear
Flange (3) using mallet and replace it with
new one (if worn-out).
d. Now remove the Rotor Sha (4) with Rotor
Blades (15) from the Motor Housing (1),
Now remove the Rotor Blades (15), Leaf
Spring (20) & Pin (17) from Rotor Sha (4)
and replace them with new ones (if found
damaged).
e. To remove the Front Bearing Cap (6) from
Front Flange (2), unscrew CSK Bolt (21)
from it. e O-ring (9) and Oil Seal (10)
can be now removed from Front Bearing
Cap (6). Replace with new ones (if found
damaged).
f. Now remove Ball bearing [ (7) for Face/
Foot mount models and (8) for IEC /Nema
mount models) from Front Flange (2) by
using puller. Replace it with new ones (if
worn-out).
g. Aer installing bearing & seal then install
the Front Bearing Cap (6) on Front Flange
(2) by fastening CSK Bolts (21).
h. Now insert Pins (16) into the Rotor
Sha’s (4) through holes (use small
amount of grease to prevent Pins to fall
during assembly). Now insert the Rotor
Sha (4) into the Motor Housing (1) and
Front Flange bearing using press/mallet
precisely and ensure that rotor face is not
above the housing face.
i. Now place the Leaf Spring (20) on Rotor
Blades (15), ensure that leaf spring one
end is inside the slot of Rotor Blade (15).
j. Insert the above blade assembly one at a
time into Rotor Sha (4).
k. Now follow the above steps ‘c’ & ‘b’ in
reverse manner to assemble the motor.
l. Now aer assembly, ensure that Rotor
Sha (4) is rotating smoothly inside, else
tap lightly on the rotor sha front end or
rear end until you obtain smooth rotation
of Rotor Sha (4).
m. Once smooth rotation is achieved follow
the step ‘a’ in reverse manner and com-
plete the assembly.

FF-MM-370-REV - 01
Page 9
Operation and Maintenance Guide 6 VM Air Motor Series
Exploded View for 6VM Air Motor
1
13
17
4
3
7
9
5
19
11
14
18
24
23
16
20
15
12
2
6
9
10
21
FOOT
FACE
25
7
18 14
22
10
8
2
IEC / NEMA
18
14
26

FF-MM-370-REV - 01
Page 10
Operation and Maintenance Guide 6 VM Air Motor Series
Bill of Materials for 6VM Series (SG Iron)
Sr.
No Description Part Number FACE FOOT IEC NEMA
6VMLAL 6VMLOL 6VMSAL 6VMSOL 6VMDAL 6VMDOL 6VMNAL 6VMNOL
1 MOTOR HOUSING 805 05 01 1 - 1 - 1 - 1 -
1 MOTOR HOUSING (LUBE FREE) 805 05 01LF - 1 - 1 - 1 - 1
2 FRONT FLANGE 805 05 04 1 - 1 - - - - -
2 FRONT FLANGE (LUBE FREE) 805 05 04LF - 1 - 1 - - - -
2 IEC FLANGE 805 05 05 - - - - 1 - - -
2 IEC FLANGE (LUBE FREE) 805 05 05LF - - - - - 1 - -
2 NEMA FLANGE 805 05 06 - - - - - - 1 -
2 NEMA FLANGE (LUBE FREE) 805 05 06LF - - - - - - - 1
3 REAR FLANGE 805 05 03 1 - 1 - 1 - 1 -
3 REAR FLANGE (LUBE FREE) 805 05 03LF - 1 - 1 - 1 - 1
4 ROTOR SHAFT 805 21 07 1 1 1 1 - - - -
4 ROTOR SHAFT - IEC 805 21 09 - - - - 1 1 - -
4 ROTOR SHAFT - NEMA 805 21 10 - - - - - - 1 1
5 REAR BEARING CAP 805 21 02 1 1 1 1 1 1 1 1
6 FRONT BEARING CAP 805 21 11 1 1 1 1 - - - -
7 BALL BEARING 2Z/ZZ 805 50 02 2 2 2 2 1 1 1 1
8 BALL BEARING 2Z/ZZ 805 50 01 - - - - 1 1 1 1
9 O' RING 805 40 01 2 2 2 2 1 1 1 1
10 OIL SEAL 805 60 01 1 1 1 1 - - - -
10 OIL SEAL 805 60 02 - - - - 1 1 1 1
11 ALLEN BOLT 550 90 28 3 3 3 3 3 3 3 3
12 KEY 805 22 02 1 1 1 1 - - - -
12 KEY (IEC) 805 22 03 - - - - 1 1 - -
12 KEY (NEMA) 804 22 04 - - - - - - 1 1
13 ROLL PIN 804 90 04 4 4 4 4 4 4 4 4
14 ALLEN BOLT 804 90 03 12 12 12 12 12 12 12 12
15 ROTOR BLADE 805 39 02 4 4 4 4 4 4 4 4
16 PIN 805 21 08 2 2 2 2 2 2 2 2
17 SHIM 805 37 01 2 2 2 2 2 2 2 2
18 SPRING WASHER 536 90 04 12 12 16 16 12 12 12 12
19 SPRING WASHER 805 90 01 3 3 3 3 3 3 3 3
20 LEAF SPRING 805 51 02 4 4 4 4 4 4 4 4
21 CSK BOLT 805 90 04 4 4 4 4 - - - -
22 CIRCLIP 805 90 02 - - - - 1 1 1 1
23 FOOT 804 31 01 - - 1 1 - - - -
24 ALLEN BOLT 804 90 05 - - 4 4 - - - -
25 MUFFLER 200 97 15 1 1 1 1 1 1 1 1
26* ADAPTOR 151 04 03 1 1 1 1 1 1 1 1
Note - Adaptor Included On BSPT Models Only
“*”

FF-MM-370-REV - 01
Page 11
Operation and Maintenance Guide 6 VM Air Motor Series
Note - Adaptor Included On BSPT Models Only
“*”
Bill of Materials for 6VM Series (SS)
Sr.
No Description Part Number FACE FOOT IEC NEMA
6VMLAS 6VMLOS 6VMSAS 6VMSOS 6VMDAS 6VMDOS 6VMNAS 6VMNOS
1 MOTOR HOUSING 805 07 01 1 - 1 - 1 - 1 -
1 MOTOR HOUSING (LUBE FREE) 805 07 01LF - 1 - 1 - 1 - 1
2 FRONT FLANGE 805 07 02 1 - 1 - - - - -
2 FRONT FLANGE (LUBE FREE) 805 07 02LF - 1 - 1 - - - -
2 IEC FLANGE 805 07 04 - - - - 1 - - -
2 IEC FLANGE (LUBE FREE) 805 07 04LF - - - - - 1 - -
2 NEMA FLANGE 805 07 05 - - - - - - 1 -
2 NEMA FLANGE (LUBE FREE) 805 07 05LF - - - - - - - 1
3 REAR FLANGE 805 07 03 1 - 1 - 1 - 1 -
3 REAR FLANGE (LUBE FREE) 805 07 03LF - 1 - 1 - 1 - 1
4 ROTOR SHAFT 805 27 01 1 1 1 1 - - - -
4 ROTOR SHAFT - IEC 805 27 02 - - - - 1 1 - -
4 ROTOR SHAFT - NEMA 805 27 03 - - - - - - 1 1
5 REAR BEARING CAP 805 27 04 1 1 1 1 1 1 1 1
6 FRONT BEARING CAP 805 27 05 1 1 1 1 - - - -
7 BALL BEARING 2Z/ZZ 805 50 02 2 2 2 2 1 1 1 1
8 BALL BEARING 2Z/ZZ 805 50 01 - - - - 1 1 1 1
9 O' RING 805 40 01V 2 2 2 2 1 1 1 1
10 OIL SEAL 805 60 01V 1 1 1 1 - - - -
10 OIL SEAL 805 60 02 - - - - 1 1 1 1
11 ALLEN BOLT 803 90 01 3 3 3 3 3 3 3 3
12 KEY 805 27 06 1 1 1 1 - - - -
12 KEY (IEC) 805 27 07 - - - - 1 1 - -
12 KEY (NEMA) 803 27 06 - - - - - - 1 1
13 ROLL PIN 804 90 06 4 4 4 4 4 4 4 4
14 ALLEN BOLT 171 27 47S 12 12 12 12 12 12 12 12
15 ROTOR BLADE 805 39 02 4 4 4 4 4 4 4 4
16 PIN 805 27 08 2 2 2 2 2 2 2 2
17 SHIM 805 37 01 2 2 2 2 2 2 2 2
18 SPRING WASHER 805 90 06 12 12 16 16 12 12 12 12
19 SPRING WASHER 811 90 04 3 3 3 3 3 3 3 3
20 LEAF SPRING 805 51 02 4 4 4 4 4 4 4 4
21 CSK BOLT 805 90 05 4 4 4 4 - - - -
22 CIRCLIP 805 90 03 - - - - 1 1 1 1
21 FOOT 805 82 01 - - 1 1 - - - -
24 ALLEN BOLT 803 90 03 - - 4 4 - - - -
25 MUFFLER 804 50 03 1 1 1 1 1 1 1 1
26* ADAPTOR 171 07 05S 1 1 1 1 1 1 1 1

FF-MM-370-REV - 01
Page 12
Operation and Maintenance Guide 6 VM Air Motor Series
Foot Mounting 6VM
FACE Mounting 6VM
Dimensional Data

FF-MM-370-REV - 01
Page 13
Operation and Maintenance Guide 6 VM Air Motor Series
NEMA Flange Mounting 6VM
IEC Flange Mounting 6VM

FF-MM-370-REV - 01
Page 14
Operation and Maintenance Guide 6 VM Air Motor Series
Repair KIT Ordering No Suitable for
8059701 Suitable for 4 FACE / FOOT VM variant
8059701 Suitable for 4 VM IEC / NEMA variant
Repair Kits for 6VM
Note - Repair Kit includes Blades, Bearings, Shims, Blade springs, Oil Seals and O rings
TEST CERTIFICATE OF MATERIALS, PERFORMANCE
DATE :
MODEL NUMBER :
PART DESCRIPTION & S.NO. :
We Hereby Certify at e Above Referenced Product Has Tested And Inspected In Accordance With Our Standard Test Pro-
cedures And Meets e Specications For Material And Performance Values As Published In Our Literature. We Further Certify
at e Product Has Been Given Our Standard Factory Test. is Product Is Certied To Be Produced In Our Factory, And Is
Of Current Production. It Has Been Produced In A Workmanlike Manner And Meets All Quality And Performance Standards
Established By e Company
Authorised Signatory
Q.A Manager
Place - Vasai, Maharastra

FF-MM-370-REV - 01
Page 15
Operation and Maintenance Guide 6 VM Air Motor Series
EU DECLARATION OF CONFORMITY
Object of declaration
PRODUCT : PNEUMATIC VANE MOTOR
MODEL : 6VM XXXXX,
MANUFACTURER’S NAME : TERYAIR EQUIPMENT PVT. LTD.
ADDRESS : SITE - 1: BUILDING A - 1/2, 102 TO 105 & BUILDING C 12 & 13,
TIRUPATI UDYOG NAGAR, SATIVALI ROAD, VASAI (E),
PALGHAR : 401208.
SITE - 2: AUGUSTINE - II, COLACO INDUSTRIAL COMPLEX, GALA NO
101 TO 107, SATIVALI ROAD, VILLAGE WALIV, VASAI (E), PALGHAR:
401208
To provide presumption of conformity in order to directive 2014/34/EU; the following harmonized standards and/or other
normative documents as referenced within the following ocial journals are applied:
APPLICABLE DIRECTIVE: ATEX DIRECTIVE (2014/34/EU)
APPLICABE STANDARDS:
EN ISO 80079-36: 2016 : Explosive atmospheres —Part 36: Non-electrical equipment for explosive atmospheres
Basic method and requirements.
EN ISO 80079-37:2016 : Explosive atmospheres —Part 37: Non-electrical equipment for explosive atmospheres
Non- electrical type of protection constructional safety ‘c’, control of ignition sources ‘b’,
liquid immersion ‘k’.
Notied body to whom Technical le has logged with: - Technicka Inspekcia (Ref: 1354).
DECLARATION: - TERYAIR EQUIPMENT PVT. LTD., declare that under our sole responsibility for the supply of the
product dened above, the said product complies with all the applicable Directives, Regulations and all essential Health and
Safety requirements applying to it.
I, the undersigned, hereby declare that the product specied above conforms to the above standard(s).
ATEX MARKING APPLIED: ll 2 GD Ex h IIC T6 Gb
Ex h IIIC T85C Db
Signed for and on behalf of
TERYAIR EQUIPMENT PVT. LTD. Place of Issue:
Date:

FF-MM-370-REV - 01
Page 16
Operation and Maintenance Guide 6 VM Air Motor Series
Warranty Certificate
Every product manufactured by Teryair
is built to meet the highest standards of quality.
Teryair warrants that the Products, accessories and parts manufactured or supplied
by the company be free from defects in material and workmanship for a period of six
months from date of Teryair authorized dealer invoice to customer, or one year from
date of Teryair invoice to dealer, whichever is earlier. Failure due to normal wear,
misapplication, or abuse is, of course, excluded from this warranty.
Since the use of Teryair products and parts is beyond our control, Teryair cannot
guarantee the suitability of any product or part for a particular application and Teryair
shall not be liable for any consequential damage or expense arising from the use or
misuse of its products on any application. Teryair does not warranty bought out
products or components such as electric motors and hardware but will assist in
directing warranty queries to the dealer/manufacturer responsible. Teryair
responsibility is limited solely to replacement or repair of defective Teryair products
or components.
Dealer/End User shall have no right or remedy and Teryair shall have no liability or obligation under the warranty, if:
(i) a Product is altered, changed, modified or tampered with in any way, (ii) a Product is damaged after deposit with the
transporter for shipment; (iii) a Product is not properly preserved, packaged, stored, processed or handled after receipt; (iv) a
Product is not used and maintained in accordance with Teryair's recommended operating and maintenance manuals,
instructions and procedures, if any; (v) a Product is not properly incorporated or installed in, or not properly combined with, an
Other Product; (vi) the issue with a Product is directly or indirectly attributable to, or directly or indirectly results from or arises
out of, a failure, substandard performance or other issue with another product, material, component or part not supplied by
Teryair; (vii) the issue with a Product is directly or indirectly attributable to, or directly or indirectly results from or arises out of,
compliance with any design, specification or other specific requirement of Dealer/End User; (viii) a Product is used in a manner,
with a substance or for a purpose other than the normal manner, substance and purpose for which it is intended or is otherwise
subjected to abnormal use or service; (ix) a Product is subjected to a power surge, brown out or other similar occurrence; (x)
the issue with a Product is directly or indirectly attributable to, or directly or indirectly results from or arises out of, normal wear
and tear of such Product (including, without limitation, things such as worn seals, diaphragms, balls, O rings, gaskets, chisels,
cutters, hoses and other such wearing components; (xi) the issue with a Product is directly or indirectly.
Dated :
Product Model Number :
Product Serial Numbar : Ajay Bhagat, Q.A. Manager
(Company Seal)

FF-MM-370-REV - 01
Page 17

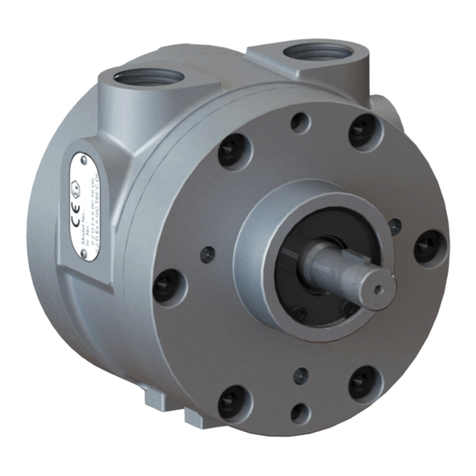

Operation and Maintenance Guide 6 VM Air Motor Series
is page is intentionally
Le blank.
