Tetra GEPS12W-60 User manual

Installation Guide
SIGN186 | GE2022-3612
Power Supply Features
• Supports all 12 VDC Tetra Products
• UL: Class 2
• 100-240 VAC Input
For the latest North American install guides for your product
go to: https://products.LED.com/led-signage-lighting
LED Systems Power Supply
GEPS12W-60 (100-240 VAC input/12VDC output/60W)
1212
Volt
BEFORE YOU BEGIN
Read these instructions completely and carefully.
Prepare Electrical Wiring
Electrical Requirements
• Acceptable for use in dry, damp and wet locations.
• The grounding and bonding of the LED Driver shall be
done in accordance with National Electric Code (NEC)
Article 600.
• Follow all National Electric Codes (NEC) and local codes.
FOR UL ONLY
Save These Instructions
Use only in the manner intended by the manufacturer.
If you have any questions, contact the manufacturer.
WARNING / AVERTISSEMENT
RISK OF ELECTRIC SHOCK
• Disconnect power at fuse box or circuit breaker before servicing or
installing product.
• Properly ground Tetra®power supply.
RISK OF FIRE
• Minimum 10 cm (4”) to side and 2.5 cm (1”) spacing in
compartment surrounding component required.
• Use only approved wire for input/output connection. Minimum size
18 AWG (0.82 mm2).
• Follow all local codes.
• Application considerations potentially requiring additional spacing
include high ambient temperature seen by the power supply, poor
contact with a heat dissipating material, inadequate ventilation, or
direct exposure to sun.
RISQUES DE DÉCHARGES ÉLECTRIQUES
• Coupez l’alimentation électrique à la boîte de fusibles ou au disjoncteur avant
l’entretien ou l’installation du produit.
• Assurez-vous de correctement mettre à terre le bloc d’alimentation Tetra®.
RISQUES D’INCENDIE
• Un espacement minimum de 10 cm (4 po) entre 2 alimentations de
puissance est requis ainsi qu’un espacement minimal de 2,5 cm (1 po)
avec toute enceinte.
• N’utilisez que des fils approuvés pour les entrées/sorties de connexion.
Taille minimum 18 AWG (0.82 mm2).
• Respectez tous les codes locaux.
• Certaines applications pourraient requérir un espacement additionnel, p.
ex. une température ambiante élevée autour du bloc d’alimentation, un
mauvais contact avec une matière dissipatrice de chaleur, une ventilation
inadéquate ou une exposition directe au soleil.
CAUTION / ATTENTION
RISK INJURY
• While performing installations described, gloves, safety
glasses or goggles should be worn.
RISQUES DE BLESSURE
• Lors de l’exécution des installations décrites, des gants, des lunettes
de sécurité ou des lunettes de protection doivent être portées.

Tetra®Power Supply GEPS12W-60 Installation Guide
2

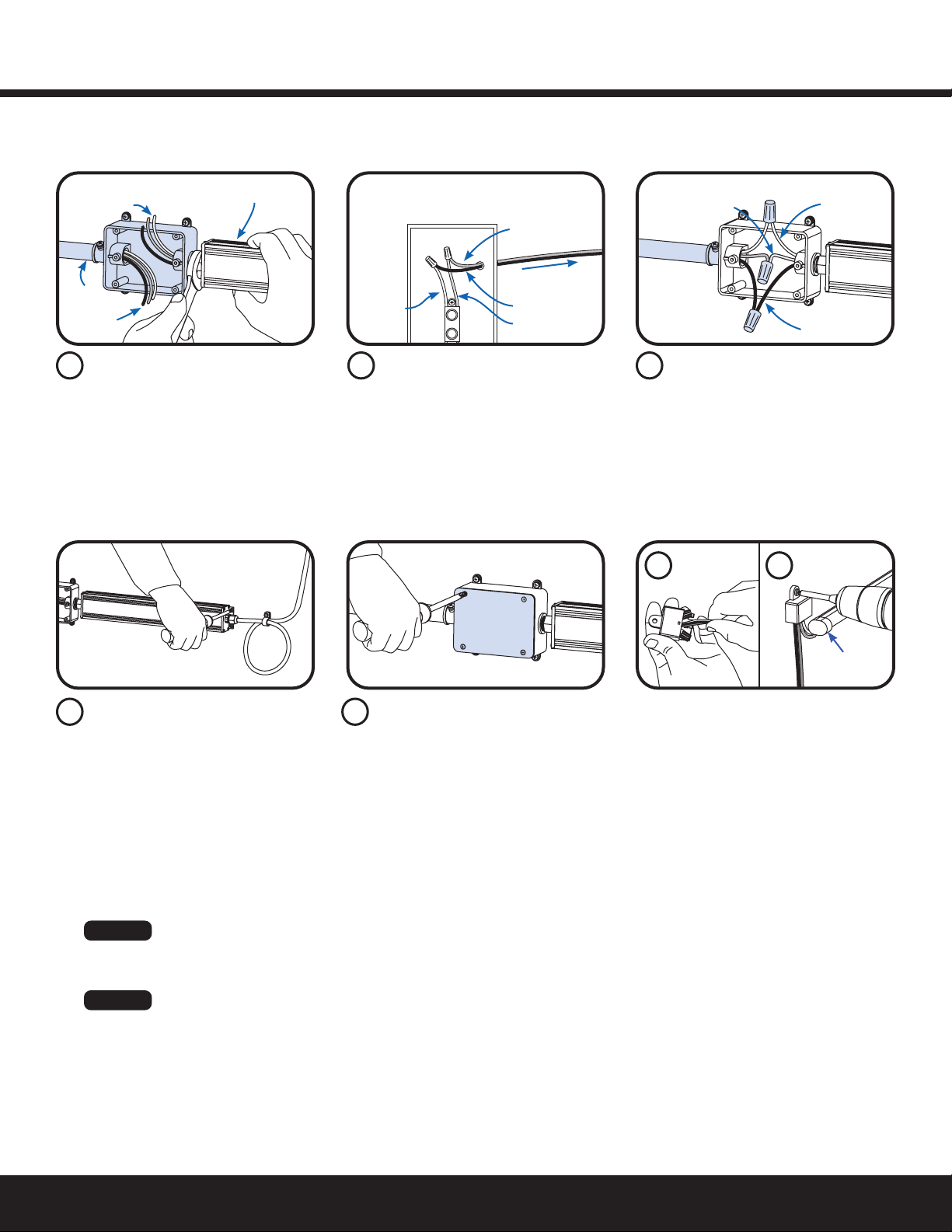

Power Supply Installation
Black (-)
Green with
yellow stripe White (+)
Connect the AC line to the black
(line) and white (neutral) input
wires of the power supply using
18-14 AWG (0.82-2.08 mm2)
twist-on wire connectors.
Properly ground (green wire with
yellow stripe) power supply in
accordance with National Electric
Code (NEC) Article 600.
Power Supply
Conduit
Power Supply
input wires
AC Line
Run AC line through conduit and
attach conduit to outdoor-rated/
UL approved enclosure. Attach
power supply to enclosure.
Connect the red stripe wire
(+) of the LED strip to the red
wire (+) of the power supply.
Connect the white wire (-) of the
LED strip to the black wire (-) of
the power supply.
To power supply
Red (+)
Red stripe (+)
White (-) Black (-)
NOTE: All electrical connections
should be made within the letter.
1 2 3
FOR UL ONLY
NOTE: For installation in Canada, a disconnect switch of appropriate rating needs to be placed
within 29.5 feet (9 meters) of primary side of the power supply. The switch voltage rating shall not be
less than the branch circuit voltage. The switch must also support twice the amount of input current.
FOR UL ONLY
NOTE: When installing power supply, connect to the appropriate sized building breaker or
disconnect device for line, neutral and ground connections, in accordance with National Electric Code
(NEC) Article 600 and all local regulations.
NOTE: Exceeding maximum load per bank will cause the power supply to shut down. Once the
excess load is removed, cycle the input power to restart the power supply.
NOTE: To avoid overloading this power supply with LED modules, please refer to the specific module
loading guides.
Mount Power Supply in a
horizontal orientation with a
minimum of one screw per
mounting plate (two screws per
power supply) with the base
in contact with the mounting
surface in accordance with
the power supply spacing
requirements described above.
Tighten liquid-tight fittings
and properly replace cover on
junction box to ensure a water-
tight seal. If not protected
from the weather, the output
connections may be sealed with
electrical grade silicone.
4 5
OPTIONAL
A Weather Box (GEXNWB2) may
be used to house and seal Class 2
connections.
A) Insert wire connectors into
weather box. Fill with electrical grade
silicone and close box.
B) Secure the weather box using a #6
or #8 (M2 or M3) screw.
Weather box
can be painted
A B
Light
engine

Tetra®Power Supply GEPS12W-60 Installation Guide
www.LED.com
© 2023 Current Lighting Solutions, LLC. All rights reserved. GE and the GE monogram are trademarks of the
General Electric Company and are used under license. Information provided is subject to change without
notice. All values are design or typical values when measured under laboratory conditions.
Page 4 of 4
(Rev 11/21/23)
SIGN186 | GE2022-3612
Power Supply Specifications
Performance Data Min Typical Max
Input Voltage (VAC) 90 100-240 264
Input Frequency (Hz) – 50/60 –
Input Current (A) – – 0.85
THD – – 20
PF 0.9 – –
Output Voltage (VDC) 11.4 12.0 12.6
Output Current (ADC) 0.8 – 5.0
Output Power (W) – – 60
Environmental Operating Temperature Range -40°C +25°C +60°C*
Environmental Humidity (non-condensing) 0% – 95%
Environmental Storage Temperature Range -40°C – +85°C
Environmental Rating IP66 Rated
Dimensions 12 in. x 2 in. x 1.25 in. (307 mm x 52 mm x 32 mm)
Conforms to the following standards:
This product is intended to be used as a lamp control gear that is installed after the mains control switch.
*Maximum case temperature is 80°C
Symptom Solution
All letters are OFF • Recycle AC power, turn it off, then turn on again.
• If still off, check the power supply DC output voltage using a voltmeter. It should be nominally 12V.
» If there is DC output, inspect and correct all DC wire damage/polarity issues; If no issue is found, replace the
OFF-module string.
» If there is no DC output, have a licensed electrician check the input AC voltage and if there is correct AC voltage,
replace the power supply.
» If there is no AC voltage, correct the upstream AC issue.
Some LEDs appear dim • Ensure the overall length of the Tetra®LED System does not exceed the maximum load.
• Ensure the length of supply wire is equal to or below the recommended remote mounting distance.
Some of the letters
are not illuminated
• Inspect and correct the wires of the non-illuminated letters for damage/polarity issues; If no issues are found, see the
troubleshooting solution for “All letters are OFF.”
Shadows • Re-route supply wire and secure to the back of the can with electrical grade RTV silicone. Adjust wire connector
orientation so that it does not cover any LEDs.
• Adjust LED layout to ensure uniformity of illumination of the face of the letter.
Troubleshooting
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
This Class [A] RFLD complies with the Canadian standard ICES-005. Ce DEFR de la classe [A] est conforme à la NMB-005 du Canada.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
Current Lighting Solutions, LLC
Beachwood, OH 44122
