HC 2210 User manual

H O L LY W O O D C O N T RO L S I N C .
the above exclusions or limitations may
not apply to you.
No other warranty, written or verbal, is
authorized by the Company. This war-
ranty gives you specific legal rights and
you may also have other rights which vary
from state to state.
For service during the warrantee period
you must first contact the Company for
an Return Merchandise Number (RMA)
number. The Company will help you deter-
mine which part requires service and ask
that you return that component ONLY.
The Company, at it’s option, will repair or
replace the components and return them
to you free of charge. All returned com-
ponents must be accompanied by a RMA
number issued by the Company and be
returned by insured prepaid freight.
Products returned without a Company
issued RMA will not be accepted. The
Company is not responsible for merchan-
dise damaged in transit. Evident or con-
cealed damage made in transit should be
reported at once to the delivery carrier
and a claim filed with them.
The Company reserves the right to
change or modify the operation, design,
components and description of this sys-
tem without notice.
Hollywood Controls Inc (“the Company”)
warrants this HC2210 10A Power Mod-
ule against defects in material or work-
manship for one year from date of origi-
nal purchase. The Company, at it’s op-
tion, will repair or replace the compo-
nents and return them to you free of
charge.
This warranty is extended only to the
original purchaser on record with the
Company.
Your remedy is limited to this warranty
policy. This warranty only covers prod-
uct failure that occurs due to defects in
material and workmanship occurring
during the normal expected use of the
product. It does not cover damage
caused by accident, misuse, abuse, lack
of reasonable care, alterations or im-
proper installation.
There are no expressed warranties ex-
cept as described above.
THE COMPANY SHALL NOT BE LI-
ABLE FOR INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES RE-
SULTING FROM THE USE OF THIS
PRODUCT OR ARISING OUR OF ANY
BREACH OF THIS WARRANTY. ALL
IMPLIED WARRANTIES, IF ANY, IN-
CLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DU-
RATION OF THIS EXPRESS WAR-
RANTY. Some states do not allow the
exclusion or limitation of incidental or
consequential damages, or limitations on
how long an implied warranty lasts, so
OneYear Limited Warranty
Toll-free: 888-318-2380
[e-mail]
© 2009 Hollywood Controls Inc 04/10 R4
PAGE 4 10A 120 VA C LO GIC C ON T ROL LE D P OWE R MOD U LE

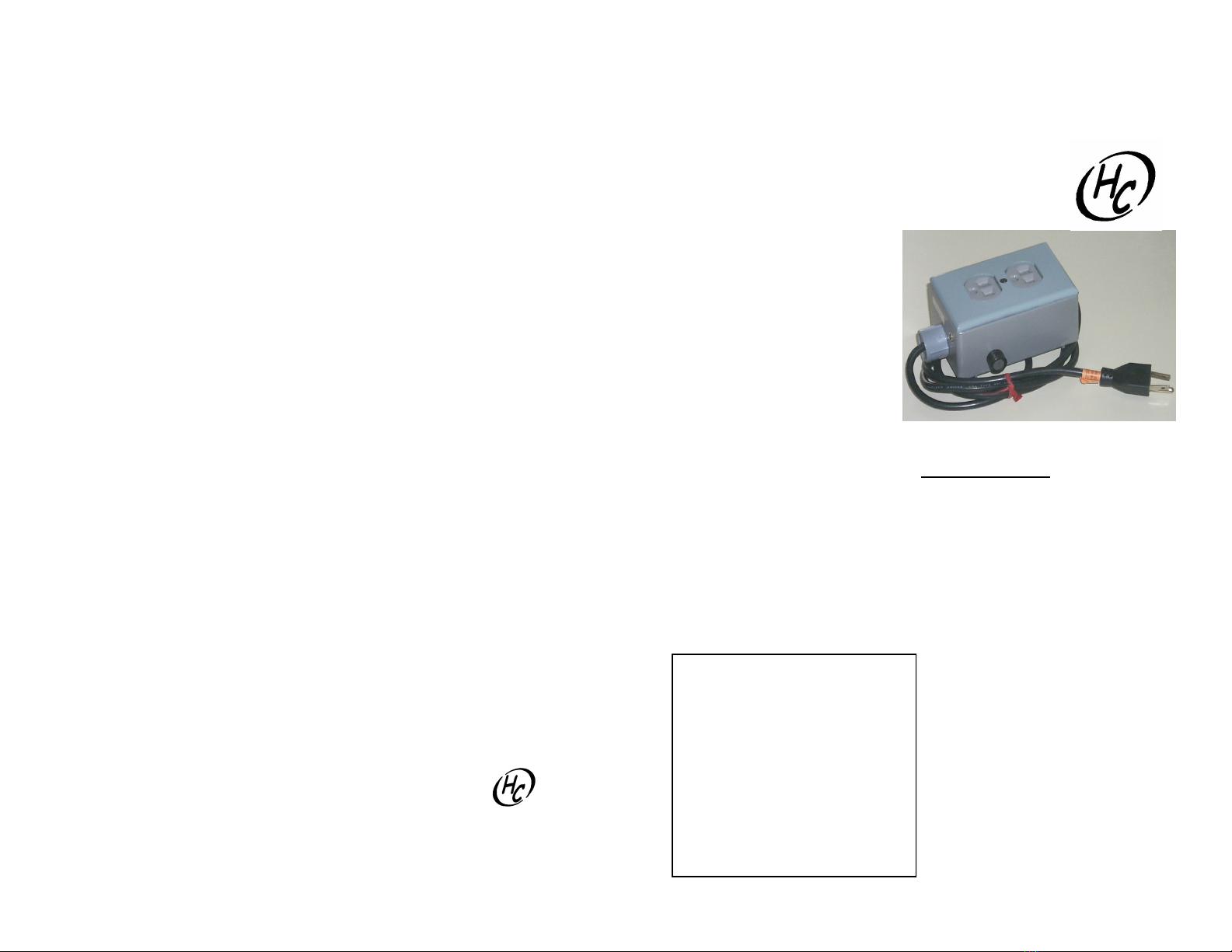

Hollywood Controls Inc.
General Description
The HC2210 10A 120VAC Power Mod-
ule offers easy control of many AC
appliances, including motors, lighting
and electronics. The unit has a 10A
250V replaceable fuse in the side.
On/off control is provided through a
standard RCA phono-jack. Activation
is asserted simply shorting RCA cen-
ter pin to outer shield. The control
circuit is fully separated from the
controlled AC circuit by low voltage
magnetic isolation.
Features:
•10A AC Relay
•Lightweight Case
•Negative Trigger (contact closure)
Isolated Control
•Fused
•Selectable NO/NC Action on
Upper Outlet
Safety Precautions 1
General Description 1
Product Description 2
Operation & Use 2
Servicing 3
Warranty 4
Index:
Model: HC2210
10A AC Relay Power Module w/Isolated Control
Components for this System
1. HC2210 Power Module
Safety Precautions
•DO NOT alter or remove labels.
•Keep dry, the Module is not water-
proof.
•Always remove power from systems
before servicing Module or con-
trolled devices.
•NEVER DEPEND on logic control to
deactivate controlled system during
setup, maintenance, or repair. Sud-
den power activation could cause
serious personal injury or electrocu-
tion.
10A 120VAC Logic Controlled
Power Module

The HC2210 is a rugged and simple-to-
use 120VAC switching module with a
standard 15A duplex outlet, a ABC 10A
250V replaceable fuse and a isolated
RCA jack for turning the device on and
off.
The control signal is a contact closure
(negative trigger) type. It is a simple
matter to hook up the AC appliance,
wire in the control supply and plug in the
HC2210 Power Module.
Product Description
HC0105B Manual Push Button or
HC0120R Pressure Foot Pad to activate
120VAC loads.
For permanent or semi-permanent in-
stallations, there are small mounting
tabs on the sides of the Power Module.
PAGE 2 10A 120 VA C LO GIC C ON T ROL LE D P OWE R MOD U LE
Operation & Use
Operation is simple and straight-
forward. If you are using your own trig-
ger source to turn on the HC2210 Power
Module it is important that it not apply
any power to the RCA jack. Your trigger
circuit must be a contact closure trigger
that shorts the RCA pin to the shield.
Figure 1 shows a view of Module and the
associated connections. Note the fuse
holder and control jack.
Figure 2 shows how to connect the
HC2210 10A Power Module to our
As with any 120VAC hardware, take
every precaution possible to insure that
the controlled device cannot turn on
unexpectedly . That means than before
servicing your setup, unplug the AC line
to the HC2210 Module. Insure that,
while operating, there can be no unan-
ticipated activating of the controlled
device. DO NOT rely on turning off or
unplugging the RCA control plug.
Safety
RCA Control Jack
120AC Line Cord
Figure 1 - HC2210 10A 120VAC Logic Power Module
Duplex Outlet
10A Fuse
PAGE 310A 120 VA C LO GIC C ON T RO L LE D P OWE R MOD U LE
Fuse Replacement
If the Power Module fails to turn on, or
there is a suspicion that the Module was
overloaded, you should check the pro-
tective fuse. Unplug the 120VAC line
cord before attempting servicing.
Turn the fuse holder Cap 1/4 turn to
remove the cap and the fuse will spring
out. Test with an ohm-meter or continu-
ity checker. If bad, recheck wiring and
load configuration before replacing
fuse. Replace with a ABC/AGC/MDL 10A
250V fuse as appropriate.
Servicing
Your Hollywood Controls HC2210 10A
120VAC Logic Power Module should pro-
vide many seasons of haunted activation
without maintenance.
It is shipped with both halves of the
duplex outlet wired for NO ( normally
open) operation. A qualified electrician
can isolate the top outlet by cutting the
outlet shorting tab and adding a jumper
wire from the upper outlet to the ‘NC’
Faston lug on the internal PCB marked
“J2”.
This will provide a “flip-flop” behavior
suitable for “Peppers Ghost” type appli-
cations.
Figure 2 - Connection setup for triggering an HC2210 10A AC Power Module
from a HC0120 floor mat or HC0105B Push Button.
RCA Trigger
Input Control
Jack
HC0120 Floor Mat
120V AC
SHIELD
PIN
RCA Plug
HC2210 10A AC
Power Module
SHIELD
PIN
RCA Plug
HC0105B Push Button
