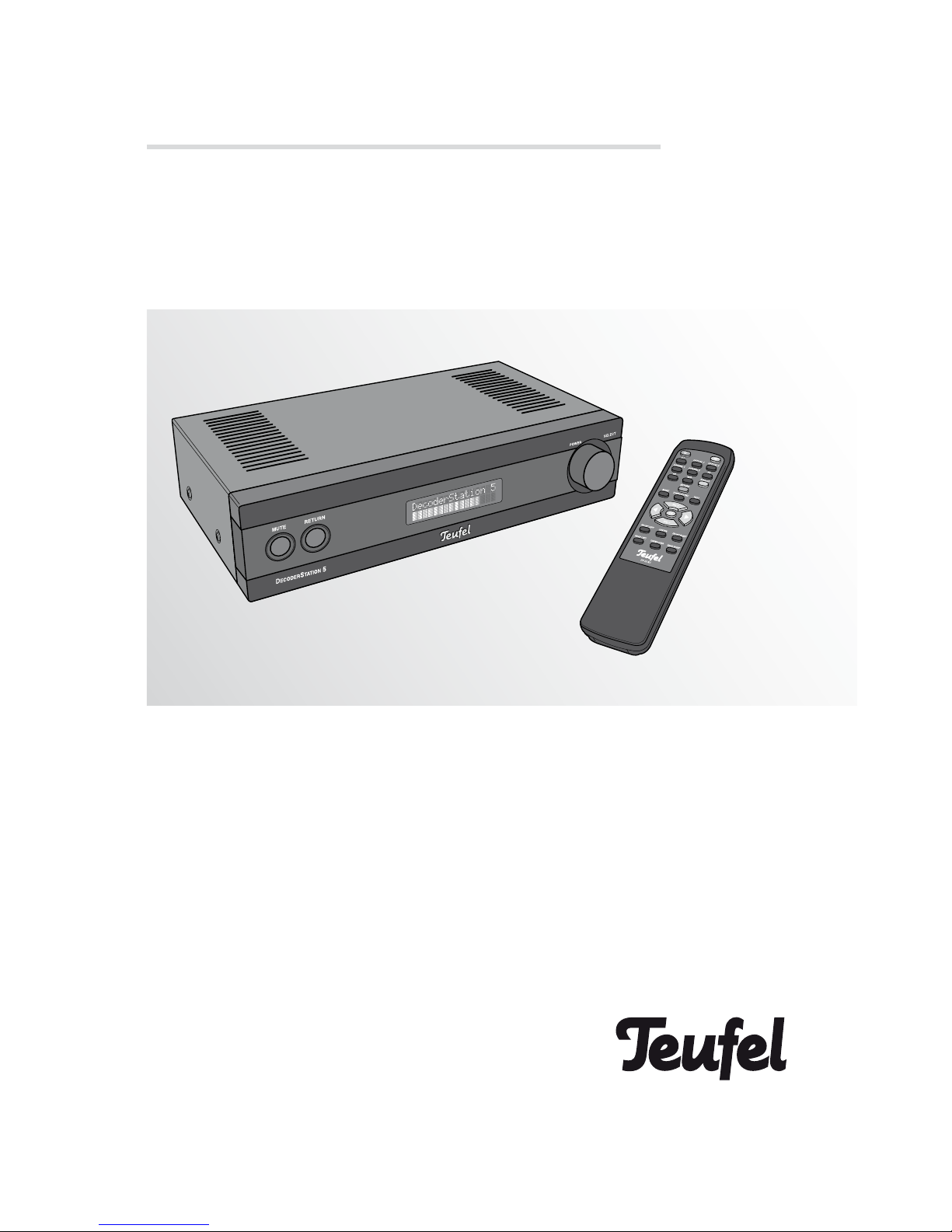

Teufel DecoderStation 5 Manual

Technical Description and Operating Instructions
Controller/Preamplifier/
Surround Decoder
DecoderStation 5

2 • DecoderStation 5
Contents
General notes and information . . . . . . . . . . . . . . . . . . .3
Safety notes.................................4
Overview...................................5
Control elements and connections . . . . . . . . . . . . . . . . . 6
Setup......................................8
Remote control...............................8
Connecting..................................9
Basic functions ..............................10
Activating and deactivating . . . . . . . . . . . . . . . . 10
Selecting a source....................... 10
Adjusting the volume . . . . . . . . . . . . . . . . . . . . . 10
Mute................................10
Turning the display panel on/off . . . . . . . . . . . . . 10
Menu functions..............................11
“INPUT” menu ......................... 11
“SURROUND” menu..................... 11
Dolby Digital and DTS . . . . . . . . . . . . . . . . . . . . 11
“TONE CONTROL” menu . . . . . . . . . . . . . . . . . 11
Treble/Bass ........................... 11
Dynamic Comp. ..........................12
“LIPSYNC” menu .......................12
“SPEAKER SETUP” menu . . . . . . . . . . . . . . . . . . 12
Levels ............................... 12
Sub Phase ............................12
Distance .............................12
Crossover............................. 12
Size ................................12
Channel Count......................... 12
“SYSTEM SETUP” ....................... 12
AUTO OFF............................12
System Reset........................... 12
FW Version ........................... 12
Special function buttons . . . . . . . . . . . . . . . . . . . . . . . 13
Surround ............................. 13
Dolby Digital and DTS . . . . . . . . . . . . . . . . . . . . 13
Test tone ............................. 13
Channel level buttons . . . . . . . . . . . . . . . . . . . . 13
Tone/LipSync.......................... 13
Adjusting the sound. . . . . . . . . . . . . . . . . . . . . . 13
Setting audio delay. . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting .............................14
Protecting the environment . . . . . . . . . . . . . . . . . . . . . 15
Disposing of the device . . . . . . . . . . . . . . . . . . . 15
Batteries and rechargeable batteries. . . . . . . . . . 15
Care and cleaning ...........................15
Technical data ..............................15
Menu tree .................................16

• DecoderStation 5 3
Notice
The information in this document may change without
prior notice and in no way constitutes any liability on the
part of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any
form or be broadcasted in any way electronically, me-
chanically, by photocopy or recording without the written
permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
February 2013
Trademarks
© All trademarks are the property of their respective
owners.
Manufactured under licence from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double D symbol are trade-
marks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos:
5,956,674; 5,974,380; 6,487,535; 7,003,467 & other
U.S. and worldwide patents issued & pending. DTS, the
Symbol, & DTS and the Symbol together are registered
trademarks & DTS Digital Surround | Neo:6 is a trade-
mark of DTS, Inc. Product includes software. © DTS, Inc.
All Rights Reserved.
Original packaging
If you wish to exercise your eight-week right of return, we
ask that you be absolutely sure to hold onto the packag-
ing. We can only accept the return of a device WITH
THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following informa-
tion to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with the
product) or on the order confirmation received as a PDF
document, e.g. 4322543
2. Serial number or batch number
Located on the back of the unit,
e.g. serial number: DE00702012040A-123.
Many thanks for your support!
Contact
For questions, suggestions or any other issues please
contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen · Buelowstrasse 66
10783 Berlin (Germany)
Phone 00800 - 200 300 40 (free of charge)
Fax: +49 (0)30 / 300 930 930
E-mail: [e-mail]
www.teufelaudio.com
Proper use
Only use the unit as described in these operating instruc-
tions. Any other use will be deemed as not in accordance
with the instructions and may lead to damage to property
or even persons.
The manufacturer accepts no liability for damage caused
by use not in accordance with the instructions.
The unit is intended for private use.
Before operating the unit for the first time please
read the safety notes and operating instructions
carefully. This is the only way to use all functions
safely and reliably.
Keep the operating instructions safe and pass them on to
anyone who may own the unit after you.
General notes and information

4 • DecoderStation 5
Safety notes
Caution icons
You will find the following caution icons in these instruc-
tions:
Danger High risk!
Failure to observe the warning may result in
severe personal injury or death.
Attention Moderate risk!
Failure to observe the warning may result in
property damage.
Minor risk!
Points which should be observed when hand-
ling the unit.
Safety notes
Danger Risk of electric shock!
Deficient electrical installation or excessive grid
voltage
may result in an electrical shock.
• The AC wall adapter is suitable for use with a power
supply voltage of 100–240 V ~ / 50/60 Hz.
• Only use the enclosed mains adapter. When connect-
ing, make sure that the right voltage is present. More
detailed information is available directly on the mains
adapter.
• Immediately disconnect the AC wall adapter and dis-
continue using it, if the device emits smoke, you notice
burning odour, unusual noises, if the case or the mains
adapter is defective or exhibits visible damages.
• The On/Off switch does not fully disconnect the device
from the main supply. Thus, you should set the device
such a way that the AC wall adapter can easily be
reached.
• Never open the case of the unit or mains adapter.
Repairs may only be carried out by an authorised
specialist workshop. Only parts which conform with
the original device specifications may be used for
repairs. There are electrical and mechanical parts in
this unit which are essential in order to avoid exposure
to sources of danger.
• Only use the unit in indoor areas.
• Do not operate the unit in moist areas and protect it
from drops of water and splash water.
Also take care not to stand vases or other containers
of liquid on or near the unit in order to avoid liquid
getting into the case or the mains adapter. If water or
other external objects penetrate the housing, immedi-
ately disconnect the AC adapter plug. Then send the
device in to our service address.
• Never touch the mains adapter with wet hands.
• Check the unit regularly for damage.
Danger Danger to children!
Children can become trapped in the packing
film when playing and suffocate.
• Do not allow children to play with the unit or the pack-
ing film. Danger of suffocation.
• Ensure that children do not remove small parts from
the unit or take them off of the unit (e.g. control knobs
or plug adapters). They could swallow the parts and
choke.
Never allow children to operate electrical devices
unsupervised.
Danger Danger to hearing!
Loud noise may lead to hearing loss.
Particularly when the system is activated and
has been set to maximum volume, very high noise pres-
sure may be produced. This may have psychological
consequences and also cause physical injury. Children
and pets are particularly at risk.
• Set the volume control to a low level.
• When the volume is set high, always keep a certain
distance from the unit and never place your ear directly
on the speaker.
• To avoid damage to health, avoid extended listening at
high volume.
Danger Danger of chemical burns!
Leaking battery acid may lead to chemical
burns.
• Do not allow battery acid to come into contact with
skin, eyes or mucus membranes. In case of contact with
acid rinse the affected parts immediately with plenty of
plain water and if necessary see a doctor.
Danger Danger of injury/damage!
Incorrect location may result in damage.
• Never use the unit unmounted in vehicles, in unstable
locations, on wobbly tripods or furniture, on underdi-
mensioned brackets etc. The device could tip or fall
down and cause injury to persons or be damaged
itself.
• Arrange the device so that it cannot be knocked over
accidentally and make sure that the cables do not pose
a trip hazard.
• Do not place the unit near sources of heat (e.g. heat-
ers, ovens, other heat generating equipment such as
amplifiers etc.)

• DecoderStation 5 5
Product contents
a 1 x DecoderStation 5
b 1 x remote control (DS 52 RC)
c 1 x mains adapter
d 2 x battery for remote control
Check to be sure
• Check that all items have been delivered and that noth-
ing is damaged.
• If the delivery is incomplete or you find damage sus-
tained in transit, do not operate the unit but contact our
service department (see page 3).
Overview
a
b
c
d
Attention Fire hazard!
Improper use may lead to damage or fire.
• Do not place open flames such as burning candles or
similar on the unit.
• Ensure sufficient ventilation.
• Do not place the unit in direct sunlight.
• Do not cover the vents with curtains, blankets, news-
papers or similar. Heat build-up inside the unit can
shorten its lifetime.
Attention Risk of damage!
Power overload due to lightning strike may
damage or destroy the unit.
• If the unit is to be left unsupervised for a long period
(e.g. during a holiday), or if a thunderstorm is forecast,
disconnect the mains adapter from the power socket.

6 • DecoderStation 5
Control elements and connections
Front side
Back side
Pos Name Description
1 MUTE Mute
2 RETURN Return button
3 – Display panel
4 POWER/
SELECT
Control dial/Activation pushbutton
56789101112
1 32 4
Pos Name Description
5 12V Connector jack for mains adapter
c
6 OPTICAL 1/2 Digital audio input jacks for opti-
cal cables
7 COAXIAL 1/2 Digital audio input jacks for
coaxial cables
8 TV Analogue audio input jacks for
television
9 CD Analogue audio input jacks for
CD player
10 AUX Analogue input jacks
11 5.1 IN 5.1 audio input jacks
12 PRE OUT 5.1 audio output jacks

• DecoderStation 5 7
Remote control
13
14
15
16
17
18
19
20
21
22
23
24
Pos Name Description
13 Mute speaker
14
OPTICAL 1/2,
COAXIAL 1/2,
TV, CD, AUX,
5.1
Input selection
15
DISPLAY Activate/deactivate display
panel 3
16
RETURN Return button
17
TEST Activate/deactivate test sound
18
TONE/
LIPSYNC
Tone control or sound delay
19
OK Select button
20
◀▶
Navigation buttons
21
FRONT LEFT,
CENTER,
FRONT RIGHT,
REAR LEFT,
SUBWOOFER,
REAR RIGHT
Channel select for level adjust-
ment
22
VOL +/– Volume adjust
23
MODE Surround mode selection
24 Power: Turn DecoderStation 5 on
or to standby

8 • DecoderStation 5
Setup
Location tips
• Select a stable, level base.
• Make sure that the environment is clean and dust free.
• Avoid placing the unit close to sources of heat or in
direct sunlight.
• Do not place any heavy objects on the DecoderStation 5
or the cables.
The signal receiver for the remote control is located at the
front of the unit. Therefore, you should set up the unit in
such a way that you have a direct line of sight.
To operate the remote control, you will need two type
AAA 1.5 Volt micro batteries (included in the product
contents).
Inserting batteries
• Gently press down the arrow on the battery compart-
ment cover on the back of the remote control. Push the
cover down and out.
• If applicable, remove any old batteries (please observe
the disposal notes on page 15).
• Insert the batteries in the battery compartment as
shown in the figure.
• Place the cover back on the compartment and push it
closed.
Functionality
The remote control transfers the control signals by means
of infrared light. For this, you will have to point the remote
control at the DecoderStation 5. The infrared receiver is
located on the front side. Make sure that the infrared light
is not obstructed by objects.
Remote control

• DecoderStation 5 9
Connecting
Danger Danger of injury/damage!
Arrange the cables so that they do not pose a
trip hazard.
Inputs for source devices
The DecoderStation 5 offers you an analogue 5.1 audio
input, two optical and two coaxial digital audio inputs
and three analogue stereo audio inputs (TV, CD and
AUX).
5.1 IN
You can connect a source device with an analogue 5.1
signal to the jacks 11 (e.g. a PC sound card). You will
need three stereo RCA cables to do so.
OPTICAL 1 and OPTICAL 2
You can connect the optical digital audio outputs of two
source devices to the jacks 6. You will need an optical
cable with a TOSLINK plug for this. Your source requires
either an optical 3.5 mm jack or a TOSLINK jack, too.
Coaxial 1 and Coaxial 2
You can connect the coaxial digital audio outputs of two
source devices to the jacks 7. You will need a coaxial
cable with RCA plugs for this.
TV, CD and AUX
You can connect source devices with analogue audio to
the RCA jacks 8, 9 and 10 (e.g. MP3 players, cassette
and tape recorders). You will need a stereo RCA cable to
do this.
Use the PhonoStation 1 to connect a record player, which
does not have a line output.
Audio outputs
Connect your power amplifier, multi-channel active
subwoofer or active speaker to the RCA jacks 12. You will
need three stereo RCA cables for this:
FRONT LEFT/RIGHT Front left/right channels
CENTER Mid-channel
SUB Subwoofer channel
REAR LEFT/RIGHT Rear left/right channels
Connecting to a power supply
• Make sure that your power amplifier, multi-channel ac-
tive subwoofer or the active speakers are turned off.
• Connect the small plug of the mains adapter c to the
jack 5 “12V”.
• Connect the mains adapter c to a mains socket
(100 V–240 V ~ / 50/60 Hz).
5
67
8910
12
11

10 • DecoderStation 5
Basic functions
Activating and deactivating
If the device is in standby mode (standby), the illuminated
outside ring of the control dial 4 will light up in a dim
blue.
• Briefly pressing the control dial 4 or the button 24 “ ”
will activate the device.
A welcome message will appear in the display panel 3
when the device is turned on.
• Pushing and holding the control dial 4 or briefly press-
ing the button 24 “ ” will switch the device back to
standby.
• If the device is inactive for a pre-selected period of
time, it will automatically switch to standby mode (see
“AUTO OFF” on page 12).
Selecting a source
The device always turns on with the last selected source.
• Select the source directly with the function keys 14 on
the remote control.
• Or push the control dial 4 twice briefly and select
the source by turning the control dial 4 (also see the
“INPUT” menu on the next page).
The selected source is shown in the display panel 3.
Adjusting the volume
• Increase the volume: Turn the control dial 4 clockwise
or push the button 22 “VOL +”.
• Decrease the volume: Turn the control dial 4 counter-
clockwise or push the button 22 “VOL –”.
The selected volume will appear as a bar on the display
panel 3 and in numbers in the range “– – –” (low) to
“10.0 dB” (loud).
Mute
• Turn the speakers off with the “MUTE” button 1 or 13 “ ”.
A “MUTE” message will appear in the display panel 2.
• Turn the sound back on: Push the “MUTE” button 1 or
13 “ ” again or change the volume.
Turning the display panel on/off
You can turn the illumination of the display panel 3 on
and off with the button 15 “DISPLAY” so it doesn't distract
you, e.g. while watching a movie.
1 3 4
13
14
15
22
24

• DecoderStation 5 11
Menu functions
You can operate all functions of the DecoderStation 5 via
the user menu. To use the menu:
• Push the control dial 4 “POWER/SELECT” or the but-
ton 19 “OK”. The “MAIN MENU” will appear on the
display panel 3.
• Select the desired sub-menu with the control dial 4 or
the buttons 20 “
◀/▶ ” and push the control dial 4 or the
button 19 “OK”.
• The sub-menu will open and you can select the next
sub-menu or change the values with the control dial 4
or the buttons 20 “
◀/▶ ”.
• You can accept the setting by briefly pushing the con-
trol dial 4 or the button 19 “OK”.
• With the button 2 or the “RETURN” button 16, you can
terminate the respective function or abort it and return
to the previous menu.
“INPUT” menu
With the control dial 4 or the set buttons 20 “ ◀/▶”, you
can select the desired source in the following order: 5.1,
OPTICAL 1/2, COAXIAL 1/2, TV, CD, AUX.
“SURROUND” menu
With the control dial 4 or the set buttons 20 “ ◀/▶ ”, you
can switch the surround mode for 2-channel-sources in
the following order:
2.1 Stereo Stereo only via front left/right and
subwoofer
5.1 Stereo Stereo across all channels (upmix)
Dolby PLII Music Dolby Pro Logic II Music mode
Dolby PLII Movie Dolby Pro Logic II Movie mode
DTS NEO:6 Music DTS NEO:6 for music
DTS NEO:6 Cinema DTS NEO:6 for cinema
Some options may not be available if not all satellite
speakers are connected.
Dolby Digital and DTS
Surround mode is fixed for the playback of Dolby Digital
or DTS coded multi-channel tracks. This menu is deacti-
vated as a result. Thus, the Surround mode selection is
deactivated while Dolby Digital or DTS 5.1 streams are
playing.
Please keep in mind that very few TV channels offer 5.1
audio. Connecting your TV set to the digital input does
not necessarily mean that a 5.1 signal is present.
“TONE CONTROL” menu
Treble/Bass
Here you can adjust the sound (treble/high tones and
bass tones) using the volume buttons 22 “VOL +/–” . Pos-
sible values: from –10 dB (decrease) to +10 dB (increase).
32 4
16
19
20
21
22
23

12 • DecoderStation 5
Dynamic Comp.
Dynamic compensation regulates volume differences
between individual tracks on CDs or other audio sources
and ensures that playback is neither too loud nor too
quiet. Possible settings: On, Off.
“LIPSYNC” menu
Digital image processing in the television can take some
time. In order to keep the image and sound synchronous,
you can delay the sound by a few milliseconds using the
LipSync function. Here you can set the audio delay from
0 to 200 ms for synchronous audio.
“SPEAKER SETUP” menu
Levels
Here you can adjust the relative volume from “–10” (de-
crease) to “+10” (increase) for each speaker individually.
It is recommended to use our sound level meter to opti-
mally adjust the sound level.
Sub Phase
This allows you to activate and deactivate the phase shift
(180°) for the subwoofer. Select the setting, with which
the subwoofer produces the loudest and clearest sound.
Distance
The surround sound effect may be corrupted if the speak-
ers are positioned at different distances to the listening
position. To compensate for these differences in run
time, you can set a slight signal delay for all channels.
Measure the difference from the listening position to each
speaker and enter these values in the menu. The system
calculates the required delay times for optimal surround
sound reproduction.
Crossover
If you are using satellites and subwoofers, you will have
to select a crossover frequency in the DecoderStation 5.
Otherwise, the sound quality will suffer and the satellites
could be damaged.
With the crossover frequency, you define the frequency,
up to which the subwoofer should be active. Possible
values: 80 to 250 Hz in eight steps.
You can find information on the recommended crossover
frequency in the technical data of the respective satellite
speakers in our webshop.
Size
You can set the size of the speakers in use here for
optimal actuation of the speakers. You can choose from
seven configurations:
LLL All speakers are large, no subwoofer.
LLL+Sub All speakers are large, subwoofer present.
LSL Large front and rear speakers, small center
speaker, no subwoofer.
LSL+Sub Large front and rear speakers, small center
speaker, subwoofer present.
LSS Large front speakers, small center and rear
speakers, no subwoofer.
LSS+Sub Large front speakers, small center and rear
speakers, subwoofer present.
SSS+Sub All speakers are small, subwoofer present.
The letters represent the speakers: Front left/right, center,
rear left/right. In this context, S stands for small and
L for large speakers. “+Sub” stands for a connected
subwoofer.
If you connect the DecoderStation to a multichannel ac-
tive subwoofer, select the setting SSS+Sub.
Channel Count
Here you can set the speaker configuration (5.1 or 2.1
system). This ensures that the system is able to optimally
distribute the audio signal among the speakers.
2.1 Channel Only the front speakers on the left/right and
subwoofer.
5.1 Channel All channels have been assigned speakers.
“SYSTEM SETUP”
AUTO OFF
If inactive, the device switches to standby after a selected
amound of time. Possible values:
Disable (never), 15 min., 30 min.
System Reset
This resets the device to the factory default.
FW Version
Here, you can view the firmware version installed on the
device.

• DecoderStation 5 13
Special function buttons
Surround
You can switch to surround mode in the following order
with the “MODE” button 23:
2.1 Stereo Stereo only via front left/right and
subwoofer
5.1 Stereo Stereo across all channels (upmix)
Dolby PLII Music Dolby Pro Logic II Music mode
Dolby PLII Movie Dolby Pro Logic II Movie mode
DTS NEO:6 Music DTS NEO:6 for music
DTS NEO:6 Cinema DTS NEO:6 for cinema
Some options may not be available if not all satellite
speakers are connected.
Dolby Digital and DTS
When Dolby Digital or DTS-encoded multichannel are
played back, this button is disabled.
Test tone
With this function, you can monitor and set the correct
level for each speaker channel.
• Push the “TEST” button 17. A test sound (“pink noise”)
will be emitted on each speaker one by one.
• You can adjust the volume of the currently active chan-
nel from “–10” to “+10” using the volume buttons 22
“VOL +/–”.
• Select the next channel with the navigation buttons 20
“ ◀/▶”.
• To stop the test sound, push the “RETURN” button 16.
We recommend using a Teufel sound-level meter, which
you can order on our website in the accessories area.
Channel level buttons
Here you can increase and decrease the relative volume
for each speaker, even during playback.
• Select the desired speaker by pushing the button 21:
Front L. – Front left
Center – Centre
Front R. – Front right
Side L – Surround left
Sub – Subwoofer
Side R – Surround right
• You can now adjust the relative volume from “–10” to
“+10” using the volume buttons 22 “VOL +/–”.
• To exit the function, push the “RETURN” button 16.
Tone/LipSync
With the “Tone/LIPSYNC” button 18, you can adjust the
sound and audio delay.
Adjusting the sound
Briefly tap the “TONE/LIPSYNC” button 18 to access two
audio control ranges successively: Treble (high tones),
bass (low tones, bass tones).
• Now select the range from “–10” (decrease) to “+10”
(increase) with the volume buttons 22 “VOL +/–”.
• Confirm the setting by pushing the button 16 “RE-
TURN”.
Setting audio delay
Push the button 18 “TONE/LIPSYNC” for more than one
second to set the value for audio delay (see the “LIP-
SYNC” menu function on page 12):
• The current setting in milliseconds (ms) appears in the
display panel.
• Set the audio delay from 0 to 200 ms with the volume
buttons 22 “VOL +/–”.
• Push the button 16 “RETURN” to confirm the setting.
16
17
18
20
21
22
23

14 • DecoderStation 5
Troubleshooting
If you occur problems using this unit, please first refer to the following notes and further detailed information on our
website for initial help. If this does not lead to success, please contact our hotline 00800 - 200 300 40 (free of charge).
Please also observe the warranty notes.
Problem Possible cause Solution
The DecoderStation 5 is not
working, the display panel
3 does not light up.
The device has no power. Check if the mains adapter plug is con-
nected to the jack 5 “12V” and to the
socket.
The device is not working,
but the display panel is
illuminated.
The volume has been set too low. Increase the volume with the control dial
or “VOL +” button 22.
Playback is noisy. Generally-speaking, the system is very low-
noise. The system with exceptional resolution
in the high-range area can expose the poor
quality of a signal source (e.g. from MP3 files
mostly).
Make sure that the source is delivering a
clear signal.
The rear satellites and/or
center speaker do not emit
an audio signal from stereo
sources such as a tuner or
an MP3 player.
MP3s, radio and many television programmes
only offer stereo sound.
Use the remote control to switch the
decoder to a Pro Logic II mode or one of
the DSP modes (5.1 stereo).
You are unable to switch
the surround configuration.
You are probably using a digital input. If a
Dolby or DTS signal is received on this input,
the DecoderStation 5 will automatically switch
to the correct surround configuration.
No Dolby-/DTS multi-chan-
nel sound is issued via the
connected digital source.
If digital sources are being played, the Decod-
erStation 5 automatically recognises the format
of the signal source. If the decoder fails to play
multi-channel sound, there is presumably no
multi-channel signal. Digital signal sources do
not always transmit multi-channel sound, but
may also emit regular stereo sound (2.0).
This is often the case, for example, when receiv-
ing a television signal with digital receivers.
Switch the decoder to a Pro Logic II
mode or one of the DSP modes (5.1
stereo) using the remote control.
The digitally connected
sound card is not transmit-
ting any multi-channel
sound when playing com-
puter games.
Many soundchips are capable of producing
surround sound in real-time and issuing it via
the sound card's analogue outputs. However,
digital encoding of the calculated multi-channel
sound is also necessary in a Dolby Digital bit-
stream for transmission via a digital connection.
Only if the sound card is capable of real-time
encoding and transmission to the decoder, can
direct decoding (that is, splitting of the signal
into its analogue components) occur.
Presently, only very few game consoles such as
the Microsoft Xbox 360 or the Sony Playstation
3 and a limited number of sound cards with
Dolby® Digital Live support are capable of
performing real-time encoding.
Connect your 5.1 sound card to an ana-
logue jack of the DecoderStation 5.

• DecoderStation 5 15
Technical data
Operating voltage of the mains adapter: 100 – 230 V~, 50/60 Hz
Power consumption: Operation: max. 30 watts
Standby mode: < 0.5 watts
Dimensions (W x H x D): 235 x 54 x 150 mm
Net weight: 1010 g
This product conforms with Council of the
European Union guidelines 2004/108/EC and
2006/95/EC.
Technical changes reserved!
Disposing of the device
Used units must not be disposed of with house-
hold waste!
If the unit is no longer operational, every
consumer is required by law to dispose of used
devices separately from household waste,
e.g. at a collection point run by the communal authority
borough. In this way it is ensured, that used devices are
properly recycled and that negative consequences on the
environment are avoided.
For this reason, electrical equipment is labelled with the
symbol shown above.
Protecting the environment
Batteries and rechargeable batteries
Batteries and rechargeable batteries must not
be disposed of with household waste!
Every consumer is required by law to bring all
batteries and rechargeable batteries, whether
they contain harmful substances*) or not, to a collection
point run by the communal authority or borough or run
commercially, so that they can be disposed of in an envi-
ronmentally friendly manner.
Please only hand in batteries and rechargeable batteries
in a fully discharged state!
*) labelled with: Cd = Cadmium, Hg = Mercury, Pb =
Lead
Care and cleaning
Clean the DecoderStation 5 regularly with a soft, damp
microfibre cloth. Please be absolutely sure to observe the
following notes:
Danger Risk of electric shock!
In contact with live parts, water can lead to
electric shock or short circuit.
• Make sure that no liquid penetrates the unit.
• Disconnect the mains adapter from the socket before
cleaning.
Attention Risk of damage!
Using the wrong cleaning materials may dam-
age the delicate surface of the case.
• If possible, only use plain water without any additives.
In case of stubborn marks, a mild soap solution may
be used.
• In no circumstances should caustic cleaning products,
white spirit, thinners, petrol or similar be used for
cleaning.

Instruction No. 92294 GB 20130206
For questions, suggestions or other issues please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1
10783 Berlin (Germany), Buelowstr. 66
Tel.: [phone] (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No liability is accepted for the
accuracy of this information. Tech-
nical changes, typographical errors
and other errors reserved.
Dynamic Comp. On/Off
Treble
Bass
-10 … 0 ... +10
-10 … 0 ... +10
Center
Right
Rear L
Rear R
Sub
Left -10 … 0 ... +10
-10 … 0 ... +10
-10 … 0 ... +10
-10 … 0 ... +10
-10 … 0 ... +10
-10 … 0 ... +10
INPUT
5.1
OPT1
OPT2
COAX1
COAX2
TV
CD
AUX
SURROUND
2.1 Stereo
5.1 Stereo
Dolby PLII Music
Dolby PL II Movie
DTS NEO:6 Music
DTS NEO:6 Cinema
TONE CONTROL LIPSYNC
0ms … 200ms
Levels
SPEAKER SETUP
0° / 180° Sub Phase
Center
Right
Rear L
Rear R
Sub
Left 0.00m … 8.00m
0.00m … 8.00m
0.00m … 8.00m
0.00m … 8.00m
0.00m … 8.00m
0.00m … 8.00m
Distance
80Hz, 100Hz, 120Hz,
140Hz, 150Hz, 175Hz,
200Hz, 225Hz, 250Hz
Crossover Freq.
Size
2.1 Channel / 5.1 Channel
Channel Count
Auto Off
System Reset
Disable
After 15min
After 30min
Reset all?
SYSTEM SETUP
LLL, LLL+Sub, LSL,
LSL+Sub, LSS,
LSS+Sub, SSS+Sub
FW Version V x.xx.x
Menu tree
