Technical Description and Instruction Manual
Subwoofer Signal Receiver
Subconnect RX
93080_GB_20150610.indd 193080_GB_20150610.indd 1 11.06.15 08:3411.06.15 08:34

2• Receiver Subconnect RX
Contents
General Notes and Information ........3
Notice .............................................. 3
Original packaging .......................... 3
Complaints ...................................... 3
Contact ............................................ 3
For Your Safety...................................4
Proper use....................................... 4
Explanation of terms....................... 4
Safety notes .................................... 4
Explanation of symbols................... 5
Overview .............................................6
Product contents............................. 6
Checking the product contents...... 6
Operational controls and
connections..................................... 6
Setup/Wall Mounting........................7
Setup location................................. 7
Wall mounting ................................. 7
Connecting .........................................8
Operation............................................8
Manual connection......................... 8
Automatic connection..................... 9
Automatic activation/deactivation .. 9
Cleaning & Maintenance ............... 10
Troubleshooting .............................. 11
Declaration of Conformity.............. 12
Technical Data ................................ 13
93080_GB_20150610.indd 293080_GB_20150610.indd 2 11.06.15 08:3411.06.15 08:34

3• Receiver Subconnect RX
General Notes and Information
Notice
The information in this document may
change without prior notice and in no
way constitutes any liability on the part
of Lautsprecher Teufel GmbH.
No part of this instruction manual may
be reproduced in any form or be broad-
casted in any way electronically, me-
chanically, by photocopy or recording
without the written permission of Laut-
sprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
June 2015
Original packaging
If you wish to exercise your eight-week
right of return, we ask that you be abso-
lutely sure to hold on to the packaging.
We can only accept the return of the
speakers WITH THE ORIGINAL PACKAG-
ING.
Empty boxes are not available!
Complaints
If you would like to file a complaint, we
will need the following information to
process your inquiry:
1. Invoice number
Can be found on the sales slip (en-
closed with the product) or on the
order confirmation received as a PDF
document, e.g. 4322543
2. Serial number or batch number
Located on the back of the device, e.g.
serial no.: KB20240129A-123.
Thank-you for your support!
Contact
Please contact our customer service
with any questions, suggestions or
comments:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Strasse 44
10787 Berlin (Germany)
Phone 00800 - 200 300 40 (toll-free)
Fax +49 (0)30 / 300 930 930
E-mail: [email protected]
www.teufelaudio.com
Before operating the devices,
please first read the safety
notes and instruction manual
carefully. Only in this way, can you
ensure that all functions are used in
a safe and reliable manner. Store the
instruction manual in a safe place
and also be sure to pass it on to any
subsequent owner.
93080_GB_20150610.indd 393080_GB_20150610.indd 3 11.06.15 08:3411.06.15 08:34

4• Receiver Subconnect RX
For Your Safety
Proper use
The Subconnect RX is intended for
receiving a mono subwoofer signal and
for transmitting it to the subwoofer via
an RCA cable. The Subconnect TX or
another compatible device from our
assortment can be used as a trans-
mitter.
Only use the Subconnect RX as
described in this instruction manual.
Any other use will be deemed as not
in accordance with the instructions
and may lead to damage of property or
even persons.
The manufacturer accepts no liability
for damage caused by improper use.
The Subconnect RX is intended for
private use.
Explanation of terms
You can find the following signal terms
in these instructions:
WARNING
This signal term indicates a
moderate risk, which, if not
avoided, may result in death or
severe injury.
CAUTION
This signal term indicates a low
risk, which, if not avoided, may
result in minor or moderate
injury.
NOTICE
This signal term warns you of
potential damage.
Safety notes
This chapter contains general safe-
ty notes which you should always
observe to protect yourself and third
parties. Also observe the warning
notes in each chapter of this instruc-
tion manual.
Improper electrical installation or
excessive mains voltage may result
in an electrical shock.
• The enclosed mains adapter is suita-
ble for a mains voltage of 100 – 240
V ~ 50/60 Hz. When connecting the
device, make sure that the correct
voltage is present.
• Only use the enclosed mains adapter
or a mains adapter with an identical
construction.
• Check the mains adapter regularly
for damage. Do not in any case use
a damaged mains adapter.
• Never open the housing of the mains
adapter.
• Only use the device indoors and not
in wet rooms. Protect it from drip-
ping and splashing water. Make sure
that no vases or other liquid-filled
containers are located on or near
the device in order to prevent liquid
from penetrating the housing. If wa-
93080_GB_20150610.indd 493080_GB_20150610.indd 4 11.06.15 08:3411.06.15 08:34

5• Receiver Subconnect RX
ter or other debris has infiltrated the
device, immediately pull the mains
adapter out of the socket.
• This Subconnect RX is disconnected
from the mains by pulling the mains
adapter. Therefore, make sure that
the mains adapter is always easily
accessible.
• Never modify the Subconnect RX.
Unauthorised interventions may
affect the safety and functionality.
• Let an authorised specialist work-
shop perform repairs. Only parts that
comply with the original device data
may be used for repairs.
• Never touch the mains adapters
with wet hands.
An unsuitable location may result in
accidents or damage to property.
• Do not expose the Subconnect RX
to direct sunlight and do not set it
up near heat sources (e.g. heaters,
ovens, other heat generating equip-
ment such as amplifiers etc.).
• Do not use the Subconnect RX in en-
vironments with a risk of explosion
and only in locations where wireless
transmission is permitted.
Children can become trapped in
the packing film when playing and
suffocate.
• Do not allow children to play with
the device or the packing film.
Explanation of symbols
Protection class II
Dual insulation
May only be used indoors
Polarity on the round con-
nector:
outside (–), inside (+)
Old devices must not be
disposed of with house-
hold waste!
If the device is no longer oper-
ational, every consumer is required by
law to dispose of old devices separate-
ly from household waste, e.g. at a col-
lection point run by the communal au-
thority/borough. This ensures that old
devices are recycled in a professional
manner and also rules out negative
consequences for the environment.
For this reason, electrical equipment is
marked with the adjacent symbol.
93080_GB_20150610.indd 593080_GB_20150610.indd 5 11.06.15 08:3411.06.15 08:34

6• Receiver Subconnect RX
Overview
Product contents
햲1 x Subconnect RX
햳1 x mains adapter
햴1× RCA cable
Checking the product
contents
• Check that all items have been deliv-
ered and that nothing is damaged.
• If the delivery is incomplete or has
transport damages, please contact
our service team (see page 3).
• Do not in any case operate the
device if it is damaged.
Operational controls and
connections
1 Jack for mains adapter 햳
2 RCA output jack
3 Pairing button (connect to the
transmitter)
LED status indicators
햲
햳
1 2 3
456
Status LED 4 LED 5 LED 6
Standby off off red
Activation process off green off
Connected blue (continuous) green off
Searching for stations blue (flashes slowly) green off
Pairing mode (button (3) depressed) blue (flashes quickly) green off
햴
93080_GB_20150610.indd 693080_GB_20150610.indd 6 11.06.15 08:3411.06.15 08:34

7• Receiver Subconnect RX
Setup/Wall Mounting
Setup location
NOTICE
If the device is subjected to
warm temperatures after being
cold (e.g. after transport), con-
densation may occur inside of it.
–In this case, wait at least 2
hours before you connect and
activate it.
CAUTION
–This Subconnect RX is dis-
connected from the mains
by pulling the mains adapter.
Therefore, make sure that
the mains adapter is always
easily accessible.
• Select a stable, level base.
In case of wall mounting, follow the
instructions in the next chapter.
• Make sure that the environment is
clean and free from dust.
• Select a location away from heat
sources and direct sunlight.
• Lay the connector cables so that
they do not pose a tripping hazard.
• Do not place any heavy objects on
the cables or the device.
Wall mounting
For wall installation, 2 keyhole open-
ings are located on the bottom of the
Subconnect RX that can be used to
hang it on 2 screws.
CAUTION
–Make sure that there are no
cables or pipes in the wall
where you intend to mount
the device. Before you drill
holes for the dowels, use a
metal detector to check the
applicable areas. Otherwise,
there is a risk of electric
shock/short circuit!
93080_GB_20150610.indd 793080_GB_20150610.indd 7 11.06.15 08:3411.06.15 08:34

8• Receiver Subconnect RX
Connecting
Operation
1. Connect the jack (2) with the input
jack of your subwoofer via a mono
RCA cable.
2. Insert the round connector of the
mains adapter into the jack (1).
3. Plug the mains adapter into an easi-
ly accessible mains socket.
1 2
Manual connection
1. Push the pairing button (3) until the
LED (4) quickly blinks in blue.
2. Put the associated transmitter also
into paring mode. For more informa-
tion, please refer to the transmitter’s
instruction manual.
• As soon as the Subconnect RX finds
a compatible transmitter, it will
connect with it.
The LED (4) will illuminate continu-
ously in blue.
3
4
93080_GB_20150610.indd 893080_GB_20150610.indd 8 11.06.15 08:3411.06.15 08:34

9• Receiver Subconnect RX

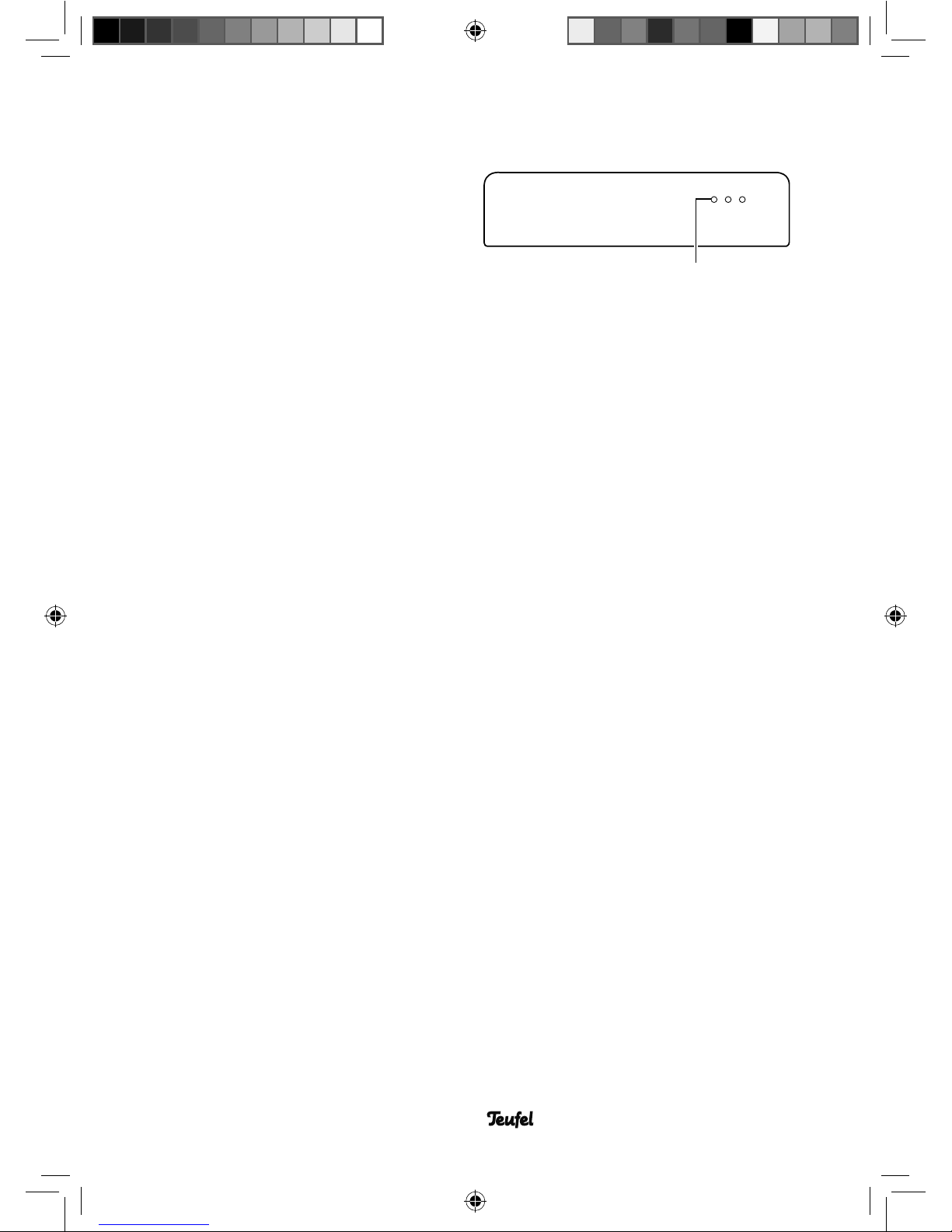

Automatic connection
• If the Subconnect RX was already
connected with a compatible trans-
mitter, a connection with it will be
established immediately.
The LED (4) will illuminate continu-
ously in blue.
• If there is no transmitter nearby or if
it is switched off, the Subconnect RX
will look for a transmitter.
The LED (4) will slowly blink in blue.
• The connection will be established
as soon as you switch on the trans-
mitter.
The LED (4) will illuminate continu-
ously in blue.
Automatic activation/
deactivation
• As soon as the Subconnect RX
receives a signal from a connected
transmitter, it will switch back on
from standby mode.
• If the signal is deactivated, the
Subconnect RX will switch back to
standby mode after a short time.
4
93080_GB_20150610.indd 993080_GB_20150610.indd 9 11.06.15 08:3411.06.15 08:34

10 • Receiver Subconnect RX
Cleaning & Maintenance
CAUTION
–Pull the mains adapter out of
the socket before you clean it.
NOTICE
Using the wrong cleaning agents
may damage the housing.
–Do not use caustic cleaning
products, rubbing alcohol,
thinners, petrol or similar un-
der any circumstances. Such
cleaning agents may damage
the surface of the housing.
• Ideally, you should remove dust or
small amounts of dirt with a dry,
smooth cloth.
• Rub off stubborn dirt with a damp
cloth. Make sure that no liquid pene-
trates the housing.
• Then immediately wipe the surfaces
dry with a soft cloth.
93080_GB_20150610.indd 1093080_GB_20150610.indd 10 11.06.15 08:3411.06.15 08:34

11• Receiver Subconnect RX
Troubleshooting
The following advice should help you to solve problems. If this does not help, you
will find useful information in the detailed FAQs on our website. Otherwise, please
contact our hotline (see page 3). Take note of the warranty instructions.
Problem Possible cause Solution
No function. The Subconnect RX
has “hung up”.
Pull the mains adapter out of the
socket and insert it back in the
socket after approx. 10 seconds.
No connection is
established.
The transmitter has
not been switched on.
Switch the transmitter on.
Distance is too great
or objects are block-
ing the connection
signal.
Correct the location of the devices.
The connection is not
automatically estab-
lished.
Push the pairing button (3).
93080_GB_20150610.indd 1193080_GB_20150610.indd 11 11.06.15 08:3411.06.15 08:34

12 • Receiver Subconnect RX
2015
EG-Konformitätserklärung
EU-Declaration of Conformity
Hiermit bestätigen wir, dass das nachfolgend bezeichnete Gerät den angegebenen-Richtlinien
entspricht.
We herewith confirm that the appliance as detailed below complies with the mentioned directives.
Artikelbezeichnung:
Article description:
Subconnect RX
Firmenanschrift:
Company address
Teufel Lautsprecher GmbH
Budapester Straße 44
D-10787 Berlin
Einschlägige EG-Richtlinien / Governing EU-directives / Directives CE concernées :
1. Elektromagnetische Verträglichkeit (EMV)
Electromagnetic compatibility (EMC)
2004/108/EC
2. Niederspannungs-Richtlinie
Low-voltage directive
2006/95/EC
3. Sicherheit von Spielzeug
Safety of toys
88/378/EEC, amended 93/68/EEC
4. Medizinprodukte (Klasse 1)
Medical device directive (Class 1)
93/42/EEC
5. Funkanlagen und
Telekommunikationsendeinrichtungen
Radio and Telecommunication Terminal Equipment
R&TTE 1999/5/EC
6. Ökodesign – Richtlinie
Energy – Using – Product – Directive (EuP)
2009/125/EEC
7. Richtlinie zur Beschränkung der Verwendung
bestimmter gefährlicher Stoffe in Elektro- und
Elektronikgeräten (Rohs- Richtline 2011/65/EC)
Harmonisierte EN-Normen / Harmonised EN-Standards
Der Artikel entspricht folgenden, zur Erlangung des CE-Zeichens erforderlichen Normen:
The article complies with the standards as mentioned below which are necessary to obtain the CE-symbol:
DIN EN 55013:2013
DIN EN 55020:2012
DIN EN 61000-3-2:2010
DIN EN 61000-3-3:2014
DIN EN 60950-1:2006 A1:2010 A2:2013 A11:2009 A12:2011
ETSI EN 301489-1 V1.9.2
ETSI EN 301489-9 V1.4.1
ETSI EN 300328 V 1.8.1:
Verordnung 1275/2008
Verordnung 0278/2009
Edgar van Velzen
Geschäftsführer
Ausstellungsdatum / Date of issue: 16. März 2015
93080_GB_20150610.indd 1293080_GB_20150610.indd 12 11.06.15 08:3411.06.15 08:34

13• Receiver Subconnect RX
Subconnect RX
Dimensions (WxHxD) 110 x 28 x 90 mm
Weight 120 g
Operating voltage 12 V DC
Mains adapter
Input voltage 100 – 240 V~ 50/60 Hz
Output voltage 12 V DC/830 mA
Technical Data
You can find further technical data on our website. Technical changes reserved!
93080_GB_20150610.indd 1393080_GB_20150610.indd 13 11.06.15 08:3411.06.15 08:34

14 • Receiver Subconnect RX
93080_GB_20150610.indd 1493080_GB_20150610.indd 14 11.06.15 08:3411.06.15 08:34

15• Receiver Subconnect RX
93080_GB_20150610.indd 1593080_GB_20150610.indd 15 11.06.15 08:3411.06.15 08:34

Instruction No. HCHAM / 93080_GB_20150610
Please contact our customer service with any questions, suggestions or comments:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Strasse 44
10787 Berlin (Germany)
Phone: 00800 - 200 300 40 (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No responsibility is assumed for the correctness of this information.
Technical changes, typographical errors and other errors reserved.
93080_GB_20150610.indd 1693080_GB_20150610.indd 16 11.06.15 08:3411.06.15 08:34
