The box MBA75W MKII User manual

MBA75W MKII
mobile PA system
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
21.10.2016, ID: 234801

Table of contents
1 General notes............................................................................................................................................... 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 15
4 Installation and starting up................................................................................................................ 16
4.1 Battery operation............................................................................................................................. 17
4.2 Microphone........................................................................................................................................ 17
5 Connections and controls................................................................................................................... 18
6 Technical specifications....................................................................................................................... 42
7 Plug and connection assignment.................................................................................................... 45
8 Cleaning....................................................................................................................................................... 49
9 Protecting the environment.............................................................................................................. 50
Table of contents
MBA75W MKII
3

1 General notes
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General notes
mobile PA system
4

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General notes
MBA75W MKII
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’, ‘OFF’.
References to other locations in this manual are identified by an arrow and the specified page
number. In the electronic version of the manual, you can click the cross-reference to jump to
the specified location.
Example: See
Ä ‘Cross-references’ on page 6.
Letterings
Displays
Cross-references
General notes
mobile PA system
6

1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General notes
MBA75W MKII
7

Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General notes
mobile PA system
8

2 Safety instructions
This device is intended to be used in a sound reinforcement system. Use the device only as
described in this user manual. Any other use or use under other operating conditions is consid‐
ered to be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety instructions
MBA75W MKII
9

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.
Safety instructions
mobile PA system
10

CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use suffi‐
cient ear protectors.
NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
Safety instructions
MBA75W MKII
11

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
NOTICE!
Risk of fire due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.
Safety instructions
mobile PA system
12

NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer period.
NOTICE!
Possible damage due to incorrect storage
Deep discharge can cause batteries to become permanently damaged or lose
some of their capacity.
Before prolonged rest periods, charge the batteries to around 50 % of their
capacity and then switch the equipment off. Store the equipment at a tempera‐
ture between 10 °C and 32 °C in as dry an environment as possible. During
extended storage periods, charge the batteries to 50 % approximately every three
months.
Safety instructions
MBA75W MKII
13

nThis equipment uses a frequency range that is free of charge and registration within the
European Union.
For more information, please visit: http://www.thomann.de.
nWhen operating, make sure that transmitter and receiver are set to the same channel.
nNever set more than one transmitter to the same channel.
nMake sure that no metal objects are located between transmitter and receiver.
nAvoid interference by other radio and in-ear systems.
Notes on radio transmission
Safety instructions
mobile PA system
14

3 Features
The mobile PA system is characterized by the following features:
nCompact all-in-one system
nMains and battery operation for maximum flexibility
n8" wide range speaker with integrated tweeter
nOutput power: 75 W RMS
nFrequency response 50 Hz … 18 kHz ± 3 dB
nIntegrated UHF receiver for the supplied UHF wireless microphone, 16 channels selectable
nBuilt-in cassette recorder, CD player (MP3 playback), USB port and SD card slot
nInfrared remote control
n2 MIC inputs (XLR and 1/4" jack), 2 line inputs (RCA and 1/4" jack)
n1 line out, 1 speaker out
nPlastic housing with tripod flange, carrying handle and casters
Features
MBA75W MKII
15

4 Installation and starting up
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic fields
Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate
distance to devices that can be adversely affected or damaged by an external
magnetic field.
Installation and starting up
mobile PA system
16

4.1 Battery operation
You can also operate the device independent of the mains power supply via the two built-in
rechargeable lead gel batteries (12 V, 5 Ah).
4.2 Microphone
Use only LR6 AA (1.5 V) batteries or rechargeable Ni-MH batteries (nickel metal hydride). Note
the correct polarity when inserting the batteries.
Installation and starting up
MBA75W MKII
17

5 Connections and controls

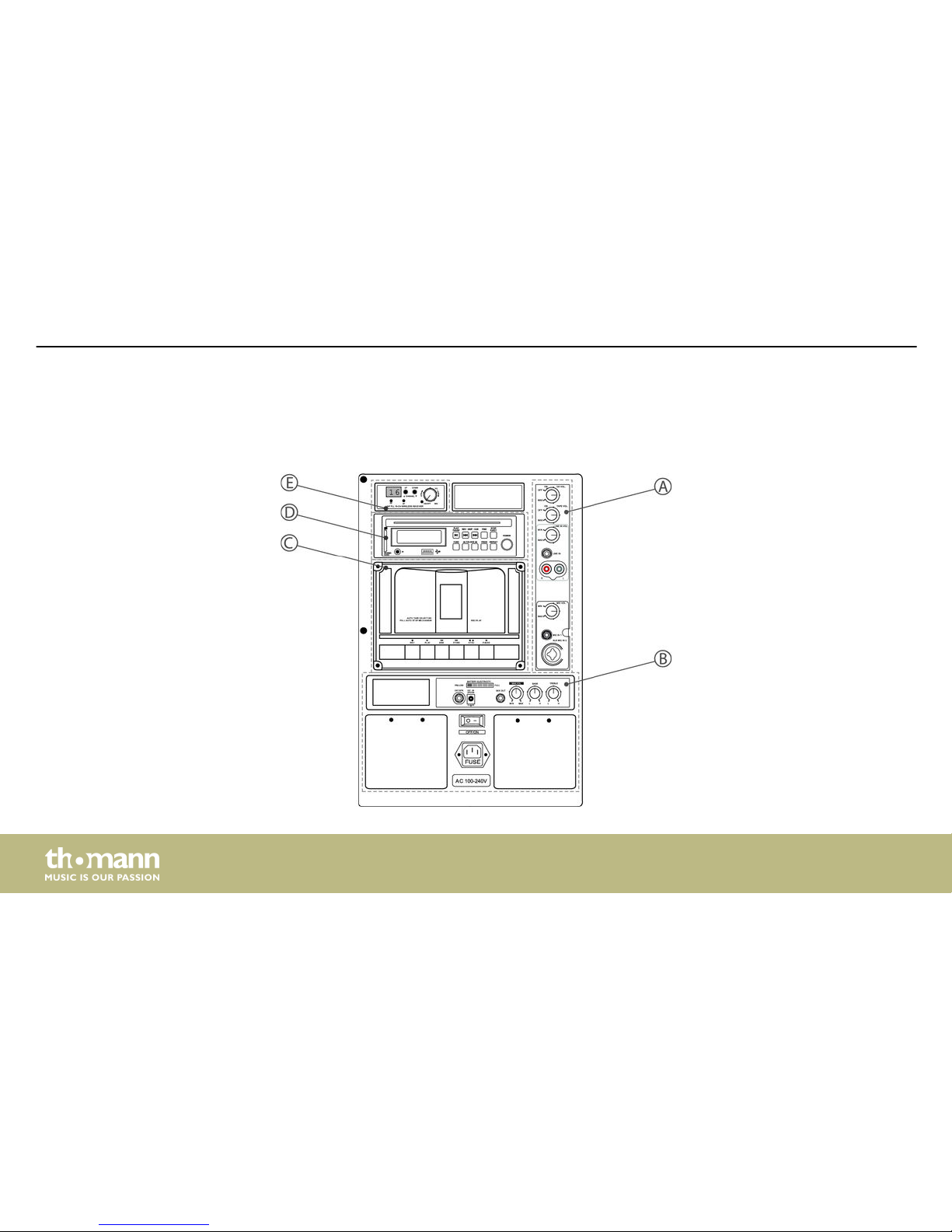

Rear view – overview
Connections and controls
mobile PA system
18

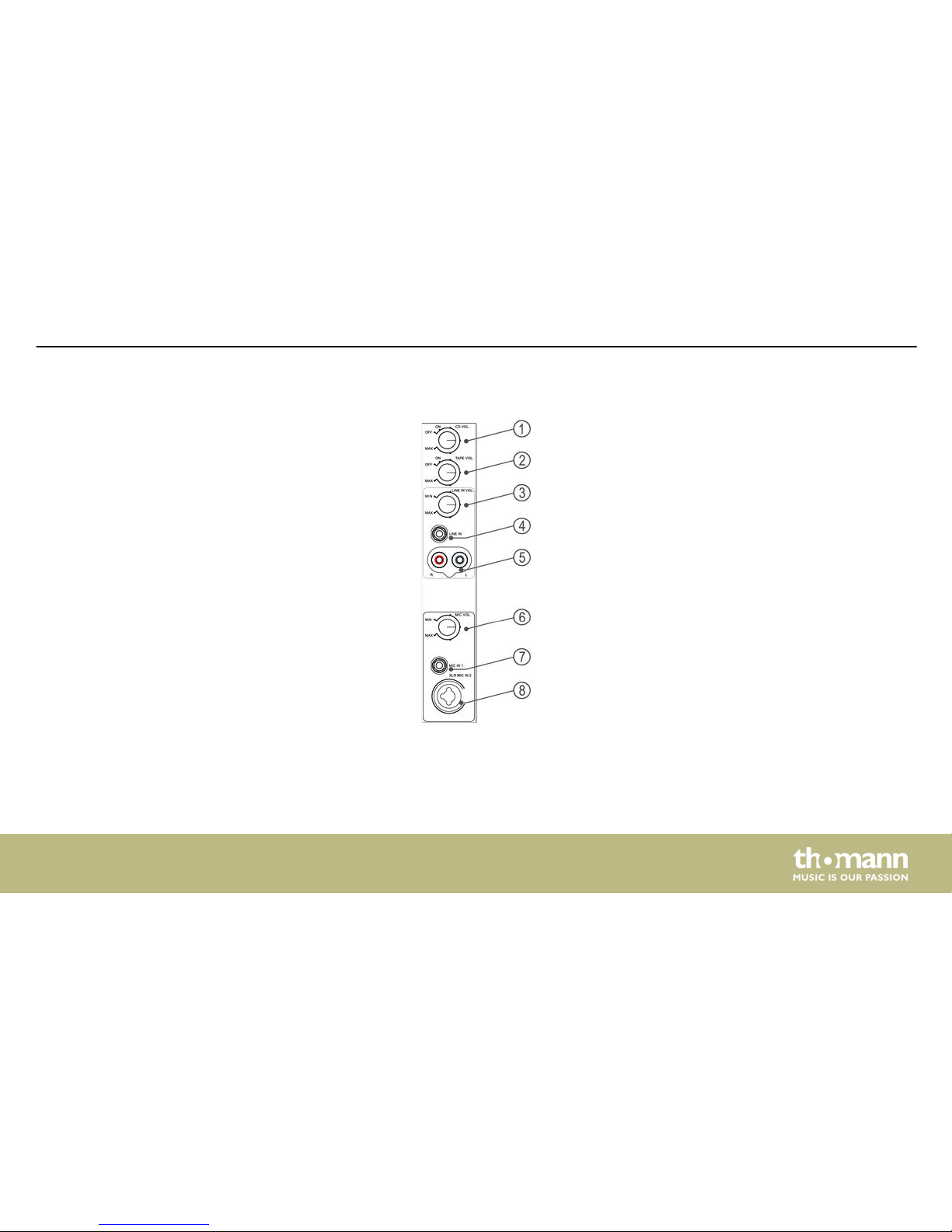

Partial view A
Connections and controls
MBA75W MKII
19

1[CD VOL.]
Volume control for CD playback with on / off switch.
2[TAPE VOL.]
Volume control for cassette playback with on / off switch.
3[LINE IN VOL.]
Volume control for the external line in.
4[LINE IN]
1/4" jack audio input for amplification of external line level audio signals.
5[LINE IN R / L]
RCA audio input for amplification of external line level audio signals.
6[MIC VOL.]
Volume control for the wired microphone input.
Connections and controls
mobile PA system
