Thermador SAVOR BICM24CS User manual

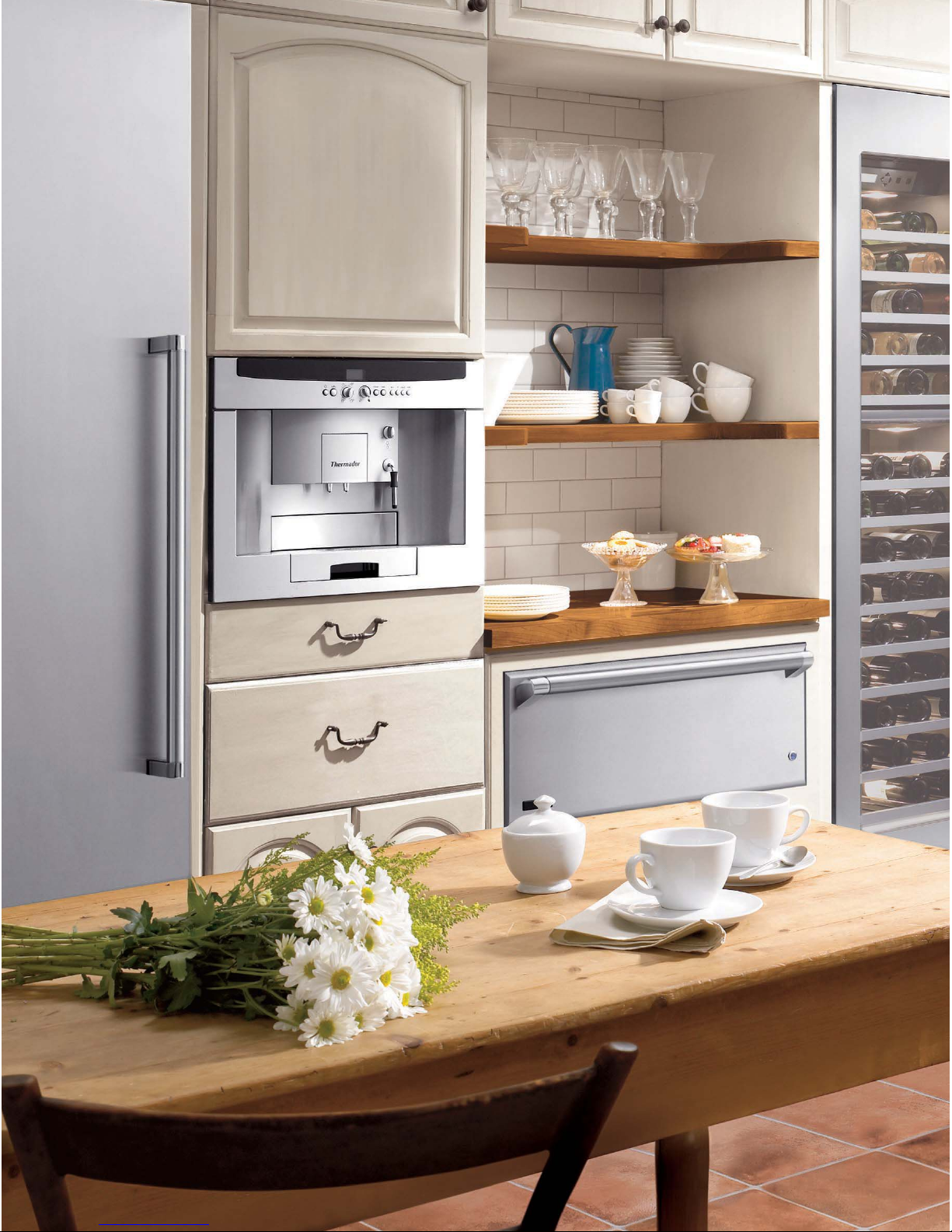

290 MODELS SHOWN: BICM24CS BUILT-IN COFFEE MACHINE AND WDC30JP WARMING DRAWER290

BUILT-IN COFFEE MACHINE
1.800.735.4328 | THERMADOR.COM 291
It’s the ultimate culinary indulgence. An expression of your exquisite taste. And a stunning addition to any kitchen design.
The Savor Built-In Coffee Machine brings a unique air of sophistication to your Thermador kitchen while delivering state-
of-the-art coffee-making performance. Now you can enjoy coffeehouse-quality espresso, cappuccino, and just about any
coffee drink you can think of, as well as tea, all from the comfort of your own home.
THE SAVOR
BUILT-IN COFFEE
MACHINE
®

292
BUILT-IN COFFEE MACHINE
FEATURES & BENEFITS
LCD DISPLAY
Easy-to-read control panel
with an LCD display gives
complete digital information
on every setting.
SAVORSWIRL®
The SavorSwirl brewing
system completely engulfs
each ground of coffee in
water, brewing it under high-
pressure for the fullest avor
and greatest aroma.
DESIGN
The uid and versatile design
of our Savor®Coffee Machine
will perfectly coordinate
with both of our Thermador
product collections.
HEIGHT-ADJUSTABLE DISPENSER
Our height-adjustable coffee dispenser adjusts to t many different
cup sizes, and has dual spouts for brewing 2 cups at a time.
COFFEE CUSTOMIZATION
Choose one of 12 different
coffee sizes - small espresso to
large coffee, 6 levels of coffee
strengths and 8 programmable
settings for custom brewing.
FROTHING AID
Steam and froth like a
professional barista with
the attached steam wand.
Dispense hot water to prepare
hot chocolate or tea in less
than 30 seconds.

BUILT-IN COFFEE MACHINE
1.800.735.4328 | THERMADOR.COM 293
BUILT-IN COFFEE MACHINE
PLANNING INFORMATION
ELECTRICAL LOCATION
Electrical outlet should be positioned as shown below.
ELECTRICAL SPECIFICATIONS
Be sure your appliance is properly installed and grounded by a qualied
technician. Installation, electrical connections and grounding must comply
with all applicable local codes.
Thermador Built-in Coffee Machines are equipped with a 3-wire plug
and are designed to be connected to a 120V AC, 60Hz, single phase
power supply.
MODEL OPTIONS
The Thermador Savor®Coffee Machine is available with
a stainless steel nish and coordinates with both the
Professional and Masterpiece®series.
INSTALLATION CONSIDERATIONS
The information in this design guide provides key
features, product dimensions, cutouts and installation
specications. Before installing a Thermador Built-in
Coffee Machine, be sure to verify the cabinet
dimensions and electrical connections. Also, always
consult with the installation manual packed with the
product for complete details before installing.
WARRANTY
Limited warranty parts and labor (2 year)
See page 298 for additional warranty details.
NEMA 5-15R, 125 V,
15 A 2 Pole 3-wire
Grounding
MODEL REQUIRED CIRCUIT BREAKER
BICM24CS 120V, 60 Hz , 15 Amp

294
SPECIFICATIONS
Product Width 23 3/8"
Product Height 18 1/16"
Product Depth 21"
Cutout Width (Min.) 22 1/16"
Cutout Height (Min.) 17 11/16"
Cutout Depth (Min.) 21 5/8"
Electrical Supply 120V AC, 60 Hz
Required Circuit Breaker 15 Amp
Power Cord Included
Shipping Weight (lbs.) 81
BUILT-IN COFFEE MACHINE
24-INCH
BICM24CS
MASTERPIECE®& PROFESSIONAL
BICM24CS
BICM24CS
PERFORMANCE
- Freshly brewed coffee and espresso at the push of a button
- Fully automatic and programmable
- 6 cup size and levels of coffee strength (grind quantity) –
smooth to super strong
- 3 coffee temperature settings
- SavorSwirl®system for maximum avor extraction
- Steam and froth like a professional barista with attached
steam wand
- Dispense hot water with just a turn of the dial
- Brewing for one or two cups simultaneously
- Stand-by function: programmable start time, time of day
and switch-off time
- Built-in water lter with adjustable water hardness
- Fully automatic rinse program at turn-on and turn-off
- High-end steel grinder with fresh coffee bean container
for up to 14 ounces (400g).
- 215 psi (15 bar) thermo block-pump pressure system
- Single portion cleaning
- Automatic cleaning program
- Automatic descaling program
DESIGN
- Brushed stainless steel nish coordinates with Thermador
Professional®and Masterpiece®series appliances
- Rotary knobs for selecting all functions
- LCD display
- Height adjustable coffee dispenser
- Separate container for second ground coffee avor or decaf
- Removable water tank for 1.9 quarts (1.8 liter)
- Easy-to-use multilingual digital display
- Includes: measuring spoon, water lter, 2 cleaning tablets

BUILT-IN COFFEE MACHINE
1.800.735.4328 | THERMADOR.COM 295
BUILT-IN COFFEE MACHINE
24-INCH
BICM24CS

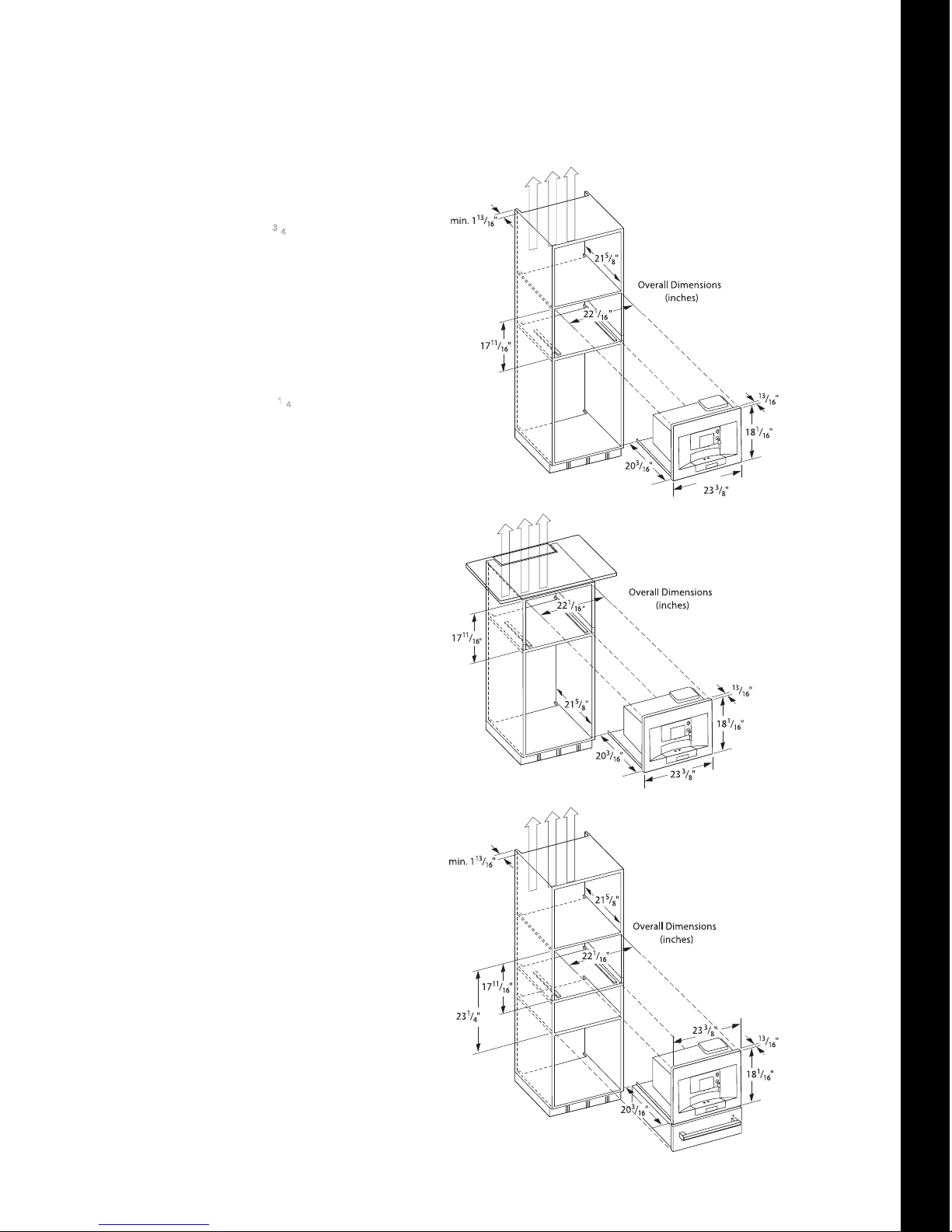

COFFEE MACHINE & CUTOUT DIMENSIONS
IMPORTANT INSTALLATION
CONSIDERATIONS
The built-in unit must not have a rear panel behind
the appliance.
There must be a gap of at least 1 3/4" (45 mm)
between the wall and base of the unit or the rear
panel of the unit situated above.
The ventilation slots and intake openings must not
be covered.
Also follow the installation instructions for the
appliance situated above or below.
The ideal installation height for the fully automatic
espresso machine, measured from the oor to the
lower edge of the appliance, is 37 1/4" (950 mm)

298
PROFESSIONAL RANGES
Limited warranty, entire appliance, parts and labor (2 year)
PROFESSIONAL RANGETOPS
Limited warranty, entire appliance, parts and labor (2 year)
BUILT-IN OVENS
Limited warranty parts and labor (2 year)
INDUCTION COOKTOPS
Limited warranty, entire appliance, parts and labor (2 year)
Limited warranty for glass ceramic surface / electronic
elements and switches; parts only (3rd to 5th year)
GAS COOKTOPS
Limited warranty, entire appliance, parts and labor (2 year)
ELECTRIC COOKTOPS
Limited warranty, entire appliance, parts and labor (2 year)
Limited warranty for glass ceramic surface / electronic
elements and switches; parts only (3rd to 5th year)
VENTILATION
Limited warranty, entire appliance, parts and labor (2 year)
WARMING DRAWERS
Limited warranty, entire appliance, parts and labor (2 year)
MICROWAVE OVENS
Limited warranty, entire appliance, parts and labor (2 year)
REFRIGERATION
Limited two-year warranty, entire appliance, parts and labor
on any part of the refrigerator that fails because of a
manufacturing defect
Limited warranty for sealed refrigeration system*; parts and
labor (3rd to 6th year)
Limited warranty for sealed refrigeration system*; parts only
(7th to 12th year)
DISHWASHERS
Full warranty, entire appliance, parts and labor (2 year)
Limited warranty for microprocessor or printed circuit board; parts
only (3rd to 5th year)
Limited warranty for racks (does not include rack components);
parts only (3rd to 5th year)
Limited warranty for rust-through on inner tub liner; parts only
(Lifetime)
COFFEE MACHINES
Limited warranty, entire appliance, parts and labor (2 year)
These warranties give you specic legal rights and you may have
other rights that vary from state to state. Full warranty and limited
warranty from date of installation. For complete warranty details,
refer to your Use & Care manual, or ask your dealer.
Specications are for planning purposes only. Refer to installation
instructions and consult your countertop supplier prior to making
counter opening. Consult with a heating and ventilation engineer
for your specic ventilation requirements. For the most detailed
information, refer to installation instructions accompanying product
or write to Thermador indicating the model number. Specications
are correct at time of printing. Thermador reserves the right to
change product specications or design without notice. Some models
are certied for use in Canada. Thermador is not responsible for
products that are transported from the U.S. for use in Canada.
©2014 BSH Home Appliances Corporation. PDF update: 11/2014
*Sealed refrigeration system includes compressor, evaporator, condenser, dryer / strainer and
connection tubing
WARRANTY
