Thermador CIT304 Series User manual

INSTALLATION
INS42 5( 4IONS
For Induction Cooktop
19E_IIaGE 9 19B3EcGE9B
19EEcGE9B d39E_llaa 9
19B3EccT..9eB de 19B(_lac;F9
3-13
14 - 24
25 - 35
Thermador °An AmericanIcon"
/o89"#
CIT304...
CIT365...

Table of contents
Important Safety Instructions ......................................
Before you begin .................................................
Tools and parts needed .............................................
Parts included .....................................................
Preparation .......................................................
Installation procedure .............................................
Installing the heat shield .............................................
Secure the cooktop to countertop ....................................
Electrical installation ................................................
Test the installation .................................................
Technical service .................................................
4
5
5
5
6
9
9
10
11
12
13
3

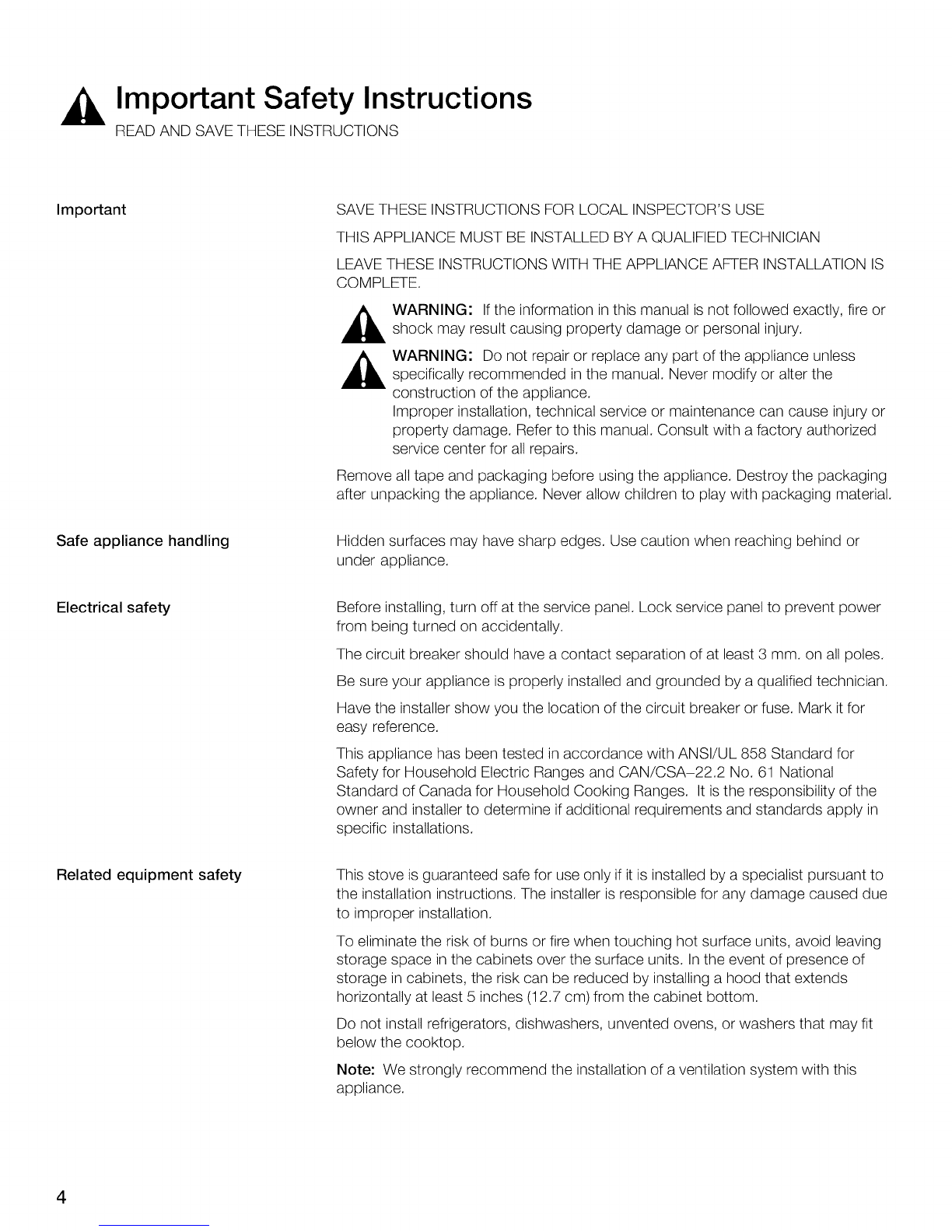

Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Impo_ant SAVE THESE INSTRUCTIONS FOR LOCAL INSPECTOR'S USE
THIS APPLIANCE MUST BE INSTALLED BY A QUALIFIED TECHNICIAN
LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE AFTER INSTALLATION IS
COMPLETE.
WARNING: If the information in this manual is not followed exactly, fire or
shock may result causing property damage or personal injury.
WARNING: Do not repair or replace any part of the appliance unless
specifically recommended in the manual. Never modify or alter the
construction of the appliance.
Improper installation, technical service or maintenance can cause injury or
property damage. Refer to this manual. Consult with a factory authorized
service center for all repairs.
Remove all tape and packaging before using the appliance. Destroy the packaging
after unpacking the appliance. Never allow children to play with packaging material.
Safe appliance handling Hidden surfaces may have sharp edges. Use caution when reaching behind or
under appliance.
Electrical safety Before installing, turn off at the service panel. Lock service panel to prevent power
from being turned on accidentally.
The circuit breaker should have a contact separation of at least 3 mm. on all poles.
Be sure your appliance is properly installed and grounded by a qualified technician.
Have the installer show you the location of the circuit breaker or fuse. Mark it for
easy reference.
This appliance has been tested in accordance with ANSI/UL 858 Standard for
Safety for Household Electric Ranges and CAN/CSA-22.2 No. 61 National
Standard of Canada for Household Cooking Ranges. It isthe responsibility of the
owner and installer to determine if additional requirements and standards apply in
specific installations.
Related equipment safety This stove is guaranteed safe for use only if it is installed by a specialist pursuant to
the installation instructions. The installer is responsible for any damage caused due
to improper installation.
To eliminate the risk of burns or fire when touching hot surface units, avoid leaving
storage space in the cabinets over the surface units. Inthe event of presence of
storage in cabinets, the risk can be reduced by installing a hood that extends
horizontally at least 5 inches (12.7 cm) from the cabinet bottom.
Do not install refrigerators, dishwashers, unvented ovens, or washers that may fit
below the cooktop.
Note: We strongly recommend the installation of a ventilation system with this
appliance.
4

Before you begin
Tools and parts needed ÷ Phillips head screwdriver
÷ Pencil
÷ Drillwith 1/4" (6.35 mm) bit
÷ Jigsaw
÷ Tape measure
Note: Additional materials may be necessary for installation in solid surface
countertops. Contact the countertop manufacturer.

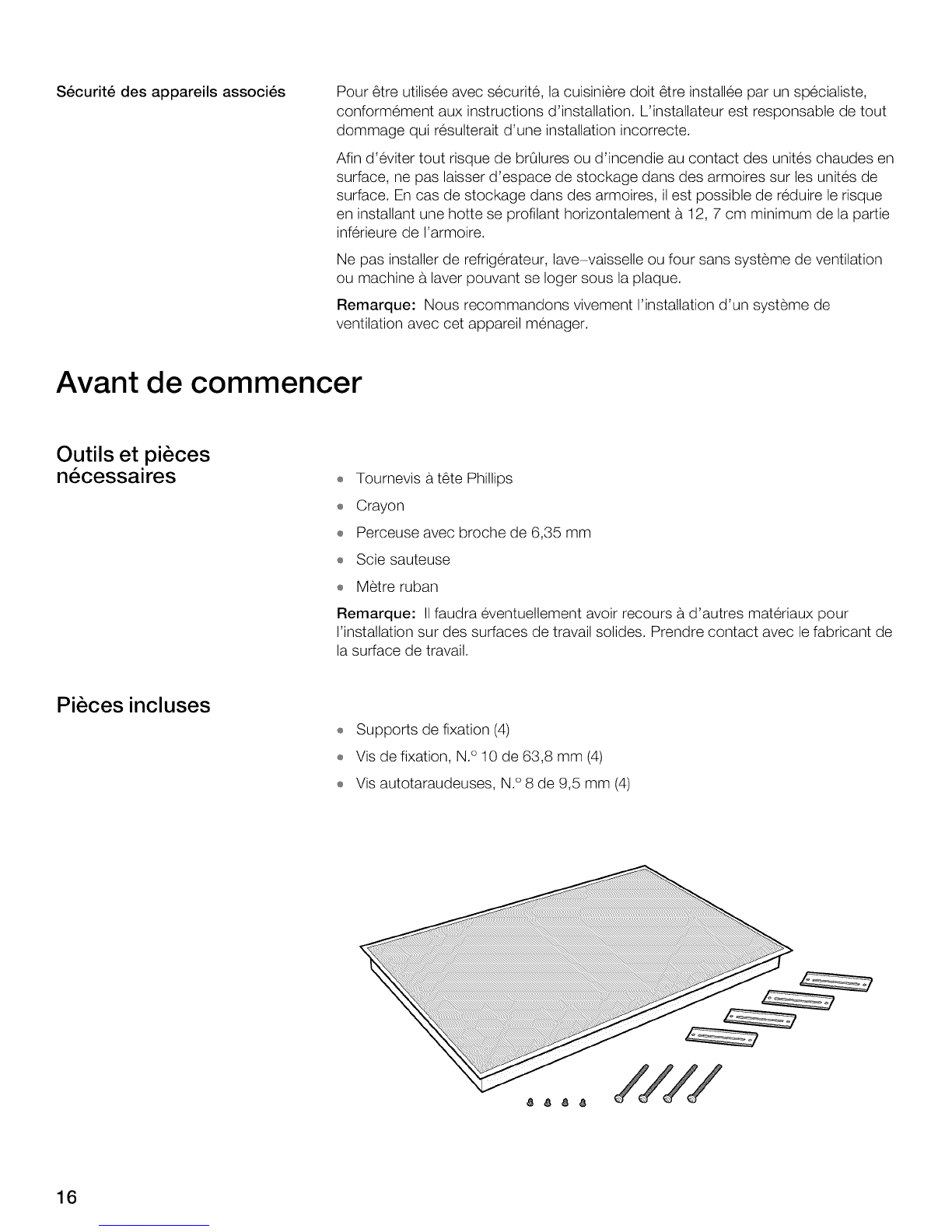

Parts included ÷ Hold down brackets (4)
÷ Clamping screws #10-32 x 2 1/2" (63.8 mm) (4)
÷ Sheet metal screws #8 x 3/8" (9.5 mm) (4)
////
5

Preparation
Countertop requirements _ WARNING: To reduce the risk of ignition of nearby combustible materials,install the countertop with a minimum distance of 2" (51mm) from both side
walls and the back wall.
Note The work surface should be horizontal and level. The stability of the countertop
should be confirmed even after making the cutout.
After preparing cutout, remove shavings as they can affect the function of electrical
components.
Seal the surfaces of the cutout to make them heat resistant. This prevents the
surfaces from expanding as a result of humidity.
Solid surface countertops often require special installation. For example, heat
reflective tape or rounded corners may be necessary. Contact the countertop
manufacturer for instructions specific to your countertop.

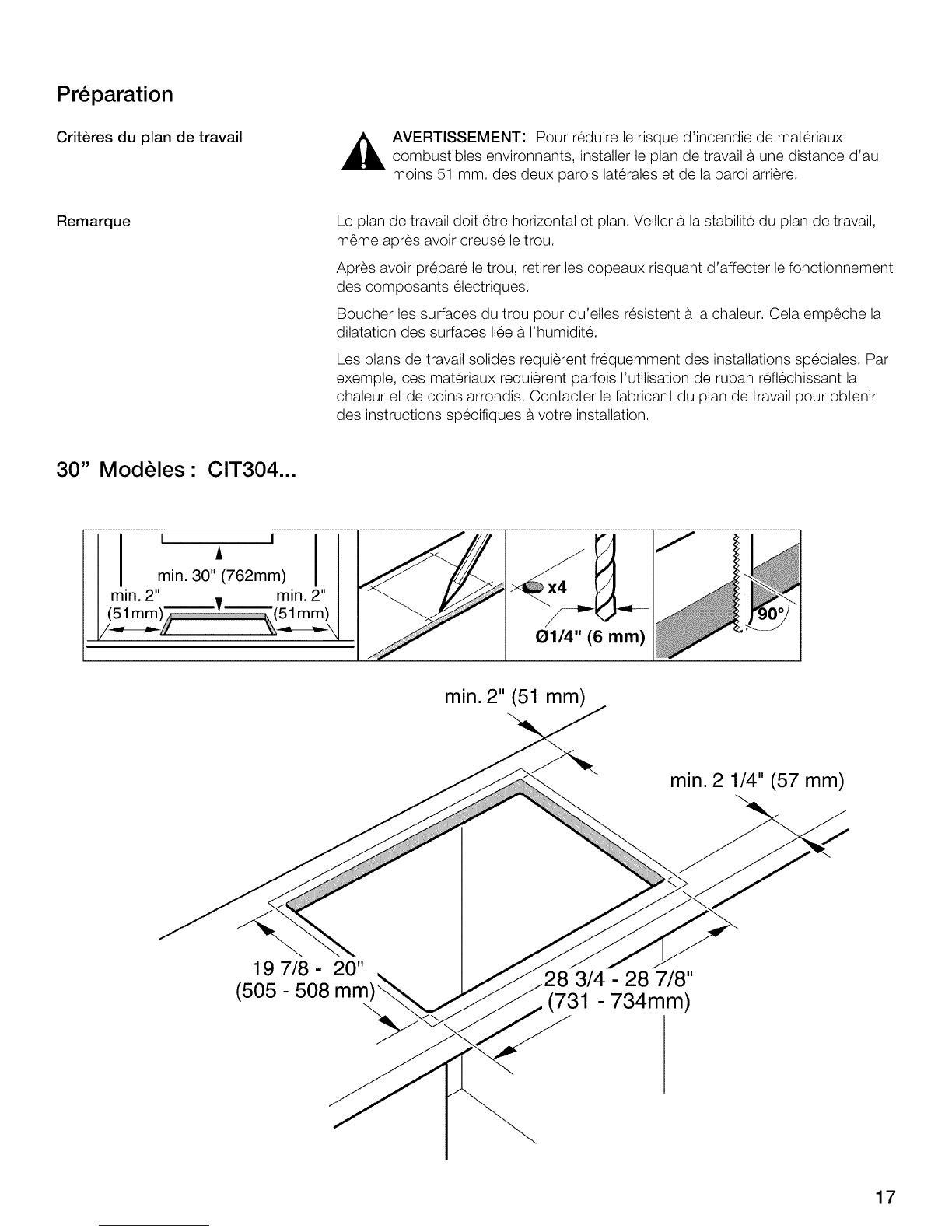

30" Models: 01T304...
I . I
min"301(762mm)I
min. 2" _ min. 2"
I (51 mm) 51 mm) Q1/4" (6 mm)
min. 2" (51 mm)
min. 2 1/4" (57 mm)
19 7/8 - 2O"
(505 - 508 mm .28 3/4 - 28 7/8"
(731 - 734mm)

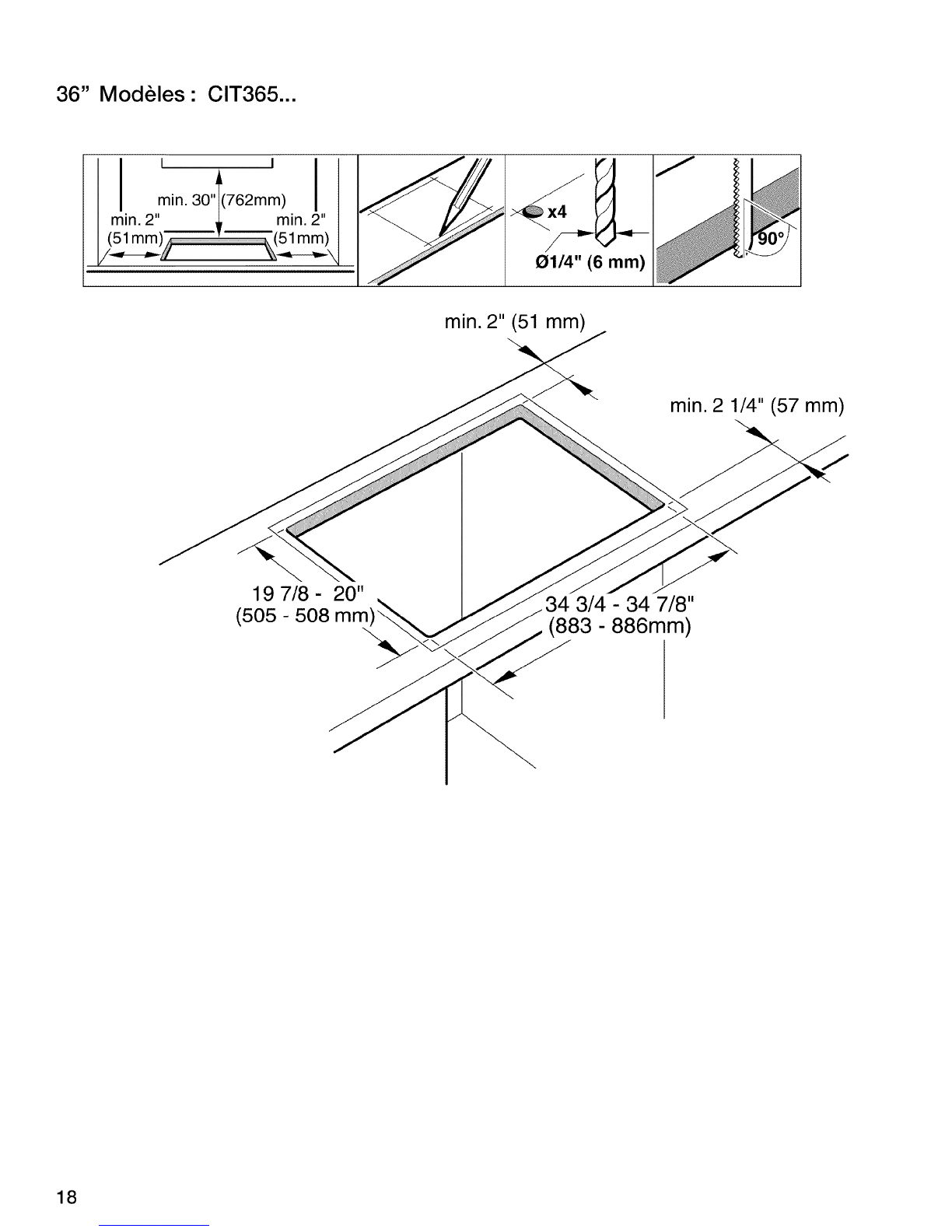

36" Models: CIT365...
I ,, I I
min" 30 1(762mm)I
min. 2" _ min. 2"
l/ // "_ \ Q1/4" (6 mm)
min. 2" (51 mm)
min. 2 1/4" (57 mm)
19 7/8 - 20"
(505 - 508 mm .34 3/4 - 34 7/8"
(883 - 886mm)
7

Cabinet requirements The distance from the top of the cooktop to the bottom of the cabinets above it
must be A -- 30" (762 mm) minimum. This distance can be reduced to
A -- 24" (610 mm) when the bottom of the wood or metal cabinet is protected by not
less than 1/4" (6.35 mm) flame retardant millboard, covered by no. 28 steel sheet
0.015" (0.4 mm) thick stainless steel, 0.024" (0.6 mm) aluminum, or 0.020" (0.5 mm)
thick copper, at a minimum. Verify that the cabinets above the cooktop are a
maximum of B--13" (330 mm) deep.
i Building side wall
Cooking surface

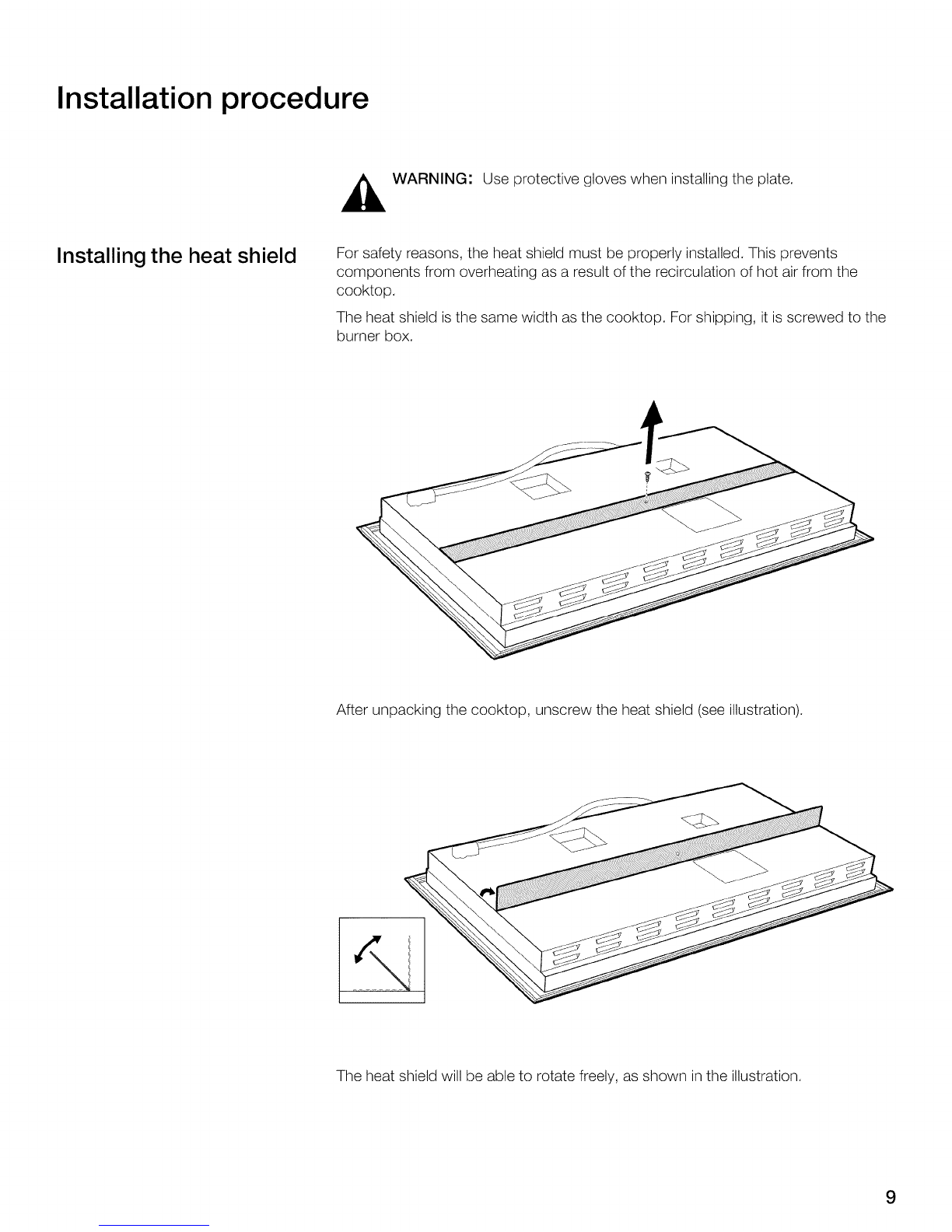

Installation procedure
_ WARNING: Use protective gloves when installing the plate.
Installing the heat shield For safety reasons, the heat shield must be properly installed. This prevents
components from overheating as a result of the recirculation of hot air from the
cooktop.
The heat shield is the same width as the cooktop. For shipping, it is screwed to the
burner box.
After unpacking the cooktop, unscrew the heat shield (see illustration).
The heat shield will be able to rotate freely, as shown in the illustration.
9

Secure the cooktop to
countertop Not to let the glass to "drop" into place and that it needs to be supported along a
broad area of the edges when "placing" the cooktop into the cutout.
I
7
The cooktop should be secured to the countertop using the clamping brackets
provided.
Before inserting the cooktop into the cutout, turn the cooktop upside down and
attach brackets to the burner box using the screws.
Place cooktop into cutout.
Insert clamping screw into the bracket and secure cooktop to countertop.
Use a wood block to protect fragile countertop materials.
10

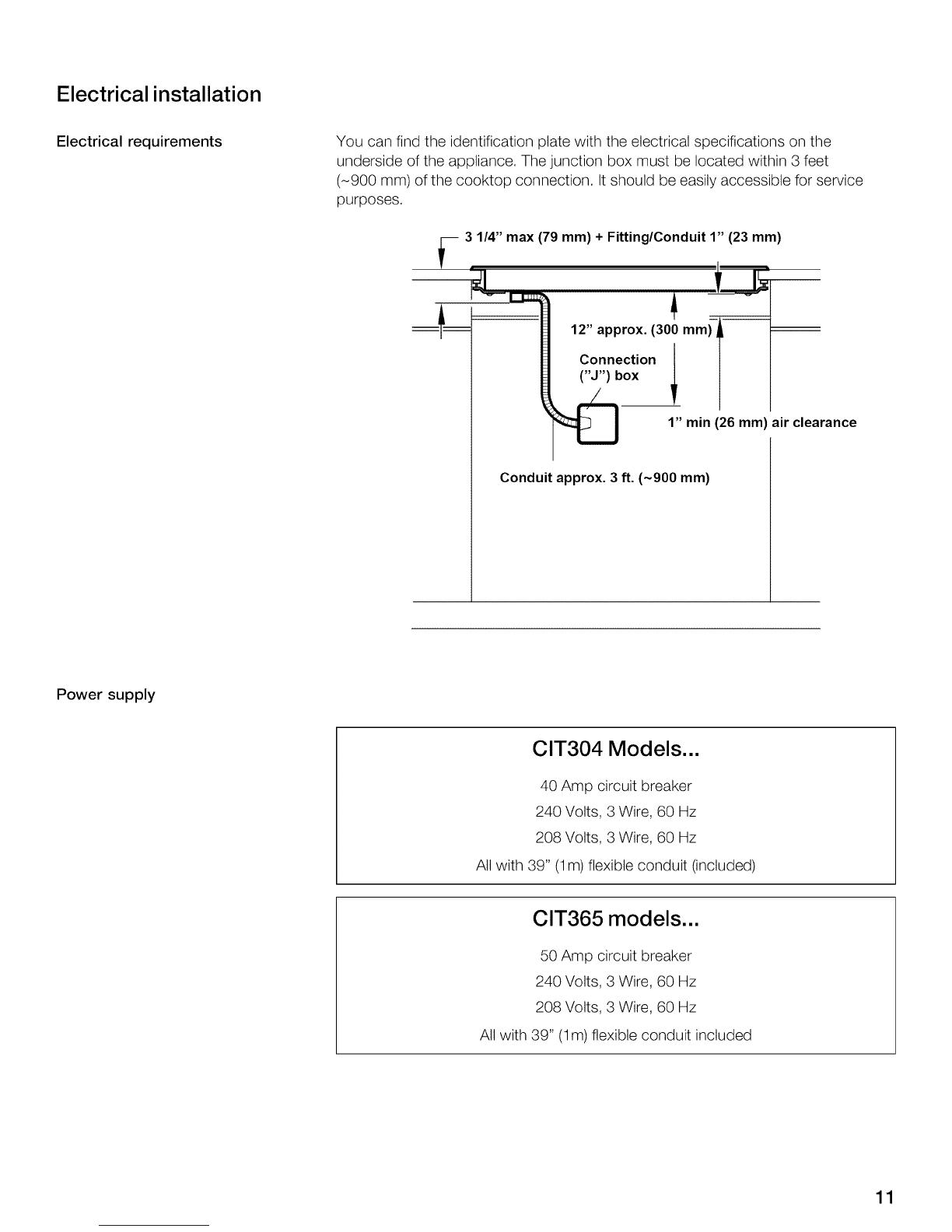

Electrical installation
Electrical requirements You can find the identification plate with the electrical specifications on the
underside of the appliance. The junction box must be located within 3 feet
(-900 mm) of the cooktop connection. It should be easily accessible for service
purposes.
3 1/4" max (79 mm) + Fitting/Conduit 1" (23 mm)
12" approx. (300 mm,_-A--
Connection
("J") box
_] 1" min (26 mm) air clearance
Conduit approx. 3 ft. (~900 mm)
Power supply
01T304 Models...
40 Amp circuit breaker
240 Volts, 3 Wire, 60 Hz
208 Volts, 3 Wire, 60 Hz
All with 39" (1m) flexible conduit (included)
01T365 models...
50 Amp circuit breaker
240 Volts, 3 Wire, 60 Hz
208 Volts, 3 Wire, 60 Hz
All with 39" (1m) flexible conduit included
11

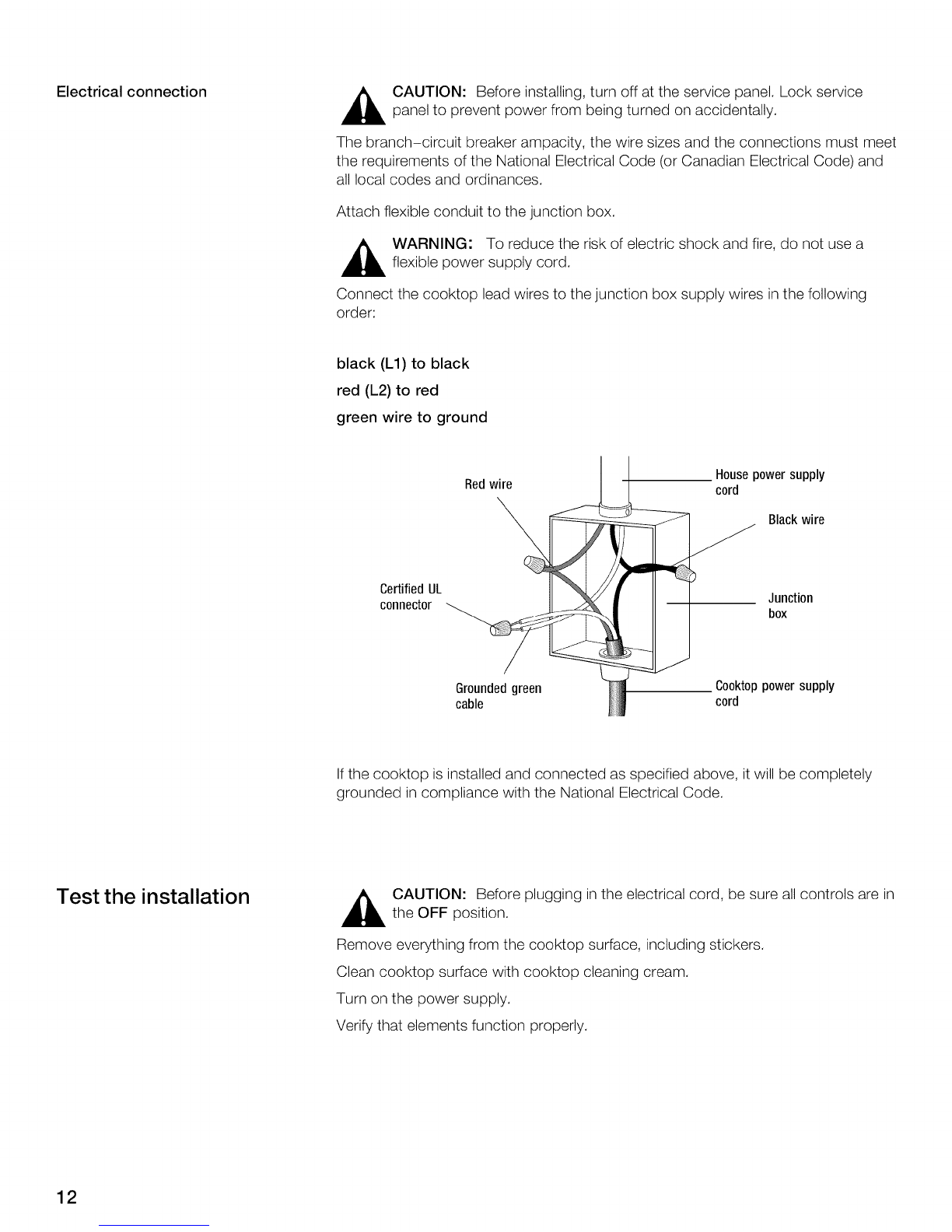

Electrical connection _ AUTION: Before installing, turn off at the service panel. Lock servicepanel to prevent power from being turned on accidentally.
The branch-circuit breaker ampacity, the wire sizes and the connections must meet
the requirements of the National Electrical Code (or Canadian Electrical Code) and
all local codes and ordinances.
Attach flexible conduit to the junction box.
_ ARNING: To reduce the risk of electric shock and fire, do not use aflexible power supply cord.
Connect the cooktop lead wires to the junction box supply wires in the following
order:
black (L1) to black
red (L2) to red
green wire to ground
Housepower supply
Redwire cord
Black wire
CertifiedUL
connector Junction
box
Groundedgreen Cooktoppower supply
cable cord
If the cooktop is installed and connected as specified above, it will be completely
grounded in compliance with the National Electrical Code.
Test the installation _ AUTION: Before plugging in the electrical cord, be sure all controls are inthe OFF position.
Remove everything from the cooktop surface, including stickers.
Clean cooktop surface with cooktop cleaning cream.
Turn on the power supply.
Verify that elements function properly.
12

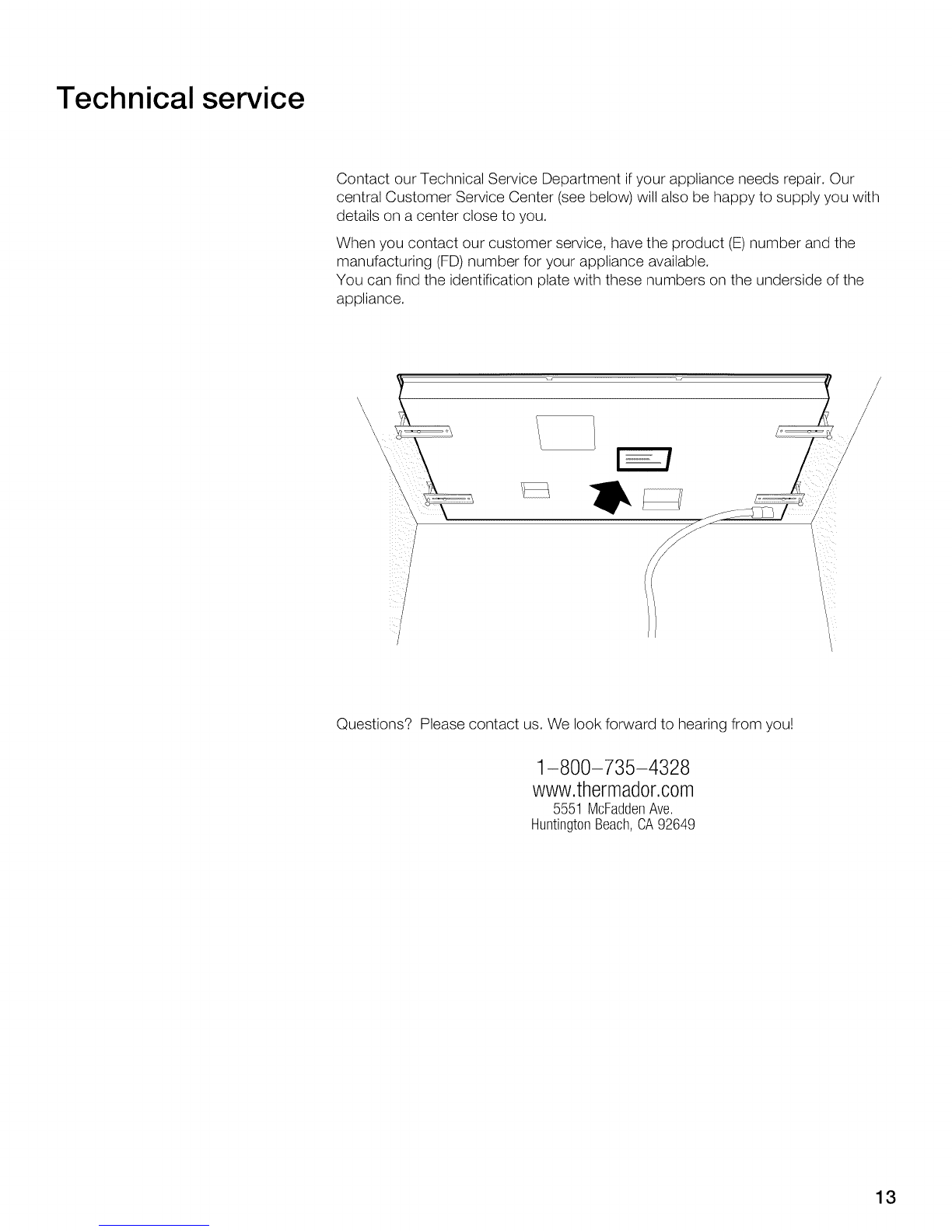

Technical service
Contact our Technical Service Department if your appliance needs repair. Our
central Customer Service Center (see below) will also be happy to supply you with
details on a center close to you.
When you contact our customer service, have the product (E)number and the
manufacturing (FD) number for your appliance available.
You can find the identification plate with these numbers on the underside of the
appliance.
\
Questions? Please contact us. We look forward to hearing from you!
1-800-735-4328
www.thermad0r.c0m
5551 McFaddenAve.
HuntingtonBeach,CA92649
13

Table de mati res
Instructions de securit6 importantes ................................
Avant de commencer ..............................................
Outils et pieces necessaires ..........................................
Pieces incluses ....................................................
Preparation .......................................................
Procedure d'installation ...........................................
Installation du defiecteur metallique ...................................
Fixer la plaque au plan de travail ......................................
Installation electrique ...............................................
Tester I'installation ..................................................
Service technique .................................................
15
16
16
16
17
20
20
21
22
23
24
14

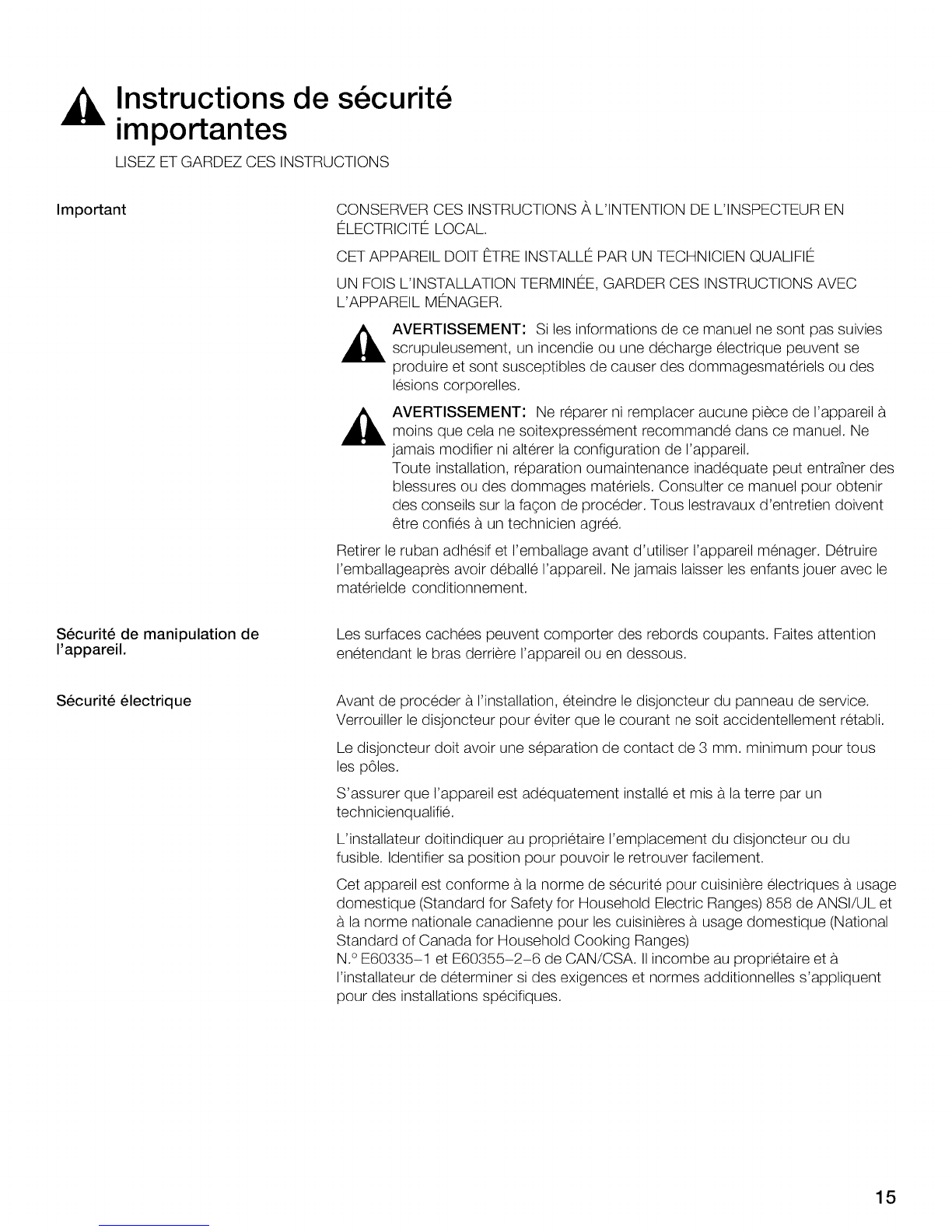

Instructions de s6curit6
importantes
LISEZ ET GARDEZ CES INSTRUCTIONS
Impo_ant CONSERVER CES INSTRUCTIONS A L'INTENTION DE L'INSPECTEUR EN
ELECTRICITE LOCAL.
CET APPAREIL DOlT ETRE INSTALLE PAR UN TECHNICIEN QUALIFIE
UN FOIS L'INSTALLATION TERMINEE, GARDER CES INSTRUCTIONS AVEC
L'APPAREIL MENAGER.
AVERTISSEMENT: Si les informations de ce manuel ne sont pas suivies
scrupuleusement, un incendie ou une decharge electrique peuvent se
produire et sont susceptibles de causer des dommagesmateriels ou des
lesions corporelles.
AVERTISSEMENT: Ne reparer ni remplacer aucune piece de I'appareil
moins que cela ne soitexpressement recommande darts ce manuel. Ne
jamais modifier ni alterer la configuration de I'appareil.
Toute installation, reparation oumaintenance inadequate peut entra_nerdes
blessures ou des dommages materiels. Consulter ce manuel pour obtenir
des conseils sur la fa_on de proceder. Tous lestravaux d'entretien doivent
_tre con%s a un technicien agre&
Retirer le ruban adhesif et I'emballage avant d'utiliser I'appareil menager. Detruire
I'emballageapres avoir deballe I'appareil. Ne jamais laisser les enfants jouer avec le
materielde conditionnement.
Securit6 de manipulation de
I'appareil. Les surfaces cachees peuvent comporter des rebords coupants. Faites attention
enetendant le bras derriere I'appareil ou en dessous.
Securit6 electrique Avant de proceder a I'installation, eteindre le disjoncteur du panneau de service.
Verrouiller le disjoncteur pour eviter que le courant ne soit accidentellement retabli.
Le disjoncteur dolt avoir une separation de contact de 3 mm. minimum pour tous
les p61es.
S'assurer que I'appareil est adequatement installe et mis a la terre par un
technicienquali%.
L'installateur doitindiquer au proprietaire I'emplacement du disjoncteur ou du
fusible. Identifier sa position pour pouvoir le retrouver facilement.
Cet appareil est conforme a la norme de securite pour cuisiniere electriques a usage
domestique (Standard for Safety for Household Electric Ranges) 858 de ANSI/UL et
la norme nationale canadienne pour les cuisinieres a usage domestique (National
Standard of Canada for Household Cooking Ranges)
N.° E60335-1 et E60355-2-6 de CAN/CSA. IIincombe au proprietaire et
I'installateur de determiner si des exigences et normes additionnelles s'appliquent
pour des installations specifiques.
15

Securit6 des appareils associes Pour _tre utilisee avec securite, la cuisiniere dolt _tre installee par un specialiste,
conformement aux instructions d'installation. L'installateur est responsable de tout
dommage qui resulterait d'une installation incorrecte.
Afin d'eviter tout risque de br01uresou d'incendie au contact des unites chaudes en
surface, ne pas laisser d'espace de stockage dans des armoires sur les unites de
surface. En cas de stockage dans des armoires, il est possible de reduire le risque
en installant une hotte se profilant horizontalement a 12, 7 cm minimum de la partie
inferieure de I'armoire.
Ne pas installer de refrigerateur, lave-vaisselle ou four sans systeme de ventilation
ou machine a laver pouvant se Ioger sous la plaque.
Remarque: Nous recommandons vivement I'installation d'un systeme de
ventilation avec cet appareil menager.
Avant de commencer
Outils et pi ces
necessaires ÷ Tournevis a t_te Phillips
÷ Crayon
÷ Perceuse avec broche de 6,35 mm
÷ Scie sauteuse
÷ Metre ruban
Remarque: IIfaudra eventuellement avoir recours a d'autres materiaux pour
I'installation sur des surfaces de travail solides. Prendre contact avec le fabricant de
la surface de travail.
Pi ces incluses ÷ Supports de fixation (4)
÷ Vis de fixation, N.° 10 de 63,8 mm (4)
÷ Vis autotaraudeuses, N.° 8 de 9,5 mm (4)
////
16

Preparation
Criteres du plan de travail _ VERTISSEMENT: Pour reduire le risque d'incendie de materiauxcombustibles environnants, installer le plan de travail a une distance d'au
moins 51 mm. des deux parois laterales et de la paroi arriere.
Remarque Le plan de travail dolt _tre horizontal et plan. Veiller a la stabilite du plan de travail,
m_me apres avoir creuse le trou.
Apres avoir prepare le trou, retirer les copeaux risquant d'affecter le fonctionnement
des composants electriques.
Boucher les surfaces du trou pour qu'elles resistent a la chaleur. Cela emp_che la
dilatation des surfaces liee a rhumidit&
Les plans de travail solides requierent frequemment des installations speciales. Par
exemple, ces materiaux requierent parfois rutilisation de ruban re%chissant la
chaleur et de coins arrondis. Contacter le fabricant du plan de travail pour obtenir
des instructions specifiques a votre installation.
30" Modeles: 01T304...
I . I
min"301(762mm)I
min. 2" _ min. 2"
I (51 mm) .... 51 mm)
min. 2" (51 mm)
min. 2 1/4" (57 mm)
19 7/8 - 2O"
(505 - 508 mm .28 3/4 - 28 7/8"
(731 - 734mm)
17

36" Modeles" CIT365...
I ,, I I
min" 30 1(762mm)I
min. 2" _ min. 2"
l/ // "_ \ Q1/4" (6 mm)
min. 2" (51 mm)
min. 2 1/4" (57 mm)
19 7/8 - 20"
(505 - 508 mm .34 3/4 - 34 7/8"
(883 - 886mm)
18

Criteres des armoires La distance de la partie superieure de la plaque a la partie inferieure des cabinets
situes au-dessus sera de A = 762 mm, au minimum. Cette distance peut _tre
reduite a A = 610 mm,, quand la partie inferieure de I'armoire en bois ou en metal
est protegee par un carton resistant au feu d'une epaisseur depassant 6,35 mm,,
recouvert d'une feuille en acier MSG N,°28, en acier inoxydable de 0,4 mm,
d'epaisseur, en aluminium de 0,6 mm, ou en cuivre de 0,5 mm, d'epaisseur au
minimum. Verifier si les armoires au-dessus de la grille ont un maximum de
B=330 mm, en profondeur,
Paroi posterieure _
de la construction ------ _ A
Paroi laterale de
la structure
Surface de cuisson
19

Proc6dure d'installation
_ VERTISSEMENT: Utiliser des gants de protection pour procederI'installation de la plaque.
Installation du deflecteur
metallique Pour des raisons de securite, le defiecteur metallique doit _tre installe correctement.
Ceci afin d'eviter la recirculation de I'air chaud en provenance de la plaque de
cuisson ainsi que la surchauffe de ses composants.
Le defiecteur metallique est aussi large que la plaque de cuisson.. Pour le transport,
le defiecteur est visse a la t61eenveloppante.
Apres le deballage de la plaque de cuisson, devisser le defiecteur metallique (voir
image).
Le defiecteur metaNique pourra toumer librement, comme le montre I'image.
2O

Fixer la plaque au plan
de travail Ne laissez pas "tomber" le verre de la plaque sur son emplacement, ii dolt _tre
supporte sur tout son perimetre par une large surface des bords au moment de
"placer" la table de cuisson sur la decoupe.
I
7
La plaque dolt _tre fixee au plan de travail avec les supports de fixation fournis.
Avant d'introduire la plaque dans la cavite, retourner la plaque et fixer les supports
la tOle enveloppante a I'aide des vis.
Placer la plaque dans la cavite.
Introduire les vis de fixation dans le support et fixer la plaque au plan de travail.
Utiliser un bloc en bois pour proteger les materiaux fragiles du plan de travail.
21
