Thermador Professional PRO-GRAND PD304 User manual

F o r T h e r m a d o r® P r o f e s s i o n a l D u a l F u e l R a n g e s
INSTALLATION
INSTRUCTIONS
Models
PD304
PD36
PD48

IMPORTANT: Save these instructions for the Local Gas Inspector’s use.
INSTALLER: Please leave these Installation Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
PLEASE READ ENTIRE INSTRUCTIONS
BEFORE PROCEEDING
For Massachusetts Installations:
1. Installation must be performed by a quali-
fied or licensed contractor, plumber or gas
fitterqualifiedorlicensedbythestate,prov-
inceorregionwherethisapplianceisbeing
installed.
2. Shut-off valve must be a “T” handle gas
cock.
3. Flexible gas connector must not be longer
than 36 inches.
IMPORTANT
Local codes vary. Installation, gas
connections and grounding must
comply with all applicable codes.
WARNING
Disconnect power before installing. Before
turningpowerON,besurethatallcontrolsare
in the OFF position.
WARNING:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or death.
— Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
■Do not try to light any appliance.
■Do not touch any electrical switch.
■Do not use any phone in your building.
■Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
■Ifyoucannotreachyourgassupplier,callthe
fire department.
— Installation and service must be performed
by a qualified installer, service agency or the
gas suppler.
TO REDUCE THE RISK OF TIPPING OF THE
APPLIANCE, IT MUST BE SECURED BY A
PROPERLY INSTALLED ANTI-TIP DEVICE.
VERIFYTHATTHEANTI-TIPDEVICEISENGAGED
PER INSTALLATION IN–STRUCTIONS. (NOTE:
ANTI-TIP DEVICE IS REQUIRED ON ALL 30"
AND 36" RANGES)
!
WARNING
■ ALL RANGES CAN TIP
■ INJURY TO PERSONS
COULD RESULT
■ INSTALL ANTI-TIP
DEVICE
■ SEE INSTALLATION
INSTRUCTIONS
Note: This range is NOT designed for installa-
tion in manufactured (mobile) homes or for
installation in Recreational Park Trailers.

Page 1
Model PD304 Model PD364GL
Low Back Model LB36R Model PD484GG Low Back Model LB48R
Contents
Introduction..............................................................................2
Important Installation Information............................................3
Step 1: Ventilation Requirements.............................................4
Step 2: Cabinet Preparation...............................................5 – 9
Step 3: Unpacking, Moving
and Placing the Range ....................................... 10 – 11
Step 4: Installing Anti-Tip Device................................... 12 – 13
Step 5: Gas Requirements and Hookup.................................14
Step 6: Electrical Requirements,
Connection and Grounding .............................15 – 17
Step 7: Backguard Installation................................................18
Step 8: Door Installation.........................................................19
Step 9: Test and Adjustment..................................................20
To Clean and Protect Exterior Surfaces..................................21
Installer Checklist ...................................................................22

Page 2
TheThermadorProfessional®Rangesarefreestand-
ing units available in a number of configurations.
Model PD304 is equipped with four sealed gas
surface burners and a 30-inch electric convection
self-cleaning oven with broil capability. Models
PD364GD,PD364GL,andPD366featureagascook-
ingsurfacewithfoursealedgassurfaceburnerswith
either a griddle or grill or six sealed gas surface
burnersplusa36-inchelectricconvection,self-clean-
ing oven with broil capability. Models PD484GG,
PD486GD, and PD486GL feature a gas cooking
surfacewithfoursealedburners,griddleandgrill,six
sealed burners and a griddle, or six sealed burners
and a grill. PD48 Ranges provide a large electric
convection, self-cleaning oven (the same as used in
thePD36Ranges)andasmallelectricovenwithbread
proofing and warming features as well as bake and
broil capability.
CAUTION
When connecting the unit to propane gas,
makecertainthepropanegastankisequipped
withitsownhigh-pressureregulatorinaddition
to the pressure regulator supplied with the
range. The maximum gas pressure to this
appliancemustnotexceed14.0incheswater
column (34.9 millibars) from the propane
gas tank to the pressure regulator.
GAS TYPE VERIFICATION
Verify the type of gas supplied to the location.
Ensure that the appliance is connected to the type
ofgasforwhichitiscertified.Allmodelsarecertified
for use with natural gas. Field conversion of the
appliance for use with propane gas supply will
require a conversion kit.
IMPORTANT
• A backguard must be utilized when there is less
than a 12” horizontal clearance between com-
bustible materials and the back edge of the
range. The Thermador Low Back backguard
must be ordered separately and installed at the
rear of the range. For island installations and
otherinstallationswithmorethan12”clearance,
anoptionalstainlesssteelIslandTrimisavailable
to cover the backguard mounting flanges.
• Verifythattheapplianceiscorrectforthetypeof
gas being provided. Refer to Step 5 on Page 16
before proceeding with the installation.
Introduction

Page 3
This appliance has been tested in accordance with
ANSI Z21.1 Current Issue Standard for Household
Cooking Appliances (USA).
It is strongly recommended that this appliance be
installed in conjunction with a suitable overhead
vent hood. (See Step 1 for Ventilation Require-
ments.) Due to the high heat capability of this unit,
particular attention should be paid to the hood and
duct work installation to assure it meets local build-
ing codes.
CAUTION:
(1) Whenconnectingtheunittopropanegas,
make certain the propane gas tank is
equippedwithitsownhighpressureregu-
lator in addition to the pressure regulator
supplied with this unit. The maximum gas
pressuretothisapplianceisnottoexceed
14.0inches(37mb)watercolumnfromthe
propane gas tank regulator.
(2) This unit is designed as a cooking appli-
ance.Basedonsafetyconsiderationsnever
use it for warming or heating a room
.
Important Installation Information
CAUTION
To eliminate risk of burns or fire caused by
reaching over heated surface units, cabinet
storagelocatedabovethesurfaceunitsshould
be avoided.
Check local building codes for the proper method of
appliance installation. Local codes vary. Installation, elec-
trical connections and grounding must comply with all
applicable codes. In the absence of local codes the
appliance should be installed in accordance with the
National Fuel Gas Code ANSI Z223.1/NFPA54-current
IssueandNationalElectricalCodeANSI/NFPA70-current
Iissue.
This appliance is equipped with an intermittent/
interruptedignitiondevicethatcyclesthetwofarleft
surface burners on and off when in the ExtraLow®
setting.

Step 1: Ventilation Requirements
Itisstronglyrecommendedthat
a suitable exhaust hood be in-
stalled above the range.
Downdraftventilationshouldnot
be used. The table below indi-
cates the Thermador hoods, by
model number, that are recom-
mended for use with all ranges.
1. Select Hood and
Blower Models:
• For wall installations, the hood
width must, at a minimum, equal
the width of the range cooking
surface. Where space permits, a
hood larger in width than the
cooking surface may be desir-
ableforimprovedventilationper-
formance.
•Forislandinstallations,thehood
widthshould,ataminimum,over-
hang the range cooking surface
by 6" on both sides.
CAUTION:
Ventilationhoodsandblowersare
designed for use with single wall
ducting. However, some local
buildingcodesorinspectorsmay
requiredoublewallducting.Con-
sult local building codes and/or
localagencies,beforestarting,to
assure that hood and duct instal-
lation will meet local require-
ments.
• Hood blower speeds should be
variable to reduce noise and loss
of heated or air conditioned
household air when maximum
ventilation is not required. Nor-
mally,themaximumblowerspeed
is only required when using the
grill.
2. Hood Placement:
•Forbestsmokeelimination,the
loweredgeofthehoodshouldbe
installed a minimum of 30" to a
maximumof36"abovetherange
cooking surface. (See Fig. 1).
• If the hood contains any com-
bustible materials (i.e. a wood
covering), it must be a minimum
of36"abovethecookingsurface.
3.ConsiderMake-UpAir:
• Due to the high volume of ven-
tilation air, a source of outside
replacementairisrecommended.
This is particularly important for
tightly sealed and insulated
homes.
•Aqualifiedheatingandventilat-
ing contractor should be con-
sulted.
Page 4
Notes: * For wall installations where adequate space is available, the installer or user may elect to
use a hood that is wider than the range cooking surface. This may be particularly
beneficial for those cases, such as a long duct run or heavy usage of the grill, in which
improved capturing of the cooking exhaust is desired.
** Thermador offers a choice of remote (VTR1000Q or VTR1400Q) or in-hood (VTN1000Q)
blowers for use in wall installations.
VTR1000Q, VTR1400Q
or VTN 1000Q
VTR1000Q, VTR1400Q
VTR1000Q, VTR1400Q
36" RANGE HTNI42YS
HNI42YS
PHI48ZS
VTR1000Q
VTR1400Q
VTR1000Q
VTR1400Q
PH36ZS, 42ZS
PHE36,42
HNW36YS
HNW42 YS
WALL INSTALLATION ISLAND INSTALLATION
RANGE WIDTH HOOD* BLOWER** HOOD BLOWER
30" RANGE PH30ZS
PHE30,36 VTR1000Q, VTR1400Q
OR VTN 1000Q
HTNI42YS
HNI42YS
PHI48ZS
VTR1000Q,
VTR1400Q
48" RANGE PH48ZS
PHE48,60 VTR1000Q VTR1400Q
or VTN 1000Q
HTNI48YS
HNI48YS
HTNI54YS
HNI54YS
PHI60ZS
VTR1400Q

Page 5
Step 2: Cabinet Preparation
1. The range is a free standing unit. If the unit is to
be placed adjacent to cabinets, the clearances
shown in Fig. 1 are required. The same clear-
ancesapplytoislandinstallations,exceptforthe
overhead cabinets, which must have a space
wideenoughtoaccepttheflaredislandhood,as
indicated in Fig. 1.
2. The 36" ranges may be recessed into the cabi-
nets beyond the edge of the front face of the
oven (See Figures 2A and 2B).
3. The gas and electrical supply should be within
the zones shown in Fig. 3A.
4. The maximum depth of over head cabinets in-
stalled on either side of the hood is 13".
5. Any openings in the wall behind the range and
in the floor under the range must be sealed.
6. When there is less than a 12" horizontal clear-
ance between combustible material ∆and the
back edge of the range above the cooking
surface, a Thermador Low Back or High Shelf
backguardmustbeinstalled.(SeeFig.2A).When
clearanceto combustible material ∆is over12",
a Thermador Island Trim may be used. (See Fig.
2B). Figures 2A and 2B indicate the space
required for each type of backguard.
7. Always keep appliance area clear and free from
combustiblematerials, gasoline and other flam-
mable vapors and liquids.
8. Do not obstruct the flow of combustion and
ventilation air to the unit.
CAUTION
In these installations, the door and cabinet
can cause a pinching hazard.
NOTE: The maximum depth of over head cabinets
installed on either side of the hood is 13".
A 36-inch minimum clearance is required between
the top of the range and the bottom of an unpro-
tected cabinet. A 30-inch minimum distance is nec-
essary when the bottom of the wood or metal
cabinet is protected by not less than 1/4 inch of a
flame retardant material covered with not less than
No. 28 MSG sheet steel, 0.015 inch (0.4 mm) thick
stainless steel, 0.024 inch (0.6 mm) aluminum, or
0.020 inch (0.5 mm) thick copper. Flame retardant
materials bear the mark:
UNDERWRITERS LABORATORIES INC.
CLASSIFIED MINERAL AND FIBER BOARDS
SURFACE BURNING CHARACTERISTICS
Followed by the flame spread and smoke ratings.
These designations are shown as “FHC (FIame
Spread/Smoke Developed).” Materials with “O”
flamespreadratingsareflameretardant.Localcodes
may allow other flame spread ratings.

Step 2: Cabinet Preparation
For Electrical and Gas Supply Zone,
see Figure 3A. Zone size and position
differ according to the model.
Cooking
Surface
CAUTION: See
Figs. 2A, and 2B.
36" Min. to
combustible
material ∆,
from cooking
surface
∆as defined in the “National Fuel Gas Code” (ANSI Z223.1, Latest
Edition). *The range height is adjustable. The level of the range top
must be at the same level or above the countertop level.
∆As defined in the “National
Fuel Gas Code” (ANSI
Z223.1, Latest Edition).
Range width
30", 36" or 48"
➛
Min. Distance Between Overhead
Cabinets of Combustible Material ∆
30" Range – 30"
36" Range – 36"
48" Range – 48"
➛
13" Max.
Cabinet
Depth }
➛
➛
➛
12" Min. to
combustible
side wall
material ∆,
(both sides)
18" Min.
Page 6
➛
➛
FIG. 1 Cabinet Clearances
CAUTION:
Do not install the Models
PD30 and PD48 ranges such
that the oven door is flush
withthecabinet face.
Aflush
installation could result in
damage to the cabinets due
to exposure to high heat.
*35-3/8" Min. Range Height
with Leveling Legs fully
retracted
*36-3/4" Max. Range Height
with Leveling Legs fully
extended.
30" Min. to 36" Max.
bottom of overhead Hood
to cooking surface (36" if
hood contains combustible
materials ∆)
➛
➛
➛
•
➛
➛
30" or 36" Wide Hood
42" or 48" for Island
36" or 42" Wide Hood
42" or 48" for Island
48" or 60" Wide Hood
48", 54" or 60" for Island
}
}
}
For 30" Ranges
For 36" Ranges
For 48" Ranges

Page 7
Step 2: Cabinet Preparation
FIG. 2A - Side View
3/8" space
➛
FIG. 2B - Side View
4"
➛
➛
1/8"
NOTE:
For Island trim installations,
counter surface should have a
cantileveredgemeetingtheback
section of the island trim
accessory.
NOTE:
If an inner wall is used under the
cantilever counter top, there
should be a 1/8" gap from the
rearoftherangetotheinnerwall.
➝
➝
Cantilever Countertop

GAS AND ELECTRIC SUPPLY ZONES:
Step 2: Cabinet Preparation
Page 8
NOTE:
A Manual Gas
Shut-Off Valve
(not shown)
must be easily
accessible
through an
adjacent cabinet
without moving
the range.
Typical placement
shown.
Other placement of Gas
Supply and Electrical
Receptacle within the
Electrical and Gas Supply
Zone is
acceptable.
FIG. 3A Gas & Electrical Supply Zone for Dual-Fuel Ranges
The Dual-Fuel ranges may be con-
nected to the power supply with a
range supply cord kit or by hard-
wiring to the power supply. It is the
responsibility of the installer to pro-
vide the proper wiring components
(cordorconduitandwires)andcom-
plete the electrical connection as
dictated by local codes and ordi-
nances, and/or the National Electric
Code. The units must be properly
grounded. Refer to Step 6 for de-
tails.
The range must be connected only
to the type of gas for which it is
certified. If the range is to be con-
nected to propane gas, ensure that
the propane gas supply tank is
equipped with its own high pressure
regulator in addition to the pressure
regulatorsuppliedwiththerange.(See
STEP 5.)
3/4" Flex Line to
Appliance
B
A
Electrical
Supply Zone
Gas
Supply
Zone
1/2"
N.P.T. 240 VAC Receptacle
(Shown) or Junction
Box
2" Maximum
Protrusion from Wall
for Gas Supply
➛
➛
➛
➛
➛
➛
C
➛
➛
D
Model A B C D
PD30 8" 12" 10" 6-1/2"
PD36 10-1/2" 15" 10-1/2" 6-1/2"
PD48 16-1/2" 16" 15-1/2" 6-1/2"
Floor

Step 2: Cabinet Preparation
ELECTRICAL SUPPLY, DUAL FUEL RANGES
Installation of Dual Fuel ranges must
beplanned so thatthe rough-in of the
junctionboxforthereceptacleorcon-
duit connection will allow maximum
clearance to the rear of the unit.
Whenthepowersupplycord(notsup-
plied) or conduit is connected to the
mating receptacle or junction box
cover, the combined plug/receptacle
or junction box cover/conduit con-
nector should protrude no more than
2-1/4 inches from the rear wall. See
Figure 3B.
Thisis especially criticalif the junction
box in the wall will be directly behind
the junction box on the unit when the
FIG. 3B WALL CONNECTION
Power Cord & Receptacle Junction Box & Conduit
Page 9
unit is installed. Refer to Figure 9 on
Page 16 for location of junction box
on unit. To minimize binding when
the unit is connected to the recep-
tacle or junction box, orient the re-
ceptacle or conduit connector, and
slide back into position.

Page 10
Chart A 30" Range 36" Range 48" Range
Shipping Weight 335 lbs. 444 lbs. 584 lbs.
Weight without 285 lbs. 390 lbs. 524 lbs.
packing materials
Without door(s), 215 lbs. 295 lbs. 395 lbs.
burner caps, front kick
panel and oven racks
Step 3: Unpacking,Moving and Placing the Range
CAUTION
Proper equipment and ad-
equate manpower must be
used in moving the range to
avoid damage to the unit or
the floor. The unit is heavy
and rests on adjustable steel
legs.
• Therangehasanapproximate
shipping weight as shown in
Chart A. It is recommended
thatthegrates,griddle,burner
caps,frontkickpanelandoven
racksberemovedtofacilitate
handling. This will reduce the
weight as shown in Chart A
and allow the range to pass
through 30" doorways. See
Figs.2Aand2BonPage7.Do
not remove the grill or
griddle assemblies.
• Remove the outer carton and
packing material from the
shipping base. The dual fuel
rangesare held tothe skid by
four (4) bolts (see Fig. 4 and
5). After removing the bolts
the range must be lifted and
removed from the skid.
• Remove angle-mounting
brackets from range. This re-
quires the installer to remove
two screws holding each
bracket then remove bracket
and reinstall screws.
To Install door, see Page 19.
FIG. 4 – Removal of Two Front
Shipping Bolts FIG. 5 – Removal of Two Rear
Shipping Bolts
➛
Left Rear
Shipping Bolt

Page 11
• Due to the weight, a dolly with soft wheels
should be used to move this unit. The weight
mustbe supported uniformlyacross the bottom
(See Fig. 6).
• After transporting the professional range by
dolly close to its final location, the range can be
tipped back and supported on the rear legs
whilethedollyiscarefullyremoved.THEFLOOR
UNDER THE LEGS SHOULD BE PROTECTED
(WOOD STRIPS, CARPET, PANELING, ETC.)
BEFORE PUSHING THE UNIT INTO POSI-
TION. The anti-tip device must be installed
(STEP4),gasandelectricconnectionsshouldbe
made (STEPS 5 and 6), and the backguard in-
stalled (STEP 7) before the range is placed in its
final position.
•For proper performance the professional
rangemust belevel.(Itisveryimportantfor
all products that have the griddle feature).
The range is leveled by adjusting the legs
with a wrench. Replace the kick panel and
install oven door. It is important that the
two(2)screwsretainingthekickpanelare
securetopreventaccidentalaccesstohot
surfaces.
• Ensure that the burner caps are correctly
seated on the burner bases of the range.
Step 3: Unpacking,Moving and Placing the Range
Fig. 6- Dolly Positioning

Page 12
Step 4: Installing Anti-Tip Device
Tools Needed for Installation of Anti-Tip Device:
- Screwdriver, Phillips - Hammer
- Drill, electric or hand - Pencil or other marker
- Measuring tape or ruler
- 1/8" drill bit (wood or metal wall or floor)
- 3/16" carbide-tipped masonry drill bit (concrete or concrete block wall or floor)
- 3/16" anchors, drywall or concrete, 2 each (not required if mounting bracket is being attached to solid wood or metal)
For all 30" and 36" ranges, an anti-tip device must be installed as per these
instructions.
WARNING
RANGE TIPPING HAZARD
• All ranges can tip and injury could result.
Topreventaccidentaltippingoftherange,
attach it to the floor, wall or cabinet by
installing the Anti-Tip Device supplied.
• A risk of tip-over may exist if the appli-
ance is not installed in accordance with
these instructions.
• If the range is pulled away from the wall
for cleaning, service or any other reason,
ensure that the Anti-Tip Device is prop-
erlyreengagedwhentherangeispushed
back against the wall. In the event of
abnormal usage (such as a person stand-
ing, sitting, or leaning on an open door),
failuretotakethisprecautioncouldresult
in tipping of the range. Personal injury
might result from spilled hot liquids or
from the range itself.
CAUTION
PROPERTY DAMAGE
• Contactaqualifiedinstallerorcontractor
todeterminethepropermethodfordrill-
ing holes through the wall or floor mate-
rial (such as ceramic tile, hardwood, etc.)
• Do not slide the range across an unpro-
tected floor.
• Failure to follow these instructions may
result in damage to wall or floor cover-
ings.
WARNING
ELECTRICAL SHOCK HAZARD
• Use extreme caution when drilling holes
into the wall or floor. There may be con-
cealedelectricalwireslocatedbehindthe
wall or under the floor.
• Identify the electrical circuits that could
beaffectedbytheinstallationoftheAnti-
Tip Device, then turn off power to these
circuits.
• Failure to follow these instructions may
result in electrical shock or other per-
sonal injury.
WARNING
• ALL RANGES CAN
TIP
• INJURY TO PER-
SONS COULD RE-
SULT
• INSTALL ANTI-TIP
DEVICES PACKED
WITH RANGE
• SEE INSTALLATION
INSTRUCTIONS

Page 13
Step 4: Installing Anti-Tip Device
PD30 and PD36 Dual Fuel Ranges (Figures 8A and 8B)
Thermador Service Part No. Qty Description
415078 4 Screw, Phillips, #10 x 1-1/2"
487310 1 Anti-Tip Bracket, Floor-Mounted
IMPORTANT INSTALLATION
INFORMATION:
• The anti-tip bracket may be attached to a solid wood
cabinet having a minimum wall thickness of 3/4".
• The thickness of the wall or floor may require use of
longer screws, available at your local hardware store.
• In all cases, at least two (2) of the bracket mounting
screws must be fastened to solid wood or metal.
• Use appropriate anchors when fastening the mount-
ing bracket to any material other than hardwood or
metal.
• Prepare holes at fastener locations as identified be-
low:
-For walls, wall studs, or floors composed
of solid wood or metal, drill 1/8" pilot holes.
-For walls or floors composed of drywall, sheet-
rock or other soft materials, drill 3/16" holes to
a minimum depth of 1-3/4", then tap plastic
anchors into each of the holes using a hammer.
-For walls or floors composed of concrete or
concrete block, drill 3/16" holes to a minimum
depth of 1-3/4", then tap concrete anchors into
each of the holes using a hammer.
-For walls or floors having ceramic tile covering,
drill 3/16" holes through the tile only, then drill
into the material behind the tile as indicated
immediately above.
• If the range is moved to a new location, the Anti-Tip
Device must be removed and reinstalled.
Figure 8A - Mounting Anti-tip Bracket
MOUNTING ANTI-TIP BRACKET
The alternative floor mounted bracket shall be
installed as follows:
a) Place bracket on floor in position shown in
Figure 8B.
b) Secure to floor or wall stud.
c) Later, when the unit is installed,the adjustable
leg will slide under the bracket.
Figure 8B
2-1/2"
➛
➛
from edge of range
2-1/2"
➛
➛
(typical -
either side)

Page 14
Step 5: Gas Requirements and Hookup
CAUTION
When connecting unit to propane gas, make
certain the propane gas tank is equipped with
its own high pressure regulator in addition to
the pressure regulator supplied with the appli-
ance. The pressure of the gas supplied to the
applianceregulatormustnotexceed14"(37mb)
water column.
Verify the type of gas being used at the installation
site.Asshippedfrom the factory, all units areconfig-
uredforuseonnaturalgas.Forusewithpropanegas,
the unit must be converted. Field conversion for use
withpropane must onlybe done by qualifiedservice
personnel. Contact the dealer where the unit was
purchased or Thermador (800/735-4328). The field
conversion kit for all Professional Dual Fuel (PD
series) ranges is Thermador Model PLPKIT.
HOOK UP
• A manual gas shut-off valve must be installed
externaltotheappliance,inanaccessiblelocation
from the front, for the purpose of shutting off the
gassupply.Thesupplylinemustnotinterferewith
the back of the unit. Make sure the gas supply is
turned off at the manual shut-off valve before
connecting the appliance.
• The range is supplied with its own pressure regu-
lator that has been permanently mounted within
the range body.
• Use 3/4" flex line to connect between the gas
supply and the appliance manifold pipe, which
exits the upper left rear of the appliance. The
appliance manifold pipe connection is 3/4" NPT.
(See Photo A.) Use caution to avoid crimping the
3/4" flex line when making bends.
• The gas supply connections should be made by a
competenttechnicianandinaccordancewithlocal
codes or ordinances. In the absence of a local
code,theinstallationmustconformtotheNational
FuelGasCodeANSIZ223.1/NFPA54-currentissue.
• AlwaysusepipedopeorTeflon®tapeonthepipe
threads, and be careful not to apply excessive
pressure when tightening the fittings.
• Leak testing of the appliance shall be in accor-
dance with the manufacturer's instructions.
• Turnongasand check supply line connections for
leaks using a soap solution. Do not use a flame of
any sort to check for leaks.
Natural Gas Requirements:
Inlet Connection: 3/4" N.P.T. external;
1/2" internal N.P.T.
(Minimum 3/4" dia. flex line.)
Supply Pressure: 6" to 14" water column.
(14.9 to 37 mb)
Manifold Pressure: 5" water column (12.5 mb)
Propane Gas Requirements:
Inlet Connection: 3/4" N.P.T. external;
1/2" internal N.P.T.
(Minimum 3/4" dia. flex line.)
Supply Pressure: 11" to 14" water column.
(27.4 mb to 37 mb)
Manifold Pressure: 10" water column (24.9 mb)
Use 3/4" flex line to connect be-
tweenthegassupplyandtheappli-
ancemanifoldpipe,whichexitsthe
upper left rear of the appliance.

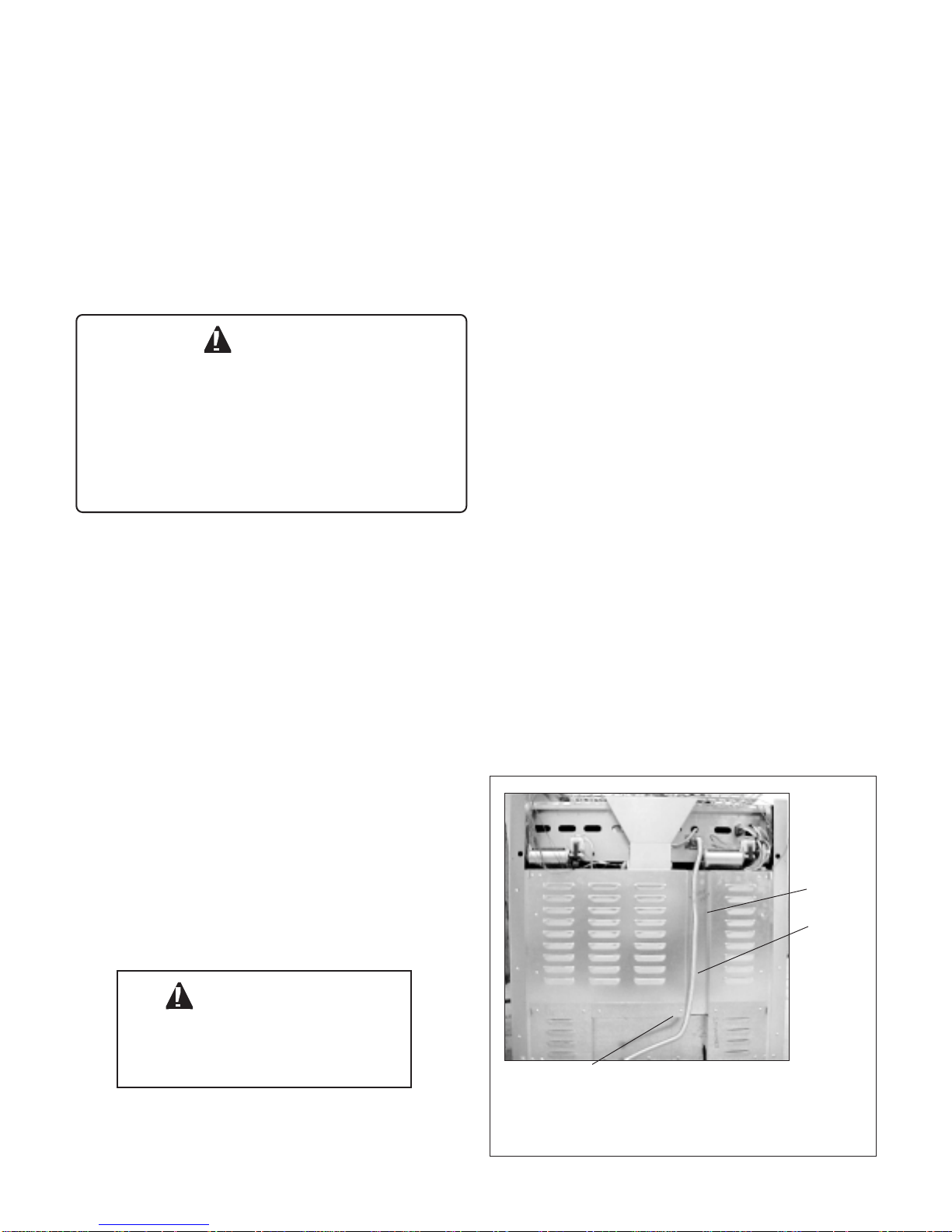

Photo A
Channel
for gas
line
➛
➛
WARNING
Gasline cannot be runinsideback
cover of range. Run gas line in
channel in back of range.

Page 15
Step 6: Electrical Requirements,Connection & Grounding
CHART D: POWER SUPPLY WIRE–RATING AND SIZE REQUIREMENTS
MODEL VOLTAGE TEMPERATURE CONDUCTOR SIZE, AWG
NUMBER RATING, MIN. RATING L1, L2 NEUT GROUND
PD304 300 VAC Type T or Equal 10 12 10
PD36 300 VAC Type T or Equal 10 12 10
PD48 300 VAC Type T or Equal 8 10 8
Chart C: Electrical Supply Circuit Requirements
MODEL NUMBER VOLTAGE CIRCUIT RATING FREQUENCY PHASE
PD304 120/240 VAC 35 Amps 60 Hz. Single
PD36 120/240 VAC 40 Amps 60 Hz. Single
PD48 120/240 VAC 50 Amps 60 Hz. Single
• Prior to servicing appliance, always disconnect
applianceelectricalsupplycord,ifsoequipped,
from wall receptacle. If appliance is hard-wired
to power supply, disconnect power to unit by
turning off the proper circuit breaker or discon-
necting the proper fuse.
CAUTION
The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve
duringanypressuretestingofthegassupplypipingsystemattestpressuresequaltoorlessthan1/2psig(3.5kPa.).
The appliance and its individual shut off valve must be disconnected from the gas supply piping system during
any pressure testing of the system at test pressures in excess of 1/2 psig (3.5kPa.).
Whencheckingthemanifoldgaspressure,theinletpressuretotheregulatorshouldbeatleas6.0"(14.9mb)W.C.
for natural gas or 11.0" (27.4 mb) for propane.
Do not attempt any adjustment of the pressure regulator.
• For the PD Dual-Fuel Ranges, a neutral supply
wire must be provided from the power source
(breaker/fusepanel)becausecriticalrangecom-
ponents, including the surface burner spark
reignition module, require 120 VAC to operate
safely and properly. An improper 120/240 VAC
power supply will cause malfunction, damage
thisappliance,andpossiblycreateaconditionof
shock hazard. If the correct power supply circuit
is not provided, it is the responsibility and obli-
gation of the installer or user to have proper
power supply connected. This must be accom-
plished in accordance with all applicable local
codes and ordinances by a qualified electrician.
In the absence of local codes and ordinances,
the power supply connection shall be in accor-
dance with the National Electric Code.
• Observe all governing codes and ordinances
when grounding. In the absence of these codes
or ordinances observe National Electrical Code
ANSI/NFPA No. 70 Current Issue. See Pages 16
and 8 for grounding method.
• Electrical wiring diagrams and schematics have
been placed in the toe kick area of the range for
access by a qualified service technician.
• The PD Dual Fuel Ranges may be connected to
a 120/208 VAC power supply.
DualFuelrangemodelsPD304,PD36andPD48can
be connected or hard-wired to the power supply as
described on Page 16.

Page 16
Step 6: Electrical Requirements,Connection & Grounding
Dual Fuel models must be connected to the power supply utilizing one of the following methods. For all methods of
connection,thelength of the cordorconduit/wiring must allow theunittobe slid completely outofthe cabinet without
havingto unplug ordisconnect the unitfrom the powersupply. Recommended minimumfree length ofcord or conduit
isfour feet. Electricalinstallations and groundingmust be inaccordance with alllocal codes andordinances, and/or the
National Electric Code, as applicable.
• 4-CONDUCTOR CORD -
NORMALLY, A UNIT MUST
BE CONNECTED TO THE
POWER SUPPLY WITH A 3-
POLE, 4-CONDUCTOR
CORD KIT RATED 125/250
VOLTS, 50 AMPERES, AND
MARKED FOR USE WITH
RANGES. The cord kit must
beattachedtotherangejunc-
tion box with a strain relief
which will fit a 1" diameter
hole.Ifnotalreadyequipped,
thecordmusthave1/4"faston
closed-loop lugs attached to
thefreeendsoftheindividual
conductors, preferably sol-
dered in place.
• PERMANENT
CONNECTION (HARD
WIRING) - Units may be hard
wired to the power supply.
The installer must provide
approved flexible aluminum
conduit, 3/4" trade size,
maximum 6 feet long. Locate
thejunctionboxontherearof
the unit and remove cover.
Refer to Fig. 9. Remove the
ground strap retaining screw
and bend the ground strap
up. Refer to Fig. 10. The
conduit must be installed to
the junction box using an
approvedconduitconnector.
Wiring for the unit is to be
broughtinto the junction box
through the conduit. Refer to
Chart D on Page 15 for rating
of wiring and sizing of indi-
vidual conductors. The ends
of the wiring must have a
1/4" faston closed-loop lugs
attached,preferablysoldered
in place. Make the connec-
tionstotheterminalblockpro-
vided.Securethegroundlead
to the junction box with the
screw previously used to se-
cure the ground strap. Refer
toFig.11. Thefreeendofthe
conduit must be connected
to a junction box provided in
the gas and electrical supply
zone, as shown in Figure 3A
on Page 8.
• 3-CONDUCTOR CORD –
WHERE LOCAL CODES
ANDORDINANCESPERMIT
GROUNDING THROUGH
NEUTRAL, AND CONVER-
SIONOFSUPPLYTO4WIRE
ISIMPRACTICAL,UNITMAY
BE CONNECTED TO THE
POWER SUPPLY WITH A
FIG. 9 – Location of Junction
Box on dual fuel ranges.
GAS SUPPLY
JUNCTION
BOX
Flexible electrical conduit or
4-connector Appliance Cord
Gas
supply
channel
➛
3-POLE, 3-CONDUCTOR
CORD KIT RATED 125/250
VOLTS, 50 AMPERES, AND
MARKED FOR USE WITH
RANGES. The cord kit must
beattachedtotherangejunc-
tion box with a strain relief
which will fit a 1" diameter
hole.Ifnotalreadyequipped,
the cord must have a
1/4" faston closed-loop lugs
attached to the free ends of
the individual conductors,
preferably soldered in place.

Page 17
Supply Wire
➝
Flat Washer
➝
➝
FIG. 10 Upper Nut
Cupped Washer
➝
Step 6: Electrical Requirements,Connection & Grounding
A3-or4-conductor supply may be connected tothe
terminal block.
3-WIRE LEAD CONNECTION
1. Removeuppernutsonlyfromtheterminalblock
studs.Donotremovenutswhichsecurerange
internal wiring leads.
2. Secure the neutral, grounded wire of the supply
circuit, to the center stud of the terminal block
with nut. (See Fig. 11).
3. SecuretheL1(black)andL2(red)powerleadsto
the outside terminal block studs (brass colored)
with nuts.
4. Tighten nuts securely.
4-WIRE CONNECTION
1. Removeuppernutsonlyfromtheterminalblock
studs.Donotremovelowernutswhichsecure
range internal wiring leads.
2. Remove ground strap screw and bend the strap
up as shown in Fig. 12)
3. Secure the neutral wire to the center stud of the
terminal block with nut.
4. SecuretheL1(black)andL2(red)powerleadsto
the outside terminal studs (brass colored) with
nuts.
5. Secure the bare copper ground lead to the
rangechassisusingthegroundscrewpreviously
used for the ground strap. Be sure that neutral
and ground terminals do not touch.
6. Tighten all connections securely.
Bend Ground Strap Up
➛
Ground Wire
FIG. 13
➛
➛
L1 Black L2 Red
FIG. 11
FIG. 12
➛
L2 Red
L1 Black
Neutral White
➛
➛
Ground Strap
3 Wire Connection
Conductor Securement
Secure Neutral Wire

Page 18
The backguard must be attached before sliding the
range into the final installed position. A Low Back or
High Shelf backguard must be installed when there
is less than a 12" clearance between combustibles
andthebackoftherangeabovethecookingsurface.
(See Fig. 2a and 2b on Page 7).
AnIslandTrimisavailableforcoveringthebackguard
mountingflangesforislandinstallations,wherethere
isa minimumof12"ofhorizontalclearancebetween
combustiblesandthebackoftherange.(SeeFig.2b
on Page 7).
The backguard is inserted, as shown in Fig. 14, into
the guide channels on the back of the range. Secure
the backguard with the (4) sheet metal screws pro-
vided.
Step 7: Backguard Installation
Chart E: BACKGUARD KIT MODEL NUMBERS
RANGE MODEL NO. 9" STD. LOW BACK 12" LOW BACK 22" HIGH SHELF 3-3/4" ISLAND TRIM
PD304 Included with Range N/A HS30R IT30R
PD36 N/A LB36R HS36R IT36R
PD48 N/A LB48R HS48R IT48R
FIG. 14
➛
➛
Backguard
Installed
Front of Unit
