INSTALLATION
INSTRUCTIONS
For Built-in Refrigerators
INSTRUCCIONES DE
4"
INSTALACION
Para los refrigeradores
empotrados
INSTRUCTIONS
D'INSTALLATION
Pour r6frig6rateurs encastr6s
Bottom Mount Models/
Modelos con montaje inferior/
Modeles superposes
KBULT3655E, KBURT3655E
KBULT3665E, KBURT3665E
KBULT3675E, KBURT3675E
2327571A

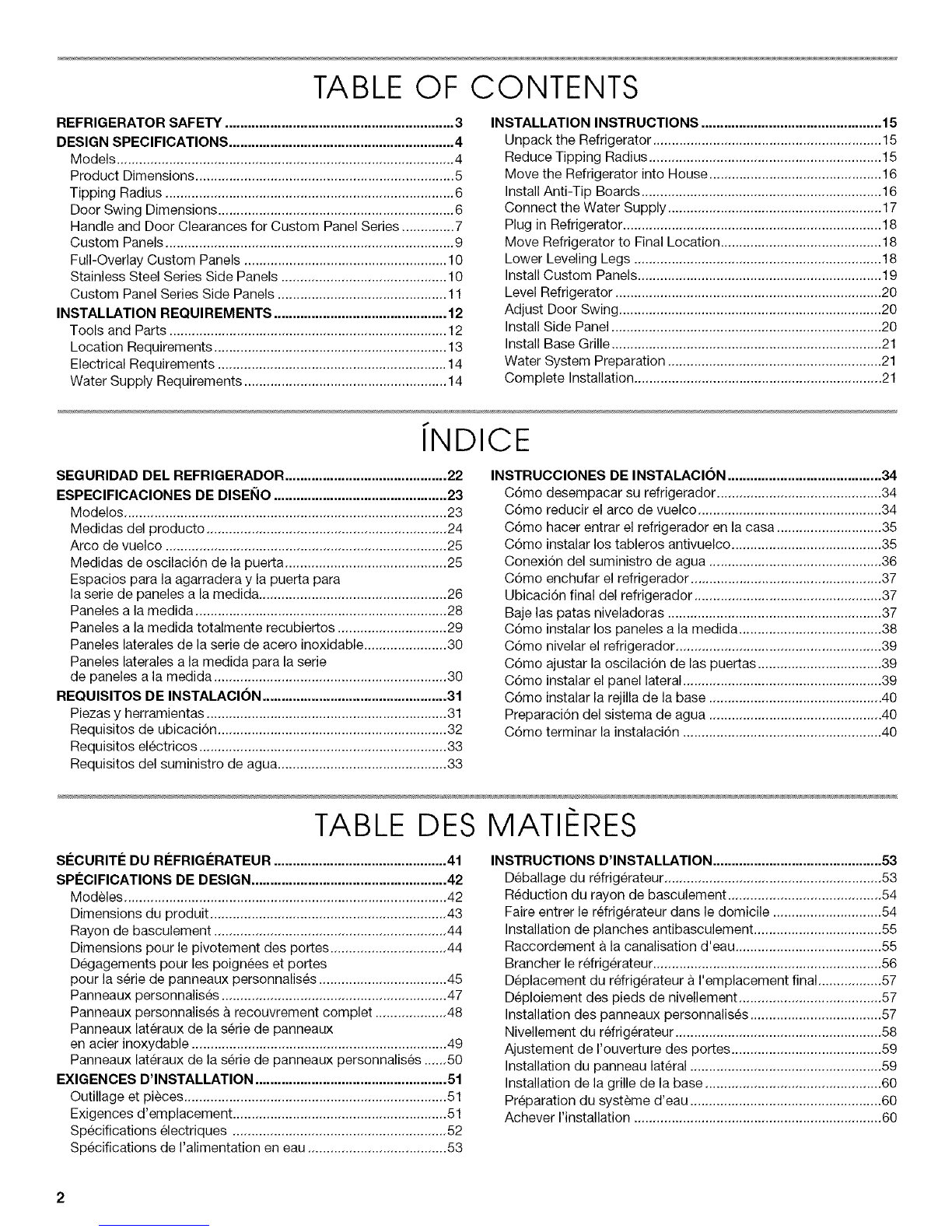

TABLE OF CONTENTS
REFRIGERATOR SAFETY ............................................................. 3
DESIGN SPECIFICATIONS ............................................................ 4
Models .......................................................................................... 4
Product Dimensions ..................................................................... 5
Tipping Radius ............................................................................. 6
Door Swing Dimensions ............................................................... 6
Handle and Door Clearances for Custom Panel Series .............. 7
Custom Panels ............................................................................. 9
Full-Overlay Custom Panels ...................................................... 10
Stainless Steel Series Side Panels ............................................ 10
Custom Panel Series Side Panels ............................................. 11
INSTALLATION REQUIREMENTS .............................................. 12
Tools and Parts .......................................................................... 12
Location Requirements .............................................................. 13
Electrical Requirements ............................................................. 14
Water Supply Requirements ...................................................... 14
INSTALLATION INSTRUCTIONS ................................................ 15
Unpack the Refrigerator ............................................................. 15
Reduce Tipping Radius .............................................................. 15
Move the Refrigerator into House .............................................. 16
Install Anti-Tip Boards ................................................................ 16
Connect the Water Supply ......................................................... 17
Plug in Refrigerator ..................................................................... 18
Move Refrigerator to Final Location ........................................... 18
Lower Leveling Legs .................................................................. 18
Install Custom Panels ................................................................. 19
Level Refrigerator ....................................................................... 20
Adjust Door Swing ...................................................................... 20
Install Side Panel ........................................................................ 20
Install Base Grille ........................................................................ 21
Water System Preparation ......................................................... 21
Complete Installation .................................................................. 21
[NDICE
SEGURIDAD DEL REFRIGERADOR ........................................... 22
ESPECIFICACIONES DE DISEI_IO .............................................. 23
Modelos ...................................................................................... 23
Medidas del producto ................................................................ 24
Arco de vuelco ........................................................................... 25
Medidas de oscilaci6n de la puerta ........................................... 25
Espacios para la agarradera y la puerta para
la serie de paneles a la medida .................................................. 26
Paneles a la medida ................................................................... 28
Paneles a la medida totalmente recubiertos ............................. 29
Paneles laterales de la serie de acero inoxidable ...................... 30
Paneles laterales a la medida para la serie
de paneles a la medida .............................................................. 30
REQUISITOS DE INSTALACION ................................................. 31
Piezas y herramientas ................................................................ 31
Requisites de ubicaci6n ............................................................. 32
Requisites electricos .................................................................. 33
Requisitos del suministro de agua ............................................. 33
INSTRUCCIONES DE INSTALACION ......................................... 34
C6mo desempacar su refrigerador ............................................ 34
C6mo reducir el arco de vuelco ................................................. 34
C6mo hacer entrar el refrigerador en la casa ............................ 35
C6mo instalar los tableros antivuelco ........................................ 35
Conexi6n del suministro de agua .............................................. 36
C6mo enchufar el refrigerador ................................................... 37
Ubicaci6n final del refrigerador .................................................. 37
Baje las patas niveladoras ......................................................... 37
C6mo instalar los paneles a la medida ...................................... 38
C6mo nivelar el refrigerador ....................................................... 39
C6mo ajustar la oscilaci6n de las puertas ................................. 39
C6mo instalar el panel lateral ..................................................... 39
C6mo instalar la rejilla de la base .............................................. 40
Preparaci6n del sistema de agua .............................................. 40
C6mo terminar la instalaci6n ..................................................... 40
TABLE DES MATIERES
SI_CURITI_ DU RI_FRIGI_RATEUR .............................................. 41
SpI_CIFICATIONS DE DESIGN .................................................... 42
Modeles ...................................................................................... 42
Dimensions du produit ............................................................... 43
Rayon de basculement .............................................................. 44
Dimensions pour le pivotement des portes ............................... 44
Degagements pour les poignees et portes
pour la serie de panneaux personnalises .................................. 45
Panneaux personnalises ............................................................ 47
Panneaux personnalises a recouvrement complet ................... 48
Panneaux lateraux de la serie de panneaux
en acier inoxydable .................................................................... 49
Panneaux lateraux de la serie de panneaux personnalises ......50
EXIGENCES D'INSTALLATION ................................................... 51
Outillage et pieces ...................................................................... 51
Exigences d'emplacement ......................................................... 51
Specifications electriques ......................................................... 52
Specifications de I'alimentation en eau ..................................... 53
INSTRUCTIONS D'INSTALLATION ............................................. 53
Deballage du refrigerateur .......................................................... 53
R_duction du rayon de basculement ......................................... 54
Faire entrer le refrigerateur dans le domicile ............................. 54
Installation de planches antibasculement .................................. 55
Raccordement a la canalisation d'eau ....................................... 55
Brancher le rdrigerateur ............................................................. 56
Deplacement du refrigerateur a I'emplacement final ................. 57
Deploiement des pieds de nivellement ...................................... 57
Installation des panneaux personnalises ................................... 57
Nivellement du refrigerateur ....................................................... 58
Ajustement de I'ouverture des portes ........................................ 59
Installation du panneau lateral ................................................... 59
Installation de la grille de la base ............................................... 60
Preparation du systeme d'eau ................................................... 60
Achever I'installation .................................................................. 60

REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Tip Over Hazard
Refrigerator is top heavy and tips easily when not
completely installed.
Keep doors taped closed until refrigerator is
completely installed.
Use two or more people to move and install
refrigerator.
Failure to do so can result in death or serious injury.

DESIGN SPECIFICATIONS
Stainless Steel Series
Features stainless steel exterior styling with professional-look
door handles.
KBULT3661A KBURT3661A
KBULT3655E KBURT3655E
KBULT3665E KBURT3665E
Custom Panel Series
Features factory-installed, traditional style trim to provide a
"framed" look. This series requires the installation of custom
panels that are not included.
KBULT3675E KBURT3675E
TRIMKITBM -Trimless Trim Kit
On the Custom Panel Series, you can create a "frameless" look
using full-overlay custom panels. You will need to order a
Trimless Trim Kit for 36" Bottom Mounts TRIMKITBM. This
accessory kit contains parts to replace the factory trim.
Full-overlay custom panels and handles are required but not
included in the accessory kit. Create the panels according to
the specifications in the "Full-Overlay Custom Panels" section.
You can order a set of Thermador's Curved Handles or select
handles from other sources. For door clearances, see "Handle
and Door Clearances for Custom Panel Series."
Handle Kits
For use with Stainless Steel models. You can purchase a handle
type other than that provided with your model. See your dealer for
Details.
CURVHNDL10 - Curved Handle Kit
PROHNDL160 - Pro Handle Kit
PROHNDL165 - Designer Pro Handle Kit
MASTHNDL55 - Masterpiece Handle Kit
EXTHANDBM -Extended Handle Kit for 36" Bottom-mount
This kit may be required if you insatll a custom raised panel. See
"Handle and Door Clearances for Custom Panel Series."

. IO _)
42" (I06.7crn}Models
Side View
• The depth from the front of the top grille to the back of the
refrigerator cabinet is 25%" (64.5 cm).
• The power cord is 84" (213 cm) long.
• The water line attached to the back of the refrigerator is 5 ft
(1.5 m) long. Height dimensions are shown with leveling legs
extended 1/8"(3 mm) below the rollers.
41 I/4"
(105 cm)
.833/8"
(211.8 cm)
v_
__ 25 a/8''
-- (64.5 cm)
231/2"
(59.7 cm)
84" (213.4 cm)
Power Cord
J,r ___"31/2" (8.9 cm)
*When leveling legs arefully extended to 11/4"(3.2cm) below
rollers, add 11/8"(2.9 cm) to the height dimensions.
TopView
36" (91.4 cm) Models
351/4"
(89.5 cm)
25%"
(64.5 crn)
T
25%"
(64.5 crn)
Front View
• Width dimensions were measured from trim edge to trim
edge.
• Height dimensions are shown with leveling legs extended 1/8"
(3 mm) below the rollers.
36" (91.4 cm) Models
-_ ....................................................................................... rr_ _
"_-- 361/4'' (92 cm)
.833/8"
(211.8 cm)
*When leveling legs are fully extended to 11/4"(3.2 cm) below
rollers, add 11/8"(2.9 cm) to the height dimensions.

42" (106.7 cm) Models
Illllllllllllll_lllllllllllllllllllll
_-_ 421/4'' (107.3 cm)_
.833/8"
(211,8 cm)
_'L
*When leveling legs are fully extended to 11/4"(3.2 cm) below
rollers, add 11/s"(2.9 cm) to the height dimensions.
'l" " "!
Be sure there is adequate ceiling height to stand the refrigerator
upright when it is moved into place.
• The dolly wheel height must be added to the tipping radius
when a dolly is used.
• If needed, the tipping radius can be reduced. See "Reduce
Tipping Radius."
Side Tipping Radius
.J ii
1
1
/
jl
/
/
i
/
/
!
/9ova"
_ (229,9 cm) ...................................................................................'
A. Tip this side only
The location must permit the door to open to a minimum of 90°.
Allow 41/2'' (11.4 cm) minimum space between the side of the
refrigerator and a corner wall.
NOTE: More clearance may be required if you are using overlay
panels, custom handles, or extended handles on a Classic
model.
To adjust the door swing, see "Adjust Doors."
36" (91.4 cm) Models
23"
_. (58cm)
'\ \ \
51 _
(130 cm)
59 II
(150cm)

I....._........_........___t_•I¢_ _"__"CI_.......¸¸¸_f_',J_,s,_' /¸,,.._"_i_:::_"_.,,.__o_,.__-_o _:::__:_t_J_._"_ _'_,,._l S+__.__"_'_/ r>l¸-_._.......P _ i! ::>_"@__'_" _'
If you are installing custom panels, the panels must allow certain clearances for the handles and for the doors to swing open. An
Extended Handle Kit may be required ifyou install a custom raised panel. See the "Models" section under "Design Specifications."
Custom
Panel
Series
Handle
Optional
Extended
Handle
Door
Custom Panel
Handle Dimensions
Actual Size
)
......... V4"(6.35 mm)
W' (1.3 cm)
3/4"(1.9 cm)
1" (2.5 cm)
1V4"(3.2 cm)
11/2"(3.8 cm)
13/4"(4.4 cm)
2" (5.1 cm)
21/4"(5.7 cm)
2W' (6.4 cm)
23/4"(7 cm)
3" (7.6 cm)
1" 2" 3"
(2.5 cm) (5.1 cm) (7.6 cm)

I
O
O
O
Hinge
®
NOTE: To use full-overlay custom panels, you
must order the Trimless Trim Kit. Additionally,
you will need to order either a set of
Thermador's Handles or select handles from
another source. See the "Models" section of
"Design Specifications" for more information
and specific kit.
Custom Panel Series
Clearances for
Full-Overlay Custom Panels
Door Swing 110 °
Actual Size
Refrigerator 1"
Side Trim (2.5cm)
3/4"
(1.9 cm)
1/2"
(1.3 cm',
1/4"
(6.35mm)
2 Ij
(5.1 cm)
13/4" ',
(4.4 cm)i
11/2'' ,
(3.8 cm)',
11/4'' ,
(3.2 cm)',
1/4" (6.35 mm)
W' (1.3 cm)
3/4"(1.9 cm)
1" (2.5 cm)
11/4"(3.2 cm)
11/2"(3.8 cm)
Panel

.... b
If you plan to install custom wood panels, you will need to create
the panels yourself or consult a qualified cabinetmaker or
carpenter. See dimension drawings for panel specifications.
IMPORTANT: Panels weighing more than recommended may
cause damage to your refrigerator.
NOTE: Dimensions shown have a (+j 1/lO"(1.5 mm) tolerance.
Panels that are more than 1/4"(6.35 mm) thick must be routed. If
panels are less than 1/4"(6.35 mm) thick, install a filler panel
between the door and the decorative panel.
Top Grille Panel
The top panel should not weigh more than 10 Ibs (4.5 kg) total
weight.
341/2"
(87.63_) -----_1
[_(18.4 cm)
Refrigerator and Freezer Panels
The freezer panel should not weigh more than 30 Ibs (13.5 kg)
total weight. The refrigerator panel should not weigh more than
60 Ibs (27 kg) total weight.
341/4"
(87 cm)
341/4''
(87 cm)
49"
(124.5 cm)
201/8 ''
(51,1 cm)
/::[p
Top Grille Panel -Routing Requirements
Top and bottom edges of the top panel should be edge routed
1/2"(1.3 cm) and %" (9.5 mm), respectively. Both ends should be
edge-routed %" (2.2 cm) as shown.
v,!l / li v,
(6,35 ram) (6.35 mrn)
max. _ Top Top _ max.
Grille Grille
(2.2 cm) (2,2 cm)
NOTE: When creating a panel with face detail, the offsets will be
hidden and must be accounted for in order to center the detail in
the top grille.
,_--- 1/4"
(6,35 mm) max.
1/2" J Top
(I.3 cm)
min.
Center face
detail between
offsets
%" L
(9.5 ram)
min. Bottom
_ _-- I/4"
--(6.35 mm) max.
Door Panel -Routing Requirements
If an extended handle kit is used, then routing the handle side of
the door and drawer panels is not required. See "Handle and
Door Clearances for Custom Panel Series" for more information
on ordering extended handles.
If the standard handle is used, route the entire handle side 31/4''
(8.25 cm) to allow for finger clearance. Then route the other side
1" (2.54 cm).
Standard Handle -Top View
d)
_d
-r
31/4 ''
(8.25 cm)
mlrl.
Door
Panel
2" (5 cm)
min,
Hinge Side
__J
Door [_
Panel
1"
(2.54 cm)

Door Panel -Side View
I
C
r_
I::::_J i ....t..)' V 0 _'i J•'_,.s (..,"",. ,j _'-•_I........__;IZ/ /:) d] _'__'_i _'_
Custom overlay panels allow you to blend the exterior of your
refrigerator into the overall kitchen decor and to use custom
handles for additional design flexibility•
NOTE: To use full-overlay custom panels, a Trimless Trim Kit for
36" Bottom-mounts is required (TRIMKITBM). Full-overlay
custom panels and handles are required but not included. Create
the panels according to these specifications• You may order
Thermador's Curved Handle Kit (CURVEDHAND) or select
handles from another source• See the "Models" section under
"Design Specifications" for additional information.
The custom panels must have backer panels attached in order to
mount them to the refrigerator• It is most common to work with
three panels, as shown in the following graphic: a decorative
overlay panel, a 1/8" (3.18 mm) spacer panel or spacer strips and
a 1/4"(6.35 mm) backer panel•
I Overlay Panel Spacer Panel I
i
_r_ Backer Panel
5/8,,to 3/4,, i_.
(15.88 to 1/4"
19.05 ram) W' (6.35 ram)
(3.18 mm)
Spacer Panel t'-
1/8"
-f-i "
I _ 1" minimum
I (2.54 cm). _......
I
I _ D_,r/G ril[e Tri,'o
_I _Offset Dimension
In some cases, your cabinet manufacturer may choose to work
with one panel routed for the different dimensions. Follow these
panel dimension and placement instructions to be sure that the
custom overlay panels will fit properly•
IM PORTANT:
• The total weight of the refrigerator door overlay panel cannot
exceed 60 Ibs (23 kg).
The total weight of the freezer drawer overlay panel cannot
exceed 30 Ibs (13.5 kg).
The total weight of the top grille overlay panel cannot exceed
10 Ibs (4.5 kg).
Tominimize panel weight, you may use 2" (5.08 cm) spacer strips
around the perimeter in place of full-sheet solid spacer panels.
The spacer strips must be set in at least 1" (2.54 cm) from the
top, bottom and sides edges of the backer panel. If you use
spacer strips, it is also recommended that you use two - 2"
(5.08 cm) strips horizontally centered for added support.
I_353/s ''
(89,85 cm)
73/e''
I(18.73 cm)
(2,.58omli LLTCZ
I341/2, '
(87,63 cm)
50"
(127.0 cm)
t
209A6 ''
(52.23 cm)
,1
l345/16"
(87.15 cm)
49Vs"
(124.78 cm)
_91--- 34V2"
(87.63 cm)
Bottom Offset
7/16"(11,1 ram)
-I
-:-I 3,.°,, :!
- I (87"5°mtm':'
203/16" !...............
(51.28 cm) j [___{....... ......
Bottom Offset
t/le" (1,6 mm)
_- Center
Backer
i Panel
................left to
right
_ Bottom Offset
1" (2.54cm)
Center
Backer
------Panel
left to
right
Center
Backer
Panel
left to
right
Custom side panels may be needed when not enough space is
available to have cabinets on both sides of the refrigerator or
when the refrigerator is placed at the end of a cabinet run. You
may choose an Inset, Flush, or Recessed Inset panel installation.
Refrigerator and Side Trim Dimensions
The width and height of a side panel are determined by the type
of installation you are planning.
NOTES:
• The dimensions shown are actual product dimensions
and may not reflect the needed panel installation
dimensions.
• The side panel should be a minimum of 1/_,,(1.27 cm) thick
to avoid warping•
• If the opening depth is 25" (63.5 cm) or more, you may
want to install a support board on the rear wall.
10

Refrigerator
241/8''
(61.3 cm)
j 231,J,0
(60.3 cm) 231/2'.
(59,7 cm)
Side Trim
1/4"
(6.35 mm)
3/16"
(4.7 mrn)
11/64"
(4.5 mrn)
i
==
7/32"
(5.5 mm)
1a/a2"(16ram) (16,7ram)
Inset Installation Dimensions
1. Measure the distance from point A (as shown) to the back
wall. Add 7/32"(5.6 mm) to this measurement to allow the side
panel to fit into the trim.
2. If the panel is more than 1/4"(6.35 mm) thick, route the front
edge to allow the side panel to fit into the trim.
Recessed Inset Installation Dimensions
1. Measure the distance from point A (as shown) to back wall.
2. Route the front edge of the support board or attach a 1/4"
(6.35 mm) board to hold the panel in the cabinet side trim.
t:J b
Custom side panels may be needed when not enough space is
available to have cabinets on both sides of the refrigerator or
when the refrigerator is placed at the end of a cabinet run. You
may choose an Inset or Recessed Inset panel installation.
Refrigerator and Side Trim Dimensions
The width and height of a side panel are determined by the type
of installation you are planning.
NOTES:
• The dimensions shown are actual product dimensions
and may not reflect the needed installation dimensions.
• The side panel should be a minimum of 1/2"(1.27 cm) thick
to avoid warping.
• If the opening depth is 25" (63.5 cm) or more, you may
want to install a support board on the rear wall.
Refrigerator
Overlay
Flush Installation Dimensions
1. Measure the distance from point A (as shown) to the back
wall.
2. Attach the support board with a screw or adhesive that is
compatible with aluminum and wood.
A .....
11

Side Trim
3/8"
(93 mm)
'J'°"1!
(1.5 ram)
1/8"
(3,2 ram) __
3/16"
--_ _ (4,5 mm)
2. If the panel is more than %" (9.5 mm) thick, route the front
edge to allow the side panel to fit into the trim.
U
Recessed Inset Installation Dimensions
1. Measure the distance from point A (as shown) to back wall.
2. Route the front edge of the support board or attach a %"
(9.5 mm) board to hold the panel in the cabinet side trim.
Inset Installation Dimensions
1. Measure the distance from point A (as shown) to the back
wall. Add r/32"(0.8 mm) to this measurement to allow the side
panel to fit into the trim.
INSTALLATION REQUIREMENTS
...... .
IMPORTANT:
•Installer: Leave Installation Instructions with the homeowner.
• Homeowner: Keep Installation Instructions for future
reference. Save these Installation Instructions for the local
electrical inspector's use.
Tools needed:
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
• Hand drill or electric drill • T27 Torx®tscrewdriver
(properly grounded) • rr/32"nut driver
• Drill bits • %" and rA" open-end
• Adjustable wrenches (2) wrenches
• Phillips screwdriver • %2" Allen wrench
• Small level • %6" socket wrench
Parts needed:
• #8 x 3" (7.6 cm) or longer wood screws (6)
• 2" X4" X 32" (5 cm x 10 cm x 81 cm) wood board (1 or 2)
• Make custom or overlay panels or consult a qualified
cabinetmaker or carpenter to make the panels. See "Design
Specifications."
• If you are connecting the water line directly to copper tubing
and not to a shutoff valve, you need a ferrule, a union, and a
1/4"(6.35 mm) compression fitting.
• Appliance dolly • Tape measure
1-®TORX is a registered trademark of Textron Innovations Inc.
12

__' _ V'y_" _:1_ _'-_ ,_,,_,
The refrigerator can be recessed in an opening between cabinets • A grounded 3 prong electrical outlet should be placed within
or installed at the end of a cabinet run using a side panel to 4" (10.2 cm) of the right side cabinets or end panel. See
enclose the refrigerator. "Electrical Requirements" for additional information.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
IM PORTANT:
• Observe all governing codes and ordinances.
• It is recommended that you do not install the refrigerator near
an oven, radiator, or other heat source•
• Do not install in a location where the temperature will fall
below 55°F (13°C).
• Floor must support the refrigerator weight, more than 600 Ibs
(272 kg), door panels and contents of the refrigerator.
• Ceiling height must allow for side tipping radius. See "Tipping
Radius."
• Location should permit door to open fully. See "Door Swing
Dimensions."
• Location must permit top grille removal. See "Opening
Dimensions."
Opening Dimensions
• To avoid tipping during use, the solid soffit must be within 1"
(2.5 cm) maximum above the refrigerator• If the solid soffit is
higher than 1" (2.5 cm) or one is not available, then the
refrigerator must be braced.
If the anti-tip boards are needed, they must be attached to
the rear wall studs 80" to 90" (203 to 229 cm) above the floor•
See "Install Anti-Tip Boards" for more information.
NOTE: A clearance of _/2"(1.3 cm) must be maintained in front
of the refrigerator's side trim in order for the top grille to be
removed.
The water shutoff should be located in the base cabinet on
either side of the refrigerator or some other easily accessible
area. If the water shutoff valve is not in the cabinets, the
plumbing for the water line can come through the floor or the
back wall. See "Water Supply Requirements" for more
specific information.
ii
II
II
n n
0o"-90" ii
(203-229 cm)
(1(
cm)rain.
843/4'' (215 cm) max.
to bottom of solid soffit
77"
(196 cm)
A
Width
(see chart following)
1"
(2.54 cm)
24"
(60,96 cm) min.
Model Width A (as shown above)
36 35_/2'' (90.2 cm)
42 41W' (105.4 cm)
NOTE: Flooring under refrigerator must be at same level as the
room•
13

'
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical
connection.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.
IMPORTANT: If this product is connected to a GFCI (Ground
Fault Circuit Interrupter) protected outlet, nuisance tripping of the
power supply may occur, resulting in loss of cooling. Food quality
and flavor may be affected. If nuisance tripping has occurred,
and if the condition of the food appears poor, dispose of it.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, remove the top grille and turn the master
power switch to OFF or disconnect power at the circuit breaker
box.
When you are finished, turn ON the master power switch or
reconnect power at the circuit breaker box. Then reset the control
to the desired setting.
_,DI +, " ...........u,' ! '_:' t]i _:s
All installations must meet local plumbing code requirements.
The water shutoff should be located in the base cabinet on
either side of the refrigerator or some other easily accessible
area. The right-hand side is recommended. The access hole
through the cabinet must be within W' (12.7 mm) of the rear
wall.
NOTE: If the water shut off valve is in the back wall behind
the refrigerator, it must be at an angle so that the tube is not
kinked when the refrigerator is pushed into its final position.
24"
(60.96 cm) min.
If the water shutoff valve is not in the cabinets, the plumbing
for the water line can come through the floor. A W' (12.7 mm)
hole for plumbing should be drilled at least 6" (15.2 cm) from
the right or left hand side cabinet or panel. On the floor, the
hole should be no more than 1" (2.54 cm) away from the back
wall. See "Connect the Water Supply."
• If additional tubing is needed, use copper tubing and check
for leaks. Install the copper tubing only in areas where the
household temperatures will remain above freezing.
• Do not use a piercing-type or 3/1611(4.76 mm) saddle valve
which reduces water flow and clogs more easily.
NOTE: Your refrigerator dealer has a kit available with a W'
(6.35 mm) saddle-type shutoff valve, a union, and copper
tubing. Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes.
Water Pressure
A cold water supply with water pressure between 30 and 120 psi
(207 and 827 kPa) is required to operate the water dispenser and
ice maker. Ifyou have questions about your water pressure, call a
licensed, qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 30 and 120 psi
(207 and 827 kPa).
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 to 414 kPa):
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
• If your refrigerator has a water filter cartridge, it may further
reduce the water pressure when used in conjunction with a
reverse osmosis system. Remove the water filter cartridge.
If you have questions about your water pressure, call a licensed,
qualified plumber.
14

INSTALLATION INSTRUCTIONS
}!'•e u_ ....._"
Tip Over Hazard
Refrigerator is top heavy and tips easily when not
completely installed.
Keep doors taped closed until refrigerator is
completely installed.
Use two or more people to move and install
refrigerator.
Failure to do so can result in death or serious injury.
IMPORTANT:
• Do not remove the protective film until the refrigerator is in its
operating position.
• All four leveling legs must contact the floor to support and
stabilize the full weight of the refrigerator.
• Keep the cardboard shipping piece or plywood under the
refrigerator until it is installed in the operating position.
1. Remove and save the literature package and parts bag taped
to the refrigerator door. Remove the four brackets (two on
each side) that attach the shipping base to the refrigerator
bottom.
NOTE: Do not remove tape and door bracing until the
refrigerator is in its final position.
2. If necessary, reduce the tipping radius. See "Tipping Radius"
for ceiling height requirements or "Reduce Tipping Radius"
for step-by-step instructions• If you do not need to reduce the
tipping radius, proceed to "Move the Refrigerator into
House."
Before bringing the refrigerator into the home, be sure there is
adequate ceiling height to stand the refrigerator upright. See
"Tipping Radius" in the "Design Specifications" section for more
information.
If you do not have adequate ceiling height to stand the
refrigerator upright, the tipping radius can be reduced by
removing the top grille and side trims (see the following chart).
Model Reduced Tipping Radius /
1
36" (91.4 cm) 88" (223.5 cm)
Custom Panel Series
1. Grasp both ends of the top grille•
2. Push the top grille straight up; then pull straight out. Lay the
grille on a soft surface.
B
A. Top grille
B. Cabinet side trim
3. Remove the six screws attaching each cabinet side trim to
the refrigerator and remove the side trims.
Stainless Steel Handle Series
1. Grasp both ends of the top grille. Push the top grille straight
up; then pull straight out. Lay the top grille on a soft surface.
B A B
2=
A. Top grille
B. Cabinet side trim
Remove the six screws attaching each cabinet side trim to
the refrigerator and remove the side trims•
15

)V _:::: ' :"' ('
() .......
Tip Over Hazard
Refrigerator is top heavy and tips easily when not
completely installed.
Keep doors taped closed until refrigerator is
completely installed.
Use two or more people to move and install
refrigerator.
Failure do so can result in death or serious injury.
3. Place an appliance dolly under the left side of the refrigerator
as shown. Be sure to protect the side trims and handles.
Place the corner posts from the packing materials over the
trims and handles as appropriate. Slowly tighten the strap.
NOTE: Pass the dolly strap under the handles for the Curved
and Professional Series.
b( _::;
IMPORTANT:
To avoid tipping during use, the solid soffit must be within 1"
(2.5 cm) maximum above the refrigerator. If the solid soffit is
higher than 1" (2.5 cm) or one is not available, then the
refrigerator must be braced.
• It is recommended that board(s) be installed before the
refrigerator is installed.
• Board(s) must be long enough to fully cover the width of the
compressor cover.
• Locate the board(s) so the bottom surface(s) of the board(s)
is(are) 84" (213 cm) from the floor.
During installation, raise the refrigerator up so there is 1/4"
(6.35 mm) maximum between the top of the refrigerator and
the bottom of the anti-tip board(s). Do not crush the
compressor cover when raising the rear leveling legs.
To Install Anti-tip Boards
1. Mark the stud locations on rear wall 80" to 90" (203 cm to
229 cm) above floor.
2. Securely attach one or two 2" x 4" x 32" (5 cm x 10 cm x
81 cm) boards to wall studs behind refrigerator. Use six
#8 x 3" (7.6 cm) (or longer) wood screws. The wood screws
must be screwed into the studs at least 11/2"(3.8 cm). The
board(s) must overlap the compressor cover.
A B
2" (5 cm)
4. Place pieces of the shipping carton on the floor when rolling
the dolly and refrigerator into the house. Move the refrigerator
close to the built-in opening.
5. Place top of cardboard carton or plywood under refrigerator.
Remove dolly.
6. Do not remove protective film or cover.
7. If necessary, reassemble the trim and top grille after the dolly
has been removed from the refrigerator.
D
A.Centerboard ¼"(6.35mm) max. aboverefrigerator
B.Two 2"x 4" x 32" (5cm x 10cm x 81 cm)boards
C.Attach tostuds with six #8 x 3" (7.6 cm) screws
O.Compressor cover
16

..... ,,] _ __ __,,:;,_ _ 1"?'_ _ _ _ _/
I I I =V i. Cb
Read all directions before you begin.
IMPORTANT: If you turn the refrigerator on before the water line
is connected, turn the ice maker OFR
Style I - Shutoff Valve Connection
NOTE: If your water line connection does not look like Style 1,
see "Style 2 - Copper Line Connection."
1. Unplug refrigerator or disconnect power supply.
IMPORTANT: Before attaching the tubing to shutoff valve, flush
the main water supply line to remove particles and air inthe water
line. Allow enough flow so that water becomes clear. Flushing the
water line may help avoid filters and/or water valves from
becoming clogged.
2. Remove the shipping tape from the gray, coiled water tubing
on the rear of the refrigerator.
3. Thread the provided nut onto the shutoff valve as shown.
A
Jl| B
C
A.Bulb
B.Nut
C. Watertubing
4. Turn shutoff valve ON.
5. Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.
6. Plug in the refrigerator or reconnect power.
7. Flush the water system. See "Water System Preparation."
NOTE: Allow 24 hours to produce the first batch of ice. Discard
the first three batches of ice produced. Allow 3 days to
completely fill ice container.
Style 2 -Copper Line Connection
Connecting to Water Line
NOTE: If existing water line meets the "Water System
Requirements," see "Connecting to Refrigerator."
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Locate aV2"to lY4" (1.25 cm to 3.18 cm) vertical cold water
pipe near the refrigerator.
IMPORTANT:
•Make sure it is a cold water pipe.
• Horizontal pipe will work, but drill on the top side of the
pipe, not the bottom. This will help keep water away from
the drill and normal sediment from collecting in the valve.
4. Determine the length of copper tubing you need. Measure
from the connection on the lower left rear of refrigerator to the
water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use//4"
(6.35 mm) O.D. (outside diameter) copper tubing. Be sure
both ends of copper tubing are cut square.
5. Using a grounded drill, drill a _/4"(6.35 mm) hole in the cold
water pipe you have selected.
G..............B
'%' ........ C
A. Cold water pipe
B. Pipe clamp
C. Copper tubing
D. Compression nut
E, Compression sleeve
F. Shutoff valve
G. Packing nut
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the _/4"(6.35 mm)
drilled hole in the water pipe and that the washer is under the
pipe clamp. Tighten the packing nut. Tighten the pipe clamp
screws slowly and evenly so washer makes a watertight seal.
Do not overtighten, or you may crush the copper tubing.
7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not overtighten
the clamp or the sleeve. This will crush the copper tubing.
IMPORTANT: Before attaching the tubing to shutoff valve, flush
the main water supply line to remove particles and air inthe water
line. Allow enough flow so that water becomes clear. Flushing the
water line may help avoid filters and/or water valves from
becoming clogged.
8. Turn off the shutoff valve on the water pipe. Coil the copper
tubing.
9. Check for leaks around the saddle valve.
Connecting to Refrigerator
1. Unplug the refrigerator or disconnect power.
2. Remove the shipping tape from the gray, coiled water tubing
on the rear of the refrigerator.
3. Measure the distance from the shutoff valve to the opening in
which the refrigerator will be located. Tubing must be
extended from the shutoff valve into the refrigerator opening
following specific guidelines. See "Water Supply
Requirements."
17

4. A 1/4"x 1/4"(6.35 mm to 6.35 mm) coupling is needed in order
to connect the water tubing to an existing household water
line. Thread the provided nut onto the coupling on the end of
the copper tubing.
\JOVO :::..... ', ,4
(}(
A B C D E F G
A. Water tubing E. Ferrule (purchased)
B.Nut FNut (purchased)
C. Bulb G. Household water line (as
D. Coupling (purchased) connected in previous section)
5. Turn shutoff valve ON.
6. Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.
7. Plug in the refrigerator or reconnect power.
8. Flush the water system. See "Water System Preparation."
NOTE: Allow 24 hours to produce the first batch of ice. Discard
the first three batches of ice produced. Allow 3 days to
completely fill ice container.
Electrical Shock Hazard
Plug into agrounded 3prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
f. Set control switch at top of cabinet to the OFF position.
2. Plug into a grounded 3 prong outlet.
Tip Over Hazard
Refrigerator is top heavy and tips easily when not
completely installed.
Keep doors taped closed until refrigerator is
completely installed.
Use two or more people to move and install
refrigerator.
Failure to do so can result in death or serious injury.
IMPORTANT: To avoid floor damage, make sure levelers are
raised (not touching floor) and refrigerator is on rollers before
moving.
1. Place top of cardboard carton or plywood under refrigerator.
Remove dolly.
2. Do not remove protective film or cover.
3. Move the refrigerator straight back and evenly into the
opening. Be sure that the refrigerator side trims are not
interfering with the door opening. Also, be sure that the water
tubing is not kinked and the power supply cord is on top of
the refrigerator.
.V•I ',"; ,, v \,, ..........
NOTE: All four leveling legs must contact the floor to support and
stabilize the full weight of refrigerator. Rollers are for moving
refrigerator and not for permanent support.
Use a 5/16"socket wrench to turn the leveling bolts clockwise to
lower the 4 leveling legs until refrigerator weight is supported by
leveling legs. The rollers should be off the floor. To avoid cabinet
damage, do not apply more than 50 inch-pounds (58 cm - kg) of
torque to the leveling legs.
A. Rear leveling legs
B. Front leveling legs
18

IMPORTANT: Thermador is not responsible for the removal or
addition of molding or decorative panels that would not allow
access to the refrigerator for service.
NOTE: To install full-overlay custom panels, refer to the
installation instructions included with the Trimless Trim Kit. See
"Design Specifications" for more information.
Door and Drawer Panels
1. Remove all tape and door bracing from the refrigerator door
and freezer drawer.
2. Remove the screws that attach the handle to the frame.
3. Slide the decorative door panel into the frame.
4. If needed, route the door and drawer panels or install a filler
panel between the door and drawer and the decorative
panels. See "Custom Panels."
ID C__'"_:_
Top Grille Panel
1. Grasp both ends of the top grille.
2. Push straight up; then pull straight out. Place the top grille
panel side down on a soft working surface.
B A B
A. Top grille
B. Cabinet side trim
I_B
3.
4=
Remove one end cap by loosening the nuts and sliding off the
end cap.
A
C............ \
A. Bottom rail C. End cap
B. Nuts D. Top rail
Slide the backer panel into the top grille channel and reattach
the end caps.
A. Door panel
B. Drawer panel
5. Replace the door and drawer handles. Check to be sure that
the door and drawer are aligned.
6. Remove the protective skin from the screw covers. Snap the
screw covers into the handle trim section.
5=
A. Panel
Replace the top grille in the cabinet side trims and pull the
panel down slightly to lock it into place.
B A B
A. Top grille
B. Cabinet side trim
19

NOTE: Custom or full-overlay door panels must be installed
before leveling.
1. Open the door and place the level on top of the refrigerator
frame as shown, Check to see whether the refrigerator is level
from left to right.
4. Replace the door stop screw in the bottom hinge and tighten.
NOTE: If you are using full-overlay custom panels with the
Trimless Trim Kit, the door stop should be replaced in either
the 90° or 110 ° position. See "Handle and Door Clearances
for Custom Panel Series."
B--
A. Level to check left to right leveling
B. Level to check front to back leveling
Use the leveling bolts to adjust the leveling legs until the
refrigerator is level from left to right.
A. Rear leveling bolt
B. Front leveling bolt
3. Place the level(s) on shelf or shelves. Check to see whether
the refrigerator is level from front to back.
4. Use the leveling bolts to adjust the leveling legs until the
refrigerator is level from front to back.
5. Be sure that all four leveling legs contact the floor and
support the full weight of the refrigerator.
6. Make final check to ensure the refrigerator is level.
!f_ /_' ' ', ] f'"
1. Check that the refrigerator door can open freely. Ifthe door
opens too wide or you are installing full-overlay custom
panels using a Trimless Trim Kit, you should adjust the door
swing.
2. Remove the door stop screw from the bottom hinge.
3.
A B C
A.Door Stop in 130°position
B. 110°position
C.90°position
Hold the door open to a position that is less than 90°.
A
A.Doorstc 9screw in 110°position
-J:::_ :b
¢
If the built-in area depth is 25" (63.5 cm) or more, the side panels
can be installed inside the side trim or attached to the outside of
the side trim.
IMPORTANT: Thermador is not responsible for the removal or
addition of molding or decorative panels that would not allow
access to the refrigerator for service.
1. For the inside side trim piece, slide the front edge of the
routed side panel into the trim piece.
2. Nail the rear edge of the panel to the support board,
A
B
A. Support board
B. Side trim piece
2O
