Thermann TIHP300 User manual

OWNER'S
GUIDE
Heat Pump Water Heaters
Owner's Information
Warranty
Model
TIHP300

2
Thermann Owner's Guide
Heat Pump Water Heaters
SPECIAL INFORMATION
- The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or mental
capabilities or a lack of experience and know-how, provided that they are supervised or they have been instruct-
ed on how to use the appliance safely and have understood the resulting risks. Children must never play with the
appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.
- The DHW heat pump shall be able to be separated from the power supply by means of a suitable isolator
(eg. contactor, circuit breaker, fuse) in accordance with the wiring rules and national standards.
- The device is subject to mains water pressure. The expansion water drips from the safety valve during heat-up.
- In Australia and New Zealand the installation shall comply with AS/NZS3500.4: A tempering valve is mandatory
for all installations for maximum of 50 ¡C for all sanitary fixtures used primarily for personal hygiene.
- Regularly vent the safety valve until a full stream of water flows from it. Close the safety valve after checking.

3
OPERATION
General Information
Note
Read these instructions carefully before using the appliance and retain them for future reference.
Pass on the instructions to a new user if required.
Safety Instructions
Structure Of Safety Instructions
!
Keyword Type Of Risk
Here, possible consequences are listed that may result from failure to observe the safety instructions.
Steps to prevent the risk are listed.
Symbols, Type Of Risk
SYMBOL TYPE OF RISK
!
Injury
Electrocution
Burns
(burns, scalding)
Keywords
KEYWORD MEANING
Danger Failure to observe this information will result in serious injury or death.
Warning Failure to observe this information may result in serious injury or death.
Caution Failure to observe this information may result in non-serious or minor injury.
Other Symbols In This Documentation
Note
General information is identified by the symbol shown on the left.
Read these texts carefully.
SYMBOL MEANING
Material losses
(appliance and consequential losses, environmental pollution)
Appliance disposal
This symbol indicates that you have to do something. The action you need to take is described step
by step.
Units Of Measurement
Note
All measurements are given in mm unless stated otherwise.
!

4
Thermann Owner's Guide
Heat Pump Water Heaters
SAFETY
Intended Use
The device is designed for extracting heat from the ambient air and the utilisation of that energy for heating
domestic hot water (DHW). The DHW heat pump can be installed in the open as well as in enclosed spaces.
This appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be
used in a non-domestic environment, e.g. in a small business, as long as it is used in the same way.
Any other use beyond that described shall be deemed inappropriate. Observation of these instructions and of
instructions for any accessories used is also part of the correct use of this appliance.
General Safety Instructions
!
Warning Injury
The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or
mental capabilities or a lack of experience and know-how, provided that they are supervised or they have
been instructed on how to use the appliance safely and have understood the resulting risks. Children must
never play with the appliance. Children must never clean the appliance or perform user maintenance unless
they are supervised.
Warning Burns
The following are not permitted:
- The utilisation of greasy extract air.
- The installation of the equipment in rooms where the device is at risk from explosions as a result of dust,
gases or vapours.
Material Losses
The following are not permitted:
- The heating of liquids other than domestic hot water.
- The installation of the equipment in rooms where the temperature is below the freezing point.
- Operation of the device with an empty cylinder.
Note
Always operate the unit with a full water tank, otherwise high pressures will develop in the refrigeration
system, causing it to shut down. A manual reset will be necessary afterwards to restart the unit.
Test Symbols
See type plate on the appliance.
DEVICE DESCRIPTION
This device is a domestic hot water (DHW) heat pump.
It works as a DHW generator that operates automatically and has a capacity of approx. 300 l. The water
temperature is permanently set to 60 ¡C.
Function Description
The device extracts heat from the ambient air.
This energy is used to heat the water inside the cylinder. Where the device is installed inside a room, this is cooled
down through the heat extraction by approx. 1 to 3 ¡C. The device also extracts moisture from the ambient air that
creates condensate, which must be drained off. For this purpose, a condensate drain is integrated into the unit.
Heat Pump Operation
The table below outlines the standard operating mode, to which the limits of scope of the heat pump apply. To
heat up the cylinder capacity of approx. 300 litres of water in accordance with EN 255 part 3 to 60 ¡C, the device
requires:
HEAT-UP TIME [H] ROOM TEMPERATURE [¡C] RELATIVE HUMIDITY [%] COLD WATER TEMPERATURE [¡C] COP
10 15 70 15 3.19
542 70 15 5.61
!

5
Note
If the heat pump is switched OFF and ON again, for instance after a power failure, the compressor will only
re-start (after approx. 3 minutes), when the pressure inside the refrigerant circuit has normalised again.
Operation With Active Defrost Feature
Note
The heat pump must not be installed in areas where ambient temperatures frequently exceed 42 ¡C or
areas where temperatures frequently drop below 0 ¡C.
Subject to the relative humidity and the DHW temperature, the evaporator begins to build up hoar frost at an
ambient temperature below 6 ¡C.
If the evaporator is covered in hoar frost, the frost monitor N2 (see wiring diagram) switches the fan OFF, whilst the
compressor continues to run, and the changeover valve V2 routes the hot gas directly to the evaporator. For this,
the condenser is shut off by changeover valve V1. When the temperature at the evaporator fins rises above 3 ¡C,
the fan is started again, and DHW heating continues.
The DHW heat pump can be operated at ambient temperatures as low as 0 ¡C. The evaporator is defrosted
according to demand in the temperature range 0 ¡C to +6 ¡C. This extends the heat-up time.
MAINTENANCE AND CLEANING
Material Losses
The sacrificial anode must be checked by a licensed tradesperson 12 months after the unit has been in-
stalled and checked periodically thereafter as advised by the licensed tradesperson.
Failure to do so may void your warranty.
Note
Maintenance work, e.g. checking the electrical safety, must only be carried out by a licensed tradesperson.
The device is generally maintenance free, with the exception of cleaning the condensate drain and having a
licensed tradesperson check the sacrificial anode.
A damp cloth is sufficient for cleaning all parts. Never use scouring or solvent-based cleaning agents.
- Check at least monthly the condensate drain at the middle of the unit and the condensate pan drain at the top
(visual check). Remove contaminants and blockages immediately.
- Ask your local tradesperson to regularly check the safety assembly and the electric booster heater.
- The device is subject to mains water pressure. The expansion water drips from the safety valve during heat-up.
Inform your local tradesperson of water drips from the system after the heat-up process has ended.
- To protect the steel cylinder against corrosion, the interior is coated with a special enamel and is furthermore
equipped with a protective anode. Ask your local tradesperson to check the protective anode 12 months after
installation and periodically thereafter as advised by your local tradesperson. A sacrificial anode maintenance log
is located on page 9 of this manual for your local tradesperson to fill in. Your local tradesperson, who is familiar
with the local water quality, should identify for you the timing of the next service.
!

6
Thermann Owner's Guide
Heat Pump Water Heaters
TROUBLESHOOTING
No Hot Water
Should you fail to obtain hot water at any time, you can take the following steps to remedy that situation:
No Electrical Power
Check the fuse/circuit breaker in your fuse box. If it has blown/tripped, replace/reset the fuse/MCB. If it should
blow/trigger repeatedly, notify your local tradesperson.
Still No Hot Water, Even Though Power Is Available
Check, whether the air inlet/outlet is blocked.
The thermoswitch trips out or the high limit safety pressure limiter switches the compressor OFF if the compressor
is overloaded due to excessive ambient temperature or excessive air temperature (>42 ¡C), or because of a fault in
the refrigerant circuit. If this happens repeatedly, ask your local tradesperson to remove the fault.
After a short cooldown phase, the thermoswitch will restart the compressor automatically.
Material Losses
The high limit safety pressure limiter must only be reset by your licensed tradesperson after they have re-
moved the cause of the relevant fault.
Other Issues
Safety Valve Of The Cold Water Supply Line Drips
This may occur during the heat-up phase and is completely normal.
The Condensate Drain Drips
This always happens when the surface temperature of the evaporator is lower than the ambient dew point
temperature.
Notifying A Licensed Tradesperson
If you cannot remedy the fault, notify your licensed tradesperson. To facilitate and speed up your request, provide
the serial number from the type plate (000000-0000-000000).
Sample Type Plate
000000-0000-000000
D0000053676
1
1. Number on the type plate
!

7
SAFETY EQUIPMENT AND MAINTENANCE
ONLY licensed tradespersons must carry out the installation and on-going maintenance - as detailed below - in
accordance with the instructions.
Warning Electrocution
Maintenance work, such as checking the electrical safety, must only be carried out by an electrician.
Always disconnect the power supply before working on the water heater.
Notes

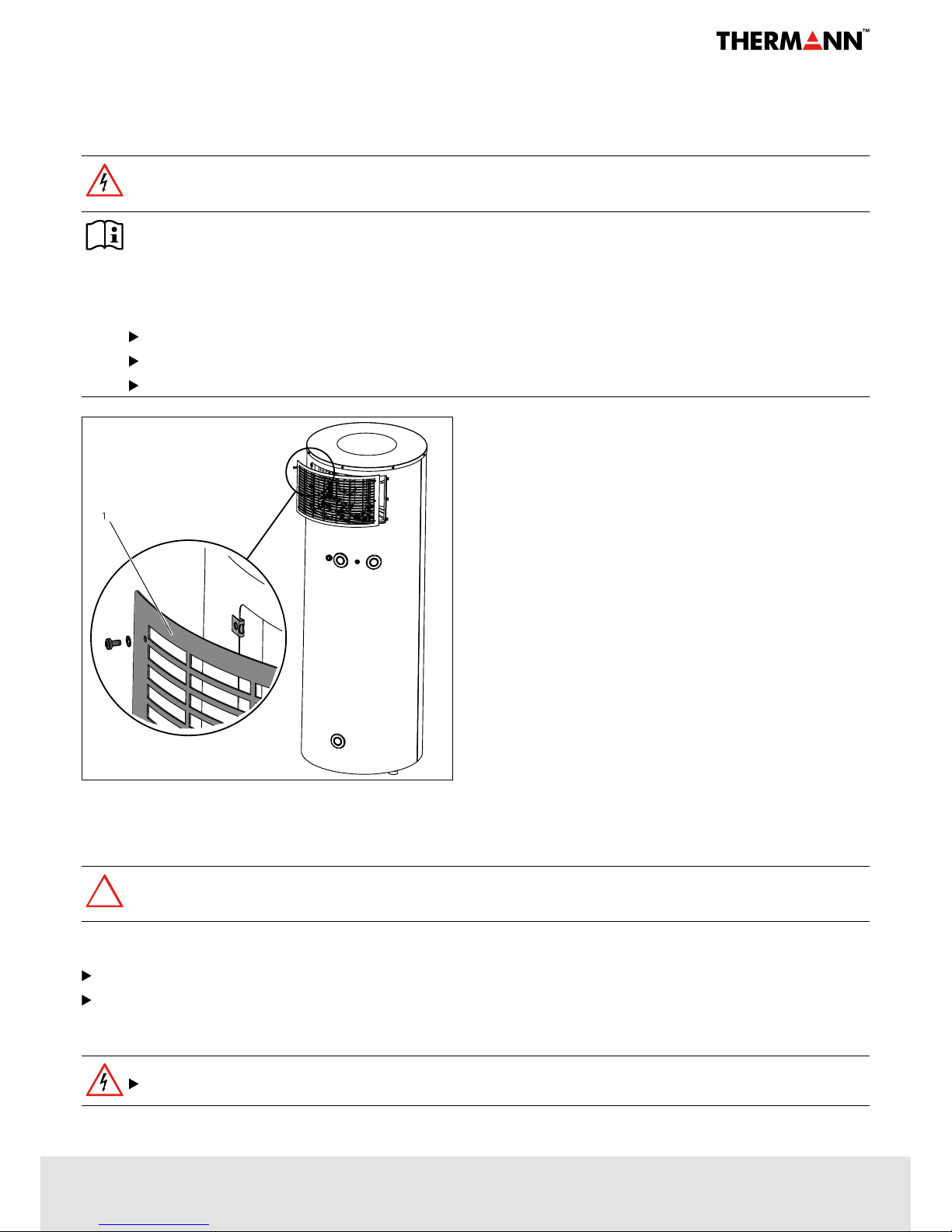

You may remove the air intake grille if there is not enough room for maintenance work above the appliance
even after its cover has been removed (Refer to Installer's Manual, chapter 'Installation', section 'Minimum
clearances' for minimum clearance area).
The air intake grille is secured with spring nuts. The inside of the air intake grille features an all-round
adhesive sealing strip.
Never remove the sealing strip.
Always use the spring nuts during reassembly.
Refit the air intake grille after completing the maintenance and repair work.
26_03_01_1877
1
1. Removeable air intake grille with an all-around adhesive sealing strip on the inside
CLEANING THE EVAPORATOR
!
Warning Injury
The evaporator has many sharp-edged fins. When cleaning the evaporator, proceed with caution and wear
protective clothing, in particular safety gloves.
Maintaining the full output of the water heater at all times requires an occasional professional cleaning of the
evaporator.
Undo the screws that connect the water heater cover and remove.
Carefully clean the evaporator fins. Only use water and a soft brush. Never use acidic or alkaline cleaning agents.
ON THE EQUIPMENT
Warning Electrocution
Before any work on the equipment, disconnect all poles from the mains.
In case of a fault, the safety equipment of the device interrupts the relevant power circuit.

8
Thermann Owner's Guide
Heat Pump Water Heaters
Draining The Cylinder
!
Warning Injury
Hot water can be expelled during draining.
Close the shut-off valve in the cold water supply.
Fully open the hot taps at all draw-off points.
The cylinder is drained via the cold water inlet line. Open the drain valve. If no drain valve was installed, undo the
fitting on the cold water supply of the appliance. Residual water remains in the lower part of the cylinder.
ON THE SYSTEM
Material Losses
If the hot water unit is not used for two or more weeks, an amount of highly flammable hydrogen gas may
accumulate in the water tank. To dissipate this gas safely, it is recommended that a hot tap be turned on
for several minutes or until discharge of gas ceases. Use a sink, basin or bath outlet, but not a dishwasher,
clothes washer or other appliance. During this procedure, there must be no smoking, open flame or any
electrical appliance operating nearby. If hydrogen is discharged through the tap, it will probably make an
unusual sound as with air escaping.
Safety Valve
This valve opens when the water pressure exceeds the preset value of 0.7 MPa thereby relieving the pressure. It
is adjusted so that no water will be expelled when heating is switched OFF. Should it continue to drip excessively,
either the valve seat has become contaminated, the water pressure is too high or the pressure reducing valve has
become faulty.
Regular Valve Maintenance
Safety requires that valves are regularly checked for perfect function.
Regularly vent the safety valve until a full stream of water flows from it. Close the safety valve after checking.
How quickly limescale builds up depends on the local water quality.
As your local tradesperson is familiar with your local water quality, let them determine the timing of this check.
!

9
SACRIFICIAL ANODE MAINTENANCE LOG
Note
The sacrificial anode must be checked by a licensed tradesperson 12 months after the unit has been in-
stalled and checked periodically thereafter as advised by the licensed tradesperson. Failure to do so may
void your warranty.
DATE UNIT WAS INSTALLED
12 MONTH SACRIFICIAL ANODE REVIEW DATE COMLPETED? (YES/NO) WAS THE ANODE REPLACED? (YES/NO) NAME OF LICENSED TRADESPERSON
NEXT SCHEDULED SACRIFICIAL ANODE REVIEW DATE COMLPETED? (YES/NO) WAS THE ANODE REPLACED? (YES/NO) NAME OF LICENSED TRADESPERSON
WARRANTY
Thermann Warranty For Heat Pump - Model TIHP300
Who Gives The Warranty
1. The warranty is given by Stiebel Eltron (Aust) Pty Ltd (A.B.N. 82 066 271 083) of 6 Prohasky Street, Port
Melbourne, Victoria, 3207 ('we', 'us' or 'our').
The Warranty
2. This warranty applies to Thermann Heat Pump - Model TIHP300 (the 'unit') manufactured after 1 May 2015
3. Subject to the warranty exclusions we will repair or replace, at our absolute discretion, a faulty component in
your unit free of charge if it fails to operate in accordance with its specifications during the warranty period.
4. If we repair or replace a faulty component to your unit under this warranty, the warranty period is not extended
from the time of the repair or replacement.
5. The warranty period commences on the date of completion of the installation of the unit. Where the date of
completion of installation is not known, then the warranty period will commence 2 months after the date of
manufacture.

10
Thermann Owner's Guide
Heat Pump Water Heaters
6. The warranty period for a unit used for domestic purposes is shown in the table below. Domestic purposes
means that the unit is used in a domestic dwelling.
COMPONENT WARRANTY PERIOD
Cylinder and condenser 5 years from the date of completion of the installation of the unit.
Sealed refrigeration system, including compressor, evaporator, valves and associated
pipe work as well as other componentry (electrical) 2 years from the date of completion of the installation of the unit.
T&P relief valve 1 year from the date of completion of the installation of the unit.
7. The warranty period for a unit used for commercial purposes is shown in the table below. Commercial purposes
means that the unit is used for a non-domestic purpose and includes but not limited to being used in a motel,
hotel, mining camp or nursing home.
COMPONENT WARRANTY PERIOD
Cylinder and condenser 2 years from the date of completion of the installation of the unit.
Sealed refrigeration system, including compressor, evaporator, valves and associated
pipe work as well as other componentry (electrical) 2 years from the date of completion of the installation of the unit.
T&P relief valve 1 year from the date of completion of the installation of the unit.
Your Entitlement To Make A Warranty Claim
8. You are entitled to make a warranty claim if:
8.1 you own the unit or if you have the owner's consent to represent the owner of the unit;
8.2 you contact us within a reasonable time of discovering the problem with the unit;
How You Make A Warranty Claim
9. To make a warranty claim you must provide us with the following information:
9.1. The model number of the unit;
9.2. A description of the problem with the unit;
9.3. The name, address and contact details (such as phone number and e-mail address) of the owner;
9.4. The address where the unit is installed and the location (e.g. at the east side of the house);
9.5. The serial number of the unit;
9.6. The date of purchase of the unit and the name of the seller of the unit;
9.7. The date of installation of the unit;
9.8. A copy of the certificate of compliance when the unit was installed.
10. The contact details for you to make your warranty claim are:
Name: Stiebel Eltron (Aust) Pty Ltd
Address: 6 Prohasky Street, Port Melbourne, Victoria, 3207
Telephone: [phone] (8.00 am to 5.00 pm AEST Monday to Friday)
Contact person: Customer Service Representative
E-mail: [e-mail]
11. We will arrange a suitable time with you to inspect and test the unit.
Warranty Exclusions
12. We may reject your warranty claim if:
12.1. The unit was not installed by a registered and qualified plumber.
12.2. The unit was not installed and commissioned:
a. in Australia;
b. in accordance with the Installer's Manual; and
c. in accordance with the relevant statutory and local requirements of the State or Territory in which the
unit is installed.
12.3. The unit has not been operated or maintained in accordance with the Installer's Manual and Owner's Guide.
12.4. The unit does not bear its original Serial Number or Rating Label.
12.5. The unit was damaged by any or any combination of the following:
a. normal fair wear and tear;

11
b. connection to an incorrect water supply, for example where the water is highly conductive; where the water
has a mineral content with a TDS > 2500 mg/L; or where the Langelier Saturation Index (LSI) of the water
is outside the range -1.0 < LSI <0.8 (The LSI is a numeric value indicating whether water is scale forming or
corrosive. It factors in pH, total alkalinity, calcium hardness and water temperature);
c. connection to water from a bore, dam or swimming pool;
d. connection to an incorrect power supply;
e. connection to faulty equipment, such as damaged valves;
f. insufficient air flow;
g. foreign matter in the water supply, such as sludge or sediment;
h. corrosive elements in the water supply;
i. inappropriate anode or replacement regime used;
j. accidental damage;
k. act of God, including damage by flood, storm, fire, lightning strike and the like;
l. excessive water pressure, negative water pressure (partial vacuum) or water pressure pulsation.
12.6. The unit was damaged before it was installed e.g. it was damaged in transit.
12.7. An unauthorised person has modified, serviced, repaired or attempted to repair the unit without our consent.
12.8. Non genuine parts other than those manufactured or approved by us have been used on the unit.
13. We may charge you:
13.1. for any additional transport costs if the unit is installed more than 30 kilometres from our closest authorised
service technician.
13.2. for the extra time it takes our authorised service technician to access the unit for inspection and testing if it is
not sited in accordance with the Installer's Manual and not readily accessible for inspection.
13.3. for any extra costs of our authorised service technician to make the unit safe for inspection.
14. You must ensure that access to the unit by our authorised service technician is safe and free from obstruction.
15. Our authorised service technician may refuse to inspect and test the unit until you provide safe and free access
to it, at your cost.
16. If we reject your warranty claim in accordance with clause 12, we may charge you for our authorised service
technician's labour costs to inspect and test the unit.
17. In order to properly test the unit we may remove it to another location for testing.
Australian Consumer Law
18. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of accept-
able quality and the failure does not amount to a major failure.
19. The Stiebel Eltron warranty for the unit is in addition to any rights and remedies you may have under the
Australian Consumer Law.
Environment And Recycling
Please help us to protect the environment by disposing of the packaging in accordance with the national regula-
tions for waste processing.
Kyoto | R134a
The device is filled with refrigerant R134a. Refrigerant R134a is a CFC greenhouse gas mentioned in the Kyoto pro-
tocol with a global greenhouse potential (GWP) = 1300.
Never release refrigerant R134a to atmosphere.

325061-38872-9157
