thermo mate IHTB774C Parts list manual

Electric Induction Cooktop
IHTB774C / IHTB915C
1 [phone]
[email protected]
3330-A Marathon Ct Charleston, SC 29418
www.thermomate.com
Live Smart, Better Life!
Instruction / Installation Manual

01
[email protected]
3330-A Marathon Ct Charleston, SC 29418
Live Smart, Better Life!
Congratulations
On the purchase of your new Induction cooktop. We recommend that you
spend some time to read this Instruction/Installation Manual in order to fully
understand how to install correctly and operate it. For installation, please read
the installation section. Read all the safety instructions carefully before use
and keep this Instruction/Installation Manual for future reference.
Important Instructions
PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE
USING THE APPLIANCE.
• Proper Installation–Be sure your appliance is properly installed and
grounded by a qualified technician.
• Never Use Your Appliance for Warming or Heating the Room.
• Do Not Leave Children Alone – Children should not be left alone or
unattended in an area where the appliance is in use. They should never be
allowed to sit or stand on any part of the appliance.
• Wear Proper Apparel – Loose-fitting or hanging garments should never be
worn while using the appliance.
• User Servicing – Do not repair or replace any part of the appliance unless
specifically recommended in the manual. All other servicing should be
referred to a qualified technician.
• Storage in or on Appliance – Flammable materials should not be stored in
an oven or near surface units.
• Do Not Use Water on Grease Fires – Smother fire or flame or use dry
chemical or foam-type extinguisher.
• Use Only Dry Potholders – Moist or damp potholders on hot surfaces may
result in burns from steam. Do not let potholder touch hot heating elements.
Do not use a towel or other bulky cloth.
• Use Proper Pan Size – This appliance is equipped with one or more surface
units of different sizes. Select utensils having flat bottoms large enough to
cover the surface unit heating element. The use of undersized utensils will
expose a portion of the heating element to direct contact and may result in
the ignition of clothing. Proper relationships of utensils to burner will also
improve efficiency.
• Never Leave Surface Units Unattended at High Heat Settings – Boilover
causes smoking and greasy spillovers that may ignite.
• Make Sure Reflector Pans or Drip Bowls Are in Place – Absence of these
pans or bowls during cooking may subject wiring or components underneath
to damage.

02
1 [phone]
www.thermomate.com
Live Smart, Better Life!
• Protective Liners – Do not use aluminum foil to line surface unit drip bowls
or oven bottoms, except as suggested in the manual. Improper installation
of these liners may result in a risk of electric shock, or fire.
• Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent
Surface Units – To reduce the risk of burns, ignition of flammable materials,
and spillage due to unintentional contact with the utensil, the handle of a
utensil should be positioned so that it is turned inward, and does not extend
over adjacent surface units.
• Do Not Cook on Broken Cooktop – If cook-top should break, cleaning
solutions and spillovers may penetrate the broken cooktop and create a risk
of electric shock. Contact a qualified technician immediately.
• Clean Cook-Top With Caution – If a wet sponge or cloth is used to wipe
spills on a hot cooking area, be careful to avoid steam burn. Some cleaners
can produce noxious fumes if applied to a hot surface.
• Do not place metallic objects such as knives, forks, spoons, and lids on the
cooktop surface since they can get hot.
• CAUTION: Do not store items of interest to children in cabinets above a
range or on the back guard of a range – children climbing on the range to
reach items could be seriously injured.
• DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface
units may be hot even though they are dark in color. Areas near surface
units may become hot enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials contact surface units or
areas near units until they have had sufficient time to cool. Among these
areas are (identification of areas–for example, the cook-top and surfaces
facing the cook-top).
• CAUTION – Light (Error Code) signals a component failure. Disconnect
power supply and call qualified servicemen. Have an appliance repaired by
a qualified serviceman before using it.
• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at
any time.
• Please make this information available to the person responsible for
installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to
these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably
qualified person.
• This appliance should be connected to a circuit that incorporates an
isolating switch providing full disconnection from the power supply.

03
[email protected]
3330-A Marathon Ct Charleston, SC 29418
Live Smart, Better Life!
• WARNING: Use only cooktop guards designed by the manufacturer of the
cooking appliance or indicated by the manufacturer of the appliance in the
instructions for use as suitable or cooktop guards incorporated in the
appliance.
• The use of inappropriate guards can cause accidents.
• Failure to install the appliance correctly could invalidate any warranty or
liability claims.
• Connect only to a 3-wire, 240-volt power supply; the neutral conductor is not
required for the operation of the appliance. The potential at the power
supply electrical connections shall be 150-volts-to-ground or less.
Electrical Shock Hazard
• Do not cook on a broken or cracked cooktop. If the cooktop surface is
broken or crack, switch the appliance off immediately at the mains power
supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.
Health Hazard
• This appliance complies with electromagnetic safety standards.
Hot Surface Hazard
• During use, accessible parts of this appliance will become hot enough to
cause burns.
• Do not let your body, clothing, or any item other than suitable cookware
contact the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons, and lids should not be placed
on the cooktop surface since they can get hot.
• Children less than 8 years of age shall be kept away unless continuously
supervised.
• Handles of saucepans may be hot to touch. Check saucepan handles do
not overhang other cooking zones that are on. Keep handles out of reach of
children.
• Failure to follow this advice could result in burns and scalds.

04
1 [phone]
www.thermomate.com
Live Smart, Better Life!
Cut Hazard
• The razor-sharp blade of a cooktop scraper is exposed when the safety
cover is retracted. Use with extreme care and always store safely and out of
reach of children.
• Failure to use caution could result in injury or cuts.
Safety Instructions
• Never leave the appliance unattended when in use. Boilover causes
smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described
in this manual (i.e. by using the touch controls).
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance.
Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance
is in use.
• Children or persons with a disability that limits their ability to use the
appliance should have a responsible and competent person to instruct them
in its use. The instructor should be satisfied that they can use the appliance
without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be done by a
qualified technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the glass surface
as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean
your cooktop, as these can scratch the ceramic glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent, or similarly qualified persons in order to avoid a hazard.

05
[email protected]
3330-A Marathon Ct Charleston, SC 29418
Live Smart, Better Life!
• This appliance is intended to be used in a domestic household environment
only! Commercial use of any kind is not covered under the manufacturer's
warranty!
• WARNING: The appliance and its accessible parts become hot during use.
• Care should be taken to avoid touching heating elements.
• Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• WARNING: Unattended cooking on a cooktop with fat or oil can be
dangerous and may result in fire. NEVER try to extinguish a fire with water,
but switch off the appliance and then cover flame e.g. with a lid or a fire
blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the
possibility of electric shock, for cooktop surfaces of glass-ceramic or similar
material which protect live parts.
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer
or separate remote-control system.

06
1 [phone]
www.thermomate.com
Live Smart, Better Life!
Product Overview
Top view(IHTB774C)
Top view(IHTB915C)
1. Max. 1800/2100W zone
2. Max. 1200/1500W zone
3. Max. 2300/3000W zone
4. Max. 1200/1500W zone
5. Control panel
1. Max. 1800/2100W zone
2. Max. 1200/1500W zone
3. Max. 2300/3000W zone
4. Max. 1800/2100W zone
5. Max. 1200/1500W zone
6. Control panel
BOOST
BOOST
BOOST
BOOST
2
1
3
4
5
3
6
4
5
1
2
BOOS T
BOOS T
BOOS T
BOOS T
BOOS T

07
[email protected]
3330-A Marathon Ct Charleston, SC 29418
Live Smart, Better Life!

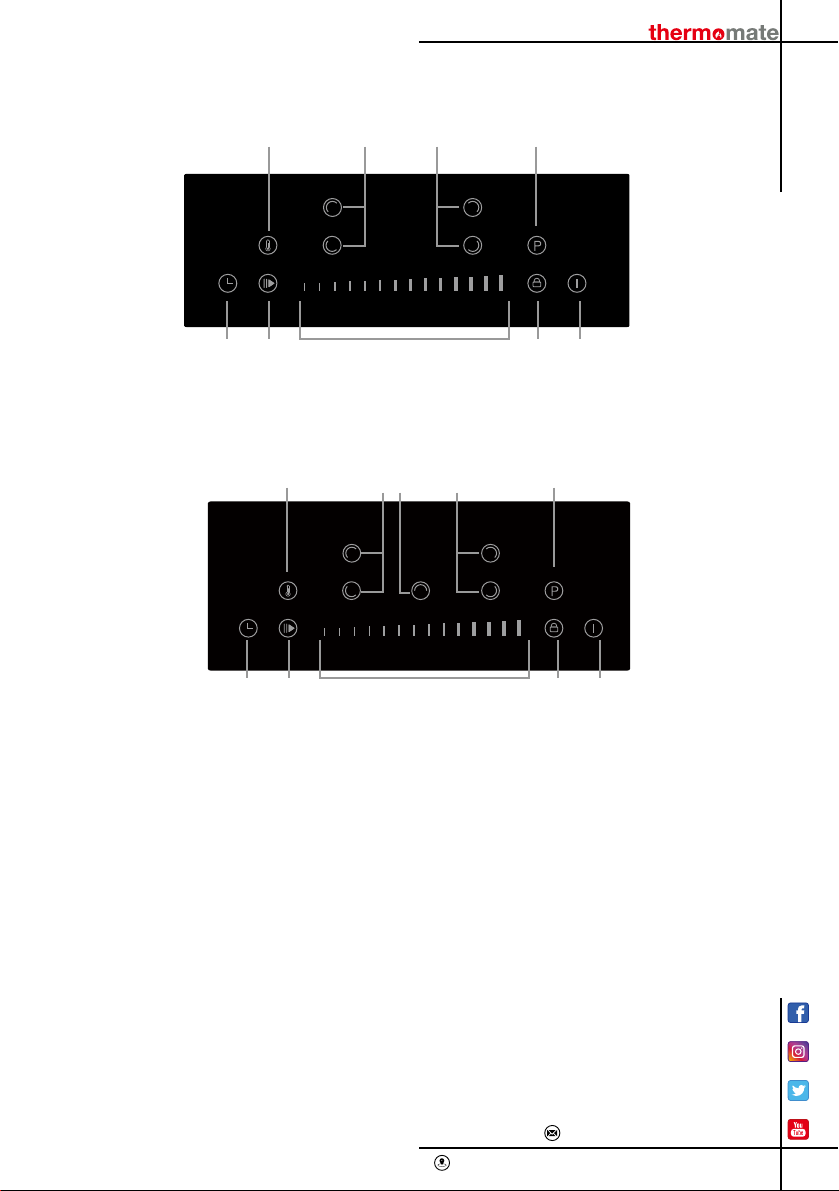

Control panel(IHTB774C)
Control panel(IHTB915C)
1. ON/ OFF switch 5. Select heating zone
2. Select power level 6. Boost control
3. Setting the timer 7. Keep warm
4. Child lock 8. Pause
A Word On Induction Cooking
Induction cooking is a safe, advanced, efficient, and economical cooking
technology. It works by electromagnetic vibrations generating heat directly in
the pan, rather than indirectly through heating the glass surface. The glass
becomes hot only because the pan eventually warms it up.
7
3 8 2 4 1
5 5 6
5 5 5
3 8 2 4 1
7 6

08
1 [phone]
www.thermomate.com
Live Smart, Better Life!

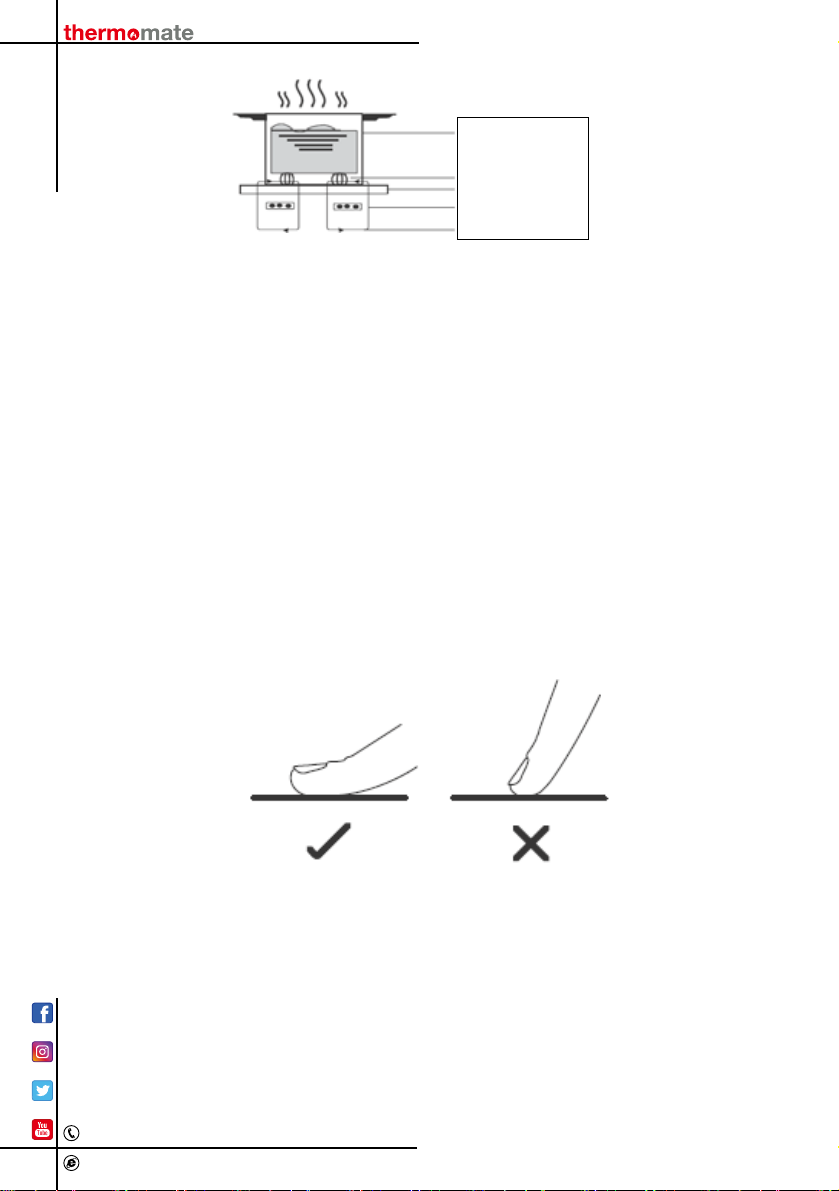

iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents
Before Using Your New Induction Cooktop
• Read this guide, taking special note of the “Safety Warnings” section.
• Remove any protective film that may still be on your induction cooktop.
Using The Touch Controls
• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object
(e.g. a utensil or a cloth) covering them. Even a thin film of water may make
the controls difficult to operate.

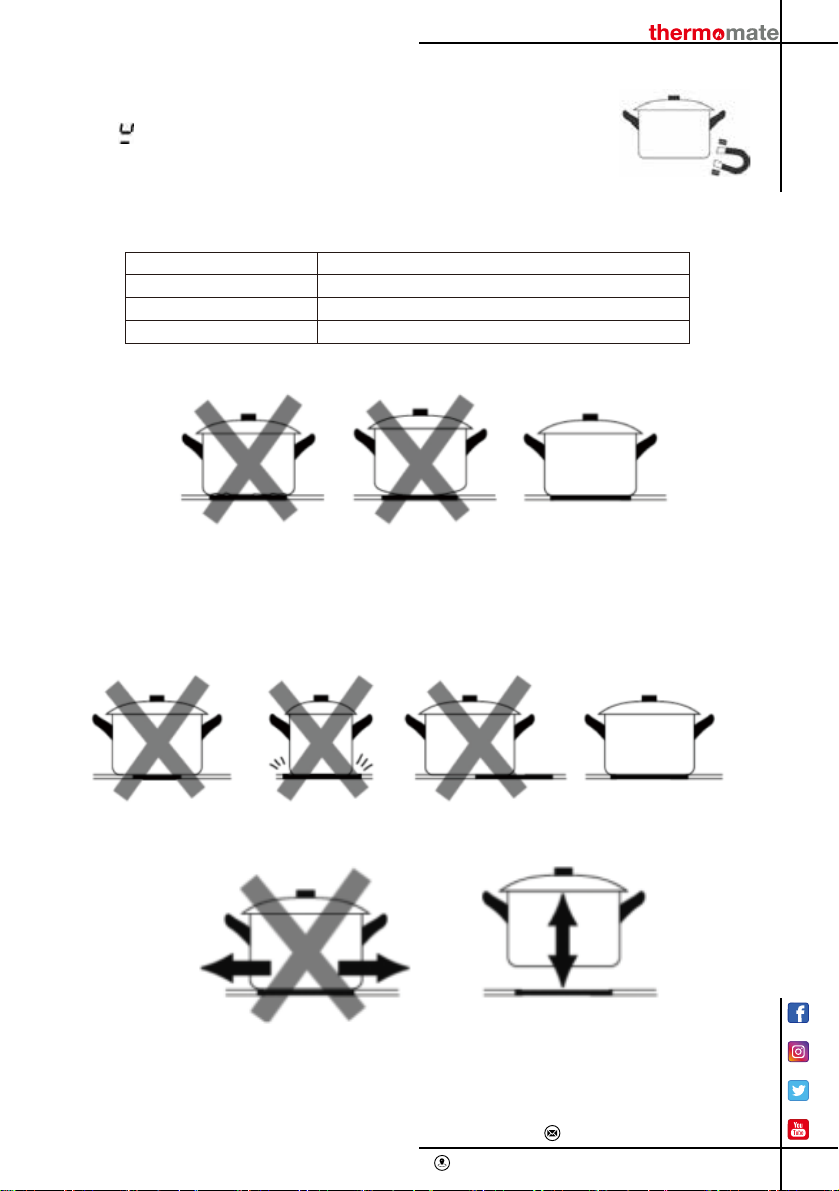

Choosing The Right Cookware
• Only use cookware with a base suitable for induction cooking. Look for the
induction symbol on the packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out a magnet
test. Move a magnet towards the base of the pan. If it is attracted, the pan is
suitable for induction cooking.

09
[email protected]
3330-A Marathon Ct Charleston, SC 29418
Live Smart, Better Life!
• If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating,
the pan is suitable.
• Cookware made from the following materials is not suitable:
pure stainless steel, aluminium or copper without a magnetic base, glass,
wood, porcelain, ceramic, and earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and
is the same size as the cooking zone. Use pans whose diameter is as large as
the graphic of the zone selected. Using a pot a slightly wider energy will be
used at its maximum efficiency. If you use smaller pot efficiency could be less
than expected. Pot less than 51/inch could be undetected by the cooktop.
Always centre your pan on the cooking zone.
Always lift pans off the Induction cooktop – do not slide, or they may scratch
the glass.
Size of burner (in)
6.3
7.1
8.3
The minimum cookware (diameter /in)
4.7
5.5
6.3

10
1 [phone]
www.thermomate.com
Live Smart, Better Life!
Using Your Induction Cooktop
To start cooking
• After power on, the buzzer beeps once, all the indicators light up
for 1 second then go out, indicating that the cooktop has entered
the state of standby mode.
1. Touch the ON/OFF switch, all the indicators show “–”.
2. Place a suitable pan on the cooking zone that you wish to use.
Make sure the bottom of the pan and the surface of the cooking
zone is clean and dry.
3. Touching the heating zone selection control, and an indicator
next to the key will flash.
4. Select a heat setting by touching the “slider” control.
• If you don’t choose a heat setting within 1 minute, the induction cooktop
will automatically switch off. You will need to start again at step 1.
• You can modify the heat setting at any time during cooking.
• By holding down either or these buttons, the value will adjust up or down.
When you have finished cooking
1. Touching the heating zone selection that you wish to switch off.
2. Turn the cooking zone off by touching the “slider”, make sure the display
shows “0”.
3.Turn the whole cooktop off by touching the ON/OFF control.

11
[email protected]
3330-A Marathon Ct Charleston, SC 29418
Live Smart, Better Life!

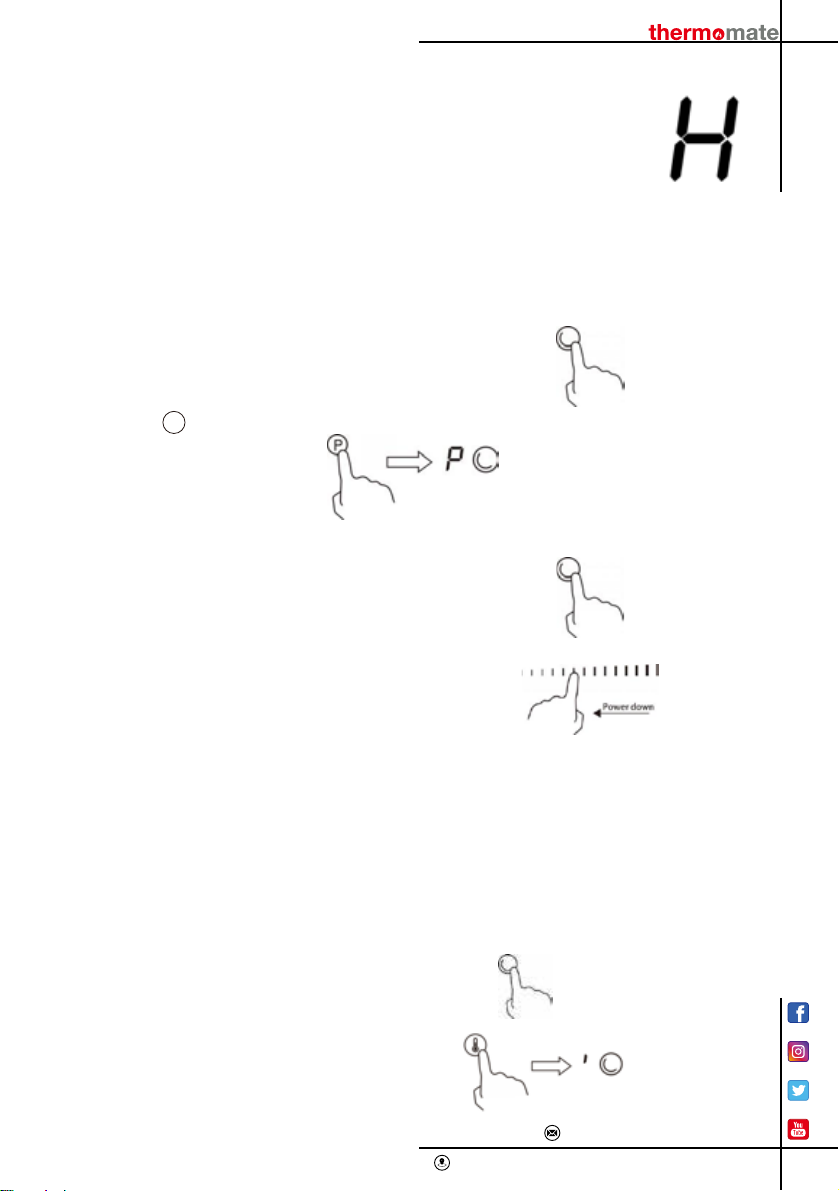

4. Beware of hot surfaces
“H” will show which means the cooking zone is too hot to touch.
It will disappear when the surface has cooled down to a safe
temperature. It can also be used as an energy-saving function if
you want to heat further pans, use the hotplate that is still hot.
Using Boost function
Activate the boost function
1. Select the zone with boost function (front left zone).
2. Touching until power level indication shows “P”.
Cancel Boost function
1. Select the zone with boost function (front left zone).
2. Touching the “slider” to cancel the Boost function,
and select the level you want to set.
• Boost function can only last for 5 minutes, after that the zone will go to
level 9 automatically.
Using the Keep Warm function
Activate the Keep Warm function
1. Select the zone with the keep warm function.
2. Touching the keep warm control, the zone
indication shows “ | ”
P

12
1 [phone]
www.thermomate.com
Live Smart, Better Life!

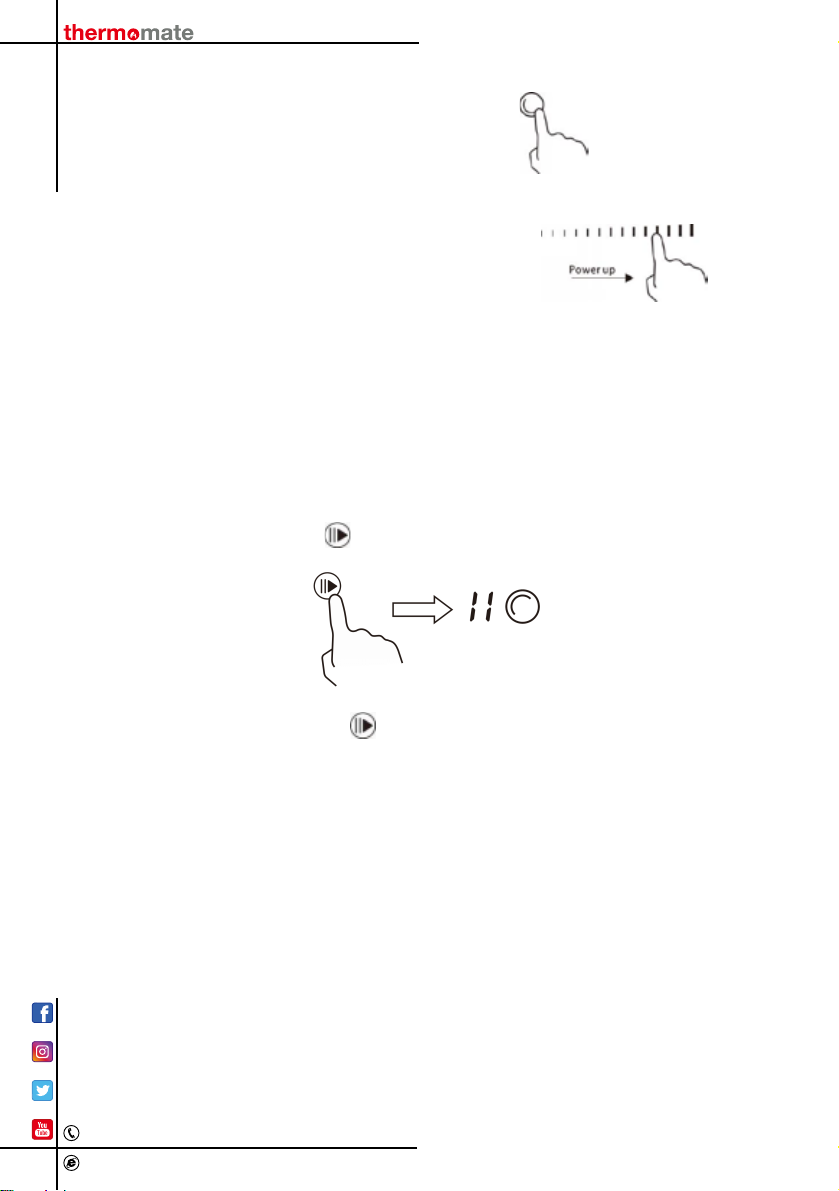

Cancel Keep Warm function
1. Select the zone with the keep warm function.
2. a: Touching “slider” to cancel the keep warm
function, then the cooking zone will revert to
the level you select.
b: Touching the function control such as boost, then the cooking zone will
revert to you select.
Using the Pause function
1. Select the pause control , the heating zones stop working, all the zone
indication show “||”.
2. Touching the pause control one more time, all the heating zones will
revert to its original setting.
• The function is available the one or more heating zones is working.
• If you don`t cancel the stop working mode within 30 minutes, the
induction cooktop will automatically switch off.

13
[email protected]
3330-A Marathon Ct Charleston, SC 29418
Live Smart, Better Life!
Locking The Controls
• You can lock the controls to prevent unintended use(for example children
accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are
disabled.
To lock the controls
Touch the keylock control . The timer indicator will show “Lo”.
To unlock the controls
1. Make sure the cooktop is turned on.
2. Touch and hold the keylock control f or 3 seconds.
3.You can now start using your cooktop.
When the cooktop is in lock mode, all the controls are disabling except
the ON/OFF control , you can always turn the cooktop off with the
ON/OFF control in an emergency, but you shall unlock the cooktop
first in the next operation.
Residual Heat Warning
When the cooktop has been operating for some time, there will be some
residual heat. The letter “H” appears to warn you to keep away from it.
Auto Shutdown Protection
Auto shut down is a safety protection function for your induction cooktop. It
shut down automatically if ever you forget to turn off your cooking. The default
working times for various power levels are shown in the below table:
Default working timer (hour)
Power level
1 23456789
8 88444222

14
1 [phone]
www.thermomate.com
Live Smart, Better Life!
Using The Timer
You can use the timer in two different ways:
• You can use it as a minute minder. In this case, the timer will not turn any
cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer up to 99 minutes.

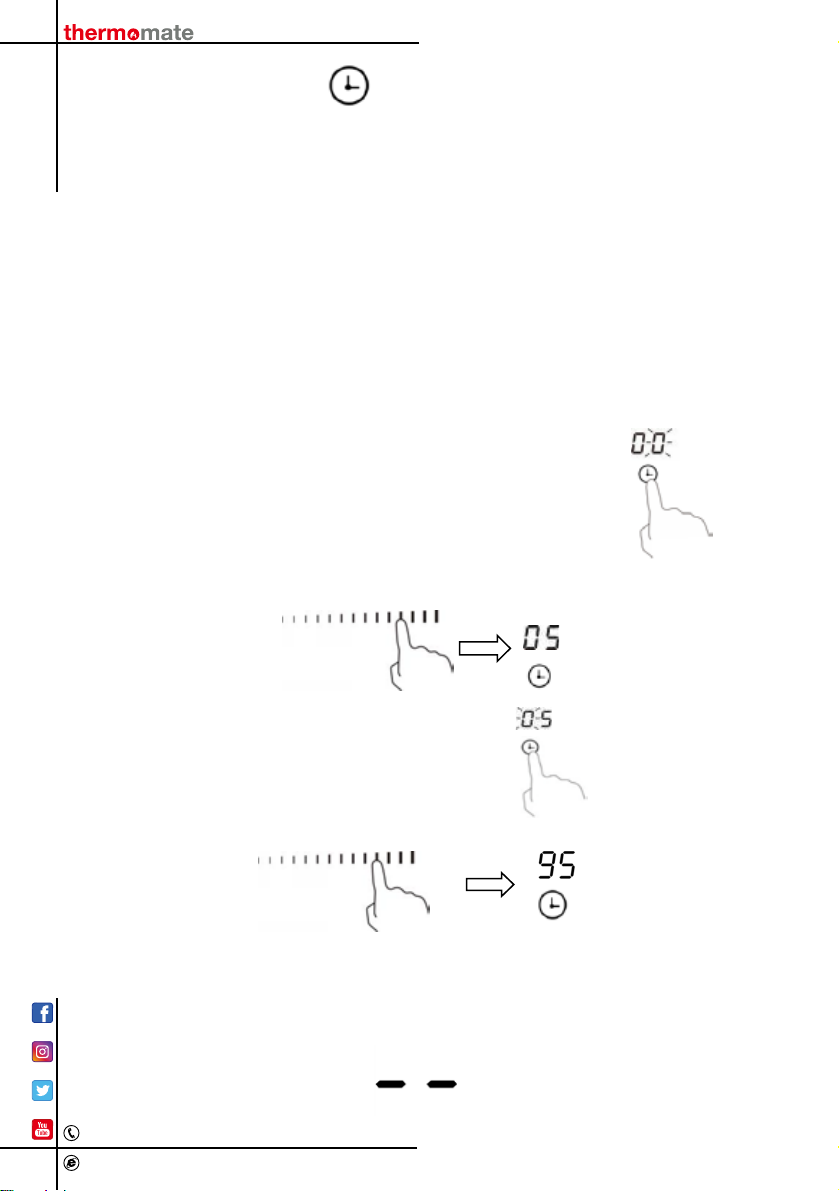

Using The Timer As A Minute Minder
1. Make sure the cooktop is turned on. And zone selection key is not activated
(zone indication ‘-‘is not blinking).
Note: You can set a minute minder before or after cooking zone power
setting finished.
2. Touch timer key, “00” will show in the timer display and “0”
will blink.
3. Set the time by touching the “slider” control of the timer.
4. Touch timer control again, then “0” will flash.
5. Set the time by touching the “slider”, now the timer you set is 95 minutes.
6. When the time is set, it will begin to count down immediately. The display
will show the remaining time.
7. Buzzer will beep for 30 seconds and the timer indicator shows “- - “ when
the setting time finished.

15
[email protected]
3330-A Marathon Ct Charleston, SC 29418
Live Smart, Better Life!

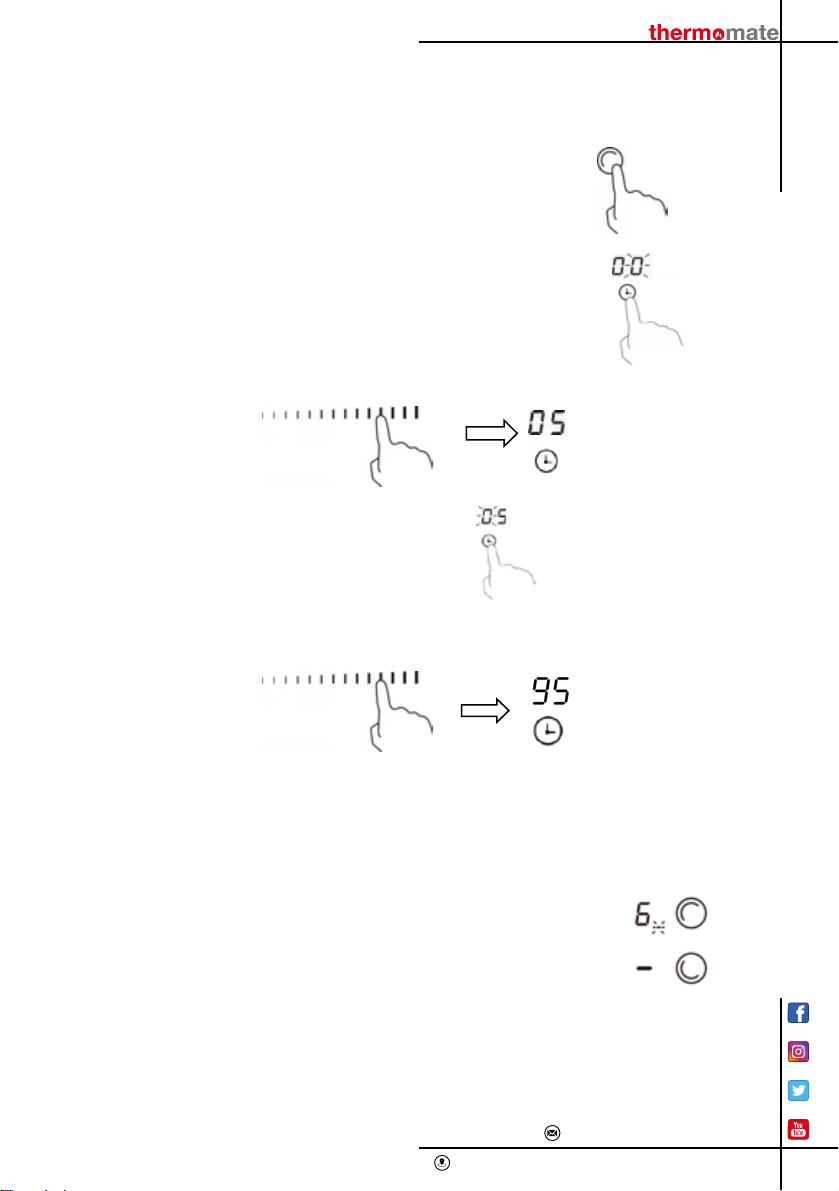

Using The Timer To Switch Off One Or More
Cooking Zones
1. Touching the heating zone selection control that you want
to set the timer for.
2. Touch timer control, the “00” will show in the timer display,
and the “0” flash.
3. Set the time by touching the “slider”.
4. Touch timer control again, the “0” will flash.
5. Set the time by touching the “slider” control, now the timer you set is 95
minutes.
6. When the timer is set, it will begin to count down immediately. The display
will show the remaining time.
Note: There will be a red dot in the right bottom corner of power level
indication which indicating that zone is selected.
7. When the cooking timer expires, the corresponding cooking
zone will be switched off automatically.
Note: Other cooking zones will keep operating if they are turned on previously.

16
1 [phone]
www.thermomate.com
Live Smart, Better Life!

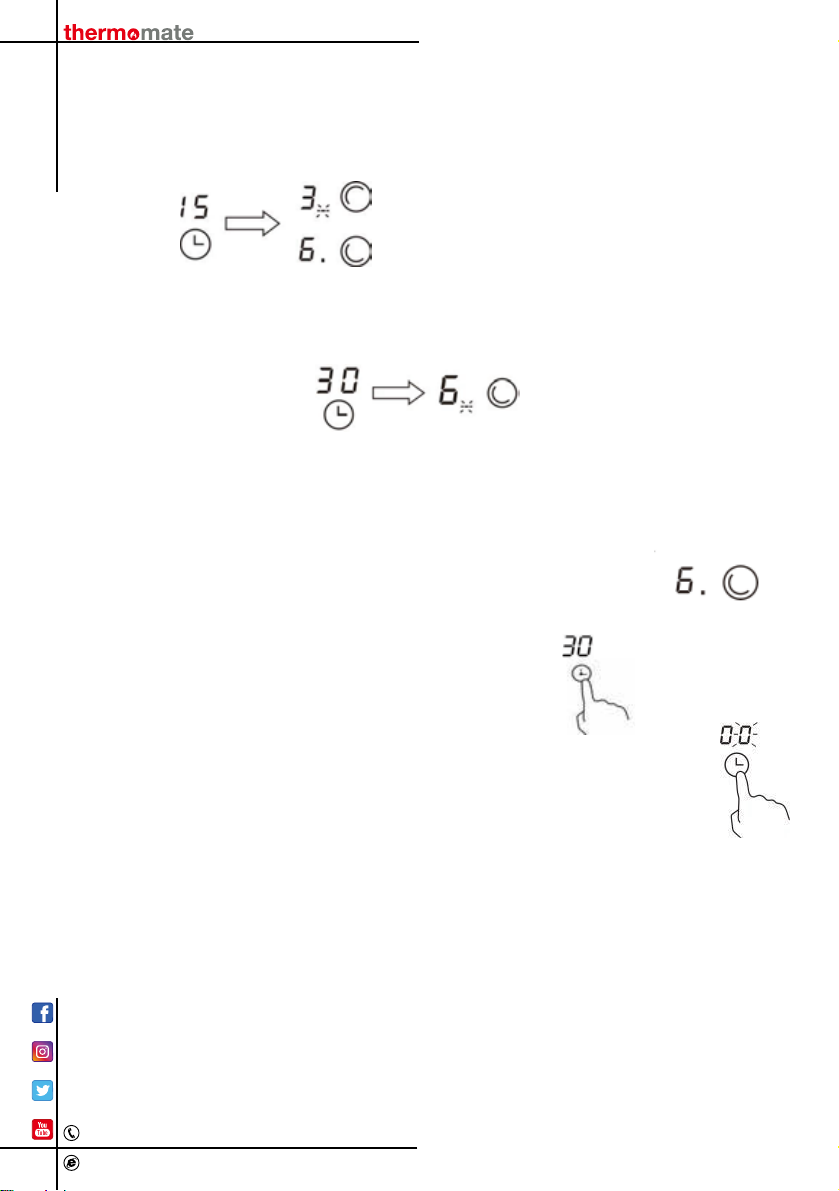

If the timer is set on more than one zone:
1. When you set the timer for several cooking zones, red dots of the relevant
cooking zones are indicated. The timer display shows the min. timer. The
dot of the corresponding zone blinks.
2. Once the countdown timer expires, the corresponding zone will switch off.
Then it will show the new min. timer and the dot of the corresponding zone
will flash.
Note: Touch the heating zone selection control, the corresponding timer will be
shown in the timer indicator.
Cancel the timer
1. Touching the heating zone selection control that you want to
cancel the timer.
2. Touching the timer control, the indicator will flash.
3.Touch the slider control to set the timer to “00”, the timer is canceled.
(set to 15 minutes)
(set to 45 minutes)

17
[email protected]
3330-A Marathon Ct Charleston, SC 29418
Live Smart, Better Life!
Cooking Guidelines
Take care when frying as the oil and fat heat up very quickly,
particularly if you’re using power boost. At extremely high temperature
oil and fat will ignite spontaneously and this presents a serious fire
risk.
Cooking Tips
• When food comes to the boil, reduce the temperature setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has
heated through.
Simmering, cooking rice
• 
bubbles are just rising occasionally to the surface of the cooking liquid. It is
the key to delicious soups and tender stews because the flavor develop
without overcooking the food. You should also cook egg-based and flour
thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a
setting higher than the lowest setting to ensure the food is cooked properly
in the time recommended.
Searing steak
To cook juicy flavor some steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the
hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will
depend on the thickness of the steak and how cooked you want it. Times
may vary from about 2 – 8 minutes per side. Press the steak to gauge how
cooked it is the firmer it feels the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax
and become tender before serving.

18
1 [phone]
www.thermomate.com
Live Smart, Better Life!
Cooking Guidelines
Take care when frying as the oil and fat heat up very quickly,
particularly if you’re using power boost. At extremely high temperature
oil and fat will ignite spontaneously and this presents a serious fire
risk.
Cooking Tips
• When food comes to the boil, reduce the temperature setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has
heated through.
Simmering, cooking rice
• 
bubbles are just rising occasionally to the surface of the cooking liquid. It is
the key to delicious soups and tender stews because the flavor develop
without overcooking the food. You should also cook egg-based and flour
thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a
setting higher than the lowest setting to ensure the food is cooked properly
in the time recommended.
Searing steak
To cook juicy flavor some steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the
hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will
depend on the thickness of the steak and how cooked you want it. Times
may vary from about 2 – 8 minutes per side. Press the steak to gauge how
cooked it is the firmer it feels the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax
and become tender before serving.
For stir-frying
1. Choose an induction compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If
cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking
zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
Heat Settings
The settings below are guidelines only. The exact setting will depend on several
factors, including your cookware and the amount you are cooking. Experiment
with the induction cooktop to find the settings that best suit you.
Heat setting Suitability
• Delicate warming for small amounts of food
• Melting chocolate, butter, and foods that burn quickly
• Gentle simmering
• Slow warming
1 - 2
3-4
5-6
7-8
9
• Reheating
• Rapid simmering
• Cooking rice
• Pancakes
• Sauteing
• Cooking pasta
• Stir-frying
• Searing
• Bringing soup to the boil
• Boiling water
