Thermo Scientific FH100D User manual

FH100D & FH100DX
Dispensing Pump
Systems
Operating Manual
Model Numbers
72-320-200
72-320-250
A-1299-7117 First Edition

FH100D/FH100DX Dispensing Pump Operating Manual vThermo Scientific
Table of Contents
Page
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Application Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
INSTALLATION AND SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Before starting Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Tubing Size Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Inserting Tubing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Tubing Inspection and Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Pump Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Tubing Flow Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Turning On the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

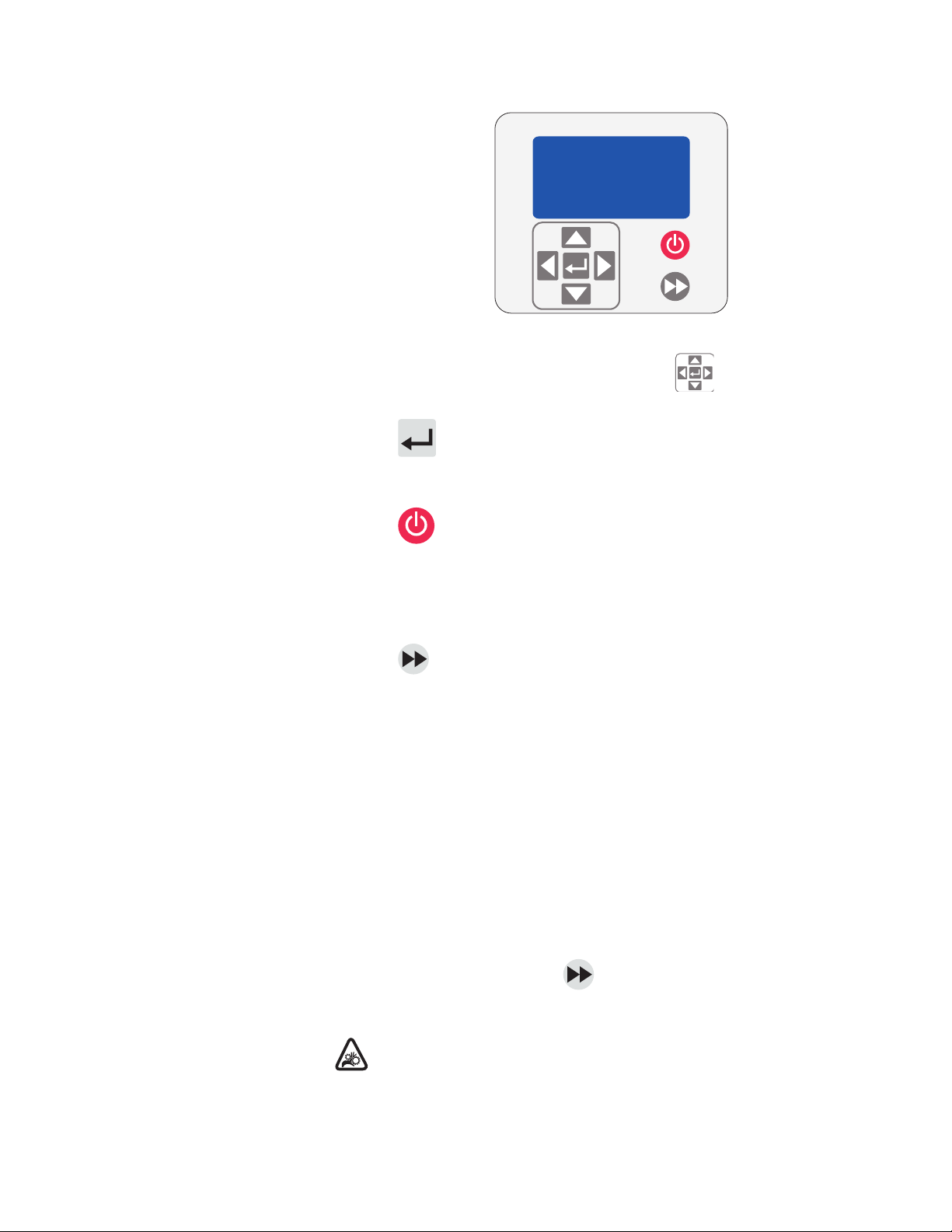

The Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Priming the Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
Tubing Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
Continuous Mode Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7
Continuous Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8
Time Dispense Mode Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9
Time Dispense Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-10
Copy Dispense Mode Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12
Copy Dispense Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13
COPY Setting Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-15
COPY Setting Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-16
Volume Dispense Mode Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-17
Volume Dispense Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-18
Remote Control Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-20
DB-25 Pin Configuration with Wiring Scheme . . . . . . . . . . . . . . . . . . . . . . .3-24
Remote Control Inputs and Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-25
Open Collector Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-26
Door Open Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-26
Section 1
Section 2
Section 3

vi FH100D/FH100DX Dispensing Pump Operating Manual Thermo Scientific
Table of Contents
(continued)
Table of Contents
Page
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Pump Head Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Error Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
REPLACEMENT PARTS and ACCESSORIES . . . . . . . . . . . . . . . . . . . . . .6-1
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Precision Tubing and Precision Tubing Indicator Links . . . . . . . . . . . . . . . . . .6-2
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
WARRANTY, PRODUCT RETURN and TECHNICAL ASSISTANCE . . . .8-1
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Product Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
Technical Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
Section 6
Section 8
Section 7
Section 5
Section 4

Section 1 Introduction
The FH100D and FH100DX are peristaltic Pump Systems that provide
flow rates from 0.5 to 4,000 mL/min, depending upon tubing size.
Advantages of the Peristaltic Pumps:
• Handle abrasive slurries and corrosive fluids with minimal wear. Ideal
for titanium-dioxide or diatomaceous earth filter aid applications.
• No seals in contact with the medium pumped.
• No valves to clog.
• Inner surfaces are smooth and easy to clean.
• Fluid contacts only the tubing or tube material
• Suction lift and priming up to 8m water column at sea level.
• Low shearing for low handling the most shear sensitive of fluids like
latex or fire fighting foam.
• Capable of running dry and pumping fluids with high quantities of
entrained air, such as black liquor soap.
• High volumetric efficiency allows operation in metering or dosing
applications where high accuracy is required.
• Handle extremely viscous fluids.
• Tubing and tube materials are available that are suitable for food and
pharmaceutical use.
Application Solutions
Thermo Scientific FH100D/FH100DX Dispensing Pump Operating Manual 1-1

Thermo Scientific FH100D and FH100DX Dispensing Pump Systems
provide flow rates from 0.5 to 4,000 mL/min depending upon tubing
size.
The FH100D and FH100DX Dispensing Pumps provide a motor speed
repeatability of 0.25 percent to maximize productivity in precision
liquid dosing, batch dispensing and filling applications. A turndown
ratio up to 100:1, bidirectional flow and self-priming capabilities allow
for smooth, seamless operation and an extremely broad flow range
within one tubing size.
In addition to high accuracy, precision, repeatability and resolution of
speed (or flow rate), the FH100D and FH100DX Dispensing Pumps
feature a multi-language, intuitive, man/machine interface with a
graphical LCD display providing direct readout of pump speed (rpm),
flow rate (user-selected units), number of dispenses and menu options.
The easy-to-use keypad eliminates setpoint overshoot and provides easy
navigation through the menu options that include a number of on-screen
programming features.
These low-maintenance drives have diagnostic and control electronics
built into the motor housing for improved reliability, This, combined
with its high turndown, superior accuracy and intuitive interface make the
FH100D and FH100DX Dispensing Pumps ideally suited where
ultraprecise, repeatable flow control is required. The pumps accommodate
a variety of product fill rates, fill volumes and batch dispensing profiles.
Inherent to peristaltic pump technology, only the fluid contacts the
tubing providing for contamination-free pumping.
FH100D and FH100DX Dispensing Pumps are self-priming, can operate
dry without damage, are suitable for most chemicals and contain no
valves or seals. See Tubing Chemical Compatibility Guide within this CD.
General Description
Section 1
Introduction
Thermo Scientific1-2 FH100D/FH100DX Dispensing Pump Operating Manual

Section 2 Installation and Setup
• The drive should be mounted on a flat horizontal surface.
• The ambient air temperature should not exceed 104° F (40° C) and
adequate air flow should be provided for.
• Tubing should be clean and routed so that bend radii are at a
minimum four (4) times the tube diameter and as short as possible.
WARNING: Turn drive off before removing or installing tubing.
Fingers or loose clothing could get caught in drive mechanism.
• Use a tube size of appropriate diameter for the flow rate and
viscosity required.
• To maintain the best accuracy of flow rates, re-calibrate tubing
regularly. See Tubing Calibration Section of this manual.
• For tubing selection and compatibility, see Tubing Selection Guide
within this CD.
DANGERS: Remove power from the pump before any cleaning
operation is started.
High voltages exist and are accessible. Use extreme caution
when servicing internal components.
WARNING: Remove power from the pump before attempting any
maintenance.
Unpack the drive and retain all packing material until proper product
operation has been verified. Select the tubing according to the flow desired,
while considering chemical compatibility and tubing life.
Flow rate is determined by the size of the tubing in the Pump Head. When
precision tubing indicator links are used, best performance will be achieved
when input and output tubing connected to the link are the same ID as
the link.
72-320-200 FH100D Pump Systems accept tubing ID sizes of 1/32 in to
5/16 in (0.8 mm to 8.0 mm) by 1/16 in (1.6 mm) wall.
72-320-250 FH100DX Pump Systems accept tubing ID sizes of 3/16 in to
3/8 in (4.8 mm to 9.5 mm) by 3/32 in (2.4 mm) wall. For thick wall
pumps, the use of precision tubing indicator links is strongly recommended.
Please see the Accessories Section of this manual for part numbers.
For best results, select a tubing size with a mid-range at the desired flow
rate to be pumped.
Before Starting Drive
Thermo Scientific FH100D/FH100DX Dispensing Pump Operating Manual 2-1
Tubing Size Selection

WARNINGS: Tubing breakage may result in fluid being
sprayed from pump. Use appropriate measures to protect
operator and equipment.
Turn Pump System off before removing or installing tubing.
Fingers or loose clothing could be caught in the pump
mechanism.
CAUTION: To avoid electrical shock, the power cord
protective grounding conductor must be connected to ground.
Not for operation in wet locations as defined by EN61010-1.
If the product is not used in a manner specified in the
instructions, the protection provided by the equipment
may be impaired.
The Pump Head has two tubing retainers, which hold tubing in place.
The occlusion bed retracts when you open the pump door and moves
forward when the door is closed.
To load tubing into the Pump Head do the following:
1. Make sure that the power switch is turned OFF.
2. Open the Pump Head door using the side latch.
3. Install any tube fittings, inserts or clamps before loading the tubing.
4. Open the top tubing retainer by using just one finger to open the
retainer, install tubing and release the retainer.

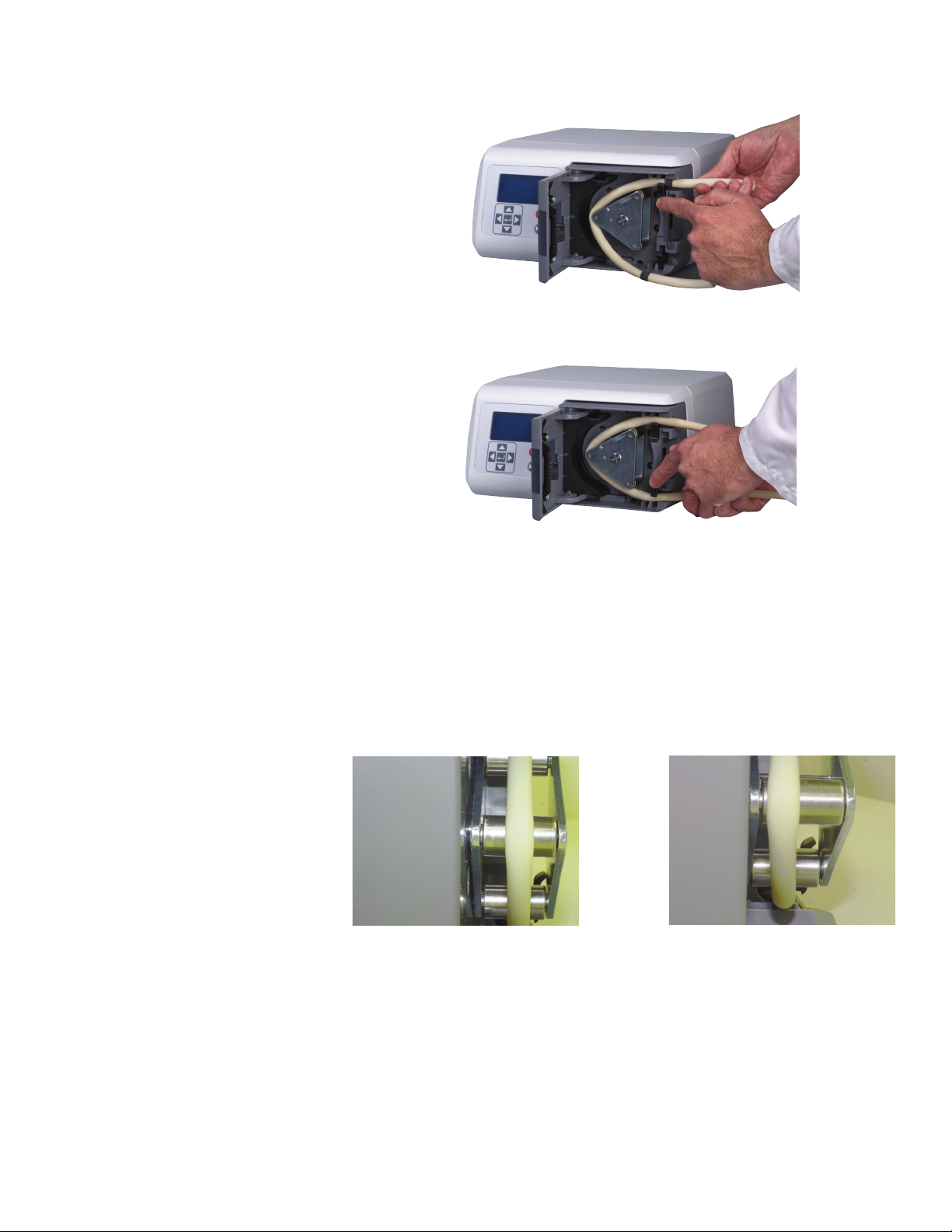

Figure 2-1. Tube Loading Upper Retainer Continuous Tubing
Figure 2-2. Tube Loading Lower Retainer Continuous Tubing
Inserting Tubing
2-2 FH100D/FH100DX Dispensing Pump Operating Manual Thermo Scientific
Section 2
Installation and Setup

Figure 2-3. Tube Loading Upper Retainer with Precision Tubing Indicator Link
Figure 2-4. Tube Loading Lower Retainer with Precision Tubing Indicator Link
5. Install the tubing around the rotor, going with the natural curve or lay
of the tubing and center the tubing on the rollers.
If loading precision tubing indicator links, align retention edge to the
outside edge of the tubing retainer, as shown above in Figures 2-3 and
2-4.
Correct Incorrect – not centered
Figure 2-5. Tubing Location on Roller
6. Open the lower retainer by using just one finger to open the retainer
and insert the tube and release the retainer.
FH100D/FH100DX Dispensing Pump Operating Manual 2-3Thermo Fisher Scientific
Section 2
Installation and Setup
Inserting Tubing
(continued)

7. The tubing should be snug against the rotor, but not tight.
Correct Incorrect – too loose
Figure 2-6. Tube Loading Tension
8. Close the Pump Head door. Verify that the door is securely shut or the
pump will not spin.
Tubing should be inspected periodically and checked for tears, cracks, cut
marks, abrasions, inability to hold pressure, bubbles in the flow stream and
reduction or loss of flow. Tubing life may be extended by periodically
moving the worn tubing inside the occlusion bed of the pump to the
outside of the occlusion bed to the suction side of the pump. This will
avoid excessive tubing wear at any specific point. Always move the worn
tubing to the suction side of the pump.
CAUTION: When changing flow direction, allow the pump to
come to a complete stop before starting again. Failure to do so
could cause permanent damage to the motor.
1. Make sure the speed is set to the minimum setting.
2. Turn the power switch ON. Increase the speed to start the pump
action. The higher the rpm, the faster the speed of the pump.
3. The Pump Systems are self-priming. To begin pumping, select a flow
direction with the flow direction button, insert the intake and output
tubing into a reservoir, and turn the unit ON. Prime the tubing for at
least 5 minutes. If accurate flow control is important, allow the pump
to prime for approximately 20 minutes for more stable flow
conditions.
CAUTION: Some tubing formulation and size combinations may
require break-in at 100 RPM or less to start the pump. This period
is typically 10-20 minutes.
2-4 FH100D/FH100DX Dispensing Pump Operating Manual Thermo Scientific
Section 2
Installation and Setup
Inserting Tubing
(continued)
Tubing Inspection
and Replacement
Pump Controls

FH100D Model Pump: Thin Wall Table
TUBING VOL. CAL FILL FLOW RANGE UNITS
SIZE /REV VOLUME @MIN RPM @MAX RPM
13 0.1 10 0.4 40 mL/min
14 0.38 38 1.5 150 mL/min
16 1.38 138 5.5 550 mL/min
25 3 300 12 1200 mL/min
17 5 500 20 2000 mL/min
18 7.5 750 30 3000 mL/min
0.8 mm 0.1 10 0.4 40 mL/min
1.6 mm 0.38 38 1.5 150 mL/min
3.2 mm 1.38 138 5.5 550 mL/min
4.8 mm 3 300 12 1200 mL/min
6.4 mm 5 500 20 2000 mL/min
CUSTOM * * * * mL/min
RPM N/A N/A 4 400 RPM
FH100DX Model Pump: Thick Wall Table
TUBING VOL. CAL FILL FLOW RANGE UNITS
SIZE /REV VOLUME @MIN RPM @MAX RPM
15 3 300 12 1200 mL/min
24 5 500 20 2000 mL/min
35 7.5 750 30 3000 mL/min
36 10 100 40 4000 mL/min
4.8 mm 3 300 12 1200 mL/min
6.4 mm 5 500 20 2000 mL/min
9.5 mm 10 100 40 4000 mL/min
CUSTOM * * * * mL/min
RPM N/A N/A 4 400 RPM
* Tube Dependent
FH100D/FH100DX Dispensing Pump Operating Manual 2-5Thermo Fisher Scientific
Section 2
Installation and Setup
Tubing Flow Rate

Section 3 Operation
1. Plug the power cord into the IEC Connector, located on the rear of the
drive. Plug the opposite end of the power cord into an electrical outlet.
2. Flip the power switch located on the rear of the drive.
3. Upon turning on the drive for the first time you will be prompted to
select a language. The selected language will be set as the default but
can be changed at any time by selecting “LANGUAGE” on the main
menu.
4. After selecting your language, the Main Menu will now appear on the
LCD screen. (NOTE: Each start-up after the initial will revert to the
mode of operation screen previously in use.)
5. If the language is accidently changed and the user would like to reset it
to the default language (English), press and hold the UP/DOWN
(▲/▼) keys during power up.
6. To restore drive to default settings, press and hold the LEFT/RIGHT
(䊴/䊳) keys during power up.
Turning On the Drive
CAUTION: To avoid electrical shock, the power cord protective
grounding conductor must be connected to ground. Not for
operation in wet locations as defined by EN61010-1.
CAUTION: Power must be turned off before connecting the exter-
nal remote control cable to prevent damage to the drive.
WARNING: Tubing breakage may result in fluid being sprayed
from pump. Use appropriate measures to protect operator and
equipment.
Thermo Scientific FH100D/FH100DX Dispensing Pump Operating Manual 3-1

The Control Panel
Priming the Pump
Section 3
Operation
Thermo Scientific3-2 FH100D/FH100DX Dispensing Pump Operating Manual
Figure 3-1. Control Panel
• To navigate all menus on the drive use the directional pad
directly below the LCD screen.
• The (ENTER) key located in the middle of the directional pad is
used to enter or select a highlighted field or option. This key is often
referred to as the ENTER key in this manual.
• The (START/STOP) key located at the top right of the control
panel is used to start and pause the drive. This key is functional only
when in one of the four operating modes: Continuous, Time Dispense,
Copy Dispense, or Volume Dispense. This key is often referred to as
the START/STOP key in this manual.
• The (PRIME) key located at the bottom right of the control
panel is used to access the prime (fast forward) function. While
pressed, this key operates the drive at the maximum allowed speed/flow
rate and in the direction shown on the display. When released, the
drive returns to its original speed or flow rate.
1. Insert appropriate tubing into Pump Head.
2. Insert tube inlet into supply fluid.
3. Insert supply outlet into desired container.
4. Turn on pump using switch located on the back of the drive.
5. Press and hold the PRIME key on the drive console to prime the
pump. Priming will stop when key is released.
CAUTION: Keep fingers away from rotor while pump is in
operation. Stop pump before loading or unloading tubing.

Main Menu
Section 3
Operation
Thermo Scientific FH100D/FH100DX Dispensing Pump Operating Manual 3-3
CONTINUOUS MODE refer to Continuous Mode in this manual.
TIME DISPENSE MODE refer to Time Dispense Mode in this manual.
COPY DISPENSE MODE refer to Copy Dispense Mode section in this
manual.
VOLUME DISPENSE MODE refer to Volume Dispense Mode section in
this manual.
REMOTE CONTROL MODE refer to Remote Control Mode section in
this manual.
CUMULATIVE VOLUME: The drive stores and displays the cumulative
volume in units based on flow rate units (see SETUP MENU in this
section). The Cumulative Volume can also be reset to zero.
NOTE: The Cumulative Volume is dependent on the Tubing Size selected.
(See SETUP MENU in this section.)
SOUNDS: An audible “beep” can be enabled to indicate a keypad press,
the end of a dispense and/or the end of a batch.
AUTOSTART: By default the drive will not restart when power is applied.
To enable this feature select AUTOSTART and then ON. The drive will
now restart when power is reapplied, if the drive was running when
powered off.
DISPLAY CONTRAST: This display can be adjusted using the
UP/DOWN (▲/▼) arrows after selecting this menu item.
LANGUAGE: After selecting this menu, the user will be able to select one
of seven different languages.
NOTE: If the language is accidentally changed and the user would like to
reset it to the default language (English), press and hold the UP/DOWN
(▲/▼) keys when power is reapplied.
DEFAULT SETTINGS: Selecting this menu item and pressing the
ENTER key will restore default settings. To restore drive to default settings
the user may also press and hold the LEFT/RIGHT (䊴/䊳) keys when
power is reapplied.

Tubing Calibration 1. Insert appropriate tubing into Pump Head.
2. Insert tube inlet into supply fluid.
3. Turn on drive using power switch located on the rear of the drive.
4. For best tubing calibration results, pump should be run for 10 minutes
(with or without fluid) prior to performing remaining calibration steps
at the desired flow rate.
5. Insert tube outlet into desired container. Container should be a
graduated container or a container placed on a scale may be used for
increased accuracy.
If using a scale, an acceptable weight to volume conversion for water
is 1 gram = 1 mL.
6. Go to the Main Menu or Mode Setup Menu by selecting the SETUP
icon and pressing the ENTER key. Use the UP and DOWN keys
to highlight TUBING CAL in the Main or Setup Menu and press the
ENTER key.
7. Set the drive for the desired flow direction, tube size, and flow rate.
Note that these settings are retained and transferred to other mode
screens when entering or leaving the TUBING CAL screen.
• The flow direction is set using the directional keypad to highlight
the directional arrow. Pressing ENTER will toggle arrow between
CW and CCW.
• The tube size is set using the directional keypad to highlight the
tube size field. Press ENTER and use the UP/DOWN keys to
select the tube size. Press ENTER to SAVE the selection and
return to TUBING CAL screen.
• The estimated flow rate is set using the directional keypad to
highlight the flow rate field. Press ENTER and use the
LEFT/RIGHT keys to select the digit to be changed. Use the
UP/DOWN keys to adjust the flow rate value. Press ENTER to
SAVE the setting and EXIT field using arrow keys. The drive will
adjust this flow rate after calibration is complete.
• Note that the calibration volume is fixed and cannot be changed.
Section 3
Operation
Thermo Scientific3-4 FH100D/FH100DX Dispensing Pump Operating Manual

8. Press and hold the prime key on the drive console to prime the
pump. Priming will stop when key is released.
9. Place a measuring container at the pump outlet. Highlight the START
field and press the ENTER key. The drive will run based on the
default volume at the estimated flow rate selected.
10. Upon completion of the calibration run period, the CAL VOLUME
field will be highlighted. Press the ENTER key and adjust the CAL
VOLUME to the measured quantity. Use the LEFT/RIGHT keys to
select digit to be changed, use the UP/DOWN keys to adjust the
value, and press ENTER to SAVE setting and EXIT the field.
A lower case “c” should now be displayed when the calibrated tubing
size is selected. The volume units will depend on the flow rate units.
The flow rate unit mL/min will result in a volume unit of mL; oz/min
will result in a volume unit of oz.
Tubing Calibration Notes
• If the drive is stopped during calibration, empty the container and
re-start the procedure.
• Calibration time at maximum allowable flow rate (default max
flow rate) is 15 seconds and at minimum allowable flow rate
(approximately 6% of the maximum flow rate) is 4 minutes.
Select the CUSTOM tube size for other tubing sizes or lower
flow rates.
• Minimum and maximum flow rates will change after a tubing
calibration due to a re-calculation of the vol/rev.
• Optimum results are best obtained after tubing has been broken in
by running in pump for at least 10 minutes. Steps 7-10 can be
repeated as necessary to optimize the accuracy of the tubing cal.
CAL RUN TIME FORMULA
60 / (flow rate [mL/min] / cal volume [mL]) = cal run time (seconds)
INVALID CAL RUN TIME EXAMPLE
• tube size 13 flow rate range is 0.4 mL/min – 40.0 mL/min
• at flow rate of 1 mL/min, cal run time calculation is as follows:
60 / (1 mL/min / 10 mL) = 600 seconds
600 seconds exceed the max run time of 4 minutes (240 seconds)
NOTE: The minimum pump speed for preforming a tubing calibration is
25 rpm. Flow rate equivalents below 25 rpm will be reset to 25 rpm for
the tubing calibration.
Tubing Calibration
(continued)
Section 3
Operation
Thermo Scientific FH100D/FH100DX Dispensing Pump Operating Manual 3-5

All four operation mode screens contain a SETUP icon in the upper
right hand that gives quick access to the SETUP menu. The exact options
that can be accessed through the SETUP menu will depend on the
operating mode currently in use:
1. Selecting the SETUP Menu: In any of the four operating modes, use
the directional pad and enter key to select the SETUP icon from the
mode operation screen.
2. Navigating the SETUP Menu: Use the directional pad and the
ENTER key to select desired setting.
A breakdown of the setting features common to all modes follows. Other
settings are related to the specific operating mode currently in use and can
be accessed through the mode operation screen as well.
Flow Unit: Select desired flow unit to be displayed.
Tubing Size: Size and Maximum Flow Rate are displayed. Select desired
tubing size.
Flow Rate: Set the flow rate in flow unit listed at the top of the screen.
(NOTE: To change flow unit, see Flow Unit above.) When the entire rate
field is highlighted, press ENTER. The digits can be navigated individually
using the UP/DOWN arrows; switch between digits using the
LEFT/RIGHT arrows. After selecting an optimal flow rate, press ENTER
again to validate.
Tubing Calibration: See Tubing Calibration.
Pump Direction: Select the direction of the pump flow.
Sounds: Select a beep for keypad, end of dispenses, and batches.
Remote Control: See Remote Control.
Keypad Lockout: Allows for the keypad to be locked and unlocked.
Cumulative Volume: View and reset cumulative volume.
Main Menu: Return to the Main Menu.
Exit: Return to the Mode Operation screen.
Setup Menu
Section 3
Operation
Thermo Scientific3-6 FH100D/FH100DX Dispensing Pump Operating Manual

Display Legend: Below is a screenshot of the screen display for the drive in
Continuous Mode. An explanation of the information on the screen follows.
Figure 3-2. Continuous Mode Screen
A. Mode Display: Current operating mode in which the drive will operate.
Pressing ENTER key when highlighted will cycle through the different
operation modes.
B. Setup : Pressing the ENTER key on this icon goes to the Setup
screen. The Setup screen contains most functions that can be accessed
from the Continuous Mode operation screen, including: flow units,
tubing size, flow rate, pump direction, remote control, and keypad
lockout. The Setup screen also provides access to tubing calibration,
sounds, cumulative volume and the Main Menu.
C. Flow Direction: Pressing the ENTER key on this icon toggles between
clockwise and counterclockwise flow direction.
D. Flow Units: Pressing the ENTER key on this icon goes to the Flow Unit
selection screen. NOTE: % and rpm are available in Continuous Mode only.
When switching to Copy Dispense or Volume Dispense Modes % and rpm
units will change to mL/min with values dependent on tubing size selected.
E. Tubing Size: Pressing the ENTER key on this icon goes to the tubing
size selection screen.
F. Current Flow Rate: The center digits show the flow rate of the drive in the
unit of measure selected and shown to the right (see position D, Figure 3-2).
G. Local/Remote or : Pressing the ENTER key on this icon goes to
the Remote Control setup screen. This icon indicates whether your
drive is in local or remote control mode. If the solid rectangle appears
in the center of the figure the drive is set to be operated locally. If the
solid rectangle does not appear in the center of the figure the drive is
set to be operated by remote control.
H. Key Pad Lock : Pressing the ENTER key on this icon goes to the
Keypad Lockout screen. Locking the keypad will prevent someone from
changing the settings on the drive. When locked this icon changes to .
Continuous Mode
Screen
CONTINUOUS MODE
100.00
17
mL/min
A
H
C
D
E
B
GF
or
Section 3
Operation
Thermo Scientific FH100D/FH100DX Dispensing Pump Operating Manual 3-7

Figure 3-3. Continuous Mode Operation
1. Getting Started: From the Main Menu, use the ENTER key to
select Continuous Mode to enter the Continuous Mode Operation
screen.
2. Calibrating Tubing: Before operating the pump, insert desired tubing into
the Pump Head. For more information, see “Tubing Calibration”.
3. Preparing External Supplies: Insert tube inlet into supply fluid. Next,
insert tube outlet into desired container.
4. Starting the Drive: From this operation screen, simply pressing the
START/STOP key will start the drive at the speed/flow rate and
direction shown. In Continuous Mode the drive will operate at the
displayed speed/flow rate and direction continuously.
5. Stopping the Drive: To pause or stop the drive, press the
START/STOP key in the top right hand corner of the console.
6. Changing Speed/Flow Rate: To change the speed/flow rate of the drive,
use the directional pad to highlight the numeric field in the center of the
display and press the ENTER key. This puts you in a position to change
the speed/flow rate of the drive at the farthest digit to the right (tenths,
hundredths, thousandths, etc depending on flow unit). Pressing the UP
arrow on the directional pad will increase the speed/flow rate by one
value and pressing the DOWN arrow will decrease the speed/flow rate by
one value. Use the LEFT/RIGHT arrows on the directional pad to move
between digits and the UP/DOWN arrows to increase or decrease the
value, respectively. Once desired speed/flow rate is selected, press ENTER
key a final time to set the drive to operate at that speed/flow rate.
7. Changing Flow Unit: To change the flow unit of the drive pause the
drive using the START/STOP key. Next, use the directional pad to
select the Flow Units icon and press the ENTER key. Use the
UP/DOWN arrow on the directional pad to select the desired flow
unit and press the ENTER key to choose that unit. The drive will now
operate in that flow unit. Press the START/STOP key to resume
operating the drive.
Continuous Mode
Operation
CONTINUOUS MODE
100
17
mL/min
Section 3
Operation
Thermo Scientific3-8 FH100D/FH100DX Dispensing Pump Operating Manual

Display Legend: Below is a screenshot of the screen display for the drive in
Time Dispense Mode. An explanation of the information on the screen follows.
Figure 3-4. Time Dispense Mode Screen
A. Mode Display: Current operating mode.
B. Setup : The Setup screen can be used to select flow units, tubing size,
flow rate, tubing calibration, sounds, cumulative volume, and Main
Menu. The Setup screen contains some functions that can be accessed
from the Time Dispense Mode operation screen, including: pump
direction, on/off time, batch count, remote control, and keypad lockout.
C. Flow Direction: Pressing the ENTER key on this icon toggles between
clockwise and counterclockwise flow direction.
D. Pump ON Time: When this field is highlighted the drive is ON.
NOTE: The drive will not show 00:00 when switching from ON to
OFF Time.
E. Pump OFF Time: When this field is highlighted the drive is OFF.
F. Batch Count: Displays the number of cycles dispensed in the batch.
G. Local/Remote or : Pressing the ENTER key on this icon goes to
the Remote Control setup screen. This icon indicates whether your
drive is in Local or Remote Control mode. If the solid rectangle
appears in the center of the figure the drive is set to be operated locally.
If the solid rectangle does not appear in the center of the figure the
drive is set to be operated by remote control.
H. Key Pad Lock : Pressing the ENTER key on this icon goes to the
Keypad Lockout screen. Locking the keypad will prevent someone
from changing the settings on the drive. When locked this icon
changes to .
I. Time Display: The center digits show the remaining time of the drive
in the ON or OFF Time highlighted on the right of the display
(position D or E, Figure 3-4).
Time Dispense Mode
Screen
TIME DISP. MODE
00:00:00
OFF
ON
1000/2000
A
I
H
C
D
E
B
F
G
Section 3
Operation
Thermo Scientific FH100D/FH100DX Dispensing Pump Operating Manual 3-9

Figure 3-5. Time Dispense Mode Operation
1. Getting Started: From the Main Menu, use the enter key to select Time
Dispense Mode to enter the Time Dispense Mode Operation screen.
2. Calibrating Tubing: Before operating the pump, insert desired tubing
into the Pump Head. For more information, see “Tubing Calibration”.
3. Choosing Settings: Select desired flow unit, tube size, flow rate, pump
direction, etc. For more information see “SETUP Menu.”
4. Preparing Tubing: Insert tube inlet into supply fluid. Next, insert tube
outlet into desired container.
5. Selecting Flow Rate: Use the directional pad and ENTER key to select
the Setup icon. Use the UP/DOWN arrows on the directional pad to
select Flow Rate. In the Flow Rate selection screen, press the ENTER
key and then use the UP/DOWN arrows on the directional pad to
select a desired flow rate. For faster entry, use the LEFT/RIGHT
arrows on the directional pad to move between digits and the
UP/DOWN arrows to increase or decrease the value, respectively.
Press ENTER one more time to validate the selected flow rate. Use the
directional pad to select EXIT to return to the Time Dispense Mode
Setup Screen. Select EXIT again to return to Time Dispense Mode.
6. Setting ON Time: To set the ON Time, use the directional pad and
ENTER key to select the ON field (see position D, Figure 3-5). Doing
so will highlight the timer in the center of the screen (see position I,
Figure 3-5). Pressing ENTER again, allows the timer to be set using
the UP/DOWN arrows. Switch between digits using the
LEFT/RIGHT arrows. Having selected an optimal ON Time, press
ENTER again to validate. The drive will now run for the time
appearing in the center of the screen.
NOTE: When entering the Time Dispense Mode Screen the ON or OFF
Field will be highlighted (see position D or E, Figure 3-5). The highlighted
field indicates whether the time displayed is for the ON time or OFF
Time.
Time Dispense Mode
Operation
TIME DISP. MODE
00:00:00
OFF
ON
1000/2000
I
D
E
Section 3
Operation
Thermo Scientific3-10 FH100D/FH100DX Dispensing Pump Operating Manual
