1 General notes
This user manual contains important information on the safe operation of the product. Read
and follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this product. If you sell the product to another user, be
sure that they also receive this manual.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
lighting stand
4

Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
CAUTION! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in minor injury if it is not avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
General notes
VST-210
5

2 Safety instructions
This light stand is intended to be used for the stable mounting and height-adjustable posi‐
tioning of spotlights. Use the device only as described in this user manual. Any other use or use
under other operating conditions is considered to be improper and may result in personal
injury or property damage. No liability will be assumed for damages resulting from improper
use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
lighting stand
6

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are properly disposed of and are not in
the reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the product. They could swallow the pieces and choke!
Never let children play unattended with the product.
Safety
Safety instructions
VST-210
7

3 Features
Special features:
nStable follow spot tripod for mobile use
nExtension tube fixed with safety bolt and cotter
nMounting type: 28 mm TV spigot
nMaximum load-bearing capacity: 18 kg
nMinimum height: 1.35 m
nMaximum height: 2.10 m
nMaximum vertical lift: 0.75 m
nWeight: 5.7 kg
Features
lighting stand
8

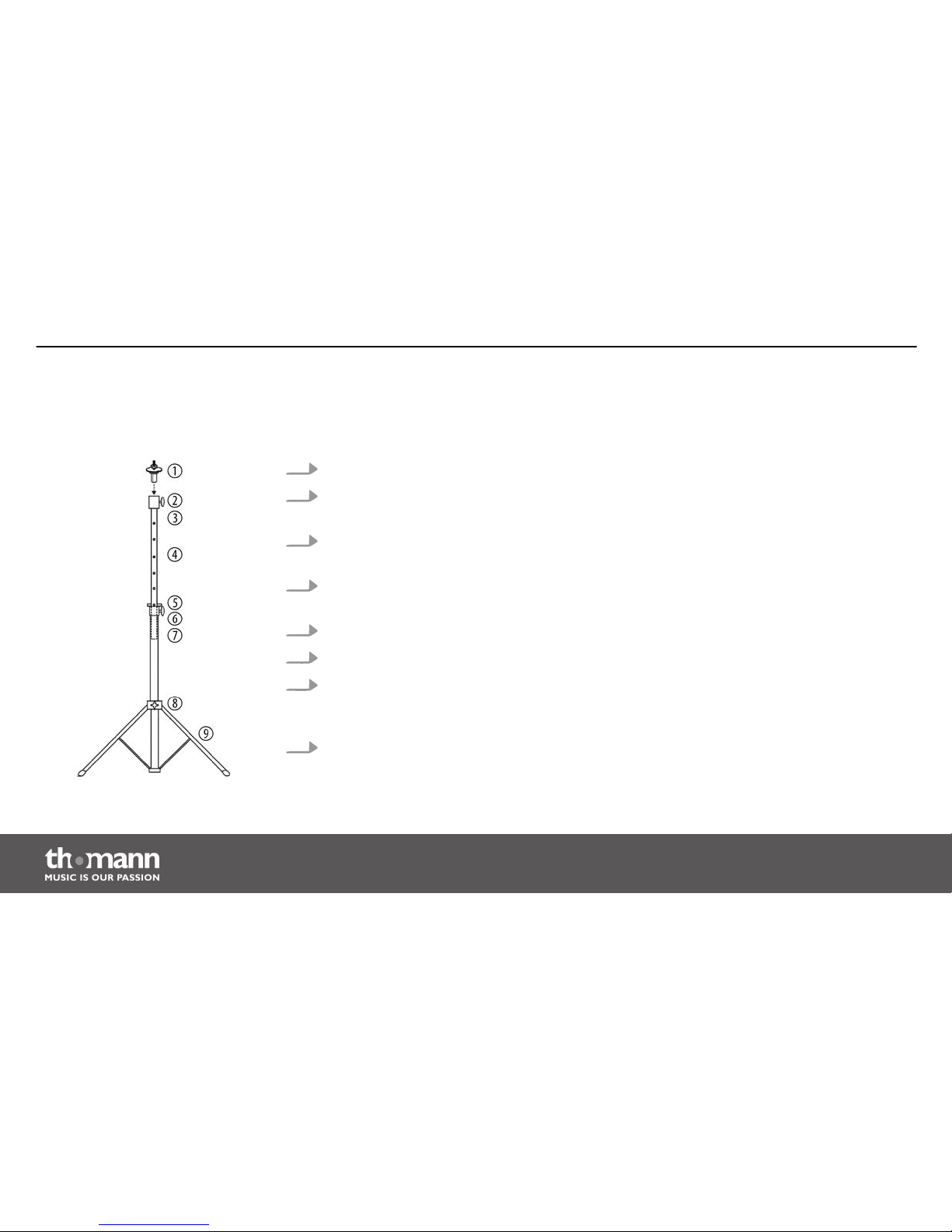

4 Operating elements
1 TV spigot
2 Safety screw on top of the extension tube for TV spigot
3 Extension tube
4 Grid holes
5 Safety bolt
6 Safety screw on the extension tube
7 Tripod tube
8 Safety screw on the carriage
9 Feet
Operating elements
VST-210
9

5 Operating
Unpack and check carefully there is no transportation damage before using the product. Keep
the equipment packaging. To fully protect the product against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
CAUTION!
Danger of tipping on unsuitable surfaces
When the speaker stand is installed on soft or uneven ground, the stand may tip
over and cause injuries and property damage.
Install the stand only on even and solid surfaces.
Operating
lighting stand
10

CAUTION!
Danger of tipping when transported under load
If the stand is moved without having removed the installed device, the stand may
tip over and cause injuries and property damage.
Remove the installed device before transporting the stand.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your parquet, linoleum, laminate or PVC floor and after some
time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad
floor protectors or a carpet.
Operating
VST-210
11

1. Unfold the feet (9) of the tripod until the cross braces are in a horizontal position.
2. Fix this position with the safety screw on the carriage (8) to which the three feet are
attached
3. Put the TV spigot (1) on the upper end of the stand and tighten it with the safety screw
on top of the extension tube (2).
4. Install the follow spot on the TV spigot. Observe the instructions of the respective manu‐
facturer. The maximum load-bearing capacity of 18 kg must not be exceeded.
5. Tighten the safety screw of the spigot.
6. Pull out the safety bolt (5) and loosen the safety screw on the extension tube (6).
7. Pull out the extension tube (3) to the desired height, slide the safety bolt (5) through the
corresponding grid hole (4), let the load handling safety bolt rest on the clamp and slide
the safety cotter through the hole in the safety bolt.
8. Fix the position of the extension tube with the safety screw on the extension tube (6).
Positioning
Operating
lighting stand
12

1. Remove the follow spot.
2. Slide the extension tube (3) all the way down and slide the safety bolt through the
appropriate grid hole (4).
3. Fix the position of the extension tube (3) with the safety screw on the extension tube (6).
4. Loosen the safety screw on the carriage (8), to which the three feet are attached.
5. Fold up the feet (9) of the tripod.
6. Pack all parts of the system in their original package, as possible, and store the package
in a dry place protected against moisture.
Dismounting
Operating
VST-210
13

6 Technical specifications
Minimum height 1.35 m
Maximum height 2.10 m
Minimum vertical lift 0.75 m
Maximum weight-bearing capacity 18 kg
Mounting type TV spigot (28 mm)
Weight 5.7 kg
Colour Black
Technical specifications
lighting stand
14

7 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
