thomann the t.mix 201-USB Play User manual

201-USB Play
mixer
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
29.08.2018, ID: 441273

Table of contents
1 General notes............................................................................................................................ 4
1.1 Further information........................................................................................................ 4
1.2 Notational conventions................................................................................................. 4
1.3 Symbols and signal words........................................................................................... 5
2 Safety instructions................................................................................................................. 6
3 Features....................................................................................................................................... 8
4 Installation................................................................................................................................. 9
5 Connections and controls................................................................................................ 10
6 Technical specications.................................................................................................... 14
7 Plug and connection assignment................................................................................. 15
8 Cleaning.................................................................................................................................... 17
9 Protecting the environment........................................................................................... 18
Table of contents
201-USB Play
3

1 General notes
This manual contains important instructions for the safe operation of the unit. Read
and follow the safety instructions and all other instructions. Keep the manual for
future reference. Make sure that it is available to all those using the device. If you sell
the unit please make sure that the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are
subject to change.
1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and
details on the following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the
topics of interest for you quickly.
Online guides Our online guides provide detailed information on technical
basics and terms.
Personal
consultation
For personal consultation please contact our
technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
Text inputs that are carried out on the device are indicated by typewriter font.
Example: 2323
Letterings
Displays
Text input
General notes
mixer
4

1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words
that are used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates
an immediate dangerous situation that will result in
death or serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates
a possible dangerous situation that can result in mate‐
rial and environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General notes
201-USB Play
5

2 Safety instructions
This device is intended to be used for amplication, mixing and playback of signals
from musical instruments and microphones. Use the device only as described in this
user manual. Any other use or use under other operating conditions is considered to
be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intel‐
lectual abilities and having corresponding knowledge and experience. Other persons
may use this device only if they are supervised or instructed by a person who is
responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and
are not within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the
like) from the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present.
Never remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are
missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord)
with a protective contact plug. Do not modify the mains cable or the
plug. Failure to do so could result in electric shock/death or re. If in
doubt, seek advice from a registered electrician.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any
direct heat source. Keep the device away from naked ames.
Intended use
Safety
Safety instructions
mixer
6

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage,
never expose the device to any liquid or moisture. Avoid direct sunlight,
heavy dirt, and strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet)
matches the voltage rating of the device and that the AC outlet is pro‐
tected by a residual current circuit breaker. Failure to do so could result
in damage to the device and possibly injure the user.
Unplug the device before electrical storms occur and when it is unused
for long periods of time to reduce the risk of electric shock or re.
Safety instructions
201-USB Play
7

3 Features
n2-channel DJ mixer with two USB / SD / Bluetooth players
n1 × microphone input with talk over (1/4" phone jack)
n1 × headphones output (stereo, as 1/4" phone jack)
n2 × master outputs (XLR and RCA sockets) for left and right channel
n1 × stereo monitor output (1/4" phone jack)
n1 × output for recording device (RCA sockets)
n2 × phono / line inputs (RCA sockets)
n1 × booth output (1/4" phone jack)
n1 × USB port for playback
Features
mixer
8

4 Installation
NOTICE!
Danger of short circuit
Switching on phantom power will damage the device if unbalanced XLR
cables are connected.
Only turn on phantom power when exclusively balanced XLR cables are
connected.
Unpack and carefully check that there is no transportation damage before using the
unit. Keep the equipment packaging. To fully protect the device against vibration,
dust and moisture during transportation or storage use the original packaging or
your own packaging material suitable for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality
cables for all connections. Take care when running the cables to prevent tripping
hazards.
Connection options
Installation
201-USB Play
9

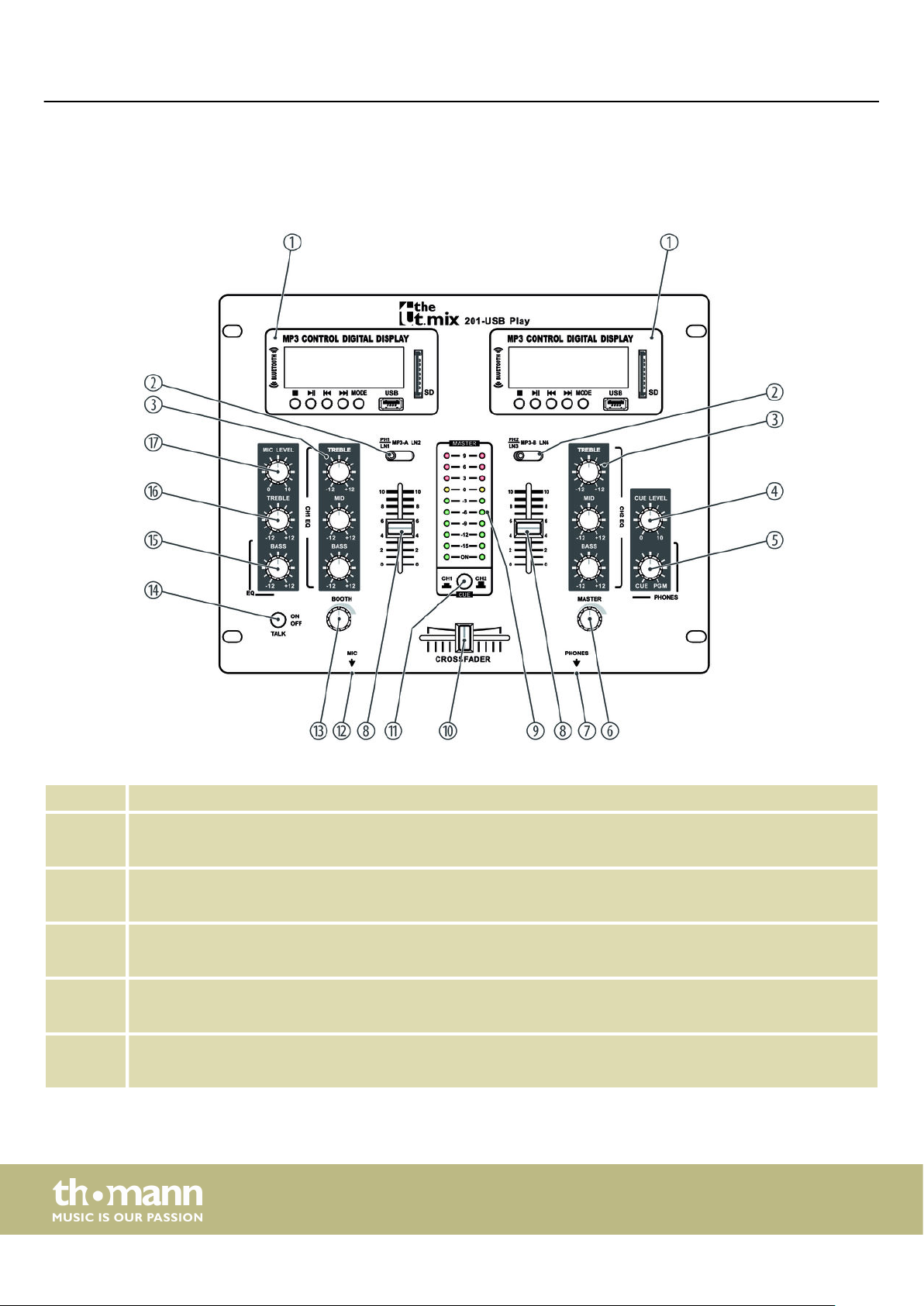

5 Connections and controls
1 MP3 player with left and right channel display
2[PH1/LN1/MP3-A], [PH2/LN3/MP3-B]
Selector switch for selecting the input source for left and right channels
3[CH1 EQ / CH2 EQ]
Rotary control for direct tone control of left and right channel (bass, mids, treble)
4[CUE LEVEL]
Rotary control for adjusting the headphones volume
5[CUE / PGM]
Rotary control to listen to the CUE or the active programme simultaneously or separately
6[MASTER]
Rotary control for adjusting the main out volume
Front panel
Connections and controls
mixer
10

7[PHONES]
Monitor output for headphones, designed as 1/4" phone socket (stereo).
8[CHANNEL FADER]
Slider for adjusting the volume of the left and right channel
9 Level meter shows the volume of the left and right channel.
10 [CROSSFADER]
Slider for mixing the signals of the left and right channel If the controller is in middle position, both channels can
be heard.
11 [CUE]
Selects the channel that can be heard through the headphones.
12 [MIC]
Microphone input, designed as 1/4" phone jack.
13 [BOOTH]
Rotary control to adjust the output level
14 [TALK]
Enables the Talk over function
When the button is pressed in the ON position, all other signal sources are attenuated by 14 dB, so that the micro‐
phone is clearly audible. In OFF position, all signals retain their original level.
15 [BASS]
Rotary control for adjusting the low frequencies of the microphone input.
16 [TREBLE]
Rotary control for adjusting the high frequencies of the microphone input.
17 [MIC LEVEL]
Rotary control for adjusting the volume of the microphone input.
Connections and controls
201-USB Play
11

18 Display
19 [SD]
SD card slot. Before ejecting, pause SD card playback or select another playback source (USB or Bluetooth).
20
Stops playback
21
Starts or pauses playback
22
Selects the previous track for playback
23
Selects the next track for playback
24 [MODE]
Selecting the playback source (USB, SD, Bluetooth). To connect to a Bluetooth device, use the name ‘IBIZA1’ or
‘IBIZA2’ and the password 0000.
25 [USB]
Connection for recording or playback via a USB device. Before ejecting, pause USB stick playback or select another
playback source (SD card or Bluetooth).
Display
Connections and controls
mixer
12

26 [Power]
Main switch. Turns the device on and o.
27 IEC chassis plug for operating voltage supply with fuse holder.
Should the fuse have blown, disconnect the unit from the power supply and replace the fuse with a new fuse of
the same type.
28 [MASTER BALANCED]
Master output for connecting an amplier or active speaker, designed as XLR sockets for left and right channels
29 Grounding screws to reduce hum noise when connecting turntables
30 [BOOTH]
Output for connecting to ampliers or other audio devices, designed as 1/4" phone jacks
31 [MASTER]
Output for connection to an amplier or active speaker, designed as RCA sockets for left and right channels
32 [REC]
Output for connection to a recording device, designed as RCA sockets for left and right channels
33.35 [PHONO / LINE INPUTS]
Inputs for signals with phono or line level, designed as RCA sockets
34.36 [PHONO / LINE INPUTS SWITCH]
Switch for selecting between phono and line level
Rear panel
Connections and controls
201-USB Play
13

6 Technical specications
Inputs Microphone: 3 mV / 2.2 kΩ
Phono: 3.2 mV / 47 kΩ
Line: 150 mV / 47 kΩ
Outputs Main: 0 dB / 1 V, 600 Ω
Booth: 0 dB / 1 V, 600 Ω
Rec: –5 dB / 0.5 V, 600 Ω
Phone: 300 mW / 16…32 Ω
Tone control (bass, mids, treble) –12 dB…+12 dB
Frequency range 20 Hz…20 kHz, ±2 dB
Signal-to-noise ratio > 104 dB
THD < 0.02 %
Operating supply voltage 230 V 50 Hz
Fuse 5 mm × 20 mm, 0,5 A, 250 V, slow-blow
Dimensions (W × H × D) 310 mm × 115 mm × 235 mm
Weight 2.75 kg
Technical specications
mixer
14

7 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable
equipment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated:
Even if a plug ts into the socket, an incorrect connection may result in a destroyed
power amp, a short circuit or ‘just’ in poor transmission quality!
Unbalanced transmission is mainly used in semi-professional environment and in hi
use. Instrument cables with two conductors (one core plus shielding) are typical rep‐
resentatives of the unbalanced transmission. One conductor is ground and shielding
while the signal is transmitted through the core.
Unbalanced transmission is susceptible to electromagnetic interference, especially at
low levels, such as microphone signals and when using long cables.
In a professional environment, therefore, the balanced transmission is preferred,
because this enables an undisturbed transmission of signals over long distances. In
addition to the conductors ‘Ground’ and ‘Signal’, in a balanced transmission a second
core is added. This also transfers the signal, but phase-shifted by 180°.
Since the interference aects both cores equally, by subtracting the phase-shifted
signals, the interfering signal is completely neutralized. The result is a pure signal
without any noise interference.
1 Signal
2 Ground, shielding
1 Signal (in phase, +)
2 Signal (out of phase, –)
3 Ground
Introduction
Balanced and unbalanced transmis‐
sion
1/4" TS phone plug (mono, unbal‐
anced)
1/4" TRS phone plug (mono, bal‐
anced)
Plug and connection assignment
201-USB Play
15

1 Ground, shielding
2 Signal (in phase, +)
3 Signal (out of phase, –)
4 Shielding on plug housing (option)
Drawing and table indicate the pin assignment of an RCA plug.
1 Signal
2 Ground, shielding
XLR plug (balanced)
RCA connection
Plug and connection assignment
mixer
16

8 Cleaning
The fan grids of the device must be cleaned on a regular basis to remove dust and
dirt. Before cleaning, switch o the device and disconnect AC-powered devices from
the mains. Use a lint-free damp cloth for cleaning. Never use solvents or alcohol for
cleaning.
Fan grids
Cleaning
201-USB Play
17

9 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have
been chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make
sure that they are collected for recycling. Please follow the notes and markings on
the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment
Directive (WEEE) in its currently valid version. Do not dispose with your normal
household waste.
Dispose of this device through an approved waste disposal rm or through your local
waste facility. When discarding the device, comply with the rules and regulations
that apply in your country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging material
Disposal of your old device
Protecting the environment
mixer
18

Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
